2AL6KBL-AC360011AC Dual Band Gigabit Wireless Router

or Set the wireless name and password, and then click "Next Step" After the countdown, reconnect the wireless (when connecting, enter Wi Fi password shown on this page) 192.168.16.1 Login Forgot password? Please enter the login password Open the browser and enter192.168.16.1 See the sticker on the back of the router for the login password 2.4G WiFi 5.8G WiFi WiFi Name WiFi Password wireless-325C WiFi Name WiFi Password wireless-325C-5G If "Broadband dialing" is detected automatically, please enter the operator provided broadband account and password, then click"Next Step" If "dynamic acquisition" is detected automatically, click "Next Step"directly Two access methods commonly used in home network: Previous Next Step Previous Next Step Previous Next Step Congratulations, you are online! QuickSetup QuickSetup QuickSetupQuickSetup After testing, the recommended connection method is: After testing, the recommended connection method is: DHCP Please wait 34 seconds reconnect wireless later Your current WAN port is plugged into a networkcable You have successfully connected to the internet More Settings Account Password Please enter the broadband account Please enter the broadband password Connect the phone (or computer) to the router's "wireless-XXXX" and then set it up as following steps: (XXXX represents the last 4 digits of the MAC address, or see the sticker on the back of the router to obtain the wireless network name) Step 2Internet settings Optical modem or ADSL Modem Provided by the operator Wall Interface Reset Press and hold for 10-15 seconds to restore factory settings (Independent button: small hole) Power connection OR LAN1WANLAN2 WPS button (bulgy button) WAN WAN Port Network interface 1 * This picture is for reference only, the specific interfaces and buttons are subject to the actual object Installation Guide Version：V1.0 Step 1Hardware ConnectionsLed lights function description Designed by 尺寸：160*125mm，公差：±3mm 材质：80g书写纸+正反面单色印刷 备注：不需要折叠 料号： 描述： 日期：2022.11.11 Interfaces/buttons description Interface POWERPower port WAN (Network input port)Can be connected to optical modem or community broadband connection LAN (Network output port)Can be connected to computers, set-top boxes and other wired devices Double reset button WPS (key)Press for 2-3 seconds to trigger WPS RESET (small hole)Press and hold for 10-15 seconds to restore factory settings Single reset button WPS/RST buttonShort press 1 to 2 seconds for WPS connection, long press 10 to 15 to restore factory Settings Note: "WPS/RST" are small holes for some models System light (single light and two-colors) Red light steady onPowered on Red light offSystem is starting Red light flashesWithout network Blue or green light is steady on Network connected Panel light status (multiple lights) Power lightSteady on: powered on WiFi light Light off: the system is starting Light flashing: data transmission is available (it is always on when there is no data) WAN/LAN light Light on: Network cable is connectedLight off: Network cable is not connected Light flashing: data transmission is available Note: 5G WiFi is steady on for some models Network Led light Light steady on or flashesNetwork cable connected Light offNetwork cable not connected 2.4G 5.8G Wi-Fi Name：wireless-325C Wi-Fi Name：wireless-325C-5G Wi-Fi Password：12345678 Wi-Fi Password：12345678 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AL6KBL-AC3600 BL-AC3600 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are:  the Operational Description  the Block Diagram  the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-03-31 Printed Name of Signee: Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax: +86 0755-24665666 Email: [email protected]

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-03-31 Printed Name of Signee: Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax: +86 0755-24665666 Email: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AL6KBL-AC3600 BL-AC3600 We, applicant Company Name: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-03-31 Printed Name of Signee: Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax: +86 0755-24665666 Email: [email protected]

Page 1 of 1 Rev.2.0 Shenzhen Bilian Electronic Co.,Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AL6KBL-AC3600 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Hanbing Deng / Manager Signature: Phone: +86 18118768735 Email: [email protected] Date: 2023-03-31

FCC ID: 2AL6KBL-AC3600 Fig. 1 Fig. 2 2.4GWLAN Antenna 0 5GWLAN Antenna 3 5GWLAN Antenna 2 2.4GWLAN Antenna 1 FCC ID: 2AL6KBL-AC3600 Fig. 3 Fig. 4 FCC ID: 2AL6KBL-AC3600 Fig. 5 Fig. 6 FCC ID: 2AL6KBL-AC3600 Fig. 7 Fig. 8

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L4.96cm x4.96cm) Label Location

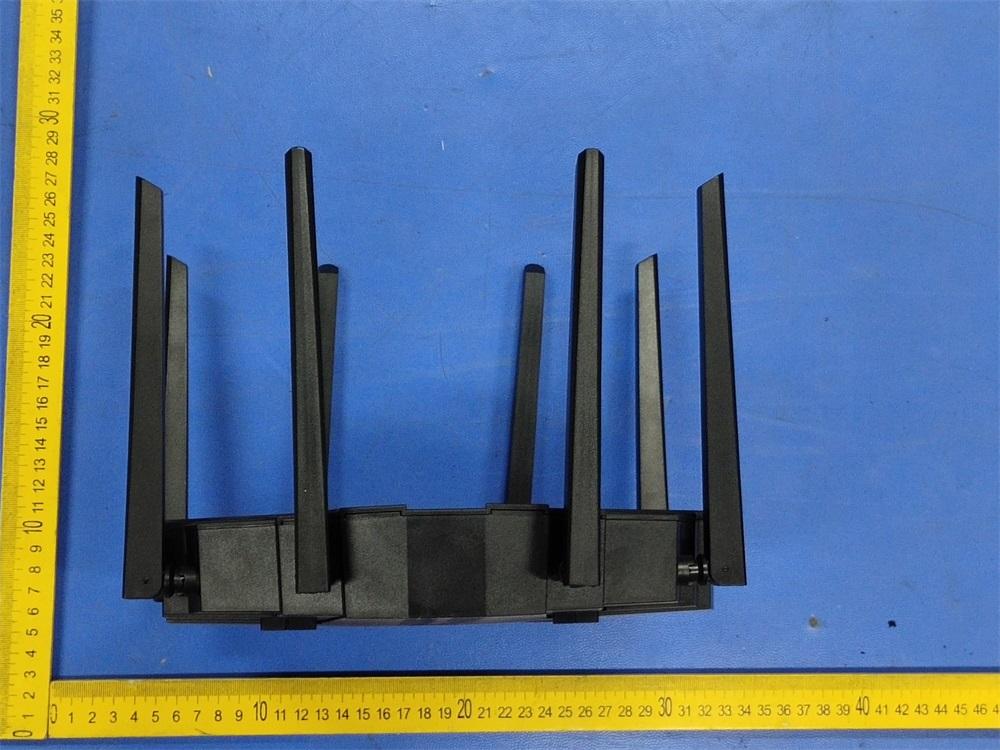

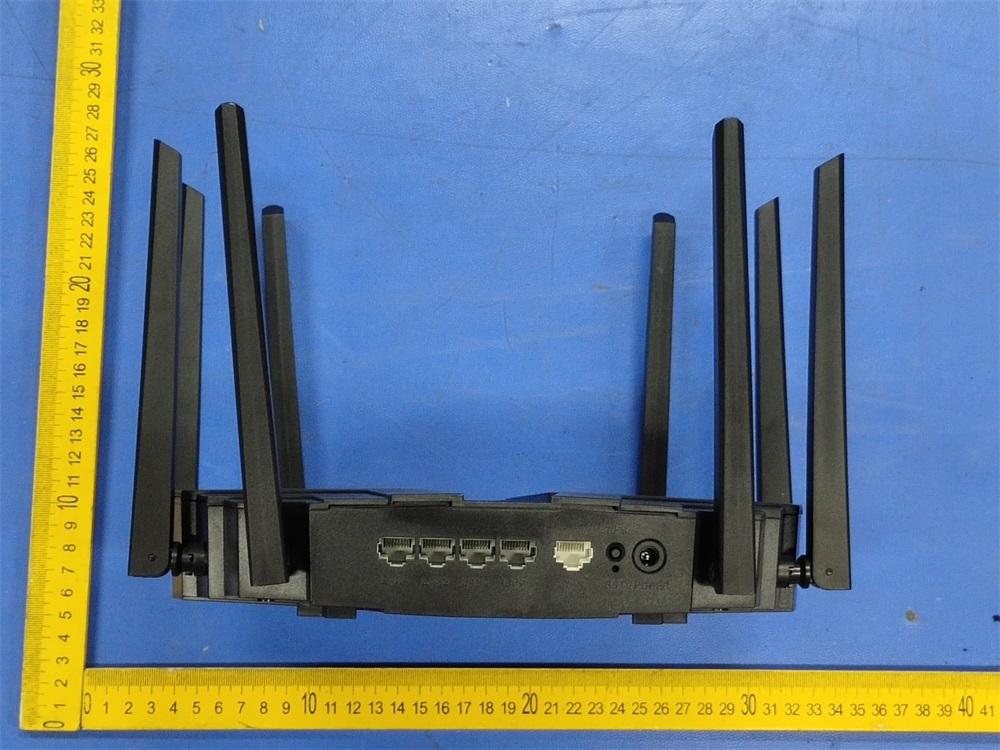

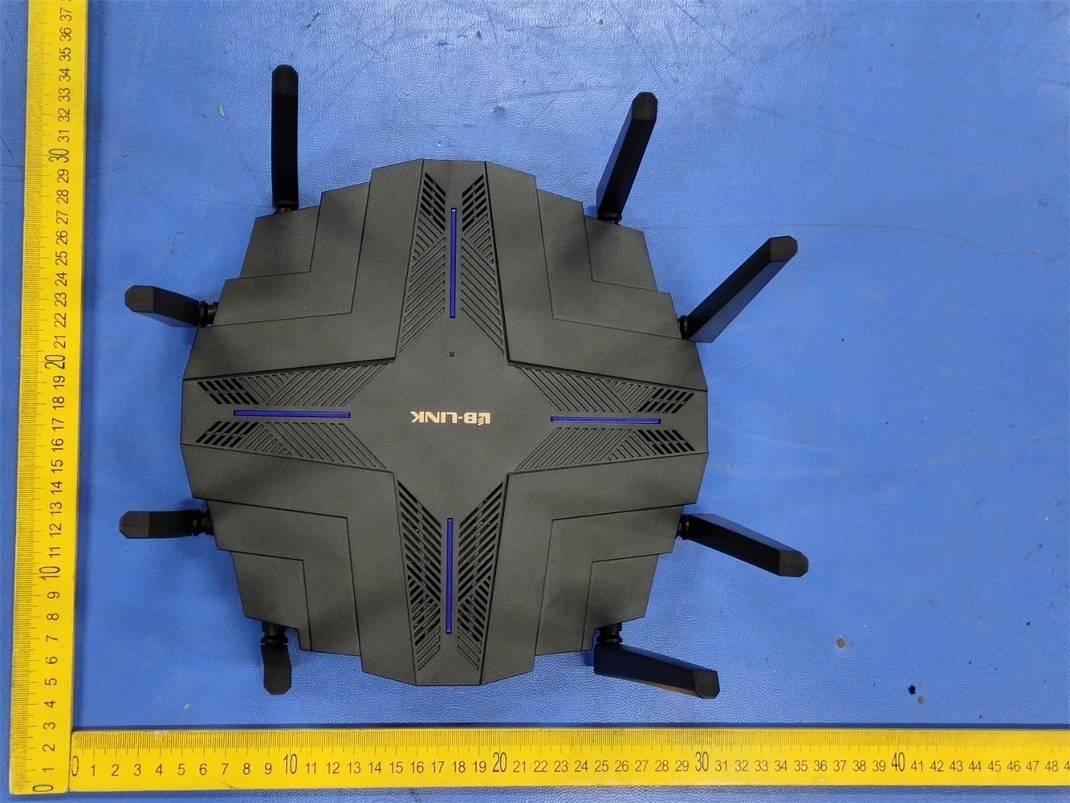

FCC ID: 2AL6KBL-AC3600 Fig. 1 Fig. 2 FCC ID: 2AL6KBL-AC3600 Fig. 3 Fig. 4 FCC ID: 2AL6KBL-AC3600 Fig. 5 Fig. 6 FCC ID: 2AL6KBL-AC3600 Fig. 7 Fig. 8 FCC ID: 2AL6KBL-AC3600 Fig. 9

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20221227001-1-3 2AL6KBL-AC3600 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar. 17, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 11AC Dual Band Gigabit Wireless Router Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-AC3600 Listed Models .................................. : N/A Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 12.0V/1.0A by Adapter Result ............................................... : PASS Report No.: GTS20221227001-1-3 Page 2 of 18 T E S T R E P O R T Test Report No. : GTS20221227001-1-3 Mar. 17, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : 11AC Dual Band Gigabit Wireless Router Model /Type : BL-AC3600 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221227001-1-3 Page 3 of 18 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 5 2.2 TEST FACILITY ............................................................................................................................................... 5 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. METHOD OF MEASUREMENT ................................................................................................................... 6 3.1 APPLICABLE STANDARD ................................................................................................................................. 6 3.2 REQUIREMENT .............................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ......................................................................................................................... 7 3.5 ANTENNA INFORMATION ................................................................................................................................. 7 4. CONDUCTED POWER RESULTS ..................................................................................…

Text truncated - open the document above for the full version.

supplierVer1.2 1 1 PartsApprovalSheet Supplier ： DongguanKexunElectronicsCo.,Ltd PartsName ： 2.4Gantenna1.37-long-90 Type/Spec ： PartsNo. ： 10030043 Brand ： Quantity ： 10pcs SendoutDate ： 2022.10.19DocumentNo. ： ApproveDate ： Version ： SupplierCustomer ApprovedByPreparedByEngineeringDept.QualityDept. 梁兴王利 DongguanKexunElectronicsCo.,Ltd supplierVer1.2 2 2 SpecificationContents Electricalparameters―――――――――――――3 Mechanicalparameters―――――――――――――3 Useandstoragetemperature―――――――――――3 Testequipment――――――――――――――――4 Structuraldimensiondrawing ―――――――――――5 Reliabilityexperiment―――――――――――6 Precautionsforuse:Environmentalrequirementsforuse ――――6 testdata――――――――――――――――――7-9 supplierVer1.2 3 3 一、 Electricalparameters FrequencyRange 2.4-2.5GHz Impedance50Ω VSWR≤2:1 Peak Gain(dBi) 5.0dB Powercapacity2W PolarizationLinearhorizontal RadiationOmni-directional 二、Mechanicalparameters See line length90 ±5mm concentriccable1.37 三、工作/储存温度 OperatingTemp-3 0°C～65 °C StorageTemp-3 0°C～75 °C supplierVer1.2 4 4 四、 Testequipment: SATIMO24SG supplierVer1.2 5 5 五、 Structuraldimensiondrawing supplierVer1.2 6 6 六、 Precautionsforuse ： NO 七、 testdata 1、ReturnLossandStandingWaveRatio(2GHz) 2、BenefitsandBenefits Frequency X-ZplaneY-ZplaneX-Yplane E-totalEfficiency Phi=0Phi=90theta=90 (MHz) Peak Gain Averag eGain Peak Gain Averag eGain Peak Gain Averag eGain (dBi)(%) supplierVer1.2 7 7 24003.11-2 .543.40-5 .052.622.454.4368% 24503.20-2.213.13-5.192.702.364.6275% 25003.32-2.913.30-4.882.632.564.9872% 3. Directionalpattern x-z plane supplierVer1.2 8 8 y-zplane x-yplane

FCCID: 2AL6KBL-AC3600 1 Case No. : GTS20221227001-1-1 Ambient Condition: 23 °C, 50 %RH, Atmos100.1Kpa, Test Date: 2023.3.10 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant0 2412 9.600 2406.960 2416.560 0.5 PASS 2437 10.000 2432.000 2442.000 0.5 PASS 2462 10.000 2457.000 2467.000 0.5 PASS 11G Ant0 2412 12.160 2405.480 2417.640 0.5 PASS 2437 16.240 2428.880 2445.120 0.5 PASS 2462 15.000 2454.480 2469.480 0.5 PASS 11N20SISO Ant0 2412 15.080 2404.480 2419.560 0.5 PASS 2437 15.120 2429.440 2444.560 0.5 PASS 2462 14.960 2454.520 2469.480 0.5 PASS 11N40SISO Ant0 2422 30.000 2404.480 2434.480 0.5 PASS 2437 34.960 2419.480 2454.440 0.5 PASS 2452 33.760 2435.680 2469.440 0.5 PASS FCCID: 2AL6KBL-AC3600 2 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 FCCID: 2AL6KBL-AC3600 3 11G_Ant0_2412 11G_Ant0_2437 FCCID: 2AL6KBL-AC3600 4 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 FCCID: 2AL6KBL-AC3600 5 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 FCCID: 2AL6KBL-AC3600 6 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 FCCID: 2AL6KBL-AC3600 7 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant0 2412 14.320 2404.771 2419.091 --- --- 2437 14.437 2429.791 2444.228 --- --- 2462 14.293 2454.827 2469.120 --- --- 11G Ant0 2412 16.684 2403.618 2420.302 --- --- 2437 16.838 2428.522 2445.360 --- --- 2462 16.759 2453.594 2470.353 --- --- 11N20SISO Ant0 2412 17.661 2403.147 2420.808 --- --- 2437 17.800 2428.109 2445.909 --- --- 2462 17.720 2453.110 2470.830 --- --- 11N40SISO Ant0 2422 35.951 2403.955 2439.906 --- --- 2437 36.008 2418.994 2455.002 --- --- 2452 35.873 2434.092 2469.965 --- --- FCCID: 2AL6KBL-AC3600 8 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 FCCID: 2AL6KBL-AC3600 9 11G_Ant0_2412 11G_Ant0_2437 FCCID: 2AL6KBL-AC3600 10 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 FCCID: 2AL6KBL-AC3600 11 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 FCCID: 2AL6KBL-AC3600 12 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 FCCID: 2AL6KBL-AC3600 13 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MH z] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant0 2412 18.47 ≤30.00 PASS 2437 17.02 ≤30.00 PASS 2462 17.86 ≤30.00 PASS 11G Ant0 2412 19.07 ≤30.00 PASS 2437 19.03 ≤30.00 PASS 2462 19.82 ≤30.00 PASS 11N20SISO Ant0 2412 20.13 ≤30.00 PASS 2437 19.95 ≤30.00 PASS 2462 20.79 ≤30.00 PASS 11N40SISO Ant0 2422 20.96 ≤30.00 PASS 2437 19.11 ≤30.00 PASS 2452 19.39 ≤30.00 PASS FCCID: 2AL6KBL-AC3600 14 Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant0 2412 1.46 ≤8.00 PASS 2437 -2.22 ≤8.00 PASS 2462 0.54 ≤8.00 PASS 11G Ant0 2412 -14.17 ≤8.00 PASS 2437 -14.04 ≤8.00 PASS 2462 -13.25 ≤8.00 PASS 11N20SISO Ant0 2412 -13.77 ≤8.00 PASS 2437 -13.23 ≤8.00 PASS 2462 -11.71 ≤8.00 PASS 11N40SISO Ant0 2422 -14.31 ≤8.00 PASS 2437 -17.37 ≤8.00 PASS 2452 -16.06 ≤8.00 PASS FCCID: 2AL6KBL-AC3600 15 Test Graphs 11B_Ant0_2412 11B_Ant0_2437 11B_Ant0_2462 FCCID: 2AL6KBL-AC3600 16 11G_Ant0_2412 11G_Ant0_2437 FCCID: 2AL6KBL-AC3600 17 11G_Ant0_2462 11N20SISO_Ant0_2412 11N20SISO_Ant0_2437 FCCID: 2AL6KBL-AC3600 18 11N20SISO_Ant0_2462 11N40SISO_Ant0_2422 FCCID: 2AL6KBL-AC3600 19 11N40SISO_Ant0_2437 11N40SISO_Ant0_2452 FCCID: 2AL6KBL-AC3600 20 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant0 Low 2412 4.83 -38.28 ≤-15.17 PASS High 2462 3.35 -48.54 ≤-16.65 PASS 11G Ant0 Low 2412 2.22 -34.41 ≤-17.78 PASS High 2462 2.35 -47.58 ≤-17.65 PASS 11N20SISO Ant0 Low 2412 2.99 -32.98 ≤-17.01 PASS High 2462 3.49 -44.23 ≤-16.51 PASS 11N40SISO Ant0 Low 2422 1.03 -33.3 ≤-18.97 PASS High 2452 -0.25 -41.59 ≤-20.25 PASS FCCID: 2AL6KBL-AC3600 21 Test Graphs 11B_Ant0_Low_2412 11B_Ant0_High_2462 11G_Ant0_Low_2412 FCCID: 2AL6KBL-AC3600 22 11G_Ant0_High_2462 11N20SISO_Ant0_Low_2412 FCCID: 2AL6KBL-AC3600 23 11N20SISO_Ant0_High_2462 11N40SISO_Ant0_Low_2422 11N40SISO_Ant0_High_2452 FCCID: 2AL6KBL-AC3600 24 FCCID: 2AL6KBL-AC3600 25 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant0 2412 Reference 4.48 4.48 --- PASS 30~1000 4.48 -59.58 ≤-15.52 PASS 1000~26500 4.48 -47.93 ≤-15.52 PASS 2437 Reference 2.00 2.00 --- PASS 30~1000 2.00 -59.41 ≤-18 PASS 1000~26500 2.00 -47.16 ≤-18 PASS 2462 Reference 2.01 2.01 --- PASS 30~1000 2.01 -59.93 ≤-17.99 PASS 1000~26500 2.01 -47 ≤-17.99 PASS 11G Ant0 2412 Reference -1.88 -1.88 --- PASS 30~1000 -1.88 -55.77 ≤-21.88 PASS 1000~26500 -1.88 -47.98 ≤-21.88 PASS 2437 Reference 0.58 0.58 --- PASS 30~1000 0.58 -54.87 ≤-19.42 PASS 1000~26500 0.58 -47.21 ≤-19.42 PASS 2462 Reference 2.68 2.68 --- PASS 30~1000 2.68 -55.06 ≤-17.32 PASS 1000~26500 2.68 -47.82 ≤-17.32 PASS 11N20SISO Ant0 2412 Reference -0.53 -0.53 --- PASS 30~1000 -0.53 -55.24 ≤-20.53 PASS 1000~26500 -0.53 -47.41 ≤-20.53 PASS 2437 Reference -0.91 -0.91 --- PASS 30~1000 -0.91 -46.09 ≤-20.91 PASS 1000~26500 -0.91 -47.42 ≤-20.91 PASS 2462 Reference -0.02 -0.02 --- PASS 30~1000 -0.02 -54.16 ≤-20.02 PASS 1000~26500 -0.02 -47.44 ≤-20.02 PASS 11N40SISO Ant0 2422 Reference 0.79 0.79 --- PASS 30~1000 0.79 -53.6 ≤-19.21 PASS 1000~26500 0.79 -47.17 ≤-19.21 PASS 2437 Reference -0.99 -0.99 --- PASS 30~1000 -0.99 -53.59 ≤-20.99 PASS 1000~26500 -0.99 -47.55 ≤-20.99 PASS 2452 Reference -3.05 -3.05 --- PASS 30~1000 -3.05 -53.45 ≤-23.05 PASS 1000~26500 -3.05 -46.96 ≤-23.05 PASS

FCCID: 2AL6KBL-AC3600 26 Test Graphs 11B_Ant0_2412_0~Reference 11B_Ant0_2412_30~1000 11B_Ant0_2412_1000~26500 FCCID: 2AL6KBL-AC3600 27 11B_Ant0_2437_0~Reference 11B_Ant0_2437_30~1000 FCCID: 2AL6KBL-AC3600 28 11B_Ant0_2437_1000~26500 11B_Ant0_2462_0~Reference 11B_Ant0_2462_30~1000 FCCID: 2AL6KBL-AC3600 29 11B_Ant0_2462_1000~26500 11G_Ant0_2412_0~Reference FCCID: 2AL6KBL-AC3600 30 11G_Ant0_2412_30~1000 11G_Ant0_2412_1000~26500 11G_Ant0_2437_0~Reference FCCID: 2AL6KBL-AC3600 31 11G_Ant0_2437_30~1000 11G_Ant0_2437_1000~26500 FCCID: 2AL6KBL-AC3600 32 11G_Ant0_2462_0~Reference 11G_Ant0_2462_30~1000 11G_Ant0_2462_1000~26500 FCCID: 2AL6KBL-AC3600 33 11N20SISO_Ant0_2412_0~Reference 11N20SISO_Ant0_2412_30~1000 FCCID: 2AL6KBL-AC3600 34 11N20SISO_Ant0_2412_1000~26500 11N20SISO_Ant0_2437_0~Reference 11N20SISO_Ant0_2437_30~1000 FCCID: 2AL6KBL-AC3600 35 11N20SISO_Ant0_2437_1000~26500 11N20SISO_Ant0_2462_0~Reference FCCID: 2AL6KBL-AC3600 36 11N20SISO_Ant0_2462_30~1000 11N20SISO_Ant0_2462_1000~26500 11N40SISO_Ant0_2422_0~Reference FCCID: 2AL6KBL-AC3600 37 11N40SISO_Ant0_2422_30~1000 11N40SISO_Ant0_2422_1000~26500 FCCID: 2AL6KBL-AC3600 38 11N40SISO_Ant0_2437_0~Reference 11N40SISO_Ant0_2437_30~1000 11N40SISO_Ant0_2437_1000~26500 FCCID: 2AL6KBL-AC3600 39 11N40SISO_Ant0_2452_0~Reference 11N40SISO_Ant0_2452_30~1000 FCCID: 2AL6KBL-AC3600 40 11N40SISO_Ant0_2452_1000~26500

FCCID: 2AL6KBL-AC3600 26 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCCID: 2AL6KBL-AC3600 27 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCCID: 2AL6KBL-AC3600 28 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCCID: 2AL6KBL-AC3600 29 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCCID: 2AL6KBL-AC3600 30 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCCID: 2AL6KBL-AC3600 31 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCCID: 2AL6KBL-AC3600 32 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID: 2AL6KBL-AC3600 33 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCCID: 2AL6KBL-AC3600 34 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCCID: 2AL6KBL-AC3600 35 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCCID: 2AL6KBL-AC3600 36 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCCID: 2AL6KBL-AC3600 37 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference FCCID: 2AL6KBL-AC3600 38 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCCID: 2AL6KBL-AC3600 39 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 FCCID: 2AL6KBL-AC3600 40

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20221227001-1-1 2AL6KBL-AC3600 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Mar. 17, 2023 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 11AC Dual Band Gigabit Wireless Router Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference....................... : BL-AC3600 Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 12.0V/1.0A by Adapter Result................................................ : PASS Report No.: GTS20221227001-1-1 Page 2 of 39 T E S T R E P O R T Test Report No. : GTS20221227001-1-1 Mar. 17, 2023 ____________________________________________________________________________________ Date of issue Equipment under Test : 11AC Dual Band Gigabit Wireless Router Model /Type : BL-AC3600 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng …
