2AL6K-M8821CS1802.11a/b/g/n/ac 433Mbps WLAN + BT v4.2 Combo SDIO Module

ShenZhen BiLian Electronic Co.,Ltd.

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Apr 20, 2026
Application Purpose: Original Equipment

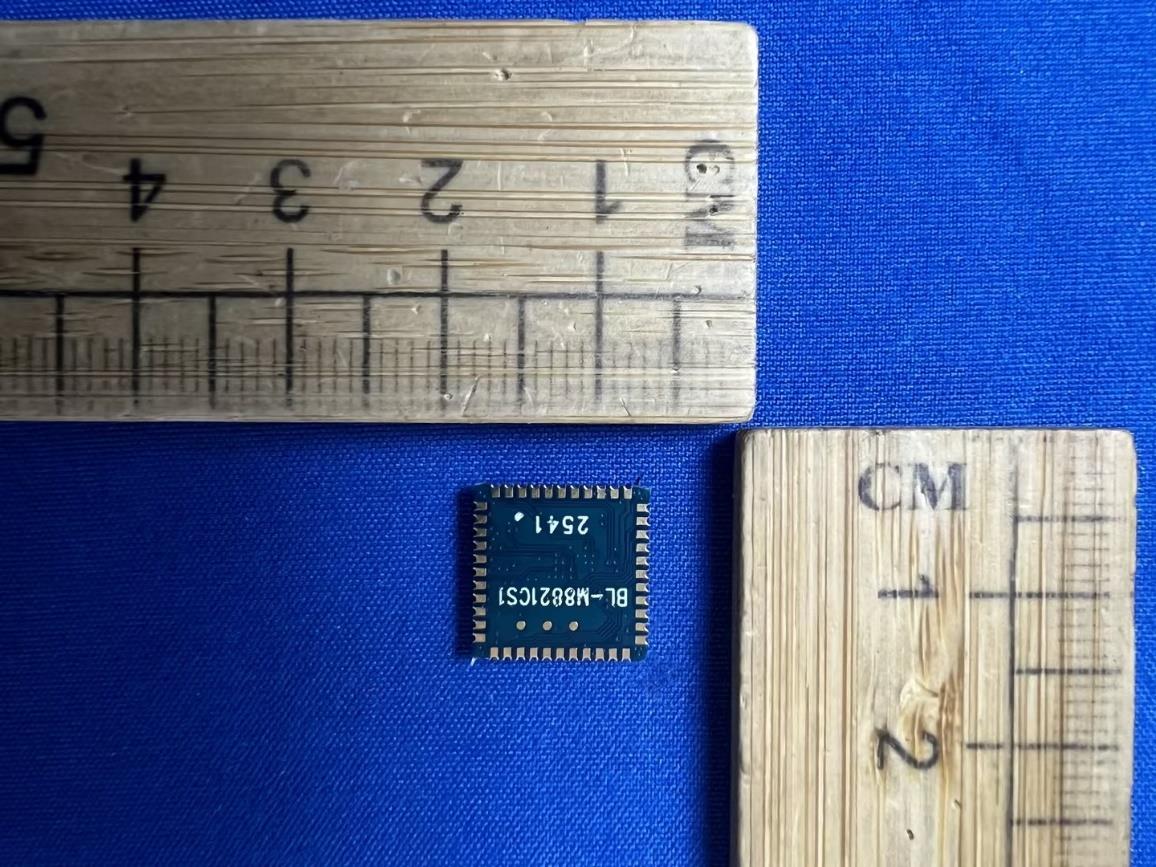

Equipment Note: 802.11a/b/g/n/ac 433Mbps WLAN + BT v4.2 Combo SDIO Module
Frequency Range: 5180.00000000 - 5240.00000000
Company: ShenZhen BiLian Electronic Co.,Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Test Report

Report PSD NVNT ac40 5230MHz Ant1 PSD NVNT ac40 5270MHz Ant1 Report PSD NVNT ac40 5310MHz Ant1 PSD NVNT ac40 5510MHz Ant1 Report PSD NVNT ac40 5590MHz Ant1 PSD NVNT ac40 5670MHz Ant1 Report PSD NVNT ac40 5755MHz Ant1 PSD NVNT ac40 5795MHz Ant1 Report PSD NVNT ac80 5210MHz Ant1 PSD NVNT ac80 5290MHz Ant1 Report PSD NVNT ac80 5530MHz Ant1 PSD NVNT ac80 5610MHz Ant1 Report PSD NVNT ac80 5775MHz Ant1 Report Frequency Stability Condition Mode Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict 20C 2.55V a 5180 Ant1 5180 0 0 25 Pass 20C 3V a 5180 Ant1 5180 0 0 25 Pass 20C 3.45V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass -20C 3.3V a 5180 Ant1 5180 0 0 25 Pass -10C 3.3V a 5180 Ant1 5180 0 0 25 Pass 0C 3.3V a 5180 Ant1 5180 0 0 25 Pass 10C 3.3V a 5180 Ant1 5180.02 20000 3.86 25 Pass 20C 3.3V a 5180 Ant1 5180.02 20000 3.86 25 Pass 30C 3.3V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass 40C 3.3V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass 50C 3.3V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass 60C 3.3V a 5180 Ant1 5180 0 0 25 Pass 70C 3.3V a 5180 Ant1 5180.02 20000 3.86 25 Pass 20C 2.55V a 5200 Ant1 5200 0 0 25 Pass 20C 3V a 5200 Ant1 5199.98 -20000 -3.85 25 Pass 20C 3.45V a 5200 Ant1 5200.02 20000 3.85 25 Pass -20C 3V a 5200 Ant1 5200 0 0 25 Pass -10C 3V a 5200 Ant1 5200.02 20000 3.85 25 Pass 0C 3V a 5200 Ant1 5200 0 0 25 Pass 10C 3V a 5200 Ant1 5199.98 -20000 -3.85 25 Pass 30C 3V a 5200 Ant1 5200 0 0 25 Pass 40C 3V a 5200 Ant1 5200 0 0 25 Pass 50C 3V a 5200 Ant1 5200 0 0 25 Pass 60C 3V a 5200 Ant1 5200 0 0 25 Pass 70C 3V a 5200 Ant1 5200 0 0 25 Pass 20C 2.55V a 5240 Ant1 5240 0 0 25 Pass 20C 3V a 5240 Ant1 5239.96 -40000 -7.63 25 Pass 20C 3.45V a 5240 Ant1 5240.02 20000 3.82 25 Pass -20C 3V a 5240 Ant1 5240 0 0 25 Pass -10C 3V a 5240 Ant1 5240 0 0 25 Pass 0C 3V a 5240 Ant1 5239.98 -20000 -3.82 25 Pass 10C 3V a 5240 Ant1 5239.98 -20000 -3.82 25 Pass 30C 3V a 5240 Ant1 5239.98 -20000 -3.82 25 Pass 40C 3V a 5240 Ant1 5240 0 0 25 Pass 50C 3V a 5240 Ant1 5240 0 0 25 Pass 60C 3V a 5240 Ant1 5239.98 -20000 -3.82 25 Pass 70C 3V a 5240 Ant1 5240 0 0 25 Pass 20C 2.55V a 5260 Ant1 5260 0 0 25 Pass 20C 3V a 5260 Ant1 5260.02 20000 3.8 25 Pass 20C 3.45V a 5260 Ant1 5260.02 20000 3.8 25 Pass Report -20C 3V a 5260 Ant1 5260 0 0 25 Pass -10C 3V a 5260 Ant1 5260 0 0 25 Pass 0C 3V a 5260 Ant1 5259.98 -20000 -3.8 25 Pass 10C 3V a 5260 Ant1 5260.02 20000 3.8 25 Pass 30C 3V a 5260 Ant1 5260.02 20000 3.8 25 Pass 40C 3V a 5260 Ant1 5260.02 20000 3.8 25 Pass 50C 3V a 5260 Ant1 5259.98 -20000 -3.8 25 Pass 60C 3V a 5260 Ant1 5260.04 40000 7.6 25 Pass 70C 3V a 5260 Ant1 5260 0 0 25 Pass 20C 2.55V a 5280 Ant1 5280 0 0 25 Pass 20C 3V a 5280 Ant1 5280.02 20000 3.79 25 Pass 20C 3.45V a 5280 Ant1 5280 0 0 25 Pass -20C 3V a 5280 Ant1 5279.98 -20000 -3.79 25 Pass -10C 3V a 5280 Ant1 5279.98 -20000 -3.79 25 Pass 0C 3V a 5280 Ant1 5279.98 -20000 -3.79 25 Pass 10C 3V a 5280 Ant1 5280 0 0 25 Pass 30C 3V a 5280 Ant1 5280 0 0 25 Pass 40C 3V a 5280 Ant1 5280 0 0 25 Pass 50C 3V a 5280 Ant1 5280 0 0 25 Pass 60C 3V a 5280 Ant1 5280 0 0 25 Pass 70C 3V a 5280 Ant1 5280.02 20000 3.79 25 Pass 20C 2.55V a 5320 Ant1 5320 0 0 25 Pass 20C 3V a 5320 Ant1 5320.02 20000 3.76 25 Pass 20C 3.45V a 5320 Ant1 5320 0 0 25 Pass -20C 3V a 5320 Ant1 5319.98 -20000 -3.76 25 Pass -10C 3V a 5320 Ant1 5320.02 20000 3.76 25 Pass 0C 3V a 5320 Ant1 5320.02 20000 3.76 25 Pass 10C 3V a 5320 Ant1 5319.98 -20000 -3.76 25 Pass 30C 3V a 5320 Ant1 5319.98 -20000 -3.76 25 Pass 40C 3V a 5320 Ant1 5320 0 0 25 Pass 50C 3V a 5320 Ant1 5320 0 0 25 Pass 60C 3V a 5320 Ant1 5320 0 0 25 Pass 70C 3V a 5320 Ant1 5320 0 0 25 Pass 20C 2.55V a 5500 Ant1 5500.02 20000 3.64 25 Pass 20C 3V a 5500 Ant1 5499.98 -20000 -3.64 25 Pass 20C 3.45V a 5500 Ant1 5500 0 0 25 Pass -20C 3V a 5500 Ant1 5500 0 0 25 Pass -10C 3V a 5500 Ant1 5500.02 20000 3.64 25 Pass 0C 3V a 5500 Ant1 5499.98 -20000 -3.64 25 Pass 10C 3V a 5500 Ant1 5499.98 -20000 -3.64 25 Pass 30C 3V a 5500 Ant1 5500 0 0 25 Pass 40C 3V a 5500 Ant1 5500 0 0 25 Pass 50C 3V a 5500 Ant1 5500 0 0 25 Pass 60C 3V a 5500 Ant1 5499.98 -20000 -3.64 25 Pass Report 70C 3V a 5500 Ant1 5500 0 0 25 Pass 20C 2.55V a 5600 Ant1 5600 0 0 25 Pass 20C 3V a 5600 Ant1 5600 0 0 25 Pass 20C 3.45V a 5600 Ant1 5600.02 20000 3.57 25 Pass -20C 3V a 5600 Ant1 5600 0 0 25 Pass -10C 3V a 5600 Ant1 5599.98 -20000 -3.57 25 Pass 0C 3V a 5600 Ant1 5599.98 -20000 -3.57 25 Pass 10C 3V a 5600 Ant1 5600.02 20000 3.57 25 Pass 30C 3V a 5600 Ant1 5599.98 -20000 -3.57 25 Pass 40C 3V a 5600 Ant1 5600 0 0 25 Pass 50C 3V a 5600 Ant1 5599.96 -40000 -7.14 25 Pass 60C 3V a 5600 Ant1 5599.98 -20000 -3.57 25 Pass 70C 3V a 5600 Ant1 5599.98 -20000 -3.57 25 Pass 20C 2.55V a 5700 Ant1 5699.98 -20000 -3.51 25 Pass 20C 3V a 5700 Ant1 5700 0 0 25 Pass 20C 3.45V a 5700 Ant1 5700 0 0 25 Pass -20C 3V a 5700 Ant1 5700 0 0 25 Pass -10C 3V a 5700 Ant1 5699.98 -20000 -3.51 25 Pass 0C 3V a 5700 Ant1 5700 0 0 25 Pass 10C 3V a 5700 Ant1 5699.98 -20000 -3.51 25 Pass 30C 3V a 5700 Ant1 5700 0 0 25 Pass 40C 3V a 5700 Ant1 5700 0 0 25 Pass 50C 3V a 5700 Ant1 5700 0 0 25 Pass 60C 3V a 5700 Ant1 5700 0 0 25 Pass 70C 3V a 5700 Ant1 5699.98 -20000 -3.51 25 Pass 20C 2.55V a 5745 Ant1 5744.98 -20000 -3.48 25 Pass 20C 3V a 5745 Ant1 5744.98 -20000 -3.48 25 Pass 20C 3.45V a 5745 Ant1 5745 0 0 25 Pass -20C 3V a 5745 Ant1 5745 0 0 25 Pass -10C 3V a 5745 Ant1 5745 0 0 25 Pass 0C 3V a 5745 Ant1 5745 0 0 25 Pass 10C 3V a 5745 Ant1 5745 0 0 25 Pass 30C 3V a 5745 Ant1 5744.98 -20000 -3.48 25 Pass 40C 3V a 5745 Ant1 5745.02 20000 3.48 25 Pass 50C 3V a 5745 Ant1 5744.98 -20000 -3.48 25 Pass 60C 3V a 5745 Ant1 5745 0 0 25 Pass 70C 3V a 5745 Ant1 5745 0 0 25 Pass 20C 2.55V a 5785 Ant1 5785 0 0 25 Pass 20C 3V a 5785 Ant1 5785 0 0 25 Pass 20C 3.45V a 5785 Ant1 5785.02 20000 3.46 25 Pass -20C 3V a 5785 Ant1 5785.02 20000 3.46 25 Pass -10C 3V a 5785 Ant1 5785 0 0 25 Pass 0C 3V a 5785 Ant1 5785.02 20000 3.46 25 Pass 10C 3V a 5785 Ant1 5785 0 0 25 Pass Report 30C 3V a 5785 Ant1 5785 0 0 25 Pass 40C …

Text truncated - open the document above for the full version.

Test Setup Photos

Setup Photographs Radiated Band edge and Spurious Emission Page 2 of 2 Radiated Band edge and Spurious Emission

Test Report

Report Freq. Stability 20C 2.55V ac80 5290MHz Ant1 Freq. Stability 20C 3V ac80 5290MHz Ant1 Report Freq. Stability 20C 3.45V ac80 5290MHz Ant1 Freq. Stability -20C 3V ac80 5290MHz Ant1 Report Freq. Stability -10C 3V ac80 5290MHz Ant1 Freq. Stability 0C 3V ac80 5290MHz Ant1 Report Freq. Stability 10C 3V ac80 5290MHz Ant1 Freq. Stability 30C 3V ac80 5290MHz Ant1 Report Freq. Stability 40C 3V ac80 5290MHz Ant1 Freq. Stability 50C 3V ac80 5290MHz Ant1 Report Freq. Stability 60C 3V ac80 5290MHz Ant1 Freq. Stability 70C 3V ac80 5290MHz Ant1 Report Freq. Stability 20C 2.55V ac80 5530MHz Ant1 Freq. Stability 20C 3V ac80 5530MHz Ant1 Report Freq. Stability 20C 3.45V ac80 5530MHz Ant1 Freq. Stability -20C 3V ac80 5530MHz Ant1 Report Freq. Stability -10C 3V ac80 5530MHz Ant1 Freq. Stability 0C 3V ac80 5530MHz Ant1 Report Freq. Stability 10C 3V ac80 5530MHz Ant1 Freq. Stability 30C 3V ac80 5530MHz Ant1 Report Freq. Stability 40C 3V ac80 5530MHz Ant1 Freq. Stability 50C 3V ac80 5530MHz Ant1 Report Freq. Stability 60C 3V ac80 5530MHz Ant1 Freq. Stability 70C 3V ac80 5530MHz Ant1 Report Freq. Stability 20C 2.55V ac80 5610MHz Ant1 Freq. Stability 20C 3V ac80 5610MHz Ant1 Report Freq. Stability 20C 3.45V ac80 5610MHz Ant1 Freq. Stability -20C 3V ac80 5610MHz Ant1 Report Freq. Stability -10C 3V ac80 5610MHz Ant1 Freq. Stability 0C 3V ac80 5610MHz Ant1 Report Freq. Stability 10C 3V ac80 5610MHz Ant1 Freq. Stability 30C 3V ac80 5610MHz Ant1 Report Freq. Stability 40C 3V ac80 5610MHz Ant1 Freq. Stability 50C 3V ac80 5610MHz Ant1 Report Freq. Stability 60C 3V ac80 5610MHz Ant1 Freq. Stability 70C 3V ac80 5610MHz Ant1 Report Freq. Stability 20C 2.55V ac80 5775MHz Ant1 Freq. Stability 20C 3V ac80 5775MHz Ant1 Report Freq. Stability 20C 3.45V ac80 5775MHz Ant1 Freq. Stability -20C 3V ac80 5775MHz Ant1 Report Freq. Stability -10C 3V ac80 5775MHz Ant1 Freq. Stability 0C 3V ac80 5775MHz Ant1 Report Freq. Stability 10C 3V ac80 5775MHz Ant1 Freq. Stability 30C 3V ac80 5775MHz Ant1 Report Freq. Stability 40C 3V ac80 5775MHz Ant1 Freq. Stability 50C 3V ac80 5775MHz Ant1 Report Freq. Stability 60C 3V ac80 5775MHz Ant1 Freq. Stability 70C 3V ac80 5775MHz Ant1 Report Report -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.296 0.5 Pass NVNT a 5785 Ant1 16.053 0.5 Pass NVNT a 5825 Ant1 15.933 0.5 Pass NVNT n20 5745 Ant1 16.668 0.5 Pass NVNT n20 5785 Ant1 17.049 0.5 Pass NVNT n20 5825 Ant1 17.169 0.5 Pass NVNT n40 5755 Ant1 35.244 0.5 Pass NVNT n40 5795 Ant1 35.778 0.5 Pass NVNT ac20 5745 Ant1 16.785 0.5 Pass NVNT ac20 5785 Ant1 16.668 0.5 Pass NVNT ac20 5825 Ant1 17.292 0.5 Pass NVNT ac40 5755 Ant1 35.46 0.5 Pass NVNT ac40 5795 Ant1 35.358 0.5 Pass NVNT ac80 5775 Ant1 75.132 0.5 Pass Report -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Report -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1

Test Report

Report Freq. Stability -10C 120V ac40 5590MHz Ant1 Freq. Stability 0C 120V ac40 5590MHz Ant1 Report Freq. Stability 10C 120V ac40 5590MHz Ant1 Freq. Stability 20C 120V ac40 5590MHz Ant1 Report Freq. Stability 30C 120V ac40 5590MHz Ant1 Freq. Stability 40C 120V ac40 5590MHz Ant1 Report Freq. Stability 50C 120V ac40 5590MHz Ant1 Freq. Stability 60C 120V ac40 5590MHz Ant1 Report Freq. Stability 70C 120V ac40 5590MHz Ant1 Freq. Stability 20C 2.55V ac40 5670MHz Ant1 Report Freq. Stability 20C 3V ac40 5670MHz Ant1 Freq. Stability 20C 3.45V ac40 5670MHz Ant1 Report Freq. Stability -20C 120V ac40 5670MHz Ant1 Freq. Stability -10C 120V ac40 5670MHz Ant1 Report Freq. Stability 0C 120V ac40 5670MHz Ant1 Freq. Stability 10C 120V ac40 5670MHz Ant1 Report Freq. Stability 20C 120V ac40 5670MHz Ant1 Freq. Stability 30C 120V ac40 5670MHz Ant1 Report Freq. Stability 40C 120V ac40 5670MHz Ant1 Freq. Stability 50C 120V ac40 5670MHz Ant1 Report Freq. Stability 60C 120V ac40 5670MHz Ant1 Freq. Stability 70C 120V ac40 5670MHz Ant1 Report Freq. Stability 20C 2.55V ac40 5755MHz Ant1 Freq. Stability 20C 3V ac40 5755MHz Ant1 Report Freq. Stability 20C 3.45V ac40 5755MHz Ant1 Freq. Stability -20C 120V ac40 5755MHz Ant1 Report Freq. Stability -10C 120V ac40 5755MHz Ant1 Freq. Stability 0C 120V ac40 5755MHz Ant1 Report Freq. Stability 10C 120V ac40 5755MHz Ant1 Freq. Stability 20C 120V ac40 5755MHz Ant1 Report Freq. Stability 30C 120V ac40 5755MHz Ant1 Freq. Stability 40C 120V ac40 5755MHz Ant1 Report Freq. Stability 50C 120V ac40 5755MHz Ant1 Freq. Stability 60C 120V ac40 5755MHz Ant1 Report Freq. Stability 70C 120V ac40 5755MHz Ant1 Freq. Stability 20C 2.55V ac40 5795MHz Ant1 Report Freq. Stability 20C 3V ac40 5795MHz Ant1 Freq. Stability 20C 3.45V ac40 5795MHz Ant1 Report Freq. Stability -20C 120V ac40 5795MHz Ant1 Freq. Stability -10C 120V ac40 5795MHz Ant1 Report Freq. Stability 0C 120V ac40 5795MHz Ant1 Freq. Stability 10C 120V ac40 5795MHz Ant1 Report Freq. Stability 20C 120V ac40 5795MHz Ant1 Freq. Stability 30C 120V ac40 5795MHz Ant1 Report Freq. Stability 40C 120V ac40 5795MHz Ant1 Freq. Stability 50C 120V ac40 5795MHz Ant1 Report Freq. Stability 60C 120V ac40 5795MHz Ant1 Freq. Stability 70C 120V ac40 5795MHz Ant1 Report Freq. Stability 20C 2.55V ac80 5210MHz Ant1 Freq. Stability 20C 3V ac80 5210MHz Ant1 Report Freq. Stability 20C 3.45V ac80 5210MHz Ant1 Freq. Stability -20C 3V ac80 5210MHz Ant1 Report Freq. Stability -10C 3V ac80 5210MHz Ant1 Freq. Stability 0C 3V ac80 5210MHz Ant1 Report Freq. Stability 10C 3V ac80 5210MHz Ant1 Freq. Stability 30C 3V ac80 5210MHz Ant1 Report Freq. Stability 40C 3V ac80 5210MHz Ant1 Freq. Stability 50C 3V ac80 5210MHz Ant1 Report Freq. Stability 60C 3V ac80 5210MHz Ant1 Freq. Stability 70C 3V ac80 5210MHz Ant1

Test Report

Report Freq. Stability 20C 120V ac40 5190MHz Ant1 Freq. Stability 30C 120V ac40 5190MHz Ant1 Report Freq. Stability 40C 120V ac40 5190MHz Ant1 Freq. Stability 50C 120V ac40 5190MHz Ant1 Report Freq. Stability 60C 120V ac40 5190MHz Ant1 Freq. Stability 70C 120V ac40 5190MHz Ant1 Report Freq. Stability 20C 2.55V ac40 5230MHz Ant1 Freq. Stability 20C 3V ac40 5230MHz Ant1 Report Freq. Stability 20C 3.45V ac40 5230MHz Ant1 Freq. Stability -20C 3V ac40 5230MHz Ant1 Report Freq. Stability -10C 3V ac40 5230MHz Ant1 Freq. Stability 0C 3V ac40 5230MHz Ant1 Report Freq. Stability 10C 3V ac40 5230MHz Ant1 Freq. Stability 30C 3V ac40 5230MHz Ant1 Report Freq. Stability 40C 3V ac40 5230MHz Ant1 Freq. Stability 50C 3V ac40 5230MHz Ant1 Report Freq. Stability 60C 3V ac40 5230MHz Ant1 Freq. Stability 70C 3V ac40 5230MHz Ant1 Report Freq. Stability 20C 2.55V ac40 5270MHz Ant1 Freq. Stability 20C 3V ac40 5270MHz Ant1 Report Freq. Stability 20C 3.45V ac40 5270MHz Ant1 Freq. Stability -20C 3V ac40 5270MHz Ant1 Report Freq. Stability -10C 3V ac40 5270MHz Ant1 Freq. Stability 0C 3V ac40 5270MHz Ant1 Report Freq. Stability 10C 3V ac40 5270MHz Ant1 Freq. Stability 30C 3V ac40 5270MHz Ant1 Report Freq. Stability 40C 3V ac40 5270MHz Ant1 Freq. Stability 50C 3V ac40 5270MHz Ant1 Report Freq. Stability 60C 3V ac40 5270MHz Ant1 Freq. Stability 70C 3V ac40 5270MHz Ant1 Report Freq. Stability 20C 2.55V ac40 5310MHz Ant1 Freq. Stability 20C 3V ac40 5310MHz Ant1 Report Freq. Stability 20C 3.45V ac40 5310MHz Ant1 Freq. Stability -20C 120V ac40 5310MHz Ant1 Report Freq. Stability -10C 120V ac40 5310MHz Ant1 Freq. Stability 0C 120V ac40 5310MHz Ant1 Report Freq. Stability 10C 120V ac40 5310MHz Ant1 Freq. Stability 20C 120V ac40 5310MHz Ant1 Report Freq. Stability 30C 120V ac40 5310MHz Ant1 Freq. Stability 40C 120V ac40 5310MHz Ant1 Report Freq. Stability 50C 120V ac40 5310MHz Ant1 Freq. Stability 60C 120V ac40 5310MHz Ant1 Report Freq. Stability 70C 120V ac40 5310MHz Ant1 Freq. Stability 20C 2.55V ac40 5510MHz Ant1 Report Freq. Stability 20C 3V ac40 5510MHz Ant1 Freq. Stability 20C 3.45V ac40 5510MHz Ant1 Report Freq. Stability -20C 120V ac40 5510MHz Ant1 Freq. Stability -10C 120V ac40 5510MHz Ant1 Report Freq. Stability 0C 120V ac40 5510MHz Ant1 Freq. Stability 10C 120V ac40 5510MHz Ant1 Report Freq. Stability 20C 120V ac40 5510MHz Ant1 Freq. Stability 30C 120V ac40 5510MHz Ant1 Report Freq. Stability 40C 120V ac40 5510MHz Ant1 Freq. Stability 50C 120V ac40 5510MHz Ant1 Report Freq. Stability 60C 120V ac40 5510MHz Ant1 Freq. Stability 70C 120V ac40 5510MHz Ant1 Report Freq. Stability 20C 2.55V ac40 5590MHz Ant1 Freq. Stability 20C 3V ac40 5590MHz Ant1 Report Freq. Stability 20C 3.45V ac40 5590MHz Ant1 Freq. Stability -20C 120V ac40 5590MHz Ant1

Test Report

Report Freq. Stability 30C 3V ac20 5600MHz Ant1 Freq. Stability 40C 3V ac20 5600MHz Ant1 Report Freq. Stability 50C 3V ac20 5600MHz Ant1 Freq. Stability 60C 3V ac20 5600MHz Ant1 Report Freq. Stability 70C 3V ac20 5600MHz Ant1 Freq. Stability 20C 2.55V ac20 5700MHz Ant1 Report Freq. Stability 20C 3V ac20 5700MHz Ant1 Freq. Stability 20C 3.45V ac20 5700MHz Ant1 Report Freq. Stability -20C 3V ac20 5700MHz Ant1 Freq. Stability -10C 3V ac20 5700MHz Ant1 Report Freq. Stability 0C 3V ac20 5700MHz Ant1 Freq. Stability 10C 3V ac20 5700MHz Ant1 Report Freq. Stability 30C 3V ac20 5700MHz Ant1 Freq. Stability 40C 3V ac20 5700MHz Ant1 Report Freq. Stability 50C 3V ac20 5700MHz Ant1 Freq. Stability 60C 3V ac20 5700MHz Ant1 Report Freq. Stability 70C 3V ac20 5700MHz Ant1 Freq. Stability 20C 2.55V ac20 5745MHz Ant1 Report Freq. Stability 20C 3V ac20 5745MHz Ant1 Freq. Stability 20C 3.45V ac20 5745MHz Ant1 Report Freq. Stability -20C 3V ac20 5745MHz Ant1 Freq. Stability -10C 3V ac20 5745MHz Ant1 Report Freq. Stability 0C 3V ac20 5745MHz Ant1 Freq. Stability 10C 3V ac20 5745MHz Ant1 Report Freq. Stability 30C 3V ac20 5745MHz Ant1 Freq. Stability 40C 3V ac20 5745MHz Ant1 Report Freq. Stability 50C 3V ac20 5745MHz Ant1 Freq. Stability 60C 3V ac20 5745MHz Ant1 Report Freq. Stability 70C 3V ac20 5745MHz Ant1 Freq. Stability 20C 2.55V ac20 5785MHz Ant1 Report Freq. Stability 20C 3V ac20 5785MHz Ant1 Freq. Stability 20C 3.45V ac20 5785MHz Ant1 Report Freq. Stability -20C 3V ac20 5785MHz Ant1 Freq. Stability -10C 3V ac20 5785MHz Ant1 Report Freq. Stability 0C 3V ac20 5785MHz Ant1 Freq. Stability 10C 3V ac20 5785MHz Ant1 Report Freq. Stability 30C 3V ac20 5785MHz Ant1 Freq. Stability 40C 3V ac20 5785MHz Ant1 Report Freq. Stability 50C 3V ac20 5785MHz Ant1 Freq. Stability 60C 3V ac20 5785MHz Ant1 Report Freq. Stability 70C 3V ac20 5785MHz Ant1 Freq. Stability 20C 2.55V ac20 5825MHz Ant1 Report Freq. Stability 20C 3V ac20 5825MHz Ant1 Freq. Stability 20C 3.45V ac20 5825MHz Ant1 Report Freq. Stability -20C 3V ac20 5825MHz Ant1 Freq. Stability -10C 3V ac20 5825MHz Ant1 Report Freq. Stability 0C 3V ac20 5825MHz Ant1 Freq. Stability 10C 3V ac20 5825MHz Ant1 Report Freq. Stability 30C 3V ac20 5825MHz Ant1 Freq. Stability 40C 3V ac20 5825MHz Ant1 Report Freq. Stability 50C 3V ac20 5825MHz Ant1 Freq. Stability 60C 3V ac20 5825MHz Ant1 Report Freq. Stability 70C 3V ac20 5825MHz Ant1 Freq. Stability 20C 2.55V ac40 5190MHz Ant1 Report Freq. Stability 20C 3V ac40 5190MHz Ant1 Freq. Stability 20C 3.45V ac40 5190MHz Ant1 Report Freq. Stability --20C 120V ac40 5190MHz Ant1 Freq. Stability -10C 120V ac40 5190MHz Ant1 Report Freq. Stability 0C 120V ac40 5190MHz Ant1 Freq. Stability 10C 120V ac40 5190MHz Ant1

Test Report

Report Freq. Stability 30C 3V ac20 5240MHz Ant1 Freq. Stability 40C 3V ac20 5240MHz Ant1 Report Freq. Stability 50C 3V ac20 5240MHz Ant1 Freq. Stability 60C 3V ac20 5240MHz Ant1 Report Freq. Stability 70C 3V ac20 5240MHz Ant1 Freq. Stability 20C 2.55V ac20 5260MHz Ant1 Report Freq. Stability 20C 3V ac20 5260MHz Ant1 Freq. Stability 20C 3.45V ac20 5260MHz Ant1 Report Freq. Stability -20C 3V ac20 5260MHz Ant1 Freq. Stability -10C 3V ac20 5260MHz Ant1 Report Freq. Stability 0C 3V ac20 5260MHz Ant1 Freq. Stability 10C 3V ac20 5260MHz Ant1 Report Freq. Stability 30C 3V ac20 5260MHz Ant1 Freq. Stability 40C 3V ac20 5260MHz Ant1 Report Freq. Stability 50C 3V ac20 5260MHz Ant1 Freq. Stability 60C 3V ac20 5260MHz Ant1 Report Freq. Stability 70C 3V ac20 5260MHz Ant1 Freq. Stability 20C 2.55V ac20 5280MHz Ant1 Report Freq. Stability 20C 3V ac20 5280MHz Ant1 Freq. Stability 20C 3.45V ac20 5280MHz Ant1 Report Freq. Stability -20C 3V ac20 5280MHz Ant1 Freq. Stability -10C 3V ac20 5280MHz Ant1 Report Freq. Stability 0C 3V ac20 5280MHz Ant1 Freq. Stability 10C 3V ac20 5280MHz Ant1 Report Freq. Stability 30C 3V ac20 5280MHz Ant1 Freq. Stability 40C 3V ac20 5280MHz Ant1 Report Freq. Stability 50C 3V ac20 5280MHz Ant1 Freq. Stability 60C 3V ac20 5280MHz Ant1 Report Freq. Stability 70C 3V ac20 5280MHz Ant1 Freq. Stability 20C 2.55V ac20 5320MHz Ant1 Report Freq. Stability 20C 3V ac20 5320MHz Ant1 Freq. Stability 20C 3.45V ac20 5320MHz Ant1 Report Freq. Stability -20C 3V ac20 5320MHz Ant1 Freq. Stability -10C 3V ac20 5320MHz Ant1 Report Freq. Stability 0C 3V ac20 5320MHz Ant1 Freq. Stability 10C 3V ac20 5320MHz Ant1 Report Freq. Stability 30C 3V ac20 5320MHz Ant1 Freq. Stability 40C 3V ac20 5320MHz Ant1 Report Freq. Stability 50C 3V ac20 5320MHz Ant1 Freq. Stability 60C 3V ac20 5320MHz Ant1 Report Freq. Stability 70C 3V ac20 5320MHz Ant1 Freq. Stability 20C 2.55V ac20 5500MHz Ant1 Report Freq. Stability 20C 3V ac20 5500MHz Ant1 Freq. Stability 20C 3.45V ac20 5500MHz Ant1 Report Freq. Stability -20C 3V ac20 5500MHz Ant1 Freq. Stability -10C 3V ac20 5500MHz Ant1 Report Freq. Stability 0C 3V ac20 5500MHz Ant1 Freq. Stability 10C 3V ac20 5500MHz Ant1 Report Freq. Stability 30C 3V ac20 5500MHz Ant1 Freq. Stability 40C 3V ac20 5500MHz Ant1 Report Freq. Stability 50C 3V ac20 5500MHz Ant1 Freq. Stability 60C 3V ac20 5500MHz Ant1 Report Freq. Stability 70C 3V ac20 5500MHz Ant1 Freq. Stability 20C 2.55V ac20 5600MHz Ant1 Report Freq. Stability 20C 3V ac20 5600MHz Ant1 Freq. Stability 20C 3.45V ac20 5600MHz Ant1 Report Freq. Stability -20C 3V ac20 5600MHz Ant1 Freq. Stability -10C 3V ac20 5600MHz Ant1 Report Freq. Stability 0C 3V ac20 5600MHz Ant1 Freq. Stability 10C 3V ac20 5600MHz Ant1

Test Report

Report Freq. Stability 50C 120V n40 5670MHz Ant1 Freq. Stability 60C 120V n40 5670MHz Ant1 Report Freq. Stability 70C 120V n40 5670MHz Ant1 Freq. Stability 20C 2.55V n40 5755MHz Ant1 Report Freq. Stability 20C 3V n40 5755MHz Ant1 Freq. Stability 20C 3.45V n40 5755MHz Ant1 Report Freq. Stability -20C 120V n40 5755MHz Ant1 Freq. Stability -10C 120V n40 5755MHz Ant1 Report Freq. Stability 0C 120V n40 5755MHz Ant1 Freq. Stability 10C 120V n40 5755MHz Ant1 Report Freq. Stability 20C 120V n40 5755MHz Ant1 Freq. Stability 30C 120V n40 5755MHz Ant1 Report Freq. Stability 40C 120V n40 5755MHz Ant1 Freq. Stability 50C 120V n40 5755MHz Ant1 Report Freq. Stability 60C 120V n40 5755MHz Ant1 Freq. Stability 70C 120V n40 5755MHz Ant1 Report Freq. Stability 20C 2.55V n40 5795MHz Ant1 Freq. Stability 20C 3V n40 5795MHz Ant1 Report Freq. Stability 20C 3.45V n40 5795MHz Ant1 Freq. Stability -20C 120V n40 5795MHz Ant1 Report Freq. Stability -10C 120V n40 5795MHz Ant1 Freq. Stability 0C 120V n40 5795MHz Ant1 Report Freq. Stability 10C 120V n40 5795MHz Ant1 Freq. Stability 20C 120V n40 5795MHz Ant1 Report Freq. Stability 30C 120V n40 5795MHz Ant1 Freq. Stability 40C 120V n40 5795MHz Ant1 Report Freq. Stability 50C 120V n40 5795MHz Ant1 Freq. Stability 60C 120V n40 5795MHz Ant1 Report Freq. Stability 70C 120V n40 5795MHz Ant1 Freq. Stability 20C 2.55V ac20 5180MHz Ant1 Report Freq. Stability 20C 3V ac20 5180MHz Ant1 Freq. Stability 20C 3.45V ac20 5180MHz Ant1 Report Freq. Stability -20C 3V ac20 5180MHz Ant1 Freq. Stability -10C 3V ac20 5180MHz Ant1 Report Freq. Stability 0C 3V ac20 5180MHz Ant1 Freq. Stability 10C 3V ac20 5180MHz Ant1 Report Freq. Stability 30C 3V ac20 5180MHz Ant1 Freq. Stability 40C 3V ac20 5180MHz Ant1 Report Freq. Stability 50C 3V ac20 5180MHz Ant1 Freq. Stability 60C 3V ac20 5180MHz Ant1 Report Freq. Stability 70C 3V ac20 5180MHz Ant1 Freq. Stability 20C 2.55V ac20 5200MHz Ant1 Report Freq. Stability 20C 3V ac20 5200MHz Ant1 Freq. Stability 20C 3.45V ac20 5200MHz Ant1 Report Freq. Stability -20C 3V ac20 5200MHz Ant1 Freq. Stability -10C 3V ac20 5200MHz Ant1 Report Freq. Stability 0C 3V ac20 5200MHz Ant1 Freq. Stability 10C 3V ac20 5200MHz Ant1 Report Freq. Stability 30C 3V ac20 5200MHz Ant1 Freq. Stability 40C 3V ac20 5200MHz Ant1 Report Freq. Stability 50C 3V ac20 5200MHz Ant1 Freq. Stability 60C 3V ac20 5200MHz Ant1 Report Freq. Stability 70C 3V ac20 5200MHz Ant1 Freq. Stability 20C 2.55V ac20 5240MHz Ant1 Report Freq. Stability 20C 3V ac20 5240MHz Ant1 Freq. Stability 20C 3.45V ac20 5240MHz Ant1 Report Freq. Stability -20C 3V ac20 5240MHz Ant1 Freq. Stability -10C 3V ac20 5240MHz Ant1 Report Freq. Stability 0C 3V ac20 5240MHz Ant1 Freq. Stability 10C 3V ac20 5240MHz Ant1

Test Report

Report Freq. Stability 60C 3V n40 5230MHz Ant1 Freq. Stability 70C 3V n40 5230MHz Ant1 Report Freq. Stability 20C 2.55V n40 5270MHz Ant1 Freq. Stability 20C 3V n40 5270MHz Ant1 Report Freq. Stability 20C 3.45V n40 5270MHz Ant1 Freq. Stability -20C 3V n40 5270MHz Ant1 Report Freq. Stability -10C 3V n40 5270MHz Ant1 Freq. Stability 0C 3V n40 5270MHz Ant1 Report Freq. Stability 10C 3V n40 5270MHz Ant1 Freq. Stability 30C 3V n40 5270MHz Ant1 Report Freq. Stability 40C 3V n40 5270MHz Ant1 Freq. Stability 50C 3V n40 5270MHz Ant1 Report Freq. Stability 60C 3V n40 5270MHz Ant1 Freq. Stability 70C 3V n40 5270MHz Ant1 Report Freq. Stability 20C 2.55V n40 5310MHz Ant1 Freq. Stability 20C 3V n40 5310MHz Ant1 Report Freq. Stability 20C 3.45V n40 5310MHz Ant1 Freq. Stability -20C 3V n40 5310MHz Ant1 Report Freq. Stability -10C 3V n40 5310MHz Ant1 Freq. Stability 0C 3V n40 5310MHz Ant1 Report Freq. Stability 10C 3V n40 5310MHz Ant1 Freq. Stability 30C 3V n40 5310MHz Ant1 Report Freq. Stability 40C 3V n40 5310MHz Ant1 Freq. Stability 50C 3V n40 5310MHz Ant1 Report Freq. Stability 60C 3V n40 5310MHz Ant1 Freq. Stability 70C 3V n40 5310MHz Ant1 Report Freq. Stability 20C 2.55V n40 5510MHz Ant1 Freq. Stability 20C 3V n40 5510MHz Ant1 Report Freq. Stability 20C 3.45V n40 5510MHz Ant1 Freq. Stability -20C 3V n40 5510MHz Ant1 Report Freq. Stability -10C 3V n40 5510MHz Ant1 Freq. Stability 0C 3V n40 5510MHz Ant1 Report Freq. Stability 10C 3V n40 5510MHz Ant1 Freq. Stability 30C 3V n40 5510MHz Ant1 Report Freq. Stability 40C 3V n40 5510MHz Ant1 Freq. Stability 50C 3V n40 5510MHz Ant1 Report Freq. Stability 60C 3V n40 5510MHz Ant1 Freq. Stability 70C 3V n40 5510MHz Ant1 Report Freq. Stability 20C 2.55V n40 5590MHz Ant1 Freq. Stability 20C 3V n40 5590MHz Ant1 Report Freq. Stability 20C 3.45V n40 5590MHz Ant1 Freq. Stability -20C 3V n40 5590MHz Ant1 Report Freq. Stability -10C 3V n40 5590MHz Ant1 Freq. Stability 0C 3V n40 5590MHz Ant1 Report Freq. Stability 10C 3V n40 5590MHz Ant1 Freq. Stability 30C 3V n40 5590MHz Ant1 Report Freq. Stability 40C 3V n40 5590MHz Ant1 Freq. Stability 50C 3V n40 5590MHz Ant1 Report Freq. Stability 60C 3V n40 5590MHz Ant1 Freq. Stability 70C 3V n40 5590MHz Ant1 Report Freq. Stability 20C 2.55V n40 5670MHz Ant1 Freq. Stability 20C 3V n40 5670MHz Ant1 Report Freq. Stability 20C 3.45V n40 5670MHz Ant1 Freq. Stability -20C 120V n40 5670MHz Ant1 Report Freq. Stability -10C 120V n40 5670MHz Ant1 Freq. Stability 0C 120V n40 5670MHz Ant1 Report Freq. Stability 10C 120V n40 5670MHz Ant1 Freq. Stability 20C 120V n40 5670MHz Ant1 Report Freq. Stability 30C 120V n40 5670MHz Ant1 Freq. Stability 40C 120V n40 5670MHz Ant1

Test Report

Report Freq. Stability 70C 3V n20 5700MHz Ant1 Freq. Stability 20C 2.55V n20 5745MHz Ant1 Report Freq. Stability 20C 3V n20 5745MHz Ant1 Freq. Stability 20C 3.45V n20 5745MHz Ant1 Report Freq. Stability -20C 3V n20 5745MHz Ant1 Freq. Stability -10C 3V n20 5745MHz Ant1 Report Freq. Stability 0C 3V n20 5745MHz Ant1 Freq. Stability 10C 3V n20 5745MHz Ant1 Report Freq. Stability 30C 3V n20 5745MHz Ant1 Freq. Stability 40C 3V n20 5745MHz Ant1 Report Freq. Stability 50C 3V n20 5745MHz Ant1 Freq. Stability 60C 3V n20 5745MHz Ant1 Report Freq. Stability 70C 3V n20 5745MHz Ant1 Freq. Stability 20C 2.55V n20 5785MHz Ant1 Report Freq. Stability 20C 3V n20 5785MHz Ant1 Freq. Stability 20C 3.45V n20 5785MHz Ant1 Report Freq. Stability -20C 3V n20 5785MHz Ant1 Freq. Stability -10C 3V n20 5785MHz Ant1 Report Freq. Stability 0C 3V n20 5785MHz Ant1 Freq. Stability 10C 3V n20 5785MHz Ant1 Report Freq. Stability 30C 3V n20 5785MHz Ant1 Freq. Stability 40C 3V n20 5785MHz Ant1 Report Freq. Stability 50C 3V n20 5785MHz Ant1 Freq. Stability 60C 3V n20 5785MHz Ant1 Report Freq. Stability 70C 3V n20 5785MHz Ant1 Freq. Stability 20C 2.55V n20 5825MHz Ant1 Report Freq. Stability 20C 3V n20 5825MHz Ant1 Freq. Stability 20C 3.45V n20 5825MHz Ant1 Report Freq. Stability -20C 3.3V n20 5825MHz Ant1 Freq. Stability -10C 3.3V n20 5825MHz Ant1 Report Freq. Stability 0C 3.3V n20 5825MHz Ant1 Freq. Stability 10C 3.3V n20 5825MHz Ant1 Report Freq. Stability 20C 3.3V n20 5825MHz Ant1 Freq. Stability 30C 3.3V n20 5825MHz Ant1 Report Freq. Stability 40C 3.3V n20 5825MHz Ant1 Freq. Stability 50C 3.3V n20 5825MHz Ant1 Report Freq. Stability 60C 3.3V n20 5825MHz Ant1 Freq. Stability 70C 3.3V n20 5825MHz Ant1 Report Freq. Stability 20C 2.55V n40 5190MHz Ant1 Freq. Stability 20C 3V n40 5190MHz Ant1 Report Freq. Stability 20C 3.45V n40 5190MHz Ant1 Freq. Stability -20C 3V n40 5190MHz Ant1 Report Freq. Stability -10C 3V n40 5190MHz Ant1 Freq. Stability 0C 3V n40 5190MHz Ant1 Report Freq. Stability 10C 3V n40 5190MHz Ant1 Freq. Stability 30C 3V n40 5190MHz Ant1 Report Freq. Stability 40C 3V n40 5190MHz Ant1 Freq. Stability 50C 3V n40 5190MHz Ant1 Report Freq. Stability 60C 3V n40 5190MHz Ant1 Freq. Stability 70C 3V n40 5190MHz Ant1 Report Freq. Stability 20C 2.55V n40 5230MHz Ant1 Freq. Stability 20C 3V n40 5230MHz Ant1 Report Freq. Stability 20C 3.45V n40 5230MHz Ant1 Freq. Stability -20C 3V n40 5230MHz Ant1 Report Freq. Stability -10C 3V n40 5230MHz Ant1 Freq. Stability 0C 3V n40 5230MHz Ant1 Report Freq. Stability 10C 3V n40 5230MHz Ant1 Freq. Stability 30C 3V n40 5230MHz Ant1 Report Freq. Stability 40C 3V n40 5230MHz Ant1 Freq. Stability 50C 3V n40 5230MHz Ant1

Test Report

Report Freq. Stability 70C 3V n20 5260MHz Ant1 Freq. Stability 20C 2.55V n20 5280MHz Ant1 Report Freq. Stability 20C 3V n20 5280MHz Ant1 Freq. Stability 20C 3.45V n20 5280MHz Ant1 Report Freq. Stability -20C 3V n20 5280MHz Ant1 Freq. Stability -10C 3V n20 5280MHz Ant1 Report Freq. Stability 0C 3V n20 5280MHz Ant1 Freq. Stability 10C 3V n20 5280MHz Ant1 Report Freq. Stability 30C 3V n20 5280MHz Ant1 Freq. Stability 40C 3V n20 5280MHz Ant1 Report Freq. Stability 50C 3V n20 5280MHz Ant1 Freq. Stability 60C 3V n20 5280MHz Ant1 Report Freq. Stability 70C 3V n20 5280MHz Ant1 Freq. Stability 20C 2.55V n20 5320MHz Ant1 Report Freq. Stability 20C 3V n20 5320MHz Ant1 Freq. Stability 20C 3.45V n20 5320MHz Ant1 Report Freq. Stability -20C 3V n20 5320MHz Ant1 Freq. Stability -10C 3V n20 5320MHz Ant1 Report Freq. Stability 0C 3V n20 5320MHz Ant1 Freq. Stability 10C 3V n20 5320MHz Ant1 Report Freq. Stability 30C 3V n20 5320MHz Ant1 Freq. Stability 40C 3V n20 5320MHz Ant1 Report Freq. Stability 50C 3V n20 5320MHz Ant1 Freq. Stability 60C 3V n20 5320MHz Ant1 Report Freq. Stability 70C 3V n20 5320MHz Ant1 Freq. Stability 20C 2.55V n20 5500MHz Ant1 Report Freq. Stability 20C 3V n20 5500MHz Ant1 Freq. Stability 20C 3.45V n20 5500MHz Ant1 Report Freq. Stability -20C 3V n20 5500MHz Ant1 Freq. Stability -10C 3V n20 5500MHz Ant1 Report Freq. Stability 0C 3V n20 5500MHz Ant1 Freq. Stability 10C 3V n20 5500MHz Ant1 Report Freq. Stability 30C 3V n20 5500MHz Ant1 Freq. Stability 40C 3V n20 5500MHz Ant1 Report Freq. Stability 50C 3V n20 5500MHz Ant1 Freq…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Hanbing Deng(manager)

[email protected]Fax: 0755-24665666

Technical Contact

Global Product Services and Consultation LLCMichael Chan

[email protected]

328 W Palm Ave. · Monrovia, California · United States

Test Firm

Guangdong Global Testing Technology Co., Ltd.Shawn Wen

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.24 GHz	27.60 mW
2	15E	5.26 GHz - 5.32 GHz	27.60 mW
3	15E	5.50 GHz - 5.70 GHz	27.60 mW
4	15E	5.75 GHz - 5.83 GHz	24.20 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single modular approval. Output power listed is conducted. The device supports 20MHz, 40MHz and 80MHz bandwidths. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines.
