2AL6KBL-R8811CU9802.11a/b/g/n/ac 433Mbps WiFi USB Module

BL-R8811CU9 802.11ac433MbpsWiFi USBModuleSpecification SHENZHENBILIANELECTRONICCO.,LTD Add:10~11/F,Building1A,Huaqiangideapark,Guangmingdistrict,Shenzhen.Guangdong,China Web:www.b-link.net.cn 1http://www.b-link.net.cn RevisionHistory RevisionHistory RevisionSummaryReleaseDate 1.0Officialrelease2020-03-03 ModuleName:BL-R8811CU9 ModuleType:802.11a/b/g/n/ac433MbpsWiFiUSBModule Revision:V1.0 CustomerApproval: Company: Title: Signature:Date: BL-linkApproval: Title: Signature:Date: 2http://www.b-link.net.cn 1.Introduction BL-R8811CU9moduleisdesignedbaseonRTL8811CU.ItsupportsIEEE802.11a/b/g/n/ac1T1Rwithhigh throughputdatarateforWLANproductsandprovidesthehighestPHYrateupto433.3Mbps.Itcombinesa WLANMAC,a1T1RcapableWLANbaseband,modemandoffersstable,highrate,longdistancewireless connectivitythroughexternalantenna.ItcanbeusedontheIPCamera/SmartTVandotherwirelessdeviceseasily. 1.1Features OperatingFrequencies:2.4~2.4835GHzor5.15~5.85GHz HostInterfaceisUSB IEEEStandards:IEEE802.11a/b/g/n/ac Wirelessdataratecanreachupto433Mbps ConnecttoexternalantennathroughIPEXconnector PowerSupply:DC3.3V±0.2Vmainpowersupply 1.2BlockDiagram 3http://www.b-link.net.cn 1.3GeneralSpecifications ModuleNameBL-R8811CU9WiFiUSBModule ChipsetRTL8811CU-CG WiFiStandardsIEEE802.11a/b/g/n/ac HostInterfaceUSB2.0 AntennaConnecttotheexternalantennathroughIPEXconnecter DimensionSMD6Pin,22.6*17.0*10.5mm(L*W*H) PowerSupplyDC3.3V±0.2V@500mA(Max) OperationTemperature-10°Cto+70°C OperationHumidity10%to95%RH(Non-Condensing) 2.PinAssignments 2.1PinDefinition NoPinNameTypeDescriptionSupply 1 VDD33 P DC3.3VPowerSupply 2 UDMI/OUSBTransmitter/ReceiverDifferentialPair 3 UDPI/OUSBTransmitter/ReceiverDifferentialPair 4 GND PGround 5 IPEX RFIPEXconnector P:Power,I:Input,O:Output,I/O:In/Output,RF:AnalogRFPort 4http://www.b-link.net.cn 3.ElectricalandThermalSpecifications 3.1RecommendedOperatingConditions ParametersMinTypMaxUnits AmbientOperatingTemperature-202570°C ExternalAntennaVSWR1.92:12:1/ SupplyVoltageVDD3.13.33.5V 3.2CurrentConsumption Conditions:VDD=3.3V;Ta:25°C UseCase VDDCurrent(average) TypMaxUnits WiFiUnassociated(Linux)130160mA 2.4G11MbpsTX(RFtest)383453mA 2.4GHT40MCS0TX(RFtest)352403mA 2.4GHT40MCS7TX(RFtest)360409mA 5GVHT80MCS0TX(RFtest)383436mA 5GVHT80MCS9TX(RFtest)391412mA 2.4GRXActive(RFtest)140165mA 5GRXActive(RFtest)160185mA 4.WiFiRFSpecifications 4.12.4GWiFiRFSpecification Conditions:VDD=3.3V;Ta:25°C FeaturesDescription WLANStandardIEEE802.11b/g/n,CSMA/CA FrequencyRange2.4~2.4835GHz(2.4GHzISMBand) ChannelsCh1~Ch13(For20MHzChannels) 5http://www.b-link.net.cn Modulation 802.11b(DSSS):DBPSK,DQPSK,CCK; 802.11a/g (OFDM):BPSK,QPSK,QAM16,QAM64; 802.11n(OFDM):BPSK,QPSK,QAM16,QAM64; DateRate 802.11b:1,2,5.5,11Mbps; 802.11g:6,9,12,18,24,36,48,54Mbps; 802.11n(HT20):MCS0~MCS76.5~72.2Mbps; 802.11n(HT40):MCS0~MCS713.5~150Mbps; FrequencyTolerance≦±15ppm 2.4GReceiverSpecifications RXRateMinInputLevel（dBm）MaxInputLevel（dBm）PER 802.11b@1Mbps-96-5<8% 802.11b@11Mbps-87 -5 <8% 802.11g@6Mbps-90-5<10% 802.11g@54Mbps-73 -5 <10% 802.11n@HT20_MCS0-89-5<10% 802.11n@HT20_MCS7-69 -5 <10% 802.11n@HT40_MCS0-87-5<10% 802.11n@HT40_MCS7-68 -5 <10% 4.25GWiFiRFSpecification Conditions:VDD=3.3V;Ta:25°C FeaturesDescription WLANStandardIEEE802.11a/n/ac, CSMA/CA FrequencyRange 5.15~5.25GHz;5.25~5.35GHz;5.47~5.73GHz; 5.735~5.835GHz(5GHzISMBand) 6http://www.b-link.net.cn Channels Ch36,Ch40,Ch44,Ch48;Ch52~Ch64; Ch100~Ch140;Ch149~Ch165(For20MHzChannels) Modulation 802.11a(OFDM):BPSK,QPSK,QAM16,QAM64; 802.11n(OFDM):BPSK,QPSK,QAM16,QAM64; 802.11ac(OFDM):BPSK,QPSK,QAM16,QAM64,QAM256; DateRate 802.11a:6,9,12,18,24,36,48,54Mbps; 802.11n(HT20):MCS0~MCS76.5~72.2Mbps; 802.11n(HT40):MCS0~MCS7)13.5~150Mbps; 802.11ac(VHT20):MCS0~MCS86.5~86.7Mbps; 802.11ac(VHT40):MCS0~MCS913.5~200Mbps; 802.11ac(VHT80):MCS0~MCS929.3~433.3Mbps; FrequencyTolerance≦±15ppm 5GReceiverSpecifications RXRate MinInputLevel（dBm）MaxInputLevel（dBm）PER 802.11a@6Mbps-89-5<10% 802.11a@54Mbps-72-5<10% 802.11n@HT20_MCS0-87-5<10% 802.11n@HT20_MCS7-69-5<10% 802.11n@HT40_MCS0-86-5<10% 802.11n@HT40_MCS7-67-5<10% 7http://www.b-link.net.cn 802.11ac@VHT80_MCS0-82-10<10% 802.11ac@VHT80_MCS9-57-10<10% 5.ApplicationInformation 5.1TypicalApplicationCircuit 6.KeyComponentsOfModule No.PartsSpecificationManufacturerNote 1ChipsetRTL8811CU-CGRealtek 2PCBBL-R8811CU9 ShenzhenTieFaTechnology GuangdongKINGSHINEELECTRONICSCO.LTD 2Crystal 40MHz-15pF-10ppm- 2520 HUBEITKDELECTRONICS TECHNOLOGYCO.,LTD HOSONICELECTRONICCO.,LTD 3DiplexerDPX105850DT-6019A1TDKChinaCo.,Ltd 8http://www.b-link.net.cn 7.PackageandStorageInformation 7.1PackageDimensions Packagespecification: 1.90modulesperblisterplateand1000modulesperbox. 2.Theblisterisboundwithwiremembraneandputintoanti-staticvacuumbag. 3.Put1bagofdrybeads(20g)ineachanti-staticvacuumbag.1pcs3pointhumiditycard. 4.Theouterboxsizeis35.2*21.5*15.5cm. 7.2StorageConditions AbsoluteMaximumRatings: Storagetemperature:-45°Cto+85°C, Storagehumidity:10%to95（Non-Condensing） RecommendedStorageConditions: Storagetemperature:5°Cto+40°C, Storagehumidity:20%to90%RH PleaseusethisModulewithin12monthaftervacuum-packaged. TheModuleshallbestoredwithoutopeningthepacking. Afterthepackingopened,theModuleshallbeusedwithin72hours. Whenthecolorofthehumidityindicatorinthepackingchanged,theModuleshallbebakedbeforesoldering. Bakingcondition:60°C,24hours,1time. ESDSensitivity： TheModuleisastatic-sensitiveelectronicdevice. Donotoperateorstorenearstrongelectrostaticfields. TakeproperESDprecautions! FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) this device must accept any interference received, incl uding interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, …

Text truncated - open the document above for the full version.

Shenzhen Bilian Electronic Co.,Ltd. Agent Authorization Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Product Name: 802.11a/b/g/n/ac 433Mbps WiFi USB Module Trade Mark: N/A Model Number(s): BL-R8811CU9 FCC ID: 2AL6KBL-R8811CU9 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-01-12 Name: Hanbing Deng Title: Manager Company: Shenzhen Bilian Electronic Co.,Ltd.

Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Module Approval Request Letter Company name: 802.11a/b/g/n/ac 433Mbps WiFi USB Module FCC ID: 2AL6KBL-R8811CU9 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID：2AL6KBL-R8811CU9 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes the module with a shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes The module must contain power supply regulation on the module. The modular has an onboard 3.3V regulator(integrated in RTL8811CU). The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular has a External antenna which comply with the antenna requirement of Section 15.203,Maximum Antenna Gain is 2dBi. The module must demonstrate compliance in a stand-alone configuration. The modular was tested in a standalone configuration apart from host units. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has its own FCC ID number. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, RF cexposure evaluation performed at 20cm. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 11 2.3 Summarize the specific operational use conditions Page 11 2.4 Limited module procedures Page 11 2.5 Trace antenna designs Page 11 2.6 RF exposure considerations Page 11 2.7 Antennas Page 11 2.8 Label and compliance information Page 11 2.9 Information on test modes and additional testing requirements Page 11 2.10 Additional testing, Part 15 Subpart B disclaimer Page 11 Name: Hanbing Deng Date: 2023-01-12 Title: Manager Signature of applicant

Shenzhen Bilian Electronic Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-01-12 Subject; Request for Confidentiality FCC ID: 2AL6KBL-R8811CU9 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax:+86 0755-24665666 E-Mail: [email protected]

FCC ID: 2AL6KBL-R8811CU9 Fig. 1 Fig. 2 Antenna EUT FCC ID: 2AL6KBL-R8811CU9 Fig. 3

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L2.0cm x 1.5cm) Label Location Model : BL-R8811CU9 FCC ID: 2AL6KBL-R8811CU9

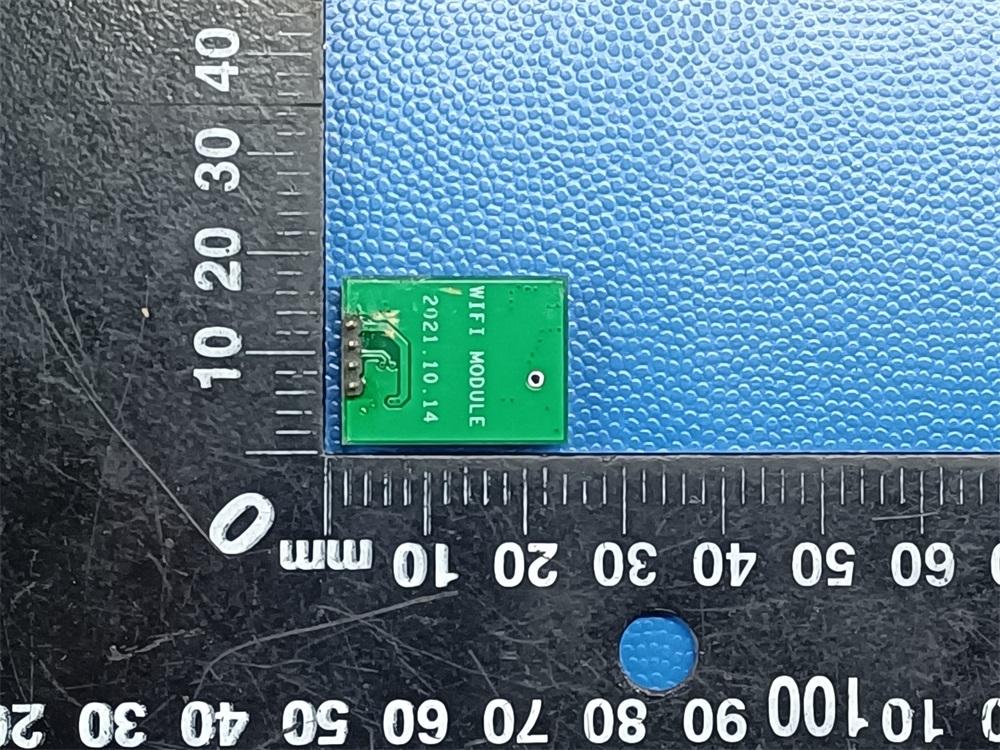

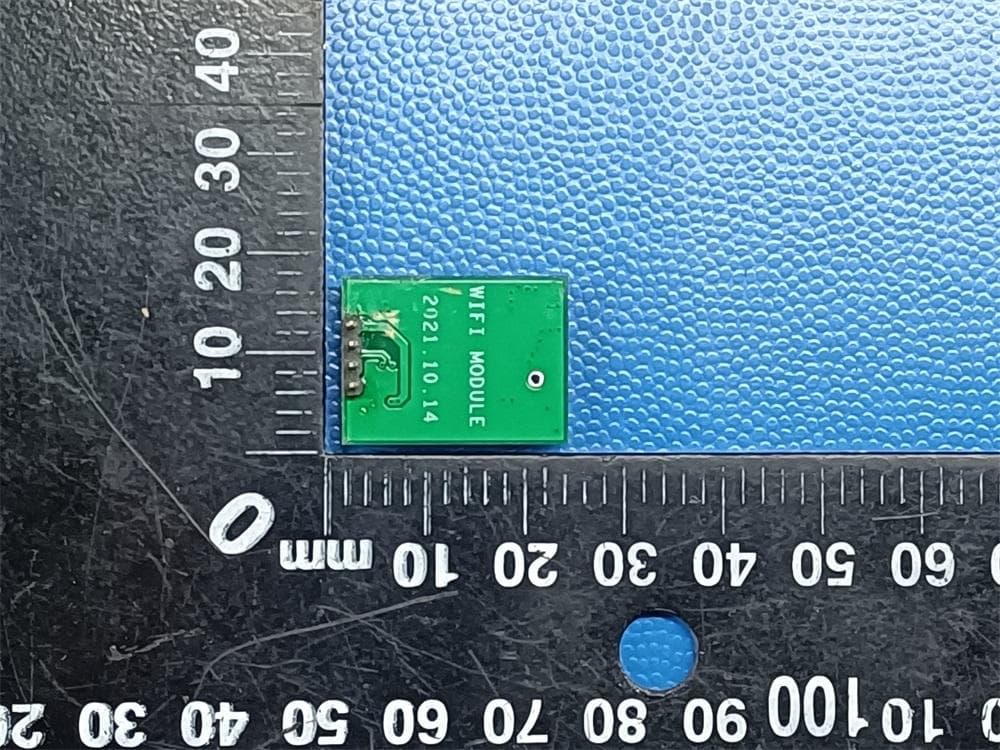

FCC ID: 2AL6KBL-R8811CU9 Fig. 1 Fig. 2 FCC ID: 2AL6KBL-R8811CU9 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20221202017-1-11 2AL6KBL-R8811CU9 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jan. 04, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 802.11a/b/g/n/ac 433Mbps WiFi USB Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-R8811CU9 Listed Models .................................. : N/A Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20221202017-1-11 Page 2 of 15 T E S T R E P O R T Test Report No. : GTS20221202017-1-11 Jan. 04, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : 802.11a/b/g/n/ac 433Mbps WiFi USB Module Model /Type : BL-R8811CU9 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221202017-1-11 Page 3 of 15 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ..........................................................................................................…

Text truncated - open the document above for the full version.

Case No. : GTS20221202017-1-8 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.26 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.080 2406.960 2417.040 0.5 PASS 2437 10.120 2431.960 2442.080 0.5 PASS 2462 10.080 2457.000 2467.080 0.5 PASS 11G Ant1 2412 16.480 2403.800 2420.280 0.5 PASS 2437 16.520 2428.760 2445.280 0.5 PASS 2462 16.520 2453.720 2470.240 0.5 PASS 11N20SISO Ant1 2412 17.760 2403.120 2420.880 0.5 PASS 2437 17.720 2428.160 2445.880 0.5 PASS 2462 17.760 2453.120 2470.880 0.5 PASS 11N40SISO Ant1 2422 36.480 2403.760 2440.240 0.5 PASS 2437 36.400 2418.840 2455.240 0.5 PASS 2452 36.400 2433.840 2470.240 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 15.128 2404.432 2419.560 --- --- 2437 15.106 2429.515 2444.621 --- --- 2462 15.075 2454.482 2469.557 --- --- 11G Ant1 2412 17.004 2403.467 2420.471 --- --- 2437 16.912 2428.558 2445.470 --- --- 2462 17.076 2453.364 2470.440 --- --- 11N20SISO Ant1 2412 18.046 2402.992 2421.038 --- --- 2437 18.073 2428.000 2446.073 --- --- 2462 18.064 2453.010 2471.074 --- --- 11N40SISO Ant1 2422 36.713 2403.722 2440.435 --- --- 2437 36.585 2418.819 2455.404 --- --- 2452 36.560 2433.802 2470.362 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[M Hz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 19.45 ≤30.00 PASS 2437 18.49 ≤30.00 PASS 2462 19.04 ≤30.00 PASS 11G Ant1 2412 19.58 ≤30.00 PASS 2437 19.66 ≤30.00 PASS 2462 20.17 ≤30.00 PASS 11N20SISO Ant1 2412 18.17 ≤30.00 PASS 2437 19.52 ≤30.00 PASS 2462 20.13 ≤30.00 PASS 11N40SISO Ant1 2422 18.28 ≤30.00 PASS 2437 19.83 ≤30.00 PASS 2452 19.17 ≤30.00 PASS Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -14.1 ≤8.00 PASS 2437 -14.8 ≤8.00 PASS 2462 -14.23 ≤8.00 PASS 11G Ant1 2412 -15.66 ≤8.00 PASS 2437 -15.94 ≤8.00 PASS 2462 -14.75 ≤8.00 PASS 11N20SISO Ant1 2412 -15.86 ≤8.00 PASS 2437 -14.07 ≤8.00 PASS 2462 -13.79 ≤8.00 PASS 11N40SISO Ant1 2422 -18.97 ≤8.00 PASS 2437 -15.78 ≤8.00 PASS 2452 -17.36 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 5.63 -35.76 ≤-14.37 PASS High 2462 5.86 -49 ≤-14.14 PASS 11G Ant1 Low 2412 -1.55 -34.87 ≤-21.55 PASS High 2462 -0.91 -48.88 ≤-20.91 PASS 11N20SISO Ant1 Low 2412 -2.94 -38.61 ≤-22.94 PASS High 2462 -1.25 -49.11 ≤-21.25 PASS 11N40SISO Ant1 Low 2422 -5.92 -39.62 ≤-25.92 PASS High 2452 -5.05 -47.94 ≤-25.05 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.99 3.99 --- PASS 30~1000 3.99 -59.78 ≤-16.01 PASS 1000~26500 3.99 -47.6 ≤-16.01 PASS 2437 Reference 4.49 4.49 --- PASS 30~1000 4.49 -59.29 ≤-15.51 PASS 1000~26500 4.49 -46.84 ≤-15.51 PASS 2462 Reference 6.04 6.04 --- PASS 30~1000 6.04 -60.12 ≤-13.96 PASS 1000~26500 6.04 -47.78 ≤-13.96 PASS 11G Ant1 2412 Reference -1.85 -1.85 --- PASS 30~1000 -1.85 -60.84 ≤-21.85 PASS 1000~26500 -1.85 -48.14 ≤-21.85 PASS 2437 Reference -1.84 -1.84 --- PASS 30~1000 -1.84 -60.42 ≤-21.84 PASS 1000~26500 -1.84 -47.09 ≤-21.84 PASS 2462 Reference -1.21 -1.21 --- PASS 30~1000 -1.21 -60.48 ≤-21.21 PASS 1000~26500 -1.21 -46.11 ≤-21.21 PASS 11N20SISO Ant1 2412 Reference -3.48 -3.48 --- PASS 30~1000 -3.48 -60.76 ≤-23.48 PASS 1000~26500 -3.48 -47.85 ≤-23.48 PASS 2437 Reference -1.83 -1.83 --- PASS 30~1000 -1.83 -60.23 ≤-21.83 PASS 1000~26500 -1.83 -47.1 ≤-21.83 PASS 2462 Reference -2.19 -2.19 --- PASS 30~1000 -2.19 -59.71 ≤-22.19 PASS 1000~26500 -2.19 -28.44 ≤-22.19 PASS 11N40SISO Ant1 2422 Reference -6.40 -6.40 --- PASS 30~1000 -6.40 -59.93 ≤-26.4 PASS 1000~26500 -6.40 -47.27 ≤-26.4 PASS 2437 Reference -4.69 -4.69 --- PASS 30~1000 -4.69 -59.71 ≤-24.69 PASS 1000~26500 -4.69 -47.47 ≤-24.69 PASS 2452 Reference -5.62 -5.62 --- PASS 30~1000 -5.62 -60.18 ≤-25.62 PASS 1000~26500 -5.62 -47.48 ≤-25.62 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_A…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20221202017-1-8 2AL6KBL-R8811CU9 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Jan. 04, 2023 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 802.11a/b/g/n/ac 433Mbps WiFi USB Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference....................... : BL-R8811CU9 Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result................................................ : PASS Report No.: GTS20221202017-1-8 Page 2 of 32 T E S T R E P O R T Test Report No. : GTS20221202017-1-8 Jan. 04, 2023 ____________________________________________________________________________________ Date of issue Equipment under Test : 802.11a/b/g/n/ac 433Mbps WiFi USB Module Model /Type : BL-R8811CU9 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221202017-1-8 Page 3 of 32 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 7 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories .....................................................…

Text truncated - open the document above for the full version.
