2AL6KBL-M7603NU4EEE802.11b/g/n/(2T2R )WIFI USB Module

0 Product Specification Reversion v1.0 Date 2017-03-14 Model Name BL-M7603NU4 Product Name IEEE 802.11b/g/n (2T2R) WLAN USB Module Blink Approve Field ENGINEER QC SALES Customer Approve Field ENGINEER QC MANUFACTORY PURCHASING 联系人：邓海兵 MO:13662644686 PDF pdfFactory Pro www.fineprint.cn 1 Content Content ................................................................................................................................................... 1 1. General Description .............................................................................................................................. 2 2. Applications ......................................................................................................................................... 2 3. Product Specification ............................................................................................................................ 2 3.1 Function Block diagram .............................................................................................................................. 2 3.2 Electrical and Performance Specification .................................................................................................. 2 3.3 DC Characteristic ........................................................................................................................................ 3 3.4 RF Characteristic ........................................................................................................................................ 4 3.5 Product Photo ............................................................................................................................................ 5 3.6 Mechanical Specification ........................................................................................................................... 5 3.7 ProductPinDefinition .................................................................................................................................. 6 4. Supported platform .............................................................................................................................. 7 5.Typical ApplicationCircuit-------------------------------------------------------------------------------------------8 6. Package information ............................................................................................................................ 9 7. Typical Solder Reflow Profile ................................................................................................................ 9 8. Precautions for use ............................................................................................................................ 10 PDF pdfFactory Pro www.fineprint.cn 2 1. General Description BL-M7603NU4 is a highly integrated Wi-Fi single chip which support 300 Mbps PHY rate. It fully complies with IEEE802.11n and IEEE802.11b/g standard, offering feature-rich wireless connectivity at high standard, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and lower power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor. 2. Applications MID, networking camera, STB GPS, E-book, Hard disk player, Network Radios, PSP and other device which need be supported by wireless networking. 3. Product Specification 3.1 Function Block diagram Figure 1 MT7603U block diagram 3.2 Electrical and Performance Specification Item Description Product Name BL-M7603NU4 Major Chipset MT7603U PDF pdfFactory Pro www.fineprint.cn 3 Host Interface USB2.0 Standard IEEE 802.11b, IEEE 802.11g,IEEE 802.11n Frequency Range 2.4GHz~2.4835GHz Modulation Type 802.11b: CCK, DQPSK, DBPSK 802.11g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK Working Mode Infrastructure, Ad-Hoc Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,135,300 Mbps(self-adapting) Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing) Sensitivity @PER 1M: -94dBm@8%PER 9M: -90dBm@10%PER 11M:-88dBm@8%PER 54M:-74dBm@10%PER 135M:-68dBm@10%PER RF Power 14.71dBm@11b, 14.68dBm@11g , 14.93dBm@11n Antenna type Connect to the external antenna through the IPEX connector The transmit distance Indoor 100M, Outdoor 300M, according the local environment Dimension(L*W*H) 27x 17.7x 2.0mm (LxWxH) Power supply 3.3V +/-0.2V Power Consumption standby mode [email protected] , Working mode [email protected] Clock source 40MHz Working Temperature -10°C to +50°C Storage temperature -40°C to +70°C 3.3 DC Characteristic Terms Contents Specification : IEEE802.11b Mode DSSS / CCK Frequency 2412 – 2484MHz Data rate 1, 2, 5.5, 11Mbps DC Characteristics min Typ max unit TX mode 480 650 750 mA Rx mode 91 100 105 mA Sleep mode 58 60 65 mA Specification : IEEE802.11g Mode OFDM PDF pdfFactory Pro www.fineprint.cn 4 Frequency 2412 - 2484MHz Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps DC Characteristics min Typ max unit TX mode 170 230 480 mA Rx mode 95 105 109 mA Sleep mode 58 60 65 mA Specification : IEEE802.11n Mode OFDM Frequency 2412 - 2484MHz Data rate 6.5, 13, 19.5, 26, 39, 135,300Mbps DC Characteristics min Typ max unit TX mode 165 220 450 mA Rx mode 95 105 110 mA Sleep mode 58 60 65 mA PDF pdfFactory Pro www.fineprint.cn 5 3.4 Product Photo 3.5 Mechanical Specification Module dimension: Typica l (W x L x H): 27.0mmx17.7mmx2.0mm Tolera nce : +/-0.2mm PDF pdfFactory Pro www.fineprint.cn 6 3.6 ProductPinDefinition PDF pdfFactory Pro www.fineprint.cn 7 4.Supported platform PDF pdfFactory Pro www.fineprint.cn 8 Operating System CPU Framework Driver WIN2000/XP/VISTA/WIN7 X86 Platform Enable LINUX2.4/2.6 ARM, MIPSII Enable WINCE5.0/6.0 ARM ,MIPSII Enable 5.Typical Application Circuit PDF pdfFactory Pro www.fineprint.cn 9 Figure 5 Typical application circuit NOTE： 1…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-02-25> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AL6KBL-M7603NU4 BL-M7603NU4 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Date: Feb.25, 2020 FCC ID: 2AL6KBL-M7603NU4 Model Number: BL-M7603NU4 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bilian Electronic Co.,Ltd. declare that this EUT (FCC ID: 2AL6KBL-M7603NU4) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 02/25/2020 To whom it may concern: We, Shenzhen Bilian Electronic Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AL6KBL-M7603NU4 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Limited Module Approval Request Letter 2020-02-25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Limited Module Approval Request Letter The Device,FCC ID: 2AL6KBL-M7603NU4, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The modular without a shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in MT7603U). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a External antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

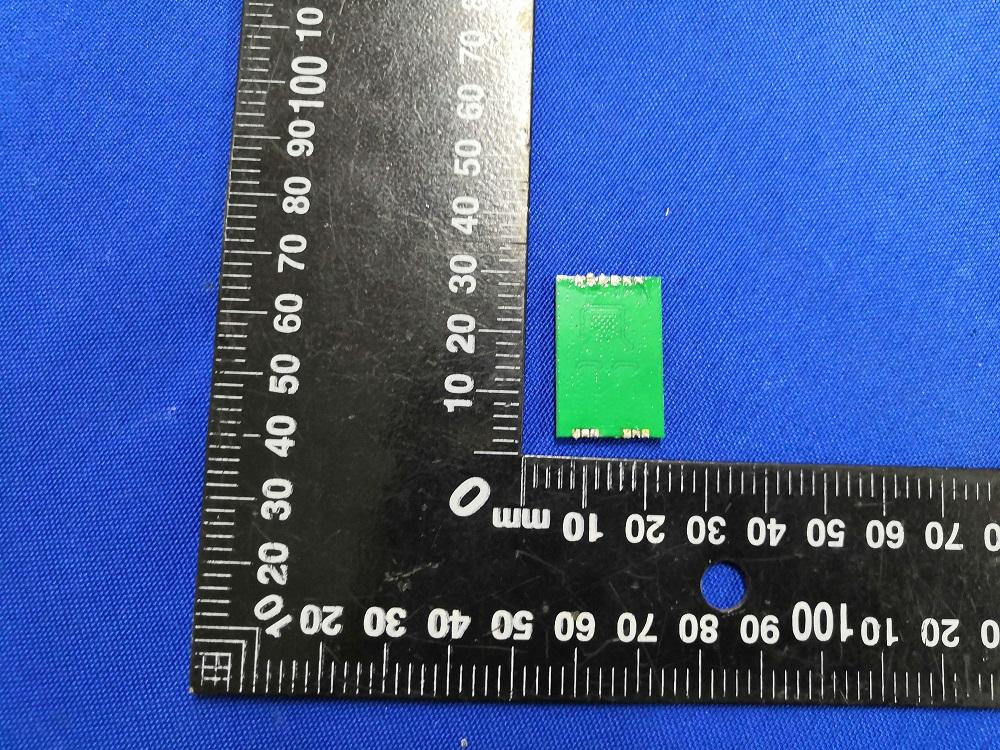

Fig. 1 Fig. 2 Fig. 3

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L1.5cm x 0.5cm) Label Location FCC ID: 2AL6KBL-M7603NU4

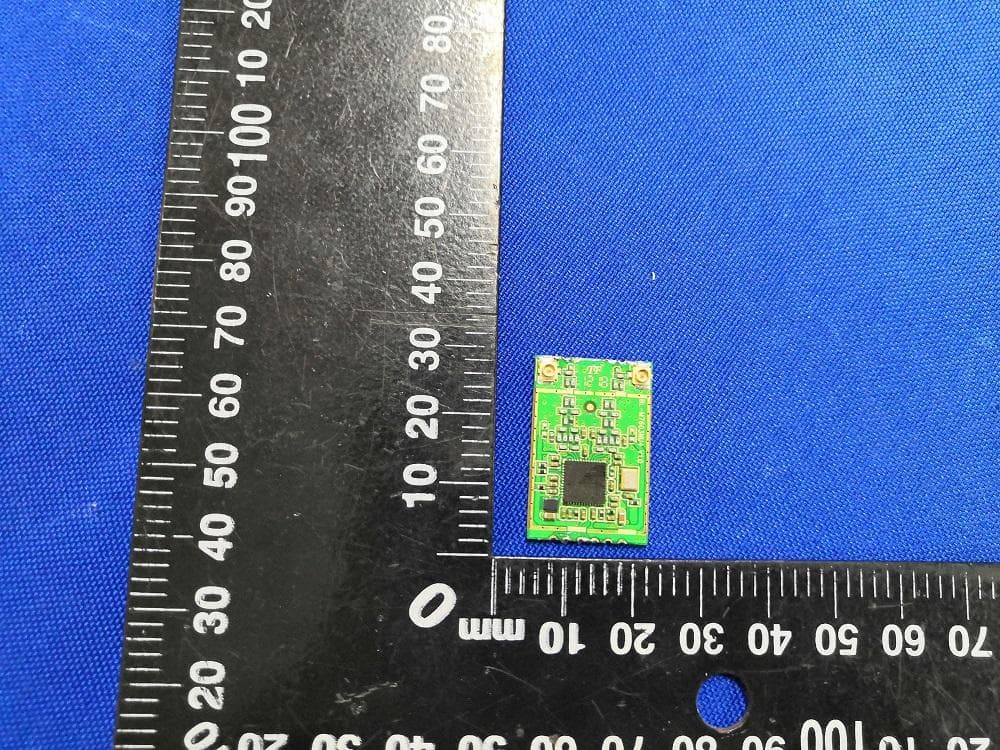

Fig. 1 Fig. 2 Ant. Port for WLAN ANT1 WLAN ANT0 WLAN ANT1 Ant. Port for WLAN ANT0 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20200219001-1-2 2AL6KBL-M7603NU4 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Feb.25, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : EEE802.11b/g/n/(2T2R )WIFI USB Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M7603NU4 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11b/802.11g/802.11n Operation Frequency........................ : From 2412MHz to 2462MHz Hardware Version ............................ : N/A Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20200219001-1-2 Page 2 of 10 T E S T R E P O R T Test Report No. : GTS20200219001-1-2 Feb.25, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : EEE802.11b/g/n/(2T2R )WIFI USB Module Model /Type : BL-M7603NU4 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200219001-1-2 Page 3 of 10 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ..........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20200219001-1-1 2AL6KBL-M7603NU4 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Moon Tan Approved by ( position+printed name+signature) .. : Manager Simon Hu Date of issue ..................................... : Feb.25, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: EEE802.11b/g/n/(2T2R )WIFI USB Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference....................... : BL-M7603NU4 Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : N/A Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result................................................ : PASS Report No.: GTS20200219001-1-1 Page 2 of 43 T E S T R E P O R T Test Report No. : GTS20200219001-1-1 Feb.25,2020 ____________________________________________________________________________________ Date of issue Equipment under Test : EEE802.11b/g/n/(2T2R )WIFI USB Module Model /Type : BL-M7603NU4 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200219001-1-1 Page 3 of 43 Contents 1. TEST STANDARDS ...................................................................................................................................... 4 2. SUMMARY .................................................................................................................................................... 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment Under Test 6 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT operation mode 6 2.6. Block Diagram of Test Setup 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Special Accessories 6 2.9. Modifications 6 3. TEST ENVIRONMENT .................................................................................................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS ......................................................................................................... 11 4.1. AC Power Conducted Emission 11 4.2. Radiated Emission 13 4.3. Maximum Peak Output Power 19 4.4. Power Spectral Density 21 4.5. 6dB Bandwidth 27 4.6. Band Edge Compliance of RF Emission 32 4.7. Antenna Requirement 39 5. TEST SETUP PHOTOS OF THE EUT ....................................................................................................... 40 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT .............................................................................. 42 Report No.: GTS20200219001-1-1 Page 4 of 43 1. T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247. Report No.: GTS20200219001-1-1 Page 5 of 43 2. S U M M A R Y 2.1. General Remarks Date of receipt of test sample : Feb.20, 2020 Testing commenced on : Feb.20, 2020 Testing concluded on : Feb.25, 2020 2.2. Product Description Product Name EEE802…

Text truncated - open the document above for the full version.

Report No.: GTS20200219001-1-1 Page 31 of 43 802.11n HT20 802.11n HT40 CH01 CH03 CH06 CH06 CH11 CH09 Report No.: GTS20200219001-1-1 Page 32 of 43 4.6. Band Edge Compliance of RF Emission TEST REQUIREMENT In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). TEST PROCEDURE According to KDB 558074 D01 for Antenna-port conducted measurement. Antenna-port conducted measurements may also be used as an alternative to radiated measurements for demonstrating compliance in the restricted frequency bands. If conducted measurements are performed, then proper impedance matching must be ensured and an additional radiated test for cabinet/case spurious emissions is required. 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Remove the antenna from the EUT and then connect to a low loss RF cable from the antenna port to a EMI test receiver, then turn on the EUT and make it operate in transmitting mode. Then set it to Low Channel and High Channel within its operating range, and make sure the instrument is operated in its linear range. 3. Set both RBW and VBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100kHz bandwidth from band edge, for Radiated emissions restricted band RBW=1MHz, VBW=3MHz for peak detector and RBW=1MHz, VBW=10Hz for average detector. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. 6. Measure the conducted output power (in dBm) using the detector specified by the appropriate regulatory agency (see 12.2.2, 12.2.3, and 12.2.4 for guidance regarding measurement procedures for determining quasi-peak, peak, and average conducted output power, respectively). 7. Add the maximum transmit antenna gain (in dBi) to the measured output power level to determine the EIRP level (see 12.2.5 for guidance on determining the applicable antenna gain) 8. Add the appropriate maximum ground reflection factor to the EIRP level (6 dB for frequencies ≤ 30 MHz, 4.7 dB for frequencies between 30 MHz and 1000 MHz, inclusive and 0 dB for frequencies > 1000 MHz). 9. For devices with multiple antenna-ports, measure the power of each individual chain and sum the EIRP of all chains in linear terms (e.g., Watts, mW). 10. Convert the resultant EIRP level to an equivalent electric field strength using the following relationship: E = EIRP – 20log D + 104.8 where: E = electric field strength in dBμV/m, EIRP = equivalent isotropic radiated power in dBm D = specified measurement distance in meters. 11. Since the out-of-band characteristics of the EUT transmit antenna will often be unknown, the use of a conservative antenna gain value is necessary. Thus, when determining the EIRP based on the measured conducted power, the upper bound on antenna gain for a device with a single RF output shall be selected as the maximum in-band gain of the antenna across all operating bands, or 2 dBi, whichever is greater. However, for devices that operate in multiple frequency bands while using the same transmit antenna, the highest gain of the antenna within the operating band nearest in frequency to the restricted band emission being measured may be used in lieu of the overall highest gain when the emission is at a frequency that is within 20 percent of the nearest band edge frequency, but in no case shall a value less than 2 dBi be used. 12. Compare the resultant electric field strength level to the applicable regulatory limit. 13. Perform radiated spurious emission test dures until all measured frequencies were complete. LIMIT Below -20dB of the highest emission level in operating band. Radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a). Report No.: G…
