2AL6KBL-M7638BU4IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module

BL-M7638BU4 IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module SHENZHEN BILIAN ELECTRONIC CO., LTD Add: 10~11/F, Building 1A, Huaqiang idea park, Guangming district, Shenzhen. Guangdong, China Web: www.b-link.net.cn 1 http://www.b-link.net.cn Top view Bottom view Module Name: BL-M7638BU4 Module Type: 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Revision: V1.0 Customer Approval: Company: Title: Signature: Date: BL-link Approval: Title: Signature: Date: 2 http://www.b-link.net.cn Revision History Revision Summary Release Date 1.0 Official release 2021-01-26 1.Introduction BL-M7638BU4 module design is based on Mediatek MT7638BUN solution, The MT7638BUN is a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio and Bluetooth radio. It includes Bluetooth EDR and LE radio which complies with Bluetooth v2.1+EDR, v4.2, and v5.0. The Module is a highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supports a 300Mbps PHY rate. The Module is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance anytime and in any circumstance. This documentation describes the engineering requirements specification. 1.1 Features Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz Host Interface is USB 2.0 IEEE Standards: IEEE 802.11a/b/g/n Wireless data rate can reach up to 300Mbps Power Supply:5V±0.2V main power supply 3 http://www.b-link.net.cn 1.3 General Specifications Module Name BL-M7638BU4 Chipset Mediatek MT7638BUN WiFi Standards IEEE802.11a/b/g/n Host Interface USB2.0 Dimension 33mm x 70mm x 6.0mm (L*W*H) ，Tolerance: ±0.15mm Power Supply DC5V±0.2V Operation Temperature -20°C to +70°C Storage Temperature -40°C to +125°C Operation Humidity 10% to 95% RH (Non-Condensing) 4 http://www.b-link.net.cn 2.Pin Assignments Top view 2.1 Pin Definition No Pin Name Type Description Supply 1 DC_EN I/O Reset the module by controlling the DC / DC enable pin 2 BT_WAKE_HOST I/O Bluetooth wake up host 3 VDD P Main power supply 4 DM- I/O USB 2.0 differential line 5 DP+ I/O USB 2.0 differential line 6 GND P GND 7 GND P GND 8 3D_SYNC I/O synchronization function 9 REG_ON I/O Module reset 10 WLAN_DEV_WA KE I/O WLAN_DEV_WAKE P: Power, I: Input, O: Output, I/O: In/Output 5 http://www.b-link.net.cn 3.Electrical and Thermal Specifications 3.1 Recommended Operating Conditions Parameters Min Typ Max Units Ambient Operating Temperature -2025 70 °C External Antenna VSWR / / / / Supply Voltage DC-5V4.8 5.0 5.2 V 3.2 Current Consumption Conditions : VDD=5V ; Ta:25°C Use Case VDD Current (average) Typ Max Units 2.4G 1Mbps TX (RF-Test，1TX) for 18dBm 260 290 mA 2.4G 1Mbps RX (RF-Test，1RX) 100 120 mA 2.4G 11Mbps TX (RF-Test，1TX) for 18dBm 270 300 mA 2.4G 11Mbps RX (RF-Test，1RX) 100 120 mA 2.4G 6Mbps TX (RF-Test，1TX) for 18dBm 240 270 mA 2.4G 6Mbps RX (RF-Test，1RX) 100 130 mA 2.4G 54Mbps TX (RF-Test，1TX) for 14dBm 130 160 mA 2.4G 54Mbps RX (RF-Test，1RX) 100 120 mA 2.4G MCS0(HT20) TX (RF-Test，1TX) for 16dBm 220 250 mA 2.4G MCS0(HT20) RX (RF-Test，1RX) 100 120 mA 2.4G MCS7(HT20) TX (RF-Test，1TX) for 14dBm 140 170 mA 2.4G MCS7(HT20) RX (RF-Test，1RX) 110 120 mA 2.4G MCS8(HT40) TX (RF-Test，2TX) for 16dBm 410 440 mA 2.4G MCS8(HT40) RX (RF-Test，2RX) 110 130 mA 2.4G MCS15(HT40) TX (RF-Test，2TX) for 14dBm 260 290 mA 6 http://www.b-link.net.cn 2.4G MCS15(HT40) RX (RF-Test，2RX) 110 130 mA 5G 6Mbps TX (RF-Test，1TX) for 16dBm 360 390 mA 5G 6Mbps RX (RF-Test，1RX) 100 120 mA 5G 54Mbps TX (RF-Test，1TX) for 14dBm 220 250 mA 5G 54Mbps RX (RF-Test，1RX) 100 120 mA 5G MCS0(HT20) TX (RF-Test，1TX) for 16dBm 350 380 mA 5G MCS0(HT20) RX (RF-Test，1RX) 110 130 mA 5G MCS7(HT20) TX (RF-Test，1TX) for 14dBm 220 250 mA 5G MCS7(HT20) RX (RF-Test，1RX) 100 120 mA 5G MCS7(HT40) TX (RF-Test，1TX) for 14dBm 220 255 mA 5G MCS7(HT40) RX (RF-Test，1RX) 110 130 mA 5G MCS8(HT40) TX (RF-Test) for 16dBm 580 610 mA 5G MCS8(HT40) RX (RF-Test) 110 130 mA 5G MCS15(HT40) TX (RF-Test) for 14dBm 485 515 mA 5G MCS15(HT40) RX (RF-Test) 120 140 mA BT BR_1M DH5 TX@3dBm(MPTools, WiFi_Disable) 110 130 mA BT EDR_3M DH5 TX@3dBm(MPTools, WiFi_Disable) 100 110 mA BT LE_1M TX@3dBm(MPTools, WiFi_Disable) 110 130 mA BT LE_2M TX@3dBm(MPTools, WiFi_Disable) 100 110 mA BT BR_1M DH5 RX Active(MPTools, WiFi_Disable) 60 90 mA BT EDR_3M DH5 RX Active(MPTools, WiFi_Disable) 70 110 mA BT LE_1M RX Active(MPTools, WiFi_Disable) 60 100 mA BT LE_2M RX Active(MPTools, WiFi_Disable) 60 90 mA 7 http://www.b-link.net.cn 4.WIFI & Bluetooth RF Specifications 4.1 WIFI RF Specification Conditions : VDD=5V ; Ta:25°C Features Description WLAN Standard IEEE 802.11a/b/g/n Frequency Range 2.4GHz~2.4835GHz /5.15~5.85Hz Channels CH1~CH13 (For 20MHz Channels) CH36, CH40, CH44, CH48; CH149~CH165 (For 20MHz Channels) Modulation 802.11b (DSSS) : DBPSK , DQPSK , CCK ; 802.11a/g (OFDM) : BPSK , QPSK , 16QAM , 64QAM ; 802.11n (OFDM) : BPSK , QPSK , 16QAM , 64QAM ; BT: 8DPSK,π/4DQPSK, GFSK Date Rate WIFI: 802.11b: 1, 2 ,5.5,11Mbps 802.11a/g: 6,9,12,18,24,36,48,54Mbps 802.11n: HT20 reach up to144.4Mbps, HT40 reach up to300Mbps BT: 1Mbps for Basic Rate 2,3Mbps for Enhanced Date Rate Frequency Tolerance ≦ ±15ppm 2.4G Receiver Specifications RX Rate Min Input Level(Typ) Max Input Level(Typ) PER 802.11b@1Mbps -92dBm-10dBm< 8% 802.11b@11Mbps -85dBm-10dBm< 8% 802.11g@6Mbps -90dBm-15dBm< 10% 802.11g@54Mbps -72dBm-15dBm< 10% 802.11n@HT20_MCS0 -88dBm-15dBm< 10% 802.11n@HT20_MCS7 -68dBm-15dBm< 10% 802.11n@HT40_MCS0 -86dBm-15dBm< 10% 802.11n@HT40_MCS7 -66dBm-15dBm< 10% 802.11a@54Mbps -72dBm-15dBm< 10% 802.11a@HT20/40_MCS7 -68dBm-15dBm< 10% 8 http://www.b-link.net.cn 4.1 Bluetooth RF Specification Conditions: VDD33=3.3V; Ta:25°C Features Description Bluetooth Specification Bluetooth v2.1+EDR/3.0+HS/4.2/5.0 Frequency Range 2.4~2.4835GHz (2.4GHz ISM Band) Channels Bluetooth Classic: Ch0~Ch78 (For 1MHz Channels); Bluetooth Low Energy: Ch0~Ch39 (For 2MHz Channels); Power Classes Bluetooth C…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 Shenzhen Bilian Electronic Co.,Ltd. FCC Software Configuration Control Declaration Date: June 4, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module /BL-M7638BU4 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Hanbing Deng Date: 2021/06/04 Title: Manager Signature of applicant

Shenzhen Bilian Electronic Co.,Ltd. Agent Authorization Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Product Name: IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Trade Mark: N/A Model Number(s): BL-M7638BU4 FCC ID: 2AL6KBL-M7638BU4 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-04 Name: Hanbing Deng Title: Manager Company: Shenzhen Bilian Electronic Co.,Ltd.

Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Module Approval Request Letter Company name: IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module FCC ID: 2AL6KBL-M7638BU4 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2AL6KBL-M7638BU4 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes the module with a shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes The module must contain power supply regulation on the module. The modular has an onboard 3.3V regulator(integrated in MT7638BU). The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular has a External antenna which comply with the antenna requirement of Section 15.203,Maximum Antenna Gain is 2dBi. The module must demonstrate compliance in a stand-alone configuration. The modular was tested in a standalone configuration apart from host units. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has its own FCC ID number. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, RF cexposure evaluation performed at 20cm. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 17 2.3 Summarize the specific operational use conditions Page 17 2.4 Limited module procedures Page 17 2.5 Trace antenna designs Page 17 2.6 RF exposure considerations Page 17 2.7 Antennas Page 17 2.8 Label and compliance information Page 17 2.9 Information on test modes and additional testing requirements Page 17 2.10 Additional testing, Part 15 Subpart B disclaimer Page 17 Name: Haiyun Peng Date: 2021-06-04 Title: sales director Signature of applicant

Shenzhen Bilian Electronic Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-04 Subject; Request for Confidentiality FCC ID: 2AL6KBL-M7638BU4 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax:+86 0755-24665666 E-Mail: [email protected]

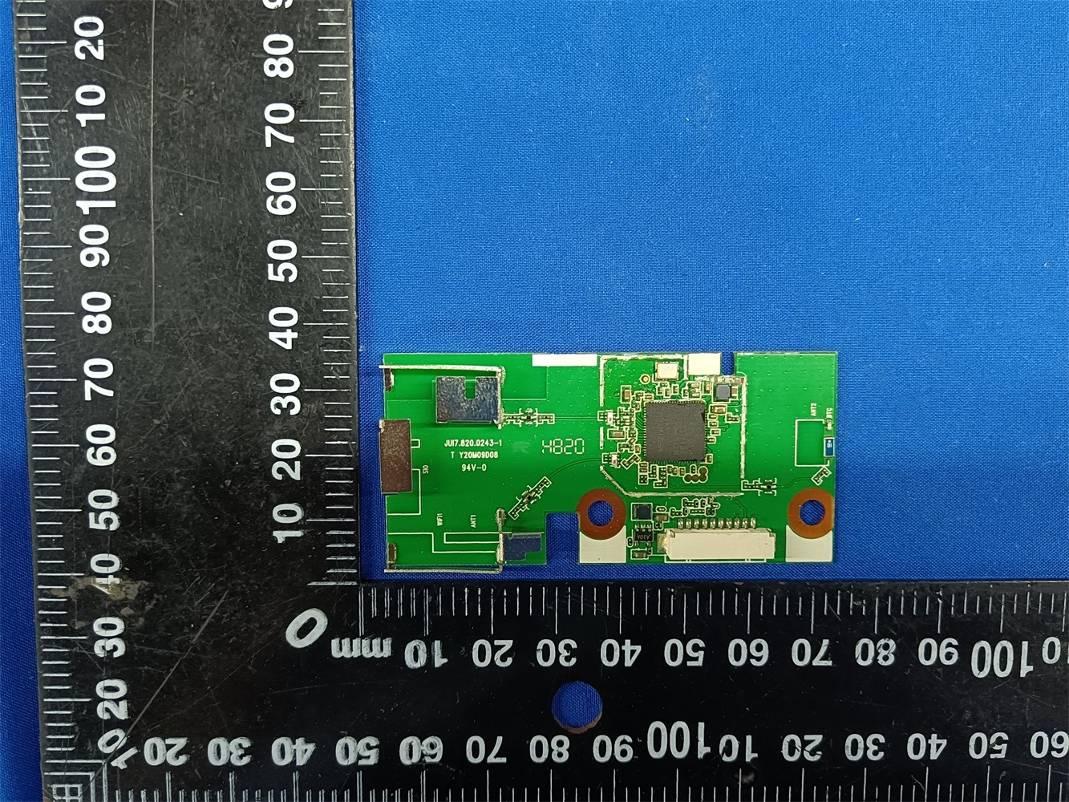

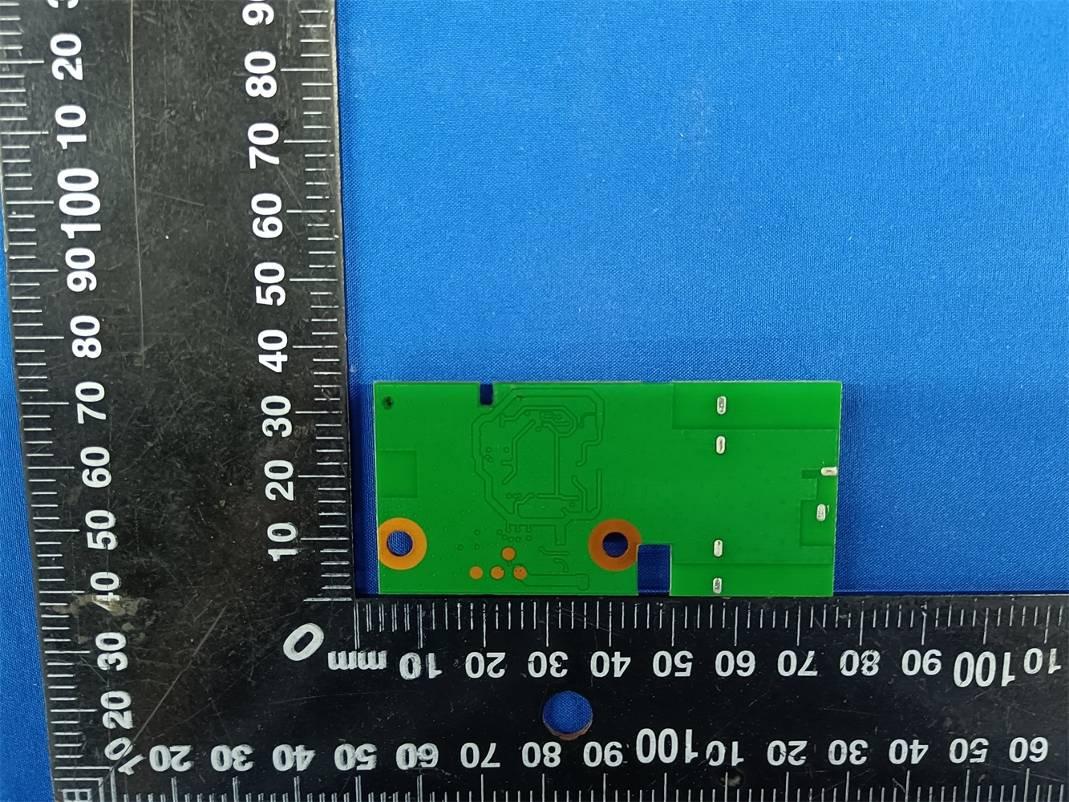

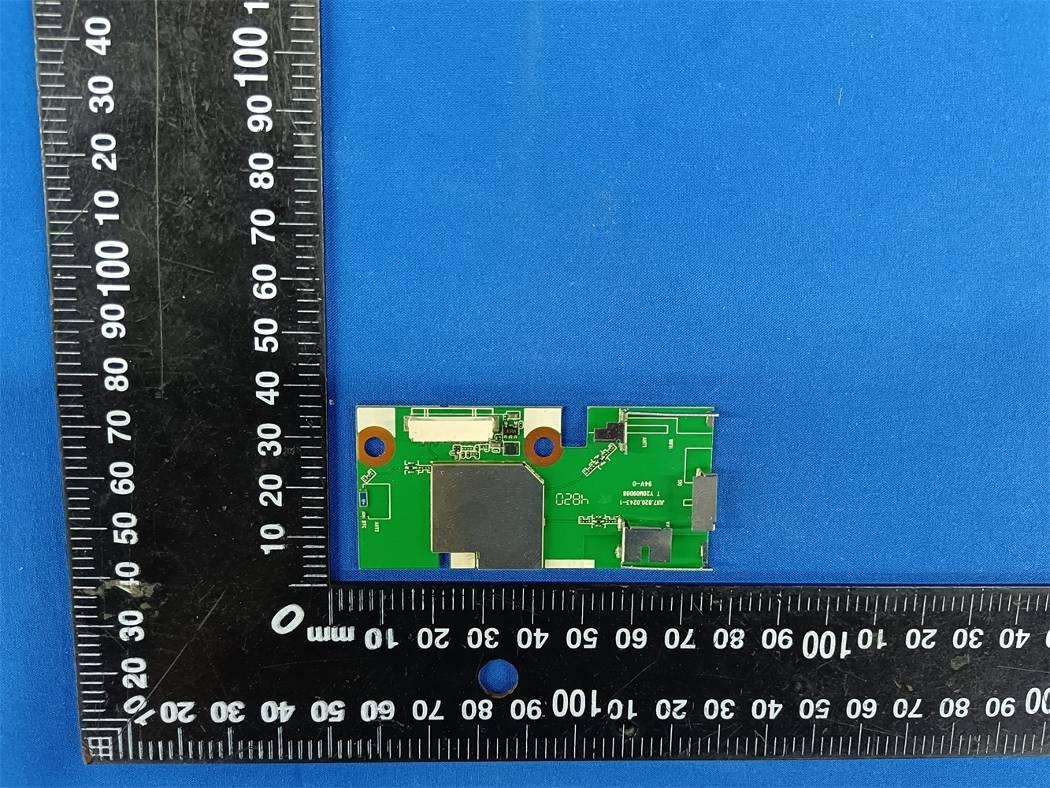

FCC ID: 2AL6KBL-M7638BU4 Fig. 1 Fig. 2 BT Antenna 2 WLAN Antenna 1 WLAN Antenna 0 FCC ID: 2AL6KBL-M7638BU4 Fig. 3 Fig. 4

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L1.0cm x 0.5cm) Label Location BL-M7638BU4 FCC ID: 2AL6KBL-M7638BU4

FCC ID: 2AL6KBL-M7638BU4 Fig. 1 Fig. 2 BT Antenna 2 WLAN Antenna 1 WLAN Antenna 0 FCC ID: 2AL6KBL-M7638BU4 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20210430001-1-13 2AL6KBL-M7638BU4 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Oliver Ou Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : May.19, 2021 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M7638BU4 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 5.0V Result ............................................... : PASS Report No.: GTS20210430001-1-13 Page 2 of 16 T E S T R E P O R T Test Report No. : GTS20210430001-1-13 May.19, 2021 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Model /Type : BL-M7638BU4 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210430001-1-13 Page 3 of 16 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 5 2.2 TEST FACILITY ............................................................................................................................................... 5 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. METHOD OF MEASUREMENT ................................................................................................................... 6 3.1 APPLICABLE STANDARD ................................................................................................................................. 6 3.2 REQUIREMENT .............................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ......................................................................................................................... 7 3.5 ANTENNA INFORMATION ................................................................................................................................. 7 4. CONDUCTED POWER RESULTS ...................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20210430001-1-12 2AL6KBL-M7638BU4 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Oliver Ou Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : May.19, 2021 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M7638BU4 Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 5.0V Result ............................................... : PASS Report No.: GTS20210430001-1-12 Page 2 of 75 T E S T R E P O R T Test Report No. : GTS20210430001-1-12 May.19, 2021 ____________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n 300Mbps WLAN + Bluetooth 5.0 Combo Module Model /Type : BL-M7638BU4 Listed model : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test l aboratory. Report No.: GTS20210430001-1-12 Page 3 of 75 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 7 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facili…

Text truncated - open the document above for the full version.

Report No.: GTS20210430001-1-12 Page 40 of 75 4.6. 6dB Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General U-NII Test Procedures New Rules v02r01 for one of the following procedures may be used for section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715-5.85 GHz. The following procedure shall be used for measuring this bandwidth: a. Set RBW = 100 kHz. b. Set the video bandwidth (VBW) ≥ 3 × RBW c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT For Section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715- 5.85 GHz TEST RESULTS Temperature 23.6°C Humidity 55.7% Test Engineer Oliver Ou Configurations IEEE 802.11a/n Report No.: GTS20210430001-1-12 Page 41 of 75 Antenna 0: Type Channel 99%Bandwidth (MHz) 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a 149 16.601 16.360 ≥500 Pass 157 16.586 14.560 165 16.637 15.160 802.11nHT20 149 16.607 15.400 ≥500 Pass 157 16.605 15.200 165 16.635 15.160 802.11n40 151 36.812 35.200 ≥500 Pass 159 36.740 35.280 Antenna 1: Type Channel 99%Bandwidth (MHz) 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a 149 16.607 15.120 ≥500 Pass 157 16.606 15.160 165 16.656 15.200 802.11nHT20 149 17.609 16.360 ≥500 Pass 157 17.626 15.800 165 17.600 16.400 802.11n40 151 36.562 35.920 ≥500 Pass 159 36.600 35.840 Report No.: GTS20210430001-1-12 Page 42 of 75 Antenna 0: 99%Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20210430001-1-12 Page 43 of 75 99%Bandwidth 802.11n HT40 CH151 CH159 Report No.: GTS20210430001-1-12 Page 44 of 75 6dB Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20210430001-1-12 Page 45 of 75 6dB Bandwidth 802.11n HT40 CH151 CH159 Report No.: GTS20210430001-1-12 Page 46 of 75 Antenna 1: 99%Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20210430001-1-12 Page 47 of 75 99%Bandwidth 802.11n HT40 CH151 CH159 Report No.: GTS20210430001-1-12 Page 48 of 75 6dB Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20210430001-1-12 Page 49 of 75 6dB Bandwidth 802.11n HT40 CH151 CH159 Report No.: GTS20210430001-1-12 Page 50 of 75 4.7. 26dBc Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General U-NII Test Procedures New Rules v02r01 for one of the following procedures may be used for Emission Bandwidth (EBW) measurement: a. Set RBW = 220 kHz/430 kHz /820 kHz (approximately 1% of the emission bandwidth). b. Set the video bandwidth (VBW) = 3* RBW) c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT No Limits for 26dBc Bandwith TEST RESULTS Temperature 23.6°C Humidity 55.7% Test Engineer Oliver Ou Configurations IEEE 802.11a/n Report No.: GTS20210430001-1-12 Page 51 of 75 Antenna 0: Type Channel 99%Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (KHz) Result 802.11a 36 16.583 19.560 - Pass 40 16.604 19.800 48 16.592 19.680 802.11nHT20 36 17.610 20.160 - Pass 40 17.603 20.400 48 17.593 20.440 802.11n40 38 36.567 40.160 - Pass 46 36.595 39.920 Antenna 1: Type Channel 99%Bandw…

Text truncated - open the document above for the full version.
