2AL6KBL-M7668BU4IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module

BL-M7668BU4 IEEE 802.11a/b/ g/ n/ac 2T2R USB WiF i Module Integr ated Bluetooth 2.1+EDR/4.2/5.0 Features： 3.Reserving System IEEE Std. 802.11a IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n IEEE Std. 802.11ac Bluetooth 2.1+EDR/4.2/5.0 4.Chip Solution Mediatek MT7668BUN 5. Size 33.0mm x70.0mm x 6.0mm ShenZhen Bilian Electronic Co.,Ltd. PDF pdfFactory Pro www.fineprint.cn page 4 of 18 BL-M7668BU4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module&BT2.1+EDR/4.2/5.0 Filter 1. Introduction BL-M7668BU4 module design is based on Mediatek MT7668BUN solution, The MT7668BUN is a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio and Bluetooth radio. It includes Bluetooth EDR and LE radio which complies with Bluetooth v2.1+EDR, v4.2, and v5.0. The Module is a highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supports a 866.7Mbps PHY rate. The Module is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance anytime and in any circumstance. This documentation describes the engineering requirements specification. •RF module Overview The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based on Mediatek MT7668BUN. It is a highly integrated single-chip MIMO(Multiple In Multiple Out) Wirele ss LA N (WLAN) network interface controller complying with the 802.11 specification and Bluetooth over USB interface. It combines a MAC, a 2T2R capable baseband, and RF in a single chip. An intelligent Wi- F i/Bluetooth coexistence algorithm is implemented to provide the best harmonized Wi-Fi and Bluetooth radio performance. 5V Figure 1 BL-M7668BU4 Block Diagram Dixplexer Antenna0 Dixplexer Antenna1 40MHz Filter Antenna2 Internal DC/DC Internal LDO 1.5V 2.4G TX0/RX0 1.2V WF_ RFIO 5G TX0/RX0 USB2.0 Interface 2.4G TX1/RX1 WF_ RFIO 5G TX1/RX1 BT_ RFIO 2.4G TX2/RX2 PDF pdfFactory Pro www.fineprint.cn page 5 of 18 BL-M7668BU4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module&BT2.1+EDR/4.2/5.0 •Specification reference This specification is based on additional references listed below. _ IEEE Std. 802.11 a _ IEEE Std. 802.11b _ IEEE Std. 802.11g _ IEEE Std. 802.11 n _ IEEE Std. 802.11ac _ Bluetooth 2.1+EDR/4.2/5.0 •System Functions Table1: General Specification as below : Main Chipset Mediatek MT7668BUN Operating Frequency 2.4G/5G WiFi Standard 802.11a/b/g/n/ac (2x2) Bluetooth 2.1+EDR/4.2/5.0 Modulation WIFI:11b: DBPSK, DQPSK and CCK and DSSS 11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: BPSK, QPSK, 16QAM, 64QAM and OFDM 11ac: BPSK, QPSK, 16QAM, 64QAM,256QAM and OFDM Bluetooth: GFSK, π/4-DQPSK and 8-DPSK Data rates 11b: 1, 2, 5.5 and 11Mbps 11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: MCS0~15, up to 300Mbps 11ac: MCS0~9, Nss=2, up to 866.7Mbps Form factor 10pins , Host Interface USB 2.0 PCB Stack 4-layers design Dimension Typical，33mm x 70mm x 6.0mm Antenna Internal Antennas Design Operation Temperature -20°C to +70°C Storage Temperature -40°C to +125°C Operation Voltage 5V +/-5% PDF pdfFactory Pro www.fineprint.cn page 6 of 18 BL-M7668BU4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module&BT2.1+EDR/4.2/5.0 Module&BT2.1+EDR/4.2/5.0Module&BT2.1+EDR/4.2/5.0 2. Mechanical Specification •Mechanical Outline Drawing Typical Dimension (W x L ): 33.0mmx 70.0mm x 6.0 mm General tolerance: ±0.3mm •Product Picture PDF pdfFactory Pro www.fineprint.cn page 7 of 18 BL-M7668BU4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module&BT2.1+EDR/4.2/5.0 WF0 A Band Chi C43 WF0_RFIO_A WF0_RFIO_A [2] WF0_RF_5G_TRX 50 0 ohm C0201 L9 L 8 NI NI / 4.3nH L0201 L0201 TR_5 G G RFIN TR_2 G 5 X 1 6 TR_5 G G RFIN TR_2 G 5 1 6 U1 WF0_RF_5G_TRX 3 2 WF0_RF_2G_TR 4 DP0_OUT R9 1.4nH R0201 CON1 ANT IN DP1608-A2455DTA2 C67 0.3pF C0201 C66 NI C0201 U3 WF1_RF_5G_TRX 3 2 4 R10 1.4nH R0201 CON2 ANT DP1_OUT IN C69 C68 DP1608-A2455DTA2 0.3pF NI C0201 C020 BT M at chi ng L4 RFIP_BT RFIP_BT BT_TRX [2] 50 Ohm 1.3nH L0201 C14 0.9pF C0201 L5 C15 1.5nH 2.7nH L0201 C0201 C16 0.5pF C0201 •Pin define •SCH WF Front - end IN BT C7 0 ohm C0201 BT_TRX CON3 ANT BT_RF C163C164 NI NI C0201 C0201 WF0 G Band WF0_RFIO_G [2] 50 Ohm C49 WF0_LNA_EXT_G WF0_LNA_EXTG L13 NI L0201 2.2nH C0201 L14 NI L0201 C53 1nH C50 C0201 WF0_LNA_EXT_G WF0_RFIO_G [2] 50 Ohm WF0_RF_2G_TRX L15 NI L0201 0.8nH C0201 L16 NI L0201 WF1 A Band Chi WF1_RFIO_A WF1_RFIO_A [2] C21 0 ohm C0201 WF1_RF_5G_TRX 50 L7 L6 NI NI / 4.3nH L0201 L0201 WF1 G Band Chi p out M at chi ng C28 1.6nH C0201 WF1_RFIO_G WF1_RFIO_G [2] 50 Ohm WF1_RF_2G_TRX L11 NI L0201 L12 NI L0201 GN D GN D GND GN D BT _LC PDF pdfFactory Pro www.fineprint.cn page 8 of 18 BL-M7668BU4 IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module&BT2.1+EDR/4.2/5.0 Module&BT2.1+EDR/4.2/5.0Module&BT2.1+EDR/4.2/5.0 Reset C19 NI / 10pF C0201 R2 RST_N 3.3V 10K-ohm R0201 3 2.5 U7 XO 1 4 2 C44 E3SB40E00010DE NI / 0.5pF C0201 3.3V 3.3V ANTSEL2 R23 R26 NI / 10K-ohm NI / 10K-ohm R0201 R0201 UART_TXD USB 2. 0 Part Di f f 90 ohm [4] USBDM USBDM [4] USBDP USBDP 76 BT_ HOST_W AKE 75 3 D _SYNC 74 UA RT_ TXD 1 73 UA RT_ RX D 1 72 P CM _O UT 1 Buck_1V3_OUT Pin 64 WF1AFE_1V3_IN Pin 63 AVDD13_RXFE_BT C128 10pF C0201 C61 0 .1uF C0402 3.3V Function: 1.GPIO0 =3DVsync 2. BGF_INT_B = WOBLE 3. WIFI_INT_B = WOWLAN 4.PMU_EN = RESET# DVDD11 C51 1uF C0402 Pin 68 DVDD_1V1_IN TP24TP23TP22TP21 Pin 61 BT_3V3_IN C40 NI / 10pF C0201 Pin 59 C166 100pF C0201 C32 1uF C0402 AVDD22 Buck_1V3_OUT C18 10nF C0201 Pin 58 AVDD18 C59 NI / 0.1uF C0201 Pin 10 DVDD11 C48 NI / 1uF C0201 Pin 7 AVDD18 Pin 4 C58 0 .1uF C0402 WIFI_HOST_WAKE (LOW ACTIVE)1 U6 MT7668AU WIFI_INT_B 57 GPIO1 3.3V C42 10pF 3.3V XTAL 3.3V USB_1V8_IN C31 1uF C0402 Pin 13 USB_3V3_IN SSUSB_1V1_IN SSUSB_1V8_IN USB DP USBDM 2 PCIE_CKRXN 3 PCIE_CKRXP 4 AVDD18_SSUSB 5 SS USB_TXN 6 SSUSB_TXP 7 AVDD10_SSUSB 8 SS USB_RXN 9 SS USB_RXP 10 AVDD18_USB 11 USB_DP 12 USB_DM OSC_EN WF1_RFIO_G AVDD33_WF1_PA_G WF1_LNA_EXT_G WF1_LNA_EXT_A WF1_RFIO_A AVDD33_WF1_A_PA AVDD33_WF1_A_TX AVDD33_WF0_PA_G WF0_RFIO_G WF0_LN…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-08-29> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AL6KBL-M7668BU4 BL-M7668BU4 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Aug.29, 2020 To whom it may concern: We, Shenzhen Bilian Electronic Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AL6KBL-M7668BU4 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Date: Aug.29, 2020 FCC ID: 2AL6KBL-M7668BU4 Model Number: BL-M7668BU4 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bilian Electronic Co.,Ltd., declare that this EUT (FCC ID: 2AL6KBL-M7668BU4) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Module Approval Request Letter 2020-08-29 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Module Approval Request Letter The Device,FCC ID: 2AL6KBL-M7668BU4, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes the module with a shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in MT7668AU). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a External antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

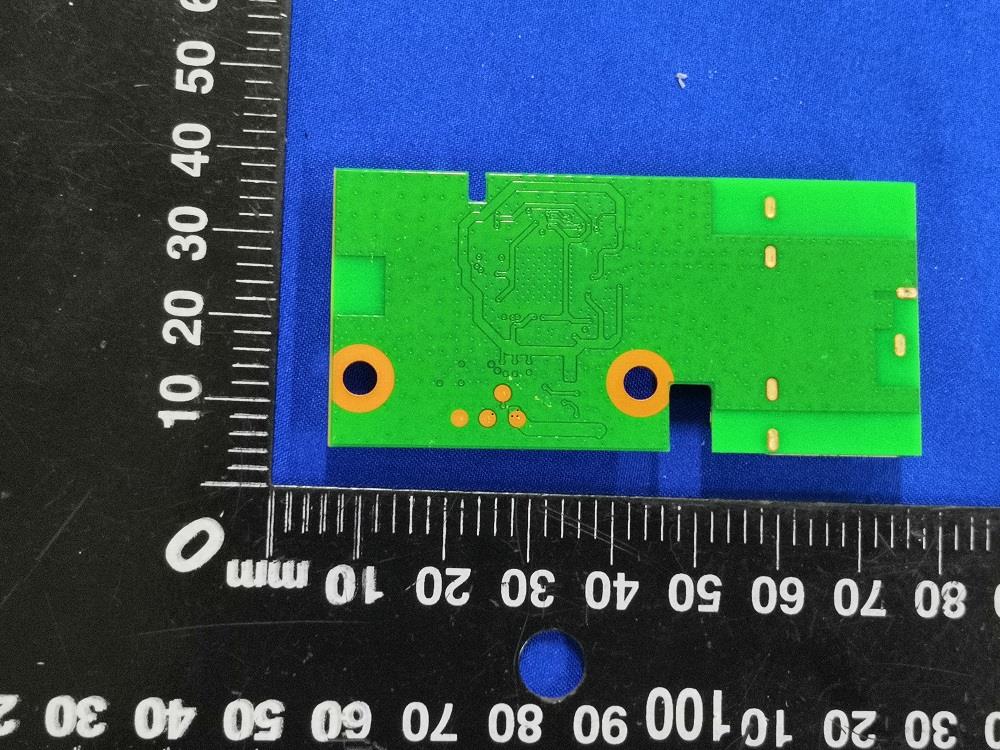

FCCID: 2AL6KBL-M7668BU4 Fig. 1 Fig. 2

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L4.0cm x 2.0cm) Label Location IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model:BL-M7668BU4 FCC ID: 2AL6KBL-M7668BU4

FCCID: 2AL6KBL-M7668BU4 Fig. 1 Fig. 2 BT Antenna 2 WLAN Antenna 1 WLAN Antenna 0 FCCID: 2AL6KBL-M7668BU4 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20200812009-1-19 2AL6KBL-M7668BU4 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Aug. 26, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ........................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M7668BU4 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : 1.0 Software Version .............................. : 1.0 Rating ............................................... : DC 5.0V Result ............................................... : PASS Report No.: GTS20200812009-1-19 Page 2 of 16 T E S T R E P O R T Test Report No. : GTS20200812009-1-19 Jun.09, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model /Type : BL-M7668BU4 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Contents Report No.: GTS20200812009-1-19 Page 3 of 16 1. SUMMARY ............................................................................................................................................................. 3 1.1 EUT CONFIGURATION ........................................................................................................................................................ 3 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 5 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. …

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20200812009-1-16 2AL6KBL-M7668BU4 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Aug. 26, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M7668BU4 Listed Models .................................. : N/A Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : 1.0 Software Version .............................. : 1.0 Rating ............................................... : DC 5.0V Result ............................................... : PASS Report No.: GTS20200812009-1-16 Page 2 of 26 T E S T R E P O R T Test Report No. : GTS20200812009-1-16 Aug. 26, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model /Type : BL-M7668BU4 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200812009-1-16 Page 3 of 26 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accessories ............................................................................................................................... 7 2.9. External I/O Cable .................................................................................................................................. 7 2.10. Related Submittal(s) / Grant (s) ........................................................................................................... 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ..................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20200812009-1-17 2AL6KBL-M7668BU4 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Moon Tan Approved by ( position+printed name+signature) .. : Manager Simon Hu Date of issue ..................................... : Aug. 26, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference....................... : BL-M7668BU4 Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : 1.0 Software Version .............................. : 1.0 Rating ............................................... : DC 5.0V Result................................................ : PASS Report No.: GTS20200812009-1-17 Page 2 of 40 T E S T R E P O R T Test Report No. : GTS20200812009-1-17 Aug. 26, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac 2T2R USB WiFi+Bluetooth 5.0 Module Model /Type : BL-M7668BU4 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result : PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200812009-1-17 Page 3 of 40 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ..........................................................…

Text truncated - open the document above for the full version.
