2AL6KBL-M8723DS1IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module

BL-M8723DS1 IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module SHENZHEN BILIAN ELECTRONIC CO., LTD Add: 10~11/F, Building 1A, Huaqiang idea park, Guangming district, Shenzhen. Guangdong, China Web: www.b-link.net.cn 1 http://www.b-link.net.cn Revision History Revision Summary Release Date 1.0 Official release 2020-07-03 Module Name: BL-M8723DS1 Module Type: 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module Revision: V1.0 Customer Approval: Company: Title: Signature: Date: BL-link Approval: Title: Signature: Date: 2 http://www.b-link.net.cn 1. Introduction BL-M8723DS1 is a highly integrated WiFi+BT combo module, it contains a WLAN and a BT MAC, a 1T1R capable base band. It supports IEEE 802.11b/g/n standard and provides the highest PHY rate up to 150Mbps, and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2. This module can offering feature-rich wireless connectivity and reliable throughput from an extended distance. 1.1 Features  Operating Frequencies: 2.4~2.4835GHz  Host Interface is SDIO 2.0 and UART  IEEE Standards: IEEE 802.11b/g/n  BT2.1+EDR/BT3.0 and BT LE4.2  Wireless data rate can reach up to 150Mbps  Connect to external antenna through half hole pad  Power Supply: 3.3±0.2V main power and VDIO power supply 1.2 Block Diagram 3 http://www.b-link.net.cn 1.3 General Specifications Module Name BL-M8723DS1 WiFi and BT combo Module Chipset RTL8723DS-CG WiFi Standards IEEE802.11b/g/n/, 1T1R, 2.4GHz, 150Mbps (Max) BT Standards BT 4.2/4.2LE/2.1EDR/2.1BR Host Interface SDIO 2.0 for WIFI; UART for BT Antenna Connect to the external antennas through half hole pad Dimension SMD 44Pins, 12*12*1.6mm (L*W*H) Power Supply DC 3.3±0.2V(main power and VDIO power) @ 350 mA (Max) Operation Temperature -10°C to +70°C Storage temperature -45°C to +85°C Operation Humidity 10% to 95% RH (Non-Condensing) 2. Pin Assignments Top view 2.1 Pin Definition No Pin Name Type Description Supply 1 GND RF Ground connections 2 WLAN/BT ANT RF WLAN and BT RF port 3 GND RF Ground connections 4 http://www.b-link.net.cn 4 NC / NC 5 NC / NC 6 BT_WAKE I HOST wake-up Bluetooth device VDIO 7 BT_WAKE_HOST O Bluetooth device to wake-up HOST VDIO 8 NC / NC 9 VDD33 P 3.3V Main power supply 10 NC / NC 11 NC / NC 12 WL_DSI# I WLAN radio off (active low) VDD33 13 WL_WAKE_HOST O WLAN to wake-up HOST VDIO 14 SD_D2 I/O SDIO data line 15 SD_D3 I/O SDIO data line 16 SD_CMD I/O SDIO command line 17 SD_CLK I SDIO clock line 18 SD_D0 I/O SDIO data line 19 SD_D1 I/O SDIO data line 20 GND P Ground connections 21 NC / NC 22 VDIO P 3.3V SDIO power supply 23 NC / NC 24 SUSCLK_IN I Shared with GPIO6. External 32K or RTC clock input with 1.8V ~ 3.3V swing. This clock source is configured by BT and WL FW, respectively. 25 PCM_DOUT O PCM Data output 26 PCM_CLK I/O PCM Clock 27 PCM_DIN I PCM data input 28 PCM_SYNC O PCM sync signal 29 NC / NC 30 NC / NC 31 GND P Ground connections 32 NC / NC 33 GND P Ground connections 34 BT_DIS# I Shut down BT function (active low) VDD33 35 NC / NC 36 GND P Ground connections 5 http://www.b-link.net.cn 37 NC / NC 38 NC / NC 39 NC / NC 40 NC / NC 41 GND P Ground connections 42 UART_OUT O HOST Data output 43 UART_IN I HOST Data input 44 UART_CTS I HOST_CTS P: Power, I: Input, O: Output, I/O: In/Output, RF: Analog RF Port 3. Electrical and Thermal Specifications 3.1 Recommended Operating Conditions Parameters Min Typ Max Units Ambient Operating Temperature -10 25 70 °C External Antenna VSWR 1 1.7 2 / Supply Voltage VDD33/VDIO 3.1 3.3 3.5 V 3.2 Current Consumption Conditions : VDD33=3.3V ; Ta:25°C Use Case VDD33 Current (average) Typ Max Units WiFi Radio Off (Linux Driver) 42 50 mA WiFi Unassociated (Linux Driver) 40 60 mA 2.4G 1Mbps TX (RF-Test) 285 310 mA 2.4G 1Mbps RX (RF-Test) 60 70 mA 2.4G 11Mbps TX (RF-Test) 280 310 mA 2.4G 11Mbps RX (RF-Test) 59 70 mA 2.4G 6Mbps TX (RF-Test) 250 280 mA 6 http://www.b-link.net.cn 2.4G 6Mbps RX (RF-Test) 63 77 mA 2.4G 54Mbps TX (RF-Test) 260 270 mA 2.4G 54Mbps RX (RF-Test) 60 65 mA 2.4G MCS0(HT20) TX (RF-Test) 255 272 mA 2.4G MCS0(HT20) RX (RF-Test) 65 70 mA 2.4G MCS7(HT20) TX (RF-Test) 220 285 mA 2.4G MCS7(HT20) RX (RF-Test) 63 70 mA 2.4G MCS7(HT40) TX (RF-Test) 220 270 mA 2.4G MCS7(HT40) RX (RF-Test) 63 80 mA BT BR_1M DH5 TX(RF-Test) 125 152 mA BT EDR_3M DH5 TX(RF-Test) 119 147 mA BT LE_1M TX(RF-Test) 122 161 mA BT BR_1M DH5 RX Active(RF-Test) 103 127 mA BT EDR_3M DH5 RX Active(RF-Test) 102 130 mA BT LE_1M RX Active(RF-Test) 110 133 mA 4. Interface Functional and Timing Specifications 4.1 SDIO Power On Sequence 7 http://www.b-link.net.cn 4.2 SDIO Timing 5. WiFi RF Specifications 5.1 2.4G WiFi RF Specification Conditions : VDD33=3.3V ; Ta:25°C Features Description WLAN Standard IEEE 802.11b/g/n CSMA/CA Frequency Range 2.4~2.4835GHz (2.4GHz ISM Band) Channels Ch1~Ch13 (For 20MHz Channels) Modulation 802.11b (DSSS): DBPSK, DQPSK, CCK; 802.11g (OFDM): BPSK, QPSK, 16QAM, 64QAM; 802.11n (OFDM): BPSK, QPSK, 16QAM, 64QAM; 8 http://www.b-link.net.cn Date Rate 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps; 802.11n (HT40): MCS0~MCS7(1T1R_SISO) 13.5~150Mbps; Frequency Tolerance ≦ ±15ppm 5.2 Bluetooth RF Specifications Conditions : VDD33=3.3V ; Ta:25°C Features Description Bluetooth Specification Bluetooth v2.1+EDR/3.0+HS (Bluetooth Classic _ BT BR/EDR), Bluetooth 4.2 (Bluetooth Low Energy _ BT_LE) FHSS Frequency Range 2.4~2.4835GHz (2.4GHz ISM Band) Channels Bluetooth Classic: Ch0~Ch78 (For 1MHz Channels); Bluetooth Low Energy: Ch0~Ch39 (For 2MHz Channels); 9 http://www.b-link.net.cn Power Classes Bluetooth Classic: Class1; Bluetooth Low Energy: Class1.5; Date Rate & Modulation BR_1Mbps: GFSK; EDR_2Mbps: π/4-DQPSK; EDR_3Mbps: 8DPSK; LE_1Mbps: GFSK; Bluetooth Transmitter Specifications Items Min Typ Max TX Power BR_1M TX Power 1 6 8 EDR_2/3M TX Power 1 6 8 LE_125K~1M TX Power 1 6 8 1DH1 TX Power 1 6 8 2DH3 TX Power 1 6 8 3DH5 TX Power 1 6 8 BR_1M Modulation Characteristics Δf1avg 145kHz 163kHz -- Δf2m…

Text truncated - open the document above for the full version.

Page 1 of 1 Rev.2.0 Shenzhen Bilian Electronic Co.,Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AL6KBL-M8723DS1 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Hanbing Deng / Manager Signature: Phone: +86 18118768735 Email: [email protected] Date: 2020-10-09

Shenzhen Bilian Electronic Co.,Ltd. Agent Authorization Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Product Name: IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module Trade Mark: N/A Model Number(s): BL-M8723DS1 FCC ID: 2AL6KBL-M8723DS1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-09 Name: Hanbing Deng Title: Manager Company: Shenzhen Bilian Electronic Co.,Ltd.

Shenzhen Bilian Electronic Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-10-09 Subject; Request for Confidentiality FCC ID: 2AL6KBL-M8723DS1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Phone: +86 18118768735 Fax:+86 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Limited Module Approval Request Letter Company name: IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module FCC ID: 2AL6KBL-M8723DS1 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2AL6KBL-M8723DS1 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The modular without a shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes The module must contain power supply regulation on the module. The modular has an onboard 3.3V regulator(integrated in RTL8189FTV). The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular has a External antenna which comply with the antenna requirement of Section 15.203,Maximum Antenna Gain is 2dBi. The module must demonstrate compliance in a stand-alone configuration. The modular was tested in a standalone configuration apart from host units. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has its own FCC ID number. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes Shenzhen Bilian Electronic Co.,Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, RF cexposure evaluation performed at 20cm. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 18 2.3 Summarize the specific operational use conditions Page 18 2.4 Limited module procedures Page 18 2.5 Trace antenna designs Page 18 2.6 RF exposure considerations Page 18 2.7 Antennas Page 18 2.8 Label and compliance information Page 18 2.9 Information on test modes and additional testing requirements Page 18 2.10 Additional testing, Part 15 Subpart B disclaimer Page 18 Name: Hanbing Deng Date: 2020-10-09 Title: Manager Signature of applicant

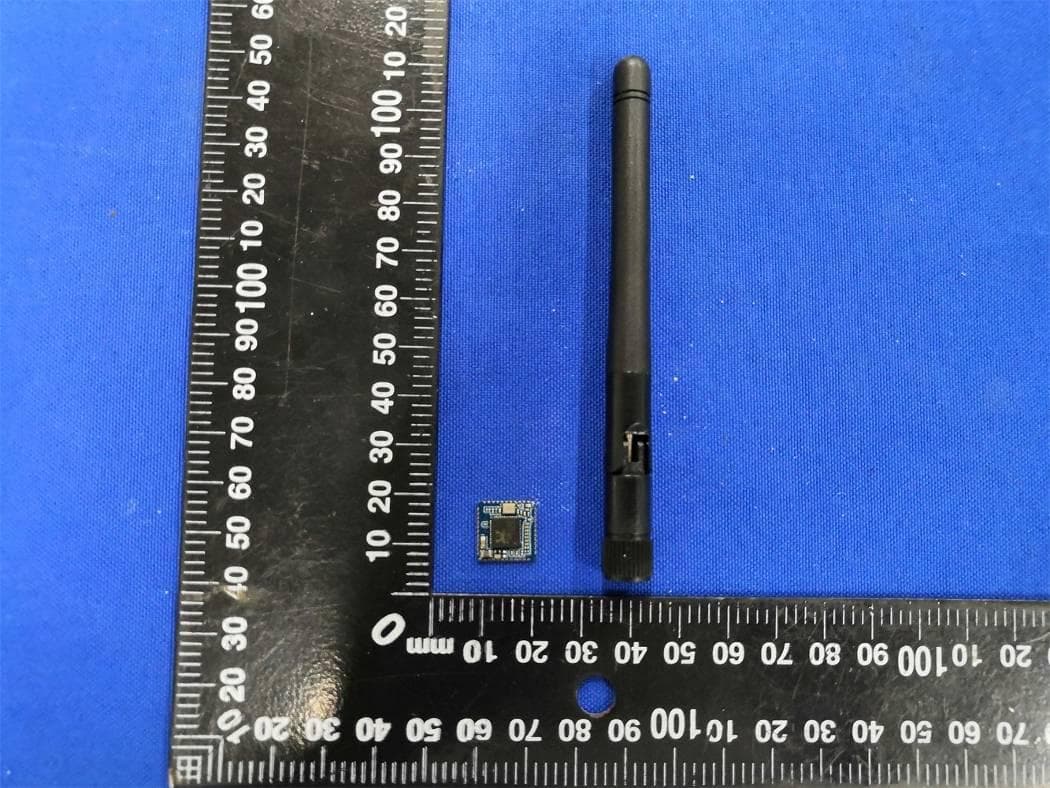

FCC ID: 2AL6KBL-M8723DS1 Fig. 1 Fig. 2 Antenna FCC ID: 2AL6KBL-M8723DS1 Fig. 3 Fig. 4

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L5.0cm x 4.0cm) Label Location FCCID: 2AL6KBL-M8723DS1

FCC ID: 2AL6KBL-M8723DS1 Fig. 1 Fig. 2 FCC ID: 2AL6KBL-M8723DS1 Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20200914004-1-4 2AL6KBL-M8723DS1 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Sep. 26, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M8723DS1 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11b/802.11g/802.11n GFSK,π/4-DQPSK,8DPSK Operation Frequency........................ : From 2402MHz-2480MHz, 2412MHz to 2462MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20200914004-1-4 Page 2 of 10 T E S T R E P O R T Test Report No. : GTS20200914004-1-4 Jun.09, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11b/g/n 150Mbps 1T1R SDIO WiFi and BT combo Module Model /Type : BL-M8723DS1 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Room 501, Building 3, No. 32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200914004-1-4 Page 3 of 10 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION…
