2AL6KBL-M8821CU1IEEE 802.11a/b/g/n/ac(1T1R)USB WIFI+BT Combo Module

Product Specification Revision V1.1 Date 2019-07-15 Model Name BL-M8821CU1 Product Name IEEE 802.11a/b/g/n/ac(1T1R) USB WIFI+BT Combo Module Bilian Approve Field Engineer QC Sales Can Zhang Customer Approve Field Engineer QC Manufactory Purchasing Shenzhen Bilian Electronic Co., Ltd Address: 10-11F, Building A1, Huaqiang idea park, Guangming district, Shenzhen.Guangdong, China Homepage: www.b-link.net.cn 0 Table of Contents Revision History ......................................................................................... 1 1. Introduction .............................................................................................................. 1 1.1 General Description ............................................................................................ 1 1.2 Features .............................................................................................................. 1 1.3 Applications ......................................................................................................... 2 2. Functional Block Diagram .................................................................................... 2 3. Product Technical Specifications ........................................................................ 2 3.1 General Specifications ........................................................................................ 2 3.2 DC Power Consumption ...................................................................................... 3 3.3 RF Specifications ................................................................................................ 4 4. Pin Assignments ..................................................................................................... 6 5. Application Information ......................................................................................... 7 5.1 Typical Application Circuit ................................................................................... 7 6. Mechanical Specifications .................................................................................... 9 7. Others ....................................................................................................................... 9 7.1 Package Information ........................................................................................... 9 7.2 Storage Temperature and Humidity .................................................................. 10 7.3 Recommended Reflow Profile ........................................................................... 10 1 Revision History Date Document Revision Product Revision Description 2017/04/06 0.1 V0.1 Preliminary release 2017/09/26 1.0 V1.0 Update the product pictures 2019/06/18 1.1 V1.1 Revise the descriptive error and the dimension of product 1. Introduction 1.1 General Description BL-M8821CU1 is the module designed by a highly integrated IEEE 802.11a/b/g/n/ac MAC/Baseband/RF WLAN and Bluetooth Baseband/RF single chip. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol (LM , LL and LE),BT Baseband, modem, and WLAN/BT RF in a single chip. The module provides a complete solution for a high-performance wireless LAN and Bluetooth device. The BT controller supports BT 4.2 system and compatibles Bluetooth 2.1+EDR. Figure 1 Top View Figure 2 Bottom View Note: The above pictures are for reference only 1.2 Features  Operating Frequencies :  Host Interface is USB 2.0 for WLAN and BT controller  IEEE Standards : IEEE 802.11a/b/g/n/ac  Wireless data rate can reach up to 433.3Mbps  Bluetooth Low Energy Support  Connect to external antenna through the half hole  Power Supply:3.3V±0.2V BT:2.402~2.48GHz(BT) 2.4GWIFI:2.412~2.472GHz(USA11Channels,Europeandothers13 channels) B5GWIFI:5.18~5.24GHz/5.745~5.825GHz 2 1.3 Applications  MID  IP Camera  STB  Smart TV  E-book  Other devices which need to be supported by wireless network 2. Functional Block Diagram Figure 3 BL-M8821CU1 block diagram 3. Product Technical Specifications 3.1 General Specifications Item Description Product Name BL-M8821CU1 Main Chip RTL8821CU-CG Host Interface USB 2.0 IEEE Standards IEEE 802.11a/b/g/n/ac Operating Frequencies BT:2.402~2.48GHz(BT) 2.4GWIFI:2.412~2.472GHz(USA11Channels,Europeandothers13 channels) B5GWIFI:5.18~5.24GHz/5.745~5.825GHz 3 Modulation WiFi: 802.11b: CCK, DQPSK, DBPSK 802.11a/g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK 802.11ac: 256-QAM,64-QAM,16-QAM, QPSK, BPSK BT: 8DPSK,π/4DQPSK,GFSK Working Mode Infrastructure, Ad-Hoc Wireless Data Rate WiFi: 802.11b: 1, 2, 5.5, 11Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: HT20 reach up to72.2Mbps, HT40 reach up to150Mbps 802.11ac: MCS0~8, VHT20 reach up to 173.3Mbps, VHT40 reach up to 239Mbps, MCS0~9, VHT80 reach up to 433.3Mbps BT: 1Mbps for Basic Rate 2,3 Mbps for Enhanced Date Rate Rx Sensitivity -96dBm (Min) Antenna Type Connect to external antenna through the half hole Dimension(L*W*H) 13.0*12.2*1.5mm (L*W*H) ， Tolerance: ± 0.15mm Power Supply 3.3V ± 0.2V Power Consumption Standby [email protected] (Max) TX mode 420 [email protected] (Max) Clock Source 40MHz Working Temperature -10 ° C to +50 ° C Storage Temperature -40 ° C to +70 ° C ESD CAUTION: Although this module is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this module. It must be protected from ESD at all times and handled under the protection of ESD. 3.2 DC Power Consumption Vcc=3.3V，Ta = 25 °C，unit: mA Supply current Typ. Max Standby (RF disabled) 95 105 802.11b 1Mbps 11Mbps Supply current Typ. Max. Typ. Max. TX mode 341 368 331 381 Rx mode 93 126 92 128 4 802.11g 6Mbps 54Mbps Supply current Typ. Max. Typ. Max. TX mode 325 388 240 376 Rx mode 85 112 86 116 802.11n HT20 MCS0 MCS7 Supply current Typ. Max. Typ. Max. TX mode 320 380 239 372 Rx mode 87 112 88 116 802.11n HT40 MCS0 MCS7 Supply current Typ. Max. Typ. Max. TX mode 286 352 215 360 Rx mode 89 116 90 120 802.11a 6Mbps 54Mbps Supply current Typ. Max. Typ. Max. TX mode 340 420…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2019-12-25> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AL6KBL-M8821CU1 BL-M8821CU1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Declaration Letter of Software Security Requirements Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Date: Dec.25, 2019 FCC ID: 2AL6KBL-M8821CU1 Model Number: BL-M8821CU1 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bilian Electronic Co.,Ltd., declare that this EUT (FCC ID: 2AL6KBL-M8821CU1) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/25/2019 To whom it may concern: We, Shenzhen Bilian Electronic Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AL6KBL-M8821CU1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

Shenzhen Bilian Electronic Co.,Ltd. Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Limited Module Approval Request Letter 2019-12-25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Limited Module Approval Request Letter The Device,FCC ID: 2AL6KBL-M8821CU1, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The modular with a not shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in RTL8821CU). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a External antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, Name / Title: Hanbing Deng / Manager Company: Shenzhen Bilian Electronic Co.,Ltd. Address: Building B1,Zhongxing Industrial Zone,Juling,Jutang Community, Guanlan street,Longhua New District, Shenzhen,Guangdong,P.R. China Phone: 18118768735 Fax: 0755-24665666 E-Mail: [email protected]

FCC ID: 2AL6KBL-M8821CU1 Fig. 1 Fig. 2 FCC ID: 2AL6KBL-M8821CU1 Fig. 3

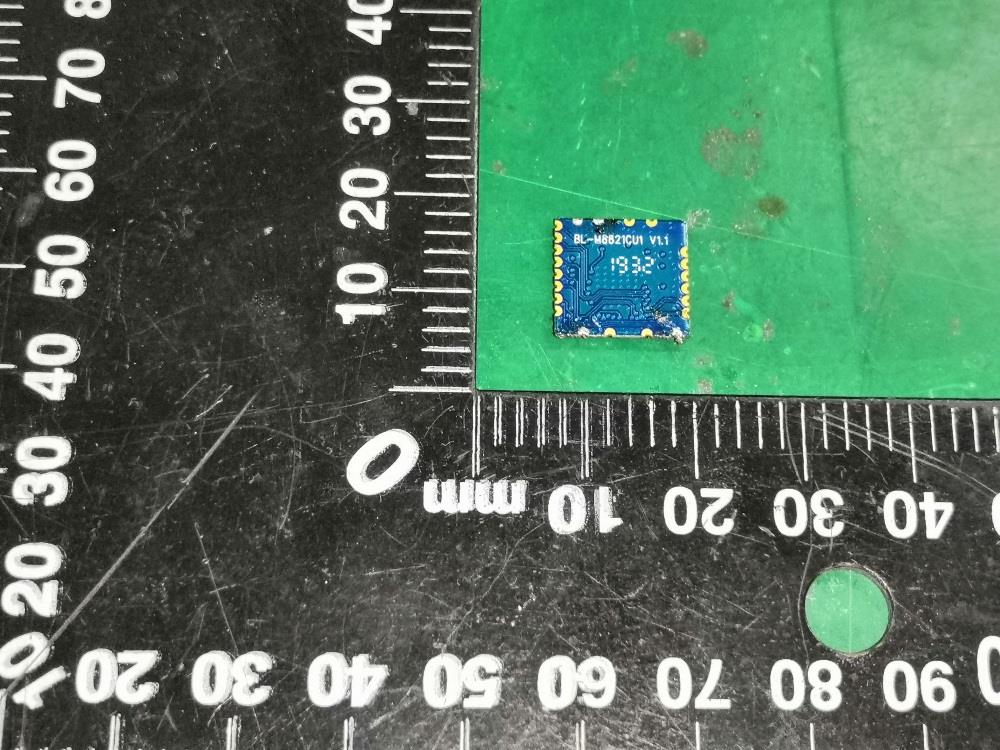

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L1.0cm x 1.0cm) Label Location Model No.: BL-M8821CU1 FCCID: 2AL6KBL-M8821CU1

FCC ID: 2AL6KBL-M8821CU1 Fig. 1 Fig. 2 BT& WLAN Antenna FCC ID: 2AL6KBL-M8821CU1 Fig. 3 Fig. 4 BT& WLAN Antenna Connector

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20191209006-2-38 2AL6KBL-M8821CU1 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Dec.23, 2019 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ........................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11a/b/g/n/ac(1T1R)USB WIFI+BT Combo Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M8821CU1 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac Operation Frequency........................ : From 2402MHz-2480MHz, 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz Hardware Version ............................ : 1.1 Software Version .............................. : V1.1 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20191209006-2-38 Page 2 of 12 T E S T R E P O R T Test Report No. : GTS20191209006-2-38 Dec.23, 2019 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11a/b/g/n/ac(1T1R)USB WIFI+BT Combo Module Model /Type : BL-M8821CU1 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20191209006-2-38 Page 3 of 12 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTE…
