2AL6XWAP38811AX Dual band AP

0 User Manual WAP388 WAP388-C Version 1.0 1 Installation 2 3 Chapter1 Product Overview 4 Introduction Key Features The 802.11ax high performance Access Point with MU-MIMO and OFDMA technology for high-density use on multiple applications Emplus Wireless Access Point solution is designed for versatile outdoor applications. To meet various requirements for different networking environment, Emplus provides the most flexible and effective solutions as your expectations. The state-of-the-art 802.11ax and MU-MIMO technology brings high performance on connecting speed and bandwidth. WAP388 equips with two powerful RF interfaces which support up to 4804Mbps in 5GHz frequency band and 573Mbps in 2.4GHz frequency band. 5 Physical Interface (WAP388/WAP388-C) NOTE: 1. WAP388: 2.5G LANx1 + 1G LANx1 + NOR Flash 2. WAP388-C: 2.5G LANx1 (remove 1G LAN + NOR Flash) 1GbE RJ45 is not available for WAP388-C model 6 Physical & Environment Power Source DC Input: 12 VDC/2A PoE: compatible with 802.3at or Passive PoE Internal High Gain Antenna (Peak Gain) ~7dBi 2.4GHz antennas ~7dBi 5GHz antennas Interface 1 x 10/100/1000/2500Mbps Ethernet Port with 802.3at PoE 1 x 10/100/1000Mbps Ethernet Port(Not available for WAP388-C model) 1 x reset button 1x DC IN Dimensions (W x D x H) 160x160x30 mm Mounting Ceiling Mount/Wall mount Environment Operating temperature: -0°C~40°C Operating humidity: 0%~90% typical Technical Specifications Storage temperature: -20°C~70°C *This equipment is only to be connected to PoE networks without routing to outside plants. 7 Applications Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of WLANs:  Difficult-to-Wire Environments: There are many situations where wires cannot be installed, deployed easily, or cannot be hidden from view. Older buildings, sites with multiple buildings, and/or areas that make the installation of a Ethernet-based LAN impossible, impractical or expensive are sites where WLAN can be a network solution.  Temporary Workgroups: Create temporary workgroups/networks in more open areas within a building; auditoriums, amphitheaters classrooms, ballrooms, arenas, exhibition centers, or temporary offices where one wants either a permanent or temporary Wireless LAN established.  The Ability to Access Real-Time Information: Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing with patients, serving customers, and/or processing information.  Frequently Changing Environments: Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).  Small Office and Home Office (SOHO) Networks: SOHO users require a cost-effective, easy, and quick installation of a small network.  Training/Educational Facilities: Training sites at corporations or students at universities use wireless connectivity to exchange information between peers and easily access information for learning purposes. 8 Chapter2 Before You Begin 9 Computer Settings Windows XP/Windows 7/Windows 8/Windows 10 In order to use the Access Point, you must first configure the TCP/IPv4connectionofyourWindowsOScomputersystem. 1a. Click the Start button and open the Control Panel WindowsXP Windows7 1b. Move your mouse to the lower right hot corner to display the Charms Bar and select the Control Panel in Windows 8OS. Windows 8 1c. In Windows10, click Start to select All APP enter the folder of Windows system for selecting Control Panel. Windows 10 10 2a. In Windows XP, click Network Connections. 2b.In Windows7/Windows8/Windows10, click View Network Status and Tasks in the Network and Internet section, then select Change adapter settings. 3. Right click on Local Area Connection and select Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. 5. Select Use the following IP address and enter an IP address that is different from the Access Point and Subnet mask, then click OK. 11 Note: Ensure that the IPaddress and Subnet mask are on the same subnet as the device. For example: WAP388 IP address: 192.168.1.1 PC IP address: 192.168.1.2–192.168.1.255 PC Subnet mask: 255.255.255.0 12 Apple Mac OSX 1. Go to System Preferences (Which can be opened in the Applications folder or selecting it in the Apple Menu). 2. Select Network in the Internet & Network section. 3. Highlight Ethernet. 4. In Configure IPv4, select Manually. 5. Enter an IP address that is different from the Access Point and Subnet mask then press OK. Note: Ensure that the IP address and Subnet mask are on the same subnet as the device. For example: A device IP address: 192.168.1.1 PC IP address: 192.168.1.2–192.168.1.255 PC Subnet mask:255.255.255.0 6. Click Apply when done. 13 Chapter 3 Configuring Your Access Point 14 ConfiguringYourAccessPoint This section will show you how to configure the device using the web-based configuration interface. Default Settings Please use your Ethernet port or wireless network adapter to connect the Access Point. IP Address 192.168.1.1 Username / Password none Web Configuration 1. Open a web browser (Internet Explorer/Firefox/Safari/ Chrome) and enter the IP Address http://192.168.1.1 Note: If you have changed the default LAN IP Address of The Access Point, ensure you enter the correct IP Address. 2. The default username and password are admin. Once you have entered the correct user name and password, click the Login button to open the web-base configuration page. * The model name will be varied by different models. 3. If successful, you will be logged in and see the User Menu of this Access Point. 15 Appendix A - FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection again…

Text truncated - open the document above for the full version.

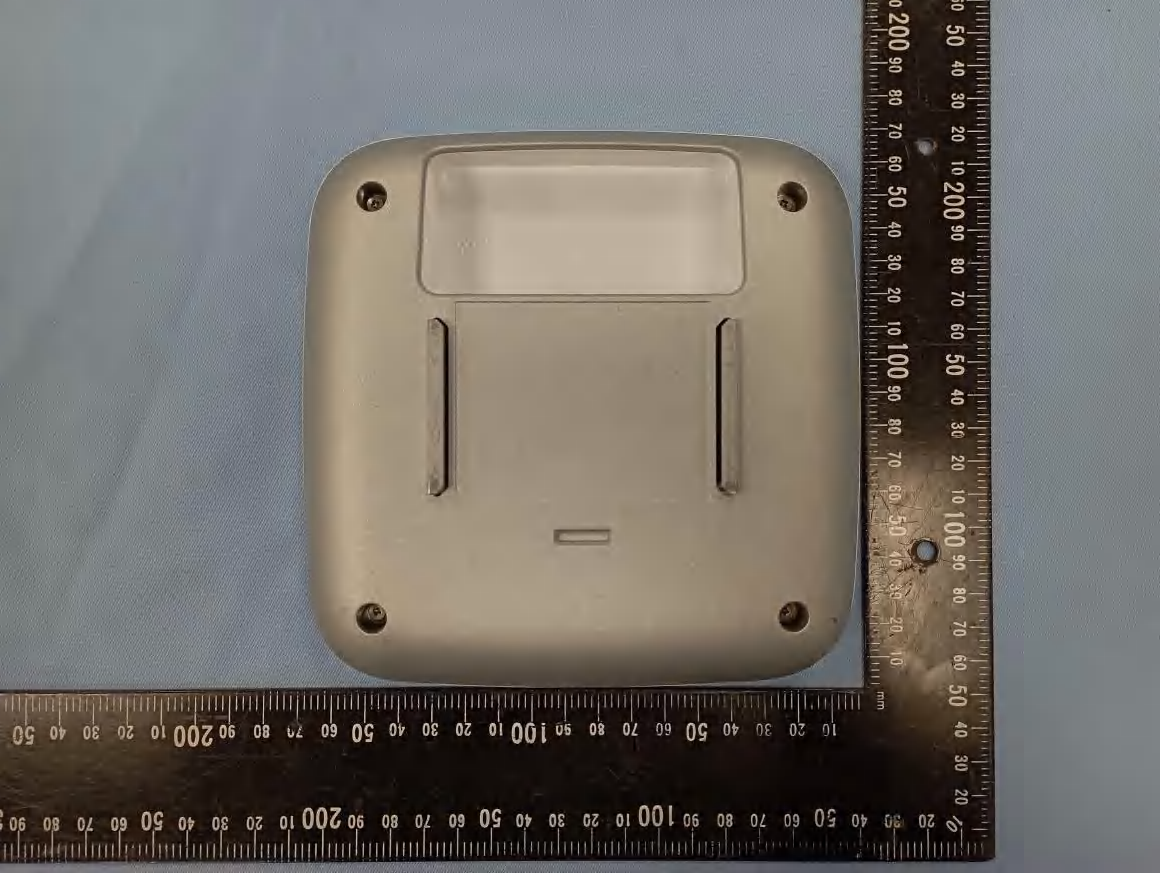

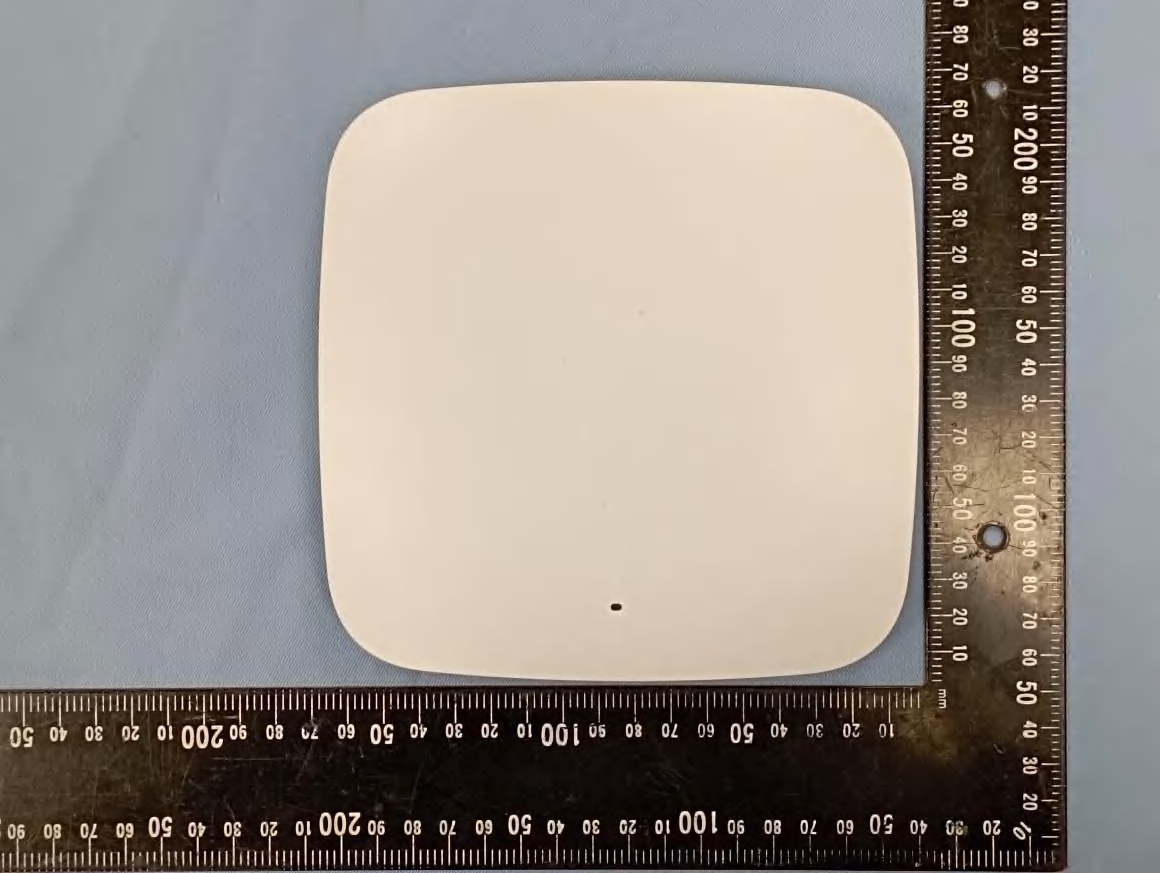

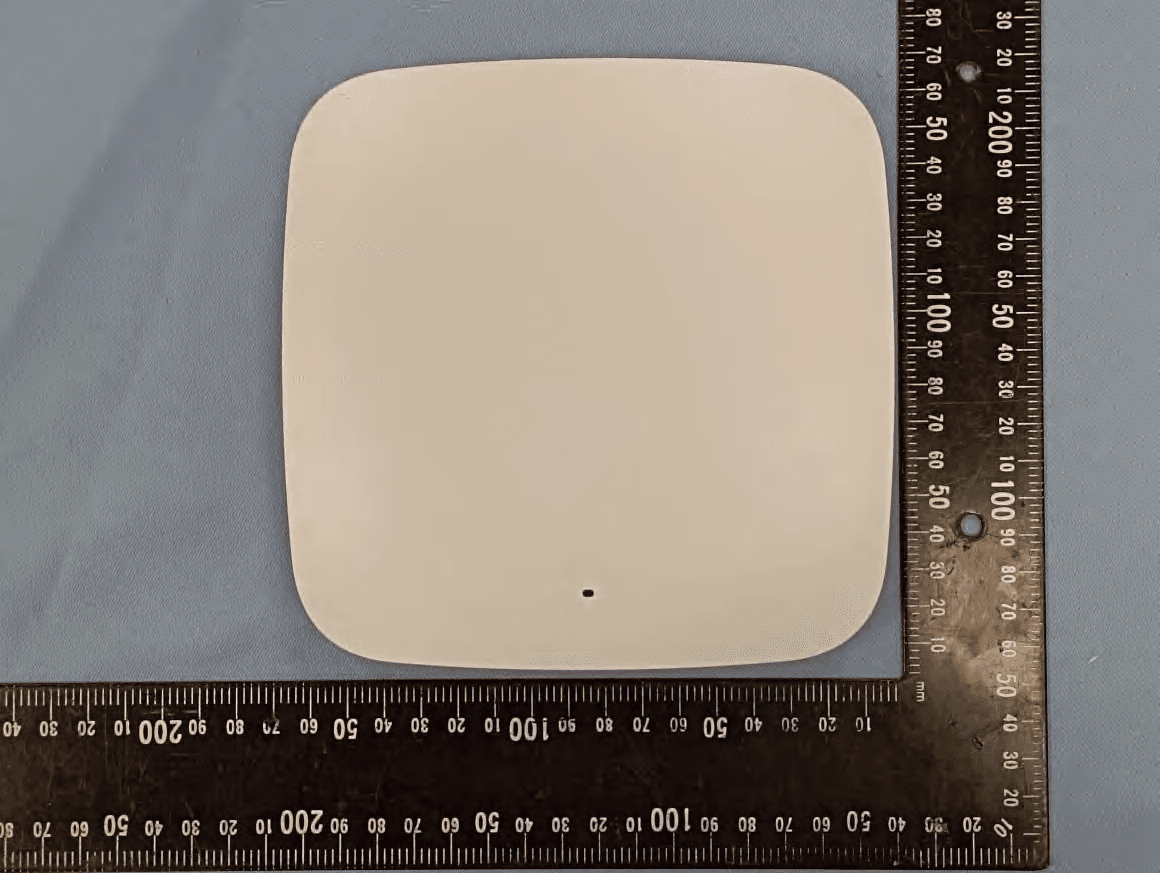

Appendix EP Photographs of EUT Page 1 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C <WAP388> Appendix EP Photographs of EUT Page 2 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 3 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 16 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C <WAP388-C> Appendix EP Photographs of EUT Page 17 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 18 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C

WAP388 機下標 Model: WAP388 FCC ID:2AL6XWAP388 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. emplus HW:v1.0.0 FW:v1.0.0 DC IN: 12V 2A PoE IN: 54V 0.6A WAP388 機下標位置圖 WAP388-C 機下標 Model: WAP388-C FCC ID:2AL6XWAP388 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. emplus HW:v1.0.0 FW:v1.0.0 DC IN: 12V 2A PoE IN: 54V 0.6A WAP388-C 機下標位置圖

Appendix EP Photographs of EUT Page 4 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C WAP388 Appendix EP Photographs of EUT Page 5 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C WLAN 5G_Ant 4 WLAN 5G_Ant 3 WLAN 2.4G_Ant 2 WLAN 5G_Ant 1 WLAN 2.4G_Ant 1 WLAN 5G_Ant 2 Appendix EP Photographs of EUT Page 6 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 7 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 8 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 9 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 10 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 11 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 12 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 13 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 14 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 15 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 19 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C WAP388-C Appendix EP Photographs of EUT Page 20 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 21 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 22 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 23 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 24 of 29 CN228IHN (P15C-WiFi) 001 CN228IHN (P15E-WiFi) 001 CN228IHN (FCC-Colocated) 001 CN228IHN (FCC-MPE) 001 CN22IQFA (EN300328-WiFi) 001 CN22IQFA (EN301893-WiFi) 001 CN22IQFA (CE-Colocated) 001 CN22IQFA (EN62311) 001 Product: 11AX Dual band AP Type Identification: WAP388 and WAP388-C Appendix EP Photographs of EUT Page 25 of 29 CN228IHN (P15C-WiFi) 001 …

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN228IHN (FCC-MPE) 001 Auftrags-Nr.: Order no.: 238550055 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-11 Auftraggeber: Client: Emplus Technologies, Inc Bld B, 10F, No.209, Sec.1, Nangang Rd., Taipei City, Taiwan Prü fgegenstand: Test item: 11AX Dual band AP Bezeichnung / Typ-Nr.: Identification / Type no.: WAP388 and WAP388-C Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 Wareneingangsdatum: Date of sample receipt: 2022-11-15 Prü fmuster-Nr.: Test sample no: A003372209-005 Prü fzeitraum: Testing period: 2022-11-10 - 2022-12-16 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ethan Shao genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-01-04 Ausstellungsdatum: Issue date: 2023-01-04 Stellung / Position: Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (FCC-MPE) 001 Seite 2 von 10 Page 2 of 10 Contents 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 8 4.1 INTRODUCTION ..................................................................................................... 8 4.2 REFERENCE LEVELS ............................................................................................. 8 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................... 9 5 TEST RESULTS ................................................................................................... 10 5.1 MAXIMUM POWER DENSITY ................................................................................. 10 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (FCC-MPE) 001 Seite 3 von 10 Page 3 of 10 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN228IHN (FCC-MPE) 001 Original Release 2023-01-04 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (FCC-MPE) 001 Seite 4 von 10 Page 4 of 10 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (FCC-MPE) 001 Seite 5 von 10 Page 5 of 10 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (FCC-MPE) 001 Seite 6 von 10 Page 6 of 10 3 General Product Information 3.1 Product Function and Intended Use The EUT is 11AX Dual band AP. It contains WLAN compatible module enabling the user to communicate data through a Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Information Kind of Equipment/Test Item 11AX Dual band AP Type Identification WAP388 and WAP388-C FCC ID 2AL6XWAP388 Technical Specification of EUT Item EUT Information Operating Frequency WLAN 2.4G: 2412 MHz ~ 2462 MHz WLAN 5G: Band 1: 5180 MHz ~ 5240 MHz Band 4: 5745 MHz ~ 5825 MHz …

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN228IHN (P15C-WiFi) 001 Auftrags-Nr.: Order no.: 238550055 Seite 1 von 34 Page 1 of 34 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-11 Auftraggeber: Client: Emplus Technologies, Inc Bld B, 10F, No.209, Sec.1, Nangang Rd., Taipei City, Taiwan Prü fgegenstand: Test item: 11AX Dual band AP Bezeichnung / Typ-Nr.: Identification / Type no.: WAP388 and WAP388-C Auftrags-Inhalt: Order content: FCC Part 15C Test report (WiFi 2.4GHz) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-11-15 Prü fmuster-Nr.: Test sample no: A003372209-005 Prü fzeitraum: Testing period: 2022-11-15 - 2022-12-01 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: compiled by: Ethan Shao genehmigt von: authorized by: Brenda Chen Datum: Date: 2023-01-04 Ausstellungsdatum: Issue date: 2023-01-04 Stellung / Position: Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite 2 von 34 Page 2 of 34 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite 3 von 34 Page 3 of 34 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 14 4.5 TEST SETUP DIAGRAM ........................................................................................ 14 4.6 DUTY CYCLE OF TEST SIGNAL ............................................................................. 16 5. TEST RESULTS ................................................................................................... 17 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 17 5.1.1 Antenna Requirement .............................................................................................…

Text truncated - open the document above for the full version.

Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A1 von A36 Page A1 of A36 Appendix A: Test Results of Conducted Test Test Result of 6 dB Bandwidth 802.11b: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Chain 0 Chain 1 Channel 1 2412 7.63 7.11 > 0.5 Pass Channel 6 2437 7.63 7.15 > 0.5 Pass Channel 11 2462 8.59 6.15 > 0.5 Pass <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A2 von A36 Page A2 of A36 <Chain 1> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A3 von A36 Page A3 of A36 802.11g: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Chain 0 Chain 1 Channel 1 2412 13.91 12.67 > 0.5 Pass Channel 6 2437 13.87 16.38 > 0.5 Pass Channel 11 2462 15.11 13.87 > 0.5 Pass <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A4 von A36 Page A4 of A36 <Chain 1> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A5 von A36 Page A5 of A36 802.11ax HE20: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Chain 0 Chain 1 Channel 1 2412 18.18 15.18 > 0.5 Pass Channel 6 2437 17.78 17.38 > 0.5 Pass Channel 11 2462 16.10 15.46 > 0.5 Pass <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A6 von A36 Page A6 of A36 <Chain 1> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A7 von A36 Page A7 of A36 802.11ax HE40: 2TX Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Chain 0 Chain 1 Channel 3 2422 35.24 35.16 > 0.5 Pass Channel 6 2437 35.16 35.16 > 0.5 Pass Channel 9 2452 35.16 35.16 > 0.5 Pass <Chain 0> Channel 3 Channel 6 Channel 9 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A8 von A36 Page A8 of A36 <Chain 1> Channel 3 Channel 6 Channel 9 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A9 von A36 Page A9 of A36 Test Result of 99% Occupied Bandwidth 802.11b: 2TX Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Chain 0 Chain 1 Channel 1 2412 13.11 12.99 Channel 6 2437 12.47 13.35 Channel 11 2462 13.35 13.15 <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A10 von A36 Page A10 of A36 <Chain 1> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A11 von A36 Page A11 of A36 802.11g: 2TX Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Chain 0 Chain 1 Channel 1 2412 16.30 16.30 Channel 6 2437 17.14 16.38 Channel 11 2462 16.26 16.30 <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A12 von A36 Page A12 of A36 <Chain 1> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Report No. CN228IHN (P15C-WiFi) 001 Seite A13 von A36 Page A13 of A36 802.11ax HE20: 2TX Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Chain 0 Chain 1 Channel 1 2412 18.86 18.86 Channel 6 2437 19.58 18.86 Channel 11 2462 18.82 18.74 <Chain 0> Channel 1 Channel 6 Channel 11 Prü fbericht - Nr.: Test Repor…
