0 Us er Manual WAP581 Version 1.0 1 Installation 2 Chapter1 Product Overview 3 Introduction Key Features The 802.11ax high performance Access Point with MU-MIMO and OFDMA technology for high-density use on multiple applications Emplus Wireless Access Point solution is designed for versatile outdoor applications. To meet various requirements for different networking environment, Emplus provides the most flexible and effective solutions as your expectations. The state-of-the-art 802.11ax and MU-MIMO technology brings high performance on connecting speed and bandwidth. WAP581 equips with two powerful RF interfaces which support up to 2402Mbps in 5GHz frequency band and 573Mbps in 2.4GHz frequency band. 4 Physical Interface (WAP581) 5 Physical & Environment Power Source DC Input: 12 VDC/1.5A PoE: compatible with 802.3af/at or Passive PoE Internal High Gain Antenna (Peak Gain) ~4.7dBi 2.4GHz antennas ~7dBi 5GHz antennas Interface 2 x 10/100/1000Mbps Ethernet Port with 802.3af/at PoE 1 x 10/100/1000Mbps Ethernet Port with Passive PoE supported (available only with PoE 802.3at or Passive PoE power source) 1 x reset button 1x DC IN Dimensions (W x D x H) 140x90x44 mm Mounting Wall mount Environment Operating temperature: -0°C~40°C Operating humidity: 0%~90% typical Technical Specifications Storage temperature: -20°C~70°C *This equipment is only to be connected to PoE networks without routing to outside plants. 6 Applications Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility ofWLANs:  Difficult-to-Wire Environments: There are many situations where wires cannot be installed, deployed easily, or cannot be hidden from view. Older buildings, sites with multiple buildings, and/or areas that make the installation of a Ethernet-based LAN impossible, impractical or expensive are sites where WLAN can be a network solution.  Temporary Workgroups: Create temporary workgroups/networks in more open areas within a building; auditoriums, amphitheaters classrooms, ballrooms, arenas, exhibition centers, or temporary offices where one wants either a permanent or temporary Wireless LAN established.  The Ability to Access Real-Time Information: Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing with patients, serving customers, and/or processing information.  Frequently Changing Environments: Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).  Small Office and Home Office (SOHO) Networks: SOHO users require a cost-effective, easy, and quick installation of a small network.  Training/Educational Facilities: Training sites at corporations or students at universities use wireless connectivity to exchange information between peers and easily access information for learning purposes. 7 Chapter2 Before You Begin 8 Computer Settings Windows XP/Windows 7/Windows 8/Windows 10 In order to use the Access P oint, y ou m ust first configure the TCP /I P v4connectionofyourWi nd owsOScomputersystem. 1a. Click the Start button and open the Control Panel WindowsXP Windows7 1b. Move y our m ouse to the lower right hot corner to display the Ch ar ms Bar and select the Control P an el in Windows 8OS. Windows 8 1c. In Windows10, click S tar t to select All APP stoenter the folder of Windows system for selecting Control Panel. Windows 10 9 2a. In Windows XP, click Network Connections. 2b.In Windows7/Windows8/Windows10, click View Network Status and Tasks in the Network and Internetsection, then select Change adapter settings. 3. Right click on Local Area Connection and select Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. 5. Select Use the following IP address and enter an IP address that is different from the Access Point and Subnet mask, then click OK. 10 Note: Ensurethatth eI PaddressandSubnetmaskare on the same subnet as the device. For example: WAP581 IP address: 192.168.1.1 PC IP address: 192.168.1.2–192.168.1.255 PC Subnet mask: 255.255.255.0 11 Apple Mac OSX 1. Go to System Preferences (Which can be opened in the Applications folder or selecting it in the Apple Menu). 2. Select Network in the Internet & Network section. 3. HighlightEthernet. 4. In Configure IPv4, select Manually. 5. Enter an IP address that is different from the Access Point and Subnet mask then press OK. Note: Ensure that the IP address and Subnet mask are on the same subnet as the device. For example: A device IP address: 192.168.1.1 PCIPaddress: 192.168.1.2–192.168.1.255 PCSubnetmask:255.255.255.0 6. Click Apply when done. 12 Chapter 3 Configuring Your Access Point 13 ConfiguringYourAccessPoint This section will show you how to configure the device using the web-based configuration interface. Default Settings Please use your Ethernet port or wireless network adapter to connect the Access Point. IP Addres s 192.168.1.1 Username / Password none Web Configuration 1. O pen a w eb brow ser (I nternet Explorer/Firefox/Safari/ Chrome) and enter the IP Address http://192.168.1.1 Note: If you have changed the default LAN IP Address of The Access Point, ensure you enter the correct IP Address. 2. The default username and password are admin. Once you have entered the correct user name and password, click the Login button to open the w eb-base configuration page. * The model name will be varied by different models. 3. If successful, you will be logged in and see the User Menu of this Access Point. 14 Appendix A - FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fre…

Text truncated - open the document above for the full version.

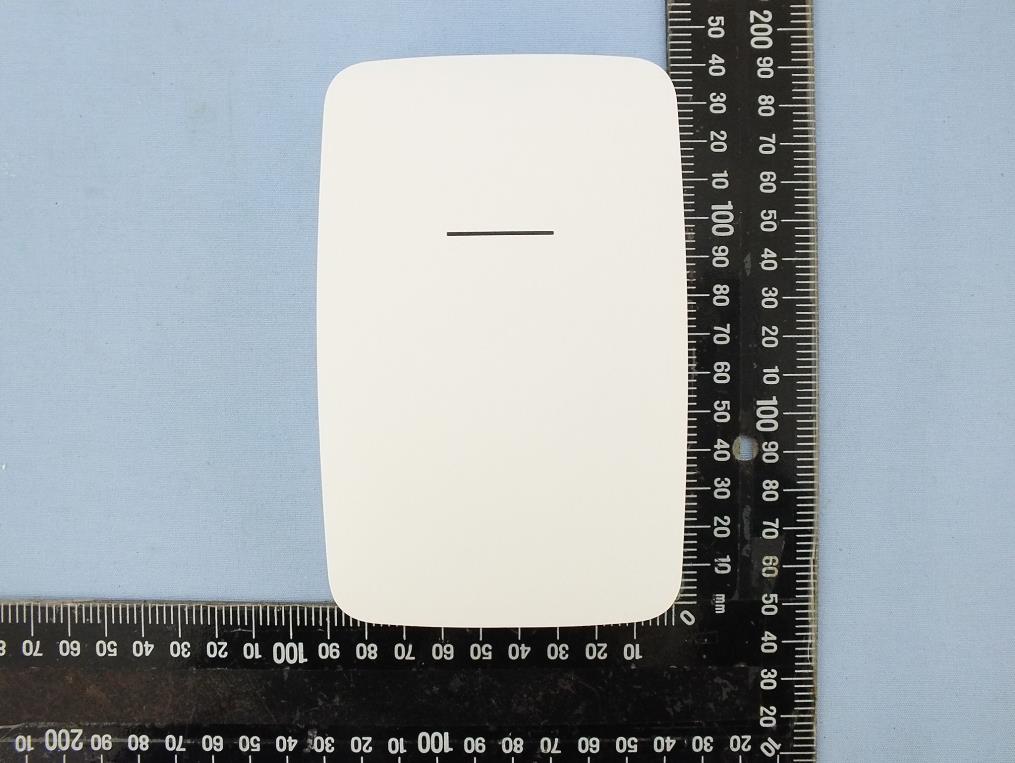

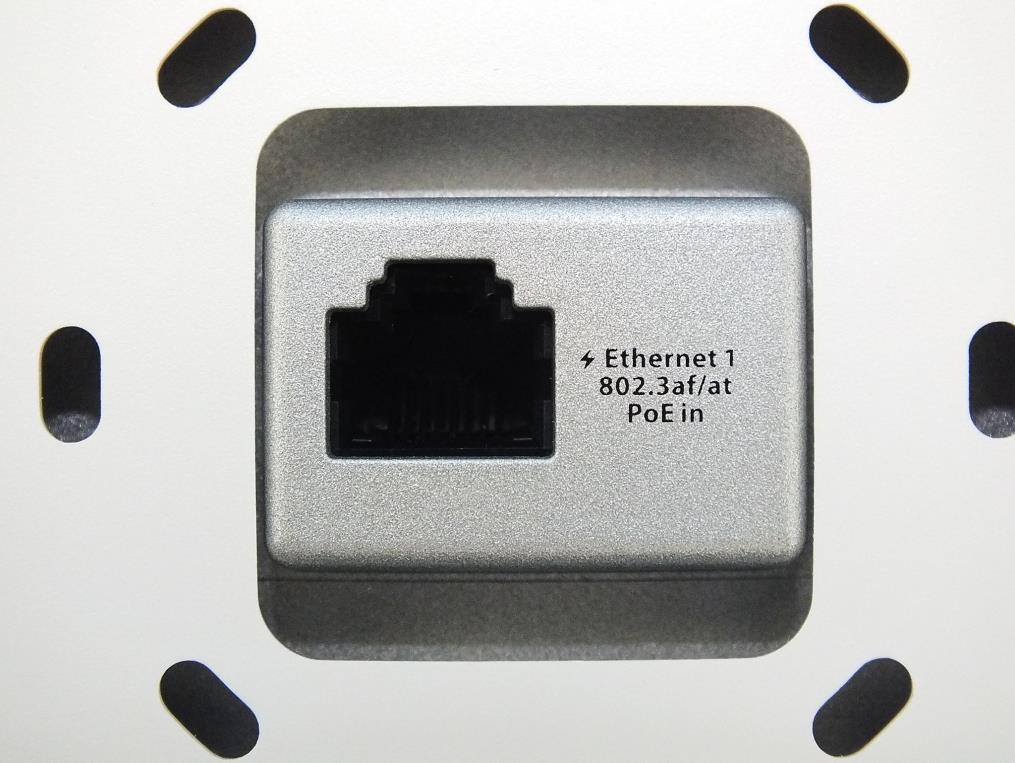

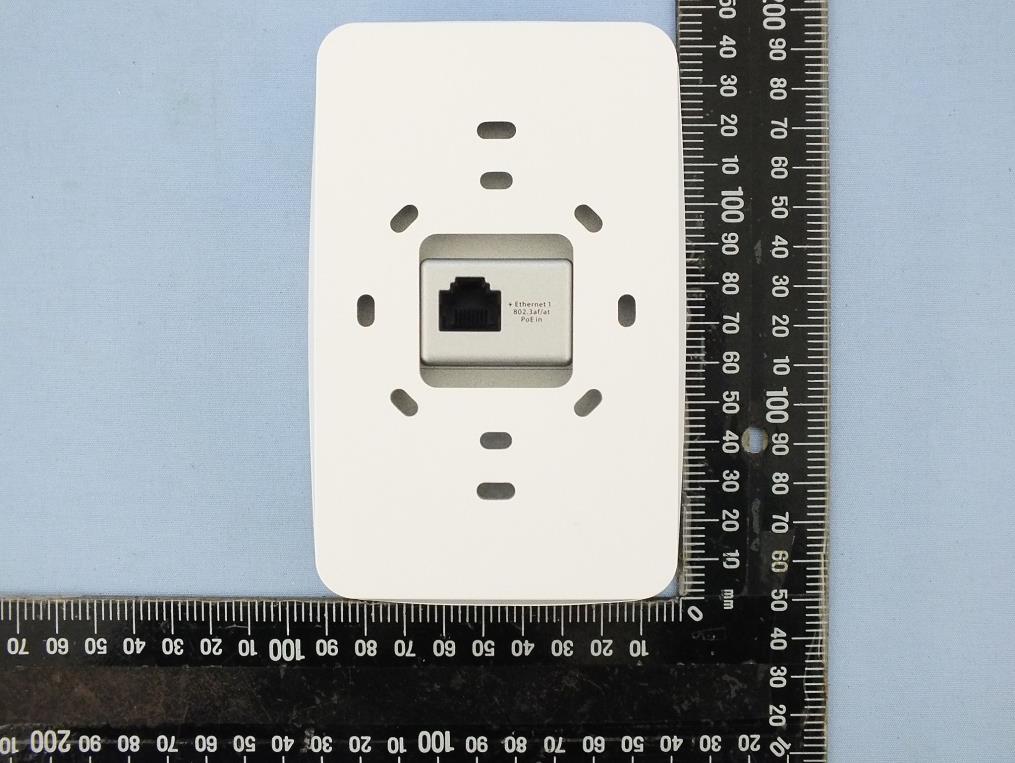

Project No.:EP1D0803 Page No. : 1 of 21 Photographs of EUT Project No.:EP1D0803 Page No. : 2 of 21 Project No.:EP1D0803 Page No. : 3 of 21 Project No.:EP1D0803 Page No. : 4 of 21 Project No.:EP1D0803 Page No. : 5 of 21

WAP581 機下標位置圖 Label location Back Side Bottom Side

Project No.:EP1D0803 Page No. : 6 of 21 With NOR Project No.:EP1D0803 Page No. : 7 of 21 Project No.:EP1D0803 Page No. : 8 of 21 Project No.:EP1D0803 Page No. : 9 of 21 Project No.:EP1D0803 Page No. : 10 of 21 Project No.:EP1D0803 Page No. : 11 of 21 Project No.:EP1D0803 Page No. : 12 of 21 Project No.:EP1D0803 Page No. : 13 of 21 Project No.:EP1D0803 Page No. : 14 of 21 Without NOR Project No.:EP1D0803 Page No. : 15 of 21 Project No.:EP1D0803 Page No. : 16 of 21 Project No.:EP1D0803 Page No. : 17 of 21 Project No.:EP1D0803 Page No. : 18 of 21 Project No.:EP1D0803 Page No. : 19 of 21 Project No.:EP1D0803 Page No. : 20 of 21 Project No.:EP1D0803 Page No. : 21 of 21

Report No.: FA1D0803 Page : 1 of 8 Report Version: Rev. 01 FCC RF Exposure Exemption Report FCC ID : 2AL6XWAP581 Equipment : 802.11ax 2x2 2-Streams Dual Concurrent Dual radios Wall Plate Access Point (Please refer to section 1.1.1 for more details) Model No. : WAP581 (Please refer to section 1.1.1 for more details) Brand Name : Emplus (Please refer to section 1.1.1 for more details) Applicant : Emplus Technologies, Inc Address : Bld B, 10F, No.209, Sec.1, Nangang Rd. Taipei City Taiwan Standard : 47 CFR FCC Part 2.1091 Received Date : Dec. 08, 2021 Tested Date : Apr. 25 ~ May 04, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA1D0803 Page : 2 of 8 Report Version: Rev. 01 Table of Contents 1 RF EXPOSURE TEST EXEMPTIONS ................................................................................................... 4 1.1 1-mW TEST EXEMPTION ..................................................................................................................... 4 1.2 SAR-BASED EXEMPTION .................................................................................................................... 4 1.3 MPE-BASED EXEMPTION .................................................................................................................... 4 1.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 1.5 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 1.6 EXEMPTION CALCULATION ................................................................................................................ 6 2 TEST LABORATORY INFORMATION ................................................................................................. 8 Report No.: FA1D0803 Page : 3 of 8 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA1D0803 Rev. 01 Initial issue Jun. 02, 2022 Report No.: FA1D0803 Page : 4 of 8 Report Version: Rev. 01 1 RF Exposure Test Exemptions 1.1 1-mW TEST EXEMPTION Available maximum time-averaged power is no more than 1 mW. 1.2 SAR-BASED EXEMPTION This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. The maximum time-averaged power or effective radiated power (ERP), whichever is greater, ≤ Pth Pth (mW) = ERP 20cm (mW) = 2040f 0.3GHz ≤ f < 1.5 GHz Pth (mW) = ERP 20cm (mW) = 3060 1.5GHz ≤ f < 6 GHz Frequency (MHz) Power Thresholds mW dBm 663 1353 31.31 699 1426 31.54 704 1436 31.57 777 1585 32.00 824 1681 32.26 902 1840 32.65 1500 ~ 6000 3060 34.86 1.3 MPE-BASED EXEMPTION For a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. Radio Source Frequency Minimum Distance Threshold ERP F L MHz F H MHz λ L / 2π λ H / 2π W 0.3 - 1.34 159 m - 35.6 m 1920 R 2 1.34 - 30 35.6 m - 1.6 m 3450 R 2 /f 2 30 - 300 1.6 m - 159 mm 3.83 R 2 300 - 1500 159 mm - 31.8 mm 0.0128 R 2 f 1500 - 100000 31.8 mm - 0.5 mm 19.2 R 2 Report No.: FA1D0803 Page : 5 of 8 Report Version: Rev. 01 1.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.5 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA1D0803 Page : 6 of 8 Report Version: Rev. 01 1.6 EXEMPTION CALCULATION Non-beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) EIRP (dBm) ERP (dBm) SAR-BasedExemption Thresholds (dBm) Ratio Pass/ Fail 2412~2462 22.53 23 4.7 27.7 25.55 34.86 0.117 Pass 5180~5240 21.83 22 6.5 28.5 26.35 34.86 0.141 Pass 5745~5825 21.53 22 7 29 26.85 34.86 0.158 Pass Note: Minimum separation distance = 20 cm. Beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) EIRP (dBm) ERP (dBm) SAR-BasedExemption Thresholds (dBm) Ratio Pass/ Fail 2412~2462 18.87 19 7.46 26.46 24.31 34.86 0.088 Pass 5180~5240 18.75 19 9.31 28.31 26.16 34.86 0.135 Pass 5745~5825 18.34 18.5 9.57 28.07 25.92 34.86 0.128 Pass Note: Minimum separation distance = 20 cm. DG = Directional Gain = 10 log [(10 G1/20 + 10 G2/20 + ...+ 10 GN/20 ) 2 /N ANT ]; Ant. No. Operating Frequencies (MHz) / Antenna Gain (dBi) 2400 ~ 2483.5 5150 ~ 5250 5725 ~ 5850 1 4.7 - - 2 4.2 - - 3 - 6.1 7 4 - 6.5 6.1 Directional Gain (dBi) 7.46 9.31 9.57 Report No.: FA1D0803 Page : 7 of 8 Report Version: Rev. 01 Simultaneous Transmission Test Exemption Mode Max Ratio of Each Mode Non-beamforming mode Beamforming mode WLAN 2.4GHz 0.117 0.088 WLAN 5GHz 0.158 0.135 Sum 0.275 0.223 Limit 1 1 Pass / Fail Pass Pass Conclusion Wi-Fi 2.4GHz and Wi-Fi 5GHz are qualify for Simultaneous Transmission SAR exemption Report No.: FA1D0803 Page : 8 of 8 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide va…

Text truncated - open the document above for the full version.

Report No.: FR1D0803CO Page : 1 of 11 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : 2AL6XWAP581 Equipment : 802.11ax 2x2 2-Streams Dual Concurrent Dual radios Wall Plate Access Point (Please refer to section 1.1.1 for more details) Model No. : WAP581 (Please refer to section 1.1.1 for more details) Brand Name : Emplus (Please refer to section 1.1.1 for more details) Applicant : Emplus Technologies, Inc Address : Bld B, 10F, No.209, Sec.1, Nangang Rd. Taipei City Taiwan Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Dec. 08, 2021 Tested Date : Apr. 29, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR1D0803CO Page : 2 of 11 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Reference Guidance .............................................................................................................................. 7 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Facility ....................................................................................................................................... 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS ......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 11 Appendix A. Unwanted Emissions Into Restricted Frequency Bands Report No.: FR1D0803CO Page : 3 of 11 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR1D0803CO Rev. 01 Initial issue Jun. 02, 2022 Report No.: FR1D0803CO Page : 4 of 11 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Unwanted Emissions [dBuV/m at 3m]: 70.74MHz 36.48 (Margin -3.52dB) - PK Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR1D0803CO Page : 5 of 11 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Emplus WAP581 802.11ax 2x2 2-Streams Dual Concurrent Dual radios Wall Plate Access Point For marketing purpose. EnGenius ECW215 802.11ax Cloud Managed AP  All models are electrically identical, different model names are for marketing purpose.  The above models, model WAP581 was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) Operating Frequency 802.11b/g/n/ax: 2412 MHz ~ 2462 MHz 802.11a/n/ac/ax: 5180 MHz ~ 5240 MHz; 5745 ~ 5825 MHz Modulation Type 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g/n/ac/ax: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM) 1.1.3 Antenna Details Ant. No. Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5725~5850 1 2.4G-1 Dipole UFL 4.7 --- --- 2 2.4G-2 Dipole UFL 4.2 --- --- 3 5G-1 Dipole UFL --- 6.1 7 4 5G-2 Dipole UFL --- 6.5 6.1 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12V⎓ from AC adapter 54V⎓ from POE Report No.: FR1D0803CO Page : 6 of 11 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber3 / (03CH03-WS) Tested Date Apr. 29, 2022 Instrument Brand Model No. Serial No. Calibration Date Calibration Until Receiver R&S ESR3 101657 Mar. 15, 2022 Mar. 14, 2023 Spectrum Analyzer R&S FSV40 101499 Mar. 08, 2022 Mar. 07, 2023 Loop Antenna R&S HFH2-Z2 100330 Nov. 08, 2021 Nov. 07, 2022 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-685 May. 06, 2021 May. 05, 2022 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1206 Dec. 20, 2021 Dec. 19, 2022 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170508 Jan. 11, 2022 Jan. 10, 2023 Preamplifier EMC EMC02325 980187 Jul. 26, 2021 Jul. 25, 2022 Preamplifier Agilent 83017A MY39501309 Sep. 06, 2021 Sep. 05, 2022 Preamplifier EMC EMC184045B 980192 Jul. 14, 2021 Jul. 13, 2022 Loop Antenna Cable KOAX KABEL 101354-BW 101354-B…

Text truncated - open the document above for the full version.

Report No.: FR1D0803AC Page : 1 of 20 Report Version: Rev. 01 FCC Test Report FCC ID : 2AL6XWAP581 Equipment : 802.11ax 2x2 2-Streams Dual Concurrent Dual radios Wall Plate Access Point (Please refer to section 1.1.1 for more details) Model No. : WAP581 (Please refer to section 1.1.1 for more details) Brand Name : Emplus (Please refer to section 1.1.1 for more details) Applicant : Emplus Technologies, Inc Address : Bld B, 10F, No.209, Sec.1, Nangang Rd. Taipei City Taiwan Standard : 47 CFR FCC Part 15.247 Received Date : Dec. 08, 2021 Tested Date : Apr. 25 ~ May 09, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR1D0803AC Page : 2 of 20 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Test Standards ..................................................................................................................................... 11 1.6 Reference Guidance ............................................................................................................................ 11 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 11 1.8 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Facility ..................................................................................................................................... 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ....................................................................................................... 13 3.1 6dB and Occupied Bandwidth .............................................................................................................. 13 3.2 Conducted Output Power ..................................................................................................................... 14 3.3 Power Spectral Density ........................................................................................................................ 15 3.4 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 16 3.5 Emissions in Non-Restricted Frequency Bands ................................................................................... 18 3.6 AC Power Line Conducted Emissions ................................................................................................. 19 4 TEST LABORATORY INFORMATION ............................................................................................... 20 Appendix A. 6dB and Occupied Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions into Restricted Frequency Bands Appendix E. Emissions in Non-Restricted Frequency Bands Appendix F. AC Power Line Conducted Emissions Report No.: FR1D0803AC Page : 3 of 20 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR1D0803AC Rev. 01 Initial issue Jun. 02, 2022 Report No.: FR1D0803AC Page : 4 of 20 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emission [dBuV]: 0.521MHz 39.60 (Margin -6.40dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 2390.00MHz 53.85 (Margin -0.15dB) - AV Pass 15.247(b)(3) Conducted Output Power Max Power [dBm]: Non-beamforming mode 27.80 Beamforming mode 24.79 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR1D0803AC Page : 5 of 20 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Emplus WAP581 802.11ax 2x2 2-Streams Dual Concurrent Dual radios Wall Plate Access Point For marketing purpose. EnGenius ECW215 802.11ax Cloud Managed AP  All models are electrically identical, different model names are for marketing purpose.  The above models, model WAP581 was selected as a representative one for the final test and only its data was recorded i…

Text truncated - open the document above for the full version.

Report No.: FR1D0803 Page: : 1 of 8 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test (Adapter Mode) Report No.: FR1D0803 Page: : 2 of 8 Report Version: Rev. 01 Conducted Emission Test (POE Mode) Report No.: FR1D0803 Page: : 3 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test (Adapter Mode) Report No.: FR1D0803 Page: : 4 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR1D0803 Page: : 5 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test (POE Mode) Report No.: FR1D0803 Page: : 6 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR1D0803 Page: : 7 of 8 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR1D0803 Page: : 8 of 8 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
