2ALNA-BTHA1True Wireless Earbuds

FCC ID: 2ALNA-BTHA1

FCC ID: 2ALNA-BTHA1 Product: True Wireless Earbuds Model No.: BTHA1, BTHA2, BTHA3 The device have left and right earphone , left and right earphone are electrically identical . <Signature> Name: Catherine Lu Title: Test engineer Company: Shenzhen Thousandshores Technology Co., Ltd.

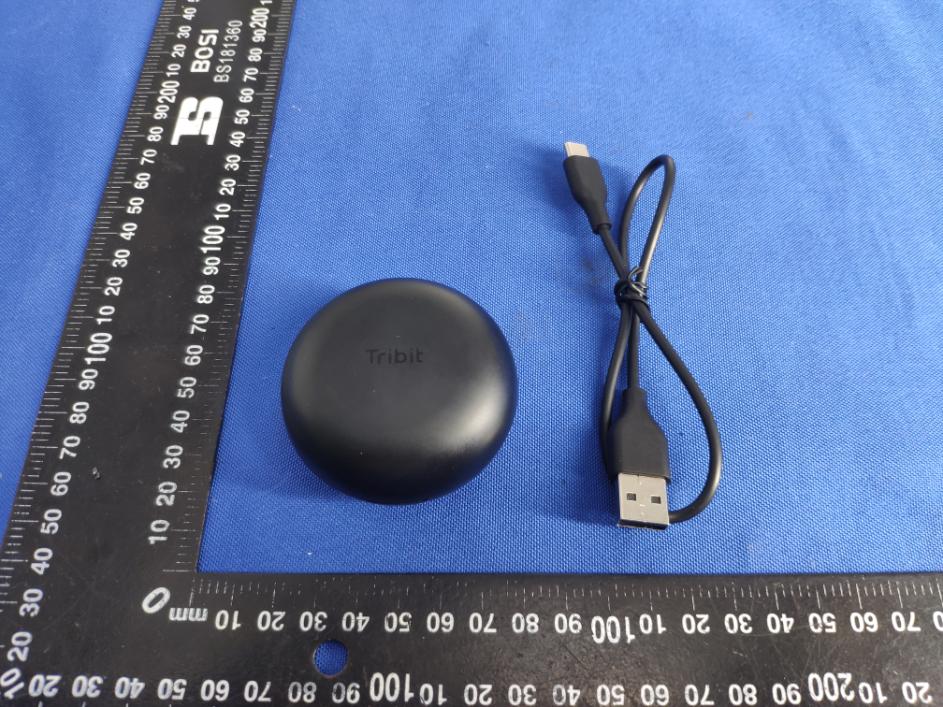

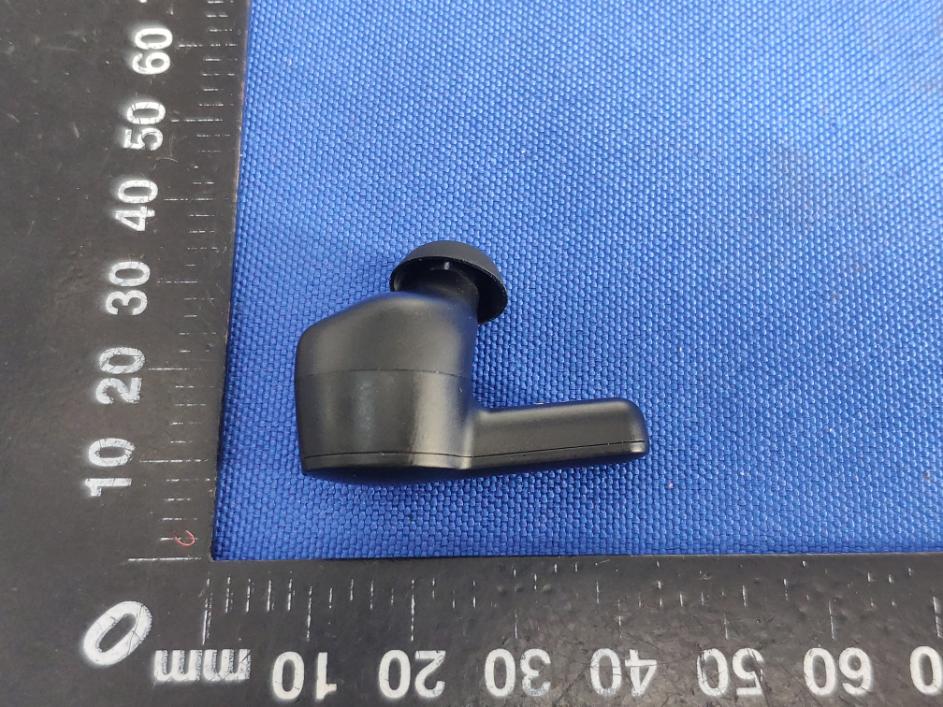

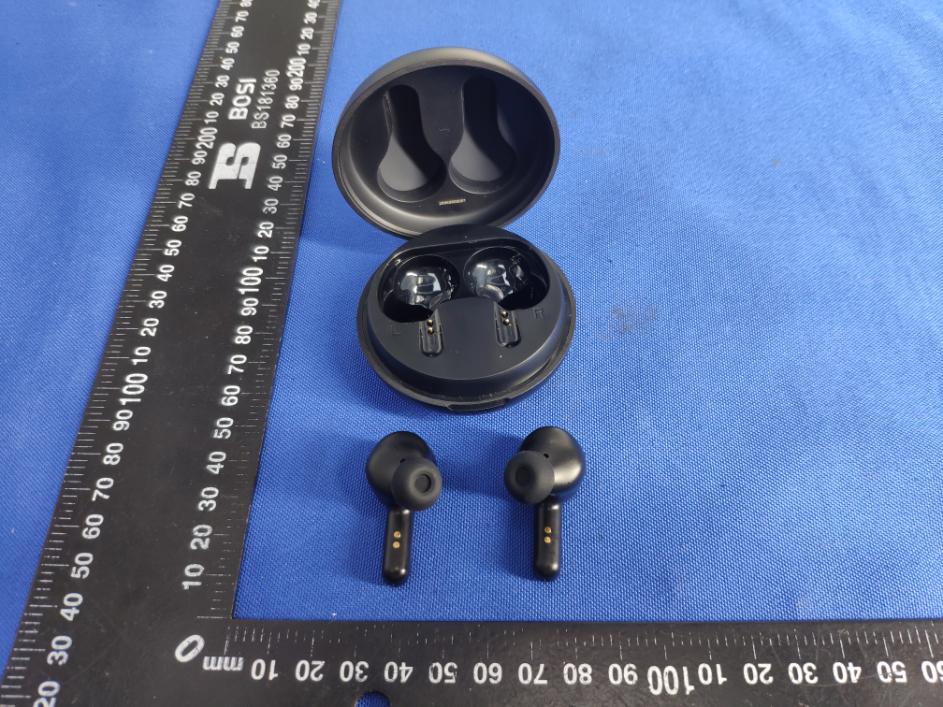

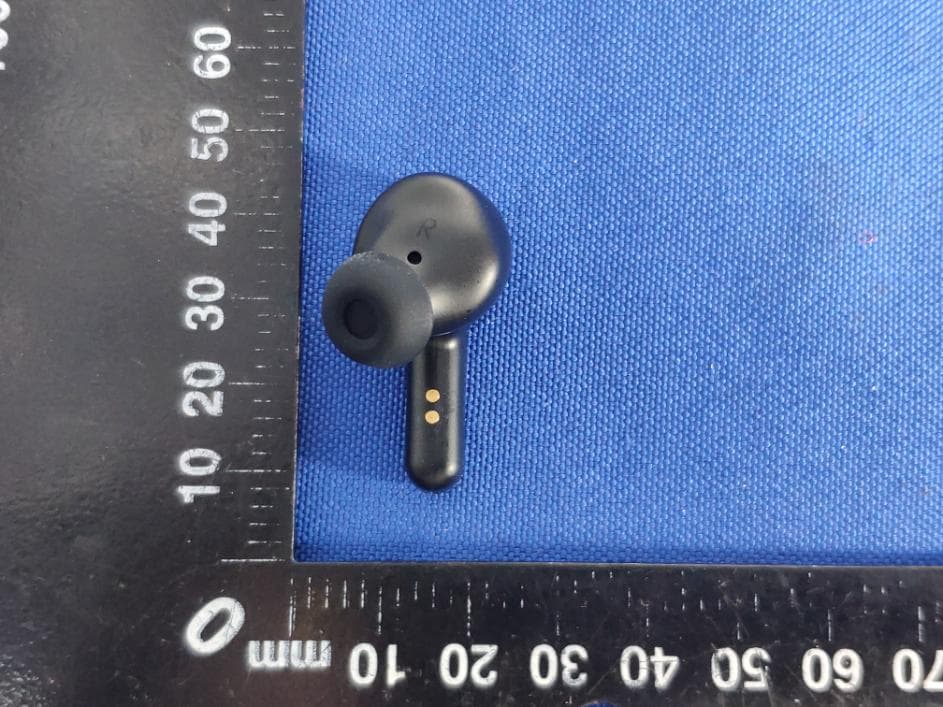

Page 1 of 11 Appendix B: Photographs of EUT Product: True Wireless Earbuds Model: BTHA1 External Photos Page 2 of 11 Page 3 of 11 Page 4 of 11 Page 5 of 11 Page 6 of 11 Page 7 of 11 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11

Label Artwork and Location Model: BTHA1 Label: Size: L*W=25.6*23.2mm Location 5mm

Page 1 of 7 Appendix B: Photographs of EUT Product: True Wireless Earbuds Model: BTHA1 Internal Photos Left Antenna Page 2 of 7 Page 3 of 7 Page 4 of 7 Right Page 5 of 7 Page 6 of 7 Page 7 of 7

RF exposure evaluation FCC ID: 2ALNA-BTHA1 §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 4.82 4.0±1 5.0 3.16 5 1.00 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ALNA-BTHA1 Product: True Wireless Earbuds Model No.: BTHA1 Additional Model No.: BTHA2, BTHA3 Trade Mark: Tribit Report No.: TCT200602E016 Issued Date: Jun. 15, 2020 Issued for : Shenzhen Thousandshores Technology Co., Ltd. 5/F, Chuangxin Building, Seven-star Creative Square, No.2North Alley, Chuangye 2nd Road, Bao'an Dis 28th, ShenZhen, 518000 China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200602E016 Page 2 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ................................................................................................... 3 2. Test Result Summary ........................................................................................... 4 3. EUT Description .................................................................................................... 5 4. General Information ............................................................................................. 6 4.1. Test environment and mode ........................................................................................... 6 4.2. Description of Support Units .......................................................................................... 6 5. Facilities and Accreditations ............................................................................. 7 5.1. Facilities...............................................................................................................................7 5.2. Location................................................................................................................................7 5.3. Measurement Uncertainty...............................................................................................7 6. Test Results and Measurement Data .............................................................. 8 6.1. Antenna requirement ........................................................................................................ 8 6.2. Conducted Emission ......................................................................................................... 9 6.3. Conducted Output Power .............................................................................................. 13 6.4. 20dB Occupy Bandwidth ............................................................................................... 18 6.5. Carrier Frequencies Separation .................................................................................. 23 6.6. Hopping Channel Number ............................................................................................. 28 6.7. Dwell Time ......................................................................................................................... 31 6.8. Pseudorandom Frequency Hopping Sequence ...................................................... 36 6.9. Conducted Band Edge Measurement ........................................................................ 37 6.10.Conducted SpuriousEmission Measurement ........................................................ 41 6.11.Radiated SpuriousEmission Measurement ............................................................ 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200602E016 Page 3 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product:True Wireless Earbuds Model No.:BTHA1 Additional Model: BTHA2, BTHA3 Trade Mark: Tribit Applicant:Shenzhen Thousandshores Technology Co., Ltd. Address: 5/F, Chuangxin Building, Seven-star Creative Square, No.2North Alley, Chuangye 2nd Road, Bao'an Dis 28th, ShenZhen, 518000 China Manufacturer:Shenzhen Thousandshores Technology Co., Ltd. Address: 5/F, Chuangxin Building, Seven-star Creative Square, No.2North Alley, Chuangye 2nd Road, Bao'an Dis 28th, ShenZhen, 518000 China Date of Test:Jun. 03, 2020 – Jun. 12, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:Jun. 12, 2020 Brave Zeng Reviewed By: Date:Jun. 15, 2020 Beryl Zhao Approved By: Date:Jun. 15, 2020 Tomsin Report No.: TCT200602E016 Page 4 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary RequirementCFR 47 SectionResult Antenna Requirement§15.203/§15.247 (c)PASS AC Power Line Conducted Emission §15.207PASS Conducted Peak Output Power §15.247 (b)(1)PASS 20dB Occupied Bandwidth§15.247 (a)(1)PASS Carrier Frequencies Separation §15.247 (a)(1)PASS Hopping Channel Number§15.247 (a)(1)PASS Dwell Time§15.247 (a)(1)PASS Radiated Emission§15.205/§15.209PASS Band Edge§15.247(d)PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200602E016 Page 5 of 7…

Text truncated - open the document above for the full version.

Report No.: TCT200602E016 Page 51 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Vertical: Note: 1.The low frequency, which started from 9KHz~30MHz, was pre-scanned and the result which was 20dB lower than the limit line per 15.31(o) was not reported 2. Measurements were conducted in all three channels (high, middle, low) and three modulation (GFSK, Pi/4 DQPSK, 8DPSK) and the worst case Mode (Highest channel and GFSK) was submitted only. Report No.: TCT200602E016 Page 52 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Result of Radiated Spurious at Band edges Lowest channel 2402: Horizontal: Vertical: Frequency (MHz) Ant. Pol. H/V Peak (dBμV/m) Dutycycle factor (dB/m) AV (dBμV/m) Peak limit (dBμV/m) AV limit (dBμV/m) PK Margin (dB) AVG Margin (dB) 2390 H 38.27 -4.58 33.69 74 54 -35.73 -20.31 2390 V 35.39 -4.58 30.81 74 54 -38.61 -23.19 2400 H 52.30 -4.58 47.72 74 54 -21.70 -6.28 2400 V 45.69 -4.58 41.11 74 54 -28.31 -12.89 Report No.: TCT200602E016 Page 53 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Highest channel 2480: Horizontal: Vertical: Frequency (MHz) Ant. Pol. H/V Peak (dBμV/m) Dutycycle factor (dB/m) AV (dBμV/m) Peak limit (dBμV/m) AV limit (dBμV/m) PK Margin (dB) AVG Margin (dB) 2483.5 H 42.35 -4.58 37.77 74 54 -31.65 -16.23 2483.5 V 40.19 -4.58 35.61 74 54 -33.81 -18.39 Note: Measurements were conducted in all three modulation (GFSK, Pi/4 DQPSK, 8DPSK), and the worst case Mode (GFSK) was submitted only. Report No.: TCT200602E016 Page 54 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Above 1GHz Modulation Type: GFSK Low channel: 2402 MHz Frequency (MHz) Ant. Pol. H/V Peak reading (dBμV) AV reading (dBuV) Correction Factor (dB/m) Emission Level Peak limit (dBμV/m) AV limit (dBμV/m) Margin (dB) Peak (dBμV/m) AV (dBμV/m) 4804 H 45.74 --- 0.66 46.40 --- 74 54 -7.60 7206 H 36.56 --- 9.5 46.06 --- 74 54 -7.94 --- H --- --- --- --- --- --- --- --- 4804 V 44.67 --- 0.66 45.33 --- 74 54 -8.67 7206 V 37.90 --- 9.5 47.40 --- 74 54 -6.60 --- V --- --- --- --- --- --- --- --- Middle channel: 2441 MHz Frequency (MHz) Ant. Pol. H/V Peak reading (dBμV) AV reading (dBμV) Correction Factor (dB/m) Emission Level Peak limit (dBμV/m) AV limit (dBμV/m) Margin (dB) Peak (dBμV/m) AV (dBμV/m) 4882 H 47.64 --- 0.99 48.63 --- 74 54 -5.37 7323 H 38.86 --- 9.87 48.73 --- 74 54 -5.27 --- H --- --- --- --- --- --- --- --- 4882 V 46.72 --- 0.99 47.71 --- 74 54 -6.29 7323 V 38.61 --- 9.87 48.48 --- 74 54 -5.52 --- V --- --- --- --- ---- --- --- --- High channel: 2480 MHz Frequency (MHz) Ant. Pol. H/V Peak reading (dBμV) AV reading (dBμV) Correction Factor (dB/m) Emission Level Peak limit (dBμV/m) AV limit (dBμV/m) Margin (dB) Peak (dBμV/m) AV (dBμV/m) 4960 H 46.89 --- 1.33 48.22 --- 74 54 -5.78 7440 H 36.56 --- 10.22 46.78 --- 74 54 -7.22 --- H --- --- --- --- --- --- --- --- 4960 V 48.47 --- 1.33 49.80 --- 74 54 -4.20 7440 V 36.64 --- 10.22 46.86 --- 74 54 -7.14 --- V --- --- --- --- --- --- --- --- Note: 1. Emission Level=Peak Reading + Correction Factor; Correction Factor= Antenna Factor + Cable loss – Pre-amplifier 2. Margin (dB) = Emission Level (Peak) (dBμV/m)-Average limit (dBμV/m) 3. The emission levels of other frequencies are very lower than the limit and not show in test report. 4. Measurements were conducted from 1 GHz to the 10th harmonic of highest fundamental frequency. 5. Data of measurement shown “---“in the above table mean that the reading of emissions is attenuated more than 20 dB below the limits or the field strength is too small to be measured. 6. Measurements were conducted in all three modulation (GFSK, Pi/4 DQPSK, 8DPSK), and the worst case Mode (GFSK) was submitted only. 7. All the restriction bands are compliance with the limit of 15.209. ` Report No.: TCT200602E016 Page 55 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix A: Photographs of Test Setup Product: True Wireless Earbuds Model: BTHA1 Radiated Emission Report No.: TCT200602E016 Page 56 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT200602E016 Page 57 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of EUT Product: True Wireless Earbuds Model: BTHA1 External Photos Report No.: TCT200602E016 Page 58 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 59 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 60 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 61 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 62 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 63 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 64 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 65 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 66 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 67 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200602E016 Page 68 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: True Wireless Earbuds Model: BTHA1 Internal Photos Report No.: TCT200602E016 Page 69 of 74 Hotline…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: True Wireless Earbuds Model: BTHA1 Radiated Emission Page 2 of 2 Conducted Emission
