TCB Authority to Act as Agent Number: MS-0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 Authority to Act as Agent Date: 06.Jan.2023 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TÜV Rheinland (China) Ltd. & Mr. Zhu Qiusheng to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ____ Ninebot (Changzhou) Tech Co., Ltd. / 15F, Block A, Building 3, Changwu Mid Road 18#, Wujin Dist., Changzhou, Jiangsu,China _________. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: _06.Jan.2023_______ Agreement is valid for 12 months from the above date. By: __________________________ _Jin Jun___________________ (Signature) (Print name) __ Certification Engineer _______ _+86-519-69657985___________ (Title) (Telephone) On behalf of: _ Ninebot (Changzhou) Tech Co., Ltd._ (Company Name)

Number: 44715 Revision: 1 Effective date: Sep 12, 2022 MS-0044715 Page 1 of 1 Revision 1 Legal Scope: Global Business Scope: Cross Business Process Scope: Cross Process The following is a sample Confidentiality Request letter, which must be completed on Applicant company letterhead, signed by the Applicant or their authorized Agent, and submitted to TÜ V Rheinland. Date: 2023-01-04 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2ALS8-KS0016 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction _Ninebot (Changzhou) Tech Co., Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ________________________ ___ Jin Jun _ (Signature/Title) (Print name) Tel: +86-519-69657985 Ninebot (Changzhou) Tech Co., Ltd._

Family Certification information T o w h o m i t m a y c o n c e r n , W e , Ni n e b o t ( C h a n g z h o u ) Te c h C o . , L t d . h e r e b y c o n f i r m t h a t t h e f a m i l y m o d e l s a r e l i s t e d i n t h e f o l l o w i n g t a b l e . N o . H V I N P M N R e m a r k s 01 051201U N i n e b o t K i c k S c o o t e r F 2 Th e y s h a r e the s a m e R F ci r c u i ts , o n l y d i f f e r e n t i n t h e bat t e r y c a p a c it y, M o t o rs a n d M a x S p e e d s e t t i n g. 02 051202U N i n e b o t K i c k S c o o t e r F 2 P l u s 03 051203U N i n e b o t K i c k S c o o t e r F 2 P r o T h e s e m o d e l s a r e i d e n t i c a l a s f o l l o w s : E l e c t r o n i c s / e l e c t r i c a l d e s i g n s , i n c l u d i n g s o f t w a r e & f i r m w a r e C o n s t r u c t i o n D e s i g n / P h ys i c a l D e s i g n P C B L a yo u t ( O t h e r s , p l e a s e s p e c i f y) : T h e o n l y d i f f e r e n ce s b e t w e e n t h e s e m o d e l s a r e t h e f o l l o w s f o r m a r k e t i n g p u r p o s e : M o d e l n a m e Th e b a t t e r y c a p a c i ty, M o t o r s a n d M a x S p e e d s e t t i n g (d e t a i l s a s s h o w n i n u s e r m a n u a l), w h i c h h a s n o a f f e c t i o n s o n t h e R F ch a r a c t e r i s t i c s . R e g a r d s , S i g n a t u r e : P r i n t N a m e / T i t l e : J i n J u n/ c e r t i f i c a t e m a n a g e r D a t e : 2 0 2 3-01-06

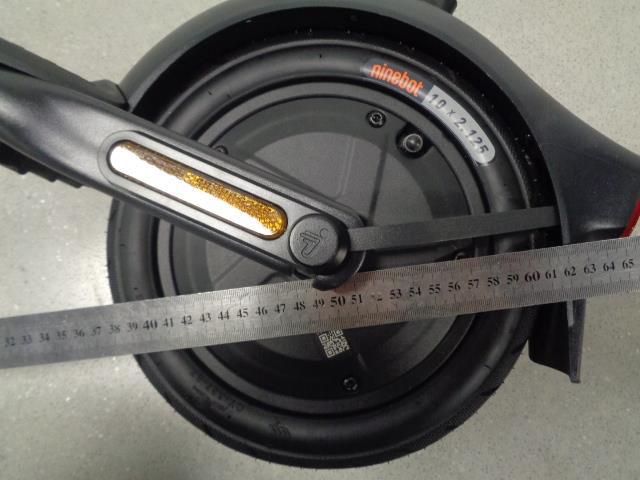

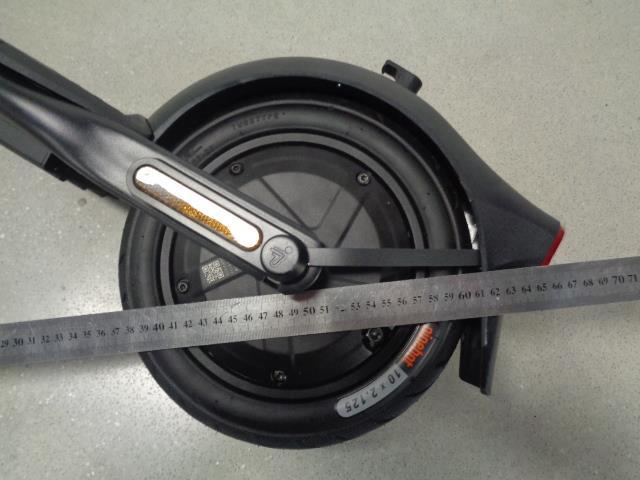

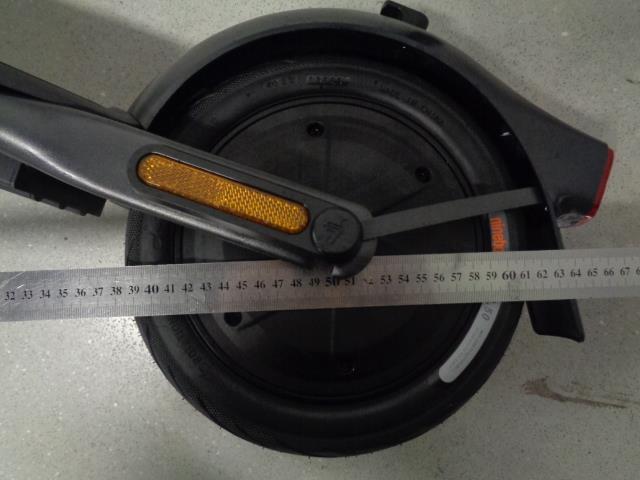

Pic. 1: External view of 051201U Pic. 2: External view of 051201U Pic. 3: External view of 051201U Pic. 4: External view of 051201U Pic. 5: External view of 051201U Pic. 6: External view of 051201U Pic. 7: Charging Port of 051201U Pic. 8: Motor of 051201U Pic. 9: Display of 051201U Pic. 10: Turn Light of 051201U Pic. 11: External view of 051202U Pic. 12: External view of 051202U Pic. 13: External view of 051202U Pic. 14: External view of 051202U Pic. 15: External view of 051202U Pic. 16: External view of 051202U Pic. 17: Charging Port of 051202U Pic. 18: Motor of 051202U Pic. 19: Display of 051202U Pic. 20: External view of 051203U Pic. 20: External view of 051203U Pic. 20: External view of 051203U Pic. 20: External view of 051203U Pic. 20: External view of 051203U Pic. 20: External view of 051203U Pic. 21: Charging Port of 051203U Pic. 22: Motor of 051203U Pic. 23: Display of 051203U Pic. 24: overview of adapter

Pic. 1: interview of 051201U, 051202U, 051203U Pic. 2: interview of 051201U, 051202U, 051203U Pic. 3: interview of 051201U, 051202U, 051203U Pic. 4: interview of 051201U, 051202U, 051203U Pic. 5: interview of 051201U, 051202U, 051203U Pic. 6: interview of 051201U, 051202U, 051203U

天线规格Antenna Data Sheet 天线类型Antenna Type: 印刷式天线PCB Antenna 阻抗Impedance: 50Ω 极化方式Polarization: 线性Linear 频率范围Frequency Range: 2400 ~ 2483.5MHz 天线增益Max Peak Gain: -1.26dBi 制造商Manufacturer: Shuangjin 天线辐射图Antenna Radiation Pattern Antenna Gain X BT Antenna Gain Y BT Antenna Gain Z

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1093 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 RSS-102 Issue 5 March 2015, section 2.5.1  FCC requirements EUT RF Exposure Evaluation operations Frequency band(MHz) Maximum Conducted power* Threshold power @5mm (mW) Verdict dBm mW 2402-2480 1.57 1.44 10 Compliant *please refer to the test report CN23HMTS 001.  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.1. a) EUT RF Exposure Evaluation standalone operations Frequency band(MHz) Maximum Conducted power* Threshold power @5mm Verdict dBm mW dBm mW 2408-2474 1.57 1.44 6.02 4 Compliant *please refer to the test report CN23HMTS 001. The antenna gain is -1.26dBi.

Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 10 of 39 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 11 of 39 Appendix B.4: Test Results of Conducted Spurious Emissions Measured in 100 kHz Bandwidth TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 0.78 0.78 --- PASS 30~1000 0.78 -47.8 ≤-19.22 PASS 1000~26500 0.78 -38.38 ≤-19.22 PASS 2440 Reference 1.26 1.26 --- PASS 30~1000 1.26 -48.1 ≤-18.74 PASS 1000~26500 1.26 -38.41 ≤-18.74 PASS 2480 Reference 1.14 1.14 --- PASS 30~1000 1.14 -48.08 ≤-18.86 PASS 1000~26500 1.14 -39.3 ≤-18.86 PASS BLE_2M Ant1 2402 Reference -0.71 -0.71 --- PASS 30~1000 -0.71 -48.21 ≤-20.71 PASS 1000~26500 -0.71 -38.9 ≤-20.71 PASS 2440 Reference -0.47 -0.47 --- PASS 30~1000 -0.47 -47.88 ≤-20.47 PASS 1000~26500 -0.47 -38.59 ≤-20.47 PASS 2480 Reference -0.76 -0.76 --- PASS 30~1000 -0.76 -47.53 ≤-20.76 PASS 1000~26500 -0.76 -38.95 ≤-20.76 PASS Band edge: TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 0.85 -35.73 ≤-19.15 PASS High 2480 1.15 -40.85 ≤-18.85 PASS BLE_2M Ant1 Low 2402 -0.60 -36.52 ≤-20.6 PASS High 2480 -0.62 -43.12 ≤-20.62 PASS Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 12 of 39 BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 13 of 39 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 14 of 39 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 15 of 39 BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 16 of 39 BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 17 of 39 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 18 of 39 BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 19 of 39 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 20 of 39 Appendix B.5: Test Results of Radiated Spurious Emissions Note: 1) This testing was carried out on different modulations, but only the worst case was presented in this report. 2) All models tested, only the worst-case reported. 3) Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and 18GHz - 26.5GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz were reported. 30 MHz to 1GHz EUT Information EUT Name: Ninebot KickScooter F2 Model: 051201U Test Mode: BLE 1M_Mid channel Order No/Sample No: 168399890/A003383874-001 Remark: Temp 23 Humi:56% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 45.277500 18.48 40.00 21.52 100.0 H 12.0 -18.8 72.098000 19.34 40.00 20.66 100.0 H 354.0 -22.5 168.225000 38.50 43.50 5.00 100.0 H 354.0 -21.3 274.343000 41.40 46.00 4.60 100.0 H 358.0 -16.8 906.346500 31.68 46.00 14.32 100.0 H 254.0 -4.9 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 21 of 39 EUT Information EUT Name: Ninebot KickScooter F2 Model: 051201U Test Mode: BLE 1M_Mid channel Order No/Sample No: 168399890/A003383874-001 Remark: Temp 23 Humi:56% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 37.517500 23.93 40.00 16.07 100.0 V 334.0 -21.0 57.111500 22.03 40.00 17.97 100.0 V 179.0 -18.7 168.031000 28.55 43.50 14.95 100.0 V 293.0 -21.3 300.096500 32.38 46.00 13.62 100.0 V 52.0 -16.3 386.232500 31.32 46.00 14.68 100.0 V 342.0 -14.0 965.759000 32.04 54.00 21.96 100.0 V 179.0 -4.2 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 22 of 39 1GHz-18GHz Note: The highest waveform in the figure is Bluetooth Fundamental. EUT Information EUT Name: Ninebot KickScooter F2 Model: 051201U Test Mode: BLE 1M_Low channel Order No/Sample No: 168399890/A003383874-001 Test Voltage:: DC 5V From USB Remark: Temp 23 Humi:56% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 4802.500000 --- 39.65 54.00 14.35 100.0 H 258.0 11.8 4827.500000 51.28 --- 74.00 22.72 100.0 H 2.0 11.8 Final_Result Frequency (MHz) MaxPeak (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN23HMTS 001 Page 23 of 39 EUT Information EUT Name: Ninebot KickScooter F2 Model: 051201U Test Mode: BLE 1M_Low channel Order No/Sample No: 168399890/A003383874-001 Remark: Temp 23 Humi:56% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (d…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23HMTS 001 Auftrags-Nr.: Order no.: 168399890 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-09 Auftraggeber: Client: Ninebot (Changzhou) Tech Co., Ltd. 16F-17F, Block A, Building 3, Changwu Mid Road 18#, Wujin Dist., Changzhou, Jiangsu, China Prüfgegenstand: Test item: Ninebot KickScooter F2,Ninebot KickScooter F2 Plus,Ninebot KickScooter F2 Pro Bezeichnung / Typ-Nr.: Identification / Type no.: 051201U, 051202U, 051203U Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2022-11-09 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003383874-001~002 Prüfzeitraum: Testing period: 2022-12-13 – 2022-12-27 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Bell Hu genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2023-01-09 Ausstellungsdatum: Issue date: 2023-01-09 Stellung / Position: Project Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: 2ALS8-KS0016,IC: 22636-KS0016, PMN: Ninebot KickScooter F2, Ninebot KickScooter F2 Plus, Ninebot KickScooter F2 Pro HVIN: 051201U, 051202U, 051203U Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23HMTS 001 Seite 2 von 20 Page 2 of 20 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 6DB BANDWIDTH RESULT: Pass 5.1.5 99% BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23HMTS 001 Seite 3 von 20 Page 3 of 20 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE .....................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN23HMTS 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP ....................................................................................................... 1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 30MHZ - 1GHZ ...................................................................... 2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 1GHZ - 18GHZ....................................................................... 2 PHOTOGRAPH 3: SET-UP PHOTO FOR CONDUCTED EMISSION ON AC MAINS ..................................................................................... 3 Prüfbericht - Produkte Test Report - Products Appendix A CN23HMTS 001 Page 2 of 3 Photograph 1: Set-up photo for Radiated Spurious Emission, 30MHz - 1GHz Photograph 2: Set-up photo for Radiated Spurious Emission, 1GHz - 18GHz Prüfbericht - Produkte Test Report - Products Appendix A CN23HMTS 001 Page 3 of 3 Photograph 3: Set-up photo for Conducted Emission on AC Mains
