2ALS8-KS0020Ninebot eKickScooter E2 Plus II

www.segway.com CE.04.00.-A XXXX The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to download the latest user materials. You must install the app, activate your KickScooter, and obtain the latest updates and safety instructions. Le fabricant se réserve le droit d'apporter des modifications au produit, de publier des mises à jour du firmware et de mettre à jour ce manuel à tout moment. Rendez-vous sur www.segway.com ou consultez l'application Segway-Ninebot pour télécharger les derniers documents destinés à l'utilisateur. Vous devez installer l'application, activer votre KickScooter et obtenir les dernières mises à jour et consignes de sécurité. El fabricante se reserva el derecho de realizar cambios en el producto, fabricar actualizaciones de sus piezas y actualizar este manual en cualquier momento. Visite www.segway.com o consulte la aplicación Segway-Ninebot para descargar los materiales más recientes para el usuario. Debe instalar la aplicación, activar el KickScooter y obtener las últimas actualizaciones e instrucciones de seguridad. EN FR ES Ninebot eKickScooter Product Manual Manuel du produit Manual del producto 產品手冊 EN FR ES 漢 EN The pictures shown are for illustration purposes only. The actual product may vary. FR Les images sont présentées à titre indicatif uniquement. Le produit réel peut varier. ES Las imágenes que se muestran son solo para fines ilustrativos. El producto real puede variar. Raccolta Carta Power Button: Press the button to power on the scooter; press and hold the button for 2 seconds to power it off. When the scooter is on, press the button to turn on/off the headlight and the tail light, and press twice to switch between the speed modes. Speedometer: It displays the current speed of the scooter, as well as error codes. Walk Mode: The headlight is always on and taillight is breathing, and they can't be turned off. The taillight will flash when braking. Speed Mode: There are 3 modes available. The top speed is as follows: * Ranges of Speed Modes: Tested while riding with a full battery, 75 ± 5 kg (165 ± 11 lbs) load, 25 ±5°C (77 ± 41 °F), at the max. speed of each speed mode on average on pavement. Error Notification: It indicates that the scooter has detected an error. Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F). * At this point, the scooter cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range. Bluetooth: It indicates that the scooter has been successfully connected to the mobile device. Battery Level: The total battery power equals 5 bars. * The battery power is very low when the first battery bar is red. Please charge your scooter immediately. Locking Reminder: When the icon lights up, it means the scooter is locked. If abnormal movements are detected, the scooter will start beeping and the tail light will falsh. Cruise Mode: When the icon lights up, it means cruise mode is turned on. Diagram 1 Dashboard & Power Button Cruise Mode Model Mode Speed limit 9.3 mph (15 km/h) 12.4 mph (20 km/h) 15.5 mph (25 km/h) 3.1 mph (5 km/h) Ranges* 15.5 miles (25 km) 15.5 miles (25 km) 12.4 miles (20 km) 15.5 miles (25 km) D (Standard mode) E (Energy-saving mode) S (Sport mode) (Walk mode) Speedometer Temperature Warning Locking Reminder Bluetooth Speed Mode Walk Mode HeadlightError Notification Battery Level Power Button Bell Handlebar Electronic Throttle Snap Hook Dashboard Brake Lever Headlight Stem Safety Button Returning mark Folding Mechanism Quick-release Lever Front Shock Absorber Front Fender Hub Motor Charge Port Footboard Buckle Rear Fender Drum Brake Tail Light & Rear Reflector Side Reflector Front Reflector Kickstand Battery Compartment Ambient light Power Button 01 02 ENEN Certifications This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland. The battery complies with UN/DOT 38.3. The battery complies with ANSI/CAN/UL-2271. Federal Communications Commission (FCC) Compliance Statement for USA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5 mm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux radiations de la IC définies pour un environnement non contrôlé. Cet é…

Text truncated - open the document above for the full version.

Declaration of Conformity Federal Communications Commission Authorization and Evaluation Division F F C C C C I I D D : : 2 2 A A L L S S 8 8 - - K K S S 0 0 0 0 2 2 0 0 Please be notified that we, the undersigned, Ninebot (Changzhou) Tech Co., Ltd. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Jun Jin Email: [email protected] Date: 2024-12-23

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2ALS8-KS0020 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing Ninebot (Changzhou) Tech Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing Ninebot (Changzhou) Tech Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, _________________ Name: Jun Jin Email: [email protected] Date: 2024-12-23

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 12-24-2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2ALS8-KS0020 Applicant FRN: 0026431767 Ninebot (Changzhou) Tech Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, FCC US Agent, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Ninebot (Changzhou) Tech Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Email: [email protected] Sincerely, Ninebot (Changzhou) Tech Co., Ltd. FCC US Agent, LLC Jun Jin Tim Payne [Insert Applicant signature] [U.S. Agent signature]

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ALS8-KS0020 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description Pursuant to sections 0.457 and 0.459 of CFR 47 Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: 4. External Photos 5. Internal Photos 6. Test Setup Photos 7. User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Jun Jin Email: [email protected] Date: 2024-12-23

Declaration of Authorization We Name: Ninebot (Changzhou) Tech Co., Ltd. Address: 16F-17F, Block A, Building 3,Changwu Mid Road 18#,Wujin Dist., Changzhou, Jiangsu, China Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Ninebot eKickScooter E2 Plus II FCC ID: 2ALS8-KS0020 Model No.: 051402UU Sincerely, ________________ Name: Jun Jin Email: [email protected] Date: 2024-12-23

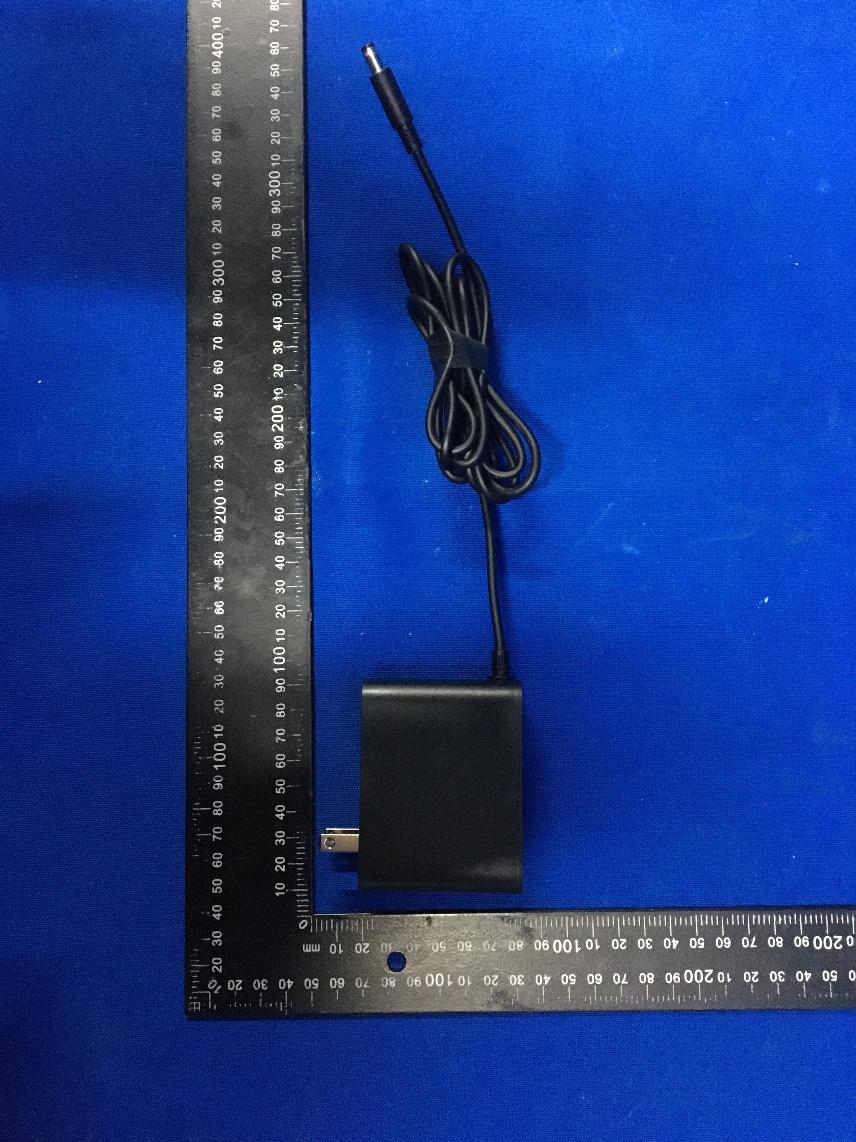

Report No.: 2410RSU066-UE 1 of 8 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2410RSU066-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2410RSU066-UE 3 of 8 (5) EUT Photo (6) EUT Photo Label location Report No.: 2410RSU066-UE 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2410RSU066-UE 5 of 8 (9) EUT Photo

Report No.: 2410RSU066-UE 6 of 10 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2410RSU066-UE 7 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2410RSU066-UE 8 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2410RSU066-UE 9 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2410RSU066-UE 10 of 10 (9) EUT Photo (10) EUT Photo RF Antenna

MRT Technology (Suzhou) Co., Ltd Report No.: 2410RSU066-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2024-12-13 Template Version:0.1 1 of 10 RF Exposure Evaluation Declaration FCC ID: 2ALS8-KS0020 Applicant: Ninebot (Changzhou) Tech Co., Ltd. Product: Ninebot eKickScooter E2 Plus II Model No.: 051402UU Brand Name: ninebot FCC Rule Part(s): FCC Part 2.1093 Result: Complies Evaluation Date: 2024-12-12 Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2410RSU066-U3 2 of 10 Revision History Report No. Version Description Issue Date Note 2410RSU066-U3 V01 Initial Report 2024-12-13 Valid Report No.: 2410RSU066-U3 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................4 1.1. Applicant ........................................................................................................................................4 1.2. Manufacturer .................................................................................................................................4 1.3. Testing Facility ...............................................................................................................................4 1.4. Product Information .......................................................................................................................5 1.5. Antenna Details .............................................................................................................................5 1.6. Device Classification .....................................................................................................................5 1.7. Applied Standards .........................................................................................................................5 2. RF Exposure Evaluation .........................................................................................................................6 2.1. Limits .............................................................................................................................................6 2.2. SAR Exemptions ...........................................................................................................................7 2.3. Calculated Result ....................................................................................................................... 10 Report No.: 2410RSU066-U3 4 of 10 1. General Information 1.1. Applicant Ninebot (Changzhou) Tech Co., Ltd. 16F-17F, Block A, Building 3, Changwu Mid Road 18#, Wujin Dist., Changzhou, Jiangsu, China 1.2. Manufacturer Ninebot (Changzhou) Tech Co., Ltd. 16F-17F, Block A, Building 3, Changwu Mid Road 18#, Wujin Dist., Changzhou, Jiangsu, China 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Location (Suzhou - Wujiang) Building 1, No.1 Xingdong Road, Wujiang, Suzhou, Jiangsu, People’s Republic of China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: 3261 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2410RSU066-U3 5 of 10 1.4. Product Information Product Name Ninebot eKickScooter E2 Plus II Model No. 051402UU Brand Name ninebot Bluetooth Specification v5.1 (BLE only) Antenna Specification Refer to selection 1.5 Power Type By Battery Accessories Li-ion Battery Pack Model No.: NEEF2210A Capacitance: 10.2Ah / 220Wh Charging Voltage: 25.2VDC AC/DC Adapter Model No.: NBW25D201D5N-US Input: 100-240V~ 50-60Hz, 1.0A Max Rated Output: 24.2V⎓1.5A 36.3W Remark: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 1.5. Antenna Details Technology Frequency Range (MHz) Antenna Type Max Peak Gain (dBi) Bluetooth-LE 2402 ~ 2480 PCB Antenna -1.26 Note: The antenna gain is from antenna data sheet provided by the manufacturer. 1.6. Device Classification According to the user manual, this device is classified as a Portable Device. So, the RF exposure evaluation requirements of § 2.1093 for portable device exposure conditions subject to SAR limits. 1.7. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1093 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2410RSU066-U3 6 of 10 2. RF Exposure Evaluation 2.1. Limits According to FCC §1.1310: (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a…

Text truncated - open the document above for the full version.

天线规格Antenna Data Sheet 天线类型Antenna Type: 印刷式天线PCB Antenna 阻抗Impedance: 50Ω 极化方式Polarization: 线性Linear 频率范围Frequency Range: 2400 ~ 2483.5GHz 天线增益Max Peak Gain: -1.26dBi 制造商Manufacturer: Shuangjin 天线辐射图Antenna Radiation Pattern Antenna Gain X BT Antenna Gain Y BT Antenna Gain Z

MRT Technology (Suzhou) Co., Ltd Report No.: 2410RSU066-U2 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2024-12-30 Template Version:1.5 1 of 56 RF MEASUREMENT REPORT FCC ID: 2ALS8-KS0020 Applicant: Ninebot (Changzhou) Tech Co., Ltd. Product: Ninebot eKickScooter E2 Plus II Model No.: 051402UU Brand Name: ninebot FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Result: Complies Received Date: 2024-10-25 Test Date: 2024-11-08 ~ 2024-12-05 Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2410RSU066-U2 2 of 56 Revision History Report No. Version Description Issue Date Note 2410RSU066-U2 V01 Initial Report 2024-12-13 Invalid 2410RSU066-U2 V02 Update test setup figure 2024-12-30 Valid Report No.: 2410RSU066-U2 3 of 56 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ...................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................ 5 1.3. Testing Facility ............................................................................................................................. 5 1.4. Product Information ...................................................................................................................... 6 1.5. Radio Specification under Test .................................................................................................... 6 1.6. Working Frequencies ................................................................................................................... 7 2. Test Configuration ................................................................................................................................... 8 2.1. Test Mode ..................................................................................................................................... 8 2.2. Test System Connection Diagram................................................................................................ 8 2.3. Test Software ............................................................................................................................... 8 2.4. Applied Standards ........................................................................................................................ 9 2.5. Test Environment Condition ......................................................................................................... 9 3. Antenna Requirements ......................................................................................................................... 10 4. Measuring Instrument ........................................................................................................................... 11 5. Decision Rules and Measurement Uncertainty .................................................................................. 12 5.1. Decision Rules ........................................................................................................................... 12 5.2. Measurement Uncertainty .......................................................................................................... 12 6. Test Result .............................................................................................................................................. 13 6.1. Summary .................................................................................................................................... 13 6.2. 6dB Bandwidth Measurement .................................................................................................... 14 6.2.1. Test Limit .................................................................................................................................... 14 6.2.2. Test Procedure ........................................................................................................................... 14 6.2.3. Test Setting ................................................................................................................................ 14 6.2.4. Test Setup .................................................................................................................................. 14 6.2.5. Test Result ................................................................................................................................. 14 6.3. Output Power Measurement ...................................................................................................... 15 6.3.1. Test Limit .................................................................................................................................... 15 6.3.2. Test Procedure ........................................................................................................................... 15 6.3.3. Test Setting ................................................................................................................................ 15 6.3.4. Test Setup .................................................................................................................................. 15 6.3.5. Test Result .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2410RSU066-UT 1 of 4 RF Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2410RSU066-UT 2 of 4 Description: Radiated Spurious Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Spurious Emission Test Setup for 30MHz ~ 1GHz Report No.: 2410RSU066-UT 3 of 4 Description: Radiated Spurious Emission Test Setup for 1 ~ 18GHz Description: Radiated Spurious Emission Test Setup for 18 ~ 40GHz Note: For the test of above 1GHz, the antenna of the EUT was located at the height of 1.5 m above the floor. Report No.: 2410RSU066-UT 4 of 4 Description: Conducted Test Setup
