WIRELESS THERMO-HYGRO SENSOR WIRELESS SOIL MOISTURE & TEMPERATURE SENSOR Model: C3127A User Manual Thank you for selecting this Wireless Soil Moisture & Temperature sensor. This manual is used for EU, US or AU version. Please read the instructions carefully according to the version you purchased and keep the manual well for future reference. IMPORTANT NOTE - Read and keep these instructions. - Do not cover the ventilation holes with any items such as newspapers, curtains etc. - Do not clean the unit with abrasive or corrosive materials. - Do not tamper with the unit’s internal components. This invalidates the warranty. - Only use fresh batteries. Do not mix new and old batteries. - Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. - Attention! Please dispose of used unit or batteries in an ecologically safe manner. -Technical specifications and user manual contents for this product are subject to change without notice. CAUTION - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. -Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude duning use, storage or transportation. - Replacement of a battery with an in correct type that can result in an explosion or the leakage of flammable liquid or gas. -Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. - Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. -A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. -An appliance is only suitable for mounting at height ≤ 2m. OVERVIEW 2 7 1 6 5 4 1. Transmission status LED 2. Sensor metal probes 3. Moisture sensor 4. Wall mounting holder 5. [CHANNEL] slide switch to assign the sensor to Channel 1,2,3,4,5,6 or 7 6. [ RESET ] key 7. Battery compartment 3 DIFFERENCES BETWEEN EU AND US VERSION Below table show the differences between the Europe(EU), United State(US) and Australia(AU) EU versionUS versionAU version Front side rating 868MHz SOIL SENSOR 915MHz SOIL SENSOR 917MHz SOIL SENSOR GETTING STARTED 1. Remove the battery door. 2. Slide the [ CHANNEL ] slide switch to choose a channel. 3. Insert 2 x AA size batteries into the battery compartment according to the polarity mark on the battery compartment.. 4. Close the battery door. 5. After inserting batteries, the transmission status LED will light up 1 sec. NOTE: -Ensure to assign different channels of different sensors, in case you need to pair more than one sensors. - Once the channel is assigned to a Wireless Soil Moisture & Temperature sensor, you can only change it by removing the batteries or resetting the unit. - Avoid placing the sensor in direct sunlight, rain or snow. PAIRING THE WIRELESS SENSORS WITH THE CONSOLE The console will automatically search and connect to your wireless sensor(s). Once your sensor(s) pair up successful, the sensor(s) signal strength indication and weather information will appear on your console display. NOTE: During signal transmission, the LED indicator of the sensor will flash. TEMPERATURE DISPLAY On the display of the console which the soil sensor is linked to, temperature reading will be displayed. SOIL MOISTURE DISPLAY Soil moisture can be clarified into 5 different levels: Very Dry, Dry , Moist, Wet and Very Wet. To determine the moisture of soil, the sensor calibrate the moisture into 16 points, and correlate them into percentage value: PointsPercentageLevel 10% Very Dry 27% 313% 420% 527% 633% Dry 740% 847% 953% 1060% Moist1167% 1273% 1380% Wet 1487% 1593% Very Wet 1699% NOTE: The measurement accuracy of the sensor can be affected by the soil condition. For example, the loose soil may get lower moisture level that compare with the dense soil. SENSOR PLACEMENT Select the suitable installation site that insert the sensor probes into the soil around 100mm (4 inch) and sensor should place within 30 meters of the display console to get the best transmission performance. Display console Soil sensor placement 150m Soil (Mounting pole not included) Main body to ground: 1m Depth: 1m NOTE: Signal transmission range of the sensor will be gradually reduced as sensor is inserted deeper into the soil. To achieve best transmission range, install the sensor on the same plain of view as the display console.. RESET THE SENSOR In case of mal-function, press [ RESET ] button to reset the sensor. SPECIFICATIONS Dimensions (W x H x D)125 x 58 x 19 mm (4.9 x 2.2 x 0.7 in) Weight144g (with batteries) Main power 2 x AA size 1.5V batteries (Lithium battery recommended for low temperature environment) Weather dataSoil temperature and moisture RF frequency868Mhz (EU) , 915Mhz (US), 917Mhz (AU) RF transmission range150m (300feet) straight distance Temperature Accuracy -5°C ~ -0.1°C ± 2°C (23 ~32°F ± 4°F) 0 ~ 40°C ± 1°C (33 ~ 86°F ± 2°F) 40.1 ~ 50°C ± 2°C (87 ~ 122°F ± 4°F) Below -5°C (23°F) or above 50°C (122°F not guarantee the accuracy) Moisture Accuracy0% ~ 99% Number of channels7 (CH1 ~ 7) Transmission interval60 seconds Operating temperature range -20 ~ 60°C (-20 ~ 140°F) not recommend under freeze condition Operating soil moisture range0% to 99% FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15…

Text truncated - open the document above for the full version.

CCL Electronics LTD,

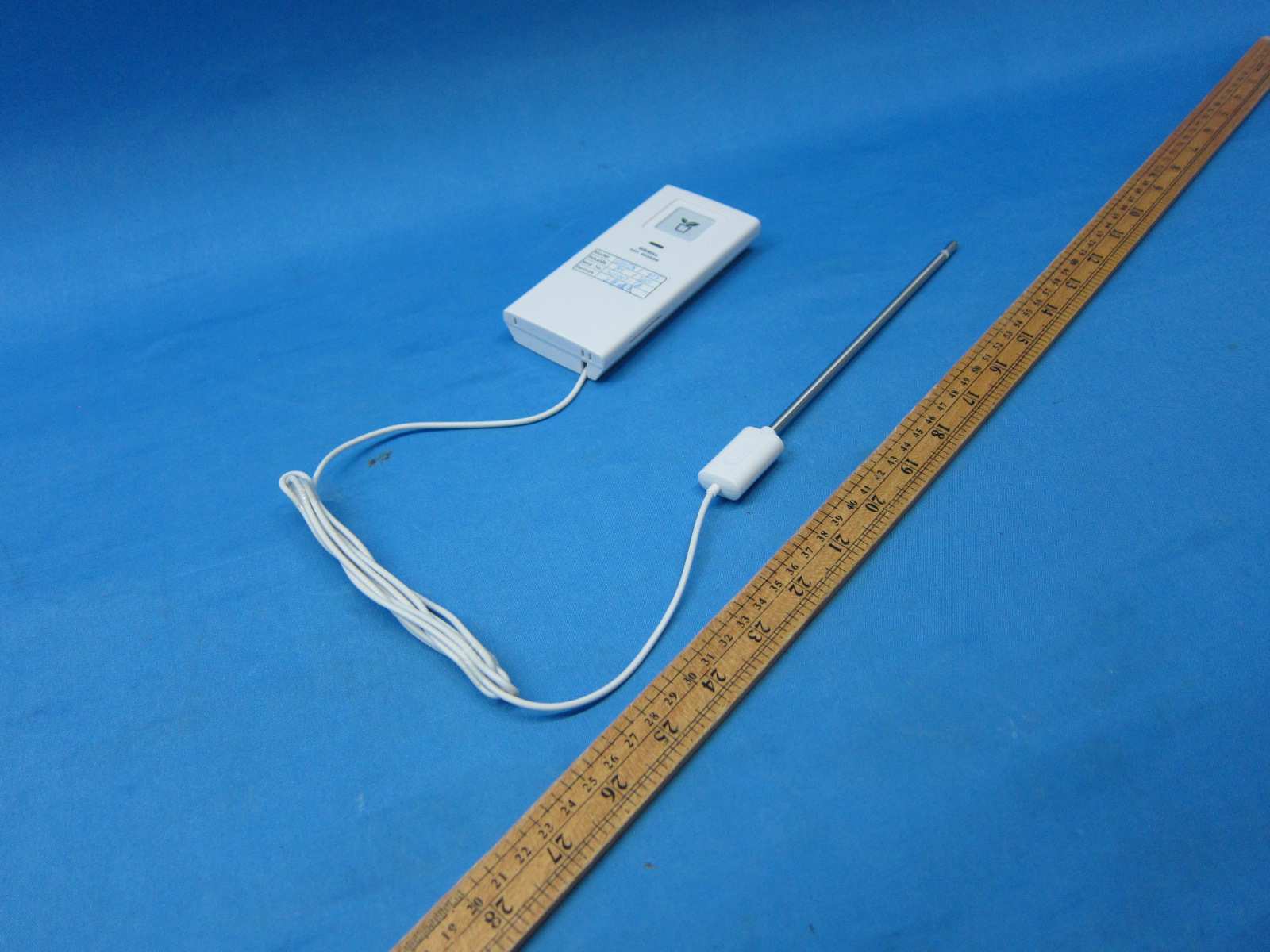

INTERTEK TESTING SERVICE Report No.: HK21061290 Equipment Photographs (External)

䇴䇗ᰛᵕ䇴䇗㕌ਭ &&/ ᇘᡭ䇴䇗 ӝ૷㕌ਭ ᨅ䘦 &$ ∊ׁ$ 5''$ ؤ᭯ᰛᵕ /'; )9 ੅ߥি֣6XUJ[IZYO`K ^^SS (GZZKX_ ^'' FCC ID: 2ALZ7-3127A2102 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China 58mm

INTERTEK TESTING SERVICE Report No.: HK21061290 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21061290 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21061290 Equipment Photographs (Internal)

INTERTEK TESTING SERVICES RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 915MHz portion of the Sensor of tested model: C3130A, the measured EIRP power was within its production tolerance: -30 dBm (Minimum) and 0 dBm (Maximum).The antenna gain is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP Power = -5 dBm = 0.316 mW The EIRP Power source-based time-averaging output power = (0.316 * 1) mW = 0.316 mW The power density at 20cm = 0.316 / 4πR 2 = 0.000063 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 18 TEST REPORT Report No.: 21061290HKG-001 CCL Electronics Ltd. Application For Certification (Original Grant) FCC ID: 2ALZ7-3127A2102 Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Assistant Supervisor Date: July 12, 2021 TEST REPORT CCL Electronics Ltd. Intertek Report No: 21061290HKG-001 Page 2 of 17 GENERAL INFORMATION Grantee: CCL Electronics Ltd. Grantee Address: Unit 1-3, 9/F., Wang Lung Industrial Building, 11 Lung Tak Street, Tsuen Wan, N.T., Hong Kong. Contact Person: Joey Yip Tel: 2611 3000 Fax: 2611 3088 e-mail: [email protected] Manufacturer: CCL Electronics Ltd. Manufacturer Address: Unit 1-3, 9/F., Wang Lung Industrial Building, 11 Lung Tak Street, Tsuen Wan, N.T., Hong Kong. Brand Name: CCL Model: C3127A Type of EUT: Transmitter Description of EUT: Wireless Weather Sensor (915MHz Transmitter) Serial Number: N/A FCC ID: 2ALZ7-3127A2102 Date of Sample Submitted: June 23, 2021 Date of Test: June 23, 2021 to June 25, 2021 Report No.: 21061290HKG-001 Report Date: July 12, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT CCL Electronics Ltd. Intertek Report No: 21061290HKG-001 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT CCL Electronics Ltd. Intertek Report No: 21061290HKG-001 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 11 5.0 PRODUCT LABELLING .................................................................................................. 11 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 11 7.0 INSTRUCTION MANUAL .............................................................................................. 11 8.0 MISCELLANEOUS INFORMATION ....................…
