2ALZECPAL50-01Cell Phone Signal Booster

Shen Zhen ANNTLENT Communication Technology co., Ltd.

Click to zoom

Application Details

Equipment Class: B2W - Part 20 Wideband Consumer Booster (CMRS)
Date of Grant: Apr 03, 2023
Application Purpose: Original Equipment
Date of Application: Apr 03, 2023
Equipment Note: Cell Phone Signal Booster
Frequency Range: 1930.00000000 - 1995.00000000
Company: Shen Zhen ANNTLENT Communication Technology co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 / 9 AN-CPAL50-01 Cell Phone Signal Booster User Manual 2 / 9 Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. in this cases, cell phone signal booster can solve this problem in a certain extent. Features ■ AGC(Automatic Gain Control): When the downlink output signal is too strong or self- oscillated, the uplink and downlink can automatically reduce the gain and reduce the interference signal ■ Self- Oscillation elimination: The system detects self- Oscillation, first reduces the link gain, then detects the loop, and finds that the self- oscillation is eliminated, the system returns to normal working state, otherwise, the power is turned off to prevent interference signal. ■ Inactivity Mode: When no user calls, the device is in standby mode, the uplink power amplifier is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy saving. SAFETY WARNINGS WARNING: This equipment should be installed and operated with minimum distance 20cm （8 inches）between the radiator& your body. FCC Cautions: Any changes or modifications not expressly approved by the party responsible for compliance could void the use r’ s a uthority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. T his equipment has been test ed a nd foun d t o c omply w ith th e l imits f or a Class B dig ital device, p ursuant t o Pa rt 15 of the FCC Ru les. These limits are designed to provide reasonable pr otection ag ainst har mful in terference i n a re sidential in st allation. T his equipment g enerates u ses and c an r adiate r adio f requency energy and , i f not installed and u sed in a ccordance wi th the i nstructions, may cause h armful i nterference to r adio communications. Ho wever, t here is no g uarantee th at i nterference wi ll not occur in a particular installation. I f thi s equ ipment d oes c ause harmful in terference t o r adio o r television r eception, w hich c an b e de termined by turning the equi pment o ff and on, the u ser is e ncouraged to try to correct the interference by one or more of the following measures: -- R eorient o r rel ocate th e rece ivi ng a ntenna. -- Increase the s eparation be tween t he equ ipment a nd r eceiver. -- C onnect the equi pment i nto a n out let on a circuit d ifferent f rom t hat to which the rece iver is c onnected. -- Consult the deal er o r an experienced radio/TV t echnician f or h elp This equipment complies with FCC radiation exposure limits set forth f or an uncontrolled envi ronment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not b e co-located or operating in conjunction with any o ther Antenna or transmitter. SAFTY WARNING: 3 / 9 End users must follow the specific operating instruction for satisfying RF exposure compliance. Do not remove the covers during working. Do not try to repair or replace any components inside of the equipment. Alteration or abuse of the equipment or other components will void this product’s warranty, and could be dangerous to the user. PACKAGE CONTENTS (1) Packages include the following： ①1Pcs AN-CPAL50-01 Booster with FME Male connectors. ②DC Car Charge. ③Screws Mounting Kits. ④User manual (this document). (2)Booster interface descriptio n: LED light： The corresponding LED on the right is used to indicate the following different working conditions of the booster. LED Indicator Booster working conditions LED LIGHT Continuous GREEN @normal； Twinkly GREEN @input signals may be not enough； Continuous YELLOW @ stronger input signals, AGC is working； Twinkly YELLOW@ self–oscillation happen ,AGC is working. Continuous RED@ power supply is shut down； Twinkly RED@ self–oscillation happen but power supply is NOT shut down. ②Power supply jack: The booster uses a power input range of DC 5-12V. ③INDOOR and OUTDOOR port：The two ports are used to connect outdoor and indoor antennas. (3)Antennas and Cables: In order to use the Booster, you still need the corresponding indoor antenna 1pcs, outdoor antenna 1pcs, outdoor cable 1pcs and indoor cable 1pcs. 4 / 9 Antennas and cables kitting information are as follows Name Mo del Gain/Lo ss Indoor Antenna Patch AntennaPTE-PA-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Indoor Panel Antenna PTE-PN-800-2500 7dbi @698-787MHz 7dbi @824-894MHz 8.5dbi @1850-1990MHz 8.5dbi @1710-2155MHz Outdoor Antenna Magnet Antenna PTE-MA-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Omni Tube Antenna PTE-GF-700-2500 3dbi @698-787MHz 3dbi @824-894MHz 5dbi@1710-1755MHz 5dbi @1850-1990MHz 5dbi @2110-2155MHz Indoor Cable 20feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db@698-787MHz 2.29db @824-894MHz 2.42db @1710-1755MHz 2.55db @1850-1990MHz 2.86db @2110-2155MHz Outdoor Cable 40feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.21db@698-787MHz 5.49db @824-894MHz 5.89db @1710-1755MHz 6.25db @1850-1990MHz 6.86db @2110-2155MHz Notes：The above model antennas are suitable for AN-L50VA-01 booster. Warning：Unauthorized antennas，cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. 5 / 9 INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna The outside antenna comes with a strong magnet, simply put it on the …

Text truncated - open the document above for the full version.

Attestation Statements

Shen Zhen ANNTLENT Communication Technology co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.9 11(d)(5)(i) Certification – EquipmentType Company name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Product Name: Cell Phone Signal Booster FCC ID: 2ALZECPAL50-01 Model(s): AN-CPAL50-01 2.911(d)(5)(i) EquipmentType We, [Shen Zhen ANNTLENT Communication Technology co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Sam Sun Date: 2023-03-28 Title and Company name:Manager/Shen Zhen ANNTLENT Communication Technology co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

2.911 (d)(5)(ii) Applicant Attestation v1.3 Shen Zhen ANNTLENT Communication Technology co., Ltd. Section 2.9 11(d)(5)(ii) Certification – Applicant (Covered Lis t) Company name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Product Name: Cell Phone Signal Booster FCC ID: 2ALZECPAL50-01 Model(s): AN-CPAL50-01 2.911(d)(5)(ii) Applicant filing We, [Shen Zhen ANNTLENT Communication Technology co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Sam SunDate: 2023-03-28 Title and Company name:Manager/Shen Zhen ANNTLENT Communication Technology co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

Shen Zhen ANNTLENT Communication Technology co., Ltd. Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China U.S. Agent Letter of Attestation To:FederalCommunicationsCommission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date:03-28-2023 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2ALZECPAL50-01 Shen Zhen ANNTLENT Communication Technology co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692Email: [email protected] Applicant Company Name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Signature: Contact Person: Sam Sun Tel: +8675528192218 Email: [email protected]

Cover Letter(s)

Shen Zhen ANNTLENT Communication Technology co., Ltd. Date: 2023-03-28 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2ALZECPAL50-01 To W hom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These doc uments contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincer ely, Signat ure: Name: Sam Su n Title: M anager

Cover Letter(s)

Shen Zhen ANNTLENT Communication Technology co., Ltd. Agent Authorization Company: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Product Name: Cell Phone Signal Booster Model Number(s): AN-CPAL50-01 Product Des cription: Cell Phone Signal Booster We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of e quipment to t he regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of o ur own. Signature: Date: 2023-03-28 Name: Sam Sun Title: Manager Company: Shen Zhen ANNTLENT Communication Technology co., Ltd.

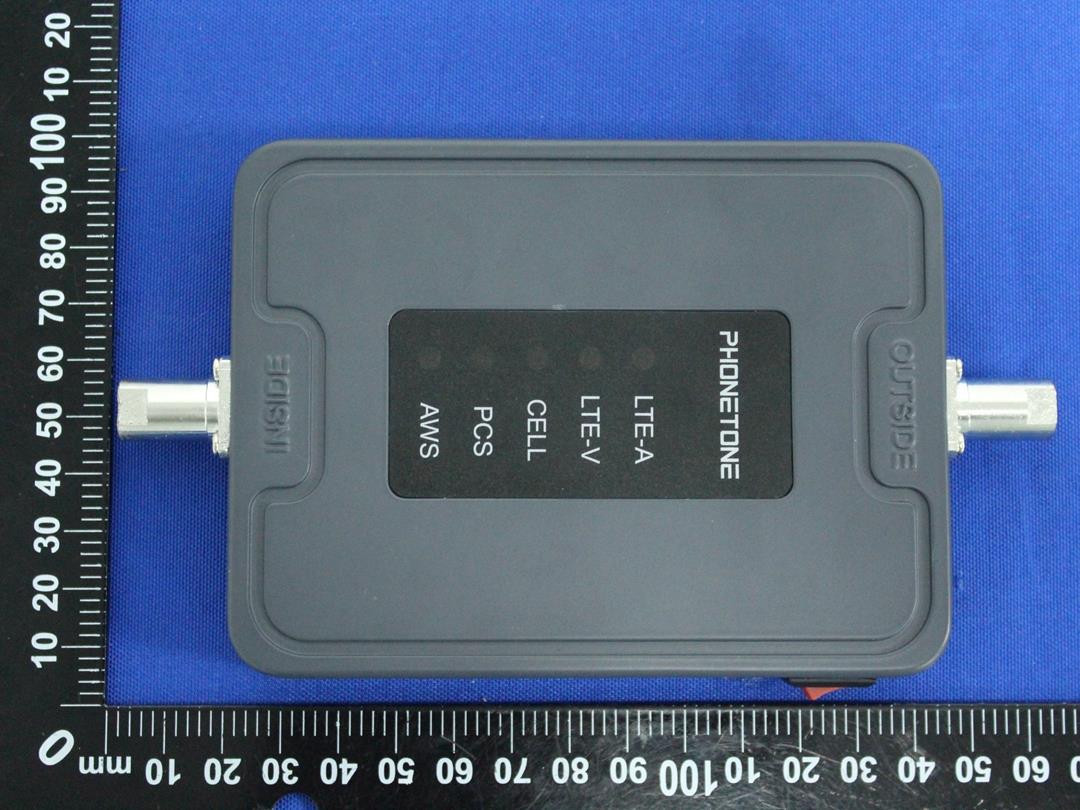

External Photos

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPAL50-01 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

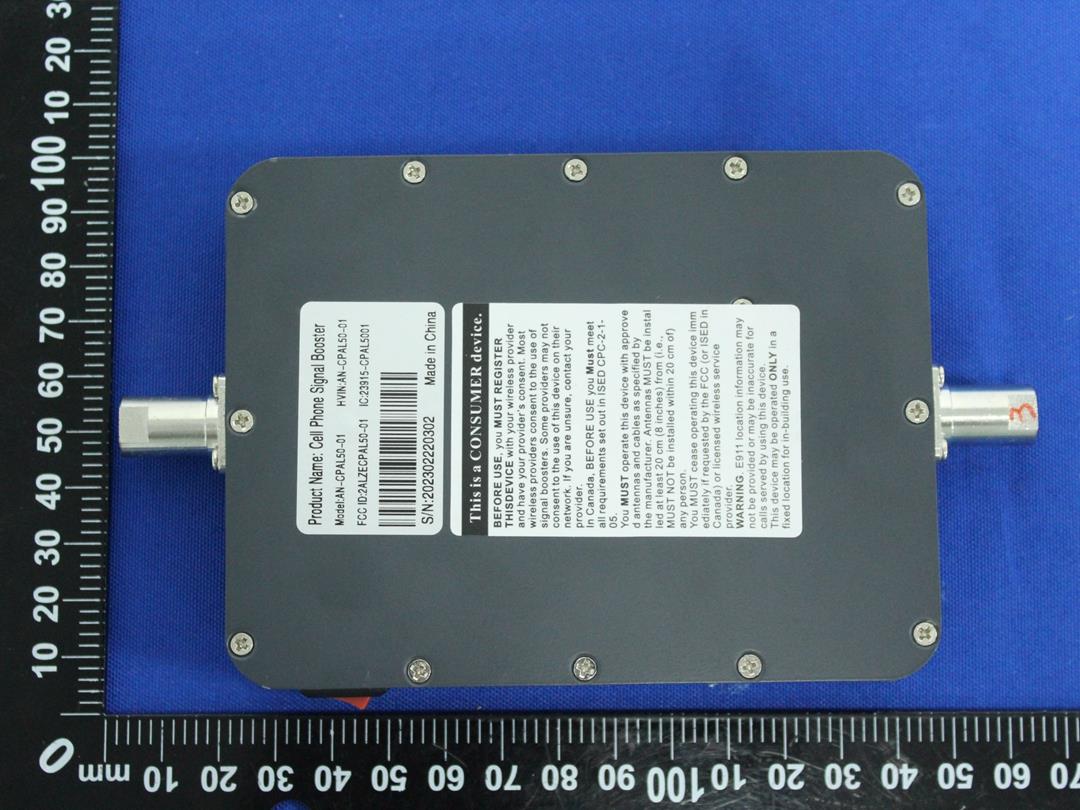

ID Label/Location Info

LabelArtworkand Location Model:AN-CPAL50-01 Label : Size:L*W=40*80mm Location

Internal Photos

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPAL50-01 Internal Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

RF Exposure Info

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.0173 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Results: PASS Operation Bands Frequency (MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL1850-1915 1860.27 18.65 6.25 17.38 5 3.16 UL1710-1755 1724.67 19.17 5.89 21.28 5 3.16 UL824-869 843.46 20.37 5.49 30.76 3 2.00 UL698-716 707.42 19.17 5.21 24.89 3 2.00 UL776-787 780.00 19.93 5.21 29.65 3 2.00 DL1930-1995 1952.49 -4.07 2.55 0.22 8.5 7.08 DL2110-2155 2130.61 -6.11 2.42 0.14 8.5 7.08 DL869-894 880.95 -4.88 2.29 0.19 7 5.01 DL728-746 742.16 -4.64 2.19 0.21 7 5.01 DL746-757 751.35 -6.47 2.19 0.14 7 5.01 Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL1850-1915 17.38 3.16 20 0.0109 1 UL1710-1755 21.28 3.16 20 0.0134 1 UL824-869 30.76 2.00 20 0.0122 0.56 UL698-716 24.89 2.00 20 0.0099 0.47 UL776-787 29.65 2.00 20 0.0118 0.52 DL1930-1995 0.22 7.08 20 0.0003 1 DL2110-2155 0.14 7.08 20 0.0002 1 DL869-894 0.19 5.01 20 0.0002 0.59 DL728-746 0.21 5.01 20 0.0002 0.50 DL746-757 0.14 5.01 20 0.0001 0.50

Test Report

Name Model Gain/Loss Indoor Antenna Patch Antenna PTE-PA-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Indoor Panel Antenna PTE-PN-800-2500 7dbi @698-787MHz 7dbi @824-894MHz 8.5dbi @1850-1990MHz 8.5dbi @1710-2155MHz Outdoor Antenna Magnet Antenna PTE-MA-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Omni Tube Antenna PTE-GF-700-2500 3dbi @698-787MHz 3dbi @824-894MHz 5dbi@1710-1755MHz 5dbi @1850-1990MHz 5dbi @2110-2155MHz Indoor Cable 20feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db@698-787MHz 2.29db @824-894MHz 2.42db @1710-1755MHz 2.55db @1850-1990MHz 2.86db @2110-2155MHz Outdoor Cable 40feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.21db@698-787MHz 5.49db @824-894MHz 5.89db @1710-1755MHz 6.25db @1850-1990MHz 6.86db @2110-2155MHz

Test Report

Shen Zhen ANNTLENT Communication Technology co., Ltd. Mar. 28, 2023 Attestation for Cell phone signal booster: FCC ID: 2ALZECPAL50-01 Each Signal Booster certificated under FCC ID: 2ALZECPAL50-01 is manufactured and individually tested to ensure FCC compliance: (1) Lice nsee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5)This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours sin cerely, Sam Sun

Test Report

Shen Zhen ANNTLENT Communication Technology co., Ltd. Mar. 28, 202 3 Subject: Tuning and Adjustment of Signal booster, FCC ID: 2ALZECPAL50-01 There are no external tuning adjustments, The amplifier is f actory set not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Your s sincerely, Sam Sun

Test Report

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2ALZECPAL50-01 Test Report No. ............... : TCT230306E021 Date of issue ................... : Mar. 24, 2023 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shen Zhen ANNTLENT Communication Technology co., Ltd. Address ........................... : Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Manufacturer's name ... : Shen Zhen ANNTLENT Communication Technology co., Ltd. Address ........................... : Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 20.21 KDB935210 D03 Signal Booster Measurements v04r04 Product Name ................. : Cell Phone Signal Booster Trade Mark ...................... : Model/Type reference..... : AN-CPAL50-01 Rating(s).......................... : Input: DC 12-24V Output: DC 5V, 2A Date of receipt of test item ......................................... : Mar. 06, 2023 Date (s) of performance of test ................................... : Mar. 06, 2023 ~ Mar. 24, 2023 Tested by (+signature) ... : Brews XU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT230306E021 Page 2 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment ................................................................................................... 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Authorized Frequency Band Verification ............................................................ 7 5.2. Maximum Power .................................................................................................. 15 5.3. Intermodulation Product ..................................................................................... 31 5.4. Out of Band Emission ......................................................................................... 43 5.5. Conducted Spurious Emission ........................................................................ 105 5.6. Noise Limits ....................................................................................................... 124 5.7. Uplink Inactivity ................................................................................................. 136 5.8. Variable Booster Gain ....................................................................................... 141 5.9. Occupied Bandwidth ......................................................................................... 148 5.10.Oscillation Detection and Mitigation ............................................................... 181 6. Radiation Spurious Emission ............................................................. 201 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT230306E021 Page 3 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Cell Phone Signal Booster Model/Type reference........... : AN-CPAL50-01 Sample Number....................: TCT230306E021-0101 Operation Frequency ........... : PCS Uplink: 1850MHz - 1915MHz, Downlink: 1930MHz - 1995MHz AWS-1 Uplink: 1710MHz - 1755MHz, Downlink: 2110MHz - 2155MHz Cellular Uplink: 824MHz - 849MHz, Downlink: 869MHz - 894MHz Lower700MHz Uplink: 698MHz - 716MHz, Downlink: 728MHz - 746MHz Upper700MHz Uplink: 776MHz - 787MHz, Downlink: 746MHz - 757MHz Signal Booster Type ............. : Mobile Consumer Signal Booster Emission Designator ........... : F9W, G7D, G7W, GXW, W7D FCC Classification ............... : B2W/Wideband Consumer Booster(CMRS) Adapter Rating(s) ................. : Input: DC 12-24V Output: DC 5V, 2A Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT230306E021 Page 4 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2…

Text truncated - open the document above for the full version.

Test Report

Report No.: TCT230306E021 Page 68 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 LTE DL Right Side Pre AGC AWS-1 LTE DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 69 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM UL Left Side Pre AGC Cellular GSM UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 70 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM UL Right Side Pre AGC Cellular GSM UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 71 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA UL Left Side Pre AGC Cellular CDMA UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 72 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA UL Right Side Pre AGC Cellular CDMA UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 73 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE UL Left Side Pre AGC Cellular LTE UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 74 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE UL Right Side Pre AGC Cellular LTE UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 75 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM DL Left Side Pre AGC Cellular GSM DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 76 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM DL Right Side Pre AGC Cellular GSM DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 77 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA DL Left Side Pre AGC Cellular CDMA DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 78 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA DL Right Side Pre AGC Cellular CDMA DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 79 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE DL Left Side Pre AGC Cellular LTE DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 80 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE DL Right Side Pre AGC Cellular LTE DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 81 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM UL Left Side Pre AGC Lower700MHz GSM UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 82 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM UL Right Side Pre AGC Lower700MHz GSM UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 83 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA UL Left Side Pre AGC Lower700MHz CDMA UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 84 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA UL Right Side Pre AGC Lower700MHz CDMA UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 85 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE UL Left Side Pre AGC Lower700MHz LTE UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 86 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE UL Right Side Pre AGC Lower700MHz LTE UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 87 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM DL Left Side Pre AGC Lower700MHz GSM DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 88 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM DL Right Side Pre AGC Lower700MHz GSM DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 89 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA DL Left Side Pre AGC Lower700MHz CDMA DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 90 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA DL Right Side Pre AGC Lower700MHz CDMA DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 91 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE DL Left Side Pre AGC Lower700MHz LTE DL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 92 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE DL Right Side Pre AGC Lower700MHz LTE DL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 93 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz GSM UL Left Side Pre AGC Upper700MHz GSM UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 94 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz GSM UL Right Side Pre AGC Upper700MHz GSM UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page 95 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz CDMA UL Left Side Pre AGC Upper700MHz CDMA UL Left Side Pre AGC+10dB Report No.: TCT230306E021 Page 96 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz CDMA UL Right Side Pre AGC Upper700MHz CDMA UL Right Side Pre AGC+10dB Report No.: TCT230306E021 Page …

Text truncated - open the document above for the full version.

Test Report

Report No.: TCT230306E021 Page 123 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 763～775MHz 793～806MHz Report No.: TCT230306E021 Page 124 of 215 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.6. Noise Limits 5.6.1. Test Specification Test Requirement: FCC Part20 Section 20.21(e)(8)(i)(A); 20.21(e)(8)(i)(H) Test Method: KDB935210 D03 Signal Booster Measurements v04r04 Limit: −59 dBm/MHz or −103 dBm/MHz—RSSI which is less. Test Setup: Test Procedure: a) Connect the EUT to the test equipment as shown in Figure 3. Begin with the uplink output (donor) port connected to the spectrum analyzer. When measuring downlink noise, connect the downlink output (server) port to the spectr…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sam Sun

[email protected]+8675528192218Fax: +8675528192268

Technical Contact

Shen Zhen ANNTLENT Communication Technology co., L

[email protected]

China

Test Firm

SHENZHEN TONGCE TESTING LABBeryl Zhao

[email protected]+8675527208735

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission
34	24E	1.93 GHz - 2.00 GHz	390.00 µW	W7D

Confidentiality

Long Term

Grant Notes

Power listed is conducted at antenna terminals. This device is a Wideband Fixed Consumer Signal Booster approved for operating with the coverage/server antenna installed at a fixed location inside a building. Users and installers must be provided with the antenna kitting and installation and operating instructions and conditions for satisfying RF exposure and Section 20.21(a) compliance. These antennas used with this signal booster must be installed to provide a separation distance of at least 20 cm from all persons. The installation height of the antenna for AWS 1710-1755 MHz band operations is limited to 10 meters above ground, for compliance with Section 27.50. This Wideband Consumer Signal Booster is authorized only for operation by and marketing to members of the general public for their personal use in accordance with the requirements of Sections 20.21(a)(7) and 20.21(g).
