1 / 11 AN-CPAL70-01 Cell Phone Signal Booster User Manual 2 / 11 Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. in this cases, cell phone signal booster can solve this problem in a certain extent. Features ■ AGC(Automatic Gain Control): When the downlink output signal is too strong or self- oscillated, the uplink and downlink can automatically reduce the gain and reduce the interference signal ■ Self- Oscillation elimination: The system detects self- Oscillation, first reduces the link gain, then detects the loop, and finds that the self- oscillation is eliminated, the system returns to normal working state, otherwise, the power is turned off to prevent interference signal. ■ Inactivity Mode: When no user calls, the device is in standby mode, the uplink power amplifier is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy saving. SAFETY WARNINGS WARNING: This equipment should be installed and operated with minimum distance 20cm （8 inches）between the radiator& your body. FCC Cautions:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance.  This transmitter must not be co-located or operating in conjunction with any other Antenna or transmitter. SAFTY WARNING:  End users must follow the specific operating instruction for satisfying RF exposure 3 / 11 compliance.  Do not remove the covers during working.  Do not try to repair or replace any components inside of the equipment. Alteration or abuse of the equipment or other components will void this product’s warranty, and could be dangerous to the user. PACKAGE CONTENTS (1) Packages include the following： ① 1Pcs AN-CPAL70-01 Booster with N Female connectors. ②AC/DC Power Adaptor. ③Screws Mounting Kits. ④User manual (this document). (2) Booster interface description: ①Manual gain control knob and LED light： You can manually rotate the knob to adjust the gain of the corresponding frequency band .The corresponding LED on the right is used to indicate the following different working conditions of the booster. LED Indicator Booster working conditions LED LIGHT Continuous GREEN @normal； Twinkly GREEN @input signals may be not enough； Continuous YELLOW @ stronger input signals, AGC is working； Twinkly YELLOW@ self–oscillation happen ,AGC is working. Continuous RED@ power supply is shut down； Twinkly RED@ self–oscillation happen but power supply is NOT shut down. ②Power supply jack: The booster uses a power input range of DC 5-12V. ③INDOOR and OUTDOOR port：The two ports are used to connect outdoor and indoor antennas. (3)Antennas and Cables: In order to use the Booster, you still need the corresponding indoor antenna 1pcs, outdoor antenna 1pcs, outdoor cable 1pcs and indoor cable 1pcs. Antennas and cables kitting information are as follows Name Model Gain/Loss photo 4 / 11 Notes：The above model antennas are suitable for AN-CPAL70-01 booster. Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @698-787MHz 3dbi @824-894MHz 3.5dbi@1710-1755MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Ceiling Antenna PTE-CI-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 4.5dbi@1710-1755MHz 4.5dbi @1850-1990MHz 4.5dbi @2110-2155MHz Indoor Panel Antenna AN-101 6dbi @698-787MHz 6dbi @824-894MHz 8dbi@1710-1755MHz 8dbi @1850-1990MHz 8dbi @2110-2155MHz Outdoor Antenna YAgi Antenna PTE-YG-800/1900 8dbi @698-787MHz 8dbi @824-894MHz 10dbi@1710-1755MHz 10dbi 1850-1990MHz 10dbi @2110-2155MHz LPDA Antenna AN-201 6dbi @698-787MHz 6dbi @824-894MHz 8dbi@1710-1755MHz 8dbi 1850-1990MHz 8dbi @2110-2155MHz Omnidirectional glass fiberAntenna PTE-GF-700-2500 3dbi @698-787MHz 3dbi @824-894MHz 5dbi@1710-1755MHz 5dbi @1850-1990MHz 5dbi @2110-2155MHz Indoor Cable 20feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db @698-787MHz 2.29db @824-894MHz 2.42db@1710-1755MHz 2.55db 1850-1990MHz 2.86db @2110-2155MHz Outdoor Cable 50feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.21db @698-787MHz 5.49db @824-894MHz 5.89db@1710-1755MHz 6.25db @1850-1990MHz 6.86db @2110-2155MHz 5 / 11 Warning：Unauthorized antennas，cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna The booster’s main function is to improve weak RF signals of an area. A simple formula: Input power+ Gain= Output power. The signal strength from the outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to choose the outdoor antenna location in order to get the best signals.  Testing the signal strength received from outdoor antenna mounted in site by mobile phone:  Please select the top of building to install the outdoor antenna if total floors are less than 7 floors, and shall try your best to select places like balcony or platform lower than 7 th floor for outdoor antenna if the buildings are over 7 floors, because the mobile signals are clean at less than 7 th floor.  The mobile phone shall display full bar signals in location where the outdoor antenna …

Text truncated - open the document above for the full version.

Shen Zhen ANNTLENT Communication Technology co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.9 11(d)(5)(i) Certification – EquipmentType Company name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Product Name: Cell Phone Signal Booster FCC ID: 2ALZECPAL70-01 Model(s): AN-CPAL70-01 2.911(d)(5)(i) EquipmentType We, [Shen Zhen ANNTLENT Communication Technology co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Sam Sun Date: 2023-03-28 Title and Company name:Manager/Shen Zhen ANNTLENT Communication Technology co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

2.911 (d)(5)(ii) Applicant Attestation v1.3 Shen Zhen ANNTLENT Communication Technology co., Ltd. Section 2.9 11(d)(5)(ii) Certification – Applicant (Covered Lis t) Company name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Product Name: Cell Phone Signal Booster FCC ID: 2ALZECPAL70-01 Model(s): AN-CPAL70-01 2.911(d)(5)(ii) Applicant filing We, [Shen Zhen ANNTLENT Communication Technology co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Sam SunDate: 2023-03-28 Title and Company name:Manager/Shen Zhen ANNTLENT Communication Technology co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shen Zhen ANNTLENT Communication Technology co., Ltd. Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China U.S. Agent Letter of Attestation To:FederalCommunicationsCommission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date:03-28-2023 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2ALZECPAL70-01 Shen Zhen ANNTLENT Communication Technology co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692Email: [email protected] Applicant Company Name: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Signature: Contact Person: Sam Sun Tel: +8675528192218 Email: [email protected]

Shen Zhen ANNTLENT Communication Technology co., Ltd. Date: 2023-03-28 Offic e of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2ALZECPAL70-01 To Wh om It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These docu ments contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerel y, Signatu re: Name: Sam Sun Title: Manag er

Shen Zhen ANNTLENT Communication Technology co., Ltd. Agent Authorization Company: Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenz hen, China Product Name: Cell Phone Signal Booster Model Number(s): AN-CPAL70-01 Product Des cription: Cell Phone Signal Booster We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of e quipment to t he regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of o ur own. Signature: Date: 2023-03-28 Name: Sam Sun Title: Manager Company: Shen Zhen ANNTLENT Communication Technology co., Ltd.

Shen Zhen ANNTLENT Communication Technology co., Ltd. Mar. 28, 2023 Attestation for Cell phone signal booster: FCC ID: 2ALZECPAL70-01 Each Signal Booster certificated under FCC ID: 2ALZECPAL70-01 is manufactured and individually tested to ensure FCC compliance: (1) Licens ee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5)This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yours since rely, Sam Sun

Shen Zhen ANNTLENT Communication Technology co., Ltd. Mar. 28, 202 3 Subject: Tuning and Adjustment of Signal booster, FCC ID: 2ALZECPAL70-01 There are no external tuning adjustments, The amplifier is f actory set not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Yours si ncerely, Sam Sun

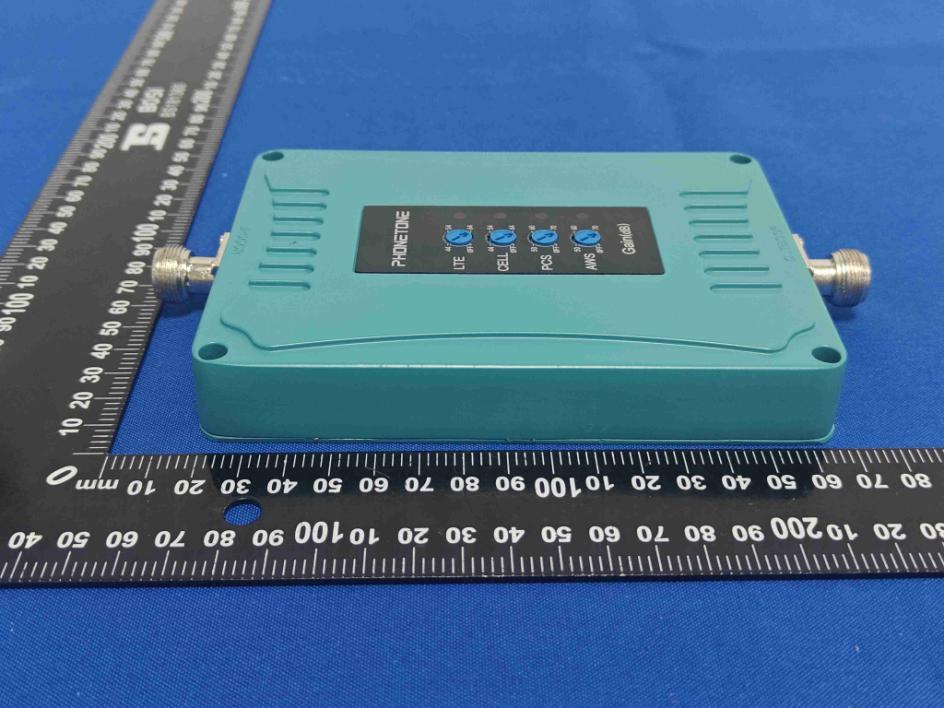

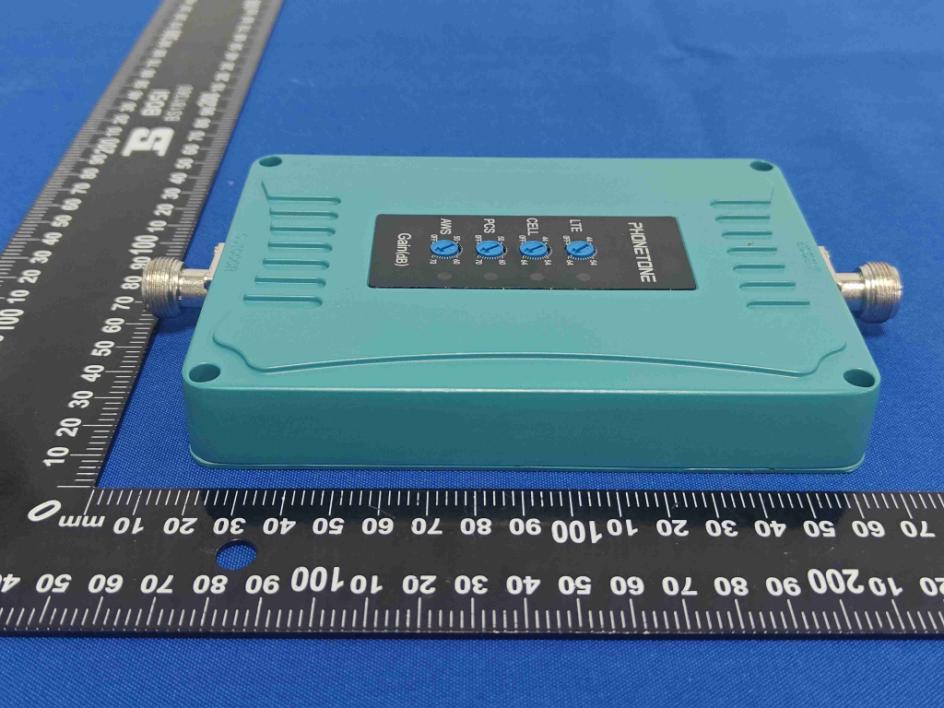

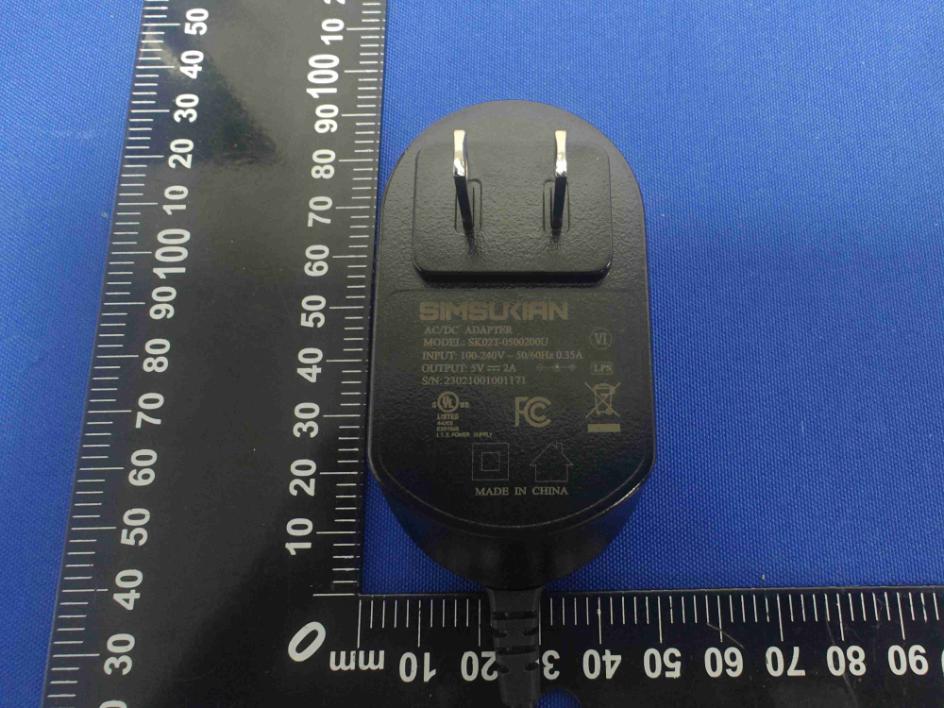

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPAL70-01 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: AN-CPAL70-01 Label : Size: L*W= 40*80mm Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPAL70-01 Internal Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.0173 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Results: PASS Operation Bands Frequency( MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL1850-1915 1870.80 18.93 6.25 18.54 10 10.00 UL1710-1755 1741.19 17.27 5.89 13.74 10 10.00 UL824-869 834.75 18.85 5.49 21.68 8 6.31 UL698-716 702.90 18.63 5.21 21.98 8 6.31 UL776-787 783.37 17.47 5.21 16.83 8 6.31 DL1930-1995 1957.69 2.89 2.55 1.08 8 6.31 DL2110-2155 2148.52 2.47 2.42 1.01 8 6.31 DL869-894 875.76 2.98 2.29 1.17 6 3.98 DL728-746 737.54 4.53 2.19 1.71 6 3.98 DL746-757 748.50 3.64 2.19 1.40 6 3.98 Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL1850-1915 18.54 10.00 20 0.0369 1.00 UL1710-1755 13.74 10.00 20 0.0273 1.00 UL824-869 21.68 6.31 20 0.0272 0.56 UL698-716 21.98 6.31 20 0.0276 0.47 UL776-787 16.83 6.31 20 0.0211 0.52 DL1930-1995 1.08 6.31 20 0.0014 1.00 DL2110-2155 1.01 6.31 20 0.0013 1.00 DL869-894 1.17 3.98 20 0.0009 0.58 DL728-746 1.71 3.98 20 0.0014 0.49 DL746-757 1.40 3.98 20 0.0011 0.50

Name Indoor Ant Outdoor An Indoor Cab Outdoor Ca enna Rubb e Ceil Indoo Anten ntenna YAgi LPDA Omnid glass fiber ble 20fee Coax with conn e able 50fee Coax with conn e er Antenna ing Antenna or Panel nna Antenna Antenna directional s rAntenna et 3D-FB ial cable N male ector et 3D-FB ial cable N male ector Model PTE-RB-80 PTE-CI-80 AN-101 PTE-YG-80 AN-201 PTE-GF-70 PTE-3D-FB PTE-3D-FB Ga 0-2100 3db 3db 3.5 3.5 3.5 0-2500 3db 3db 4.5 4.5 4.5 6db 6db 8db 8db 8db 0/1900 8db 8db 10d 10d 10d 6db 6db 8db 8db 8db 0-2500 3db 3db 5db 5db 5db -5NB 2.1 2.2 2.4 2.5 2.8 -10NB 5.2 5.4 5.8 6.2 6.8 ain/Loss i @698-787MH i @824-894MH dbi@1710-175 dbi @1850-19 dbi @1710-21 i @698-787MH i @824-894MH dbi@1710-175 dbi @1850-19 dbi @2110-21 i @698-787MH i @824-894MH i@1710-1755M i @1850-1990 i @2110-2155 i @698-787MH i @824-894MH bi@1710-1755 bi 1850-1990 bi @2110-215 i @698-787MH i @824-894MH i@1710-1755M i 1850-1990M i @2110-2155 i @698-787MH i @824-894MH i@1710-1755M i @1850-1990 i @2110-2155 9db @698-787 9db @824-89 4 2db@1710-175 5db 1850-199 6db @2110-21 1db @698-787 9db @824-894 9db@1710-175 5db @1850-19 6db @2110-21 p Hz Hz 5MHz 90MHz 55MHz Hz Hz 5MHz 90MHz 55MHz Hz Hz MHz MHz MHz Hz Hz MHz MHz 5MHz Hz Hz MHz MHz MHz Hz Hz MHz MHz MHz MHz 4MHz 5MHz 0MHz 55MHz MHz 4MHz 5MHz 90MHz 55MHz photo

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2ALZECPAL70-01 Test Report No. ............... : TCT230306E025 Date of issue ................... : Mar. 24, 2023 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shen Zhen ANNTLENT Communication Technology co., Ltd. Address ........................... : Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Manufacturer's name ... : Shen Zhen ANNTLENT Communication Technology co., Ltd. Address ........................... : Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 20.21 KDB935210 D03 Signal Booster Measurements v04r04 Product Name ................. : Cell Phone Signal Booster Trade Mark ...................... : Model/Type reference..... : AN-CPAL70-01 Rating(s).......................... : Adapter Information: Model: SK02T-0500200U Input: AC 100-240V, 50/60Hz, 0.35A Output: DC 5V, 2A Date of receipt of test item ......................................... : Mar. 06, 2023 Date (s) of performance of test ................................... : Mar. 06, 2023 ~ Mar. 24, 2023 Tested by (+signature) ... : Rleo LIU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT230306E025 Page 2 of 216 Page 2 of 216 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment ................................................................................................... 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Authorized Frequency Band Verification ............................................................ 7 5.2. Maximum Power .................................................................................................. 15 5.3. Intermodulation Product ..................................................................................... 31 5.4. Out of Band Emission ......................................................................................... 43 5.5. Conducted Spurious Emission ........................................................................ 105 5.6. Noise Limits ....................................................................................................... 124 5.7. Uplink Inactivity ................................................................................................. 136 5.8. Variable Booster Gain ....................................................................................... 141 5.9. Occupied Bandwidth ......................................................................................... 148 5.10.Oscillation Detection and Mitigation ............................................................... 181 6. Radiation Spurious Emission ............................................................. 201 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT230306E025 Page 3 of 216 Page 3 of 216 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ...................... : Cell Phone Signal Booster Model/Type reference .......... : AN-CPAL70-01 Sample Number....................: TCT230306E025-0101 Operation Frequency ........... : PCS Uplink: 1850MHz - 1915MHz, Downlink: 1930MHz - 1995MHz AWS-1 Uplink: 1710MHz - 1755MHz, Downlink: 2110MHz - 2155MHz Cellular Uplink: 824MHz - 849MHz, Downlink: 869MHz - 894MHz Lower700MHz Uplink: 698MHz - 716MHz, Downlink: 728MHz - 746MHz Upper700MHz Uplink: 776MHz - 787MHz, Downlink: 746MHz - 757MHz Signal Booster Type ............ : Fixed Consumer Signal Booster Emission Designator ........... : F9W, G7D, G7W, GXW, W7D FCC Classification ............... : B2W/Wideband Consumer Booster(CMRS) Rating(s) ............................... : Adapter Information: Model: SK02T-0500200U Input: AC 100-240V, 50/60Hz, 0.35A Output: DC 5V, 2A Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. …
