2ALZECPL70ACell Phone Signal Booster

1 / 12 AN-CPL70A Plus Cell Phone Signal Booster User Manual 2 / 12 Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. in this cases, cell phone signal booster can solve this problem in a certain extent. Features ■ AGC(Automatic Gain Control): When the downlink output signal is too strong or self- oscillated, the uplink and downlink can automatically reduce the gain and reduce the interference signal ■ Self- Oscillation elimination: The system detects self- Oscillation, first reduces the link gain, then detects the loop, and finds that the self- oscillation is eliminated, the system returns to normal working state, otherwise, the power is turned off to prevent interference signal. ■ Inactivity Mode: When no user calls, the device is in standby mode, the uplink power amplifier is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy saving. SAFETY WARNINGS WARNING: This equipment should be installed and operated with minimum distance 20cm（8 inches）between the radiator& your body. FCC Cautions:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause 3 / 12 harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance.  This transmitter must not be co-located oroperating in conjunction with any other Antenna or transmitter. SAFTY WARNING:  End users must follow the specific operatinginstruction for satisfying RF exposure compliance.  Do not remove the covers during working.  Do not try to repair or replace any components inside of the equipment. Alteration or abuse of the equipment or other components will void this product’s warranty, and could be dangerous to the user. PACKAGE CONTENTS (1) Packages include the following ： ① 1Pcs AN- CPL70A PlusBooster with N Female connectors. ② AC/DC Power Adaptor. ③ Screws Mounting Kits. ④User manual (this document). (2) Booster interface description: ① LED light ： The corresponding LED on the right is used to indicate the following different working conditions of the booster. 4 / 12 LED Indicator Booster working conditions LED LIGHTContinuous GREEN @normal； Twinkly GREEN @input signals may be not enough； Continuous YELLOW @ stronger input signals, AGC is working； Twinkly YELLOW@ self–oscillation happen ,AGC is working. Continuous RED@ power supply is shut down； Twinkly RED@ self–oscillation happen but power supply is NOT shut down. ② Power supply jack: The booster uses a power input range of DC 5-12V. ③INDOOR and OUTDOOR port：The two ports are used to connect outdoor and indoor antennas. (3)Antennas and Cables: In order to use the Booster, you still need the corresponding indoor antenna 1pcs, outdoor antenna 1pcs, outdoor cable 1pcs and indoor cable 1pcs. Antennas and cables kitting information are as follows 5 / 12 Notes：The above model antennas are suitable for AN-CPL70A Plus booster. Warning ： Unauthorized antennas ， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details ： 1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna NameModelGain/Lossphoto Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @698-746MHz 3dbi @824-894MHz 3.5dbi 1850-1990MHz Ceiling AntennaPTE-CI-800-2500 3dbi @698-746MHz 3dbi @824-894MHz 4.5dbi 1850-1990MHz Indoor Panel Antenna PTE-PN-800-2500 7dbi @698-746MHz 7dbi @824-894MHz 8.5dbi 1850-1990MHz Outdoor Antenna YAgi Antenna PTE-YG-800/1900 8dbi @698-746MHz 8dbi @824-894MHz 10dbi 1850-1990MHz LPDA Antenna PTE-LO-700-2500 9dbi @698-746MHz 9dbi @824-894MHz 10.5dbi 1850-1990MHz Omni directional glass fiber Antenna PTE-GF-700-2500 3dbi @698-746MHz 3dbi @824-894MHz 5dbi 1850-1990MHz Indoor Cable20 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db @698-746MHz 2.29db @824-894MHz 2.55db 1850-1990MHz Outdoor Cable50 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.21db @698-746MHz 5.49db @824-894MHz 6.25db @…

Text truncated - open the document above for the full version.

Shen Zhen ANNTLENT Communication Technology co., Ltd . Aug 31, 2020 Attestation for Cell phone signal booster: FCC ID: 2ALZECPL70A Each Signal Booster certificated under FCC ID: 2ALZECPL70A is manufactured and individually tested to ensure FCC compliance: ( 1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5)This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Yo urs sincerely, Sam Sun

Shen Zhen ANNTLENT Communication Technology co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-31 Subject; Request for Long Term Confidentiality FCC ID: 2ALZECPL70A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sam Sun Title: Manager

Shen Zhen ANNTLENT Communication Technology co., Ltd. Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Statement Product: Cell Phone Signal Booster Model: AN-CPL70A Plus Additional Model: N/A Trademark: We hereby state that All models above are identical in interior structure, electrical circuits and components, and just trademark are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/08/31 Name: Sam Sun Company Name : Shen Zhen ANNTLENT Communication Technology co., Ltd. Address: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China Tel / Fax: +8675528192218/+8675528192268 E-Mail: [email protected]

NameModelGain/Lossphoto Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @698-746MHz 3dbi @824-894MHz 3.5dbi 1850-1990MHz Ceiling AntennaPTE-CI-800-2500 3dbi @698-746MHz 3dbi @824-894MHz 4.5dbi 1850-1990MHz Indoor Panel Antenna PTE-PN-800-2500 7dbi @698-746MHz 7dbi @824-894MHz 8.5dbi 1850-1990MHz Outdoor Antenna YAgi Antenna PTE-YG-800/1900 8dbi @698-746MHz 8dbi @824-894MHz 10dbi 1850-1990MHz LPDA Antenna PTE-LO-700-2500 9dbi @698-746MHz 9dbi @824-894MHz 10.5dbi 1850-1990MHz Omni directional glass fiber Antenna PTE-GF-700-2500 3dbi @698-746MHz 3dbi @824-894MHz 5dbi 1850-1990MHz Indoor Cable20 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-5NB 2.19db @698-746MHz 2.29db @824-894MHz 2.55db 1850-1990MHz Outdoor Cable50 feet 3D-FB Coaxial cable with N male connector PTE-3D-FB-10NB 5.21db @698-746MHz 5.49db @824-894MHz 6.25db @1850-1990MHz

Shen Zhen ANNTLENT Communication Technology co., Ltd. Aug 31, 2020 Subject: Tuning and Adjustment of Signal booster, FCC ID: 2ALZECPL70A There are no external tuning adjustments, The amplifier is factory set not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Yours sincerely, Sam Sun

Shen Zhen ANNTLENT Communication Technology co., Ltd. Agent Authorization C ompany: Shen Zhen ANNTLENT Communication Technology co., Ltd. A ddress: Room 601, Unit 1 Building 10, Haoyue Garden, Minzhi Sub-district, Longhua District, Shenzhen, China P roduct Name: Cell Phone Signal Booster M odel Number(s): AN-CPL70A Plus P roduct Description: Cell Phone Signal Booster W e authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-31 Name: Sam Sun Title: Manager Company: Shen Zhen ANNTLENT Communication Technology co., Ltd.

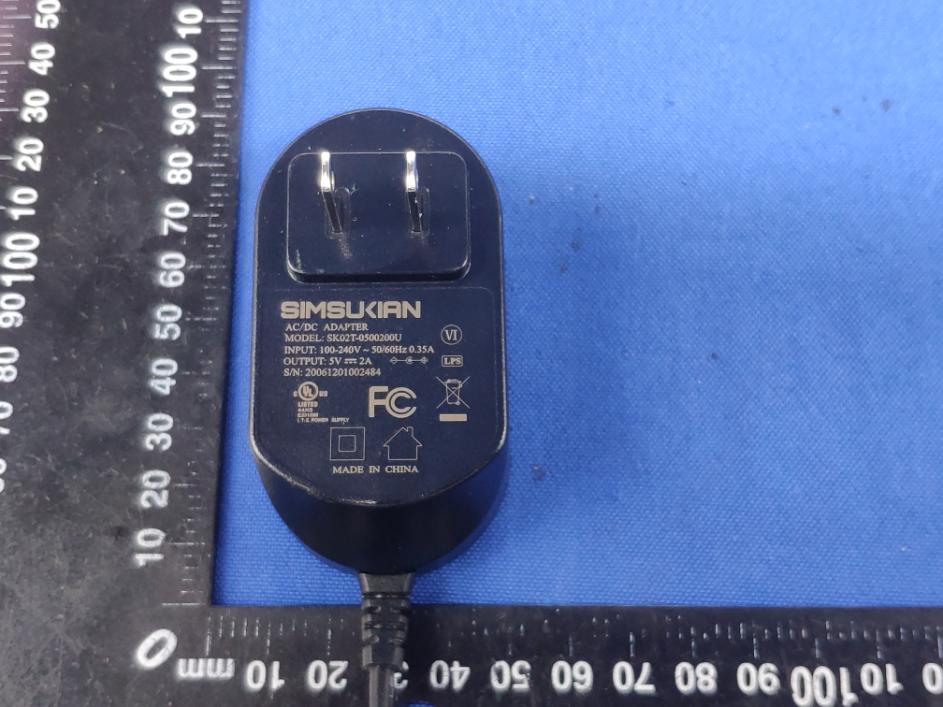

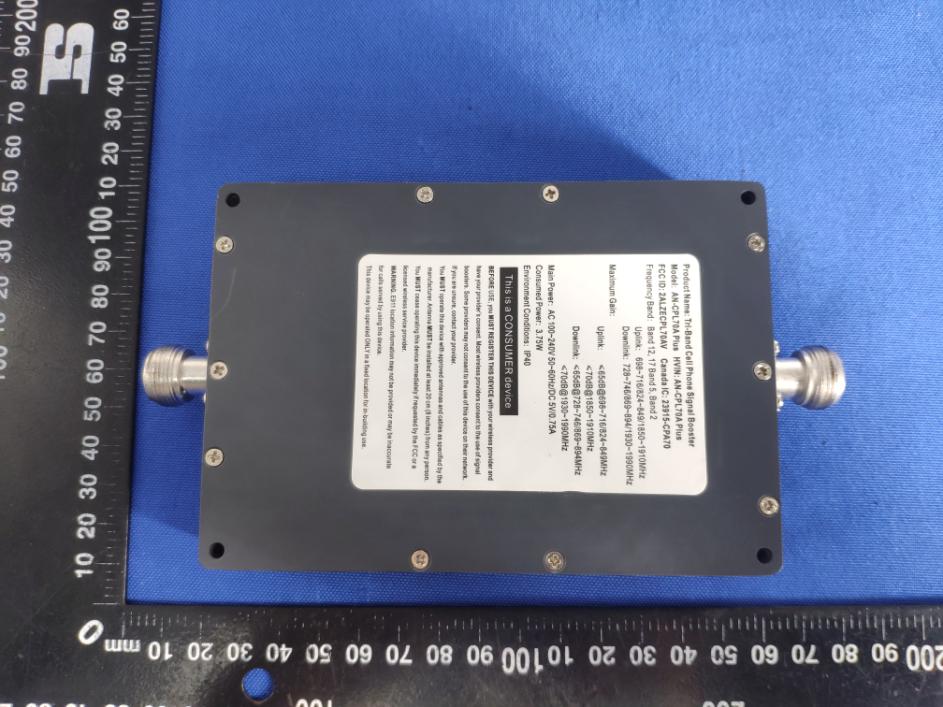

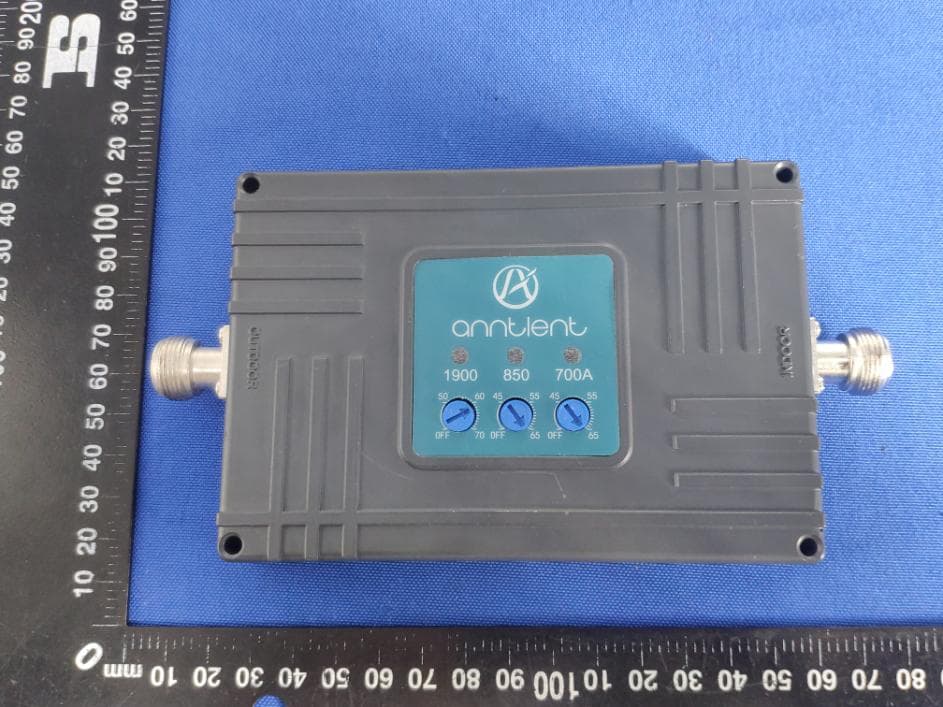

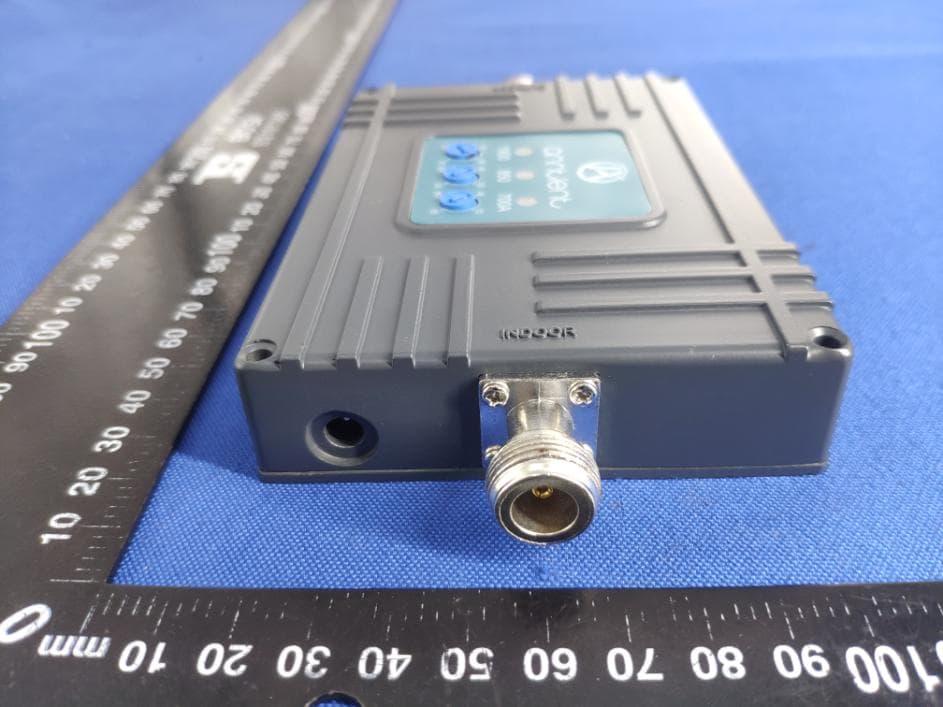

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPL70A Plus External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: AN-CPL70A Plus Size 1: L*W= 50*80 mm Location 1

Page 1 of 4 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: AN-CPL70A Plus Internal Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.0173 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Results: PASS Operation Bands Frequency (MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL1850-1910 1873.85 19.30 6.25 20.18 10.5 11.22 UL824-869 837.70 19.69 5.49 26.30 9 7.94 UL698-716 702.38 18.28 5.21 20.28 9 7.94 DL1930-1990 1947.69 9.42 2.55 4.86 8.5 7.08 DL869-894 888.73 5.48 2.29 2.08 7 5.01 DL728-746 737.94 6.47 2.19 2.68 7 5.01 Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL1850-1910 20.18 11.22 20 0.0451 1 UL824-869 26.30 7.94 20 0.0416 1 UL698-716 20.28 7.94 20 0.0320 0.47 DL1930-1990 4.86 7.08 20 0.0069 1.30 DL869-894 2.08 5.01 20 0.0021 0.59 DL728-746 2.68 5.01 20 0.0027 1

Report No.: TCT200628E004 Page 71 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band12 LTE DL Right Side Pre AGC A Offset 11 dB LVL Ref 20 dBmAtt 40 dB* 30 kHz/Start746 MHzStop746.3 MHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -51.33 dBm 746.013461538 MHz D1 -19 dBm Date: 15.AUG.2020 19:10:54 Band12 LTE DL Right Side Max. Input A Offset 11 dB LVL Ref 20 dBmAtt 40 dB* 30 kHz/Start746 MHzStop746.3 MHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -51.29 dBm 746.001923077 MHz D1 -19 dBm Date: 15.AUG.2020 19:10:26 Report No.: TCT200628E004 Page 72 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 6.5. Conducted Spurious Emission 6.5.1. Test Specification Test Requirement: FCC Part2 Section 1051; FCC Rules Part 27 Subpart C, Section 27.53 Test Method: KDB 935210 D03 Signal Booster Measurements v04r04 Limit: -13 dBm Test Setup: Test Procedure: a) Connect the EUT to the test equipment as shown in Set-Up. Begin with the uplink output connected to the spectrum analyzer. b) Configure the signal generator for AWGN with a 99% occupied bandwidth of 4.1 MHz operation with a center frequency corresponding to the center of the CMRS band under test. c) Set the signal generator amplitude to the level determined in the power measurement procedure in Maximum power. d) Turn on the signal generator RF output and measure the spurious emission power levels with an appropriate measurement instrument as follows. e) Set RBW = measurement bandwidth specified in the applicable rule section for the operational frequency band under consideration (see Annex A for relevant cross-references). Note that many of the individual rule sections permit the use of a narrower RBW (typically ≥ 1% of the emission bandwidth) to enhance measurement accuracy, but the result must then be integrated over the specified measurement bandwidth. f) Set VBW = 3 X RBW. g) Select the power averaging (RMS) detector. (See above note regarding the use of a peak detector for preliminary measurements.) h) Sweep time = auto-couple. i) Set the analyzer start frequency to the lowest radio frequency signal generated in the equipment, without going below 9 kHz, and the stop frequency to the lower band/block edge frequency minus 100 kHz or 1 MHz, as specified in the applicable rule part. Note that the number of measurement points in each sweep must be ≥ (2 X span/RBW) which may require that the measurement range defined by the start and stop frequencies above be subdivided, depending on the available number of measurement points provided by the spectrum analyzer. Trace average at least 10 traces in power averaging (i.e., RMS) mode. j) Use the peak marker function to identify the highest amplitude level over each measured frequency range Record the frequency and amplitude and capture a Test Plots for inclusion in the test report. k) Reset the analyzer start frequency to the upper band/block edge frequency plus 100 kHz or 1 MHz, as specified in the applicable rule part, and the analyzer stop frequency to 10 times the highest frequency of the fundamental emission. Note that the number of measurement points in each sweep must be ≥ (2 X span/RBW) which may require that the measurement range defined by the start and stop frequencies above be subdivided, depending on the available number of measurement points provided by the Report No.: TCT200628E004 Page 73 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com spectrum analyzer. l) Use the peak marker function to identify the highest amplitude level over each of the measured frequency ranges. Record the frequency and amplitude and capture a Test Plots for inclusion in the test report. m) Repeat steps b) through l) for each supported frequency band of operation. Test Result: PASS 6.5.2. Test Instruments Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Signal Generator Agilent N5182A MY47070282 Sep. 12, 2019 Sep. 11, 2020 Spectrum Analyzer Agilent N9020A MY49100619 Sep. 12, 2019 Sep. 11, 2020 Attenuator 50FP-006-H3 JFW 907763 Sep. 12, 2019 Sep. 11, 2020 Note: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to international system unit (SI). Report No.: TCT200628E004 Page 74 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 6.5.3. Test data Band2 Uplink Ref 20 dBmAtt 40 dB* Offset 11 dB A LVL *1 RM AVG * * 3DB RBW 100 kHz VBW 300 kHz SWT 100 ms 97 MHz/Start30 MHzStop1 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 10 of 10 1 Marker 1 [T1 ] -52.65 dBm 844.551282051 MHz D1 -13 dBm Date: 15.AUG.2020 20:30:00 Ref 20 dBmAtt 40 dB* * * Offset 11 dB 1 RM AVG A LVL 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 ms * Start1 GHzStop1.849 GHz84.9 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 10 of 10 1 Marker 1 [T1 ] -25.47 dBm 1.849000000 GHz D1 -13 dBm Date: 15.AUG.2020 20:30:29 Test Plots Report No.: TCT200628E004 Page 75 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com A Ref 20 dBm Offset 4 dB LVL Att 30 dB* * 1 RM AVG 1.8089 GHz/Start1.911 GHzStop20 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 105 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 10 of 10 1 Marker 1 [T1 ] -54.44 dBm 3.157517628 GHz D1 -13 dBm Date: 15.AUG.2020 20:38:41 Band2 Downlink A Offset 11 dB LVL Ref 20 dBmAtt 40 dB* 97 MHz/Start30 MHzStop1 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 100 ms *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 10 of 10 1 Marker 1 [T1 ] -51.52 dBm 891.185897436 MHz D1 -13 dBm Date: 15.AUG.2020 20:07:21 Report No.: TCT200628E004 Page 76 of 149 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Ref 20 dBmAtt 40 dB* * Offset 11 dB A LVL 3DB RBW 1 MHz V…
