2AMG5-STG-6897-TX2-IN-1 MAGNETIC WIRELESS CHARGER

JLR Gear
2-IN-1 MAGNETIC WIRELESS CHARGER - FCC ID 2AMG5-STG-6897-TX - JLR Gear
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Apr 03, 2023
Application Purpose
Original Equipment
Date of Application
Apr 03, 2023
Equipment Note
2-IN-1 MAGNETIC WIRELESS CHARGER
Frequency Range
0.11200000 - 0.20500000
Company
JLR Gear
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2.62FT(80cm) 115g 展开尺寸:170x111mm 成品尺寸:85x111mm 请仔细校对文字、图案、内容、尺寸,若要修改请书面说明,若无异议请确认!! 2-IN-1 MAGNETIC WIRELESS CHARGER This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS sans licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : 1. Cet appareil ne doit pas provoquer d'interférences. 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peut entraîner un fonctionnement indésirable de l'appareil. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 10 cm surrounding the device and 10 cm above the top surface of the device must be respected. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. au cours de l'opération de l'appareil sur une distance de 10 cm autour de l'appareil et de 10 cm au - dessus de la surface supérieure de l'appareil doit être respecté.

Attestation Statements

JLR Gear The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/30/2023 U.S. Agent Designation JLR Gear acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AMG5- STG-6897-TX): Name and company of U.S. agent: Eric Marshburn, JLR Gear Physical U.S. address of agent: FRN of U.S. agent: 0026573915 Email address of U.S. agent: [email protected] JLR Gear acknowledges their obligation to accept service of process on behalf of JLR Gear. JLR Gear accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Eric Marshburn JLR Gear 48_[model] US_Agent_2.911(d)(7)-U, V03 2612 Barrington Court Hayward, CA 94545 United States 2612 Barrington Court Hayward, CA 94545 United States Signature Eric Marshburn JLR Gear Operation Manager Operation Manager

Cover Letter(s)

Sincerely, Name/Title: Eric Marshburn/Manager Company: JLR Gear Address: 2434 Research Dr Livermore California United States Phone: 510-777-9894 Extension: 228 Fax: 510-777-9228 E-Mail: [email protected]

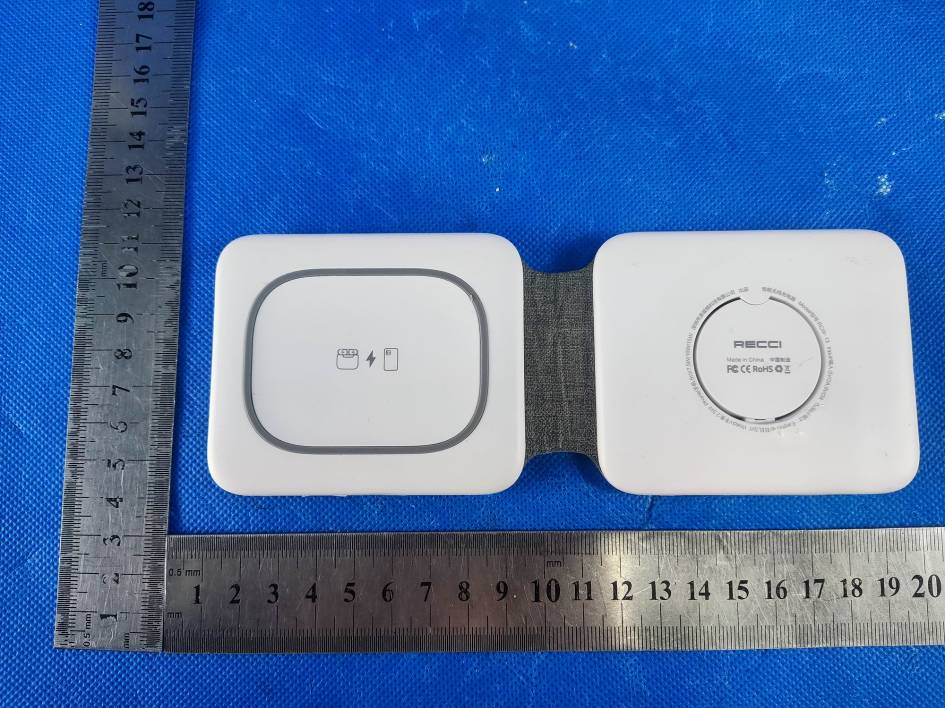

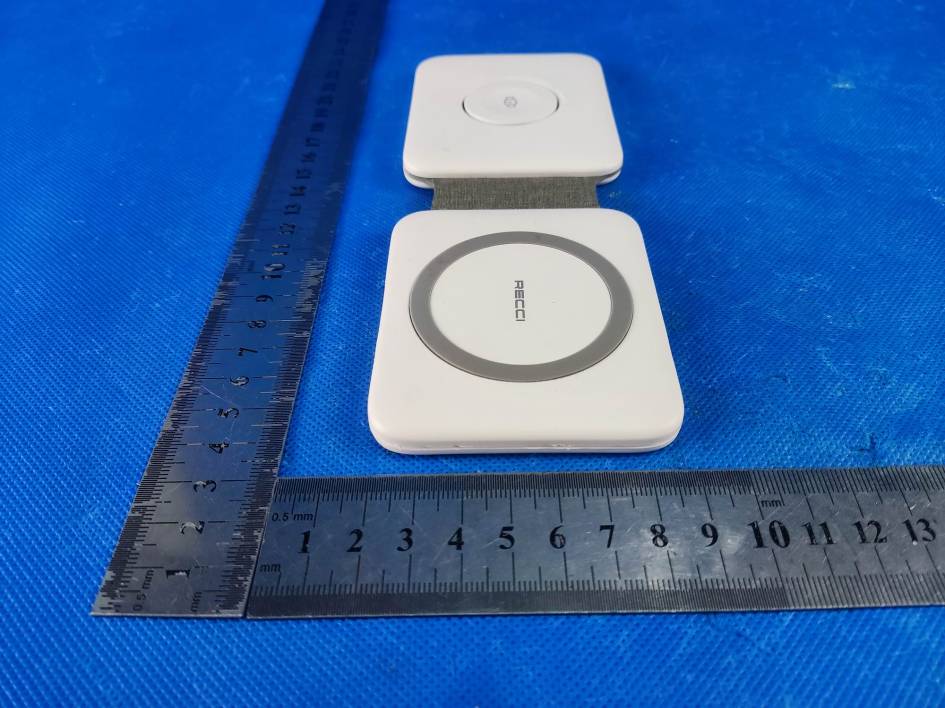

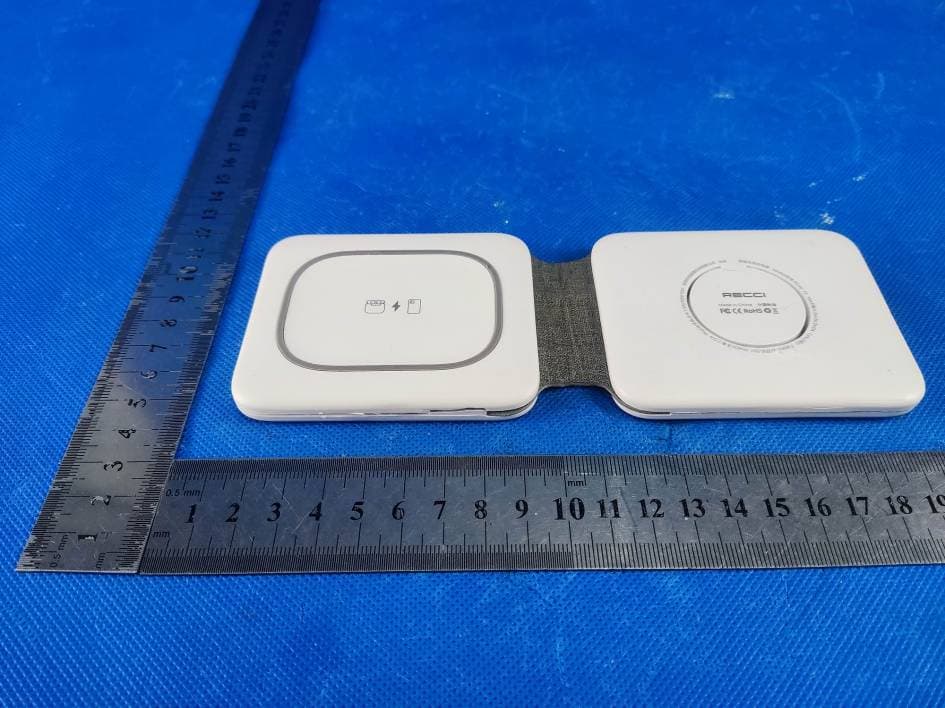

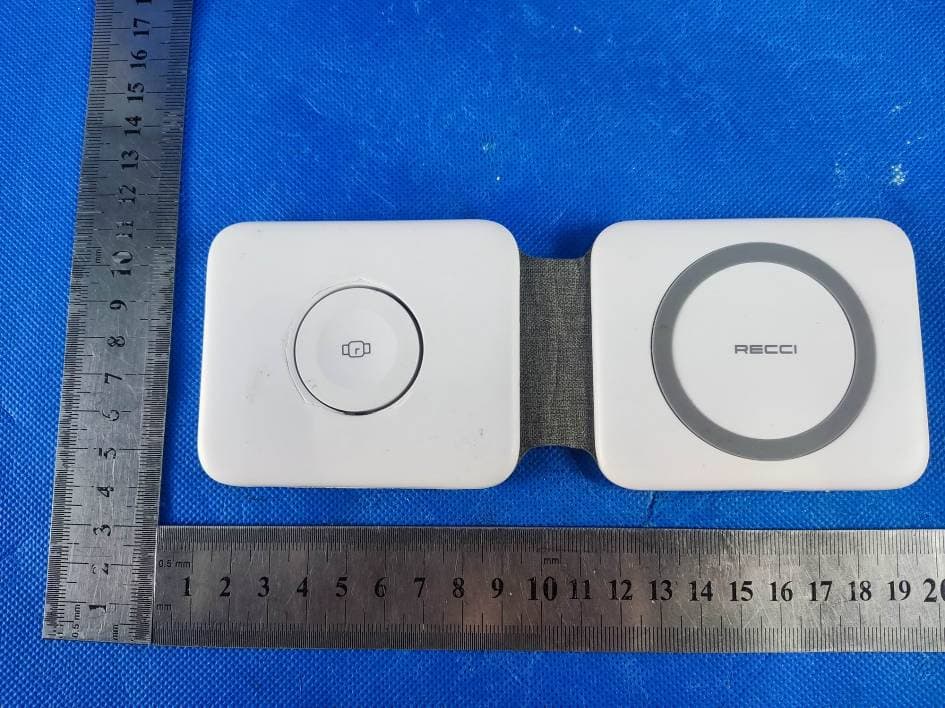

External Photos

Page 1 of 5 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 ------End------

ID Label/Location Info

Label &Label location Model No./ HVIN: STG-6897-TX FCC ID: 2AMG5-STG-6897-TX IC: 23078-STG6897TX Model No./ HVIN: STG-6868-KB FCC ID: 2AMG5-STG-6897-TX IC: 23078-STG6897TX Label location

Internal Photos

Page 1 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Antenna(Earphone) Page 2 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Antenna(Phone) Page 4 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Antenna(Watch) Page 8 of 8 FCC ID : 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 ------End------

RF Exposure Info

Page 1 of 18 FCC ID: 2AMG5-STG-6897-TX RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 18 FCC ID: 2AMG5-STG-6897-TX 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark:The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Mobile phone+ Watch Record Mode 2 AC Adapter + EUT + Earphone + Watch Pre-tested Mode 3 AC Adapter + EUT + Mobile phone Pre-tested Mode 4 AC Adapter + EUT + Earphone Pre-tested Mode 5 AC Adapter + EUT + Watch Pre-tested Mode 6 Test the EUT in idle mode. Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 3 of 18 FCC ID: 2AMG5-STG-6897-TX 6 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX10505 22.06.2022 21.06.2024 7 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Unit Test mode Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) V/m TM1 0.112-0.205 90.46 101.58 94.41 94.52 89.46 307 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Unit Test mode Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.112-0.20 5 0.116 0.164 0.263 0.111 0.248 0.815 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Unit Test mode Frequency Range (MHz) Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.112-0.205 0.211 0.815 1.63 Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 4 of 18 FCC ID: 2AMG5-STG-6897-TX 8 Test Setup photo Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 5 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 6 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe Page 7 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 8 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 9 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe Page 10 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 11 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 12 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe Page 13 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 14 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 15 of 18 FCC ID: 2AMG5-STG-6897-TX Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe Page 16 of 18 FCC ID: 2AMG5-STG…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 25 Report No.: AIT23031401W3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: JLR Gear Applicant add.: 2434 Research Dr, Livermore, CA 94550 Manufacturer: NINGBO MYSCO IMP.&EXP. CO.,LTD Manufacturer add.: 4th Floor, Office building, No.288, Longfei Road, Yunlong town, Yinzhou Disctrict, Ningbo, China 315135 Product Information: Product Name: 2-IN-1 MAGNETIC WIRELESS CHARGER Model No.: STG-6897-TX, STG-6868-KB Brand Name: CONNECT FCC ID: 2AMG5-STG-6897-TX Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Mar. 14, 2023 Date of Test: Mar. 14~ Mar. 16, 2023 Date of Issue: Mar. 17, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 25 Report No.: AIT23031401W3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ........................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 16 7.5 TEST RESULT .........................…

Text truncated - open the document above for the full version.

Test Report

JLR Gear 2434 Research Dr, Livermore, CA 94550 1. Antenna Description: Antenna type: loop coil Antenna Manufacturer: JLR Gear Model: STG-6897-TX antenna Antenna Gain(Peak): 0 dBi Frequency range:110kHz-205kHz 2. Antenna Photo: Antennaφ=42mm JLR Gear 2434 Research Dr, Livermore, CA 94550 Antennaφ=38mm Antennaφ=22mm

Test Setup Photos

Page 1 of 2 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2AMG5-STG-6897-TX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------

Contact Information

Applicant

Eric Marshburn
[email protected]510-777-9894Fax: 510-777-9228

Test Firm

Dongguan Yaxu (AiT) Technology LimitedCoin Tang
[email protected]+86 0769-82020499-21

Technical Specifications

#Rule PartsFrequency RangePower Output
115C0.112 MHz - 0.205 MHz-
