2AMQ6-GT1PLUSHaylou-GT1 PLUS

产品介绍 佩戴耳机 K:80 通话时，将耳机麦克风朝向嘴部可使通话更清晰。 通话时请注意 调整耳机露出麦克风 耳机基本参数 通讯距离：10米（无障碍空旷环境） 电池容量：43mAh（单耳机） 充电时间：约1.5小时通话时间：约3.5小时 待机时间：约150小时输入参数：5V 100mA 电池类型：锂离子聚合物电池 无线连接：蓝牙5.0 充电盒基本参数 输入参数：5V 500mA 输出参数：5V 150mA 充电时间：约2小时待机时间：约4个月 电池容量：310mAh电池类型：锂离子聚合物电池 所有技术信息以实际性能为准 Haylou GT1 Plus R Haylou GT1 Plus R 拒听电话 来电时，长按触控面板约1秒拒听电话。 单耳机使用 自动连接：从充电盒取出一只耳机，自动开机后，指示 灯由白灯快闪变成慢闪时，打开设备蓝牙搜索 “ Haylou GT1 Plus R ”（或者“ Haylou GT1 Plus L ”） 并点击完成连接。 首次连接后，耳机开机可自动回连上一次配对设备（蓝 牙需开启）。 手动连接：在耳机关机时，手动开启其中一只耳机， 待耳机变成白灯慢闪时，打开设备蓝牙连接对应耳 机。 手动连接：在耳机关机时，手动打开两只耳机，白灯 快闪等待左右耳机串联，串联成功后右耳机白灯慢 闪，打开设备蓝牙进行连接。 双耳机使用 自动连接：同时将两只耳机从充电盒取出，打开设备 蓝牙搜索“Haylou GT1 Plus R ”并点击完成连接, 等待约2秒，设备界面弹窗提示配对另一边耳机，点 击配对连接即可。 Auto connection: take up both earbuds from the case. On cellphone, search for Haylou GT1 Plus R and tap to connect. Notice will show up on cellphone in 2s, tap to connect the other earbud. 如果连接失败，将耳机放回充电盒，重复上述操作。 首次连接后，耳机开机可自动回连上一次配对设备 （ 蓝牙需开启 ）。 注意：耳机出厂时已完成初始化，可直接取出进行相关 操作。 开机 耳机在充电盒内，从充电盒中拿出耳机自动开机。 耳机不在充电盒内且已关机，长按多功能键约1.5秒 （ 白灯亮起 ）。 关机 放入充电盒中，耳机自动关机。 开机状态下,长按触控面板约4.5秒(红灯长亮2秒)。 真无线蓝牙耳机 使用说明书 Haylou GT1 Plus 充电 开机使用前，请先撕掉左右耳机充电触点处的隔 离膜，将充电盒及耳机充满电。 隔离膜 长按约1.5秒 白灯亮起 长按约4.5秒 红灯长亮2秒 长按约1秒 功能操作说明 充电口 充电针 充电指示灯 LED 触控面板 Fe male US B Port Pogo Pins LED LED Touch Pane Overview Earphones Charging Case What's in the Box BT earphones, charging case, EarTips × 2 pairs, user manual, charging cable Wh en c allin g, adjust Mic towards mouth to gain clear calling Please ke ep Mic outs ide when calling Ignore Call Touch the panel for 1s to ignore incoming call. Mono ModeStereo ModePower-on Take out earphones from the case to power on them. Or touch both panels for 1.5s to power on earphones ( LED glows solid white ) when they are not in the case. Power-off Put earphones into the case to power off them. Or touch both panels for 4.5s to power off earphones ( LED glows solid red for 2s ). TWS BT Earphones User Manual Haylou GT1 Plus How to Charge Prior to u sing, plea se peel off sticker on the pogo pins an d t op u p the earphones Sticker Touch the panel for 1.5s LED g lows soli d wh ite Touch the panel for 4.5s LED glows solid red for 2s Touch for 1s If earphones fail to b e connected to cellphone, please put EarBuds back to the case an d r epeat the above steps. Earphones will auto reconnect to the last device in connectivity records, if any. Note: earphones have been setted to factory when shipping out. Man ual pairing: man ually power on two EarB uds and they will auto pair with each oth er when LED blinks white promptly. Then LED on the right EarB ud will blink white slowly and now you can tap it on cellphone to connect. Man ual pairing: manually power on on e Ear Bud. Its LED will soon blink white slowly then search for it on cellphone and tap to connect. Auto pairing: take out one EarBud from the case to power on it. Its LED will soon blink slowly then search for Haylou GT1 Plus R/L on cellphone an d tap to connect. EarBud will auto reconnect to last device in connectivity records, if any. Basic Parameters Operation range: 10m(with no obstacle) Battery capacity: 43mAh(single EarBud) Charging time: approx. 1.5hr Calling time: approx. 3.5hr Standby time: approx. 150hr Input parameter: 5V 100mA Battery type: li-ion Wireless connection: BT 5.0 Charging case Input parameter:5V 500mA Output parameter:5V 150mA Charging time: approx. 2hr Standby time: approx. 4 months Battery capacity: 310mAh Battery type: li-ion 包装内容 蓝牙耳机，充电盒，耳帽x2对，说明书，充电线 料号 资料确认表 名称 材质工艺 软件料号 物料承认 书编号 法务 市场 包装 软件 电子 结构 声学 品牌 A 热缩膜 防爆袋 外箱 公差：mm名称 ±0.5 ±0.5 ±1.0 宽：±3 , 高：±15 宽：±3 , 高：±15 彩盒 标签 说明书 注意：尺寸要求：图面标注尺寸为必检尺寸 ±5.0 L30.001.000009CY Haylou-GT1说明书中文 70g书写纸折页 LSW.137.000001 55mm 80mm 轻触2次 来电时，接听/挂断电话 待机时，开启语音助手 来电时，拒听电话 音乐时，播放/暂停音乐 轻触1次 轻触3次 长触约1秒 音乐时，切换上一曲 音乐时，切换下一曲 L耳轻触2次 R耳轻触2次 配对成功后，在任何使用情形下，同时取出两只耳机即可 进入双耳模式。将任一耳机放回充电盒关机，即可使用单 耳模式，再次取出即恢复双耳模式。 单耳/双耳模式切换 Take up both earbuds to enter stereo mode, put either earbud back to enter mono mode. Switch Between Mono Mode and Stereo Mode 330mm 160mm 我的设备 Haylou GT1 Plus R 已连接 i 配对蓝牙设备 要与蓝牙设备Haylou GT1 Plus L 配对吗？ 取消配对 我的设备 Haylou GT1 Plus R 已连接 i 配对蓝牙设备 要与蓝牙设备Haylou GT1 Plus L 配对吗？ 取消配对 Haylou-GT1_R Haylou-GT1_R Haylou GT1 Plus R Haylou GT1 Plus R Functions Double press MFB Answer incoming call/end the call Activate voice assistant ( standby ) Ignore incoming call Pause music/resume playing Press MFB Triple press MFB Hold MFB for 1s Skip track backward Skip track forward Double press MFB on left earbud Double press MFB on right earbud Haylou蓝牙耳机售后服务承诺:严格按照《中华人民 共和国消费者权益保护法》、《中华人民共和国产品 质量法》实行售后三包服务，服务内容如下: 在三包有效期内，您可凭购物凭证依照本规定享受免 费的修理、更换、退货的权利。 1、自您购买之日起7日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受修 理、更换、退货的服务。 2、自您购买之日15日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受 修理或更换的服务。 3、自您购买之日起12个月内，本产品出现故障，经 由Haylou售后服务中心确定为产品质量问题，可享 受修理的服务。 售后服务与支持 保修期： 自产品购买之日起12个月(请妥善保管购买凭证) 免费服务： 在产品保修期内，凡属产品本身质量引起的故障，请 用户凭购买凭证与经销商取得联系以享受售后服务。 1、因天灾、地震、雷击、异常电压、环境因素而发 生之故障或毁损的。 2、自行或委托未经原厂授权维修之厂商拆卸、改装 或更换非原厂零件。 3、未按使用手册操作或因人为使用不当而造成损坏 者，如产品浸水、腐蚀、掉落、挤压或露在异常温湿 度环境下。 如有任何产品损害或瑕疵非可归责于产品质量本身，则 不在保修范围内。有下列情形者不属于保修范围内： 提示 - 请勿以任何理由拆除或维修改装耳机，否则可能会导致起火， 电子击穿甚至彻底损坏本产品； - 请勿将产品置于温度过低或过高（0°C以下或45°C以上的环 境下； - 请避免靠近儿童或动物的眼睛使用产品指示灯； - 请勿在雷暴天气下使用该产品，雷暴可导致本产品工作不正 常，并增加触电的危险； - 请勿用油及其他挥发性液体擦拭本产品； 警告 长时间使用耳机可能会造成听力损害，请合理安排使 用时间。 本耳 机不支持输出超过2A的充电座给耳机充电，否则会损 害耳机本体。 注意： 制造商：东莞市猎声电子科技有限公司 制造商地址:东莞市南城街道周溪社区隆溪路5号高盛科技 园二期之高盛科技大厦第13层1303、1305、1306单元 生产厂：东莞峥嵘电子有限公司 生产厂地址：广东省东莞市洪梅镇疏港大道4号 网 址：www.haylou.com 客服电话：4008-555-083 若有售后服务需求,请联系Haylou客服 Haylou蓝牙耳机三包凭证 1. 使用产品前请仔细阅读本使用说明书并请妥善保管； 2. 首次使用时，请先将本产品充满电； 3. 如果产品长期（超过2个星期）不用，请对其充电； 4. 必须选择正规厂家生产且经过国家CCC认证的充电器； 5. 若手机无法搜索蓝牙耳机，请确认蓝牙耳机是否处于 “ 配对模式 ”,若长时间 未进行 配对或连接, 蓝牙耳机配对功 能机配对功能将关闭,请重新开启蓝牙耳机至“配对模式”; 若手机程序出错,请重启手机;若蓝牙耳机程序出错,请重启蓝 牙耳机或者恢复出厂设置 耳机一边有声一边无声 充电时遇到的其他情况 极端情况才会出现此类情况，发生后请参考耳机重置 步骤，然后检查手机的蓝牙连接状况，清除蓝牙设备 后重新连接即可； 耳机充满电后，白灯常亮1分钟后熄灭，此时耳机处 于满电状态； 充电仓没电会导致耳机无法充电； 充电盒充满电后，充电指示灯会熄灭，此时若再次接 入充电线，充电指示灯则不会提示，不代表充电盒不 能充电。 注意事项 1、若产品超过两个星期未使用，建议使用前先对产 品进行充电； 2、必须选择正规厂家生产的经过国家CCC认证的充 电器； 3、长时间连续使用耳机有损听力健康，请合理控制 使用时间及音量； 4、使用耳机会降低对外部声音的感知力，请不要在 可能威胁到安全的环境中使用…

Text truncated - open the document above for the full version.

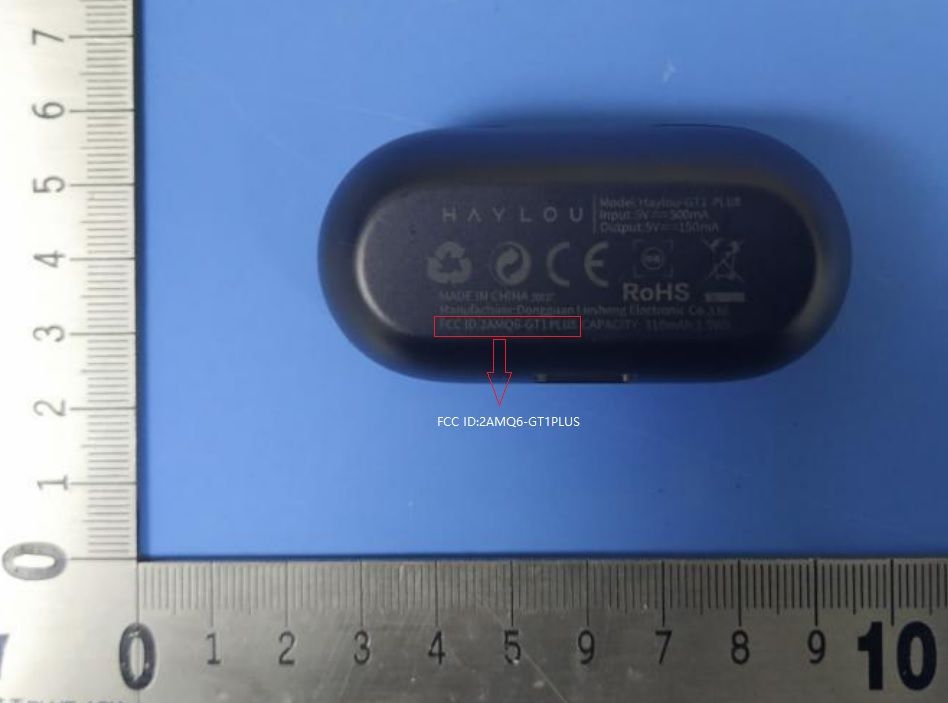

FCC ID: 2AMQ6-GT1PLUS Product Name: Haylou-GT1 PLUS Model No. : Haylou-GT1 PLUS The device have left and right earphones ，the left and right earphones are electrically identical. <Signature> Name: Abby Zhang Title: Manager Applicant Company: Donggua Lieshen lectronic Co., Ltd.

ModelNo.:Haylou-GT1PLUS

RFExposureEvaluationStatement ProductName: Haylou-GT1PLUS ModelNo.：Haylou-GT1PLUS FCCID：2AMQ6-GT1PLUS 1.1RFExposureComplianceRequirement 1.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 1.1.2Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]· [√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation 17 Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmand fortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparation distanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion 1.1.3EUTRFExposure OperationalMode:EDR（8-DPSKworstcase） Channel Maximum Peak Conducted Output Power (dBm) Tuneup tolerance (dB) Maximumtune-upPower Calculated value Exclusion threshold (dBm)(mW) 2402MHZ 1.06 ±1 2.061.610.50 3.02441MHz 1.21 ±1 2.211.660.52 2480MHz 1.18 ±1 2.181.650.52 Conclusion:thecalculatedvalue≤3.0,SARisexempted.

ReportNo.:BLA-EMC-202001-A29-01 1CoverPage FCCReport (Bluetooth) ProductName:Haylou-GT1PLUS Trademark:N/A ModelNo.:Haylou-GT1PLUS SerialNo.:N/A FCCID:2AMQ6-GT1PLUS ReportNumber:BLA-EMC-202001-A29-01 Dateofsamplereceipt:2020/1/10 DateofTest: 2020/1/10–2020/1/17 DateofIssue:2020/3/3 Teststandard:FCCCFRTitle47Part15SubpartCSection 15.247 Testresult:PASS Preparedfor: DongguanLieshengElectronicCo.,Ltd. 13/F,ProjectPhrase2ofGaoshengTechTower,No.5,Longxi Road,Nancheng,Dongguan,Guangdong,China Preparedby: QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen, China TEL:+86-755-28682673 FAX:+86-755-28682673 Compileby: Reviewby: Approvedby: Date:2020/3/3 ReportNo.:BLA-EMC-202001-A29-01Page 2 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 2Version VersionNo.DateDescription 002020/3/3Original ReportNo.:BLA-EMC-202001-A29-01Page 3 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 3Contents Page 1COVERPAGE................................................................................................................................................................1 2VERSION.........................................................................................................................................................................2 3CONTENTS.....................................................................................................................................................................3 4TESTSUMMARY...........................................................................................................................................................4 5GENERALINFORMATION..........................................................................................................................................5 5.1GENERALDESCRIPTIONOFEUT.............................................................................................................................5 5.2TESTMODE...............................................................................................................................................................7 5.3TESTFACILITY..........................................................................................................................................................7 5.4TESTLOCATION........................................................................................................................................................7 5.5OTHERINFORMATIONREQUESTEDBYTHECUSTOMER.........................................................................................7 5.6DESCRIPTIONOFSUPPORTUNITS..........................................................................................................................7 6TESTINSTRUMENTSLIST.........................................................................................................................................8 7TESTRESULTSANDMEASUREMENTDATA....................................................................................................10 7.1ANTENNAREQUIREMENT........................................................................................................................................10 7.2CONDUCTEDEMISSIONS........................................................................................................................................11 7.3CONDUCTEDPEAKOUTPUTPOWER.....................................................................................................................14 7.420DBEMISSIONBANDWIDTH.................................................................................................................................15 7.5CARRIERFREQUENCIESSEPARATION..................................................................................................................16 7.6HOPPINGCHANNELNUMBER.................................................................................................................................17 7.7DWELLTIME............................................................................................................................................................18 7.8PSEUDORANDOMFREQUENCYHOPPINGSEQUENCE..........................................................................................19 7.9BANDEDGE............................................................................................................................................................20 7.9.1ConductedEmissionMethod.....................................................................................................................20 7.9.2RadiatedEmissionMethod........................................................................................................................21 7.10SPURIOUSEMISSION............................................................................................................................................23 7.10.1ConductedEmissionMethod...................................................................................................................23 7.10.2RadiatedEmissionMethod......................................................................................................................24 8TESTSETUPPHOTO.................................................................................................................................................32 9EUTCONSTRUCTIONALDETAILS........................................................................................................................34 10APPENDIX.........................................................................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202001-A29-01Page 26 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 3.Theantennaheightisvariedfromonemetertofourmetersabovethe groundtodeterminethemaximumvalueofthefieldstrength.Both horizontalandverticalpolarizationsoftheantennaaresettomakethe measurement. 4.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcase andthentheantennawastunedtoheightsfrom1meterto4meters andtherotatablewasturnedfrom0degreesto360degreestofindthe maximumreading. 5.Thetest-receiversystemwassettoPeakDetectFunctionand SpecifiedBandwidthwithMaximumHoldMode. 6.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthe limitspecified,thentestingcouldbestoppedandthepeakvaluesofthe EUTwouldbereported.Otherwisetheemissionsthatdidnothave 10dBmarginwouldbere-testedonebyoneusingpeak,quasi-peakor averagemethodasspecifiedandthenreportedinadatasheet. TestInstruments: Refertosection6.0fordetails Testmode: Refertosection5.2fordetails Testresults: Pass Measurementdata: Remark: 1.Duringthetest,pre-scantheGFSK,Pi/4QPSK,8-DPSKmodulation,andfoundthe8-DPSKmodulation whichitisworsecase. 2.Pre-scanallkindoftheplacemode(X-axis,Y-axis,Z-axis),andfoundtheY-axiswhichitisworsecase. 9kHz~30MHz Thelowfrequency,whichstartedfrom9kHzto30MHz,waspre-scannedandtheresultwhichwas20dB lowerthanthelimitlineper15.31(o)wasnotreported. ReportNo.:BLA-EMC-202001-A29-01Page 27 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 Below1GHz EUT: Haylou-GT1PLUS Polarziation : Horizontal Model: Haylou-GT1PLUS PowerSource: AC120V/60Hz Mode: BTmode Testby: Eason Temp./Hum.(%H): 26°C/52%RH Note: ReportNo.:BLA-EMC-202001-A29-01Page 28 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673  EUT: Haylou-GT1PLUS Polarziation : Vertical Model: Haylou-GT1PLUS PowerSource:AC120V/60Hz Mode:BTmodeTestby:Eason Temp./Hum.(%H): 26°C/52%RH Note: ReportNo.:BLA-EMC-202001-A29-01Page 29 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 Above1GHz Testchannel:Lowest Peakvalue: Frequency (MHz) ReadLevel (dBuV) Correctfactor (dB/m) Level (dBuV/m) LimitLine (dBuV/m) Over Limit (dB) Polarization 4804.0056.44-7.4748.9774.00-25.03Vertical 7206.0058.88-2.4556.4374.00-17.57Vertical 9608.0057.48-2.3755.1174.00-18.89Vertical 12010.00***74.00*Vertical 14412.00***74.00*Vertical 4804.0057.58-7.4750.1174.00-23.89Horizontal 7206.0055.63-2.4553.1874.00-20.82Horizontal 9608.0056.79-2.3754.4274.00-19.58Horizontal 12010.00***74.00*Horizontal 14412.00***74.00*Horizontal Averagevalue: Frequency (MHz) ReadLevel (dBuV) Correctfactor (dB/m) Level(dBuV/m) LimitLine (dBuV/m) Over Limit (dB) Polarization 4804.0049.26-7.4741.7954.00-12.21Vertical 7206.0044.18-2.4541.7354.00-12.27Vertical 9608.0047.62-2.3745.2554.00-8.75Vertical 12010.00***54.00*Vertical 14412.00***54.00*Vertical 4804.0049.66-7.4742.1954.00-11.81Horizontal 7206.0047.69-2.4545.2454.00-8.76Horizontal 9608.0045.67-2.3743.3054.00-10.70Horizontal 12010.00***54.00*Horizontal 14412.00***54.00*Horizontal Remark: 1.FinalLevel=ReceiverReadlevel+Correctfactor 2.Correctfactor=AntennaFactor+CableLoss–PreamplifierFactor 3.“*”,meansthisdataisthetooweakinstrumentofsignalisunabletotest. 4.Theemissionlevelsofotherfrequenciesareverylowerthanthelimitandnotshowintestreport. ReportNo.:BLA-EMC-202001-A29-01Page 30 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 Testchannel:Middle Peakvalue: Frequency (MHz) ReadLevel (dBuV) Correctfactor (dB/m) Level (dBuV/m) LimitLine (dBuV/m) Over Limit (dB) Polarization 4882.0054.15-7.4746.6874.00-27.32Vertical 7323.0056.92-2.4554.4774.00-19.53Vertical 9764.0055.82-2.3753.4574.00-20.55Vertical 12205.00***74.00*Vertical 14646.00***74.00*Vertical 4882.0055.10-7.4747.6374.00-26.37Horizontal 7323.0054.25-2.4551.8074.00-22.2Horizontal 9764.0057.13-2.3754.7674.00-19.24Horizontal 12205.00***74.00*Horizontal 14646.00***74.00*Horizontal Averagevalue: Frequency (MHz) ReadLevel (dBuV) Correctfactor (dB/m) Level (dBuV/m) LimitLine (dBuV/m) Over Limit(dB) Polarization 4882.0048.25-7.4740.7854.00-13.22Vertical 7323.0045.26-2.4542.8154.00-11.19Vertical 9764.0044.74-2.3742.3754.00-11.63Vertical 12205.00***54.00*Vertical 14646.00***54.00*Vertical 4882.0049.70-7.4742.2354.00-11.77Horizontal 7323.0046.23-2.4543.7854.00-10.22Horizontal 9764.0048.16-2.3745.7954.00-8.21Horizontal 12205.00***54.00*Horizontal 14646.00***54.00*Horizontal Remark: 1.FinalLevel=ReceiverReadlevel+Correctfacto 2.Correctfactor=AntennaFactor+CableLoss–PreamplifierFactor 3.“*”,meansthisdataisthetooweakinstrumentofsignalisunabletotest. 4.Theemissionlevelsofotherfrequenciesareverylowerthanthelimitandnotshowintestreport. ReportNo.:BLA-EMC-202001-A29-01Page 31 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 Testchannel:Highest Peakvalue: Frequency (MHz) ReadLevel (dBuV) Correct factor (dB/m) Level (dBuV/m) LimitLine (dBuV/m) OverLimit (dB) Polarization 4960.0051.96-7.4744.4974.00-29.51Vertical 7440.0057.80-2.4555.3574.00-18.65Vertical 9920.0056.34-2.3753.9774.00-20.03Vertical 12400.00***74.00*Vertical 14880.00***74.00*Vertical 4960.0055.61-7.4748.1474.00-25.86Horizontal 7440.0055.99-2.4553.5474.00-20.46Horizontal 9920.0057.58-2.3755.2174.00-18.79Horizontal 12400.00***74.00*Horizontal 14880.00***…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202001-A29-01Page 46 of 46 QianhaiBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia, No.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen,China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 10 Appendix Refertothefollowingattachments. ***EndofReport*** Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,The result(s)showninthisreportreferonlytothesample(s)tested.Withoutwritten approvalofBlueAsia,thisreportcan’tbereproducedexceptinfull. AppendixA:20dBEmissionBandwidth TestResult TestModeAntennaChannel 20db EBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH1Ant1 24021.1102401.4482402.558---PASS 24411.1102440.4482441.558---PASS 24801.1042479.4512480.555---PASS 2DH1Ant1 24021.3952401.2982402.693---PASS 24411.3982440.2982441.696---PASS 24801.4012479.3012480.702---PASS 3DH1Ant1 24021.3652401.3192402.684---PASS 24411.3682440.3192441.687---PASS 24801.3712479.3192480.690---PASS TestGraphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict DH1Ant1 2402-1.29<=21PASS 2441-1.84<=21PASS 2480-1.87<=21PASS 2DH1Ant1 2402-1.2<=21PASS 24410.47<=21PASS 24800.47<=21PASS 3DH1Ant1 24021.06<=21PASS 24411.21<=21PASS 24801.18<=21PASS TestGraphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 AppendixD:Carrierfrequencyseparation TestResult TestModeAntennaChannelResult[MHz]Limit[MHz]Verdict DH1Ant1Hop1.17>=1.110PASS 2DH1Ant1Hop1.158>=0.934PASS 3DH1Ant1Hop1.004>=0.914PASS TestGraphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop AppendixE:Timeofoccupancy TestResult TestModeAntennaChannel BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.393300.127<=0.4PASS DH3Ant1Hop1.641700.279<=0.4PASS DH5Ant1Hop2.891100.318<=0.4PASS TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop AppendixF:Numberofhoppingchannels TestResult TestModeAntennaChannelResult[Num]Limit[Num]Verdict DH1Ant1Hop79>=15PASS 2DH1Ant1Hop79>=15PASS 3DH1Ant1Hop79>=15PASS TestGraphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop

AppendixG:Bandedgemeasurements TestResult TestModeAntennaChNameChannel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1Ant1 Low2402-1.40-56.34<=-21.4PASS High2480-2.00-55.46<=-21.68PASS LowHop_2402-2.49-56.79-22.49PASS HighHop_2480-2.46-55.68-21.77PASS 2DH1Ant1 Low2402-1.67-56.33<=-21.67PASS High2480-2.05-55.89<=-22.05PASS LowHop_2402-1.95-56.48-21.95PASS HighHop_2480-1.61-55.62-21.61PASS 3DH1Ant1 Low2402-1.60-55.72<=-21.6PASS High2480-2.28-55.44<=-22.28PASS LowHop_2402-1.49-55.3-21.49PASS HighHop_2480-1.91-55.34-21.91PASS TestGraphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 AppendixH:ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1Ant1 2402 Reference-1.90-1.90---PASS 30~100030~1000-67.104<=-21.9PASS 1000~265001000~26500-39.342<=-21.9PASS 2441 Reference-2.26-2.26---PASS 30~100030~1000-67.219<=-22.259PASS 1000~265001000~26500-38.984<=-22.259PASS 2480 Reference-2.29-2.29---PASS 30~100030~1000-66.944<=-21.763PASS 1000~265001000~26500-37.607<=-21.763PASS 2DH1Ant1 2402 Reference-1.68-1.68---PASS 30~100030~1000-66.762<=-21.677PASS 1000~265001000~26500-40.78<=-21.677PASS 2441 Reference-2.12-2.12---PASS 30~100030~1000-66.785<=-22.118PASS 1000~265001000~26500-41.228<=-22.118PASS 2480 Reference-2.06-2.06---PASS 30~100030~1000-45.375<=-22.064PASS 1000~265001000~26500-39.779<=-22.064PASS 3DH1Ant1 2402 Reference-1.59-1.59---PASS 30~100030~1000-67.338<=-21.59PASS 1000~265001000~26500-40.471<=-21.59PASS 2441 Reference-2.20-2.20---PASS 30~100030~1000-66.996<=-22.198PASS 1000~265001000~26500-40.67<=-22.198PASS 2480 Reference-2.35-2.35---PASS 30~100030~1000-66.989<=-22.348PASS 1000~265001000~26500-38.514<=-22.348PASS TestGraphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500

ModelNo.:Haylou-GT1PLUS
