2AMQ6-LS02Haylou Smart Watch

55 mm 80 mm 料号 资料确认表 名称 材质工艺 软件料号 物料承认 书编号 法务 市场 包装 软件 电子 结构 声学 品牌 A 热缩膜 防爆袋 外箱 公差: mm名称 ±0.5 ±0.5 ±1.0 宽:±3,高:±15 宽:±3,高:±15 彩盒 标签 说明书 注意：尺寸要求：图面标注尺寸为必检尺寸 ±5.0 东莞市猎声电子科技有限公司 Dongguan Liesheng Electronics Co., Ltd. 材质：70g 书写纸+风琴折 0000430C L30.001.000087AY 01 Overview What's in the Box Smart watch, charging cable and user manual. Haylou Smart Watch 2 User Manual Touch screen Watch band Function button Pogo pins Charging cable Heart rate sensor Please put on the watch and move it about one finger distance from your carpus. Please adjust tightness of watch band to fit yourself. Note: Too loose of the band may impact performance of heart rate sensor. 04 How to Use In Home Page, slide down from the top of the watch face to open Quick Setting. In Home Page, slide up from the bottom of the watch face to open Control Panel. In Home Page, slide right/left to skip to previous/next page. When it's not in Home Page, slide from left edge to right edge to return to previous page. In Home Page, keep touching screen for 3s to enter Watch Face Change. Hold function button for 3s to power on/off. Press function button to return to Home Page (only open one page). Press function button to skip to previous page (open two pages). Press function button to pause/resume your workout (during workout). 05 Functions 12 sport modes ( jogging, hiking, biking, climbing, spinning, indoor running, yoga,gym, free training, basketball, football and boating) A 24-hour heart rate monitoring keeps making records It tracks your sleep time and status Help adjust breath and relax yourself A full screen timer Accuracy is up to two decimal places Remote music control on phone (the watch cannot play music independently) You may check the coming three days' weather and real time temperature Open, set, check and close the alarm clock Sit too long and it's time to get on your knees 06 How to ChargeBasic ParametersNote: 1. We hold rights to revise the User Manual without any notice to you. Parts of the functions may be different in certain softwares. 2. Please charge the watch more than 2 hours before use. 3. This product is within IP68 waterproof, yet do not soak it into hot water or other corrosive liquid, or wear it for a dive to a depth over 3m. Any defects caused by the above practices will not be covered by warranty. 4. Please do not get the band too tight. Keep contact parts of the watch dry and clean the band periodically. For any allergy, please take off the watch at once and consult doctor. 5. Function button and touch screen are not available for use under water. If the watch gets wet, please dry it before use. Product name: Haylou Smart Watch 2 Product model: Haylou LS02 Main body size: 40.9 x 35.7 x 11.6mm Band size: 20mm Weight ( with band ): 54g Display: 1.28 inch TFT LCD Definition: 240*240 Bluetooth version: V5.0 Sensor: heart rate sensor, accelerometer sensor Battery capacity: 210mAh Battery life: 15 days ( with 24-hour heart rate monitoring on) Dust, water proof: IP68 Working temperature: -20°C~45°C Data sync platform: Haylou Fit Compatibility: Android 4.4 or IOS 8.0 and later 02 How to Wear 03 How to Link 1. Hold function button to power on the watch and a QR code will be displayed. Use your phone to scan the QR code to install APP. You may also scan the QR code below to install. Note: The instruction below is for reference only. For actual installation, please follow the instruction in APP. 2. Open Haylou Fit APP and add device in the page ( pictured ). Note: 1. Please do not turn off Bluetooth faculty when linking. 2. If you fail to add device or the watch disconnects with device, please hold function button for 3s and choose factory setting on the watch. Then re-link the watch to device. 10:00 4G Add device HomeSportDeviceMy account 1026 Please add a device for access to your workout data 10:00 4G Choose device Choose device 1 2 3 4 5 6 7 8 9 1. Charge the watch via charging cable and make sure pogo pins are well-contacted. 2. Use qualified adapter with output voltage of 5V and output current of 0.5A or above. 3. If you do not use the watch for a long time, charging icon may not show up until you charge the watch over 1 minute. 4. Please always keep pogo pins dry. Manufacturer：Dongguan Liesheng Electronic Co., Ltd. Address： Suite 1303, 1305 and 1306, 13/F, Project Phrase 2 of Gaosheng Tech District,Dongguan City, Guangdong, China. Model Number Date of Purchasing User ' s Name User ' s Phone User ' s Address Shop ' s Name Shop ' s Address Comments Warranty Card Warranty Period 12 months after you purchase this item. ( or you may inquire your local shopperfor more details.) Free Service Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service. Free exchange service will not be accessed under following circumstances: 1. Damages caused unauthorized disassembly. 2. Defects or physical damages caused by leaking or dropping off. 3. Damages by act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing. 7 6 1 2 3 45 9 8 3 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particul…

Text truncated - open the document above for the full version.

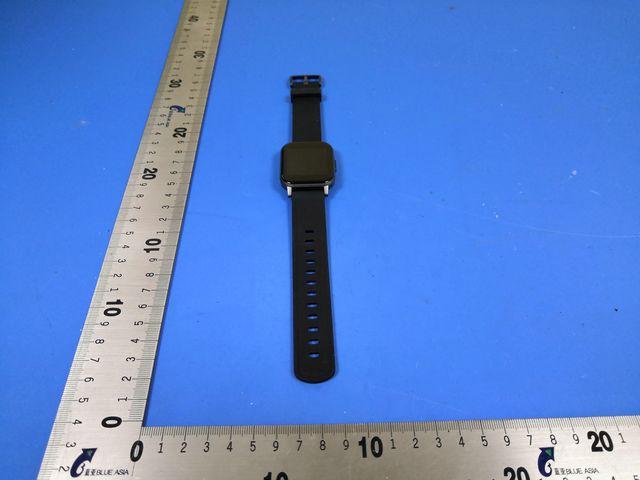

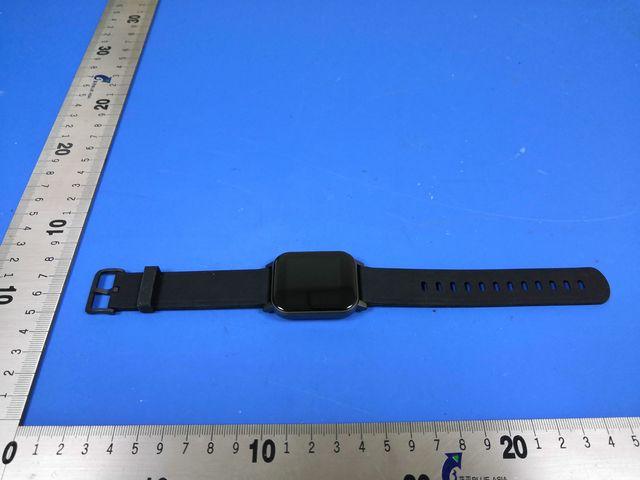

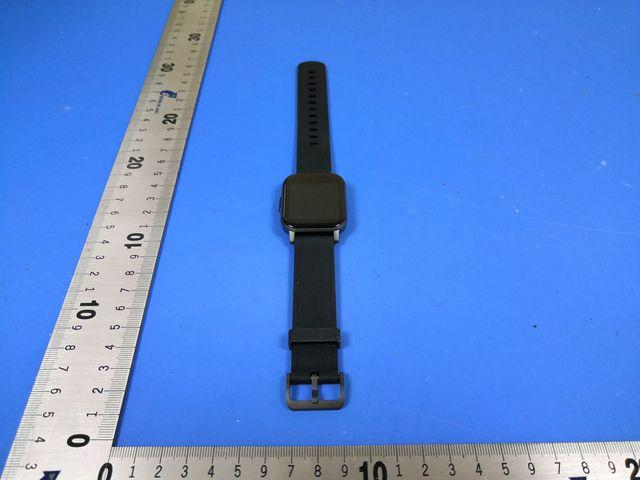

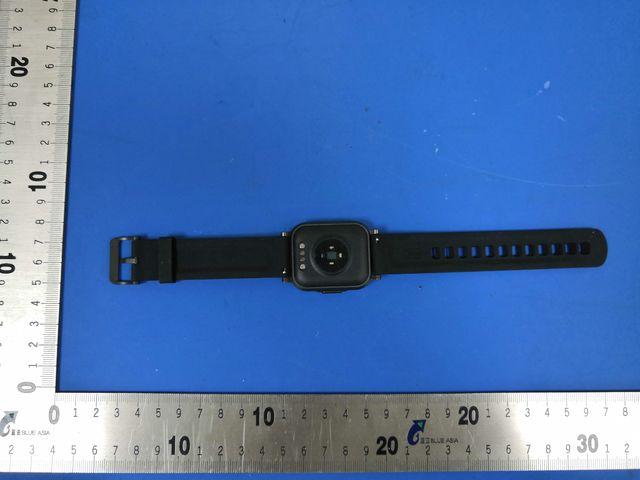

Model No.: Haylou-LS02

FCC ID: 2AMQ6-LS02

Model No.: Haylou-LS02

RF Exposure Evaluation Statement Product Name: Haylou Smart Watch Model No.：Haylou-LS02 FCC ID：2AMQ6-LS02 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: BLE（worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402 0.93 ±1 1.93 1.56 0.48 3.0 2442 1.17 ±1 2.17 1.65 0.52 2480 1.63 ±1 2.63 1.83 0.58 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Haylou Smart Watch Brand Mark : Haylou Model No. : Haylou-LS02 Report Number : BLA-EMC-202004-A5801 FCC ID : 2AMQ6-LS02 Date of Sample Receipt : 2020/4/20 Date of Test : 2020/4/29 to 2020/4/30 Date of Issue : 2020/4/30 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Dongguan Liesheng Electronic Co., Ltd. 13/F,Project Phrase 2 of GaoshengTechTower,No.5,Longxi Road,Nancheng,Dongguan,Guangdong,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/4/30 Report No.: BLA-EMC-202004-A5801 Page 2 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/4/30 Original Report No.: BLA-EMC-202004-A5801 Page 3 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ) ............................................................. 13 LIMITS ............................................................................................................................................................................. 13 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 13 PROCEDURE ................................................................................................................................................................... 13 TEST DATA ........................................................................................................................................................................ 15 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 17 LIMITS ............................................................................................................................................................................. 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 17 TEST DATA ........................................................................................................................................................................ 18 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 19 LIMITS ............................................................................................................................................................................. 19 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 20 PROCEDURE ................................................................................................................................................................... 20 TEST DATA ........................................................................................................................................................................ 22 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 27 LIMITS ............................................................................................................................................................................. 27 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 28 PROCEDURE ................................................................................................................................................................... 28 TEST DATA ......................................................................................…

Text truncated - open the document above for the full version.

Model No.: Haylou-LS02
