2AMQ6-LS17Smart Watch

80 mm 100 mm Haylou Fun 02 Charging Align and fit the charging contacts on back of the watch to the metal contacts of the charging head, wait for the watch screen to display charging power indicator. Precautions: 1. Please use the charging cable in the package, and dry the charging contacts before charging. 2. Connect the charging cable to a standard USB charger purchased through regular channels, and a power adapter that has obtained CCC certification and meets the standard requirements. 3. If the watch cannot power on after being left for a long time, when used again, it need to be pre-charged for about 1 minute to display charging icon. 04 Wear 1. For daily wear, wear the watch about one finger distance from the wrist bone, and adjust the tightness of the strap to a comfortable position. 2. We recommend to tighten the watch strap during exercise and loosen it appropriately after exercise. Note: Wearing too loosely may affect data collection by the heart rate sensor. 03 Download and match Haylou Fun App ( hereinafter referred to as App ) is a must-have app for using the watch. You can manage your watch and experience more watch functions through the App. 1. Press and hold the power button of the watch to power on. 2. Scan the QR code on the watch screen with your mobile phone to download the App. 3. You can also scan the QR code below or download and install the App in the app store, iPhone users can also search, download and install the App in the App Store. 4. Open the App, click “+” in the upper right corner, and select “Scan” to scan the QR code to pair. Or select “Add device” to search and pair in the device list according to the name of the watch. Please confirm the Bluetooth name of the phone and the watch are the same when paring. 5. You can start using the watch after pairing successfully. equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. 7. Do not take this device and its accessories as ordinary household waste, please abide by the local laws and regulations for the disposal of this device and its accessories, and support recycling actions. 8. It is not allowed to change or increase transmission frequency ( including the installation of additional RF power amplifiers ), or to connect an external antenna or switch to other transmitting antennas without authorization. 9. Do not cause harmful interference to various legitimate radio communication business industry during use. Once interference is found, stop using it immediately and take measures to eliminate the interference before continuing to use it. 10. The use of micro-power radio device must endure the interference of various radio services or radiation interference of industrial, scientific and medical application equipment. 11. When using in special occasions, such as airplanes, airports, etc., please abide by relevant regulations. Battery safety 1. Do not disassemble, modify, puncture or damage the device and batteries. 2. Please do not expose the battery or device to flame, high temperature or other dangers. 3. Please do not short-circuit the battery to avoid fire. 4. Please dispose of batteries in accordance with local regulations, and do not take batteries as household waste. If the batteries are not disposed of properly, it may cause the batteries to explode. 08 Safety information Before using and operating the device, please read and observe the following precautions to ensure the best performance of the device, and avoid dangerous or illegal situations. Precautions for usage scenarios and operating environment: 1. Strictly prohibit children or pets to swallow this product or its accessories to avoid harm to them. 2. Do not place this product in an area where the temperature is too high or too low, otherwise it may cause fire or explosion. 3. Strictly prohibit to bring this product close to heat sources or exposed fire sources, such as ovens and electric heaters. 4. Some people have allergies. Their skin are allergic to plastics, cortex, fiber and other materials, and symptoms such as redness, swelling and inflammation will occur in long-term contact areas. Please stop using and consult a doctor when similar situation occurs. 5. Do not use unauthorized or incompatible power adapters or data cables, otherwise it may damage the watch and accessories, causing fire, explosion or other hazards. 6. The radio waves generated by the device may affect the normal operation of implanted medical equipment or personal medical equipment, such as pacemakers and hearing aids. If you use these devices, please consult their manufacturers about the restrictions on using the device. Remarks: This manual is for reference only, the specific functions and product pictures may be slightly different from the actual product, please refer to the actual product. 09 Warranty card Model Number Date of Purchasing User ' s Name User ' s Phone User ' s Address Shop ' s Name Shop ' s Address Comments Warranty Period 12 months after you purchase this item. ( or you may inquire your local shopper for more details.) Free Service Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service. Free exchange service will not be accessed under following circumstances: 1. Damages caused by unauthorized disassembly. 2. Defects or physical damages caused by leaking or dropping off. 3. Damages caused by act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing. 07 Basic parameters Product name: HA…

Text truncated - open the document above for the full version.

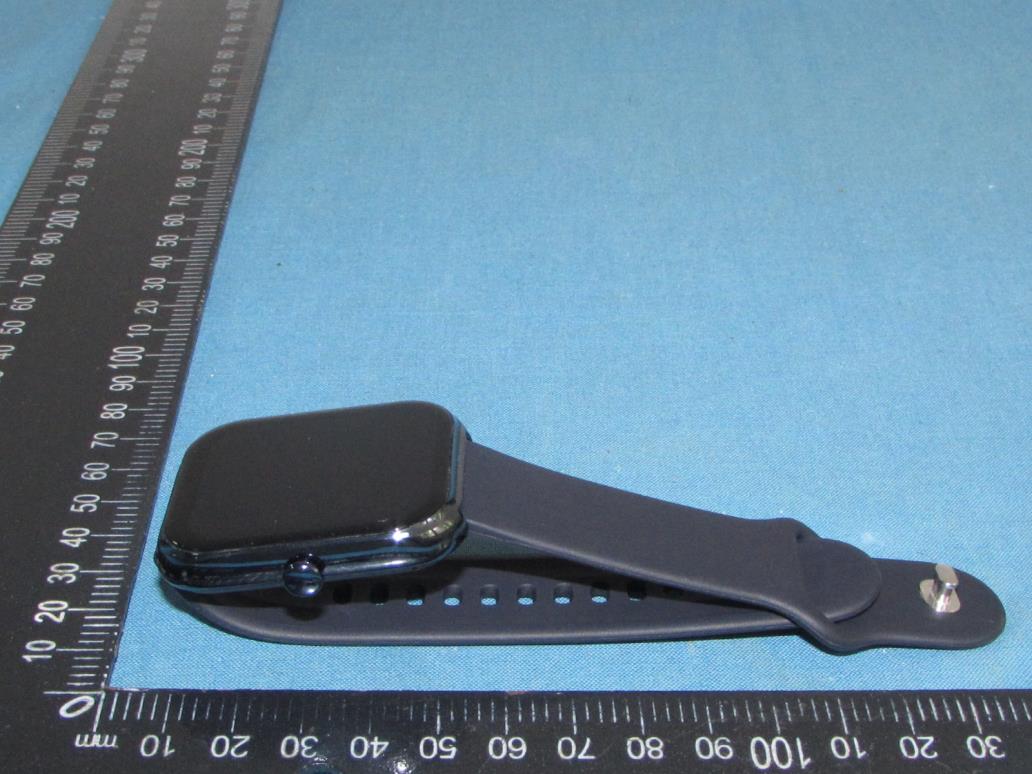

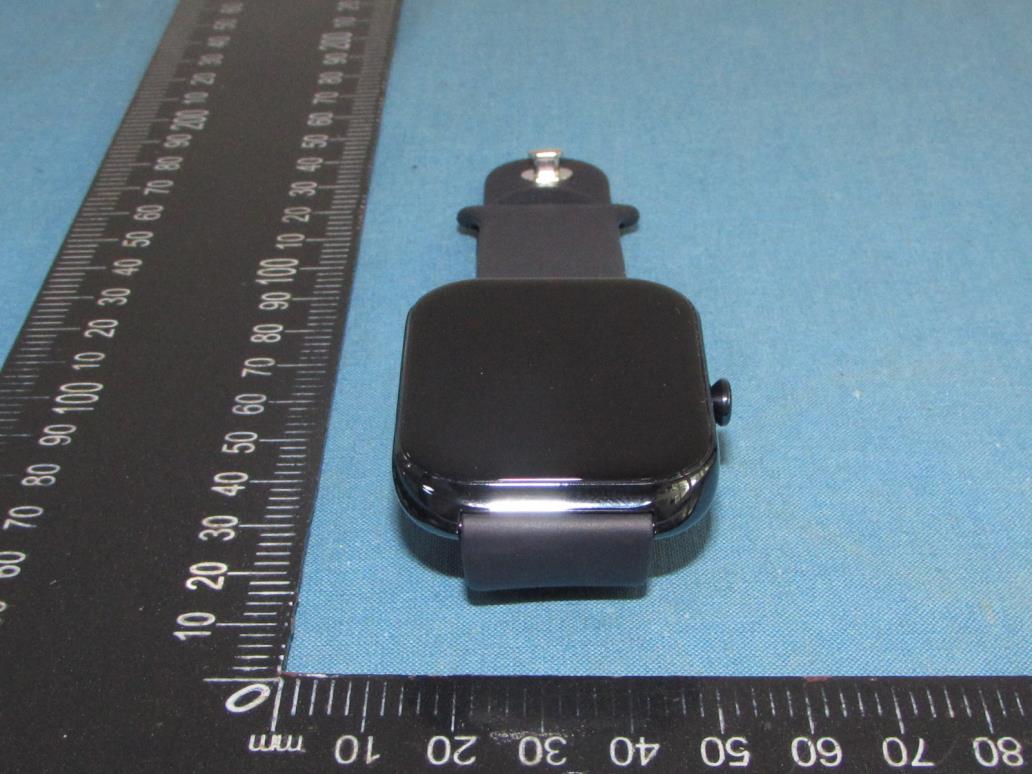

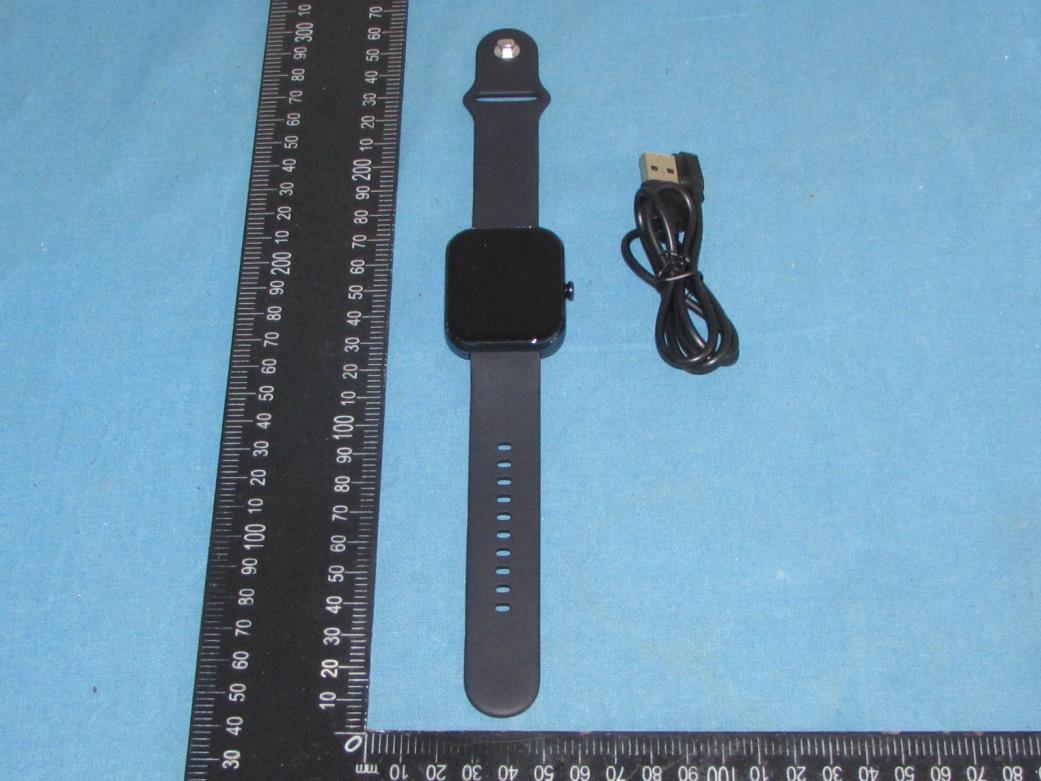

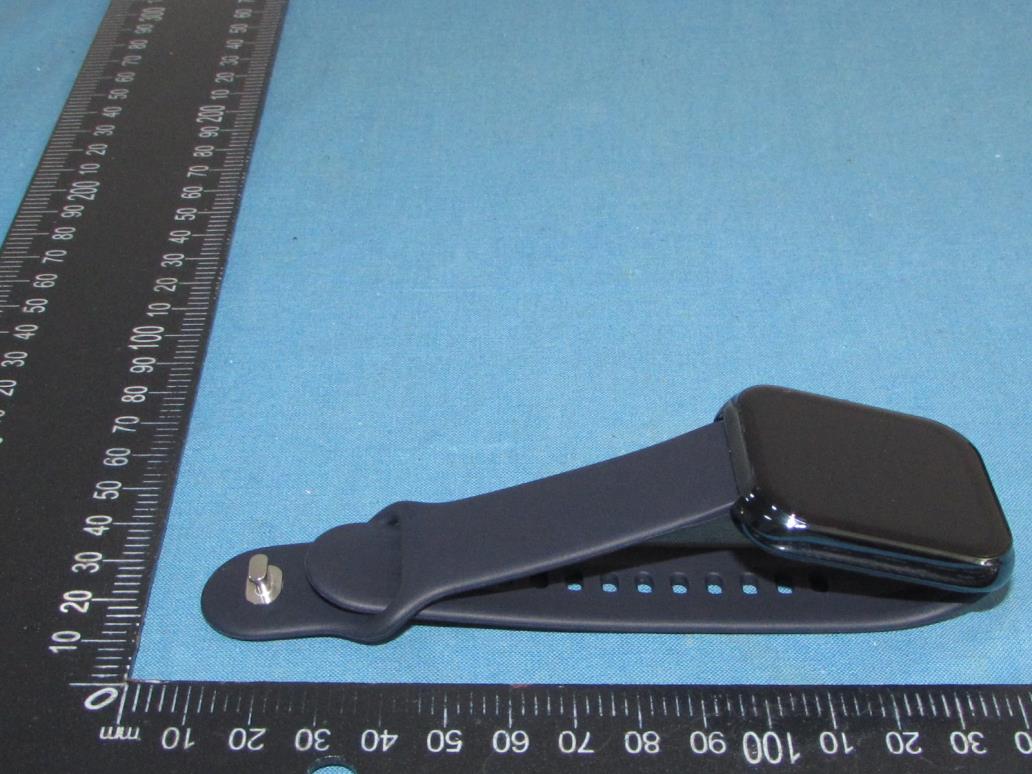

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location: FCC ID: 2AMQ6-LS17

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 8.7 19 2440 9.94 39 2480 10.49 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 8.5 9.5 10.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 9.5 -0.04 0.99 10 2440 10.5 0.96 1.25 10 2480 11.0 1.46 1.40 10 The antenna gain of the EUT for BT is -9.54dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Antenna esting Report RF:Lee Date:2023.06.09 03 01 02 CONTENTS Basic information Test Data Summary Basic information ØSATIMO，Agilent E5071C，Anristu MT8820C，CMW500,StarPointSP9500 Basic information machine data Project name： LS17 ØFriquency： BT test data SWR/Log Mag /Smith） With product Test Data： BT antenna- (efficiency/gain/方向图） 2400-2500MHZ Efficiency FrequencyEfficiency Gain.dBi 2400MHz3%-9.54 2410MHz3%-9.83 2420MHz3%-9.99 2430MHz3%-10.14 2440MHz2%-10.44 2450MHz3%-10.34 2460MHz3%-10.54 2470MHz2%-10.69 2480MHz3%-10.19 2490MHz3%-10.30 2500MHz3%-10.58 Location ANT SIZE: 00 Planning to summarize This report is based on LS17 Pilot prototype. Antenna using Bluetooth wire form of passive test report THANK YOU

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Smart Watch Trade Mark: Haylou Test Model: HAYLOU RS4 Max FCC ID: 2AMQ6-LS17 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.668 2401.668 2402.336 0.5 PASS 2440 0.660 2439.660 2440.320 0.5 PASS 2480 0.624 2479.684 2480.308 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0485 2401.4700 2402.5185 --- --- 2440 1.0338 2439.4840 2440.5178 --- --- 2480 1.0337 2479.4828 2480.5165 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 8.7 ≤30 PASS 2440 9.94 ≤30 PASS 2480 10.49 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -6.99 ≤8.00 PASS 2440 -5.28 ≤8.00 PASS 2480 -5.01 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 8.70 -47.55 ≤-11.3 PASS High 2480 10.39 -48.84 ≤-9.62 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 8.51 8.51 --- PASS 30~1000 8.51 -59.81 ≤-11.49 PASS 1000~26500 8.51 -37.33 ≤-11.49 PASS 2440 Reference 9.78 9.78 --- PASS 30~1000 9.78 -62.09 ≤-10.22 PASS 1000~26500 9.78 -41.01 ≤-10.22 PASS 2480 Reference 10.29 10.29 --- PASS 30~1000 10.29 -62.2 ≤-9.71 PASS 1000~26500 10.29 -43.22 ≤-9.71 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.39 0.62 62.90 2.56 2440 0.39 0.62 62.90 2.56 2480 0.40 0.63 63.49 2.50 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -48.63 ≤-41.20 PASS AV 2389.880 -47.74 ≤-41.20 PASS AV 2390.000 -48.15 ≤-41.20 PASS Peak 2310.000 -43.03 ≤-21.20 PASS Peak 2345.360 -39.17 ≤-21.20 PASS Peak 2390.000 -42.25 ≤-21.20 PASS High 2480 AV 2483.500 -43 ≤-41.20 PASS AV 2483.520 -43 ≤-41.20 PASS AV 2500.000 -47.76 ≤-41.20 PASS Peak 2483.500 -40.12 ≤-21.20 PASS Peak 2484.240 -38.89 ≤-21.20 PASS Peak 2500.000 -42.64 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Report No.: TZ230604545-E Page 19 of 19

Report No.: TZ230604545-E Page 1 of 34 FCC TEST REPORT Test report On Behalf of Dongguan Liesheng Electronic Co., Ltd For Smart Watch Model No.: HAYLOU RS4 Max FCC ID: 2AMQ6-LS17 Prepared for : Dongguan Liesheng Electronic Co., Ltd Room 401-410, Building 1, No.86 Hongtu Road, Nancheng District,Dongguan City, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/7/2~2023/7/10 Date of Report: 2023/7/10 Report Number: TZ230604545-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230604545-E Page 2 of 34 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Liesheng Electronic Co., Ltd Address .................................. : Room 401-410, Building 1, No.86 Hongtu Road, Nancheng District,Dongguan City, Guangdong, China Manufacture's Name ............ : Dongguan Liesheng Electronic Co., Ltd Address .................................. : Room 401-410, Building 1, No.86 Hongtu Road, Nancheng District,Dongguan City, Guangdong, China Product description Trade Mark: Haylou Product name ........................... : Smart Watch Model and/or type reference : HAYLOU RS4 Max Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2023/7/2~2023/7/10 Date of Issue .......................................... : 2023/7/10 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230604545-E Page 3 of 34 Revision History Revision Issue Date Revisions Revised By 000 2023/7/10 Initial Issue Andy Zhang Report No.: TZ230604545-E Page 4 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT .............................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMQ6-LS17 Conducted Emission
