2AMQ6-T16Haylou Wireless Earbuds

55 mm 80 mm 产品介绍 耳机基本参数 充电盒基本参数 通讯距离：10米（无障碍空旷环境） 电池容量：50mAh（单耳机） 充电时间：约1.5小时 通话时间：约3.5小时 待机时间：约140小时 输入参数：5V 100mA 电池类型：锂离子聚合物电池 无线连接：蓝牙5.0 输入参数：5V 1000mA 输出参数：5V 500mA 充电时间：约2.5小时 待机时间：约4个月 电池容量：600mAh 电池类型：锂离子聚合物 Haylou蓝牙耳机售后服务承诺:严格按照《中华人民 共和国消费者权益保护法》、《中华人民共和国产品 质量法》实行售后三包服务，服务内容如下: 在三包有效期内，您可凭购物凭证依照本规定享受免 费的修理、更换、退货的权利。 1、自您购买之日起7日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享 受修理、更换、退货的服务。 2、自您购买之日15日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可 享受修理或更换的服务。 3、自您购买之日起12个月内，本产品出现故障，经 由Haylou 售后服务中心确定为产品质量问题， 可享受修理的服务。 售后服务与支持 保修期： 自产品购买之日起12个月(请妥善保管购买凭证) 免费服务： 在产品保修期内，凡属产品本身质量引起的故障，请 用户凭购买凭证与经销商取得联系以享受售后服务。 如有任何产品损害或瑕疵非可归责于产品质量本身，则不 在保修范围内。有下列情形者不属于保修范围内： 1、因天灾、地震、雷击、异常电压、环境因素而发 生之故障或毁损的。 2、自行或委托未经原厂授权维修之厂商拆卸、改装 或更换非原厂零件。 3、未按使用手册操作或因人为使用不当而造成损坏 者，如产品浸水、腐蚀、掉落、挤压或露在异常 温湿度环境下。 若有售后服务需求,请联系Haylou客服 制造商：东莞市猎声电子科技有限公司 制造商地址:东莞市南城街道周溪社区隆溪路5号高盛科技 园二期之高盛科技大厦第13层1303、1305、1306单元 生产厂：东莞峥嵘电子有限公司 生产厂地址：广东省东莞市洪梅镇疏港大道4号 网 址：www.haylou.com 客服电话：4008-555-083 Haylou蓝牙耳机售后服务 包装内容物 佩戴耳机 开始使用开机 耳机在充电盒内，从充电盒中拿出耳机自动开机。 耳机不在充电盒内且已关机，敲击2次，则为开机 （白灯亮起1S）。 注意：耳机出厂时已完成初始化，可直接取出进行相 关操作。 手动连接：在耳机关机时，手动打开两只耳机，白灯 快闪 等待左右耳机串联，串联成功后主耳机白灯慢闪， 打开设备蓝牙进行连接。 充电 首次开机使用，将耳机及充电盒满电。 插入充电线可同时给耳机和充电盒充电。 充电盒充电中，充电指示灯红灯长亮，充满电后白灯 常亮。 未外接TYPE C充电，耳机放入充电盒，耳机充电中， 红灯慢闪。耳机充满电，红灯熄灭。 功能要点 产品特性 任意耳机敲击2次 来电时，接听/挂断电话 待机时，开启语音助手 音乐时，切换上一曲 音乐时，切换下一曲 任意耳机敲击3次 L耳敲击2次 音乐时，播放/暂停 戴上耳机/取下耳机 1、蓝牙5.0真无线，拿起就用 新一代蓝牙5.0芯片，摆脱传统蓝牙耳机和有线耳 机线缆的困扰,更低延迟，带来更方便自由的体验。 2、APTX+AAC无损高清音质 进口高通3020芯片，iOS+Android双系统兼容， 完美还原音乐细节。 3、四向麦克风通话降噪 四向麦克风精准拾音，深度消除环境背景音，呈 现面对面高清通话体验。 4、红外佩戴检测 高度智能的佩戴探测：佩戴自动播放，取下自动 暂停。 5、振动反馈传感器，精准操作 敲一下，可以接听挂断，上一曲/下一曲。 6、30小时持续播放音乐 超低功耗，三倍提升续航时长。一次充电，耳机 持续播放5小时；充电盒提供25小时电量。 7、无线充电 TAP-C充电接口，同时配置高效率无线充电，可接 受手机、无线充电设备对其充电。充电舱剩余电 量随时看，实时提醒及时充电。 8、主从切换，稳定连接 TWS+双向通信，双发双收，彻底解决失联断连问 题，连接更稳定。 9、强大APP，开盖弹窗快速连接 搭载HAYLOU APP，体验开盖弹窗，一键复位、定 制EQ等丰富功能 *详情参考APP说明*。 Product features 1、Bluetooth 5.0 true wireless, just pick it up New generation bluetooth 5.0 chip, get rid of traditional bluetooth headsets and wired ears Cable trouble, lower latency, more convenient and free experience. 2、Four-way microphone noise reduction Four-way microphone accurately pick up sound, depth of the elimination of environmental background sound, face to face hd phone experience. 3、Vibration feedback sensor, precise operation Knock once, you can answer and hang up, the previous song/the next song. 4、Play music continuously for 30 hours Ultra-low power consumption, triple increase endurance.5 hours of continuous playback on one charge;The charging box provides 25 hours of power. 5、Wireless charging Tap-c charging interface with efficient wireless charging, which can accept charging from mobile phones and wireless charging devices.The remaining charge of the charging cabin will be watched at any time, and real-time reminder will be given for timely charging.。 R耳敲击2次 耳帽×3双（中号已装入耳机中），耳机，充电盒， 数据线，说明书。 耳机一边有声一边无声 充电时遇到的其他情况 极端情况才会出现此类情况，发生后请参考耳机重置 步骤，然后检查手机的蓝牙连接状况，清除蓝牙设备 后重新连接即可。 1、耳机充满电后，白灯常亮30秒后熄灭，此时耳机 处于满电状态； 2、充电仓没电会导致耳机无法充电； 3、充电盒充满电后，充电指示灯会熄灭，此时若再 次接入充电线，充电指示灯则不会提示，不代表 充电盒不能充电。 日常维护 请勿佩戴耳机洗澡，淋雨，放入洗衣机及在异常温度 情况等极端环境使用，每次正常使用后，请用干布等 工具擦干耳机上的汗汁或者雨水，可以有效延长耳机 的使用时长。 耳机重置 如果耳机无法正常连接使用，请参照以下方式重置耳 机：打开充电盒，放入耳机，长按盒子背面触摸键2 秒松开，再长按盒子背面触摸键5秒松开进行复位。 LED灯 充电触点 Haylou-T16 主动降噪真无线蓝牙耳机 使用说明书 Haylou-T16 ANC TWS Bluetooth EarBuds User Manual 将耳机轻轻塞入耳道，调整耳机达到最佳佩戴状态。 敲击2次 白灯亮起1S 自动连接：同时将两只耳机从充电盒取出，等待2-3秒 耳机自动开机串联，待TWS组队后默认右耳为主耳开 始慢闪进入配对状态，打开设备蓝牙搜索 “Haylou-T16 R或Haylou-T16 L”并点击完成连接。 如果连接失败，将耳机放回充电盒，重复上述操作。 首次连接后，耳机开机可自动回连上一次配对设备 （蓝牙需开启）。 Haylou-T16 Haylou-T16 R 单耳自动连接：从充电盒取出一只耳机，自动开机后， 指示灯由白灯快闪变成慢闪时，打开设备蓝牙搜索 “Haylou-T16 R或Haylou-T16 L”并点击完成连接。 单耳手动连接：在耳机关机时，手动开启其中一只耳 机，待耳机变成白灯慢闪时，打开设备蓝牙连接对应 耳机。 使用年限 如本手册所述，在正常使用条件下，本产品的环保使用 期限为10年。 在此期间，产品不会泄露任何危险物质，本产品可以回 收，必须按照当地法规处理。 产品中有害物质的名称及含量 有害物质 部件名称 铅 Pb 汞 Hg 镉 Cd 六价铬 Cr (VI) 多溴 联苯 PBB 多溴 二苯醚 PBDE 邻苯二 甲酸二 异丁酯 DIBP 邻苯二 甲酸 （2-乙酯） DEHP 邻苯二 甲酸二 丁酯 DBP 邻苯二 甲酸丁 苄酯 BBP 耳机主体 电 池 耳 套 配 件 充 电 线 本表格依据SJ/T11364的规定编制 O: 表示该有害物质在部件所有均匀材质中的含量均在 (EU) 2015/863规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量 超出(EU)2015/863规定的限量要求，但目前行业无成熟 的替代方案，在豁免范围仍符合欧盟ROHS指令的环保 要求。 三包凭证 产品型号 用户信息 用户姓名 用户地址 购买日期 邮政编码 订单编号 联系电话 销售单位 购买信息 麦克风 充电口 充电指示灯 充电针 白灯亮起1S 任何状态下，放入充电盒中，耳机充满电后自动关 机。耳机开机，无任何设备连接，等待5分钟关机。 关机 Manual pairing: power off earbuds then manually power on them again. Earbuds will auto enter TWS pairing mode(LED blinks white promptly) and finish pairing when LED on master earbud blinks white slowly. On cellphone, search the earbuds and tap to connect. Functions Double tap either earbud Answer/end call Activate voice assistant (standby) Skip track backward Skip track forward Triple tap either earbud Double tap left earbud Double tap right earbud Factory Setting Please adjust earbud to fit youself best. Tap twice LED glows white for 1s Pop earbuds into the case to charge them. They will auto power off once topping up. Earbuds will auto power off if no connection is built in 5 minutes. Audio only outputs from single earbud Other cases in charging It' s really rare. Please reset G T1 Pro, rem ove conne ctiv ity If earbuds do not function well, please refer the following steps to reset factory: Push earbuds back into the case, open the lid and triple click the case to set them to factory. Earbuds will then auto pair with each other. Right earbud will serve as master and become connectable to cellphone when LED blinks white slowly. (If earbuds stay in the case, they will only be charged after pairing with each other). record on your cellphone and re-connect the earphones to your cellphone. LED glows sol id white for 1 minute when earbuds are topped up. Car ry case cannot char ge earbuds, if its battery dra ins. LEDs on carry case will turn o ff once the case is topped up. If you charge it once again, LEDs will no t g ive a ny no tice , whic h does not mea n the case is not charged. Daily maintenance Please do no t shower with earbuds. Do not wear them in rainy day. Do not leave them in washin g ma chine or o ther extreme situat ion s. Clean them with dry c loth after use in pursuing a longer service life. Aftersales…

Text truncated - open the document above for the full version.

FCC ID: 2AMQ6-T16 Product Name: Haylou Wireless Earbuds Test Model No. Haylou-T16 The device have left and right earphones ，the left and right earphones are electrically identical. <Signature> Name：Abby zhang Title：Manager Applicant Company：Dongguan Liesheng Electronic Co., Ltd.

DATE：2020-6-02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AMQ6-T16 Product Name: Haylou Wireless Earbuds Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) •Schematics •Block diagram •Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Abby zhang Title：Manager Applicant Company：Dongguan Liesheng Electronic Co., Ltd.

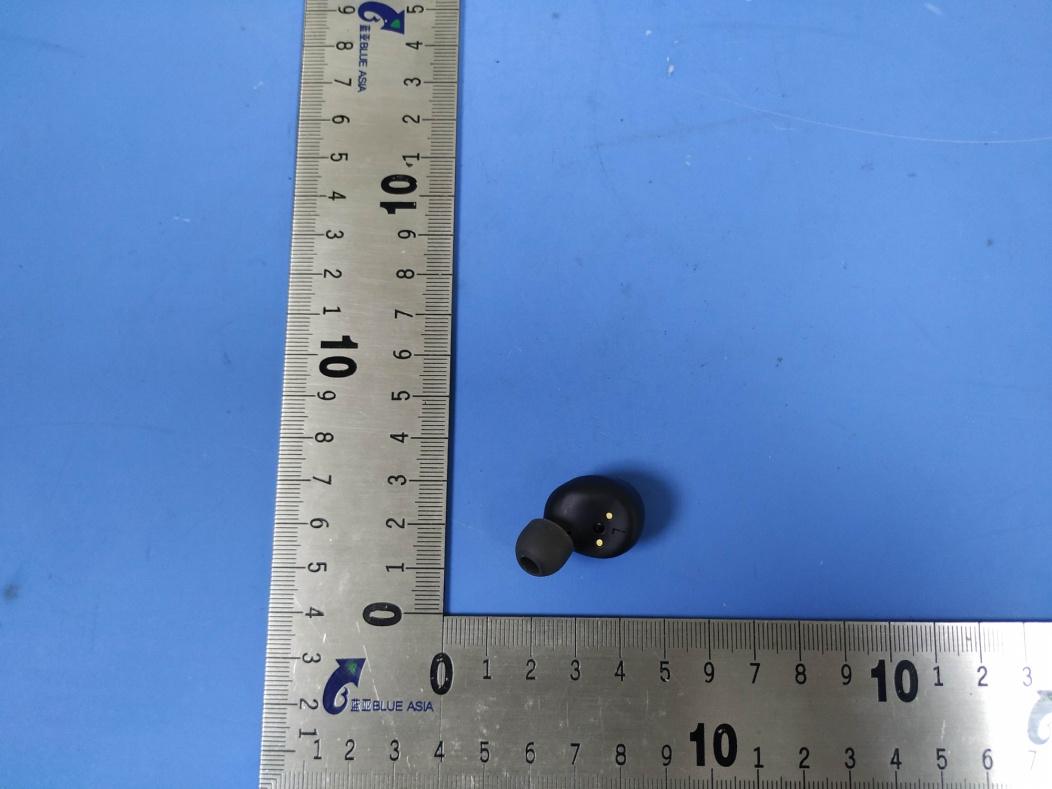

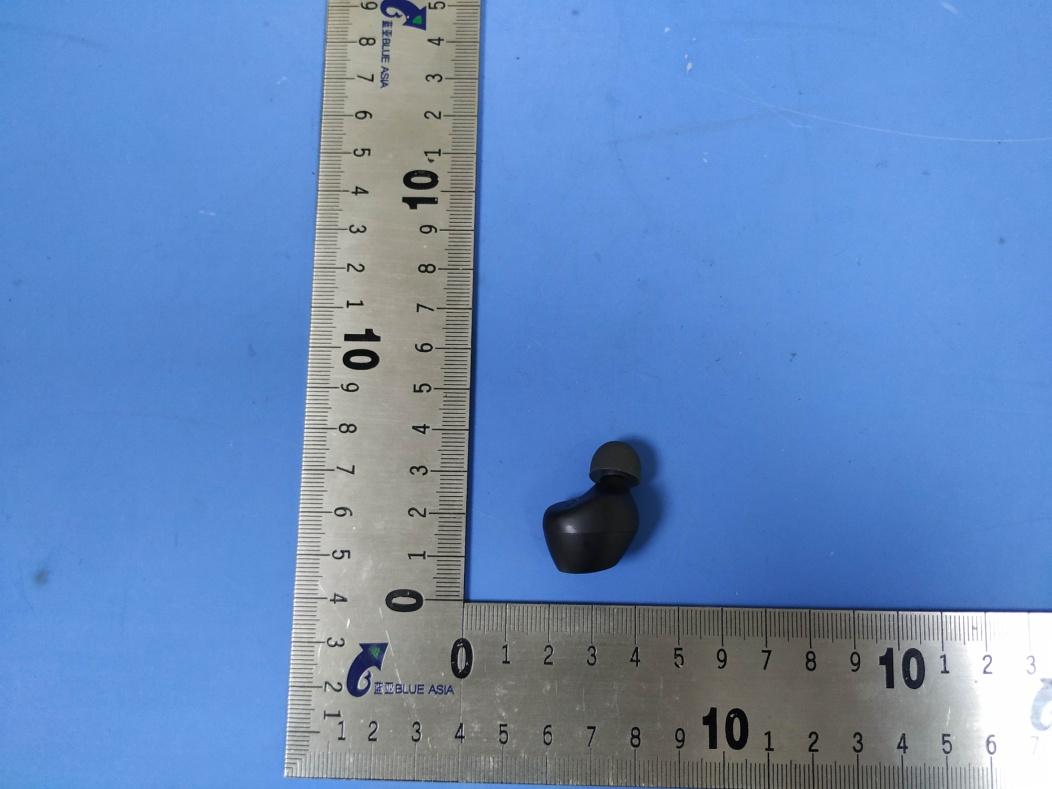

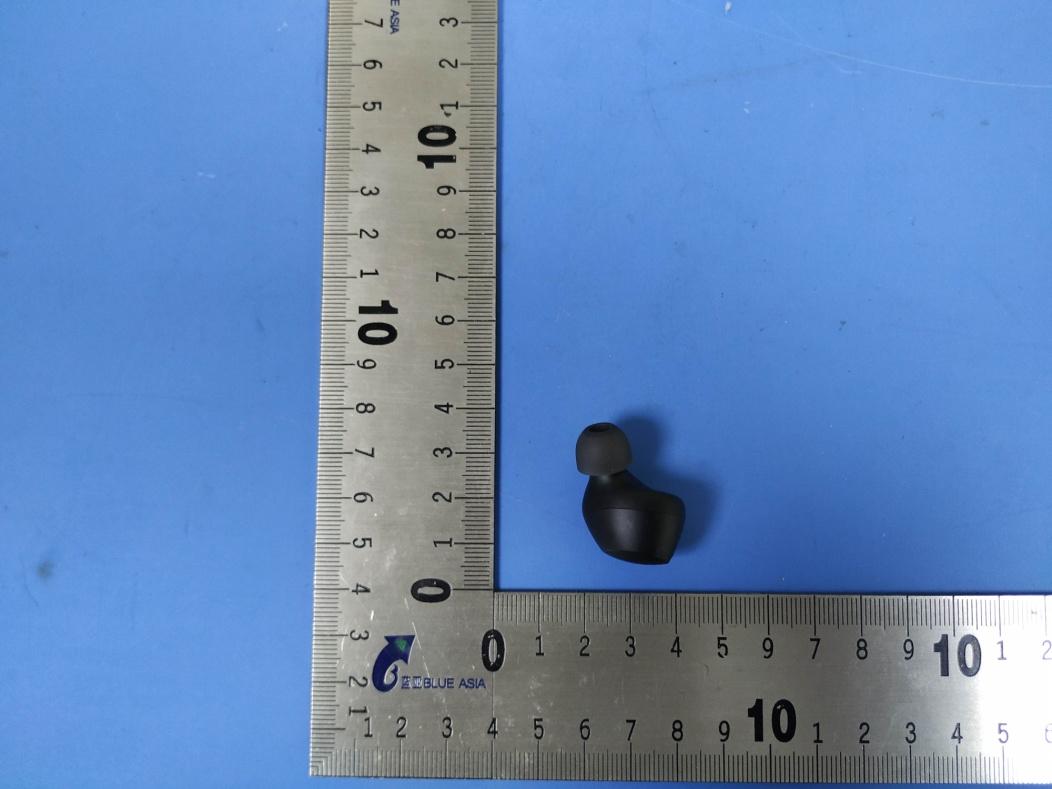

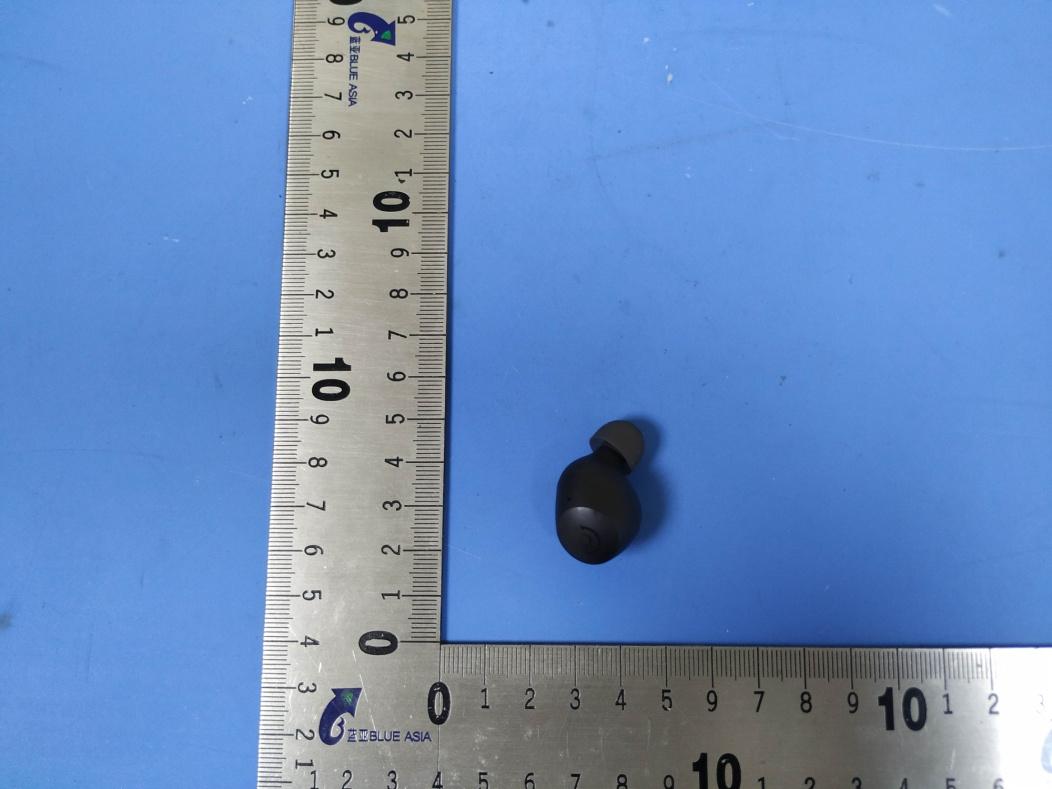

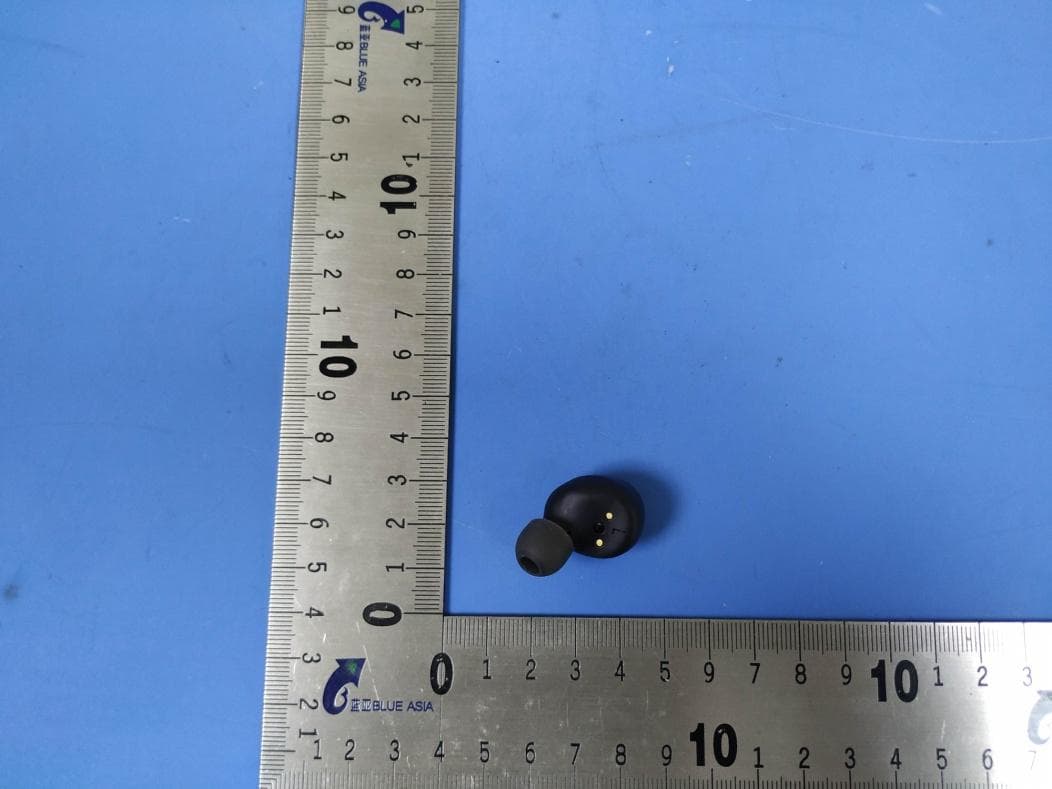

Model No.: Haylou-T16

Model No.: Haylou-T16

RF Exposure Evaluation Statement Product Name: Haylou Wireless Earbuds Model No.：Haylou-T16 FCC ID：2AMQ6-T16 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: （ worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHZ 3.21 ±1 4.21 2.64 0.82 3.0 2441MHz 3.36 ±1 4.36 2.73 0.85 2480MHz 3.96 ±1 4.96 3.13 0.99 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of94 TEST REPORT Product Name : Haylou Wireless Earbuds Brand Mark : Haylou Model No. : Haylou-T16 FCC ID : 2AMQ6-T16 Report Number : BLA-EMC-202005-A5101 Date of Sample Receipt : 2020/5/22 Date of Test : 2020/5/22 to 2020/5/30 Date of Issue : 2020/5/30 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Dongguan Liesheng Electronic Co., Ltd. 13/F,Project Phrase 2 of GaoshengTechTower,No.5,Longxi Road,Nancheng,Dongguan,Guangdong,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/5/30 Report No.: BLA-EMC-202005-A5101 Page 2 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/5/30 Original Report No.: BLA-EMC-202005-A5101 Page 3 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 16 CARRIER FREQUENCIES SEPARATION ....................................................................................................... 17 LIMITS ............................................................................................................................................................................. 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 17 TEST DATA ........................................................................................................................................................................ 17 20DB BANDWIDTH .......................................................................................................................................... 18 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 18 TEST DATA ........................................................................................................................................................................ 18 CONDUCTED PEAK OUTPUT POWER .......................................................................................................... 19 LIMITS ............................................................................................................................................................................. 19 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 19 TEST DATA ........................................................................................................................................................................ 20 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ) ............................................................. 21 LIMITS ............................................................................................................................................................................. 21 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 2…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202005-A5101 Page 26 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] BLOCK DIAGRAM OF TEST SETUP PROCEDURE a. For below 1GHz, the EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 or 10 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. For above 1GHz, the EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter fully-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. c. The EUT was set 3 or 10 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. d. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. e. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. f. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. g. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Report No.: BLA-EMC-202005-A5101 Page 27 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] h. Test the EUT in the lowest channel, the middle channel, the Highest channel. i. The radiation measurements are performed in X, Y, Z axis positioning for Transmitting mode, and found the X axis positioning which it is the worst case. j. Repeat above procedures until all frequencies measured was complete. Remark: 1) For emission below 1GHz, through pre-scan found the worst case is the lowest channel. Only the worst case is recorded in the report. 2) The field strength is calculated by adding the Antenna Factor, Cable Factor & Preamplifier. The basic equation with a sample calculation is as follows: Final Test Level =Receiver Reading + Antenna Factor + Cable Factor ̈C Preamplifier Factor 3) Scan from 9kHz to 25GHz, the disturbance above 18GHz and below 30MHz was very low. The points marked on above plots are the highest emissions could be found when testing, so only above points had been displayed. The amplitude of spurious emissions from the radiator which are attenuated more than 20dB below the limit need not be reported. 4) For frequencies above 1GHz, the field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. For the emissions whose peak level is lower than the average limit, only the peak measurement is shown in the report. Report No.: BLA-EMC-202005-A5101 Page 28 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST DATA During the test, pre-scan the GFSK, Pi/4QPSK, 8-DPSK modulation, and found the GFSK modulation which it is worse case. [TestMode: TX mode with modulation] Test channel:lowest Peak value: Frequency (MHz) Read Level (dBuV) Correct factor Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarizatio n 4804.00 42.45 2.38 44.83 74 -29.17 Vertical 7206.00 44.12 2.17 46.29 74 -27.71 Vertical 9608.00 41.77 2.06 43.83 74 -30.17 Vertical 12010.00 * 74 Vertical 14412.00 * 74 Vertical 4804.00 41.29 2.38 43.67 74 -30.33 Horizontal 7206.00 42.68 2.17 44.85 74 -29.15 Horizontal 9608.00 41.87 2.06 43.93 74 -30.07 Horizontal 12010.00 * 74 Horizontal 14412.00 * 74 Horizontal Test channel:Middle Peak value: Frequency (MHz) Read Level (dBuV) Correct factor Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarizatio n 4882.00 40.91 0.17 41.08 74 -32.92 Vertical 7323.00 42.24 1.43 43.67 74 -30.33 Vertical 9764.00 40.76 1.26 42.02 74 -31.98 Vertical 12205.00 * 74 Vertical 14646.00 * 74 Vertical 4882.00 40.64 0.17 40.81 74 -33.19 Horizontal 7323.00 42.27 1.43 43.7 74 -30.3 Horizontal 9764.00 41.11 1.26 42.37 74 -31.63 Horizontal 12205.00 * 74 Horizontal 14646.00 * 74 Horizontal Test channel:Highest Peak value: Frequency Read Level Correct Level Limit Line Over Limit Polarizatio Report No.: BLA-EMC-202005-A5101 Page 29 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] (MHz) (dBuV) factor (dBuV/m) (dBuV/m) (dB) n 4960.00 41.06 1.04 42.1 74 -31.9 Vertical 7440.00 43.85 2.59 46.44 74 -27.56 Vertical 9920.00 40.47 2.74 43.21 74 -30.79 Vertical 12400.00 * 74 Vertical 14880.00 * 74 Vertical 4960.00 40.66 1.04 41.7 74 -32.3 Horizontal 7440.00 43.36 2.59 45.95 74 -28.05 Horizontal 9920.00 41.48 2.74 44.22 74 -29.78 Horizontal 12400.00 * 74 Horizontal 14880.00 * 74 Horizontal Test Result: Pass Report No.: BLA-EMC-202005-A5101 Page 30 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202005-A5101 Page 51 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.3 APPENDIX: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 0.998 >=0.738 PASS 2DH1 Ant1 Hop 1 >=0.886 PASS 3DH1 Ant1 Hop 0.984 >=0.890 PASS Report No.: BLA-EMC-202005-A5101 Page 52 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202005-A5101 Page 53 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 54 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.4 APPENDIXE: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.37 330 0.122 <=0.4 PASS DH3 Ant1 Hop 1.62 170 0.276 <=0.4 PASS DH5 Ant1 Hop 2.87 110 0.316 <=0.4 PASS Report No.: BLA-EMC-202005-A5101 Page 55 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Report No.: BLA-EMC-202005-A5101 Page 56 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] DH5_Ant1_Hop Report No.: BLA-EMC-202005-A5101 Page 57 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 58 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.5 APPENDIX: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202005-A5101 Page 59 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202005-A5101 Page 60 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 61 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.6 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 2.95 -56.16 <=-17.05 PASS High 2480 3.76 -54.76 <=-16.24 PASS Low Hop_2402 2.96 -56.13 -17.04 PASS High Hop_2480 3.53 -54.35 -16.47 PASS 2DH1 Ant1 Low 2402 1.44 -56.14 <=-18.56 PASS High 2480 2.27 -54.04 <=-17.73 PASS Low Hop_2402 1.50 -55.65 -18.5 PASS High Hop_2480 2.18 -54.55 -17.82 PASS 3DH1 Ant1 Low 2402 1.40 -56.02 <=-18.6 PASS High 2480 2.25 -54.28 <=-17.75 PASS Low Hop_2402 1.41 -55.96 -18.59 PASS High Hop_2480 1.78 -55.26 -18.22 PASS Report No.: BLA-EMC-202005-A5101 Page 62 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202005-A5101 Page 63 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 Report No.: BLA-EMC-202005-A5101 Page 64 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202005-A5101 Page 65 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202005-A5101 Page 66 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Str…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202005-A5101 Page 76 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 Report No.: BLA-EMC-202005-A5101 Page 77 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202005-A5101 Page 78 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202005-A5101 Page 79 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] APPENDIX A: PHOTOGRAPHS OF TEST SETUP Antenna Requirement Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202005-A5101 Page 80 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Radiated Spurious Emissions Report No.: BLA-EMC-202005-A5101 Page 81 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202005-A5101 Page 82 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 83 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 84 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202005-A5101 Page 85 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:marketing@c…

Text truncated - open the document above for the full version.
