2AMQ6-T17Haylou Wireless Earbuds

55 mm 80 mm 料号 L30.001.000093BY 资料确认表 名称 材质工艺 软件料号 物料承认 书编号 法务 市场 包装 软件 电子 结构 声学 品牌 A 热缩膜 防爆袋 外箱 公差: mm名称 ±0.5 ±0.5 ±1.0 宽:±3,高:±15 宽:±3,高:±15 彩盒 标签 说明书 ±5.0 东莞市猎声电子科技有限公司 Dongguan Liesheng Electronics Co., Ltd. 注意：尺寸要求：图面标注尺寸为必检尺寸 材质：80g 铜版纸+风琴折 0000430C 产品介绍 耳机基本参数 充电盒基本参数 通讯距离：10米（无障碍空旷环境） 电池容量：40mAh（单耳机） 充电时间：约2小时 通话时间：约5小时 待机时间：约140小时 输入参数：5V 100mA 电池类型：锂离子聚合物电池 无线连接：蓝牙5.0 输入参数：5V 1000mA 输出参数：5V 500mA 充电时间：约2.5小时 待机时间：约4个月 电池容量：600mAh 电池类型：锂离子聚合物 Haylou蓝牙耳机售后服务承诺:严格按照《中华人民共和国 消费者权益保护法》、《中华人民共和国产品质量法》实行 售后三包服务，服务内容如下: 在三包有效期内，您可凭购物凭证依照本规定享受免费的修理、 更换、退货的权利。 1、自您购买之日起7日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受修理、 更换、退货的服务。 2、自您购买之日15日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受修理 或更换的服务。 3、自您购买之日起12个月内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受修理 的服务。 售后服务与支持 保修期： 自产品购买之日起12个月(请妥善保管购买凭证) 免费服务： 在产品保修期内，凡属产品本身质量引起的故障，请用户 凭购买凭证与经销商取得联系以享受售后服务。 如有任何产品损害或瑕疵非可归责于产品质量本身，则不 在保修范围内。有下列情形者不属于保修范围内： 1、因天灾、地震、雷击、异常电压、环境因素而发生之 故障或毁损的。 2、自行或委托未经原厂授权维修之厂商拆卸、改装或更换 非原厂零件。 3、未按使用手册操作或因人为使用不当而造成损坏者， 如产品浸水、腐蚀、掉落、挤压或露在异常温湿度 环境下。 若有售后服务需求,请联系Haylou客服 制造商：东莞市猎声电子科技有限公司 制造商地址:东莞市南城街道周溪社区隆溪路5号高盛科技园 二期之高盛科技大厦第13层1303、1305、1306单元 生产厂：东莞峥嵘电子有限公司 生产厂地址：广东省东莞市洪梅镇疏港大道4号 网 址：www.haylou.com 客服电话：4008-555-083 Haylou蓝牙耳机售后服务 包装内容物 佩戴耳机 连接配对 开机 开盖自动开机。 充电 耳机充电方式：放入充电盒关盖，充电盒白灯呼吸， 充满后熄灭。 充电盒充电方式：1、充电线充电 2、无线充电 充电盒充电时，红灯常亮，充满后白灯常亮。 低电量：充电盒电量低于20%时，红灯快闪。 功能说明 产品特性 1、蓝牙5.0真无线，拿起就用 2、aptX+AAC无损高清音质 3、四向麦克风通话降噪 4、红外佩戴检测 5、振动反馈传感器，精准操作 6、30小时持续播放音乐 7、无线充电 8、主从切换，稳定连接 9、强大APP，开盖弹窗快速连接 Features 1. Bluetooth 5.0 TWS earbuds & Pick-up to use 2. AptX+AAC 3. Four-way mic with noise canceling in calling 4. Infrared wearing detection 5. Vibration feedback sensor offering precise control 6. 30 hours of playback 7. Wireless charging 8. Master-slave switch & Stable connection 9. Exclusive APP with opening lid to connect and pairing animation 耳帽×3双（中号已装入耳机中），耳机，充电盒， 充电线，说明书。 日常维护 请勿佩戴耳机洗澡，淋雨，放入洗衣机及在异常温度情况 等极端环境使用，每次正常使用后，请用干布等工具擦干 耳机上的汗汁或者雨水，可以有效延长耳机的使用时长。 耳机重置 1、充电盒开盖并保持打开状态，耳机正常充电中。 2、连续快速轻触4次充电盒背面的复位按键，待充电盒 指示灯红白交替闪烁3S后，关上充电盒。 3、清除耳机和蓝牙设备之间的配对记录 。 4、重新开机配对即可。 LED 触控区域 光感检测 充电触点 Haylou-T17 真无线蓝牙耳机 使用说明书 Haylou-T17 True Wireless Earbuds User Manual 将耳机轻轻塞入耳道，调整耳机达到最佳佩戴状态。 1、自动连接 同时将两只耳机从充电盒取出，打开设备蓝牙搜索 “Haylou-T17 R或Haylou-T17 L”并点击完成连接,等待 约2秒，设备界面弹窗提示配对另一边耳机，点击配对连接 即可。如果连接失败，将耳机放回充电盒，重复上述操作。 首次连接后，耳机开机可自动回连上一次配对设备 （蓝牙需开启）。 注意：耳机出厂时已完成初始化，可直接取出进行相关操作。 Haylou-T17 R 使用年限 如本手册所述，在正常使用条件下，本产品的环保使用 期限为10年。 在此期间，产品不会泄露任何危险物质，本产品可以回 收，必须按照当地法规处理。 产品中有害物质的名称及含量 有害物质 部件名称 铅 Pb 汞 Hg 镉 Cd 六价铬 Cr (VI) 多溴 联苯 PBB 多溴 二苯醚 PBDE 邻苯二 甲酸二 异丁酯 DIBP 邻苯二 甲酸 （2-乙酯） DEHP 邻苯二 甲酸二 丁酯 DBP 邻苯二 甲酸丁 苄酯 BBP 耳机主体 电 池 耳 套 配 件 充 电 线 本表格依据SJ/T11364的规定编制 O: 表示该有害物质在部件所有均匀材质中的含量均在 (EU) 2015/863规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量 超出(EU)2015/863规定的限量要求，但目前行业无成熟 的替代方案，在豁免范围仍符合欧盟ROHS指令的环保 要求。 三包凭证 产品型号 用户信息 用户姓名 用户地址 购买日期 邮政编码 订单编号 联系电话 销售单位 购买信息 1、耳机放入充电盒中，关盖自动关机。 2、耳机开机，无任何设备连接，等待5分钟关机。 关机 Touch Panel Please adjust earbud to fit youself best. How to WearOverview 注意 1、使用产品前请仔细阅读本使用说明书并请妥善保管。 2、首次使用时，请先将本产品充满电。 3、如果产品长期(超过2个星期)不用，请对其充电。 4、必须选择正规厂家生产且经过国家CCC认证的充电器。 5、长时间连续使用耳机有损听力，请合理控制使用时间 及音量。 6、使用耳机会降低对外界声音的感知力，请不要在可能 威胁到安全的环境中使用耳机。 警告 1、请勿以任何理由拆开、维修或改装耳机，否则可能会 导致起火甚至彻底损坏本产品。 2、请勿将设备置于温度过低或过高（0°C以下或45°C以上） 的环境下。 3、使用产品指示灯时，请避开儿童或动物的眼睛。 4、请勿在雷暴天气下使用本产品，雷暴可导致设备工作异常， 并增加触电的危险。 5、请勿使用酒精或其他挥发性液体擦拭本产品。 6、请勿将本产品与液体接触。 注意事项 说明书中的产品、配件、用户界面等插图均为示意图， 仅供参考。由于产品的更新和升级，产品实物与示意图 可能略有差异，请以实物为准。 使用产品前请仔细阅读本说明书，并妥善保管。 Haylou T19 性能故障表 蓝牙耳机 性能故障 1. 使用过程中听不到声音。 2. 通话过程中，对方听不到声音。 3. 无法充电。 名称 非保修条例 1、使用造成的正常磨损脏污如：刮痕、腕带颜色改变； 因接触化学试剂、接触尖锐物体、掉落挤压等人为导致 损坏。 2、未经授权的维修、误用、碰撞、疏忽、滥用、进液、 事故、改动、不正确的使用非本产品配件或撕毁、 涂改标贴、防伪标记。 3、已超过三包有效期。 4、因不可抗力造成的损坏。 5、不符合《Haylou T19 真无线蓝牙耳机产品性能故障表》 所列性能故障的情况。 6、因人为原因导致本产品及其配件产生《Haylou T19 真 无线蓝牙耳机产品性能故障表》所列性能故障。 10:00 4G 开启蓝牙 设备名称 可用设备 开启检测 已开启，允许周围设备检测到 蓝牙 步骤二 步骤一 10:00 4G 开启蓝牙 蓝牙 我的设备 Haylou T17 R 已连接 i 配对蓝牙设备 要与蓝牙设备Haylou T17 L 配对吗？ 取消配对 2、APP连接 1、扫描包装盒上或者以下APP二维码，下载并安装App。 2、在手机应用市场搜索下载并安装"Haylou"App。 3、首次连接APP时，打开充电盒但不取出耳机，保持设备 蓝牙开启。 4、打开Haylou APP,在设备页面选择“添加设备”，按页面 提示完成搜索配对。 提示： 1、实际操作可能与描述略有差异，按照APP内指引进行操作。 2、保持充电盒和耳机电量充足，蓝牙设备蓝牙开启状态。 3、连接异常时，请尝试重复以上第3、第4步操作，若故障 无法排除，请尝试重置设备。 4、iOS系统原因，不支持开盖弹窗功能。 How to Charge Put earbuds into carry case to charge. LED on earbud will breathe white when charging and turn off once topping up. You may charge the case via USB cable or choose wireless charging. LED glows solid red when you charge the case and turns white once it is topped up. Low battery warning: LED on case will blink red promptly when battery level is under 20%. How to Connect Power-on Open lid to power on. 1. Auto pairing Take out both earbuds from the case. On phone, search for Haylou-T17_R/L and tap to connect. Notice reminding you to connect to the other earbud will jump out on phone and tap to connect. If earbuds fail to connect, please push earbuds back into case and try again. After connection, earbuds will auto re-connect to the last device upon powering on again (Bluetooth function has to be activated). Note: Earbuds have been initialized upon shipping out. Haylou-T17 R 1. Push earbuds back into case to power off. 2. Auto power off with no connection beyond 5 minutes. Power-off 10:00 4G Step 2 Step 1 10:00 4G Haylou T17 R Connected i Pair with Haylou T17 L？ Cancel Pair BluetoothBluetooth Turn on BluetoothTurn on Bluetooth Visibility Visible to all Bluetooth devices nearby Device name Available Devices My Devices 2. How to Link with APP 1. Please scan QR Code on package or below to download and install Haylou APP. 2. Or you may also download and install it in APP market. 3. For first time linking, please open lid and keep earbuds inside the case while Bluetooth function must be turned on. 4. In Haylou APP, tap Adding Device and follow the instructions to link. Notes: 1. Whenever instructions in APP diverge from the above steps, the former prevails. 2. Keep batteries of earbuds and case enough to use and do not turn off Bluetooth function. 3. For any connectivity issues, please repeat the above step 3 and 4. If the issue is not fixed, please set earbuds to factory. 4. No pairing an…

Text truncated - open the document above for the full version.

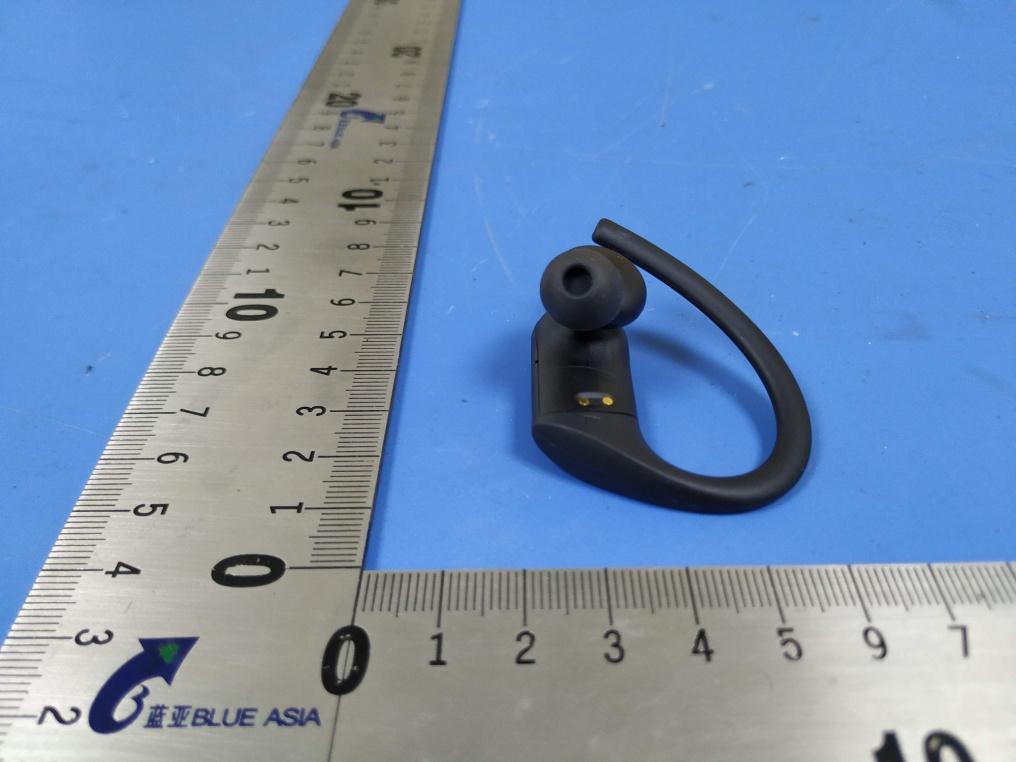

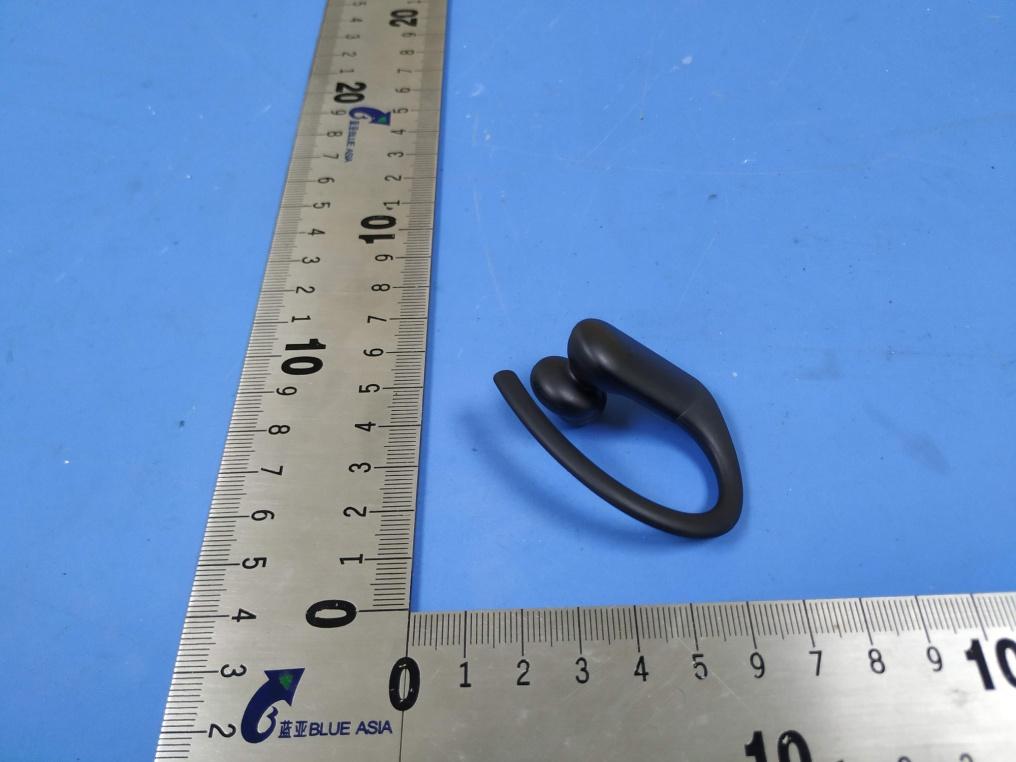

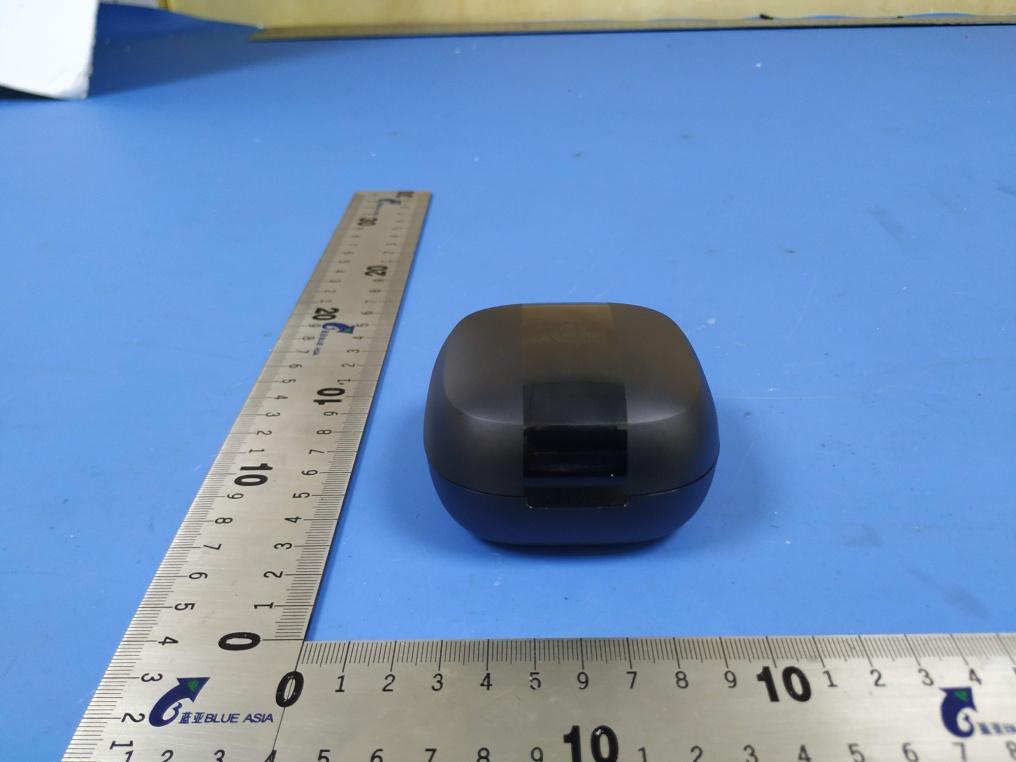

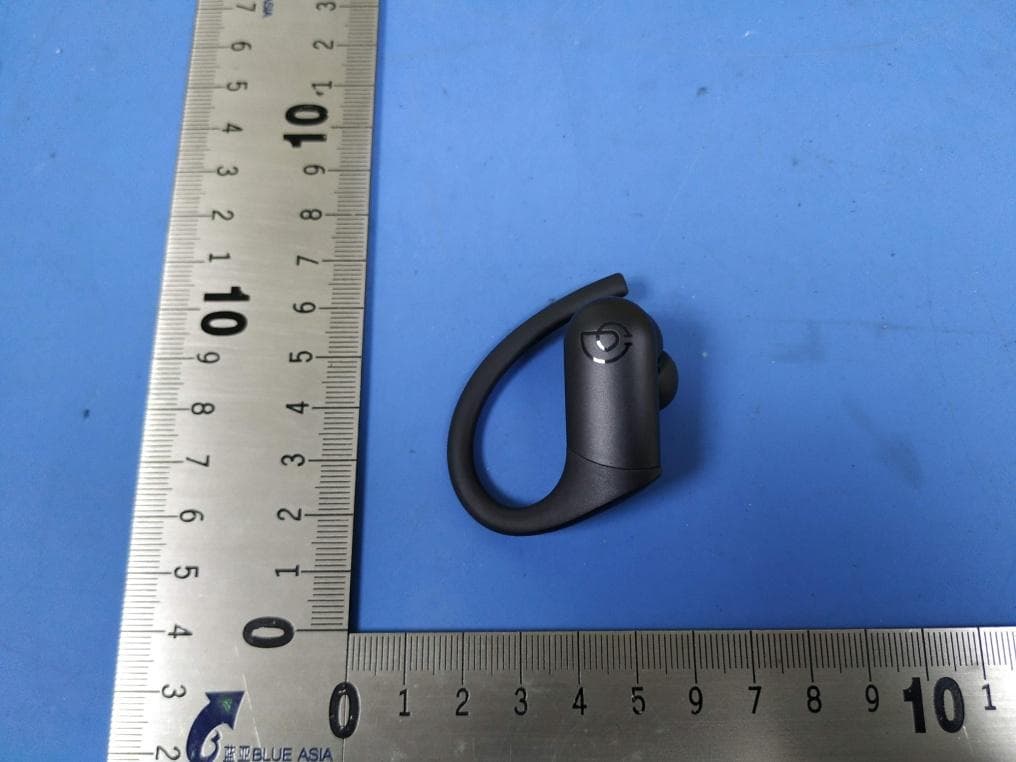

Product Name：Haylou Wireless Earbuds Model No.：Haylou-T17 FCC ID：2AMQ6-T17 The device have left and right earphones ，left and right earphones are electrically identical.

Model No.: Haylou-T17

Model No.: Haylou-T17

RF Exposure Evaluation Statement Product Name: Haylou Wireless Earbuds Model No.：Haylou-T17 FCC ID：2AMQ6-T17 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: BDR （GFSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHZ 5.88 ±1 6.88 4.88 1.51 3.0 2441MHz 5.42 ±1 6.42 4.39 1.37 2480MHz 4.85 ±1 5.85 3.85 1.21 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755 -28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Haylou Wireless Earbuds Brand Mark : N/A Model No. : Haylou-T17 FCC ID : 2AMQ6-T17 Report Number : BLA-EMC-202006-A6501 Date of Sample Receipt : 2020/6/22 Date of Test : 2020/6/22 to 2020/7/20 Date of Issue : 2020/7/23 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Dongguan Liesheng Electronic Co., Ltd. 13/F, Project Phrase 2 of GaoshengTechTower, No.5, Longxi Road, Nancheng, Dongguan, Guangdong, China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/7/23 Report No.: BLA-EMC-202006-A6501 Page 2 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755 -28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/7/23 Original Report No.: BLA-EMC-202006-A6501 Page 3 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 16 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ) ............................................................. 17 LIMITS ............................................................................................................................................................................. 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 17 PROCEDURE ................................................................................................................................................................... 17 TEST DATA ........................................................................................................................................................................ 19 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 21 LIMITS ............................................................................................................................................................................. 21 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 22 PROCEDURE ................................................................................................................................................................... 22 TEST DATA ........................................................................................................................................................................ 24 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 32 LIMITS ............................................................................................................................................................................. 32 BLOCK DIAGRAM OF TEST SETUP ...........................................................…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202006-A6501 Page 26 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755 -28682673 FAX: +86-755-28682673 Email:[email protected] [Test Mode: GFSK] Remark: During the test, pre-scan the GFSK, π /4 DQPSK and 8DPSK modulation, and found the GFSK modulation which it is worse case. Test channel:lowest Report No.: BLA-EMC-202006-A6501 Page 27 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755 -28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 28 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test channel:Middle Report No.: BLA-EMC-202006-A6501 Page 29 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 30 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test channel:Highest Report No.: BLA-EMC-202006-A6501 Page 31 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Result: Pass Report No.: BLA-EMC-202006-A6501 Page 32 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 6.10.5 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Eason Temperature 25°C Humidity 55% LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Remark: The emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector except for the frequency bands 9-90kHz, 110-490kHz and above 1000 MHz. Radiated emission limits in these three bands are based on measurements employing an average detector, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Report No.: BLA-EMC-202006-A6501 Page 33 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] BLOCK DIAGRAM OF TEST SETUP PROCEDURE a. For below 1GHz, the EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 or 10 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. For above 1GHz, the EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter fully-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. c. The EUT was set 3 or 10 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. d. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. e. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. f. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. g. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Report No.: BLA-EMC-202006-A6501 Page 34 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] h. Test the EUT in the lowest channel, the middle channel, the Highest channel. i. The radiation measurements are performed in X, Y, Z axis positioning for Transmitting mode, and found the X axis positioning which it is the worst case. j. Repeat above procedures until all frequencies measured was complete. Remark 1: Level= Read Level+ Cable Loss+ Antenna Factor- Preamp Factor Remark 2: For frequencies above 1GHz, the field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. For the emissions whose peak level is lower than the average li…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202006-A6501 Page 51 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 Report No.: BLA-EMC-202006-A6501 Page 52 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202006-A6501 Page 53 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.2 APPENDIX: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 5.88 <=20.97 PASS 2441 5.42 <=20.97 PASS 2480 4.85 <=20.97 PASS 2DH1 Ant1 2402 3.95 <=20.97 PASS 2441 3.56 <=20.97 PASS 2480 3.17 <=20.97 PASS 3DH1 Ant1 2402 4.64 <=20.97 PASS 2441 4.18 <=20.97 PASS 2480 3.6 <=20.97 PASS Report No.: BLA-EMC-202006-A6501 Page 54 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202006-A6501 Page 55 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202006-A6501 Page 56 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202006-A6501 Page 57 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 58 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.3 APPENDIX: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 Hop 1.182 >=1.110 PASS 2DH1 Ant1 Hop 1.162 >=0.934 PASS 3DH1 Ant1 Hop 0.992 >=0.914 PASS Report No.: BLA-EMC-202006-A6501 Page 59 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202006-A6501 Page 60 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.4 APPENDIX: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.38 330 0.126 <=0.4 PASS DH3 Ant1 Hop 1.64 170 0.279 <=0.4 PASS DH5 Ant1 Hop 2.89 110 0.318 <=0.4 PASS Report No.: BLA-EMC-202006-A6501 Page 61 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Report No.: BLA-EMC-202006-A6501 Page 62 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] DH5_Ant1_Hop Report No.: BLA-EMC-202006-A6501 Page 63 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.5 APPENDIXF: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202006-A6501 Page 64 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202006-A6501 Page 65 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.6 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 1.58 -56.09 <=-18.42 PASS High 2480 4.76 -55.31 <=-15.24 PASS Low Hop_2402 0.83 -55.58 -19.17 PASS High Hop_2480 4.66 -55.34 -15.34 PASS 2DH1 Ant1 Low 2402 1.52 -56.03 <=-18.48 PASS High 2480 0.76 -54.97 <=-19.25 PASS Low Hop_2402 1.34 -56.39 -18.66 P…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202006-A6501 Page 76 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference Report No.: BLA-EMC-202006-A6501 Page 77 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202006-A6501 Page 78 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202006-A6501 Page 79 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202006-A6501 Page 80 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] APPENDIX A: PHOTOGRAPHS OF TEST SETUP Antenna Requirement Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202006-A6501 Page 81 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Radiated Spurious Emissions Report No.: BLA-EMC-202006-A6501 Page 82 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202006-A6501 Page 83 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 84 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 85 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 86 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 87 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A6501 Page 88 of94 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86…

Text truncated - open the document above for the full version.
