2AMQ6-T19LHaylou-T19 True Wireless Earbuds

55 mm 80 mm 料号 资料确认表 名称 材质工艺 软件料号 物料承认 书编号 法务 市场 包装 软件 电子 结构 声学 品牌 A 热缩膜 防爆袋 外箱 公差: mm名称 ±0.5 ±0.5 ±1.0 宽:±3,高:±15 宽:±3,高:±15 彩盒 标签 说明书 注意：尺寸要求：图面标注尺寸为必检尺寸 ±5.0 70g书写纸折页 T19中英文说明书 东莞市猎声电子科技有限公司 Dongguan Liesheng Electronics Co., Ltd. 产品介绍 耳机基本参数 充电盒基本参数 通讯距离：10米（无障碍空旷环境） 电池容量：40mAh（单耳机） 充电时间：约2小时 通话时间：约5小时 待机时间：约140小时 输入参数：5V 100mA 电池类型：锂离子聚合物电池 无线连接：蓝牙5.0 输入参数：5V 1000mA 输出参数：5V 500mA 充电时间：约2.5小时 待机时间：约4个月 电池容量：600mAh 电池类型：锂离子聚合物 Haylou蓝牙耳机售后服务承诺:严格按照《中华人民 共和国消费者权益保护法》、《中华人民共和国产品 质量法》实行售后三包服务，服务内容如下: 在三包有效期内，您可凭购物凭证依照本规定享受免 费的修理、更换、退货的权利。 1、自您购买之日起7日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受修 理、更换、退货的服务。 2、自您购买之日15日内，本产品出现故障，经由 Haylou售后服务中心确定为产品质量问题，可享受 修理或更换的服务。 3、自您购买之日起12个月内，本产品出现故障，经 由Haylou 售后服务中心确定为产品质量问题，可享 受修理的服务。 注意事项 LED指示灯说明 1、若产品超过两个星期未使用，建议使用前先对产 品进行充电； 2、必须选择正规厂家生产的经过国家CCC认证的充 电器； 3、长时间连续使用耳机有损听力健康，请合理控制 使用时间及音量； 4、使用耳机会降低对外加声音的感知力，请不要在 可能威胁到安全的环境中使用耳机。 售后服务与支持 保修期： 自产品购买之日起12个月(请妥善保管购买凭证) 免费服务： 在产品保修期内，凡属产品本身质量引起的故障，请 用户凭购买凭证与经销商取得联系以享受售后服务。 1、因天灾、地震、雷击、异常电压、环境因素而发 生之故障或毁损的。 2、自行或委托未经原厂授权维修之厂商拆卸、改装 或更换非原厂零件。 3、未按使用手册操作或因人为使用不当而造成损坏 者，如产品浸水、腐蚀、掉落、挤压或露在异常温湿 度环境下。 如有任何产品损害或瑕疵非可归责于产品质量本身，则 不在保修范围内。有下列情形者不属于保修范围内： 提示 - 请勿以任何理由拆除或维修改装耳机，否则可能会导致起火， 电子击穿甚至彻底损坏本产品； - 请勿将产品置于温度过低或过高（0°C以下或45°C以上的环 境下； - 请避免靠近儿童或动物的眼睛使用产品指示灯； - 请勿在雷暴天气下使用该产品，雷暴可导致本产品工作不正 常，并增加触电的危险； - 请勿用油及其他挥发性液体擦拭本产品； 警告 长时间使用耳机可能会造成听力损害，请合理安排使 用时间。 本耳 机不支持输出超过2A的充电座给耳机充电，否则会损 害耳机本体。 注意： 制造商：东莞市猎声电子科技有限公司 制造商地址:东莞市南城街道周溪社区隆溪路5号高盛科技 园二期之高盛科技大厦第13层1303、1305、1306单元 生产厂：东莞峥嵘电子有限公司 生产厂地址：广东省东莞市洪梅镇疏港大道4号 网 址：www.haylou.com 客服电话：4008-555-083 若有售后服务需求,请联系Haylou客服 Haylou蓝牙耳机售后服务 1. 使用产品前请仔细阅读本使用说明书并请妥善保管； 2. 首次使用时，请先将本产品充满电； 3. 如果产品长期（超过2个星期）不用，请对其充电； 4. 必须选择正规厂家生产且经过国家CCC认证的充电器； 5. 若手机无法搜索蓝牙耳机，请确认蓝牙耳机是否处于 “ 配对模式 ”,若长时间 未进行 配对或连接, 蓝牙耳机配对功 能机配对功能将关闭,请重新开启蓝牙耳机至“配对模式”; 若手机程序出错,请重启手机;若蓝牙耳机程序出错,请重启蓝 牙耳机或者恢复出厂设置 包装内容物 佩戴耳机单耳机使用双耳机使用开机 耳机在充电盒内，从充电盒中拿出耳机自动开机。 注意：耳机出厂时已完成初始化，可直接取出进行相 关操作。 手动连接：在耳机关机时，手动打开两只耳机，白灯 快闪 等待左右耳机串联，串联成功后主耳机白灯慢闪， 打开设备蓝牙进行连接。 耳机不在充电盒内且已关机，敲击2次，则为开机 （白灯亮起1S）。 充电 首次开机使用，请将耳机及充电盒满电。 使用耳机通话及播放音乐 任意耳机敲击2次 来电时，接听/挂断电话 待机时，开启语音助手 音乐时，切换上一曲 音乐时，切换下一曲 任意耳机敲击3次 L耳敲击2次 R耳敲击2次 耳帽×3双（中号已装入耳机中），耳机，充电盒， 数据线，说明书。 耳机一边有声一边无声 充电时遇到的其他情况 极端情况才会出现此类情况，发生后请参考耳机重置 步骤，然后检查手机的蓝牙连接状况，清除蓝牙设备 后重新连接即可； 耳机充满电后，白灯常亮30秒后熄灭，此时耳机处于 满电状态； 充电仓没电会导致耳机无法充电； 充电盒充满电后，充电指示灯会熄灭，此时若再次接 入充电线，充电指示灯则不会提示，不代表充电盒不 能充电。 日常维护 请勿佩戴耳机洗澡，淋雨，放入洗衣机及在异常温度 情况等极端环境使用，每次正常使用后，请用干布等 工具擦干耳机上的汗汁或者雨水，可以有效延长耳机 的使用时长。 耳机重置 如果耳机无法正常连接使用，请参照以下方式: 重置耳机：耳机放入充电盒，盒盖打开， 敲击充电盒 外壁三下开始复位，待复位完成后，耳机进入TWS组 队，TWS组队完成后，默认右耳为主耳且主耳开始慢 闪白灯进入配对状态（如果放在盒中没拿出，则耳机 TWS组队完成后直接进入充电状态） 触控面板 LED灯 LED灯 麦克风 充电口 使用说明书 Haylou-T19 调整耳机达到最佳佩戴状态 敲击2次白灯亮起1S 自动连接：同时将两只耳机从充电盒取出，等待2-3秒 耳机自动开机串联，待TWS组队后默认右耳为主耳开 始慢闪进入配对状态，打开设备蓝牙搜索 “Haylou-T19”并点击完成连接。如果连接失败，将 耳机放回充电盒，重复上述操作。首次连接后，耳机 开机可自动回连上一次配对设备（蓝牙需开启）。 Haylou-T19 Haylou-T19 自动连接：从充电盒取出一只耳机，自动开机后，指 示灯由白灯快闪变成慢闪时，打开设备蓝牙搜索 “Haylou-T19”并点击完成连接。 首次连接后，耳机开机可自动回连上一次配对设备 （蓝牙需开启）。 手动连接：在耳机关机时，手动开启其中一只耳机， 待耳机变成白灯慢闪时，打开设备蓝牙连接对应耳机。 音乐时，摘下任意耳机，音乐暂停; 音乐暂停，戴上任意耳机，音乐播放; 真无线蓝牙耳机 使用年限 如本手册所述，在正常使用条件下，本产品的环保使用期限为10年。 在此期间，产品不会泄露任何危险物质，本产品可以回收，必须按 照当地法规处理。 产品中有害物质的名称及含量 有害物质 部件名称 铅 Pb 汞 Hg 镉 Cd 六价铬 Cr (VI) 多溴 联苯 PBB 多溴 二苯醚 PBDE 邻苯二 甲酸二 异丁酯 DIBP 邻苯二 甲酸 （2-乙酯） DEHP 邻苯二 甲酸二 丁酯 DBP 邻苯二 甲酸丁 苄酯 BBP 耳机主体 电 池 耳 套 配 件 充 电 线 本表格依据SJ/ T 11364的规定编制 O: 表示该有害物质在部件所有均匀材质中的含量均在 (EU)2015/863规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 (EU)2015/863规定的限量要求，但目前行业无成熟的替代方案， 在豁免范围仍符合欧盟ROHS指令的环保要求。 三包凭证 产品型号 用户信息 用户姓名 用户地址 购买日期 邮政编码 订单编号 联系电话 销售单位 购买信息 CMII T ID: XXXXXXXXXX FCC ID: XXXXX-XXX MADE IN CHINA 麦克风 敲击2次 白灯亮起1S 任何状态下，放入充电盒中，耳机充满电后自动关 机。耳机开机，无任何设备连接，等待5分钟关机。 关机 耳机LED 开机 手机配对 1. 对耳回连配对 2. 耳机与手机回连 耳机放入盒中充电 复位 关机 充电中 红灯常亮 白灯常亮30秒熄灭充满电 白灯熄灭 白灯闪2次 白灯慢闪 白灯快闪 白灯长亮 白灯亮1秒 充电盒LED 日常维护 请勿佩戴耳机洗澡，淋雨，放入洗衣机及在异常温度 情况等极端环境使用，每次正常使用后，请用干布等 工具擦干耳机上的汗汁或者雨水，可以有效延长耳机 的使用时长。 LED Manual pairing: power off earbuds then manually power on them again. Earbuds will auto enter TWS pairing mode(LED blinks white promptly) and finish pairing when LED on master earbud blinks white slowly. On cellphone, search the earbuds and tap to connect. For first time use, please top up earbuds and case. Functions Double tap either earbud Answer/end call Activate voice assistant (standby) Skip track backward Skip track forward Triple tap either earbud Double tap left earbud Double tap right earbud Factory Setting Touch Panel LED LED Mic Female charging port User Manual Haylou-T19 Please adjust earbud to fit youself best. Tap twice Haylou-T19 Haylou-T19 When playing, take off either earbud and music will pause. Put on it again and music will resume playing. TWS Earphones CMII T ID: XXXXXXXXXX Mic Tap twice LED glows white for 1s Pop earbuds into the case to charge them. They will auto power off once topping up. Earbuds will auto power off if no connection is built in 5 minutes. LED on earbud Power-on Connnectable to phone 1. Earbuds paired with each other 2. Earbuds connected to phone Put earbuds back into case Factory setting Power-off Charging LED glows solid red LED glows white for 30sTopped up White LED turns off LED blinks white twice LED blinks white slowly LED blinks white promptly LED glows solid white LED glows white for 1s LED on case Audio only outputs from single earbud Other cases in charging It' s really rare. Please reset G T1 Pro, rem ove conne ctiv ity If earbuds do not function well, please refer the following steps to reset factory: Push earbuds back into the case, open the lid and triple click the case to set them to factory. Earbuds will then auto pair with each other. Right earbud will serve as master and become connectable to cellphone when LED blinks white slowly. (If earbuds stay in the case, they will only be charged after pairing with each other). record on your cellphone and re-connect the earphones to your cellphone. LED glows sol id white for 1 minute when earbuds are topped up. Car ry case cannot char ge earbuds, if its battery dra ins. LEDs on carry case will turn o ff once the case is topped up. If you charge it once again, LEDs will no t g ive a ny no tice , whic h does not mea n the case is not charged. Daily maint…

Text truncated - open the document above for the full version.

Dongguan Liesheng Electronic Co., Ltd. Model Confirmation Letter We, Dongguan Liesheng Electronic Co., Ltd. (Company name) c ertify the product: Hay lou-T19 True Wireless Earbuds And item No.:Haylou-T19，Haylou-T19（L） Their elec trical circ uit design, lay out, components used and internal wiring are identical, Only the Item number and color are different. Date: 2020-5-28 Job Title (representative ): Manager Signature: Name: 邱石桥

Product Name : Haylou-T19 True Wireless Earbuds Model No. : Haylou-T19 FCC ID: 2AMQ6-T19L FCC ID: 2AMQ6-T19R The device have left and right earphones ， left earphone is with FCC ID: 2AMQ6-T19L， right earphone is with FCC ID: 2AMQ6-T19R. <Signature> Name: Abby Zhang Title: Manager Applicant Company: Dongguan Liesheng Electronic Co., Ltd.

Model No.: Haylou-T19

dimension：30mmX10mm FCC ID: 2AMQ6-T19R FCC ID: 2AMQ6-T19L FCC Label location

Model No.: Haylou-T19

Page 1 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Haylou-T19 True Wireless Earbuds Brand Mark : N/A Model No. : Haylou-T19, Haylou-T19（L） FCC ID: 2AMQ6-T19L Report Number : BLA-EMC-202004-A9603 Date of Sample Receipt : 2020/5/13 Date of Test : 2020/5/15 to 2020/5/22 Date of Issue : 2020/5/22 Test Standard : 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Test Result : Pass Prepared for: Dongguan Liesheng Electronic Co., Ltd. 13/F,Project Phrase 2 of GaoshengTechTower,No.5,Longxi Road,Nancheng,Dongguan,Guangdong,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/5/22 Report No.: BLA-EMC-202004-A9603 Page 2 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/5/22 Original 1.1 LIMITS The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.2 EUT RF EXPOSURE EVALUATION Operational Mode: EDR （8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power(dBm) Maximum tune-up Power(mW) Calculated value Exclusion threshold 2402MHz 1.38 ±1 2.38 1.73 0.54 3 2441MHz 0.02 ±1 1.02 1.26 0.40 3 2480MHz -0.76 ±1 0.24 1.06 0.33 3 Conclusion: the calculated value ≤3.0, SAR is exempted. Report No.: BLA-EMC-202004-A9603 Page 3 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Page 1 of87 TEST REPORT Product Name : Haylou-T19 True Wireless Earbuds Brand Mark : Haylou Model No. : Haylou-T19, Haylou-T19（L） FCC ID : 2AMQ6-T19L Report Number : BLA-EMC-202004-A9602 Date of Sample Receipt : 2020/5/13 Date of Test : 2020/5/15 to 2020/5/22 Date of Issue : 2020/5/22 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Dongguan Liesheng Electronic Co., Ltd. 13/F,Project Phrase 2 of GaoshengTechTower,No.5,Longxi Road,Nancheng,Dongguan,Guangdong,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/5/22 Report No.: BLA-EMC-202004-A9602 Page 2 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report Revise Record Version No. Date Description 00 2020/5/22 Original Report No.: BLA-EMC-202004-A9602 Page 3 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 ANTENNA REQUIREMENT ..................................................................................................................... 14 1.1 CONCLUSION ............................................................................................................................................................ 14 2 DWELL TIME ............................................................................................................................................ 15 2.1 LIMITS ................................................................................................................................................................... 15 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 TEST DATA .............................................................................................................................................................. 16 3 HOPPING CHANNEL NUMBER .............................................................................................................. 17 3.1 LIMITS ................................................................................................................................................................... 17 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 17 3.3 TEST DATA .............................................................................................................................................................. 17 4 CARRIER FREQUENCIES SEPARATION .............................................................................................. 18 4.1 LIMITS ................................................................................................................................................................... 18 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 18 4.3 TEST DATA .............................................................................................................................................................. 18 5 20DB BANDWIDTH .................................................................................................................................. 19 5.1 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 19 5.2 TEST DATA .............................................................................................................................................................. 19 6 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 20 6.1 LIMITS ................................................................................................................................................................... 20 6.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 Report No.: BLA-EMC-202004-A9602 Page 4 of87 …

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202004-A9602 Page 31 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] [TestMode: TX mode (SE) below 1G]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202004-A9602 Page 32 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] [TestMode: TX mode (SE) below 1G]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202004-A9602 Page 33 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 9 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 6.10.5 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Eason Temperature 25°C Humidity 60% 9.1 LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Remark: The emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector except for the frequency bands 9-90kHz, 110-490kHz and above 1000 MHz. Radiated emission limits in these three bands are based on measurements employing an average detector, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Report No.: BLA-EMC-202004-A9602 Page 34 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 9.2 BLOCK DIAGRAM OF TEST SETUP 9.3 PROCEDURE a. For below 1GHz, the EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 or 10 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. For above 1GHz, the EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter fully-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. c. The EUT was set 3 or 10 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. d. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. e. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. f. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. g. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Report No.: BLA-EMC-202004-A9602 Page 35 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] h. Test the EUT in the lowest channel, the middle channel, the Highest channel. i. The radiation measurements are performed in X, Y, Z axis positioning for Transmitting mode, and found the X axis positioning which it is the worst case. j. Repeat above procedures until all frequencies measured was complete. Remark 1: Level= Read Level+ Cable Loss+ Antenna Factor- Preamp Factor Remark 2: For frequencies above 1GHz, the field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. For the emissions whose peak level is lower than the average limit, only the peak measurement is shown in the report. Report No.: BLA-EMC-202004-A9602 Page 36 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 9.4 TEST DATA During the test, pre-scan the GFSK, Pi/4QPSK, 8-DPSK modulation, and found the GFSK modulation which it is worse case. [TestMode: TX] Test channel:lowest Peak value: Frequency (MHz) Read Level (dBuV) Correct factor Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarizatio n 2310 57.77 -4.2 53.57 74 -20.43 Horizontal 2390 58.19 -3.88 54.31 74 -19.69 Horizontal 2310 53.9 -4.49 49.41 74 -24.59 Vertical 2390 55.19 -4.21 50.98 74 -23.02 Vertical Average value: Frequency (MHz) Read Level (dBuV) Correct factor(dB/ m) Level (dBuV/m) Limit Line (dBuV/m) Over Limit (dB) Polarizatio n 2310 46.83 -4.2 42.63 54 -11.37 Horizontal 2390 47.55 -3.88 43.67 54 -10.33 Horizontal 2310 44.24 -4.49 39.75 54 -14.25 Vertical 2390 44.27 -4.21 40.06 54 -13.94 Vertical Test channel:Highest Peak value: Frequency (MHz) Read Level (dBuV) Correct factor Leve…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202004-A9602 Page 61 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202004-A9602 Page 62 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202004-A9602 Page 63 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202004-A9602 Page 64 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 12.7 APPENDIX : CONDUCTED SPURIOUS EMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 0.54 0.54 --- PASS 30~1000 30~1000 -58.385 <=-19.462 PASS 1000~26500 1000~26500 -42.871 <=-19.462 PASS 2441 Reference -0.97 -0.97 --- PASS 30~1000 30~1000 -57.367 <=-20.966 PASS 1000~26500 1000~26500 -42.544 <=-20.966 PASS 2480 Reference -1.10 -1.10 --- PASS 30~1000 30~1000 -57.561 <=-21.098 PASS 1000~26500 1000~26500 -42.304 <=-21.098 PASS 2DH1 Ant1 2402 Reference 1.12 1.12 --- PASS 30~1000 30~1000 -57.89 <=-18.879 PASS 1000~26500 1000~26500 -42.627 <=-18.879 PASS 2441 Reference -0.26 -0.26 --- PASS 30~1000 30~1000 -57.736 <=-20.263 PASS 1000~26500 1000~26500 -42.435 <=-20.263 PASS 2480 Reference -0.96 -0.96 --- PASS 30~1000 30~1000 -58.974 <=-20.958 PASS 1000~26500 1000~26500 -46.622 <=-20.958 PASS 3DH1 Ant1 2402 Reference 1.17 1.17 --- PASS 30~1000 30~1000 -58.028 <=-18.832 PASS 1000~26500 1000~26500 -42.713 <=-18.832 PASS 2441 Reference -0.26 -0.26 --- PASS 30~1000 30~1000 -58.338 <=-20.256 PASS 1000~26500 1000~26500 -42.498 <=-20.256 PASS 2480 Reference -0.96 -0.96 --- PASS 30~1000 30~1000 -58.325 <=-20.962 PASS 1000~26500 1000~26500 -42.308 <=-20.962 PASS Report No.: BLA-EMC-202004-A9602 Page 65 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 66 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 67 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 68 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 69 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 70 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 71 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 72 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 73 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202004-A9602 Page 74 of87 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:marketing…

Text truncated - open the document above for the full version.

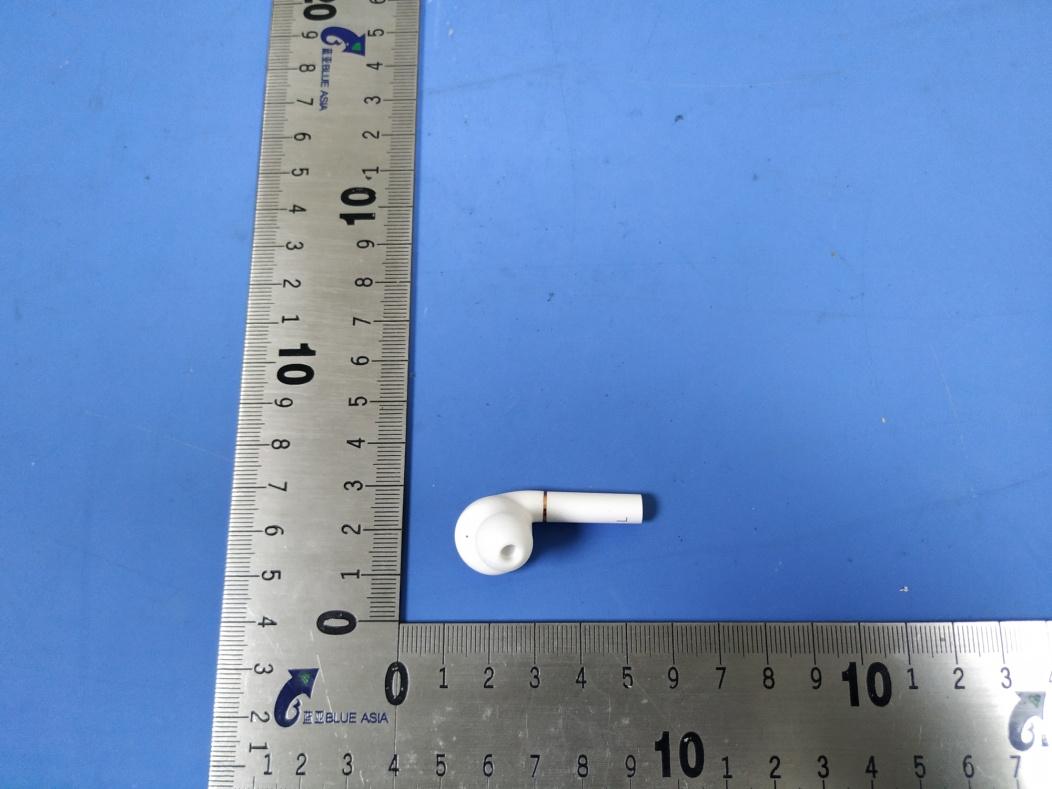

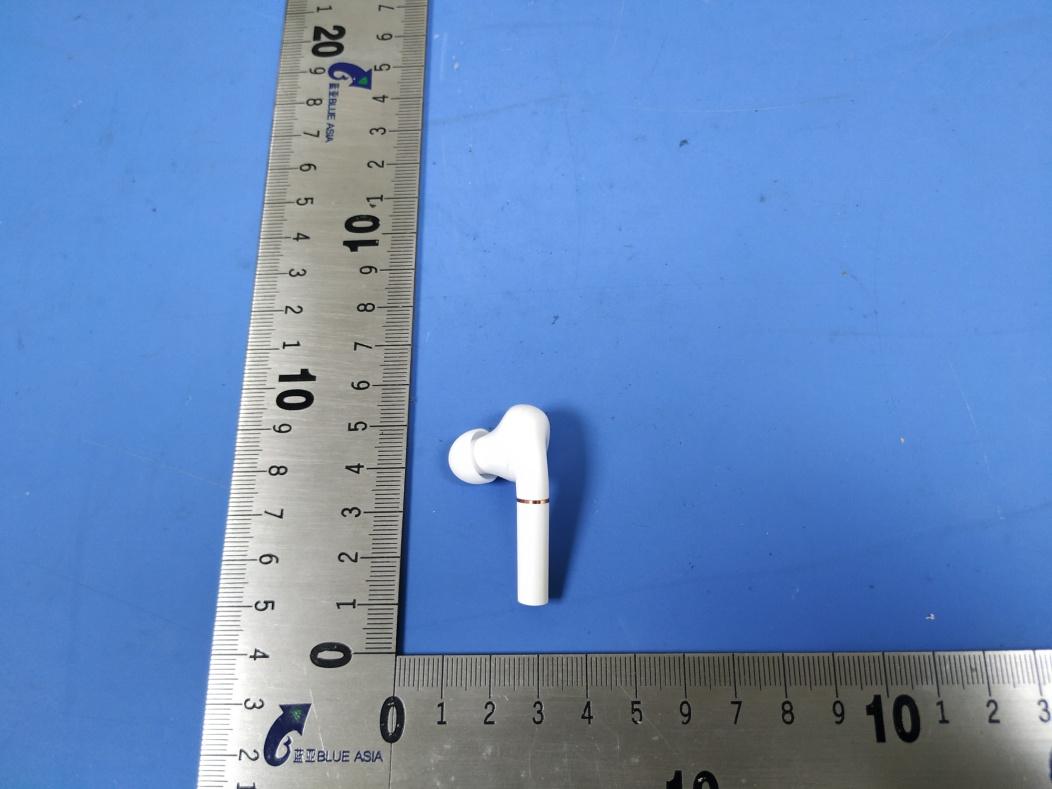

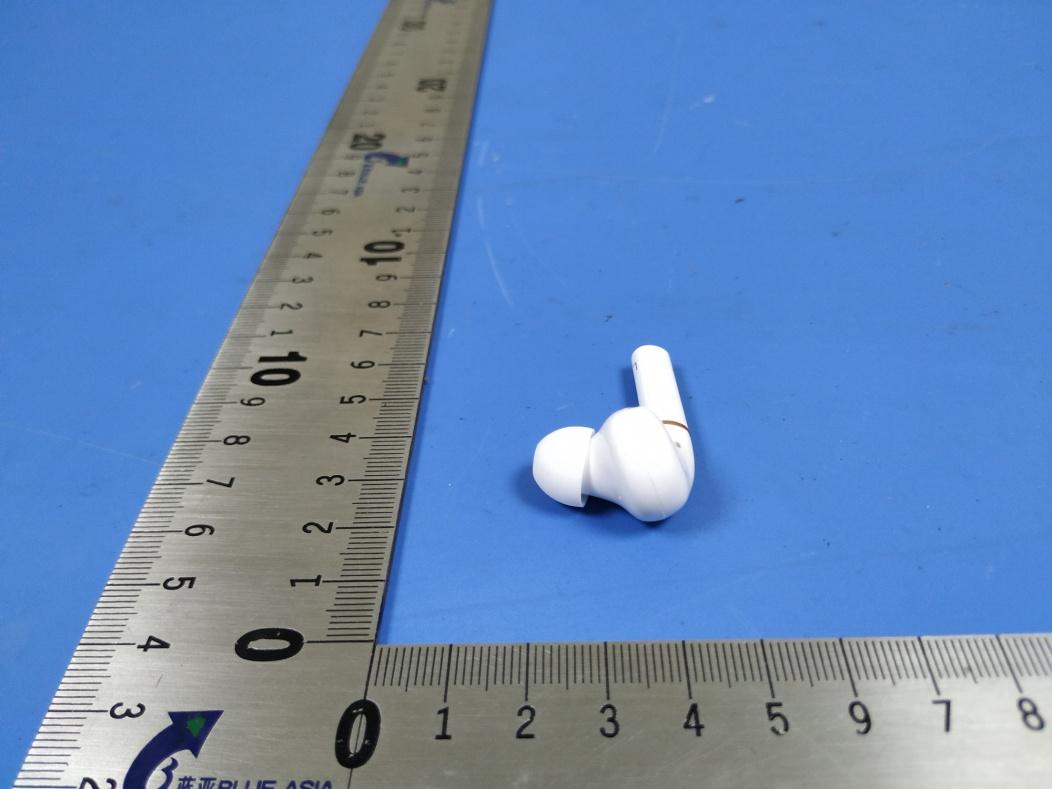

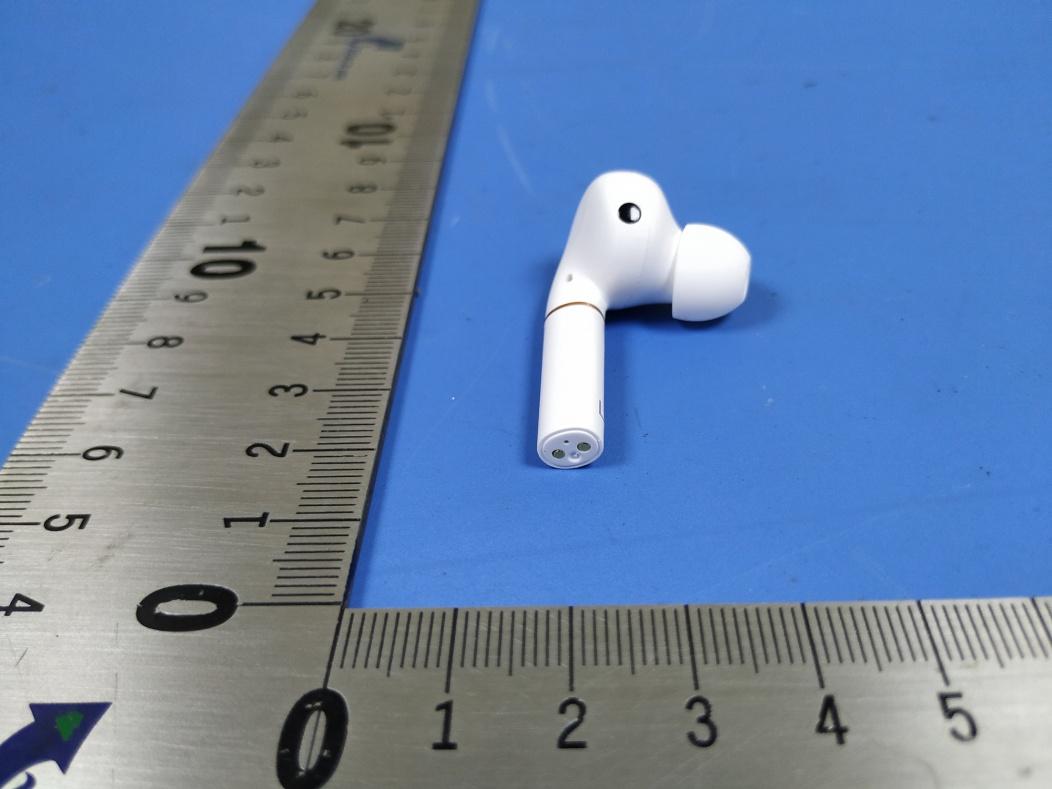

Model No.: Haylou-T19
