2AMQ6-T33Haylou Wireless Earbuds

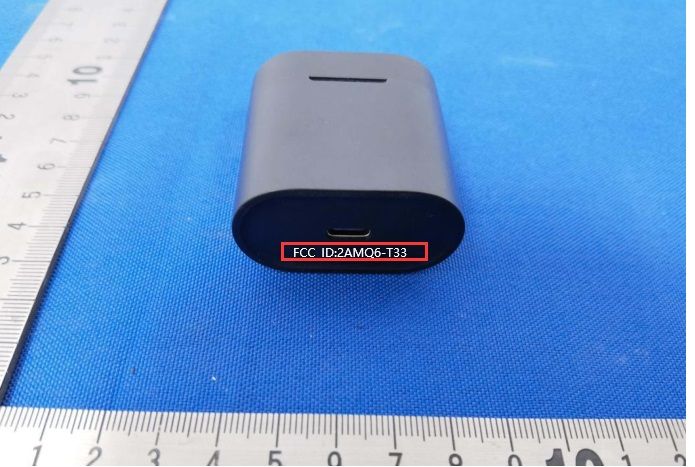

Moripods 310mAh T33 2AMQ6-T33

Product Name: Haylou Wireless Earbuds Model No.:Haylou T33 FCC ID:2AMQ6-T33 The device have left and right earphones， the left and right earphones are electrically identical <Signature> Name: Abby zhang Applicant Company: Dongguan Liesheng Electronic Co.,Ltd.

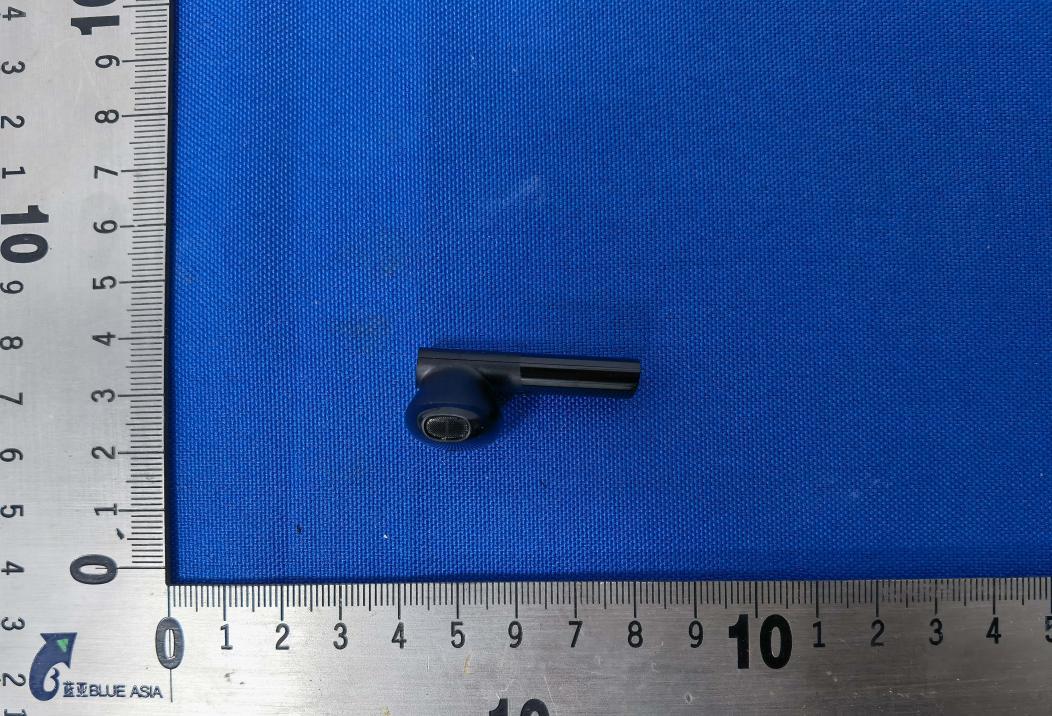

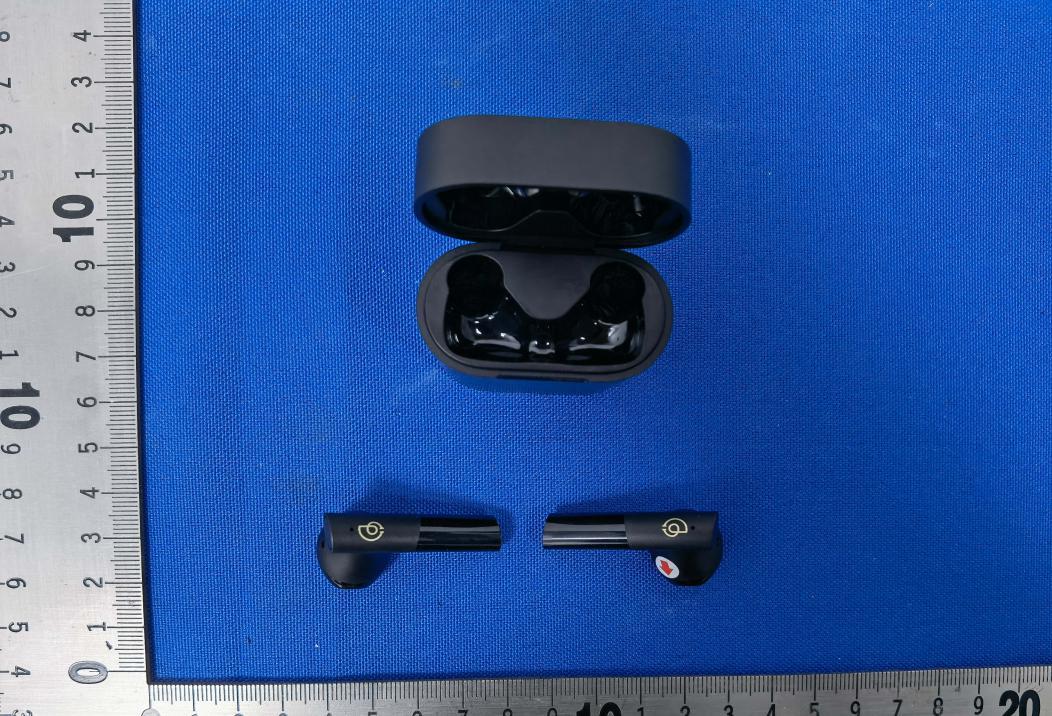

Model No.: Haylou T33

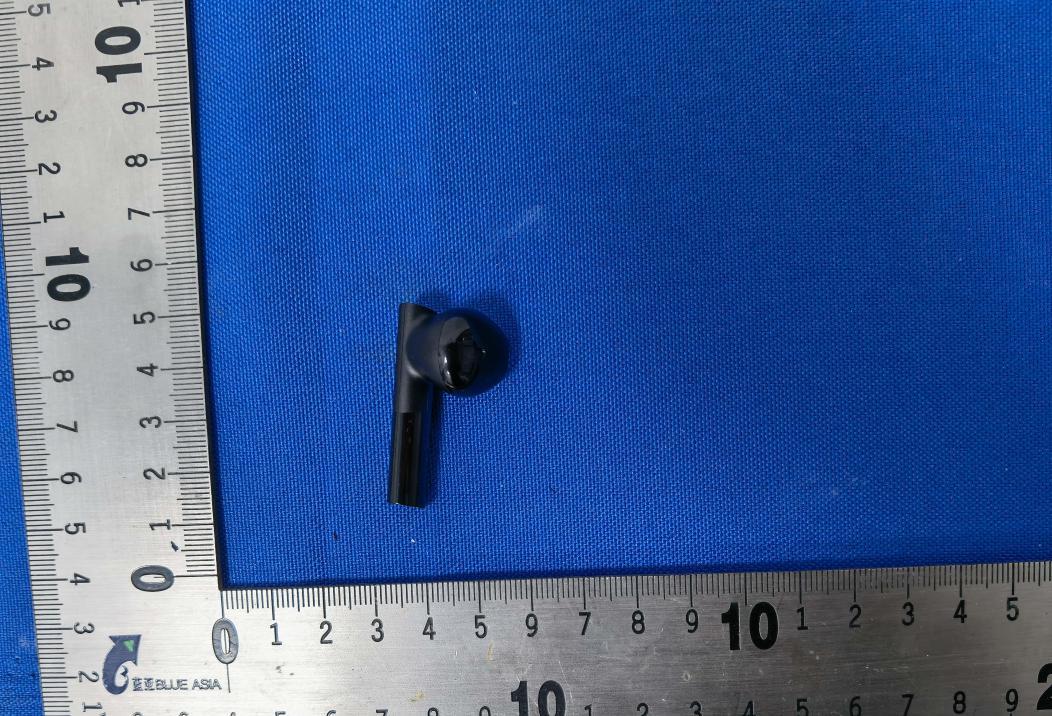

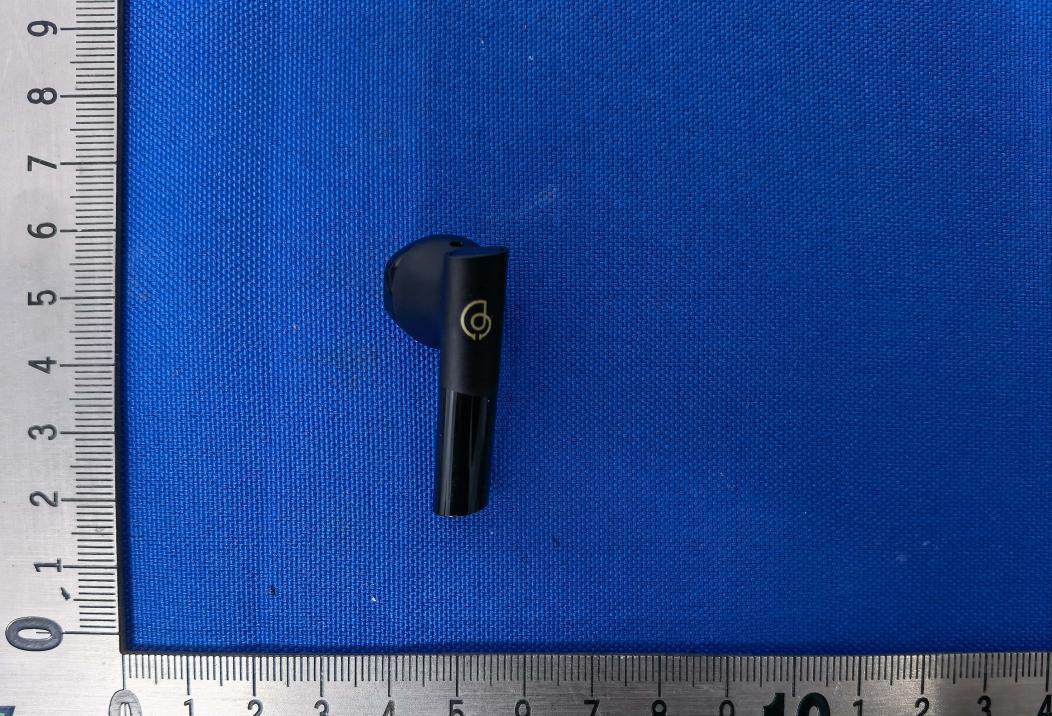

Model No.: Haylou T33

RF Exposure Evaluation Statement Product Name: Haylou Wireless Earbuds Model No.：Haylou T33 FCC ID：2AMQ6-T33 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: BDR （GFSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHZ 1.08 ±1 2.08 1.61 0.50 3.0 2441MHz 0.90 ±1 1.90 1.55 0.48 2480MHz 1.13 ±1 2.13 1.63 0.51 Conclusion: the calculated value ≤3.0, SAR is exempted.

APPENDIX 1 RF TEST DATA 1.1 APPENDIX A: 20DB EMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.107 2401.442 2402.549 --- PASS 2441 1.101 2440.448 2441.549 --- PASS 2480 1.101 2479.445 2480.546 --- PASS 2DH1 Ant1 2402 1.377 2401.304 2402.681 --- PASS 2441 1.380 2440.304 2441.684 --- PASS 2480 1.380 2479.304 2480.684 --- PASS 3DH1 Ant1 2402 1.362 2401.313 2402.675 --- PASS 2441 1.365 2440.313 2441.678 --- PASS 2480 1.368 2479.310 2480.678 --- PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 1.2 APPENDIX C: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 1.08 <=20.97 PASS 2441 0.9 <=20.97 PASS 2480 1.13 <=20.97 PASS 2DH1 Ant1 2402 -0.78 <=20.97 PASS 2441 -1.05 <=20.97 PASS 2480 -0.82 <=20.97 PASS 3DH1 Ant1 2402 -0.3 <=20.97 PASS 2441 -0.43 <=20.97 PASS 2480 -0.26 <=20.97 PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 1.3 APPENDIX D: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1.006 >=0.738 PASS 2DH1 Ant1 Hop 0.998 >=0.920 PASS 3DH1 Ant1 Hop 1 >=0.912 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop 1.4 APPENDIX E: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.38 330 0.126 <=0.4 PASS DH3 Ant1 Hop 1.64 160 0.262 <=0.4 PASS DH5 Ant1 Hop 2.89 60 0.173 <=0.4 PASS Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 1.5 APPENDIX F: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop 1.6 APPENDIX G: BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 0.69 -56 <=-19.32 PASS High 2480 0.86 -55.58 <=-19.14 PASS Low Hop_2402 0.54 -56.41 -19.46 PASS High Hop_2480 0.96 -55.61 -19.04 PASS 2DH1 Ant1 Low 2402 -3.59 -56.23 <=-23.59 PASS High 2480 -3.64 -55.03 <=-23.64 PASS Low Hop_2402 -3.76 -55.95 -23.76 PASS High Hop_2480 -3.64 -55.46 -23.64 PASS 3DH1 Ant1 Low 2402 -3.43 -55.14 <=-23.43 PASS High 2480 -3.47 -55.57 <=-23.47 PASS Low Hop_2402 -3.68 -56.52 -23.68 PASS High Hop_2480 -3.52 -55.49 -23.52 PASS Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 1.7 APPENDIX H: CONDUCTED SPURIOUS EMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 0.57 0.57 --- PASS 30~1000 30~1000 -48.303 <=-29.432 PASS 1000~26500 1000~26500 -54.014 <=-29.432 PASS 2441 Reference 0.48 0.48 --- PASS 30~1000 30~1000 -49.505 <=-29.522 PASS 1000~26500 1000~26500 -53.678 <=-29.522 PASS 2480 Reference 0.77 0.77 --- PASS 30~1000 30~1000 -49.869 <=-29.231 PASS 1000~26500 1000~26500 -54.264 <=-29.231 PASS 2DH1 Ant1 2402 Reference -3.60 -3.60 --- PASS 30~1000 30~1000 -49.958 <=-33.595 PASS 1000~26500 1000~26500 -53.65 <=-33.595 PASS 2441 Reference -4.14 -4.14 --- PASS 30~1000 30~1000 -50.001 <=-34.135 PASS 1000~26500 1000~26500 -54.172 <=-34.135 PASS 2480 Reference -3.68 -3.68 --- PASS 30~1000 30~1000 -50.037 <=-33.676 PASS 1000~26500 1000~26500 -53.022 <=-33.676 PASS 3DH1 Ant1 2402 Reference -3.63 -3.63 --- PASS 30~1000 30~1000 -49.88 <=-33.633 PASS 1000~26500 1000~26500 -53.666 <=-33.633 PASS 2441 Reference -3.77 -3.77 --- PASS 30~1000 30~1000 -49.886 <=-33.766 PASS 1000~26500 1000~26500 -53.802 <=-33.766 PASS 2480 Reference -3.52 -3.52 --- PASS 30~1000 30~1000 -49.96 <=-33.524 PASS 1000~26500 1000~26500 -53.625 <=-33.524 PASS Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 APPENDIX A: PHOTOGRAPHS OF TEST SETUP Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Spurious Emissions APPENDIX B: PHOTOGRAPHS OF EUT

Model No.: Haylou T33
