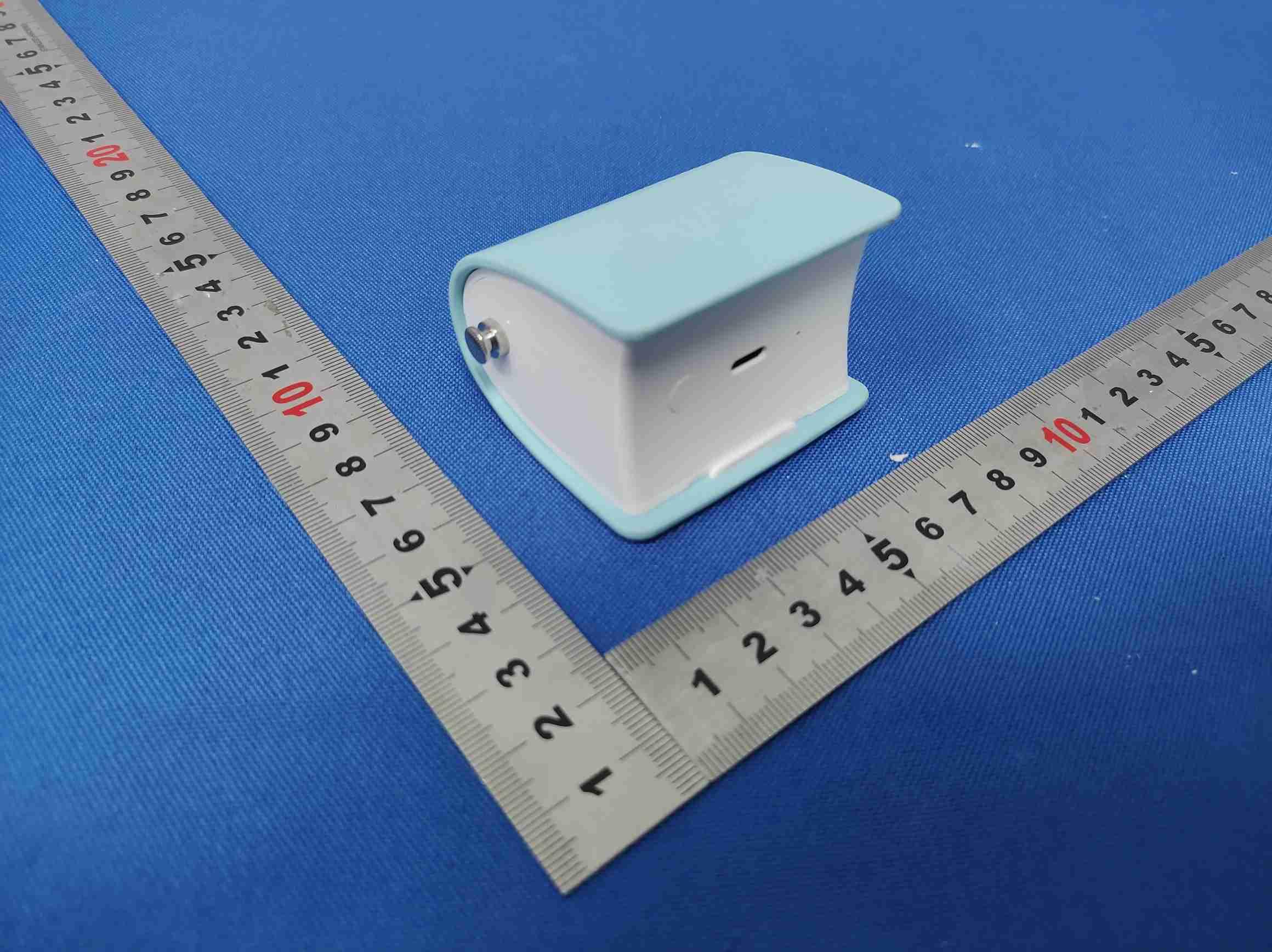

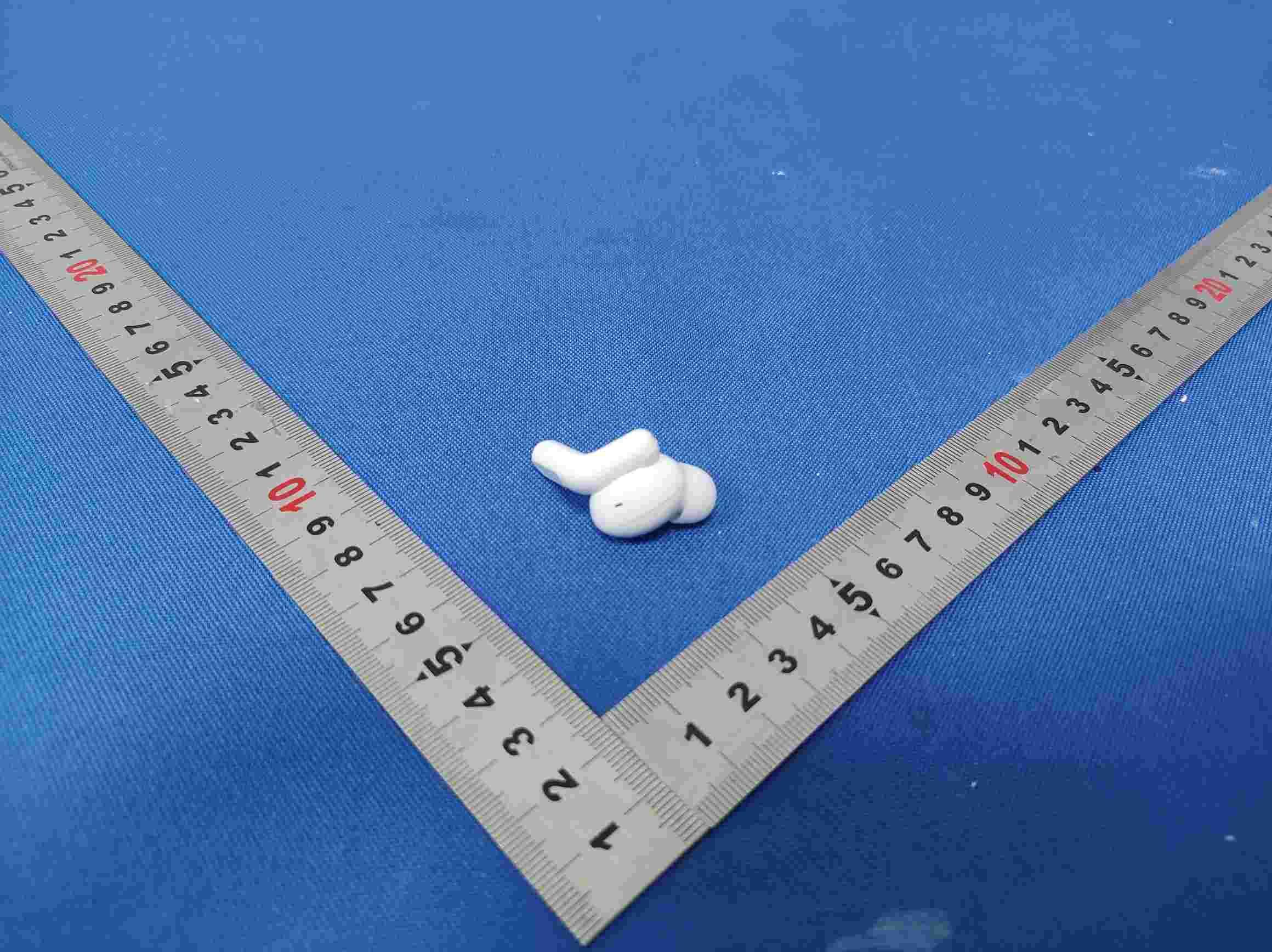

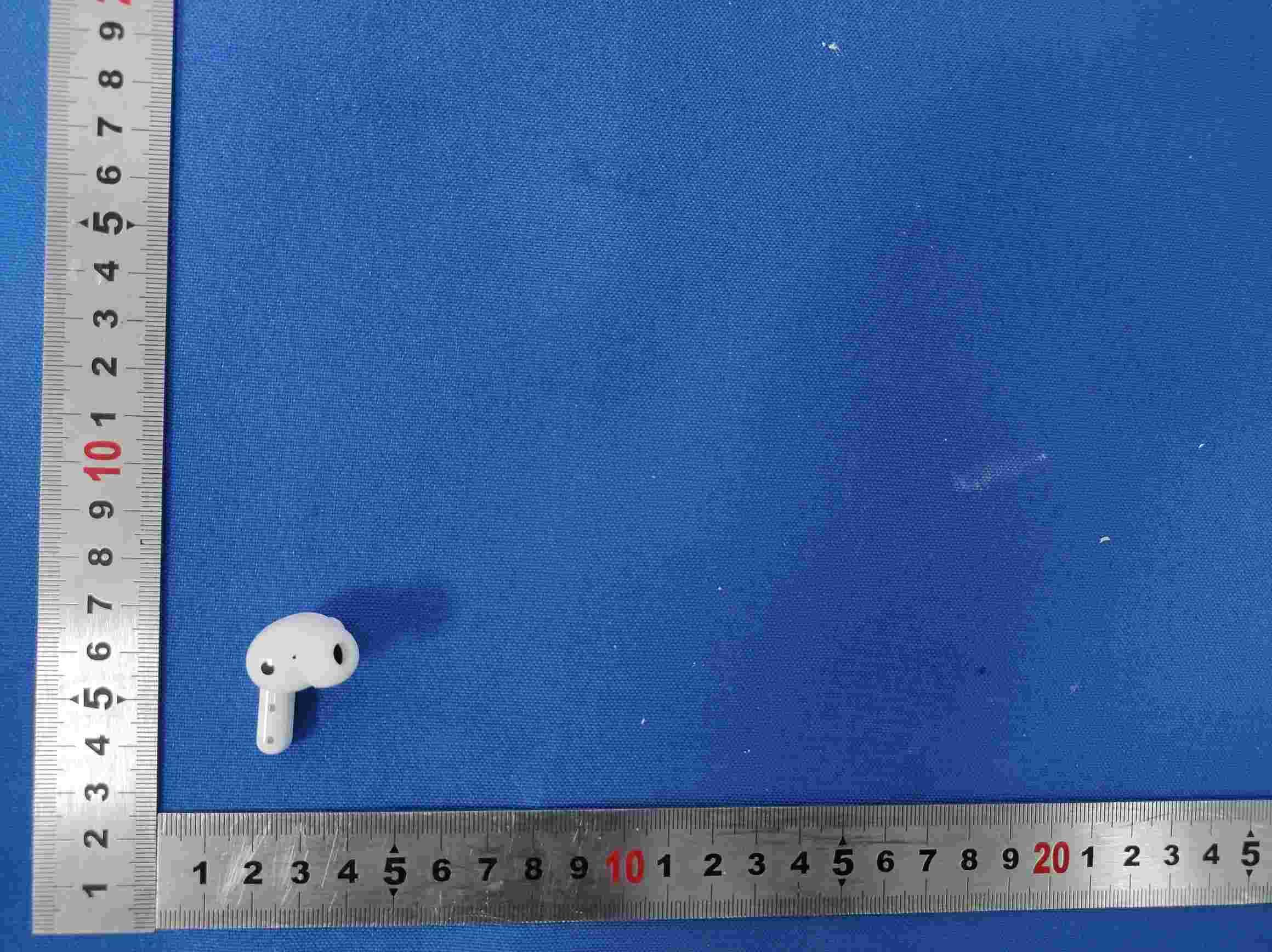

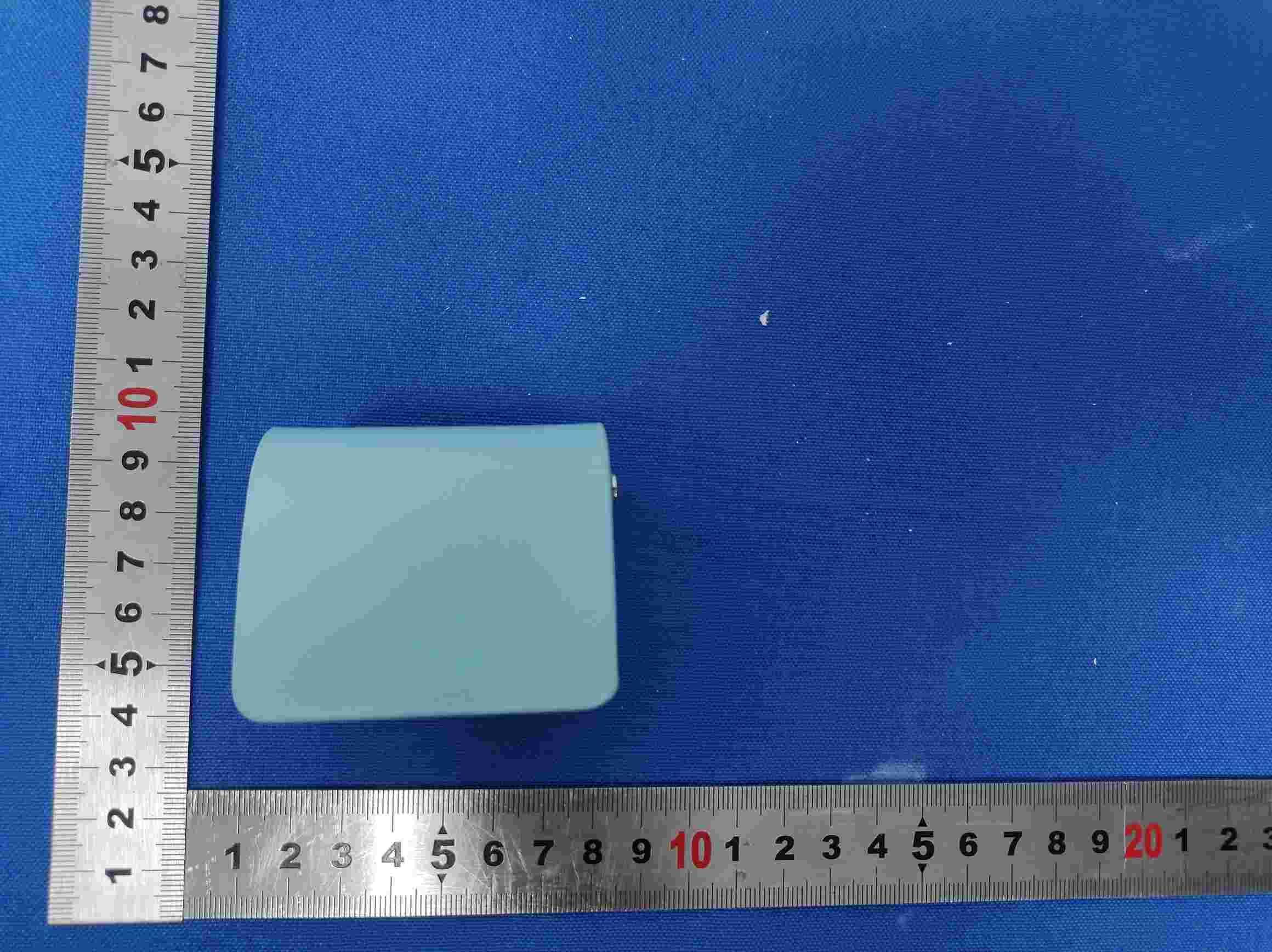

2AMQ6-T87Haylou lady bag

HAYLOU Lady Bag ANC True Wireless Earbuds User Manual 01 Package List02 Button Functions 04 Basic function 03 Wearing Method 06 How to Pair07 Factory Setting08 Basic Parameters of Headphones Product name: Haylou Lady bag Product model: Haylou T87 * The above data is obtained from Haylou's internal laboratory tests under specific conditions and is for reference only. It may vary in actual use depending on user habits and environment. 09 Caveats Warning 1. Do not disassemble, repair or modify the product for any reason, as this may cause fire or even completely destroy the product. 2. Do not expose the product to environments where the temperature is too low or too high (below 0°C or above 45°C). 3. Keep the indicators away from the eyes of children and animals while using the headphones. 4. Do not use this product during thunderstorms. Thunderstorms may cause the product to malfunction and increase the risk of electric shocks. 5. Do not wipe and clean the headphones or their case with alcohol or other volatile liquids. 6. Avoid any contact with liquids. Note 1. Please read this user manual carefully before using the product and please properly store it. 2. When using for the first time, please fully charge this product. 3. Please charge the product, in case it has not been used over two weeks. 10 Warranty Card Model Number Free Service Date of Purchasing User's Name User's Phone User's Address Shop's Name Shop's Address Comments Warranty Period 12 months after you purchase this item. ( or you may inquire your local shopper for more details.) Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service. Free exchange service will not be accessed under following circumstances: 1. Damages caused by unauthorized disassembly. 2. Defects or physical damages caused by leaking or dropping off. 3. Damages by act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing. 4. Please use certificated charger. 5. Do not wear headphones for a long term to protect your hearing. 6. Do not wear headphones in any situations with potential risks as wearing them may reduce your perception to the outside world. FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference； 2. This device must accept any interference received, including interference that may cause undesired operation. Daily maintenance Please do not shower with headphones. Do not wear them in rainy day. Do not leave them in washing machine or other extreme situations. Clean them with dry cloth. Manufacturer: Dongguan Liesheng Electronic Co., Ltd. Address: Room 401-410, Building 1, No.86 Hongtu Road, Nancheng District, Dongguan City, Guangdong, China Web: www.haylou.com LED Reset button Type-C charging port MFB Mic Charging contacts LED MFB Function FunctionOperation Answer/hang up Play/pause music Skip track forward Skip track backward Low latency mode Switch among noise cancellation, standard and transparent modes Click MFB button Click MFB button Double touch right MFB button Double touch left MFB button Long touch MFB button for 2s Triple touch MFB button 05 Charging Haylou Lady Bag Unconnected i Bluetooth Other devices Settings Bluetooth Operation guide use manualCharging Cable earphones 1. Put the earbuds back into the charging case and keep the charging case fully charged. Then long touch the earbuds MFB buttons for 10s until the earbuds LEDs flash 3 times; 2. Clear phone pairing record and complete the connection again. Common abnormals: 1. One of the earbuds is mute: Try to put the mute earbud into the charging case and then take it out; If the problem is still not solved after the above operation, try the reset steps; 2. The earbud cannot be charged: Check whether the charging case has sufficient power; Wipe the charging contacts with a dry cloth or cotton swab; 3. The earbud cannot automatically disconnect from the mobile phone; Check whether the charging case has sufficient power. The earbud will not power off if the case is out of power and will not disconnect from the mobile phone. Take two earbuds out from the charging case simultaneously, then open device Bluetooth and search for "Haylou MoriPods ANC", finally click it to complete the connection. Put the earbuds back to the charging case and repeat the above operation if the connection fails. After the first connection, the earbuds can be automatically connected to the last paired device (Bluetooth needs to be turned on). Switch between mono and stereo mode: It is stereo mode after two earbuds are successfully connected. Put one back into the case to power off, the other will enter mono mode. Or pick it up again to resume stereo mode. Gently insert the earbud into the ear canal, adjust the earbud to the most comfortable wearing state. It is recommended to choose suitable size of ear tips to ensure ANC effect. When calling, adjust Mic towards mouth to gain better talking experience. Plug in the charging cable to charge the earbuds and the charging case at the same time. The charging indicator light will be solid white when the charging case is not fully charged. The indicator light goes out after fully charged. For first time use, please remove the isolation film on the charging contacts of both earbduds. Then fully charge the charging case and earbuds. The earbuds will auto power off when put in the charging case. Take out to auto power on when the earbuds are in case. Remove isolation film Basic Parameters(earbuds) Operation range: 10m (open space with no obstacle) Battery capacity: 34mAh (single earbud) Charging time:…

Text truncated - open the document above for the full version.

深圳市凯普深通讯科技有限公司 样品承认 深圳市凯普深通讯科技有限公司 Shenzhen Kaipushen Communication Technology Co., LTD 书 客户名称： 东莞市猎声电子科技有限公司 项目名称： T87 样品名称：BT天线 规格/颜色：黑色 签样日期：2022/8/5 供方确认 制作研发结构品质 刘晓梦 2022.08.05 温学华 2022.08.05 陈 健 2022.08.05 巫星托 2022.08.05 客户确认 项 目外 观结 构品质 结论 □ 批量使用 MP □ 限量使用（ ） K □ ROHS 供方名称: 深圳市凯普深通讯科技有限公司 供方地址: 深圳市龙华新区龙观大道440号龙城工业区御龙办公楼2楼 电话: 0755-29351613 传真: 0755-29351510 E-mail:[email protected] 此文件中所包含的一切信息版权归深圳市凯普深 通讯科技有限公司所有，在未得到深圳市凯普深通讯科技有限公司的书面许可下，请勿散播给任何第三方。 目 录 1、 2 封面 cover 、 3 目录 catalog 、 ICD图 4 (BT天线) BTANT 、 5 电气、机械性能说明 electricDescription of mechanical properties 、 6 全尺寸测量报告 Full scale measurement report 、 7 QC工程图 QC engineering drawing 、 8 检验规范 inspection specification 、 9 rohs资料 rohs data 、 10 盐雾测试 Salt Spray Test 、 11 高低温测试 test for high and low temperature 、包装 packaging catalogue 3.ICD图纸 驻波比（SWR）测试装置依次连接为：E5071B网络分析仪→50欧姆的同轴线Cable→ 5.1 电气性能 behaviour of electricity 5.1-1 规格标准 specification standard T65主天线 工作频段在2400M--2480M,产生谐振。 T65 main antenna operates in the frequency band of 2400m-2480m, generating resonance 5.1-2 天线的匹配电路.Matching circuit of antenna 匹配电路如下 The matching circuit is as follows： 5.2 驻波比（SWR）测试 Standing wave ratio (SWR) test 5.2-1 测试的设置 Setup for tests Fre(MHZ 150mm长的铜管→测试治具。 测试治具的处理：从PCB上天线50欧姆测试点处用一根硬质电缆引出SMA-J接头 与套有扼流圈的铜管连接，再依次连接其他装置。 下表所示为：BT天线工作频段边缘频点的驻波比值： ) 240024502480 SRW1.51.42 BT天线驻波比曲线图 B 6.2-3 无源测试结果 Passive test results TDiagram of antenna standing wave ratio L R L R 6.2-4 自由空间整机无源测试数据 ：无源方向图 L R R antenna effeciency left ear auris dextra Antenna passive pattern Antenna passive pattern 自由OTA数据 头模OTA数据 left ear auris dextra auris dextra left ear free space free space headform headform 规格 spe BT天线 BT ANTcification 全尺寸测量报告 Full scale measurement report 客户名称 customer name 零件名称 name of 猎声 liesheng parts materials 电解铜 cathode copper 供应商provider测量工具 measuring 凯普深 tool m 测量单位 measurement 二次元 quadratic element unit m2022/8/ 测量日期 date of survey 3 NO. 尺寸 （DIMENSION） + TOL 上限 upper limit .- TOL.实测 下限 low e r limit 1实测 2实测 3实测 4实测 5实测 6实测 7LOWER≦100UPPER≦100%% 1 17.80 17.90 0.10 0.10 17.818.802 17.83 17.82 17.78 17.82 17.81 17.82 30%20% 2 8.57 8.67 0.10 0.10 8.478.55 8.59 8.55 8.56 8.56 8.59 8.59 20%20% 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 制表：陈健审核：巫星托 深圳市凯普深通讯科技有限公司 QC工程图 文件编号KPS--QPA-QA004制定日期2022.06.01 Shenzhen cape deep communication technology co., LTD 文件版本A/01页 码第1页，共1页 工艺流程管制重点 管理责 任 检验方式检验方法矫正措施 序号主流程 工程名 称 管制项目管制标准责任人 正常 取样数 负责人 检验方 法 检验 工具 记录种类处理方案 开始 1收料数量/品名/规格 《工程BOM》 《物料接收作业指导书》 资材员《电子帐》与供应商联系并开出《退货单》 2 来料 检验 规格/型号/包装 《工程BOM》 《抽样检验计划表》 《IQC来料检验指导书》 IQC MA=0.25 MI=0.65 IQC 1.目视 2.机测 3.抽样 二次 元 游标 卡尺 《IQC进料检验记录表 》 检验OK加盖PASS章，检验NG贴不合格品 标签同时开出《8D Report 问题解决报 告》，知会供应商退货并改善。 4发料数量/品名/规格 《生产指令》 《物料接收作业指导书》 资材员《物料领发登记表》 22包装包材/数量/标示《成品包装作业指导书》包装员 21 出货 检验 产品外观 不良记录 尺寸测试 不良标示 良品包装 环保要求 《工程BOM》 《抽样检验计划表》 《OQC最终检验作业指导书 》 OQC MA=0.25 MI=0.65 OQC 1.目视 2.机测 3.抽样 二次 元 游标 卡尺 《OQC成品检验记录表 》 若每日的检验中同一机型同一重缺失出 现次数大于等于3次，由OQC开出《8D Report 问题解决报告》给到生产经理要 求分析改善。 25出货 品名规格 数量 送货单 《成品出货作业指导书》资材员《电子帐》 结束 符号修订日期修定内容修订人承认人 拟制审核核准 ① ② 日期日期日期 ③ 深圳市凯普深通讯科技有限公司 文件编 号 制定日 期 FPC 天线检验规范 页 次 版 本 A0 1．目的用途：严格检验，控制不良品使用，保证产品质量要求。 2．适用范围：FPC天线。 3．作业内容 项目内容工具 检验标准、技术 要求 缺陷描述阶层 包 标识目视 外包装有明确的标 贴，注明产品名称 、规格、数量、日 期等。 标识不清楚，不能辩认 。 MIN 装 物料目视 包装统一，干净整 洁，无破损，不影 响搬运、储存，无 错装、混装、少装 。 包装不统一，有脏污、 潮湿、破损，影响搬运 、储存。 MIN 外 表面目视 FPC无破损、露铜 、开裂、色差、益 胶,金手指无氧化 、脆裂。 FPC有破损、露铜、开 裂、色差、益胶,金手 指氧化、脆裂。 MAJ 观 结构 尺寸 游标卡 尺 线路板尺寸（长宽 高）与样板相同 尺寸与样板不同。MAJ 材质样板与样板相同。材质与样板不同。MAJ 性 电镀电镀机 金手指度金光亮， 覆盖率100%。 镀金不光亮，或镀金覆 盖率低。 MAJ 能 贴合机壳 把FPC贴到所属机 壳上,与所预设粘 贴位置相合,无多 出或缺少. 把FPC贴到所属机壳上, 与所预设粘贴位置不相 合,有多出或缺少. MAJ 制 订：审 核：批 准： RoHS限用物质成份调查表 所供产品信息 客户名称物料名称/型号项目名称制造商绿色物料标识 猎声BT天线T87深圳市凯普深通讯科技有限公司/ 产品构成信息 序号部件名称部件料号部件供应商 第三方检测报告限用物质含量PPM 备注 日期编号 铅 （Pb） 镉 （Cd） 汞 （Hg） 六价铬 （Cr 6+ ） 多溴联 苯 （PBB） 多溴二 苯醚 （PBDE 1背胶3M9471LSE3M2021/9/4SHAEC2118730101 OOOOOO 2基材一对半电解铜葵伦格蒂2022/2/21SHAEC202460504 OOOOOO 3电镀FPC 电镀镍金鑫达昇2022/4/15A2220136788101001E OOOOOO 4阻焊黑油PSM-800FSDM-A优立2021/09/06ETR21805816 OOOOOO 5白色字符油墨KTM-150FWM川裕2022/10/29ETR21A04957M01 OOOOOO Note：1、请以○、×表示六项限用物质含量合规与否；合规者以○表示；不合规以×表示。 2、PPM限量值：镉<100PPM；铅/汞/六价铬/PBB/PBDE<1000PPM。 3、其中针对包装材料中铅、六价铬、汞和镉的总量不超过100ppm。 4、此表请供应商完整填写后盖章；此处供应商指直接交易方。（提供盖章的纸件或扫描PDF文件） 填写人：巫星托填写人公司/部门：品质部 盐雾测试报告 日期：2022 年 08月 03日 产品名称T87-BT天线客户名称猎声 供应商 深圳市凯普深通讯科技 有限公司 国家测试标准GB/T 2423.2-2008 试样情况 试样数量：5PCS 基材：单面一对半有胶电解铜镀层：镀金≥3U" 试验起止时间2022年08月03日 9时 00 分至 2022 年08月05日 9时 00 分 共计 48 H 试验类型：■ NSS□ ASS□ CASS 试验条件 盐溶液：5%PH:7.0 箱内温度：35°C相对湿度：85% 喷雾方式： ■ 连续 □ 间歇压缩空气压力：1kg/cm² 盐雾沉降率：1-2ml/80cm2/h 雾液收集： 1.4ml/80cm2/h 试验周期：__1__个循环喷雾时间： 48 h 试验结果 试验后的外观：外观完整无损，无明显变化。 镀层：无剥落、无锈蚀 表面喷涂、丝印：无脱落、无气泡。. 说明： 1、盐雾试验作业标准依照中华人民共和国国家标准GB/T2423.17-2008执行 2、试件结果判定标准依照中华人民共和国国家标准GB/T6461-02执行 试验员/日期：陈健 审核/日期：巫星托 2022.08.05 高/低温测试记录 产品名称T87客户名称猎声 测试数量6 pcs测试日期2022年8月3日 循环次数1 测试时间 48H 测试条件： 高温： + 60 度 湿度： 90 % RH 低温： - 20 度 测试时间： 高温： 48 H 低温： 48 H 测试项目未循环测试循环测试 序号高温后低温后高温后低温后 1OK/ 2OK/ 3OK/ 4OK/ 5OK/ 6OK/ 测试后缺限: 原因分析： 改善措施： 实验结果： √ 合格 不合格 审核：巫星托 记录：陈健 包装方式（ Packing ） 客户名称：猎声物料名称：T87-BT天线 包装数量：1箱包装材料：纸箱 装箱数量：包装方式：封口袋包装 图1：单件包装图2：装箱包装方式 图3：包装箱视图（正面、侧面、顶部） 图4：外箱标签 备注：如需贴合天线加工，按照壳厂吸塑盘包装出货！ 拟制：李明惠审核：巫星托 图四 图三 顶部 侧面 正面

Sep 13, 2022 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AMQ6-T87 Product Name:Haylou lady bag Reque st for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that t he following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: shiqiao qiu Title：Certification Company ：Dongguan Liesheng Electronics Co., Ltd.

ProductName: Haylouladybag

FCC ID:2AMQ6-T87

ProductName: Haylouladybag

RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 Ant gain = 1.11 dBi MAX output power ：0.805dBm@2480MHz ERP=0.805+1.11-2.15=-0.235dBm WORSE CASE: 10^0.0805dBm =1.204mW < 2.715 mW Then SAR evaluation is not required

Page 1 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: Haylouladybag BrandMark: HAYLOU ModelNo.: HaylouT87 ReportNumber: BLA-EMC-202208-A3802 FCCID: 2AMQ6-T87 DateofSampleReceipt: 2022/8/16 DateofTest: 2022/8/16to2022/8/31 DateofIssue: 2022/8/31 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: DongguanLieshengElectronicCo.,Ltd Room401-410,Building1,No.86HongtuRoad,NanchengDistrict, DongguanCity,Guangdong,China Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2022/8/31 ReportNo.:BLA-EMC-202208-A3802 Page 2 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002022/8/31Original ReportNo.:BLA-EMC-202208-A3802 Page 3 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10ANTENNAREQUIREMENT......................................................................................................................13 1.1CONCLUSION..............................................................................................................................................................13 11CONDUCTEDSPURIOUSEMISSIONS...................................................................................................14 11.1LIMITS................................................................................................................................................................14 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................14 11.3TESTDATA...........................................................................................................................................................15 12CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................16 12.1LIMITS................................................................................................................................................................16 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................16 12.3TESTDATA...........................................................................................................................................................17 13DWELLTIME.............................................................................................................................................18 13.1LIMITS................................................................................................................................................................18 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................18 13.3TESTDATA...........................................................................................................................................................19 14HOPPINGCHANNELNUMBER...............................................................................................................20 14.1LIMITS................................................................................................................................................................20 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................20 14.3TESTDATA...........................................................................................................................................................20 15CARRIERFREQUENCIESSEPARATION...............................................................................................21 15.1LIMITS................................................................................................................................................................21 ReportNo.:BLA-EMC-202208-A3802 Page 4 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................21 15.3TESTDATA.........................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202208-A3802 Page 31 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] h.TesttheEUTinthelowestchannel,themiddlechannel,theHighestchannel. i.TheradiationmeasurementsareperformedinX,Y,ZaxispositioningforTransmittingmode,andfound theXaxispositioningwhichitistheworstcase. j.Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. Remark: 1)Foremissionbelow1GHz,throughpre-scanfoundtheworstcaseisthelowestchannel.Onlytheworst caseisrecordedinthereport. 2)ThefieldstrengthiscalculatedbyaddingtheAntennaFactor,CableFactor&Preamplifier.Thebasic equationwithasamplecalculationisasfollows: FinalTestLevel=ReceiverReading+AntennaFactor+CableFactor-PreamplifierFactor 3)Scanfrom9kHzto25GHz,thedisturbanceabove12.75GHzandbelow30MHzwasverylow.The pointsmarkedonaboveplotsarethehighestemissionscouldbefoundwhentesting,soonlyabove pointshadbeendisplayed.Theamplitudeofspuriousemissionsfromtheradiatorwhichareattenuated morethan20dBbelowthelimitneednotbereported.fundamentalfrequencyisblockedbyfilter,andonly spuriousemissionisshown. 4)Forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However,thepeak fieldstrengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedaboveby morethan20dBunderanyconditionofmodulation.Fortheemissionswhosepeaklevelislowerthanthe averagelimit,onlythepeakmeasurementisshowninthereport. ReportNo.:BLA-EMC-202208-A3802 Page 32 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 19.4TESTDATA [TestMode:TXbelow1G];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 33 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXbelow1G];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 34 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 35 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 36 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmidchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 37 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmidchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 38 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 39 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 40 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 20RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section6.10.5 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 20.1LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:Theemissionlimitsshownintheabovetablearebasedonmeasurementsemployinga CISPRquasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000 MHz.Radiatedemissionlimitsinthesethreebandsarebasedonmeasurementsemployingan averagedetector,thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermitted averagelimitsspecifiedabovebymorethan20dBunderanyconditionofmodulation.

ReportNo.:BLA-EMC-202208-A3802 Page 41 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 20.2BLOCKDIAGRAMOFTESTSETUP 20.3PROCEDURE a.Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundata3 or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthe highestradiation. b.Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundata3 meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthehighest radiation. c.TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmountedon thetopofavariable-heightantennatower. d.Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaaresetto makethemeasurement. e.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawastuned toheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawastunedto heights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofindthemaximum reading. f.Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximumHold Mode. g.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentesting couldbestoppedandthepeakvaluesoftheEUTwouldbereported.Otherwisetheemissionsthatdidnot have10dBmarginwouldbere-testedonebyoneusingpeak,quasi-peakoraveragemethodasspecified andthenreportedinadatasheet. ReportNo.:BLA-EMC-202208-A3802 Page 42 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] h.TesttheEUTinthelowestchannel,themiddlechannel,theHighestchannel. i.TheradiationmeasurementsareperformedinX,Y,ZaxispositioningforTransmittingmode,andfound theXaxispositioningwhichitistheworstcase. j.Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. Remark1:Level=ReadLevel+CableLoss+AntennaFactor-PreampFactor Remark2:Forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However, thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecified abovebymorethan20dBunderanyconditionofmodulation.Fortheemissionswhosepeaklevelis lowerthantheaveragelimit,onlythepeakmeasurementisshowninthereport. ReportNo.:BLA-EMC-202208-A3802 Page 43 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 20.4TESTDATA [TestMode:TXlowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 44 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 45 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighcahnnel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 46 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighcahnnel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202208-A3802 Page 47 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21APPENDIX MaximumConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) Limit (dBm) Verdict NVNT1-DH12402Ant1-1.0721Pass NVNT1-DH12441Ant1-0.18421Pass NVNT1-DH12480Ant10.80521Pass NVNT2-DH12402Ant1-0.98821Pass NVNT2-DH12441Ant1-0.1421Pass NVNT2-DH12480Ant10.75321Pass NVNT3-DH12402Ant1-0.99321Pass NVNT3-DH12441Ant1-0.20221Pass NVNT3-DH12480Ant10.67621Pass PowerNVNT1-DH12402MHzAnt1 PowerNVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 48 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT1-DH12480MHzAnt1 PowerNVNT2-DH12402MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 49 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT2-DH12441MHzAnt1 PowerNVNT2-DH12480MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 50 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT3-DH12402MHzAnt1 PowerNVNT3-DH12441MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 51 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT3-DH12480MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 52 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -20dBBandwidth ConditionModeFrequency (MHz) Antenna-20dBBandwidth (MHz) Limit-20dB Bandwidth(MHz) Verdict NVNT1-DH12402Ant11.0320Pass NVNT1-DH12441Ant10.8770Pass NVNT1-DH12480Ant10.9870Pass NVNT2-DH12402Ant11.180Pass NVNT2-DH12441Ant11.1630Pass NVNT2-DH12480Ant11.1380Pass NVNT3-DH12402Ant11.1410Pass NVNT3-DH12441Ant11.1940Pass NVNT3-DH12480Ant11.1860Pass -20dBBandwidthNVNT1-DH12402MHzAnt1 -20dBBandwidthNVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 53 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -20dBBandwidthNVNT1-DH12480MHzAnt1 -20dBBandwidthNVNT2-DH12402MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 54 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -20dBBandwidthNVNT2-DH12441MHzAnt1 -20dBBandwidthNVNT2-DH12480MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 55 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -20dBBandwidthNVNT3-DH12402MHzAnt1 -20dBBandwidthNVNT3-DH12441MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 56 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:marketing@cblu…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202208-A3802 Page 61 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OBWNVNT3-DH12480MHzAnt1 ReportNo.:BLA-EMC-202208-A3802 Page 62 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge ConditionModeFrequency (MHz) AntennaHopping Mode MaxValue (dBc) Limit (dBc) Verdict NVNT1-DH12402Ant1No-Hopping-54.45-20Pass NVNT1-DH12480Ant1No-Hopping-54.97-20Pass NVNT2-DH12402Ant1No-Hopping-54.21-20Pass NVNT2-DH12480Ant1No-Hopping-53.14-20Pass NVNT3-DH12402Ant1No-Hopping-53.21-20Pass NVNT3-DH12480Ant1No-Hopping-55.6-20Pass BandEdgeNVNT1-DH12402MHzAnt1No-HoppingRef BandEdgeNVNT1-DH12402MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202208-A3802 Page 63 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT1-DH12480MHzAnt1No-HoppingRef BandEdgeNVNT1-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202208-A3802 Page 64 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT2-DH12402MHzAnt1No-HoppingRef BandEdgeNVNT2-DH12402MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202208-A3802 Page 65 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT2-DH12480MHzAnt1No-HoppingRef BandEdgeNVNT2-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202208-A3802 Page 66 of 96 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT3-DH12402M…

Text truncated - open the document above for the full version.
