2AMTQCGC20Streaming box

INSTRUCTION Manual www.atgames.net More Games to Play Discounts and Special Offers for Members Online Multiplayer and Voice Chat Global Leaderboards and Leagues Events Sign Up at www.arcadenet.net Sign Up For ArcadeNet ® ! LEGENDS GAMER PRO FEATURES How to Set Up QUICK START GUIDE HOW TO UPDATE FIRMWARE How to Sign in with your ArcadeNet® account WHEN TO SAFELY POWER OFF LEGENDS GAMER PRo WARRANTY INFO Featured Games Safety Notice, Battery Safety FCC Statement P 2 P 3 P 4 P 4 P 5 P 6 P 6 P 7 P 8 P 8 Index 1. 2. 3. 4. 5. 6. PAIRING BUTTON RESET BUTTON MICRO USB PORT USB PORT HDMI PORT ETHERNET PORT LEGENDS GAMER PRO FEATURES 8 5 RBR1 RTR2 LBL1 LTL2 RBR1 RTR2 LBL1 LTL2 6 7 5 91011121234 13 14 15 1 2 3 4 5 6 1. 2. 3. 4. 5. POWER P1 CONNECTION INDICATOR BATTERY INDICATOR P2 CONNECTION INDICATOR PINBALL BUTTONS 6. 7. 8. 9. 10. P2 JOYSTICK TRACKBALL P1 JOYSTICK REWIND P1 START 11. 12. 13. 14. 15. HOME/MENU P2 START CONTROL BUS* USB PORT DC POWER PORT* • Arcade Fight Stick • Legends Core *Not applicable when used with HA2802(Legends Gamer Pro) series *Note: USB Charging and Data Cable (5ft); HDMI Cable (1ft); Micro USB AC Adapter Cable (5ft) are included. How to Set Up Connect the Legends Core to a TV or monitor via the included HDMI cable*. Use the included Micro USB AC adapter* to power the Legends Core. Power on the Legends Gamer Pro Arcade Fight Stick. Press and hold Home/Menu button on the Arcade Fight Stick for 3 seconds until the LED indicator starts flashing at a high frequency. Press the pairing button on Legends Core and the pairing window will display on the screen. Press the pairing button and select [Control deck P1]. Long press the pairing button to confirm the P1 pairing. Repeat this step and select to pair [Control deck P2]. TV HDMI 1 3 Micro USB Power 2 1. 2. 3. 4. 5. 6. 5,6 PAIRING BUTTON 4 1. 2. 3. 4. QUICK START GUIDE Power on both the Legends Core and the Arcade Fight Stick. Use P1 joystick to select and play 150 pre-loaded games. (Note: Internet connection is not required. The games can be played offline.) Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi to play more games on ArcadeNet®. To connect through Wi-Fi: 4-1. Select [Wi-Fi] under the [SETTINGS] page. 4-2. Select the Wi-Fi SSID you would like to connect to, and select [Connect]. If prompted, enter the Wi-Fi password using the on-screen keyboard and select [Submit] when done. All screenshots shown are for illustration purposes only. Actual screens may vary. HOW TO UPDATE FIRMWARE 1. 2. 3. 4. 5. Power on both the Legends Core and the Arcade Fight Stick. Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi. Go to [SETTINGS] and select [Version]. If there is a newer version, follow the instruction and start download the latest firmware. Make sure the internet connection is stable during this process. Once the firmware is downloaded successfully, select [Upgrade] and the device will reboot automatically to activate the new firmware version. Note: If you encounter any issues on firmware update, please contact [email protected] 1. 2. 3. 4. 5. How to Sign in with your ArcadeNet® account Go to [SETTINGS] and select [SIGN IN]. Sign up for a new account if you don’t have one yet. Once you have an ArcadeNet® account, you can choose either to sign in with your email or with the QR code. To sign in with your email, enter the email address and password. To sign in with the QR-code, a smartphone is required. Use a smartphone to scan the QR-code on the screen to launch the ArcadeNet® website. You will be directed to the login page, where you can choose either to sign in with your existing Google/Facebook account or your e-mail. WARRANTY INFO Do not power off the Legends Core and Legends Gamer Pro Arcade Fight Stick during the following: • Firmware update • Factory reset • Data cleanup • Read/write USB drive This could prevent irreversible data loss and/or damage to your device or USB drives. The manufacturer warrants this product to be free and clear of defects in the materials and workmanship, under normal residential use and conditions, for a period of thirty (30) days from the original invoice date. Shipping and handling fees are to be paid for by the customer. To make a warranty claim, please submit a service request here: [email protected]. Standard warranty coverage for the AtGames Legends Ultimate does not apply to and is considered invalid due to misuse, improper maintenance, self-repair, tampering, or invasive hardware modifications of any kind, and damages or dysfunction caused by shipping or non-manufacturing related causes. Note: Standard warranty services are valid with receipt from an authorized retailer. Purchases through third-party sellers and resellers do not fall under the standard warranty program. For warranty support, please contact the third-party seller or reseller where you purchased the product. WHEN TO SAFELY POWER OFF LEGENDS GAMER PRO 6. You will see the authorization notification once complete. Now you can close the window and return to your Legends Gamer Pro. A “Success!” message will show on the screen once signed in. Featured Games © CITY CONNECTION CO., LTD DATA EAST and DATA EAST logo(s) are trademarks in United States and other countries or registered trademarks in European Union and Japan of G-MODE Corporation. © 2020 Disney. All rights reserved. © 2020 & ™ Lucasfilm Ltd. All rights reserved. Copyright © Piko Interactive LLC - All Rights Reserved. SPACE INVADERS™ & © TAITO CORPORATION 1978 ALL RIGHTS RESERVED. BUBBLE BOBBLE™ & © TAITO CORPORATION 1986 ALL RIGHTS RESERVED. TAITO, the TAITO logo, SPACE INVADERS™ and BUBBLE BOBBLE™ are trademarks and/or registered trademarks of TAITO CORPORATION in Japan and/or other countries. Tetris ® & © 1985~2020 Tetris Holding. Tetris logos, Tetris theme song and Tetriminos are trademarks of Tetris Holding. The Tetris trade dress is owned by Tetris Holding. Licensed to The Tetris Company. Tetris Game Design by Alex…

Text truncated - open the document above for the full version.

AtGames Digital Media Inc. 2228 E Maple Ave,El Segundo, CA 90245, USA Tel: (310) 691-6262 Fax: (302) 288-8896 Date: 2020-07-20 Dear Sir/Madam, We, AtGames Digital Media Inc. Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Streaming box Model No.: HA2810, HA2811, HA2812, HA2813, HA2810S, HA2811S, HA2812S, HA2813S, HA2810B, HA2811B, HA2812B, HA2813B, HA2810C, HA2811C, HA2812C, HA2813C Sincerely, (Signed) Name / Title: May Su / PM Company: AtGames Digital Media Inc. Address: 2228 E Maple Ave,El Segundo, CA 90245, USA Phone: (310) 691-6262 Fax: (302) 288-8896 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-07-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AMTQCGC20 HA2810 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: May Su / PM Company: AtGames Digital Media Inc. Address: 2228 E Maple Ave,El Segundo, CA 90245, USA Phone: (310) 691-6262 Fax: (302) 288-8896 E-Mail: [email protected]

AtGames Digital Media Inc. 2228 E Maple Ave,El Segundo, CA 90245, USA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/07/20 To whom it may concern: We, AtGames Digital Media Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AMTQCGC20 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: May Su / PM Company: AtGames Digital Media Inc. Address: 2228 E Maple Ave,El Segundo, CA 90245, USA Phone: (310) 691-6262 Fax: (302) 288-8896 E-Mail: [email protected]

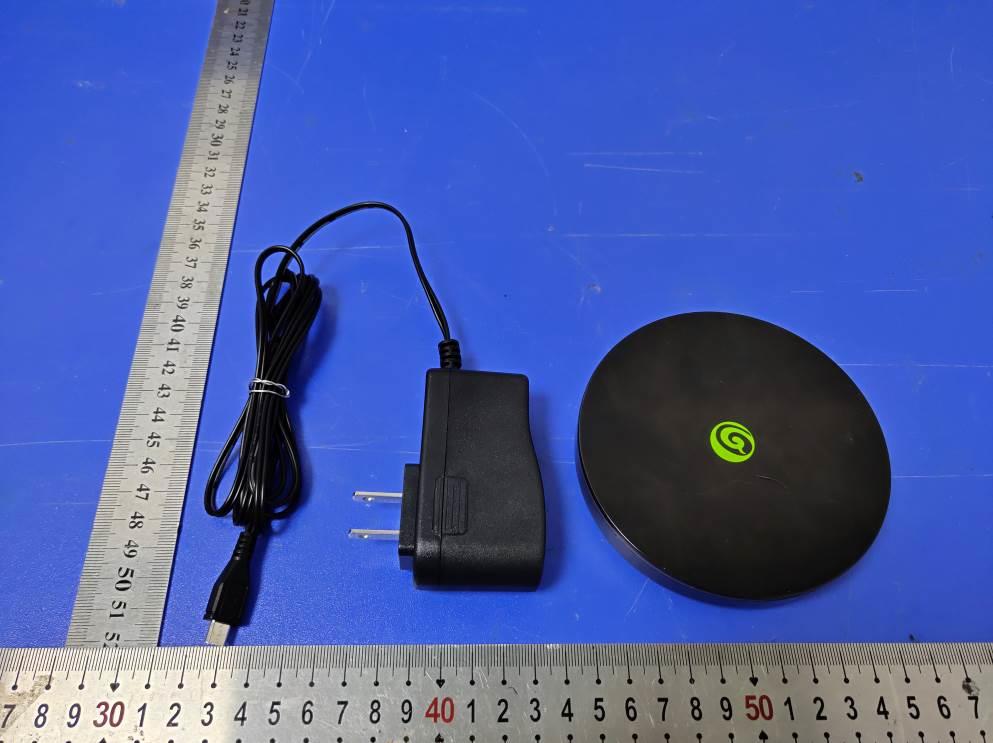

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQCGC20 1.INTERIORPHOTOGRAPHS Fig.1 Fig.2 BT&WIFIAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQCGC20 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQCGC20 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 9 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AMTQCGC20 Product name Streaming box Test Model HA2810 Additional Model No HA2811, HA2812, HA2813, HA2810S, HA2811S, HA2812S, HA2813S, HA2810B, HA2811B, HA2812B, HA2813B, HA2810C, HA2811C, HA2812C, HA2813C Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply For AC Adapter: Input: AC 100-240V, 50/60Hz, 0.4A Output: DC 5.0V, 2.0A Operation frequency 2402MHz-2480MHz 2412MHz-2462MHz 5180MHz-5240MHz 5745MHz-5825MHz Antenna Type PCB Antenna Antenna Gain 2.00dBi(Max) Hardware version V2.1 Software version / Channel Number 79 channels for Bluetooth V4.2 (BDR/EDR) 40 channels for Bluetooth V4.2 (BT LE) 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 1 channels for 80MHz bandwidth (5210MHz) 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 9 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: Mobile Devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES-D4 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes PCB Antenna 2402MHz-2480MHz 2412MHz-2462MHz 5180MHz-5240MHz 5745MHz-5825MHz 2 dBi BT/WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 9 6. Conducted Power [BT Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.623 39 2441 1.560 78 2480 0.315 π/4DQPSK 0 2402 0.781 39 2441 2.033 78 2480 0.721 8DPSK 0 2402 0.792 19 2440 2.008 39 2480 0.705 [BLE Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) BT LE 0 2402 3.572 19 2440 2.02 39 2480 0.301 [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power(dBm) 11B 1 2412 13.24 6 2437 13.74 11 2462 13.4 11G 1 2412 13.89 6 2437 14.52 11 2462 13.99 11N20SISO 1 2412 13.14 6 2437 13.8 11 2462 14.19 11N40SISO 3 2422 12 6 2437 12.9…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR AtGames Digital Media Inc. Streaming box Test Model: HA2810 Additional Model No.: Please Refer to Page 6 Prepared for : AtGames Digital Media Inc. Address : 2228 E Maple Ave, El Segundo, CA 90245, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 19, 2020 Number of tested samples : 2 Sample No. : 200601241A-1, 200601241A-2 Serial number : Prototype Date of Test : June 19, 2020 ~ July 10, 2020 Date of Report : July 14, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200601241AEA Date of Issue ................................... : July 14, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : AtGames Digital Media Inc. Address ........................................... : 2228 E Maple Ave, El Segundo, CA 90245, USA Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Streaming box Trade Mark ...................................... : N/A Test Model ...................................... : HA2810 Ratings ............................................ : For AC Adapter: Input: AC 100-240V, 50/60Hz, 0.4A Output: DC 5.0V, 2.0A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jayden Zhuo/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200601241AEA July 14, 2020 Date of issue Test Model........................... : HA2810 EUT......................................... : Streaming box Applicant............................... : AtGames Digital Media Inc. Address.................................. : 2228 E Maple Ave, El Segundo, CA 90245, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : AtGames Digital Media Inc. Address................................... : 2228 E Maple Ave, El Segundo, CA 90245, USA Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 July 14, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION .......................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................... 6 1.2 Support equipment List ........................................................................................................................ 7 1.3 External I/O Cable ................................................................................................................................ 7 1.4 Description of Test Facility .................................................................................................................. 7 1.5 Statement of the Measurement Uncertainty ........................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Streaming box Trade Mark: N/A Test Model: HA2810 Environmental Conditions Temperature: 24.3 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.623 21 PASS MCH 1.560 21 PASS HCH 0.315 21 PASS π/4DQPSK LCH 0.781 21 PASS MCH 2.033 21 PASS HCH 0.721 21 PASS 8DPSK LCH 0.792 21 PASS MCH 2.008 21 PASS HCH 0.705 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9203 Not Specified PASS MCH 0.9175 Not Specified PASS HCH 0.9261 Not Specified PASS π/4DQPSK LCH 1.275 Not Specified PASS MCH 1.274 Not Specified PASS HCH 1.275 Not Specified PASS 8DPSK LCH 1.277 Not Specified PASS MCH 1.277 Not Specified PASS HCH 1.277 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.965 0.617 PASS MCH 1.000 0.617 PASS HCH 0.976 0.617 PASS π/4DQPSK LCH 0.864 0.850 PASS MCH 1.212 0.850 PASS HCH 0.892 0.850 PASS 8DPSK LCH 1.194 0.851 PASS MCH 1.220 0.851 PASS HCH 1.236 0.851 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.214 -37.301 -20.214 PASS MCH 0.753 -38.247 -19.247 PASS HCH -0.506 -36.517 -20.506 PASS π/4DQPSK LCH 0.289 -37.240 -19.711 PASS MCH 1.546 -37.923 -18.454 PASS HCH 0.168 -37.987 -19.832 PASS 8DPSK LCH 0.227 -37.650 -19.773 PASS MCH 1.498 -37.804 -18.502 PASS HCH 0.091 -37.362 -19.909 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AMTQCGC20 Report No.: LCS200601241AEA Page 2…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQCGC20 _______________________________________________________________________________________________ 1.TESTSETUPPHOTOGRAPHS 1.1.PhotoofRadiatedEmissionsMeasurement Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQCGC20 _______________________________________________________________________________________________ 1.2.PhotoofConductedEmissionsMeasurement Fig.3
