2AMTQPINBAL20LEGENDS PINBALL

This product is intended for indoor, home use only and is not to be used in a commercial setting. INSTRUCTION MANUAL Assembly Guide P4 Packaging/Unboxing Warning P7 Controls & Inputs P8 Quick Start Guide / How to Update Firmware P9 How to Sign In with Your ArcadeNet® Account P10 Product Registration / When to Safely Power Off Arcade / Warranty Info P11 Game List P12 Warning / FCC Statement / Safety Notice P13 Index Assembly Guide Hex key (included)Key (included) TOOLS INCLUDED SCREWS CORD A SA Playfield B Backglass C Leg X4 X8 SB X4 M AC adapter abc Wrench (not included) Legends Pinball comes in one box. Due to the weight of the box, it is recommended that you have another person help install the legs. 4 Assembly Guide Step 1. Take out the playfield, legs, and 8 [SA] screws. Put the playfield upside down on a soft surface. Attach the legs to the main cabinet and insert 8 [SA] screws to the matching holes with [a] hex key. B Key Step 3. Take out the backglass and the included [b] key. Use the key to open up the rear panel on the backglass. Hex key (included) a C A SA A C Wrench (not included) Step 2. Position the playfield upright. Use the [c] wrench to adjust the height of the playfield to your liking. Tighten the base screws when set. b c 5 Assembly Guide A A B B Step 4. Attach the backglass to the top of the playfield. Tightly insert 4 [SB] screws to the matching holes. Securely connect the cords to the matching slots. B Key Step 5. Attach the back cover of the backglass and tighten it with the included [b] key. SB b 6 Packaging/Unboxing Warning Please note that when assembling the machine that the top rear of the playfield has an opening for connecting the backglass. Because of the weight of the cabinet body, carrying the cabinet body by grabbing onto this opening can cause serious damage to both the body and electronics inside. Please exercise extra caution when moving the cabinet body and backglass so that you have an ideal and safe out-of-the-box experience. WARNING: This HDMI interface is non-standard and should not be connected to a TV or other display as it may cause damage. • • • • 7 Controls and Inputs D-Pad Rewind/Select Button Plunger Power Switch Forward Nudge Start Button AtGames/Menu Button HDMI Input Nudge ButtonFlipper Button USB PORT USB PORT HDMI Input Selector Located on the back of unit Power Input Ethernet Input Volume +/- Buttons Input Display Indicator The USB port is only used for transferring data. 8 Quick Start Guide 1. Plug in AC adapter and press the Power button found under the front of the cabinet to turn on. Use D-pad to select from the 22 pre-loaded games. 2. Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi for updates and to play more games on ArcadeNet ® . 3. To connect through Wi-Fi: 3-1. Select [Wi-Fi] under the [SETTINGS] page. 3-2. Select the Wi-Fi SSID you would like to connect to and select [Connect]. If prompted, enter the Wi-Fi password using the on-screen keyboard and select [Submit] when done. How to Update Firmware 1. Power on the arcade. 2. Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi. 3. Go to [SETTINGS] and select [Version]. 4. If there is a newer firmware, follow the instruction to download the latest firmware. Make sure the internet connection is stable during this process. 5. Once the firmware is downloaded successfully, select [Upgrade] and the device will reboot automatically to activate the new firmware version. Note: If you encounter any issues on firmware update, please refer to: https://www.atgames.net/arcades/faq/ or contact [email protected] 9 Go to [SETTINGS] and select [SIGN IN].1. Sign up for a new account if you do not have one yet.2. Once you have an ArcadeNet® account, you can choose either to sign in with your email or with the QR code. To sign in with your email, enter the email address and password. 3. Use a smartphone to scan the QR code on the screen and launch the ArcadeNet® website. You will be directed to the login page, where you can choose either to sign in with an existing Google/Facebook account or your email. 5. You will see the authorization notification once complete. Now you can close the window and return to your arcade. A “Success!” message will show on the arcade once signed in. 6. To sign in with the QR code, a smartphone is required.4. How to Sign In with Your ArcadeNet ® Account 10 When to Safely Power Off Arcade Do not power off the cabinet during the following: • Firmware update • Factory reset • Data cleanup • Read/write USB drive This could prevent irreversible data loss and/or damage to your cabinet and USB drives. Warranty Info The manufacturer warrants this product to be free and clear of defects in the materials and workmanship, under normal residential use and conditions, for a period of thirty (30) days from the original invoice date. Shipping and handling fees are to be paid for by the customer. To make a warranty claim, please submit a service request here: [email protected]. Standard warranty coverage for the AtGames Legends Pinball does not apply to and is considered invalid due to misuse, improper maintenance, self-repair, tampering, or invasive hardware modifications of any kind, and damages or dysfunction caused by shipping or non-manufacturing related causes. Note: Standard warranty services are valid with receipt from an authorized retailer. Purchases through third-party sellers and resellers do not fall under the standard warranty program. For warranty support, please contact the third-party seller or reseller where you purchased the product. Product Registration Use your ArcadeNet ® account login to register your product. If you signed up for a new ArcadeNet ® account, follow the instructions in the product registration email sent to the email address associated with the account. If you already have an ArcadeNet ® account, you can view your new device by going to the ArcadeNet ® website, logging in, and selecting Registration …

Text truncated - open the document above for the full version.

AtGamesDigitalMediaInc. AgentAuthorization Company:AtGamesDigitalMediaInc. Address:2228EMapleAve,ElSegundo,California,90245,UnitedStates ProductName:LEGENDSPINBALL TradeMark:N/A ModelNumber(s):HA8819,HA8819B,HA8819C,HA8819D,HA8819S, HA8820,HA8820B,HA8820C,HA8820D,HA8820S, HA8830,HA8830B,HA8830C,HA8830D,HA8830S, HA8840,HA8840B,HA8840C,HA8840D,HA8840S, HA8850,HA8850B,HA8850C,HA8850D,HA8850S FCCID:2AMTQPINBAL20 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-04-26 Name:MaySu Title:Manager Company:AtGamesDigitalMediaInc.

AtGamesDigitalMediaInc. Address:2228EMapleAve,ElSegundo,California,90245,UnitedStates To:MiCOMLabsInc 575BoulderCourt,Pleasanton,California94566,USA DearSir/Madam, We,AtGamesDigitalMediaInc.HerebydeclaresthefollowingstatementforMiCOM LabsInc,PCBboard,structureandinternalofthesemodel(s)arethesame,Onlymodels nameisdifferentforthesemodels: ProductName:LEGENDSPINBALL TradeMark:N/A ModelNumber(s): HA8819,HA8819B,HA8819C,HA8819D,HA8819S, HA8820,HA8820B,HA8820C,HA8820D,HA8820S, HA8830,HA8830B,HA8830C,HA8830D,HA8830S, HA8840,HA8840B,HA8840C,HA8840D,HA8840S, HA8850,HA8850B,HA8850C,HA8850D,HA8850S Signature:Date:2021-04-26 Name:MaySu Title:Manager Company:AtGamesDigitalMediaInc.

AtGamesDigitalMediaInc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-04-26 Subject;RequestforConfidentiality FCCID:2AMTQPINBAL20 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure DeclarationofSoftwareSecurityRequirementsForU-NIIDevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MaySu Title:Manager

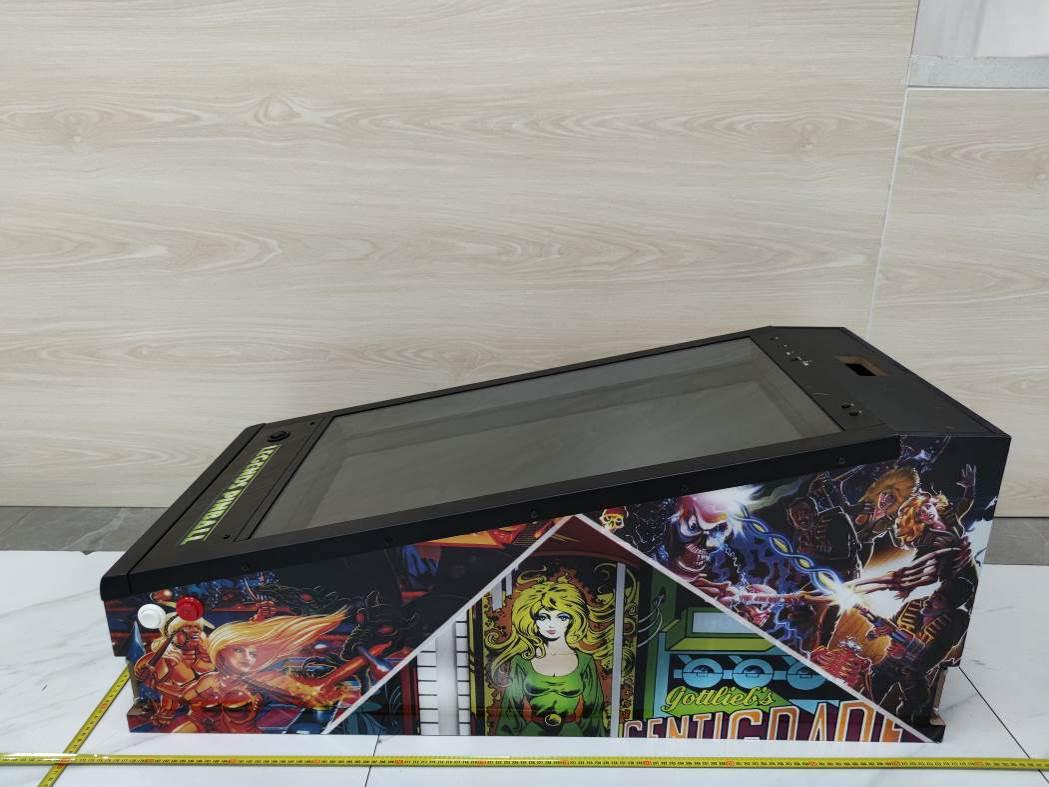

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.7

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L:3.5cm*W:3.0cm LabelLocation LEGENDSPINBALL ModelNo.:HA8819 FCCID:2AMTQPINBAL20 InputAC110-240V-50/60Hz,1.2A Thisdevicecomplieswithpart15FCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterferencereceived,includinginterference thatmaycauseundesiredoperation.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 INTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.3 Fig.4 BT&2.4GWIFI&5GWIFIANT SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Fig.7

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 10 MaximumPermissibleExposureReport 1.ProductInformation FCCID:2AMTQPINBAL20 Productname LEGENDSPINBALL TestModel HA8819 PowersupplyInputAC110-240V-50/60Hz,1.2A Operationfrequency 2402MHz~2480MHz 2412MHz~2462MHz 5180MHz-5240MHz 5745-5825MHz AntennaTypeInternalAntenna AntennaGain2dBi(Max) Hardwareversion HA8819_V2.2 Softwareversion 10971 ChannelNumber 79channelsforBluetoothV4.2(BDR/EDR) 40channelsforBluetoothV4.2(BTLE/BT2LE) 11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) 4channelsfor20MHzbandwidth(5180-5240MHz) 2channelsfor40MHzbandwidth(5190~5230MHz) 1channelsfor80MHzbandwidth(5210MHz) 5channelsfor20MHzbandwidth(5745-5825MHz) 2channelsfor40MHzbandwidth(5755~5795MHz) 1channelsfor80MHzbandwidth(5775MHz) ChannelSpacing 5MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumoftheMPE ratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditions ofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Either themaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedto determinetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedon far-fieldplane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevice mustmeettheminimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneous transmissionoperations,tosatisfycompliance. SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 10 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequencyElectromagnetic Fields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:MobileDevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation ES-D4canonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Notes InternalAntenna 2402MHz~2480MHz 2412MHz~2462MHz 5180MHz-5240MHz 5745-5825MHz 2.0dBiBT/WiFiAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 10 6.ConductedPower [BTMaxConductedPower] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) GFSK 02402-4.808 392441-4.299 782480-4.325 π/4DQPSK 02402-3.872 392441-3.428 782480-3.465 8DPSK 02402-3.835 192440-3.360 392480-3.402 [BTLEMaxConductedPower] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) BTLE 02402-4.7 192440-4.255 392480-4.226 [BT2LEMaxConductedPower] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) BT2LE 02402-4.68 192440-4.178 392480-4.201 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 10 [2.4GWIFIMaxConductedPower] ModeChannel Frequency (MHz) MaxConducted Power(dBm) 11B 1241217.03 6243717.75 11246217.33 11G 1241217.9 6243717.6 11246217.4 11N20SISO 1241216.84 6243717.61 11246216.7 11N40SISO 3242215.44 6243716.45 9245216.49 [5.2GWIFIMaxConductedPower] ModeChannel Frequency (MHz) MaxConducted Power(dBm) 11A 365180 14.83 405200 14.66 485240 14.77 11N20SISO 365180 15.24 405200 14.98 485240 14.69 11N40SISO 385190 14.78 465230 14.51 11AC20SISO 365180 15.45 405200 15.16 485240 14.8 11AC40SISO 385190 14.87 465230 14.44 11AC80SISO425210 14.1 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 5 of 10 [5.8WIFIMaxConductedPower] ModeChannel Frequency (MHz) MaxConducted Power(dBm) 11A 1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: LEGENDS PINBALL Trade Mark: N/A Test Model: HA8819 Environmental Conditions Temperature: 22C Relative Humidity:53% ATM Pressure:100.0 kPa Test Engineer:Kay Hu Supervised by:Li Huan A.1 Maxmum Conducted Peak Output Power ModeChannel.Maximum Peak Output Power [dBm]Limit [dBm]Verdict GFSK LCH-4.80821PASS MCH-4.29921PASS HCH-4.32521PASS π/4DQPSK LCH-3.87221PASS MCH-3.42821PASS HCH-3.46521PASS 8DPSK LCH-3.83521PASS MCH-3.36021PASS HCH-3.40221PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 7 of 47 A.2 20dB Bandwidth ModeChannel.20dB Bandwidth [MHz]Limit [MHz]Verdict GFSK LCH0.9555Not SpecifiedPASS MCH0.9539Not SpecifiedPASS HCH0.9547Not SpecifiedPASS π/4DQPSK LCH1.282Not SpecifiedPASS MCH1.285Not SpecifiedPASS HCH1.307Not SpecifiedPASS 8DPSK LCH1.284Not SpecifiedPASS MCH1.303Not SpecifiedPASS HCH1.308Not SpecifiedPASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 12 of 47 A.3 Carrier Frequency Separation ModeChannel.Carrier Frequency Separation [MHz]Limit [MHz]Verdict GFSK LCH1.0050.637PASS MCH1.1540.636PASS HCH1.3220.636PASS π/4DQPSK LCH0.9840.855PASS MCH0.8880.857PASS HCH1.2040.871PASS 8DPSK LCH1.0580.856PASS MCH1.2940.869PASS HCH1.1680.872PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 17 of 47 A.4 Hopping Channel Number ModeChannel.Number of Hopping Channel [N]Limit [N]Verdict GFSKHop79>=15PASS π/4DQPSKHop79>=15PASS 8DPSKHop79>=15PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 19 of 47 A.5 Dwell Time ModePacketChannel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s]Limit [s]Verdict GFSK DH5LCH 2.88106.70.3070.4 PASS DH5MCH 2.88106.70.3070.4 PASS DH5HCH 2.87106.70.3060.4 PASS π/4DQPSK 2DH5LCH 2.88106.70.3070.4 PASS 2DH5MCH 2.88106.70.3070.4 PASS 2DH5HCH 2.88106.70.3070.4 PASS 8DPSK 3DH5LCH 2.88106.70.3070.4 PASS 3DH5MCH 2.88106.70.3070.4 PASS 3DH5HCH 2.88106.70.3070.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions ModeChannelPref [dBm]Max. Level [dBm]Limit [dBm]Verdict GFSK LCH-5.244 -38.293-25.244 PASS MCH-4.753-37.850-24.753PASS HCH-4.741-38.044-24.741PASS π/4DQPSK LCH-5.068-36.711-25.068PASS MCH-4.593-37.977-24.593PASS HCH-4.733-38.065-24.733PASS 8DPSK LCH-5.2-37.274-25.200PASS MCH-4.56-37.324-24.560PASS HCH-4.767-37.550-24.767PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210305079AEA Page 29 of 47 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AMTQPINBAL20 Report No.: LCS210…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20ReportNo.:LCS210305079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 38 FCCTESTREPORT For AtGamesDigitalMediaInc. LEGENDSPINBALL TestModel:HA8819 AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:AtGamesDigitalMediaInc. Address:2228EMapleAve,ElSegundo,California,90245,UnitedStates Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BuildingAand301BuildingC,JujiIndustrialPark, YabianxueziweiShajingStreet,BaoanDistrict,Shenzhen,518000, P.R.C. Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:March12,2021 Numberoftestedsamples:2 Serialnumber:Prototype DateofTest:March12,2021~April06,2021 DateofReport:April13,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20ReportNo.:LCS210305079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 38 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS210305079AEA DateofIssue.......................................:April13,2021 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BuildingAand301BuildingC,JujiIndustrialPark, YabianxueziweiShajingStreet,BaoanDistrict,Shenzhen,518000, P.R.C. TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:AtGamesDigitalMediaInc. Address................................................:2228EMapleAve,ElSegundo,California,90245,UnitedStates TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:LEGENDSPINBALL TradeMark..........................................:N/A TestModel...........................................:HA8819 Ratings.................................................: InputAC110-240V-50/60Hz,1.2A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu/FileadministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20ReportNo.:LCS210305079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of38 FCC--TESTREPORT TestModel...............................:HA8819 EUT.........................................:LEGENDSPINBALL Applicant...............................:AtGamesDigitalMediaInc. Address..................................:2228EMapleAve,ElSegundo,California,90245,UnitedStates Telephone...............................: Fax..........................................: Manufacturer........................:AtGamesDigitalMediaInc. Address...................................:2228EMapleAve,ElSegundo,California,90245,UnitedStates Telephone...............................: Fax..........................................: Factory...................................:/ Address...................................:/ Telephone...............................: Fax..........................................: TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210305079AEA April13,2021 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20ReportNo.:LCS210305079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of38 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000April13,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20ReportNo.:LCS210305079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of38 TABLEOFCONTENTS Description................................................................................................................................................Page 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT).........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................8 1.3.EXTERNALI/OCABLE..........................................................................................................................................8 1.4.DESCRIPTIONOFTESTFACILITY.........................................................................................................................8 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY..........................................................................................8 1.6.MEASUREMENTUNCERTAINTY............................................................................................................................9 1.7.DESCRIPTIONOFTESTMODES.......................................................…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 _______________________________________________________________________________________________ TESTSETUPPHOTOGRAPHS PhotoofRadiatedEmissionsMeasurement Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AMTQPINBAL20 _______________________________________________________________________________________________ PhotoofConductedEmissionsMeasurement Fig.3
