2AN8FMSL-M2020QMagnetic wireless power bank

1. • • • • 2. • • • 3. • ** MADE IN CHINA INSTRUCTIONS: Charging the PowerBank: Charge the powerbank fully before usage. Connect the provided charging cable to a power source and to the Type-C Input port (2) or Lightning Input(3) on the powerbank. Once connected the LED Indicator(4)will begin to flash white when cahrging. Once fully charged LED will stop flashing. Charging Electronic Devices with the Power Bank: Connect the charging cable to your mobile phone/device using the appropriate connector. Connect the Type-C part of the cable to Type-C Output(2), the LED Indicator will illuminate when charging. Remove the charging cable from your mobile device when fully charged. Charging Electronic Devices with the Wireless Charging: Press Powerbank ON/OFF button(1) LED indicator will show Green once the powerbank is in wireless charging standby mode. Place wireless charging enable device on Wireless Charging Pad(5). The device will begin to charge, LED indicator will turn RED when charging. an unknown object is being detected between the wireless charging pad and the phone by FOD(Foreign Object Detection). (The device will not begin to charge until object is removed.) Magnetic wireless power bank Instruction Manual MSL-M2020Q 1 x 5,000 mAh Wireless Power Bank 1 x Type-C to Type-C charging cable 1 x Instruction Manual 5000mAh/3.7V/18.5Wh Lightning Input: DC 5V/1.5A Type-C Input/Output: DC 5V/1.5A Wireless Output: 5W Press the Powerbank ON/OFF Button(1) once to view the remaining power capacity. Press the button twice to turn OFF. 1. 2. 3. 4. 5. 6. • • • • • • Powerbank ON/OFF Button Type-C Input/Output Lightning Input LED Indicator Wireless Charging Surface Magnet Ring What’s included: Features: LED Indicators Please remove attachments from the phone before charging on this device. WARNING-When using this product, basic precautions should always be followed: Read all the instructions before use. Never store or use this product in temperatures below 32°F (0°C) or above 115°F (45°C). Do not overcharge your phone. The unit may become hot under excessive use. Remove your phone once it is fully charged. Never charge your phone for more than 7 hours at a time. The unit will only achieve full performance after 2 or 3 completed charge and discharge cycles. To reduce the risk of injury, close supervision is required when the product is used near children. Do not expose the device to moisture. Do not use the device in excess of its output rating. Overload outputs above the Do not use the device if damaged or explosion or risk of injury. Do not disassemble the device. For professional. Incorrect reassembly may or temperatures above 104°F (40°C) may result in explosion. To ensure product safety, ensure that identical replacement parts. Attachments on the back of your phone can impede the effectiveness of the wireless charger, and lead to overheating. • 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. SAFETY PRECAUTIONS: • 1 2 3 4 5 6

ShenZhen Mossloo Industrial Co.,Ltd 2021.05.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Magnetic wireless power bank Trademark: N/A MODEL : MSL-M2020Q FCC ID: 2AN8FMSL-M2020Q To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Orders Cheng /Manager Contact information / address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China

ShenZhen Mossloo Industrial Co.,Ltd 2021.05.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Orders Cheng /Manager Contact information / address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China

Search|RSS |Updates |E-Filing |Initiatives |Consumers |Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > View InquiryFCC Site Map OET Home Page Site Options Basic KDB Search Advanced KDB Search Submit an Inquiry Reply to an Inquiry Response Category List FAQ Search Major Guidance Publications Draft Laboratory Division Publications Draft Laboratory Division Publications (Expired) Draft Publication Moderation Policy Related Sites Equipment Authorization Presentations Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Measurement Procedures Reply to an OET Inquiry Response Currently Displaying Inquiry Tracking Number: 772335 Contact Information: Customer First Name:Water Customer Last Name:Li Telephone Number: +86-755-26312035 Extension: E-mail Address: [email protected] Address: Line 1: Line 2: P.O. Box: City: State: Zip Code: Country: Inquiry Details on 03/03/2019: First category: RF Exposure * Second category: Portable ( 2.1093) Third category: Subject:Portable WPT RF Exposure Inquiry:Dear FCC Reviewer; Good day, I am RF engineer of China test labs, I have a project is portable wireless charge device, which is PAD and BANK with wireless charge function. Please see user manual as attached. The device will support wireless charge meets QI version 1.2; Maximum WPT output power: 5W According to TCBC Workshop measurement guidance, tested and prepared test report as attached. Please help me check whether RF Exposure Evaluation Report can accept? Waiting for your information. Thanks for your attention! Best Regards! From Water FCC Response on 03/05/2019: Thank you for your inquiry. I am slightly confused by the nature of this inquiry. It appears your device is a Qi Wireless desktop charger that plugs in and uses an AC power source. Does the host device have a battery? If yes, does the host physically connect to the client device and can be used in such a manner where it would be in close proximity to the user? How does the host physically attach to the client device? ---Reply from Customer on 03/05/2019--- Dear FCC Reviewer; Good day, this WPT device can used as portable and mobile condition as with internal battery, if charge from AC power can used as Qi wireless desktop device while also can charge with battery as portable. The device was used as power bank charge and device physically attached the client such as mobile phone handle by hand. I attached external photo to you maybe help you understand. Waiting for your information. Thanks for your attention! Best Regards! From Water ---Reply from Customer on 03/11/2019--- Dear FCC Reviewer; Good day, whether RF exposure evaluation OK? I can send for TCB if OK? Waiting for your information. Thanks for your attention! Best Regards! From Water ---Reply from Customer on 03/20/2019--- Dear FCC Reviewer; Good day, whether RF exposure evaluation OK? I can send for TCB if OK? Waiting for your information. Thanks for your attention! Best Regards! From Water ---Reply from Customer on 03/25/2019--- Dear FCC Reviewer; Good day, whether RF exposure evaluation OK? I can send for TCB if OK? Waiting for your information. Thanks for your attention! Best Regards! From Water FCC Response on 04/03/2019: Apologies for the delay. The test setup photographs show the charger plugged in for all tests, including those done at 0 cm. Is this the worst case? Was there any evaluation done at 0 cm without the charger being plugged in, to represent the portable exposure condition? The tests done at 15 cm and 20 cm are acceptable, however for the 0 cm case, some type of evaluation needs to be done without the charger plugged in, to represent the portable exposure condition. ---Reply from Customer on 04/12/2019--- Dear FCC Reviewer; Good day, sorry delay as project manager on vacation and back today, he confirmed with test engineer tested without charger plugged while take all conditions of test setup photos. Please see attached revised test report as update test setup photos without charger plugged in for portable condition. I can send for TCB if OK? Waiting for your information. Thanks for your attention! Best Regards! From Water ---Reply from Customer on 04/23/2019--- Dear FCC Reviewer; Good day, sorry trouble you again. Please check whether can send for TCB grant? The client pushed me many times. Waiting for your information. Thanks for your attention! Best Regards! From Water FCC Response on 05/02/2019: The updated photographs are acceptable. You may proceed with the filing. Enter any additional comments below: *(This is a text only field. Users will be able to upload attachments after clicking on the "Proceed" button below) Proceed Clear Please use the Submit Inquiry link at www.fcc.gov/labhelp to send any comments or suggestions for this site Federal Communications Commission 445 12th Street, SW Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) - Privacy Policy - Web Policies & Notices Washington, DC 20554 More FCC Contact Information... Fax: 202-418-0232 E-mail: [email protected] - Customer Service Standards - Freedom of Information Act

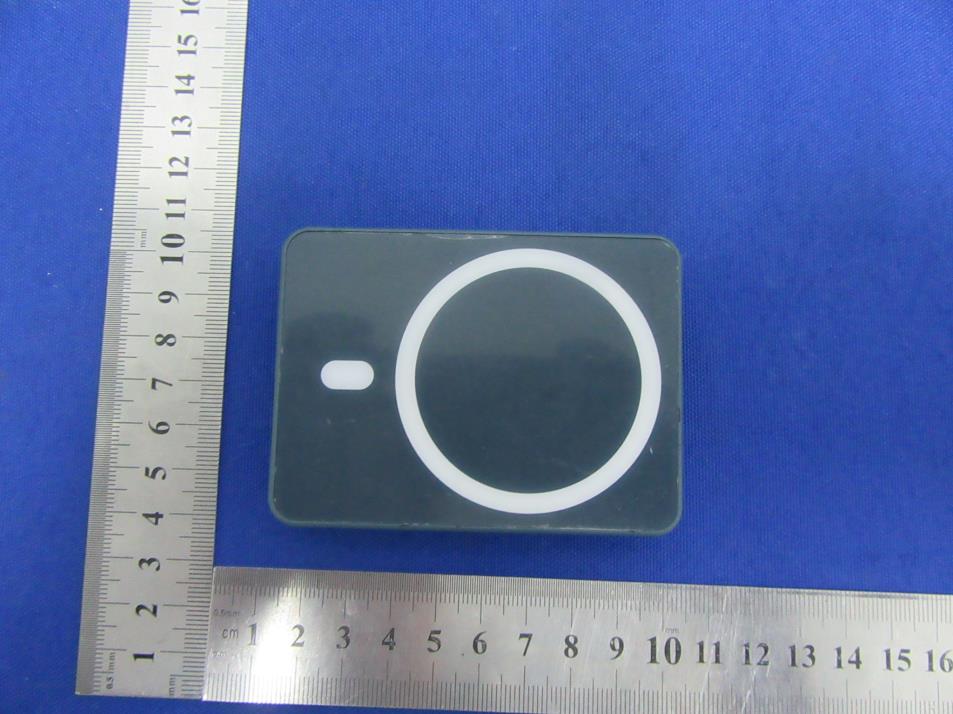

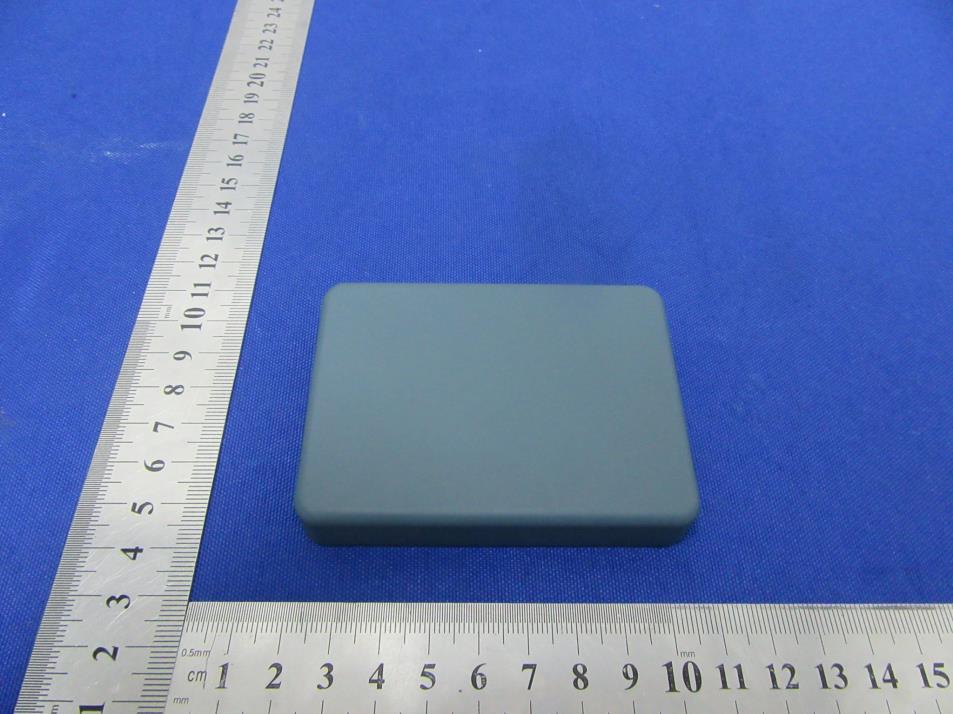

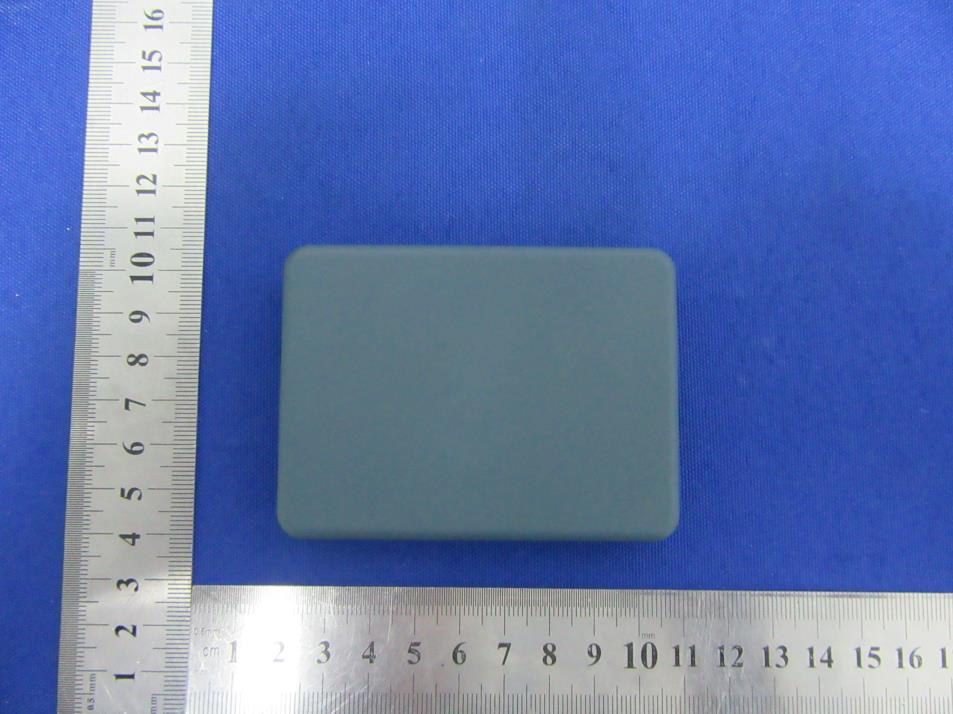

External Photos

Size:40*20mm FCC ID: 2AN8FMSL-M2020Q This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 26 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2104440096-1E Applicant: ShenZhen Mossloo Industrial Co., Ltd. Product Name: Magnetic wireless power bank Model/Type Ref.: MSL-M2020Q Tested Date: 2021-04-09 to 2021-04-20 Issued Date: 2021-04-21 Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 2 of 26 Edition：A.3 FCC ID: 2AN8FMSL-M2020Q The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Magnetic wireless power bank Trademark: N/A Model/Type Ref.: MSL-M2020Q Prepared For: ShenZhen Mossloo Industrial Co., Ltd. Address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China Manufacturer: ShenZhen Mossloo Industrial Co., Ltd. Address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-04-09 Sample tested Date: 2021-04-09 to 2021-04-20 Issue Date: 2021-04-21 Report No.: BCTC2104440096-1E Test Standards FCC Part15.209 ANSI C63.10-2013 Test Results PASS Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 3 of 26 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP............................ 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 8 4.4 Test Mode ............................................................. 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. CONDUCTED EMISSIONS ............................................ 11 6.1 Block Diagram Of Test Setup ............................................ 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 EUT operating Conditions ............................................... 12 6.5 Test Result ........................................................... 13 7. RADIATED EMISSIONS .............................................. 15 7.1 Block Diagram Of Test Setup ............................................ 15 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 16 7.4 Test Result ........................................................... 18 8. BANDWIDTH TEST .................................................. 21 9. ANTENNA REQUIREMENTS .......................................... 22 10. EUT PHOTOGRAPHS ................................................ 23 11. EUT TEST SETUP PHOTOGRAPHS .................................... 24 (Note: N/A means not applicable) Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 4 of 26 Edition：A.3 1. VERSION Report No. Issue Date Description Approved BCTC2104440096-1E 2021-04-21 Original Valid Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 5 of 26 Edition：A.3 2. TEST SUMMARY The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 20dB Bandwidth 15.215 PASS 4 Antenna Requirement 15.203 PASS Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 6 of 26 Edition：A.3 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m camber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 3 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 4 Conducted Emission (150kHz-30MHz) U=3.2dB 5 humidity uncertainty U=5.3% 6 Temperature uncertainty U=0.59°C 7 Bandwidth 0.9% Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 7 of 26 Edition：A.3 4. PRODUCT INFORMATION AND TEST SETUP 4.1 Product Information Model/Type Ref.: MSL-M2020Q Model differences: N/A Operation Frequency: 115kHz-220kHz Antenna installation: Inductive loop coil antenna Ratings: DC 3.7V From Battery Lightning Input: DC 5V/1.5A Type-C Input/Output: DC 5V/1.5A Wirelss output: 5W 4.2 Test Setup Configuration See test photographs attached in EUT TEST SETUP PHOTOGRAPHS for the actual connections between Product and support equipment. Conducted Emission: Radiated Spurious Emission: Report No.: BCTC2104440096-1E No.：BCTC/RF-EMC-005 Page 8 of 26 Edition：A.3 4.3 Support Equipment No. Device Type Brand Model Series No. Remark E-2 Adapter N/A BCTC-002 N/A Auxiliary E-3 Dummy load N/A DL01 N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 4.4 …

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page 1 of 16 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2104440096-2E Applicant: ShenZhen Mossloo Industrial CO., Ltd. Product Name: Magnetic wireless power bank Model/Type Ref.: MSL-M2020Q Tested Date: 2021-04-09 to 2021-04-20 Issued Date: 2021-04-21 Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 2 of 16 Edition：A.3 FCC ID: 2AN8FMSL-M2020Q The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Magnetic wireless power bank Trademark: N/A Model/Type Ref.: MSL-M2020Q Prepared For: ShenZhen Mossloo Industrial CO., Ltd. Address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China Manufacturer: ShenZhen Mossloo Industrial CO., Ltd. Address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-04-09 Sample tested Date: 2021-04-09 to 2021-04-20 Issue Date: 2021-04-21 Report No.: BCTC2104440096-2E Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results PASS Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 3 of 16 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 4 2. PRODUCT INFORMATION ............................................. 5 2.1 Product Information ..................................................... 5 2.2 Support Equipment ..................................................... 5 2.3 Test Mode ............................................................. 5 3. TEST FACILITY AND TEST INSTRUMENT USED ......................... 6 3.1 Test Facility ............................................................ 6 3.2 Test Instrument Used ................................................... 6 4. METHOD OF MEASUREMENT ......................................... 7 4.1 Applicable Standard..................................................... 7 4.2 Block Diagram Of Test Setup ............................................. 7 4.3 Limit .................................................................. 8 4.4 Test procedure ......................................................... 8 4.5 Equipment Approval Considerations....................................... 9 4.6 E and H field Strength .................................................. 10 5. PHOTOGRAPHS OF TEST SET-UP .................................... 11 (Note: N/A means not applicable) Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 4 of 16 Edition：A.3 1. VERSION Report No. Issue Date Description Approved BCTC2104440096-2E 2021-04-21 Original Valid Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 5 of 16 Edition：A.3 2. PRODUCT INFORMATION 2.1 Product Information Model/Type Ref.: MSL-M2020Q Model differences: N/A Operation Frequency: 115kHz-220kHz Antenna installation: Inductive loop coil antenna Ratings: DC 3.7V From Battery Lightning Input: DC 5V/1.5A Type-C Input/Output: DC 5V/1.5A Wirelss output: 5W 2.2 Support Equipment Device Type Brand Model Series No. Data Cable Remark Mobile phone iphone iphone8P N/A N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode . Test Modes keeping TX+Charging mode Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 6 of 16 Edition：A.3 3. TEST FACILITY AND TEST INSTRUMENT USED 3.1 Test Facility All measurement facilities used to collect the measurement data are located at Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other equivalent standards. FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 3.2 Test Instrument Used Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Exposure Level Tester Narda ELT-400 N-0231 Jul. 15, 2020 Jul. 14, 2021 Electric and Magnetic Field Analyzer Narda EHP-200A 170WX910 06 Jul. 15, 2020 Jul. 14, 2021 Magnetic field probe 100cm2 Narda B-Field Probe 100cm2 M0675 Jul. 15, 2020 Jul. 14, 2021 843 Chamber ETS 843 84301 Aug. 27, 2020 Aug. 26, 2023 Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 7 of 16 Edition：A.3 4. METHOD OF MEASUREMENT 4.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03: RF Exposure Wireless Charging Apps v02. 4.2 Block Diagram Of Test Setup Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Report No.: BCTC2104440096-2E No.：BCTC/RF-EMC-005 Page 8 of 16 Edition：A.3 4.3 Limit 4.4 Test procedure a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d deg…

Text truncated - open the document above for the full version.

Conducted emissions Radiated Measurement Photos
