2AN9S-ABX00023MKR WiFi 1010

Arduino ® MKR WiFi 1010 Product Datasheet SKU: ABX00023 Description The MKR WiFi 1010 is a miniature sized module containing a SAMD21G18A Processor, the Nina W102 Module, a crypto chip (the ATECC508), and a 2MByte SPI Flash. Target areas: Prototyping, IoT application examples Features ■SAMD21G18A ■Processor ■ARM Cortex M0+ at up to 48 MHz ■256KB Flash ■32KB SRAM ■Power On Reset POR and Brown Out Detection (BOD) ■Peripherals ■12 channel DMA ■12 channel event system ■5x 16 bit Timer/Counter ■3x 24 bit timer/counter with extended functions ■32 bit RTC ■Watchdog Timer ■CRC-32 generator ■Full speed Host/Device USB with 8 end points ■6x SERCOM (USART, I 2 C, SPI, LIN) ■Two channel I 2 S ■12 bit 350ksps ADC (up to 16 bit with oversampling) ■10 bit 350ksps DAC ■External Interrupt Controller (up to 16 lines) ■ATECC508 Crypto Chip ■Cryptographic co-processor with secure hardware based key storage ■Protected storage for up to 16 keys, certificates or data ■ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman ■ECDSA: FIPS186-3 Elliptic Curve Digital Signature Algorithm ■NIST standard P256 elliptic curve support ■SHA-256 & HMAC hash including off-chip context save/restore ■Nina W102 Module ■Dual Core Tensilica LX6 CPU at up to 240MHz ■448 KB ROM, 520KB SRAM, 2MB Flash ■WiFi ■IEEE 802.11b up to 11Mbit ■IEEE 802.11g up to 54MBit ■IEEE 802.11n up to 72MBit ■2.4 GHz, 13 channels ■-96 dBm sensitivity ■Bluetooth BR/EDR ■Max 7 Clients ■2.4 GHz, 79 channels ■Up to 3 Mbit/s ■-88 dBm sensitivity ■Bluetooth Low Energy ■Bluetooth 5.0 dual mode ■2.4GHz 40 channels ■-88 dBm sensitivity ■Up to 1 Mbit/s ■BQ24125L I2C Controlled USB/Adapter Charger ■92% Charge Efficiency at 2 A, 90% at 4 A ■Autonomous Battery Charging ■2.5-A Fast Charging CONTENTS 1.The board4 1.1 Application examples4 2.Ratings4 2.1 Recommended Operating Conditions4 2.2 Power Consumption4 3.Functional Overview5 3.1 Processor5 3.2 WiFi Module5 3.3 Crypto Chips6 4. Connector Pinouts8 4.1 USB8 4.2 Headers8 4.3 Debug9 5. Mechanical information10 5.1 Board outline10 5.2 Mounting holes11 5.3 Connector positions11 6. Certifications12 6.1 Declaration of Conformity CE DoC (EU)12 6.2 Declaration of Conformity to EU RoHS & REACH211 01/19/202112 6.3 Conflict Minerals Declaration13 7. FCC Caution13 8. Company information15 9. Reference Documentation15 10. Revision History15 1.The board Like most Arduino MKR form factor boards the MKR WiFi1010 can be powered via USB, via headers or connecting a Lithium or Lithium Polymer battery tothe embedded battery charger (the BQ24195L). NOTE : Arduino MKR WiFi 1010 battery charger has aminimum of 512 mA charge current. Please ensure this charging is compatible with the battery you will beusing. NOTE : Arduino MKR WiFi 1010 only supports 3.3V I/Osand isNOT5V tolerant. Please make sure you are not directly connecting 5Vsignals to this board, or it will be damaged. Also the 5V pin does NOT supply voltage but is ratherconnected, through a jumper, to the USB power input. 1.1 Application examples Bluetooth:The communications chipset on the MKR WiFi1010 is something pretty unique. In the world of microcontroller platforms, since this can be botha BLE and Bluetooth® client and host device. WiFi:The WiFi connectivity is performed with a modulefrom u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. IoT:Whether you are looking at building a sensornetwork connected to your office or home router, orif you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solutionfor many of the basic IoT application scenarios. 2.Ratings 2.1 Recommended Operating Conditions SymbolDescriptionMinMax Conservative thermal limits for the whole board:-40°C (-40 °F) 85°C ( 185 °F) 2.2 Power Consumption SymbolDescriptionMinTypMaxUnit VIN Max Maximum input voltage from VIN pad-0.3-5.5V VUSB Max Maximum input voltage from USB connector-0.3-5.5V P Max Maximum Power ConsumptionTBCmW 3.Functional Overview 3.1 Processor The Main Processor is a ARM Cortex M0+ running atup to 48 MHz Most of its pins are connected to the external headers,however some are reserved for internal communication to the communication module and to the internalSPIand I 2 C peripherals (Crypto). Communication with NINA Module W102 happens throughUART and a SPI through the following pins. PinAcronymNINA PinAcronymDescription 21 PA12 36 GPIO12SPI MOSI 22 PA13 21 SPIV_DININA_MISO 23PA14 28 SPIV_CSSPI CS 24PA15 29SPIV_CLKSPI CLK 39 PA27 27GPIO0NINA_GPIO0 7 PB08 19RESETNINA RESET 41 PA28 7GPIO_33NINA_ACK 23PA14 21UART_CTSNINA_CS 24 PA15 20UART_CTSNINA_SCK 38PB23 22UART_RXDSerial1_RX 37PA22 23UART_TXDSerial1_TX 3.2 WiFi Module WiFi connectivity is provided by a Nina W102 Module.This module contains a STM32L0 processor along witha Semtech SX1276 Radio. The processor is running onArduino open source firmware based on Semtech code. NOTE:Although Firmware is open source, modifyingit will require recertification of the radio stack. 3.3 Crypto Chips The crypto chip in Arduino IoT boards is what makesthe difference with other less secure boards as itprovides a secure way to store secrets such as certificatesand it also allows accelerating secure protocolswhile never exposing secrets in plain text. 3.4 Power tree 4.Board Operation 4.1 Getting started - IDE If you want to program your Arduino MKR WiFi 1010while offline you need to install the Arduino Desktop IDE[1]To connect the Arduino MKRWiFi 1010 to your computer, you’ll need a Micro-B USB cable. This also provides powerto the board, as indicated by the LED. 3.2 Getting started - Arduino Web Editor All Arduino boards, including this one, work out-of-the-boxon the Arduino Web Editor[2], by just installing a simple plugin. The Arduino Web Editor is hosted online, thereforeit will always be up-to-date with the latest features and support for all boards. Follow[3]to start coding on the browser and upload your sketches onto your board. 3.3 Getting started - Arduino IoT Cloud All Arduino IoT enabled prod…

Text truncated - open the document above for the full version.

2021-03-23 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China/Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Arduino S.r.l. / Via Andrea Appiani, 25 20900 MONZA (Italy). Dated this Mar.23, 2021 Agency agreement expiration date: Mar.23, 2022 By: Sara Therner SignaturePrinted Title: Trademark & Licensing Manager On behalf of : Arduino S.r.l. Telephone: +46 763030400

2021-03-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AN9S-ABX00023 Product Name: MKR WiFi 1010 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Mar.23, 2021 By: Sara Therner Signature Printed Title: Trademark & Licensing Manager On behalf of : Arduino S.r.l. Telephone: +46 763030400

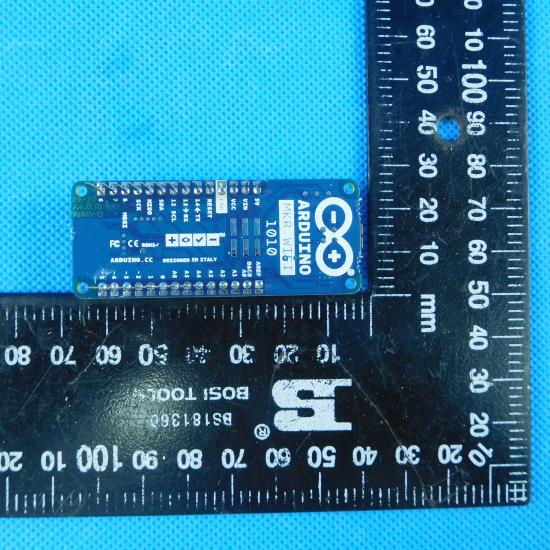

External Photos

Lable Location

Internal Photos

FCC ID: 2AN9S-ABX00023 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result BT-EDR 2.58 3.00 0.0002 1.0000 Pass BT-BLE 4.74 5.00 0.0003 1.0000 Pass 802.11b 13.74 14.00 0.0024 1.0000 Pass Note: 1) The maximum antenna gain is -3.20dBi 2) The exposure evaluation safety distance is 20cm. 3) the BT and wifi can't transmitting simultaneously

Page: 1 of 37 TEST REPORT Report No. ...................................... : CHTEW21030026 Report Verification: Project No.................................： SHT2102011302EW FCC ID ............................................. : 2AN9S-ABX00023 Applicant’s name ........................... : Arduino S.r.l. Address ............................................. : Via Andrea Appiani, 25 20900 MONZA (Italy) Test item description .................... : MKR WiFi 1010 Trade Mark ....................................... : Arduino Model/Type reference ....................... : ABX00023 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Feb.24, 2021 Date of testing.............................: Feb.24, 2021- Mar.03, 2021 Date of issue...............................: Mar.04, 2021 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21030026 Page: 2 of 37 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 26 6. TEST SETUP PHOTOS 33 7. EXTERANAL AND INTERNAL PHOTOS 35 8. APPENDIX REPORT 37 Report No.: CHTEW21030026 Page: 3 of 37 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-03-04 Original Report No.: CHTEW21030026 Page: 4 of 37 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21030026 Page: 5 of 37 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Arduino S.r.l. Address: Via Andrea Appiani, 25 20900 MONZA (Italy) Manufacturer: Arduino S.r.l. Address: Via Andrea Appiani, 25 20900 MONZA (Italy) 3.2. Product Description Name of EUT: MKR WiFi 1010 Trade Mark: Arduino Model No.: ABX00023 Listed Model(s): - Power supply: DC 5V Hardware version: 2.0 Software version: 1.4.0 3.3. Radio Specification Description Support type *2 : 802.11b, 802.11g, 802.11n(HT20) Modulation: DSSS for 802.11b OFDM for 802.11g/802.11n(HT20) Operation frequency: 2412MHz~2462MHz Channel number: 11 Channel separation: 5MHz Antenna type: PIFA antenna Antenna gain: -3.20dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW21030026 Page: 6 of 37 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tian…

Text truncated - open the document above for the full version.

Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 28 APPENDIX REPORT Project No. SHT2102011302EW Radio Specification WIFI 2.4G Test sample No. YPHT21020113004 Model No. ABX00023 Start test date 2021-03-01 Finish date 2021-03-01 Temperature 24.2°C Humidity 43% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Conducted Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty Cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 28 Appendix A：Conducted Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result 802.11b 01 15.38 13.74 ≤ 30.00 Pass 06 15.20 13.55 11 15.21 13.60 802.11g 01 15.40 13.06 ≤ 30.00 Pass 06 15.61 13.27 11 15.62 13.28 802.11n (HT20) 01 15.69 13.24 ≤ 30.00 Pass 06 15.77 13.34 11 15.66 13.37 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 28 Appendix B：Power Spectral Density Type Channel Power Spectral Density (dBm/30KHz) Limit (dBm/3KHz) Result 802.11b 01 -4.85 ≤8.00 Pass 06 -5.18 11 -6.54 802.11g 01 -8.82 ≤8.00 Pass 06 -9.62 11 -10.02 802.11n(HT20) 01 -9.64 ≤8.00 Pass 06 -10.34 11 -11.00 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 28 Type: 802.11 b CH01 Date: 1.MAR.2021 13:58:40 CH06 Date: 1.MAR.2021 14:02:35 CH11 Date: 1.MAR.2021 14:05:47 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 28 Type: 802.11 g CH01 Date: 1.MAR.2021 14:08:20 CH06 Date: 1.MAR.2021 14:11:38 CH11 Date: 1.MAR.2021 14:14:15 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 28 Type: 802.11n(HT20) CH01 Date: 1.MAR.2021 14:17:10 CH06 Date: 1.MAR.2021 14:21:18 CH11 Date: 1.MAR.2021 14:25:08 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 28 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b 01 10.11 ≥0.5 Pass 06 10.14 11 10.11 802.11g 01 16.47 ≥0.5 Pass 06 16.50 11 16.50 802.11n(HT20) 01 17.40 ≥0.5 Pass 06 17.40 11 17.40 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 28 Type: 802.11 b CH01 Date: 1.MAR.2021 13:57:30 CH06 Date: 1.MAR.2021 14:00:23 CH11 Date: 1.MAR.2021 14:04:02 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 28 Type: 802.11 g CH01 Date: 1.MAR.2021 14:07:15 CH06 Date: 1.MAR.2021 14:10:35 CH11 Date: 1.MAR.2021 14:12:57 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 28 Type: 802.11n(HT20) CH01 Date: 1.MAR.2021 14:15:59 CH06 Date: 1.MAR.2021 14:20:06 CH11 Date: 1.MAR.2021 14:23:02 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 28 Appendix D：99% Occupied Bandwidth Type Channel 99% Bandwidth (MHz) Limit (kHz) Result 802.11b 01 13.10 - Pass 06 13.10 11 13.10 802.11g 01 16.60 - Pass 06 16.60 11 16.57 802.11n(HT20) 01 17.38 - Pass 06 17.38 11 17.41 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 28 Type: 802.11 b CH01 Date: 1.MAR.2021 13:57:39 CH06 Date: 1.MAR.2021 14:00:32 CH11 Date: 1.MAR.2021 14:04:10 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 28 Type: 802.11 g CH01 Date: 1.MAR.2021 14:07:23 CH06 Date: 1.MAR.2021 14:10:43 CH11 Date: 1.MAR.2021 14:13:05 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 28 Type: 802.11n(HT20) CH01 Date: 1.MAR.2021 14:16:07 CH06 Date: 1.MAR.2021 14:20:14 CH11 Date: 1.MAR.2021 14:23:10 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 28 Appendix E：Duty Cycle Modulation Type Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 11b 2437 1.00 1.00 100% 1.0 11g 2437 1.00 1.00 100% 1.0 11n20 2437 1.00 1.00 100% 1.0 11b Date: 1.MAR.2021 14:00:13 11g Date: 1.MAR.2021 14:10:25 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 28 11n20 Date: 1.MAR.2021 14:19:56 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 28 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Bandedge Type: 802.11 b CH01 Date: 1.MAR.2021 13:58:50 CH11 Date: 1.MAR.2021 14:05:57 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 28 Test Item: Bandedge Type: 802.11 g CH01 Date: 1.MAR.2021 14:08:30 CH11 Date: 1.MAR.2021 14:14:25 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 28 Test Item: Bandedge Type: 802.11 n(HT20) CH01 Date: 1.MAR.2021 14:17:20 CH11 Date: 1.MAR.2021 14:25:18 Project No.: SHT2102011302EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection C…

Text truncated - open the document above for the full version.

Page: 1 of 30 TEST REPORT Report No. ...................................... : CHTEW21030027 Report Verification: Project No.................................： SHT2102011302EW FCC ID ............................................. : 2AN9S-ABX00023 Applicant’s name ........................... : Arduino S.r.l. Address ............................................. : Via Andrea Appiani, 25 20900 MONZA (Italy) Test item description .................... : MKR WiFi 1010 Trade Mark ....................................... : Arduino Model/Type reference ....................... : ABX00023 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Feb.24, 2021 Date of testing.............................: Feb.24, 2021- Mar.03, 2021 Date of issue...............................: Mar.04, 2021 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21030027 Page: 2 of 30 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 7 4.3. Support unit used in test configuration and system 7 4.4. Testing environmental condition 8 4.5. Measurement uncertainty 8 4.6. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 24 6. TEST SETUP PHOTOS 29 7. EXTERANAL AND INTERNAL PHOTOS 30 8. APPENDIX REPORT 30 Report No.: CHTEW21030027 Page: 3 of 30 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-03-04 Original Report No.: CHTEW21030027 Page: 4 of 30 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21030027 Page: 5 of 30 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Arduino S.r.l. Address: Via Andrea Appiani, 25 20900 MONZA (Italy) Manufacturer: Arduino S.r.l. Address: Via Andrea Appiani, 25 20900 MONZA (Italy) 3.2. Product Description Name of EUT: MKR WiFi 1010 Trade Mark: Arduino Model No.: ABX00023 Listed Model(s): - Power supply: DC 5V Hardware version: 2.0 Software version: 1.4.0 3.3. Radio Specification Description Bluetooth version: V5.0 Support function *2 : BLE Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PIFA antenna Antenna gain: -3.20dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW21030027 Page: 6 of 30 Issued: 2021-03-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Connect information: Phone: 86-755-26715499 …

Text truncated - open the document above for the full version.

Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2102011302EW Radio Specification Bluetooth BLE Test sample No. YPHT21020113004 Model No. ABX00023 Start test date 2021-03-01 Finish date 2021-03-01 Temperature 21.8°C Humidity 42% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 2.64 2.61 ≤ 30.00 Pass 19 4.64 4.60 39 4.76 4.74 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 1.MAR.2021 09:57:54 CH19 Date: 1.MAR.2021 10:00:15 CH39 Date: 1.MAR.2021 10:03:30 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -14.87 ≤8.00 Pass 19 -11.69 39 -11.61 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 1.MAR.2021 09:58:09 CH19 Date: 1.MAR.2021 10:01:48 CH39 Date: 1.MAR.2021 10:04:04 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 736.00 ≥500 Pass 19 736.00 39 694.00 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 1.MAR.2021 09:57:36 CH19 Date: 1.MAR.2021 09:59:57 CH39 Date: 1.MAR.2021 10:03:12 Project No.: SHT2102011302EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99…

Text truncated - open the document above for the full version.
