2AN9XRSS4001Geolux RSS-4 Ground Surveillance Radar

Copyright ©2020 Geolux d.o.o. All rights reserved. GLX-RSS-4 FMCW Radar Surveillance Sensor User Manual GLX-RSS-4 User Manual Page 2 of 16 Starting Point Thank you for purchasing Geolux GLX-RSS-4 radar sensor! We have put together the experience of our engineers, the domain knowledge of our customers, the enthusiasm of our team, and the manufacturing excellence to deliver this product to you. You may freely rely on our field-proven technology for intrusion detection and collecting statistics on detected targets. The use of advanced RF technology and signal processing algorithms ensures that Geolux Radar Sensor can be used in any intrusion detection, perimeter monitoring or similar surveillance application. Although we are certain that you are more than capable of connecting the Radar Surveillance Sensor to your system, we have created this User Manual to assist you in setting up and using Geolux Radar Surveillance Sensor device. Should there be any questions left unanswered, please feel free to contact us directly: Geolux d.o.o. Ljudevita Gaja 62 10430 Samobor Croatia E-mail: [email protected] GLX-RSS-4 User Manual Page 3 of 16 1. Specification Table 1. Specification P a r a m e t e r M I N T Y P M A X U n i t Detection range: Walking human (1m 2 RCS) Driving vehicle Range accuracy for positioning Angle accuracy for positioning Target speed accuracy Target minimal speed Simultaneous targets tracking Target track updates per second 1 ±1 150 250 ±2 ±1 ±1 0.5 5 ±5 32 m m m ° km/h km/h Detection reliability: Walking human in specified range (1m 2 RCS) Driving vehicle in specified range False alarm ratio 2 99,0 99,0 99,4 99,8 0,5 1 % % Alarm/day Radar Sensor Frequency – K-band version Radiated power (EIRP) Sensitivity Beam-width (3dB) – horizontal Beam-width (3dB) – vertical 24.000 17 -110 19 -112 90 22 24.250 20 -116 GHz dBm dBm ° ° Connection interface: Ethernet 1000Base-T RS485 RS232 10 9600 9600 57600 115200 1000 112500 115200 Mbit kbps kbps Power supply voltage 9,0 48,0 V Power consumption 12 15 W Mechanical dimensions 19x12x5 cm Weight 2.5 kg Operational temperature range -20 +60 °C Protection IP66 1.1 FCC compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1 Range-Doppler spectrum extraction from the signal processing could reduce refresh rate of the signal processing in the radar. 2 False alarm ratio is measured on flat grass field in sunny weather conditions and with light wind. GLX-RSS-4 User Manual Page 4 of 16 FCC Part 15.21 - Information to the user/installer Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC 15.105(b) - Information to the user/installer This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 1.2 ISED Notices This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif contient des émetteurs exemptés de licence qui sont conformes aux RSS(s) d’Innovation, Science et Développement économique Canada exemptés de licence. L’opération est soumise aux deux conditions suivantes : Cet appareil peut ne pas causer d’interférences. Cet appareil doit accepter toute interférence, y compris toute interférence qui peut causer le fonctionnement indésirable de l’appareil. GLX-RSS-4 User Manual Page 5 of 16 RADIATION EXPOSURE STATEMENT The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and users. L'appareil satisfait à l'exemption des limites d'évaluation de routine de la section 2.5 de RSS 102. Cet équipement doit être installé et utilisé à une distance minimale de 20 centimètres entre le radiateur et l'utilisateurs. GLX-RSS-4 User Manual Page 6 of 16 2. Connector Pin-Out The Radar Surveillance Sensor RSS-4 uses single or dual connector to interface external systems: circular M12 IP68 connector with 8 positions for Ethernet connection with PoE supply option and additional M12 IP68 12 positions connector with additional interfaces and connectivity options. Picture 1. Radar view on the back side of the device Details of the 8 and 12 position M12 connectors are shown on Picture 2. The Tables 2 and 3 gives detailed description for each pin. Picture 2. Radar connectors on the back side GLX-RSS-4 User Manual Page 7 of 16 Table 2. Connector and cable pin-out P i n N o . W i r e C o l o r P i n Na m…

Text truncated - open the document above for the full version.

Geolux RSS-4 Ground Surveillance Radar RADAR SENSOR FOR INTRUSION DETECTION AND PERIMETER CONTROL HIGHLIGHTS • Detects humans up to 150 meters • Detects vehicles up to 1000 meters • Simultaneous tracking of up 32 objects • Distance, relative angle and relative speed reported for each detected object • Range precision ± 1m • Speed precision ± 1km/h • Angle precision ± 1° • Easy pole, wall or enclosure mounting • Supports wide variety of communication interfaces • (Ethernet, RS232, RS485, CAN) • PoE or 9VDC to 27VDC power supply • IP66-rated enclosure (for outdoor applications and harsh environments) • Operation in license free K-band • Configurable areas of interest and exclusion areas Radar Type K-band 24.05 to 24.245 GHz FMCW modulation, 20 dBm EIRP Beam Angle 90° Azimuth, 22° Elevation Detection Distance 150m humans (0,75 m 2 RCS) 500m vehicles (10 m 2 RCS) Speed Range 0,5 km/h to 336 km/h Tracker 5 Hz refresh rate, up to 32 targets Ethernet Interface 1 Gb/s Serial Interface 1x serial RS-232 full-duplex 1x serial RS-485 half-duplex Serial Baud Rate 9600 bps to 115200 bps Speed Range 1x M12 8pin IP68 connector 1x M12 12pin IP68 connector Power Input PoE or 9 to 27 VDC Power Consumption < 10 W Maximal Current < 1,25 A Temperature Range -20°C to +70°C Dimensions 210 x 130 x 30 mm

Geolux d.o.o. Ljudevita Gaja 62 HR-10430 Samobor, Croatia EU VAT No.: HR52616021041 Authority to Act as Agent Date: October 22 2020 American Certification Body, Inc. 6731 Whit tier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: RN Electronics Ltd., Arnolds Court, Arnolds Farm Lane, Mountnessing, Brentwood, Essex, CM13 1UT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: December 31, 2021 By: Tomislav Grubesa, M.Sc. Title: TCO On behalf of: Geolux d.o.o. Telephone: +385 91 7244 004 Page 1/ 1

Geolux d.o.o. Ljudevita Gaja 62 HR-10430 Samobor, Croatia EU VAT No.: HR52616021041 Request for Confidentiality Date: 31.01.2021. Subject: Confidentiality Request for: 2AN9XRSS4001 & 26475-RSS4001 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent *1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/ Theory of Operation ☐ Short Term ☒ Permanent Parts List & Placement/ BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent *3 User’s Manual Geolux d.o.o. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __N/A__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information re- garding the product or the product is made available to the public before the requested period has ex- pired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confiden- tiality is not considered applicable to IC applications. Sincerely, By: Tomislav Grubesa, M.Sc., CTO (Signature/ Title2) (Print name) Page 1/ 1

Page 1/1 Geolux d.o.o. Ljudevita Gaja 62 HR-10430 Samobor, Croatia EU VAT No.: HR52616021041 Cable modification Date: October 22 2020 To Whom It May Concern: To simplify installation and improve reliability custom cable with over-molded 12pin M12 connector with IP68 protection is supplied with the radar. Cable has over molded ferrite core (Wurth Elektronik 742 700 777) for EMI reduction and system protection. To minimize unwanted emissions of the radar, absorber material CoolZorb 600 is applied around antennas on transmit side. Modifications are applied to all RSS-4 devices that are sold and shipped to the USA and Canada. Thank you, By: Tomislav Grubesa, M.Sc. Title: TCO On behalf of: Geolux d.o.o. Telephone: +385 91 7244 004

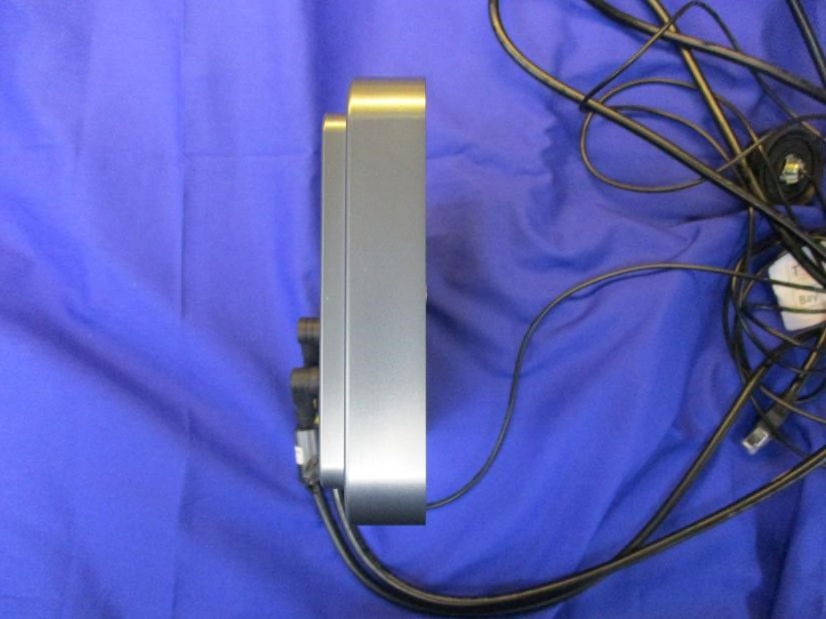

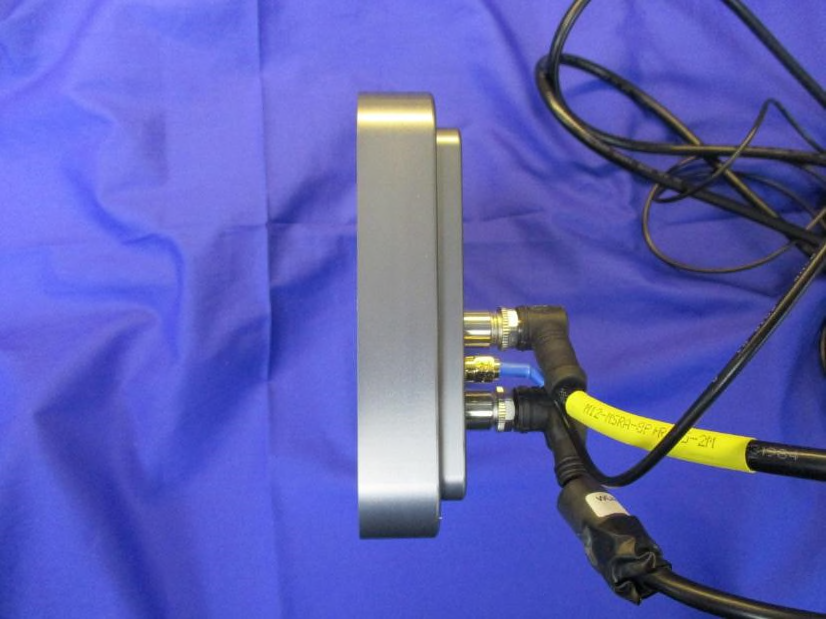

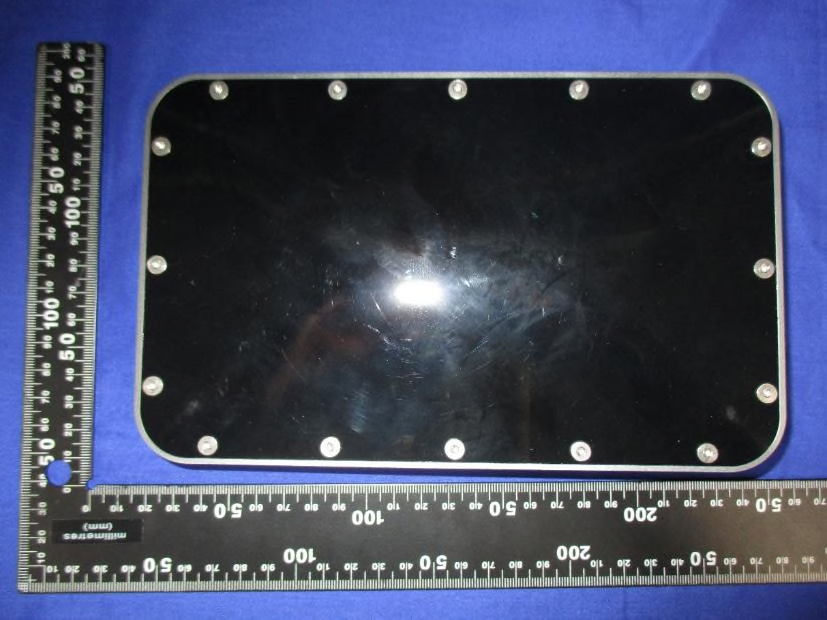

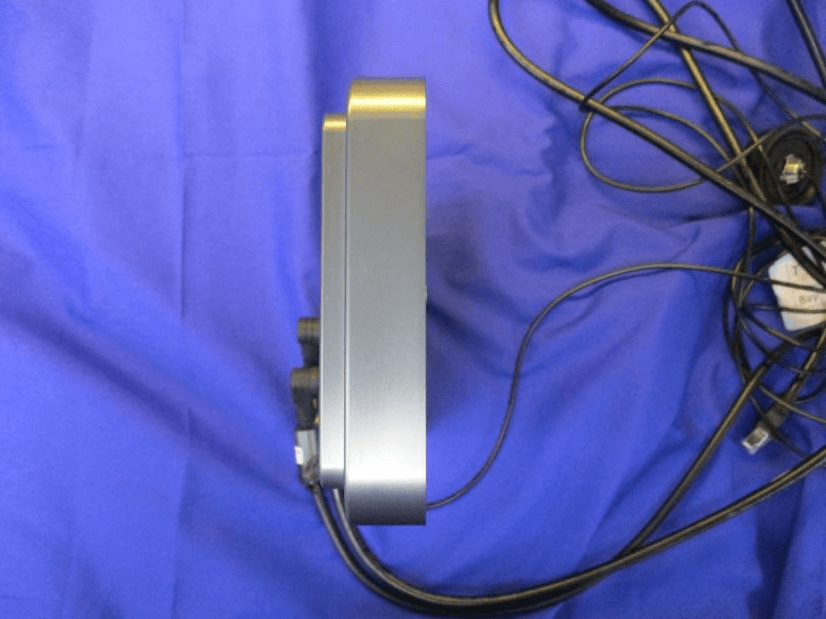

1.1 EUT Front View 1.2 EUT Reverse Angle 1.3 EUT Left side View 1.4 EUT Right side View

Motion Sensor Model: RSS-4 Manufactured by Geolux d.o.o. Serial No.: RSS-0003-1000 Rating: 12 VDC 1250 mA Freq: 24.075 – 24.175 GHz FCC ID: 2AN9XRSS4001 IC ID: 26475-RSS4001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in EU – Product of Croatia
