2ANCG-F215UFunction board

Address：No.16-3, Shunping 1 st St., Xitun Dist., Taichung City 40754, Taiwan (R.O.C) Tel：886-4-2295-0350 Fax：886-4-2295-0357 MANUAL 使用手冊 CUSTOMER Item P/N F215U DESCRIPTION Function board Document Number F215U DATE This document contains confidential and proprietary information of CORESTAR CO., Ltd and shall not be duplicated or otherwise transferred to a third party without the express written consent of CORESTAR. 本文件所包含內容所屬於合興數位股份有限公司(CoreStar Co., Ltd)之規格文件及專有技術資料所有，不得未經由合興數 位公司同意而擅自轉載或以不明確的書面或其他方式轉讓給第三方。 page 2 / 7 1. Hardware overview 1.1 Main Board PCB Physical Specifications 1.2 Connector Definitions U1304 IPEX Wi-Fi / BT Antenna connector J3001/J1 CTRL CON J2301/J17 System Key and Headphone connector CON2501 12V DC Power input AJ1/BJ1 Speaker connector J15 External Line-in socket connector J2 FAN control connector J6 External USB socket connector J10 Keyboard connector J11 Hand Rail key connector Pin No. Description Pin No. Description Pin No. Description Pin No. Description 1~4 +12V 5~7、 10、13 GND 8 +5V 9 +3.3V Pin No. Description Pin No. Description Pin No. Description Pin No. Description 11 UART Rx 12 UART Tx 14 RS232 Tx 15 RS232 Rx page 3 / 7 J5 5Khz Heart rate receiver module connector J14 Wired heart rate sensor connector J7 USB bridge connector 2. Operational description 2.1 System block diagram 2.2 Processor: MediaTek MT8168, Quad-core ARM® 2.0GHz Cortex-A53 MPCore Memory: 2GB LPDDR4 Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11a/b/g/n/ac wireless LAN Supports Bluetooth 5 dual mode 2 × USB 2.0 ports GPIO: UART * 2 RS232 * 1 Video & sound: HDMI ports * 1(up to FHD supported) 4-lane MIPI DSI display port stereo audio port Multimedia: Mali-G52 3EE MC1 H.264 decoder: Main/high profile 1080p @60fps/40Mbps H.264 encoder: High profile 1080p @ 60fps page 4 / 7 OpenGL ES 3.2/2.0/1.1 OpenCL 2.0 full profile Input power: The 12V DC power will powered the console and whole system included the RF system. lifetime: The Model will remain in production until at least January 2026. 2.3 Operating frequency : 2142-2472MHz / 5150~5250Mhz，support IEEE 802.11b/g/n/a/ac (Frequency Bandwidth : 20MHz / 40MHz/80MHz). 2.4 PCB antenna 0.69dbi (2.4GHz) , 1.24dBi(5GHz) 2.5 Modulation 2.5.1 BT/BLE：GFSK / DSSS 2.5.2 Wi-Fi：DBPSK/DQPSK/CCK(DSSS) 2.6 System BT can search the A2DP devices manually and connecting to one of them. 2.7 User can search Wi-Fi AP manually via system setting menu and connecting to one of them. FCC WARING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. page 5 / 7 ◼ FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. ◼ FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. The end product shall has the words “Contains Transmitter Module FCC ID:2ANCG-FU215. ◼ OEM statement The Original Equipment Manufacturer (OEM) must ensure that the OEM modular transmitter must be labeled with its own FCC ID number. This includes a clearly visible label on the outside of the final product enclosure that displays the contents shown below. If the FCC ID is not visible when the equipment is installed inside another device, then the outside of the device into which the equipment is installed must also display a label referring to the enclosed equipment. The end product with this module may subject to perform FCC part 15B unintentional emission test requirement and be properly authorized while installation to host(s), and platform, and integrator are obligated to have its manual or instruction with the related compliance warning to end users. This device is intended for OEM integrator only The end product with this module may be subject to re-evaluate RF exposure as per 47CFR § 2.1091, and §2.1093 if antenna or usage, including co-located usage of other transmitters, of the subsequent installation are changed. This radio transmitter has been approved by FCC/Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list …

Text truncated - open the document above for the full version.

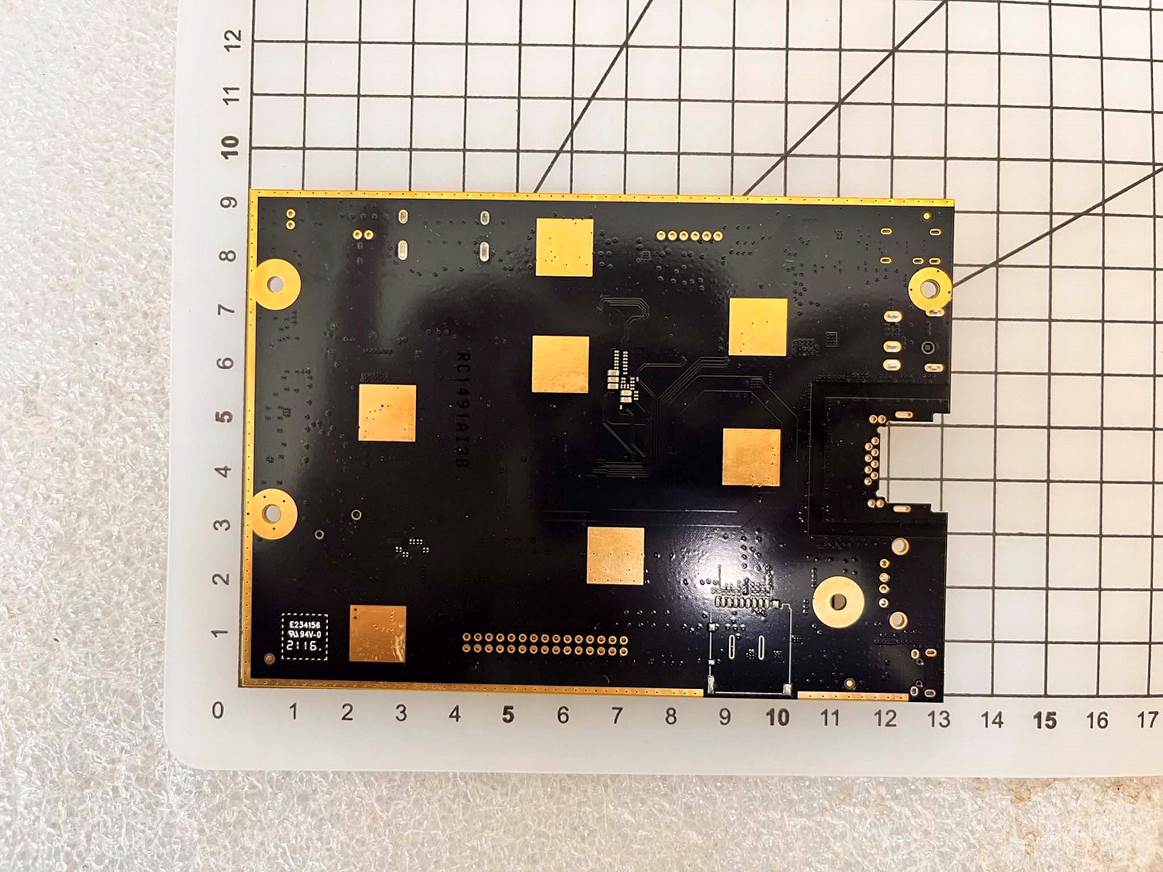

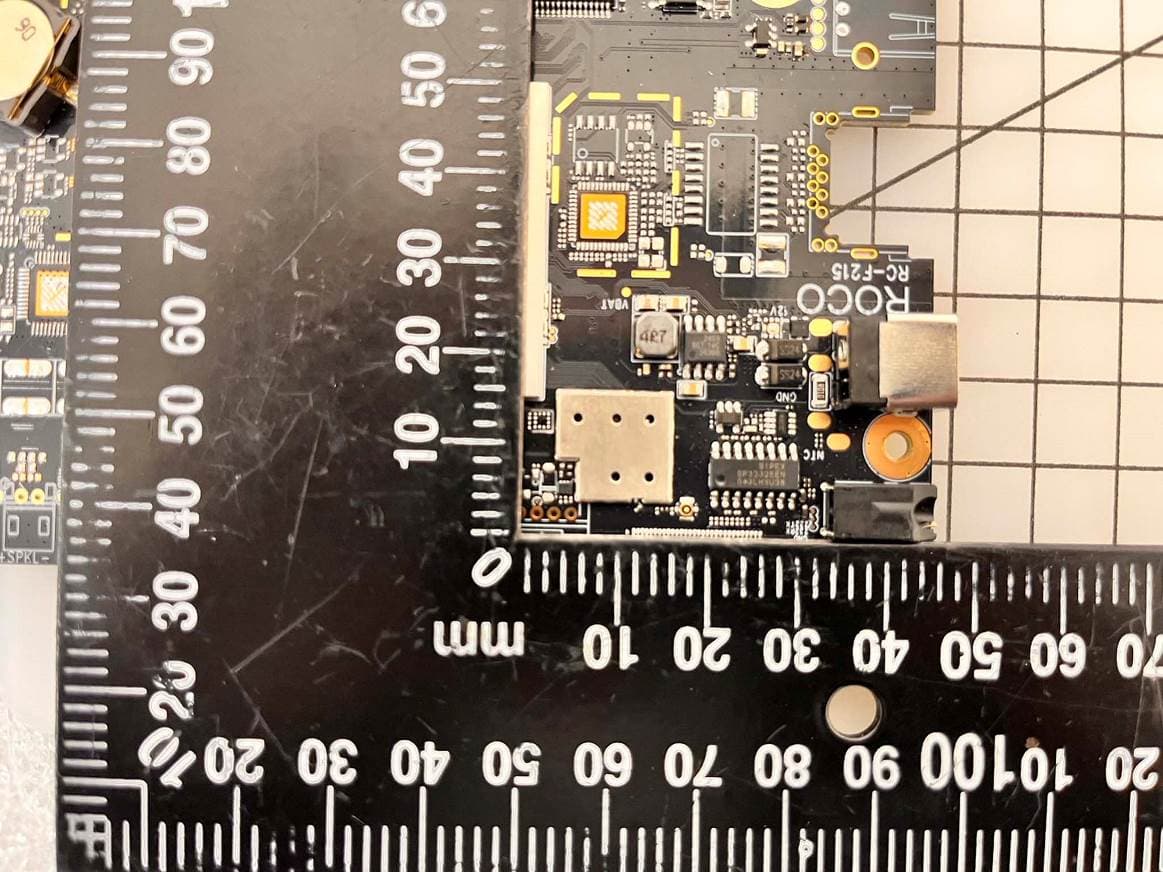

International Standards Laboratory Corp. Report Number: ISL-23LR0029P Appendix Photographs of EUT of Product Name Function board Main Model F215U Series Model N/A Brand CoreStar International Standards Laboratory Corp. Report Number: ISL-23LR0029P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-23LR0029P -2- EUT-3. EUT-4. Ant

F215U FCC ID貼標位置 FCC ID :2ANCG-F215U

旈ⰽ[PP ⮨欥⥸Ⱡ㘁䶁㙟欥 Length: 22m w idth: 9mm font: PMingLiU font size: 12

International Standards Laboratory Corp. Report Number: ISL-23LR0029P Appendix Photographs of EUT of Product Name Function board Main Model F215U Series Model N/A Brand CoreStar International Standards Laboratory Corp. Report Number: ISL-23LR0029P -1- EUT-1. Module of open case International Standards Laboratory Corp. Report Number: ISL-23LR0029P -2- EUT-6 MT8168 &MT6357 chip IC (shielding remove)

FCC: 2ANCG-F215U International Standards Laboratory Maximum Permissible Exposure (MPE) Standard Applicable For The radiation source included into the device the output power is taken from a corresponding RF test report. If needed the output power is converted to source based, time – average out power. Finally the output power is compared to FCC and IC low power SAR evaluation exemption level. According to §2.1093 this is a Portable device. FCC SAR test exclusion: According to KDB 447498 D01 General RF Exposure Guidance v05r02, Appendix A requirement, “The equation and threshold in section 4.3.1 must be applied to determine SAR test exclusion.” 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.23 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.24 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,25 where FCC: 2ANCG-F215U International Standards Laboratory • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation26 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. RSS 102 Issue 5 Mar. 2015 2.5.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table 1. FCC: 2ANCG-F215U International Standards Laboratory Evaluation Result: FCC: Frequency Band (MHz) Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 15.92 0.69 1 17.610 0.01147440 1 2402 - 2480 4.84 0.69 1 6.530 0.00089481 1 5150 - 5250 13.51 1.24 1 15.750 0.00747705 1 ~ End ~

TEST REPORT of FCC Part 15 Subpart C Product: Function board Brand: CoreStar Main Model: F215U Series Model: N/A Model Difference: N/A FCC ID: 2ANCG-F215U FCC Rule Part: §15.247, Cat: DTS Reference: ANSI C63.10: 2013 KDB 558074 D01 v05r02 Applicant: CoreStar Co., Ltd. Address No. 16-3, Shunping 1st St., Xitun Dist., Taichung City, 40754, Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-23LR0029FCBLE Issue Date : March 31, 2023 FCC Registration Number: 487532 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 66- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCBLE VERIFICATION OF COMPLIANCE Applicant: CoreStar Co., Ltd. Equipment Under Test: Function board Brand: CoreStar Main Model: F215U Series Model: N/A Model Difference: N/A FCC ID: 2ANCG-F215U Date of Test: February 16, 2023 ~ March 31, 2023 Date of EUT Received: February 16, 2023 Test Frim TW0997 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15.247 Complied We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: March 31, 2023 Barry Lee / Senior Engineer Prepared By: Date: March 31, 2023 Gigi Yeh / Senior Engineer Approved By: Date: March 31, 2023 Jerry Liu / Assistant Manager -3 of 66- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCBLE Version Version No. Date Description 00 March 31, 2023 Initial creation of document -4 of 66- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCBLE TABLE OF CONTENTS 1. General ........................................................................................................................................ 6 1.1 DESCRIPTION OF EUT ...................................................................................................................... 6 1.2 SPECIAL ACCESSORIES ..................................................................................................................... 7 1.3 EQUIPMENT MODIFICATIONS ........................................................................................................... 7 2. System Test Configuration ........................................................................................................ 8 2.1 EUT CONFIGURATION ...................................................................................................................... 8 2.2 EUT EXERCISE ................................................................................................................................. 8 2.3 TEST PROCEDURE ............................................................................................................................. 8 2.4 CONFIGURATION OF TESTED SYSTEM .............................................................................................. 9 2.5 DUTY FACTOR .................................................................................................................................11 3. Summary of Test Results ......................................................................................................... 13 4. Description of Test Modes ....................................................................................................... 13 5. AC Line Conduced Emission Test .......................................................................................... 14 5.1 STANDARD APPLICABLE .................................................................................................................14 5.2 MEASUREMENT PROCEDURE...........................................................................................................14 5.3 MEASUREMENT RESULT..................................................................................................................15 6. Peak Output Power Measurement ......................................................................................... 19 6.1 STANDARD APPLICABLE .................................................................................................................19 6.2 MEASUREMENT PROCEDURE...........................................................................................................19 6.3 MEASUREMENT RESULT..................................................................................................................20 7. Radiated Spurious Emission Test ........................................................................................... 21 7.1 STANDARD APPLICABLE .................................................................................................................21 7.2 MEASUREMENT PROCEDURE...........................................................................................................21 7.3 FIELD STRENGTH CALCULATION ....................................................................................................22 7.4 MEASUREMENT RESULT............................…

Text truncated - open the document above for the full version.

TEST REPORT of FCC Part 15 Subpart C Product: Function board Brand: CoreStar Main Model: F215U Series Model: N/A Model Difference: N/A FCC ID: 2ANCG-F215U FCC Rule Part: §15.247, Cat: DTS Reference: ANSI C63.10: 2013 KDB 558074 D01 v05r02 Applicant: CoreStar Co., Ltd. Address No. 16-3, Shunping 1st St., Xitun Dist., Taichung City, 40754, Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-23LR0029FCDTS Issue Date : March 31, 2023 FCC Registration Number: 487532 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 123- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCDT S VERIFICATION OF COMPLIANCE Applicant: CoreStar Co., Ltd. Equipment Under Test: Function board Brand: CoreStar Main Model: F215U Series Model: N/A Model Difference: N/A FCC ID: 2ANCG-F215U Date of Test: February 16, 2023 ~ March 31, 2023 Date of EUT Received: February 16, 2023 Test Frim TW0997 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15.247 Complied We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: March 31, 2023 Barry Lee / Senior Engineer Prepared By: Date: March 31, 2023 Gigi Yeh / Senior Engineer Approved By: Date: March 31, 2023 Jerry Liu / Assistant Manager -3 of 123- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCDT S Version Version No. Date Description 00 March 31, 2023 Initial creation of document -4 of 123- International Standards Laboratory Corp. Report Number: ISL-23LR0029FCDT S TABLE OF CONTENTS 1. General ........................................................................................................................................ 6 1.1 DESCRIPTION OF EUT ...................................................................................................................... 6 1.2 SPECIAL ACCESSORIES ..................................................................................................................... 8 1.3 EQUIPMENT MODIFICATIONS ........................................................................................................... 8 2. System Test Configuration ........................................................................................................ 9 2.1 EUT CONFIGURATION ...................................................................................................................... 9 2.2 EUT EXERCISE ................................................................................................................................. 9 2.3 TEST PROCEDURE ............................................................................................................................. 9 2.4 CONFIGURATION OF TESTED SYSTEM .............................................................................................10 2.5 DUTY FACTOR .................................................................................................................................12 3. Summary of Test Results ......................................................................................................... 16 4. Description of Test Modes ....................................................................................................... 16 5. AC Line Conduced Emission Test .......................................................................................... 17 5.1 STANDARD APPLICABLE .................................................................................................................17 5.2 MEASUREMENT PROCEDURE...........................................................................................................17 5.3 MEASUREMENT RESULT..................................................................................................................18 6. Peak Output Power Measurement ......................................................................................... 22 6.1 STANDARD APPLICABLE .................................................................................................................22 6.2 MEASUREMENT PROCEDURE...........................................................................................................22 6.3 MEASUREMENT RESULT..................................................................................................................23 7. Radiated Spurious Emission Test ........................................................................................... 24 7.1 STANDARD APPLICABLE .................................................................................................................24 7.2 MEASUREMENT PROCEDURE...........................................................................................................24 7.3 FIELD STRENGTH CALCULATION ....................................................................................................25 7.4 MEASUREMENT RESULT.......................…

Text truncated - open the document above for the full version.

2023 天线测试报告 Antenna report 1 PART 1 测试报告版本/Report version 日期 Date 天线版本 Antenna version 主板版本 PCB version 变更描述 Description of Change 2023-05-09 天线测试数据 PART 1 请输入你的标题 PART 2 项目信息/Project brief NO ITEMS DETAILS 1 工作频段 Operating band WIFI:2.4G ,5.8G BT 2 频率范围 Frequency band MAIN： 2400-2500Mhz ; 5180-5850Mhz 3 天线类型 Antenna type MAIN： PIFA 4 天线材质及实现形状 Material and implementation shape PCB+焊线 PART 1 请输入你的标题 PART 3 Test system and equipment Add text message Add ext message 测试项目/Test items设备/equipment 1：S参数 S parameter Network analyzer 2：耦合功率测试 Active test Transmitting power Receiving sensitivity Comprehensive test instrument 3：辐射模式与增益 Radiation mode and gain Radiation mode Shielding room Network analyzer 4 PART 1 请输入你的标题 PART 4 匹配电路/Matching Circuits Antenna RF Module E1 E2 E3 E4 MAIN Original match unchanged. PART 1 请输入你的标题 测试数据/RFReport PART 5 WIFI BAND802.11b : 11MBps(2.4G)802.11g : 54MBps(2.4G) Channel（信道）CH1CH6CH11CH1CH6CH11 TRP(发射功率） 13.1813.6312.6810.2311.5411.79 TIS（接收灵敏度） -80.12-70.27 天线换位置贴数据。 WIFI BAND802.11n : MCS7(2.4G)802.11a: 54MBps(5.8G) Channel（信道）CH1CH6CH11CH36CH161 TRP(发射功率） 9.810.1710.5810.029.26 TIS（接收灵敏度） -74.51-68.27 7 PART 5 测试数据/RFReport 天线换位置贴数据。 8 PART 5 测试数据/RFReport 天线换位置贴数据。 9 PART 5 测试数据/RFReport 10 PART 5 测试数据/RFReport 11 PART 5 测试数据/RFReport 天线贴原位置数据。 WIFI BAND802.11b : 11MBps802.11g : 54MBps Channel（信道）CH1CH6CH11CH1CH6CH11 TRP(发射功率） 99.759.286.627.397.53 TIS（接收灵敏度） -75.9-65.3 WIFI BAND802.11n : MCS7(2.4G) Channel（信道）CH1CH6CH11 TRP(发射功率） 5.436.666.39 TIS（接收灵敏度） -70.44 PART 1 请输入你的标题 测试数据/RFReport PART 6 S11 PART 1 请输入你的标题 工程图 EngineeringDrawing PART 6 2023 Thanks! Your content to play here, or through your copy, paste in this box, and select only the text. Your content to play here, or through your copy, paste in this box, and select only the text. 14
