2ANCG-M8800DU6WLAN +BLE USB Module

BL-M8800DU6-40L 802.11 287Mbps WLAN + BLE v5.4 USB Module Specification SHENZHEN BILIAN ELECTRONIC CO., LTD Add: 10~11/F, Building 1A, Huaqiang idea park, Guangming district, Shenzhen. Guangdong, China Web: www.b-link.net.cn 1 http://www.b-link.net.cn （Top View） （Bottom View） Module Name: BL-M8800DU6-40L WLAN +BLE USB Module Module Type: 802.11a/b/g/n/ac 287Mbps WLAN +BLE v5.4 USB Module Revision: V1.1 Customer Approval: Company: Title: Signature: Date: Approval: Title: Signature: Date: Revision History Revision Summary Release Date Revised By V1.0 Official release 2024-03-30 Garry V1.1 Modify type of UART TX/RX 2024-12-04 Ch 2 http://www.b-link.net.cn 1. Introduction BL-M8800DU6-40L is a highly integrated Dual-band WLAN+Bluetooth Combo module. It combines a 1T1R Dual-band WLAN subsystem and a BLE v5.4 subsystem. This module compatible IEEE 802.11 a/b/g/n/ac standard and provides the maximum PHY rate up to 287Mbps, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance. 1.1 Features  Operating Frequencies: 2.4~2.4835GHz or 5.15~5.25GHz  Wireless PHY rate can reach up to 287Mbps with 20/40MHz bandwidth  Host Interface is USB2.0  Support STA, AP, WLAN Direct modes concurrently  Support BT Low Energy mode only  Connect to external antenna through IPEX-1 / MHF-1 connector 1.2 Block Diagram 3 http://www.b-link.net.cn 1.3 General Specifications Module Name BL-M8800DU6-40L Chipset AIC8800D40L WLAN Standards IEEE802.11a/b/g/n/ac Host Interface USB2.0 for WLAN & Bluetooth Antenna Connect to the external antenna through IPEX-1 / MHF-1 connector Dimension 13.0*12.3*2.1mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H) Power Supply 3.3V±0.2V main power supply @700mA (Max) Operation Temperature -20°C to +70°C Operation Humidity 10% to 95% RH (Non-Condensing) 2. Pin Assignments (Top view) 2.1 Pin Definition No Pin Name Type I/O Level Module Pin Description 1 GND RF / RF Ground connections 4 http://www.b-link.net.cn 2 ANT0 - / NC ( Reserved RF Pad ) 3 VDD33 P / 3.3V main power supply 4 USB_DM A I/O / USB 2.0 Device High Speed Interface differential pair 5 USB_DP A I/O / USB 2.0 Device High Speed Interface differential pair 6 GND P / Ground connection 7 GND RF / Auxiliary RF Ground connection PAD for ANT (It can be left floating, but grounding is strongly recommended to enhance ground connectivity and avoid RF interference) 8 GND P / Auxiliary Ground connection PAD for power and USB (It can be left floating, but grounding is strongly recommended to reduce the power loop area and avoid interference with RF) 9 UART0_RX I VDD33 High-Speed UART Data In (Debug pin) 10 UART0_TX O VDD33 High-Speed UART Data Out (Debug pin) J1 RF / IPEX-1 / MHF-1 connector for 2.4G WLAN/5G WLAN/2.4G BT ANT P: Power or Ground; I: Input; O :Output; A I/O: Analog In/Output; RF: Analog RF Port or RF Ground 3. Electrical and Thermal Specifications 3.1 Recommended Operating Conditions Parameters Min Typ Max Units Ambient Operating Temperature -20 25 70 °C External Antenna VSWR 1.7 2.1 / Supply Voltage VDD33 3.1 3.3 3.5 V 3.2 DC Electrical Specification (Recommended Operation Conditions) Symbol Description Min Typ Max Units VIL CMOS Low Level Input Voltage 0 -- 0.3*VDD33 V VIH CMOS High Level Input Voltage 0.7*VDD33 -- VDD33 V VTH CMOS Threshold Voltage -- 0.5*VDD33 -- V 5 http://www.b-link.net.cn 3.3 Current Consumption Conditions : USB,VDD33=3.3V; Ta:25°C； Use Case VDD33 Current Typ(IRMS) Max(IPeak) Units WLAN Unassociated (Linux USB Driver) 82 87 mA 2.4G WLAN throughput 180Mbps (Linux USB Driver) 181 340 mA 5G WLAN throughput 180Mbps (Linux USB Driver) 238 540 mA 2.4G 11b 1Mbps TX@18dBm (TX RF test) 88 295 mA 2.4G 11g 6Mbps TX@18dBm (TX RF test) 112 343 mA 2.4G 11n HT20_MCS0 TX@17dBm (TX RF test) 106 335 mA 5G 11a 6Mbps TX@17dBm (TX RF test) 168 519 mA 5G 11n HT20_MCS0 TX@17dBm (TX RF test) 163 527 mA BT LE_1M TX@6dBm (BT RF test, WLAN disable) 40 52 mA BT LE_1M RX Active (BT RF test, WLAN disable) 25 33 mA 4. WLAN & Bluetooth RF Specifications 4.1 2.4G RF Specification Conditions : VDD33=3.3V ; Ta:25°C Features Description WLAN Standard IEEE 802.11b/g/n Frequency Range 2.4~2.4835GHz (2.4GHz ISM Band) Channels Ch1~Ch13 (For 20MHz Channels) 6 http://www.b-link.net.cn Modulation 802.11b (DSSS): DBPSK, DQPSK, CCK; 802.11g (OFDM): BPSK, QPSK, 16QAM, 64QAM; 802.11n (OFDM): BPSK, QPSK, 16QAM, 64QAM; Data Rate 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps; 802.11n (HT40): MCS0~MCS7(1T1R_SISO) 13.5~150Mbps; Frequency Tolerance ≦ ±20ppm 2.4G Transmitter Specifications ( TX power tolerance calibrated, customers can define the target TX power within recommended range by modifying configuration file of the driver software, Customers must define the TX power same or lower than recommended Target TX Power as below.） TX Rate Recommended Target TX Power（dBm） TX Power Tolerance （dBm） EVM （dB） 802.11b@1Mbps 18 ±2 ≦-10 802.11b@11Mbps 18 ±2 ≦-10 802.11g@6Mbps 18 ±2 ≦-10 802.11g@54Mbps 16 ±2 ≦-25 802.11n@HT20_MCS0 17 ±2 ≦-10 802.11n@HT20_MCS7 15 ±2 ≦-28 802.11n@HT40_MCS0 17 ±2 ≦-10 802.11n@HT40_MCS7 15 ±2 ≦-28 2.4G Receiver Specifications RX Rate Min Input Level （Typ. dBm） Max Input Level （Typ. dBm） PER 802.11b@1Mbps -96 -5 < 8% 802.11b@11Mbps -88 -5 < 8% 802.11g@6Mbps -92 -5 < 10% 802.11g@54Mbps -75 -5 < 10% 802.11n@HT20_MCS0 -92 -5 < 10% 802.11n@HT20_MCS7 -73 -5 < 10% 802.11n@HT40_MCS0 -89 -5 < 10% 7 http://www.b-link.net.cn 802.11n@HT40_MCS7 -71 -5 < 10% 4.2 5G WLAN RF Specification Conditions: VDD33=3.3V; Ta:25°C Features Description WLAN Standard IEEE 802.11a/n/ac Frequency Range 5.15~5.25GHz (5GHz ISM Band) Channels Ch36, Ch40, Ch44, Ch48 (For 20MHz Channels) Ch38, Ch46 (For 40MHz Channels) Ch42 (For 80MHz Channels) Modulation 802.11a (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11n (OFDM): BPSK, QPSK, QAM16, QAM64; 802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256; Data Rate 802.11a: 6, 9, …

Text truncated - open the document above for the full version.

CoreStar Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification - Section 2.911(d)(7) Information Desiqnated U.S. Aqent Company Name: United Consulting Technology Services Co., Ltd FRN: 0033495714 Contact Name: David Wu Street Address: 17800 CASTLETON ST STE 665 CITY OF INDUSTRY CA 91748 United States Telephone No: (626) 217-4022 Email: [email protected] This letter is to confirm that we ("the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below U.S. Agent Signature: Date: 2026/5/12 Signed by (Printed Name/Title): David Wu/CEO The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsib由tyto inform the FCC whenever the Designated U.S. Agent information above changes Applicant Company name: CoreStar Co., Ltd FRN: 0026750745 Grantee Code: 2ANCG FCC ID: 2ANCG-M8800DU6 Contact Name: Daniel Lin Street Address: No. 16-3, Shunping 1st St., Xitun Dist City/Province/Zip: Taichung City, NIA, 40754 Telephone No: +886-4-2295-0350 Email: [email protected] Applicant Signature ／三二产＼二气－ Date: 2026/5/12 Signed by (Printed Name/Title): Daniel Lin / RD Project Manager

CoreStar Co., Ltd To: Federal Communication Commission Date: 2026/5/22 Office of Engineering and Technology RE: Modular Approval Application for FCC ID: 2ANCG-M8800DU6 Dear Sir / Madam, The information regarding the modular approval for FCC ID： 2ANCG-M8800DU6 is detailed below. Requirement of FCC KDB996369 – Modular Approval Requirement Comply（Y/N） 1. The modular transmitter must have its own RF shielding. Y - The EUT provides the RF shielding. See EUT photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y - The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. Y - The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y - The EUT meets the FCC antenna requirements; permanently attached and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. Y - The EUT was tested with a test cable, see test report and setup photo 6. The modular transmitter must be labelled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ANCG- M8800DU6” or “Contains FCC ID: 2ANCG-M8800DU6” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this Y - Please see exhibition label sample for the FCC ID of this module. And also in the exhibition User’s manual, there are instructions to the OEM on how to label the end product. CoreStar Co., Ltd requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y - The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Y - The EUT complies with RF exposure requirement. Sincerely, Name (Printed): Daniel Lin Title: RD Project Manager Signature: On behalf of Company: CoreStar Co., Ltd

Software Security Description

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 4 Appendix External Photos for GZCR2512002101HS Test Model No.: BL-M8800DU6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 2 of 4 EUT Constructional Details (EUT Photos) RF ANT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 4 of 4 - End of the Appendix -

BL-M8800DU6 FCC ID_IC ID標籤位置 FCC ID跟IC ID標籤位置 產品型號 : BL-M8800DU6 FCC ID :2ANCG- M8800DU6 IC ID :22282- M8800DU6

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 1 of 4 Appendix Internal Photos for GZCR2512002101HS Test Model No.: BL-M8800DU6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 4 of 4 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 1 of 10 RF EXPOSURE EVALUATION REPORT Application No.: GZCR2512002101HS Applicant:CoreStar Co., Ltd Address of Applicant:No. 16-3, Shunping 1st St., Xitun Dist., Taichung City 40754, Taiwan, China Manufacturer:CoreStar Co., Ltd Address of Manufacturer:No. 16-3, Shunping 1st St., Xitun Dist., Taichung City 40754, Taiwan, China Factory:Techitory Co., Ltd Address of Factory:No. 267-1, Sec. 1, Shenlin Rd., Daya Dist, Taichung City, Taiwan, China Product Name:WLAN +BLE USB Module Model No.: BL-M8800DU6 Trade Mark:Corestar Standard(s) : KDB 447498 D01 V06 47 CFR Part 1.1310 Date of Receipt: 2025-12-30 Date of Evaluation: 2026-04-21 Date of Issue: 2026-05-12 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 2 of 10 Revision Record VersionReport No.DateRemark 01GZCR2512002101052026-05-12Original Authorized for issue by: Damon Guan/Project Engineer Approved By Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 3 of 10 2Evaluation Summary ItemStandardMethodRequirementResult RF Exposure KDB447498 D01 General RF Exposure Guidance v06 KDB447498 D01 General RF Exposure Guidance v06 47 CFR Part 1.1310Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 4 of 10 3Contents Page 1Cover Page...............................................................................................................................................1 2Evaluation Summary................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................5 4.1Details of E.U.T.................................................................................................................................5 4.2Evaluating Location...........................................................................................................................5 4.3Facility...............................................................................................................................................6 4.4Deviation from Standards..................................................................................................................6 4.5Abnormalities from Standard Conditions...........................................................................................6 5Technical Requirements Specification..................................................................................................7 5.1General Description of Applied Standards........................................................................................7 5.2RF Exposure Evaluation....................................................................................................................7 5.2.1Limit & Test Method......................................................................................................................7 5.2.2Conclusion....................................................................................................................................8 6EUT Constructional Details (EUT Photos)...........................................................................................10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 5 of 10 4General Information 4.1Details of E.U.T. Power supply:DC 3.3V Cable(s):None. RF character Please refer to the report GZCR251200210101 for 2.4GHz Wi-Fi issued by SGS. Please refer to the report GZCR251200210102 for 5GHz Wi-Fi issued by SGS. Please refer to the report GZCR251200210103 for BT class issued by SGS. Please refer to the report GZCR251200210104 for BT BLE issued by SGS. Remark: The information in this section is provided by the applicant or manufacturer, SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. 4.2Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, No.198, Kezhu Road, Science City, Economic & Technological Development Area, Guangzhou, Guangdong, China 510663 Tel: +86 20 82155555 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 2.0 Report No.:GZCR251200210105 Page: 6 of 10 4.3Facility The facility is recognized, certified, or accredited by the following organizations: ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been accredited and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Designation Number: CN5016, Test Firm Registration Number: 486818. ● ISED (Registration No.: 4620B, CAB identifier: CN0052)…

Text truncated - open the document above for the full version.

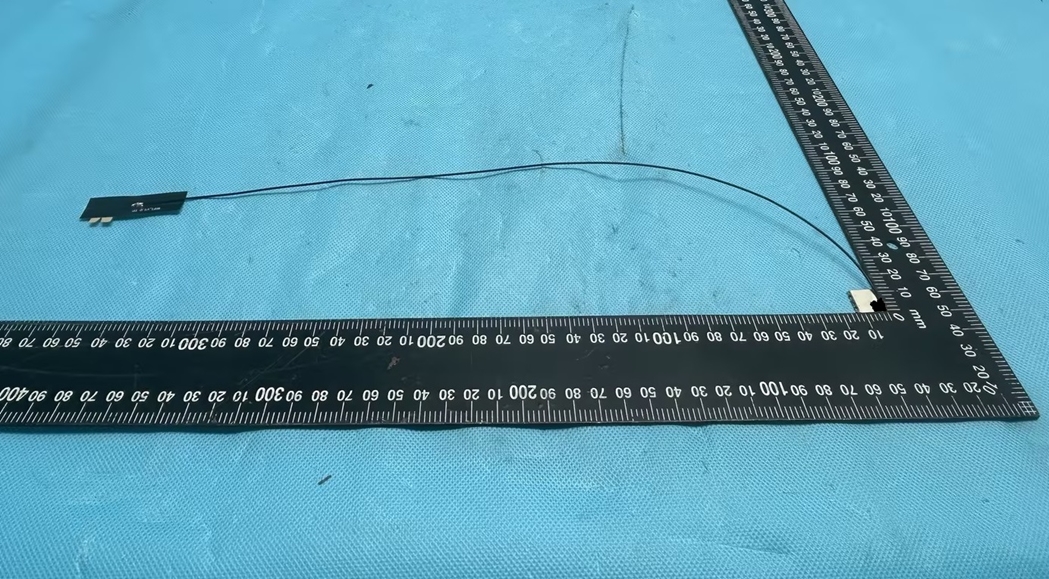

深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 1/11 产品规格书 specification 客户名称(Custome) 北京智奇科技有限公司 客户产品编码（Customerproduct coding） / 产品名称（productname） WIFI双频-128 产品型号（productmodel） 产品编码（productcode） / 产品规格 （productstandard） FPC天线+铜轴线 拟制日期（date） 2025-03-03 版本（edition） 1.0 我司栏Divisioncolumn 拟制 preparedby 审核 audit 批准 ratify 客户栏Clientfield 确认 notarize 审核 audit 批准 ratify ADD: Room 411, Floor 4, Building A4, Jinbolong Industrial Factory Area, No. 1 Huayun Road, Yucui Community, Longhua Street, Longhua District, Shenzhen 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 2/11 变更履历 changeresume 版本 edition 日期 edition 变更描述 Designchangedescription 备注 remark 1.02025-03-03 初版 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 3/11 目录 Catalogue 1.封面cover...................................1 2.变更履历changeresume.......................2 3.目录catalogue...............................3 4.产品规格ProductSpecifications.............4 5.测试环境Testenvironment..................5 6.天线电气参数Antennaelectricalparameter...6 7.环境可靠性测试EnvironmentalPerformance...7 8.工程图Engineeringdrawings................8 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 4/11 4·产品规格ProductSpecifications MechanicalSpecifications 天线尺寸AntennaSize(mm) 48.35*15.85*0.15 材质Material PI 工作温度WorkingTemperature(°C) -20~+85° 颜色RadomeColor 黑色Black 铜轴线 1.13MM(黑色)+1代单头端子 安装方式Installation 焊接 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 5/11 5·测试环境Testenvironment 网络分析仪：安捷伦5071B NetworkAnalyzer:Agilent5071B 综合测试仪：R&SCMW500(2/3/4G/NB-IoT/W/BT)；AnritsuMT80000A Comprehensivetester:R&SCMW500(2/3/4G/NB-IoT/WIFI/BT);Anritsu 80000A 新益SY-24L ：5GSISO/MIMO,400MHz–8.5GHz XinYiSY-24LChamber5G(FR1)SISO/MIMO,400MHz–8.5GHz 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 6/11 6.天线电气参数Antennaelectricalparameter 无源数据（LogMag/Smith/SWR） 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 7/11 无源数据(效率/增益/方向图） WIFI2.4G 2400-2500MHZEfficiency FrequencyEfficiencyGain.dBi 2400MHz51%2.84 2405MHz51%2.77 2410MHz52%3.11 2415MHz53%2.78 2420MHz52%3.11 2425MHz51%2.89 2430MHz52%2.92 2435MHz51%2.91 2440MHz51%2.80 2445MHz49%2.58 2450MHz51%2.74 2455MHz49%2.41 2460MHz50%2.78 2465MHz52%2.31 2470MHz48%2.21 2475MHz49%2.45 2480MHz49%2.31 2485MHz53%2.45 2490MHz53%2.41 2495MHz52%2.34 2500MHz53%2.21 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 8/11 WIFI5G 5150-5250MHZEfficiency FrequencyEfficiencyGain.dBi 5150MHz34%0.26 5185MHz35%0.45 5220MHz42%0.98 5255MHz27%1.49 5290MHz39%1.95 5325MHz40%2.80 5360MHz38%3.06 5395MHz33%2.48 5430MHz31%3.19 5465MHz36%2.69 5500MHz33%3.23 5535MHz32%2.69 5570MHz36%3.00 5605MHz32%3.36 5640MHz34%2.62 5675MHz33%3.51 5710MHz34%2.52 5745MHz34%3.40 5780MHz32%3.24 5815MHz33%3.85 5850MHz30%3.01 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 9/11 WIFI2.4G(2400-2500mhz) WIFI5G(5150-5250mhz) 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 10/11 7·测试环境Testenvironment /EnvironmentalPerformance 测试项目 TestDescription 测试程序和条件 TestProcedures&Condition 测试要求 Requirements 盐雾测试 SaltSprayTest 测试条件(DecayTestConditions)： 35°C±2°C的密闭环境中，湿度＞85%，PH值在 6.5-7.2范围内，用5%±1%的Nacl溶液 持续时间(Ina35°C±2°Cairtight environment,humidity>85%,PHinthe range6.5-7.2,with5%±1%Nacl solutionDuration) :24小时Duration:24hours 1.外观良好(Noevidenceof damage) 2.电气性能符合产品规格要求 (Electricalperformanceinline withproductspecifications) 高温试验 Hightemperature test 测试条件(DecayTestConditions)： 温度:85°C(Temperature:85°C) 持续时间:24小时 Duration:24hours 1.外观良好(Noevidenceof damage) 2.电气性能符合产品规 格要求( Electricalperformanceinline withproductspecifications ) 低温试验 LowTemperature test 测试条件(DecayTestConditions)： 温度:-20±2°C(Temperature:-20±2°C) 持续时间:24小时Duration:24 hours 1.外观良好(Noevidence ofdamage) 2.电气性能符合产品规格要求 ( Electricalperformanceinlinewith productspecifications) 深圳市拓频物联技术有限公司 SHENZHENFREQUENCVEXTENSIONIOTTECHNOLOGYCO.,LTD. 11/11 8·工程图Engineeringdrawings

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 1 of 95 TEST REPORT Application No.: GZCR2512002101HS Applicant: CoreStar Co., Ltd Address of Applicant: No. 16-3, Shunping 1st St., Xitun Dist., Taichung City 40754, Taiwan, China Manufacturer: CoreStar Co., Ltd Address of Manufacturer: No. 16-3, Shunping 1st St., Xitun Dist., Taichung City 40754, Taiwan, China Factory: Techitory Co., Ltd Address of Factory: No. 267-1, Sec. 1, Shenlin Rd., Daya Dist, Taichung City, Taiwan, China Product Name: WLAN +BLE USB Module Model No.: BL-M8800DU6 Trade Mark: Corestar Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2025-12-30 Date of Test: 2026-04-13 to 2026-04-21 Date of Issue: 2026-05-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 2 of 95 Revision Record Version Report No. Date Remark 01 GZCR251200210102 2026-05-12 Original Authorized for issue by: Damon Guan/Project Engineer Approved By Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 3 of 95 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data N/A 47 CFR Part 15, Subpart E 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 & Subpart E 15.407 b(9) Pass Radiated Emissions (Below 1GHz) ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions (Above 1GHz) ANSI C63.10 (2020) Section 6.6 & 12.7 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 6.10.5 & 12.7.2 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Duty Cycle ANSI C63.10 (2020) Section 12.2 ANSI C63.10 (2020) Section 12.2 Pass 99% Bandwidth ANSI C63.10 (2020) Section 12.5.3 ANSI C63.10 (2020) Section 12.5.3 Pass 26dB Emission Bandwidth ANSI C63.10 (2020) Section 12.5.2 47 CFR Part 15, Subpart E 15.407 (a) Pass Maximum Conducted Output Power ANSI C63.10 (2020) Section 12.4 47 CFR Part 15, Subpart E 15.407 (a) Pass Power Spectral Density ANSI C63.10 (2020) Section 12.6 47 CFR Part 15, Subpart E 15.407 (a) Pass Frequency Stability ANSI C63.10 (2020) Section 6.8 47 CFR Part 15, Subpart E 15.407 (g) Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 4 of 95 3 Contents Page 1 Cover Page ................................................................................................................................................. 1 2 Test Summary ............................................................................................................................................ 3 3 Contents ..................................................................................................................................................... 4 4 General Information ................................................................................................................................... 6 4.1 Details of E.U.T. .................................................................................................................................. 6 4.2 Description of Support Units ............................................................................................................... 6 4.3 Measurement Uncertainty ................................................................................................................... 7 4.4 Test Location ....................................................................................................................................... 7 4.5 Test Facility ......................................................................................................................................... 8 4.6 Deviation from Standards .................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................ 8 5 Equipment List ........................................................................................................................................... 9 6 Radio Spectrum Technical Requirement .............................................................................................. 12 6.1 Antenna Requirement ....................................................................................................................... 12 6.1.1 Test Requirement: ........................................................................................................................ 12 6.1.2 Conclusion .................................................................................................................................... 12 6.2 Transmission in the Absence of Data ............................................................................................... 13 6.2.1 Test Requirement: ........................................................................................................................ 13 6.2.2 Conclusion .................................................................................................................................... 13 7 Radio Spectrum Matt…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 79 of 95 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 80 of 95 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 81 of 95 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 82 of 95 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5190MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 83 of 95 802.11ac(VHT40)_HCH_5230MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5210MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.:GZCR251200210102 Page: 84 of 95 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11a SISO 5180 10.06 <=23.98 Pass 5200 9.93 <=23.98 Pass 5240 10.69 <=23.98 Pass 802.11n (HT20) SISO 5180 9.98 <=23.98 Pass 5200 10.18 <=23.98 Pass 5240 11.09 …
