2AND8-246ATK2Activity Tracker

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). This radio transmitter (ISED certification number: 23749-246ATK2) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. Le présent émetteur radio (ISED certification number: 23749-246ATK2) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci- dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Ce dispositif est conforme à la partie 15 des règles de la FCC.(1) le dispositif ne peut pas causer des nuisances, et (2) le dispositif doit recevoir toute intensité, y compris celle qui peut causer une opération non désirée. Les modifications ou modifications qui ne sont pas expressément approuvées par la partie responsable de la conformité peuvent confier à l’autorité de l’utilisateur le fonctionnement du matériel. NOTE:Ces équipements ont été testés et jugés conformes aux limites d’un appareil numérique de classe B.Ces limites sont con çues pour assurer une protection raisonnable contre les nuisances dans une installation résidentielleLa fréquence de la radio et, si elle n’est pas installée et utilisée conformément aux instructions, peut provoquer des nuisances aux communications radio.Il n’y a aucune garantie que l’incident ne se produira pas dans une installation particulière, si ce matériel provoque une inactivité nocive à la radio ou à la télévision.L’utilisateur est incité à essayer de corriger l’incident par une ou plusieurs des mesures suivantes: · Reorient ou relocalise les antennes bénéficiaires. · augmenter la séparation entre l’équipement et le récepteur. · connecter le matériel à un circuit différent de celui auquel le récepteur est connecté. · consultez le négociant ou un technicien de radio/ télévision expérimenté pour l’aide. L’appareil a été conç u pour répondre aux exigences de l’exposition générale en RF, il peut être utilisé sans restriction à des conditions d’exposition portable.

CJ Global Inc. Agent Authorization Company: CJ Global Inc. Address: 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Product Name: Activity Tracker Trade Mark: N/A Model Number(s): 24664 FCC ID: 2AND8-246ATK2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-07-06 Name: Coby Chen Title: Manager Company: CJ Global Inc.

CJ Global Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-06 Subject; Request for Confidentiality FCC ID: 2AND8-246ATK2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Coby Chen Title: Manager

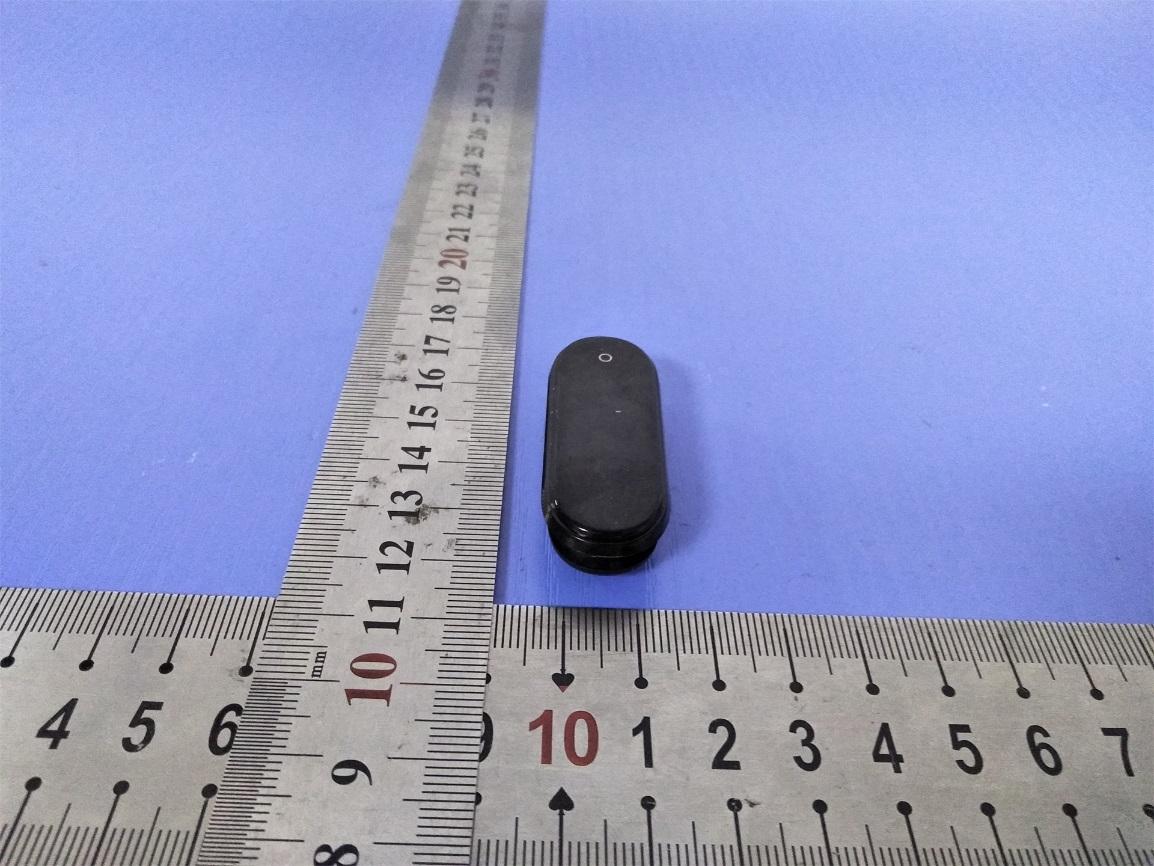

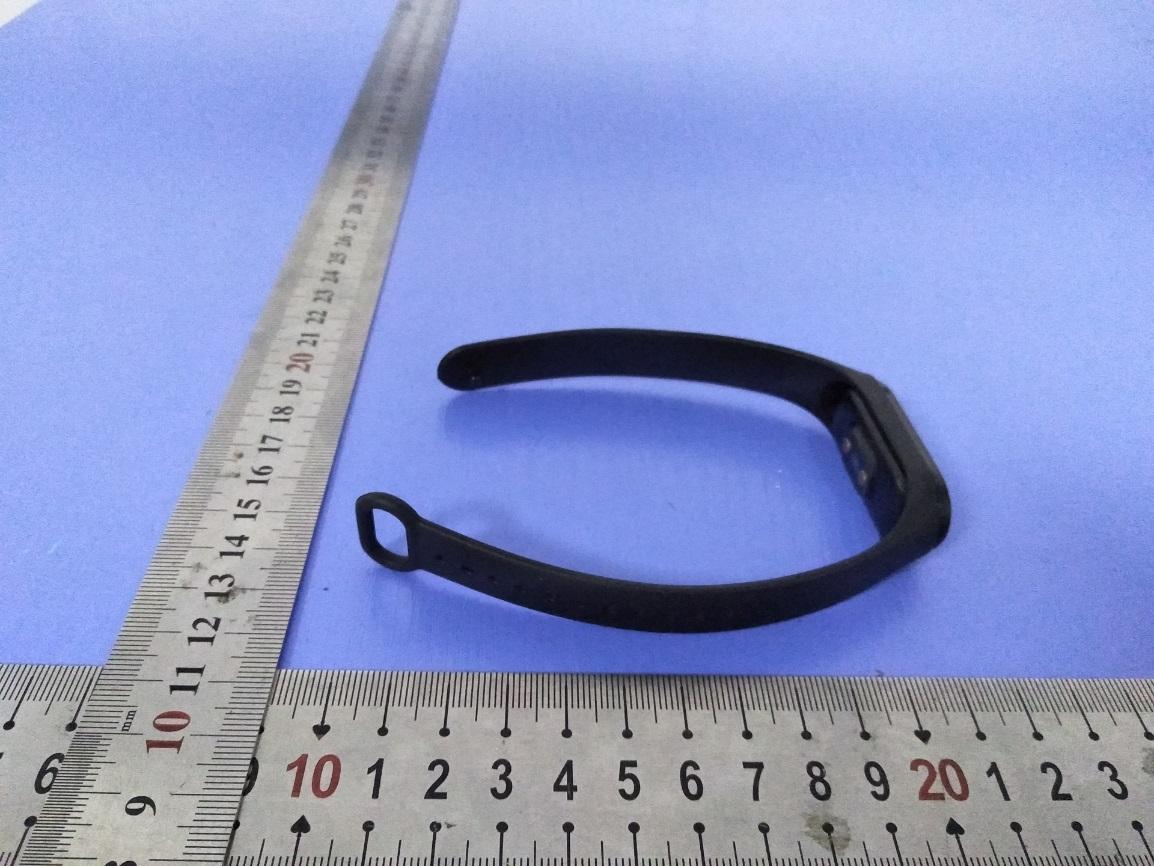

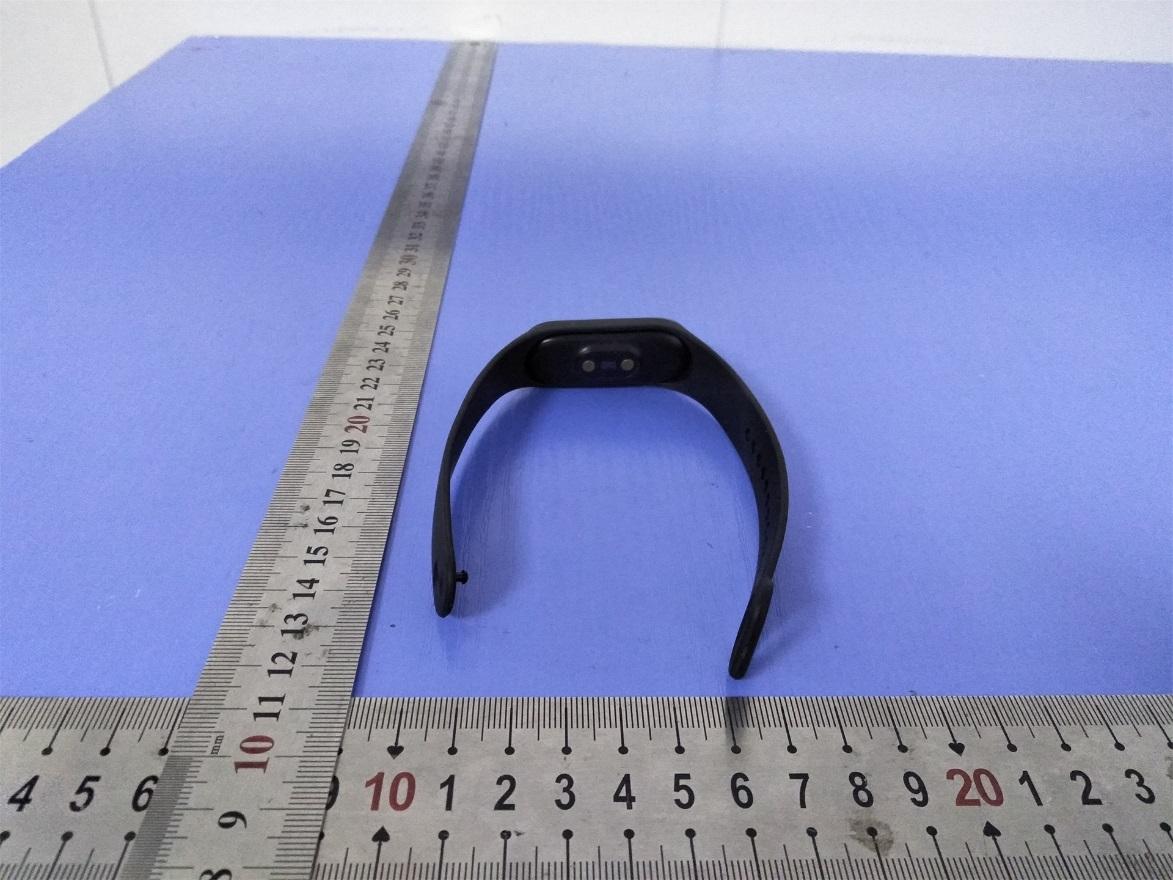

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 11 Fig. 12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.0cm Label Location Activity Tracker Model No.: 24664 FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AND8-246ATK2 Product name : Activity Tracker Test Model : 24664 Power supply : Input: DC 5V, 500mA DC 3.7V by battery(90mAh) Bluetooth : 2402-2480MHz Channel Number : 40 channels for Bluetooth V4.0(DTS) Channel Spacing : 2MHz for Bluetooth V4.0(DTS) Modulation Type : GFSK for Bluetooth V4.0(DTS) Bluetooth Version : V4.0 Antenna Type : Internal Antenna Antenna Gain : 0dBi (maximum) Hardware version : LH716-MB-V8.0 Software version : V20.1.8 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.574 19 2440 0.225 39 2480 0.363 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.480 5 1.0 1.26 0.4 < 3.0 Yes Remar…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 1 of 16 Appendix A RF Test Data for BT V4.0(BT LE) (Conducted Measurement) Product Name: Activity Tracker Trade Mark: N/A Test Model: 24664 Environmental Conditions Temperature: 23.2 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom Liu A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 2 of 16 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -0.574 30 PASS BT LE MCH 0.225 30 PASS BT LE HCH 0.363 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 3 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 4 of 16 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -16.610 8 PASS BT LE MCH -14.650 8 PASS BT LE HCH -14.561 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 5 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 6 of 16 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6789 ≥0.5 PASS BT LE MCH 0.6989 ≥0.5 PASS BT LE HCH 0.6893 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 7 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 8 of 16 A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0491 ≥0.5 PASS BT LE MCH 1.0508 ≥0.5 PASS BT LE HCH 1.0483 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 9 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 10 of 16 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -1.312 -37.016 -21.312 PASS BT LE MCH -0.49 -37.109 -20.490 PASS BT LE HCH -0.338 -36.876 -20.338 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 11 of 16 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 12 of 16 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 13 of 16 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -1.290 -49.313 -21.29 PASS BT LE HCH -0.255 -48.727 -20.26 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 14 of 16 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -44.49 2.0 0 52.77 PEAK 74 PASS Ant1 2310.0 -53.52 2.0 0 43.74 AV 54 PASS Ant1 2390.0 -42.87 2.0 0 54.39 PEAK 74 PASS Ant1 2390.0 -53.21 2.0 0 44.05 AV 54 PASS 2480 Ant1 2483.5 -41.05 2.0 0 56.21 PEAK 74 PASS Ant1 2483.5 -52.66 2.0 0 44.60 AV 54 PASS Ant1 2500.0 -41.99 2.0 0 55.27 PEAK 74 PASS Ant1 2500.0 -52.51 2.0 0 44.75 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 15 of 16 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 Page 16 of 16 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 Report No.: LCS200528072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 32 FCC TEST REPORT For CJ Global Inc. Activity Tracker Test Model: 24664 Prepared for : CJ Global Inc. Address : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 02, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : June 02, 2020 ~ June 13, 2020 Date of Report : June 15, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 Report No.: LCS200528072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 32 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200528072AEA Date of Issue ................................... : June 15, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : CJ Global Inc. Address ........................................... : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Activity Tracker Trade Mark .......................................................................................................................................... : N/A Model/ Type reference ........................................................................................................................ : 24664 Ratings ................................................................................................................................................ : Input: DC 5V, 500mA DC 3.7V by battery(90mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He / File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 Report No.: LCS200528072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 32 FCC -- TEST REPORT Type / Model........................... : 24664 EUT......................................... : Activity Tracker Applicant............................... : CJ Global Inc. Address.................................. : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : CJ Global Inc. Address................................... : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Telephone............................... : / Fax.......................................... : / Factory................................... : CJ Global Inc. Address................................... : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 0740, United States Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200528072AEA June 15, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 Report No.: LCS200528072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 32 Revision History Revision Issue Date Revisions Revised By 000 June 15, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 Report No.: LCS200528072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE .........................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-246ATK2 IC: 23749-246ATK2 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 1
