2AND8-538TWSTWS Earbuds with Charging Case

True Wireless Earbuds Instruction Manual ITEM 53858-DI Experience a world without wires with these stylish True Wireless Earbuds. Enjoy balance sound, dynamic range and noise isolation while listen to music or talking on the phone. The battery charging case will charge the earbuds on the go up to 3 full charges. The convenient LED digital readout will let you know when the battery charging case is running low so you can recharge it and never run out of juice. PACKAGE CONTENTS • TWS Earbuds • Charging Case • Type C Charging Cable CHARGING YOUR TWS EARBUDS & CHARGING CASE 1. Please connect the Type C charging cable to the back of the charging case (with the earbuds inside the case) and then to a 5V USB power source and charge for approx. 2 hours. 2. As the Charging Case is charging you are also charging the TWS earbuds inside the case. 3. To recharge the TWS earbud just place them in the charging case. The red LED lights on the TWS earbuds will remain on when charging. Once the earbuds are fully charged the LED will turn OFF. PAIRING THE TWS EARBUDS TO EACH OTHER 1. Remove both TWS earbuds from the Charging Case and wait 5 seconds and they will pair automictically to each other. 2. Note that initially both LED lights on both earbuds will flash green and red and then after 5 seconds the Right earbud will stop flashing and only the Left will continue to flash. This means they are paired to each other. Once this is done you can now pair the earbuds to your phone. 3. Once the TWS earbuds have been connected, when using them again they will automatically connect to each other. PAIRING TWS EARBUDS TO YOUR PHONE (BLUETOOTH) 1. Turn ON your Bluetooth in your Phone settings. 2. Search for Pairing name CJ Tech TWS Earbuds in your phone and connect. Once your phone says connect you are done. 3. Once connected you can now listen to music or have a phone conversion hands-free and totally wire free! CONTROLLING MUSIC & ANSWERING PHONE CALLES You can control the songs/music you are listen to from the TWS earbuds! • Previous/Next Song: Press Left key twice to play the previous music. Press Right key twice to play the next music. You can control your phone call also directly from the earbuds! • Answer/Hang Up: press the left/right earbud button once to answer the phone , and then press the button again to hang up. • Reject a Call: Hold the left/right earbud button 2 seconds to reject call. • Game Mode: Press the left/right earphone button 3 times to enter or exit game mode. • Turn on Siri or Android Voice Assistant: Hold the left/right earbud button for 2-3 seconds, then release the button, start the voice control. Press the earbud button once to turn off the Siri and android voice Assistant. AUTO SHUTDOWN AND MANUAL SHUTDOWN • Auto Shutdown: Put the earbuds into the charging case and they will automatically turn off. • Manual shutdown: Hold the left/right earbud button for 4-5 seconds and you will hear a voice prompt “Power OFF”. The red LED light will remain on for 1 second and then the earbuds will turn OFF. SWITCHING BETWEEN SINGLE AND DUAL EARBUD MODE The factory default is for Dual Earbud mode. When in dual earbud working mode (not connected to the mobile phone), quickly press the left earbud button four times to enter the single earbud mode. Both the red and green lights on the earbuds will flash alternately. Now you are able to use earbuds individually if you desire. In the standby mode of the single earbud mode (not connected to the mobile phone), press the left earbud button four times to enter the dual earbud mode. The left earbud LED light will flash alternately, and the right earbud LED light will turn OFF. You are now back to dual earbud mode. SPECIFICATION • Charging Input: 5.0±0.25V/1A • Bluetooth Version: 5.0 • Earbud Battery: 30mAh • Earbud Charging Time: 60min • Charging Case: 380mAh • Charging Case Charge Time: 2hours • Talk Time: Up to 4hours (full power) • Music Play Time: Up to 4hours (full power) FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference, received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user’s authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by CJ Global is under license. Other trademarks and trade names are those of their respective owners. FRONT BACK 53858-DI 53860-DI TWS Earbuds with Charging Case CLOSED: 7 cm x 10 cm …

Text truncated - open the document above for the full version.

CJ Global Inc. Agent Authorization Company: CJ Global Inc. Address: 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Product Name: TWS Earbuds with Charging Case Trade Mark: CJ TECH Model Number: 53860-DI, 53858-DI FCC ID: 2AND8-538TWS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-05 Name: Coby Chen Title: Manager Company: CJ Global Inc.

CJ Global Inc. Add: 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Tel: (646) 415-9056 Fax: (201) 509-8181 Date: 2021-07-05 Dear Sir/Madam, We, CJ Global Inc. Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these models: Product name: TWS Earbuds with Charging Case Models No.: 53860-DI, 53858-DI Sincerely, Client’s name / title : Coby Chen / Manager Contact information / address: 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Tel: (646) 415-9056 Fax: (201) 509-8181 E-Mail: [email protected]

CJ Global Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-05 Subject; Request for Confidentiality FCC ID: 2AND8-538TWS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Coby Chen Title: Manager

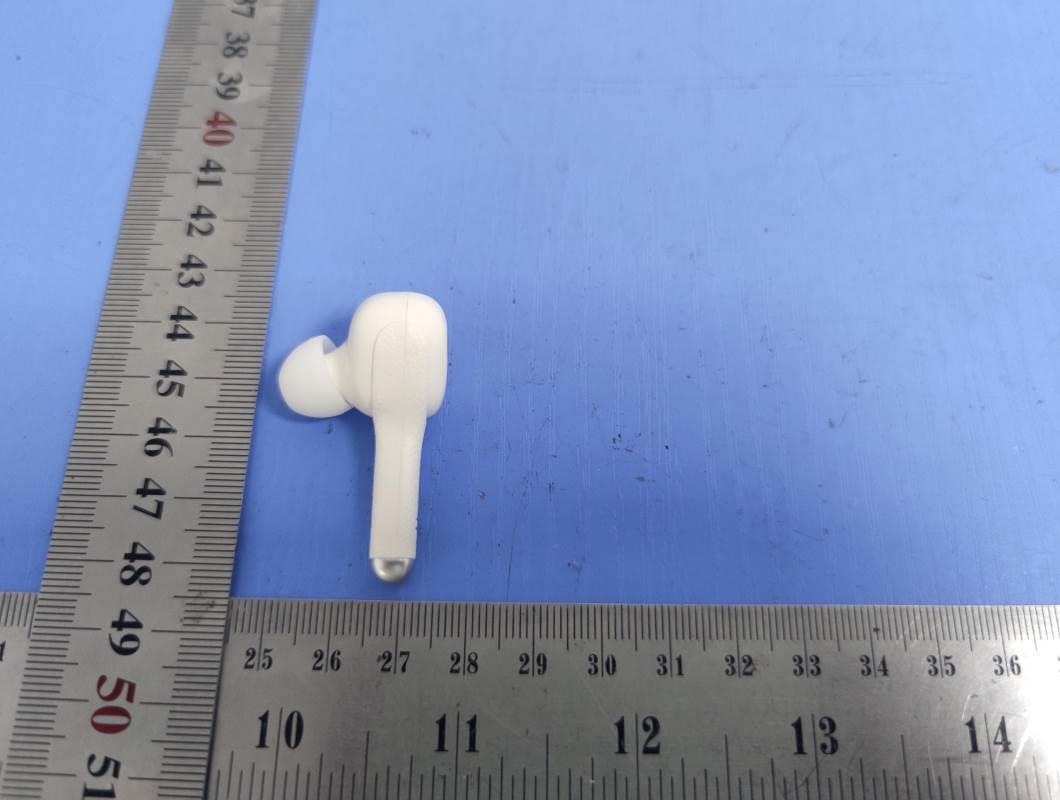

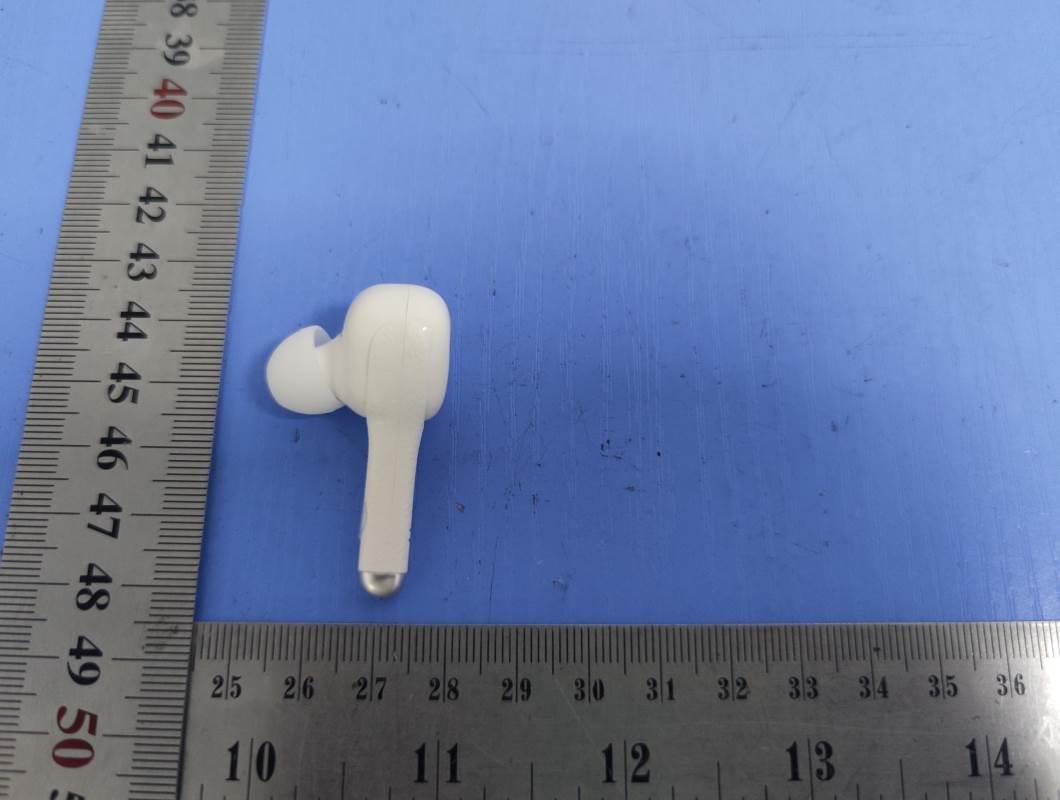

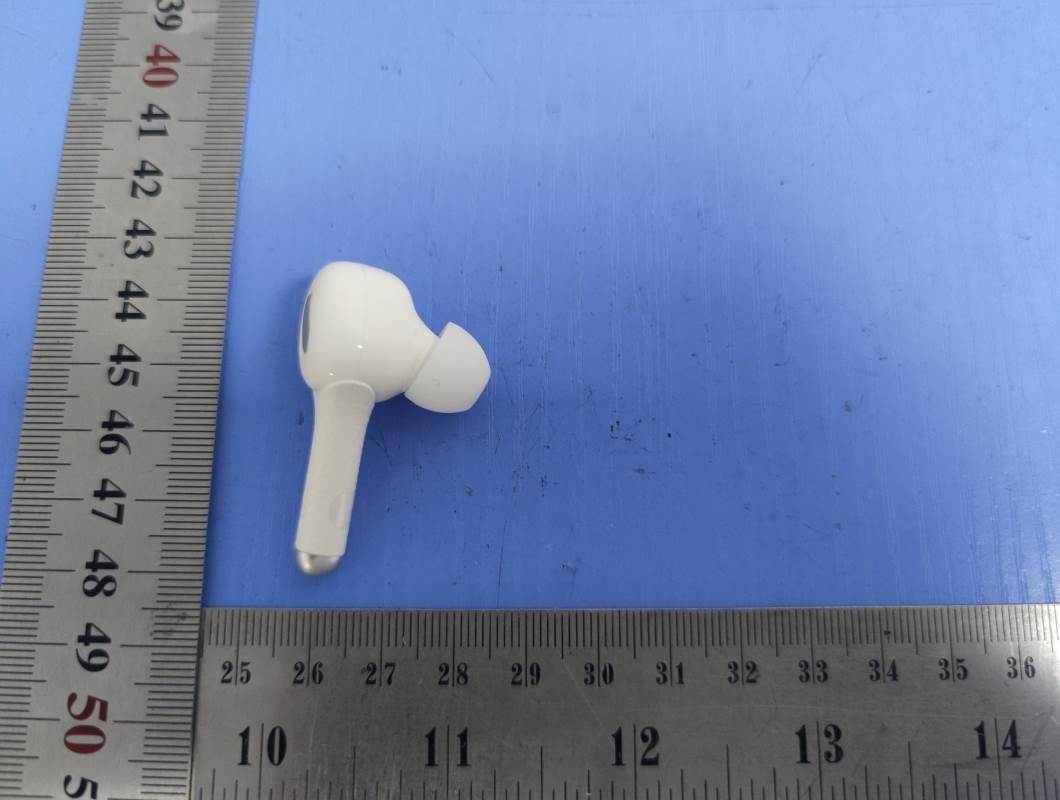

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L30.6mm*W11.9mm Label Location: The earbuds are too small, and the label is placed on the user manual.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Fig. 7 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AND8-538TWS Product name TWS Earbuds with Charging Case Test Model 53860-DI Additional Model No 53858-DI Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input(Case): 5VDC,500mA Earbud: 30mAh,3.7V Charging Case: 380mAh,3.7V Modulation Type GFSK, π/4-DQPSK for Bluetooth V5.0 (DSS) Antenna Type PCB Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / Bluetooth Operation frequency 2402MHz ~ 2480MHz Bluetooth Version V5.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The *∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg+ + *∑ of MPE ratios+ is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the *∑ of MPE ratios+ is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: Mobile Device 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.496 39 2441 -1.344 78 2480 -0.733 π/4DQPSK 0 2402 0.820 39 2441 1.016 78 2480 1.157 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.480 5 0 1.0000 0.3150 < 3.0 Yes π/4DQPSK …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 1 of 34 Appendix A RF Test Data for BT V4.1(BDR/EDR) (Conducted Measurement) Product Name: TWS Earbuds with Charging Case Trade Mark: CJ TECH Test Model: 53858-DI Environmental Conditions Temperature: 22.1 C Relative Humidity: 53.2% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -1.496 21 PASS MCH -1.344 21 PASS HCH -0.733 21 PASS π/4DQPSK LCH 0.820 21 PASS MCH 1.016 21 PASS HCH 1.157 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 2 of 34 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 3 of 34 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 4 of 34 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 5 of 34 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9617 Not Specified PASS MCH 0.9617 Not Specified PASS HCH 0.9614 Not Specified PASS π/4DQPSK LCH 1.280 Not Specified PASS MCH 1.281 Not Specified PASS HCH 1.282 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 6 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 7 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 8 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 9 of 34 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.862 0.641 PASS MCH 1.334 0.641 PASS HCH 0.836 0.641 PASS π/4DQPSK LCH 1.288 0.855 PASS MCH 1.144 0.855 PASS HCH 0.860 0.855 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 10 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 11 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 12 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 13 of 34 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 14 of 34 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.308 0.4 PASS 2DH5 MCH 2.88 106.7 0.308 0.4 PASS 2DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 15 of 34 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 16 of 34 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 17 of 34 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 18 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -1.785 -36.467 -21.785 PASS MCH -1.649 -36.920 -21.649 PASS HCH -1.001 -37.399 -21.001 PASS π/4DQPSK LCH -1.037 -36.539 -21.037 PASS MCH -0.704 -36.482 -20.704 PASS HCH -0.555 -37.340 -20.555 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 19 of 34 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 20 of 34 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 21 of 34 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 22 of 34 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 23 of 34 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 24 of 34 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 25 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -1.986 Off -49.396 -21.99 PASS -2.279 On -49.430 -22.28 PASS HCH 2480 -0.897 Off -49.574 -20.9 PASS -1.412 On -48.872 -21.41 PASS π/4DQPSK LCH 2402 -0.884 Off -48.855 -20.88 PASS -0.921 On -48.859 -20.92 PASS HCH 2480 -0.562 Off -48.497 -20.56 PASS -0.267 On -48.160 -20.27 PASS Test Graphs GFSK/LCH/No Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 26 of 34 GFSK/LCH/Hop GFSK/HCH/No Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY Report No.: LCS201221131AEA Page 27 of 34 GFSK/HCH/Hop π/4DQPSK/LCH/No Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2AND8-538TWSY R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Report No.: LCS210609057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For CJ Global Inc. TWS Earbuds with Charging Case Test Model: 53860-DI Additional Model No.: 53858-DI Prepared for : CJ Global Inc. Address : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 10, 2021 Number of tested samples : 2 Sample No. : 210609057A-1, 210609057A-2 Serial number : Prototype Date of Test : June 10, 2021 ~ June 11, 2021 Date of Report : June 16, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Report No.: LCS210609057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ...................... : LCS210609057AEA Date of Issue ........................................ : June 16, 2021 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : CJ Global Inc. Address ................................................ : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Test Specification Standard ............................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : TWS Earbuds with Charging Case Trade Mark .......................................... : CJ TECH Test Model ........................................... : 53860-DI Ratings ................................................. : Input(Case): 5VDC, 500mA Earbud: 30mAh, 3.7V Charging Case: 380mAh, 3.7V Result ................................................. : Positive Compiled by: Supervised by: Approved by: Jin Wang / File administrator Linda He / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Report No.: LCS210609057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Model............................... : 53860-DI EUT......................................... : TWS Earbuds with Charging Case Applicant............................... : CJ Global Inc. Address.................................. : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Telephone............................... : Fax.......................................... : Manufacturer........................ : CJ Global Inc. Address................................... : 20-21 Wagaraw Road Bldg 30 Fair Lawn, New Jersey, NJ 07410, United States Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210609057AEA June 16, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Report No.: LCS210609057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 June 16, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS Report No.: LCS210609057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description ................................................................................................................................................ Page 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Radiated Emissions Fig. 1 Fig. 2 Note: The left and right earbuds are the same, so just tested one of them (right part). Right Part SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AND8-538TWS _______________________________________________________________________________________________ Conducted Emissions Fig. 3
