2ANDX-CS20MBody Composition Scale

www.renpho.com/pages/002 This device complies with part 15 of the FCC Rules. Operation i s subject to the condition that this device does not cause harmfu l interference (1) this device may not cause harmful interference , and (2) this device must accept any interference received, includinginterference that may cause undesired operation.Any changes or modifications not expressly approved by the part y responsible for compliancecould void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecti on against harmful interference in a residential installation. Thi s equipment generates, uses and can radiate radio frequency energ y and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a par ticular installation.If this equipment does cause harmful interference to radio ortelevision reception,which can be determined by turning the equipment off and on, th e user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure condit ion without restriction.FCC ID: 2ANDX-CS20M Product : Body Composition ScaleModel : CS20M

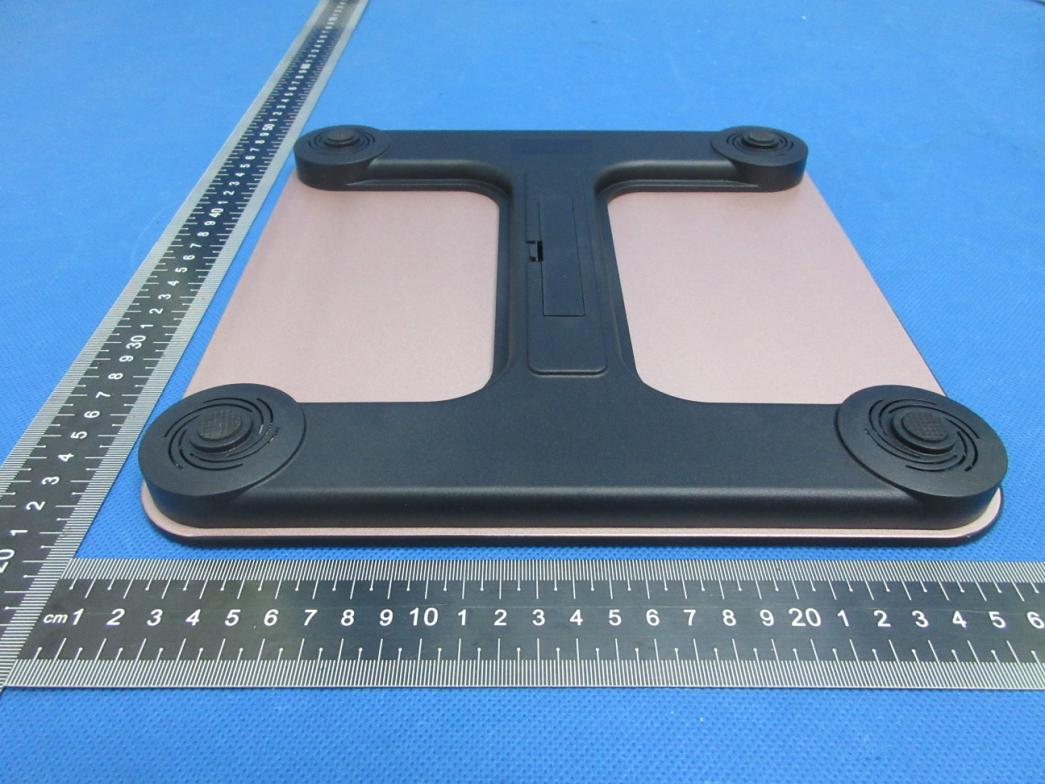

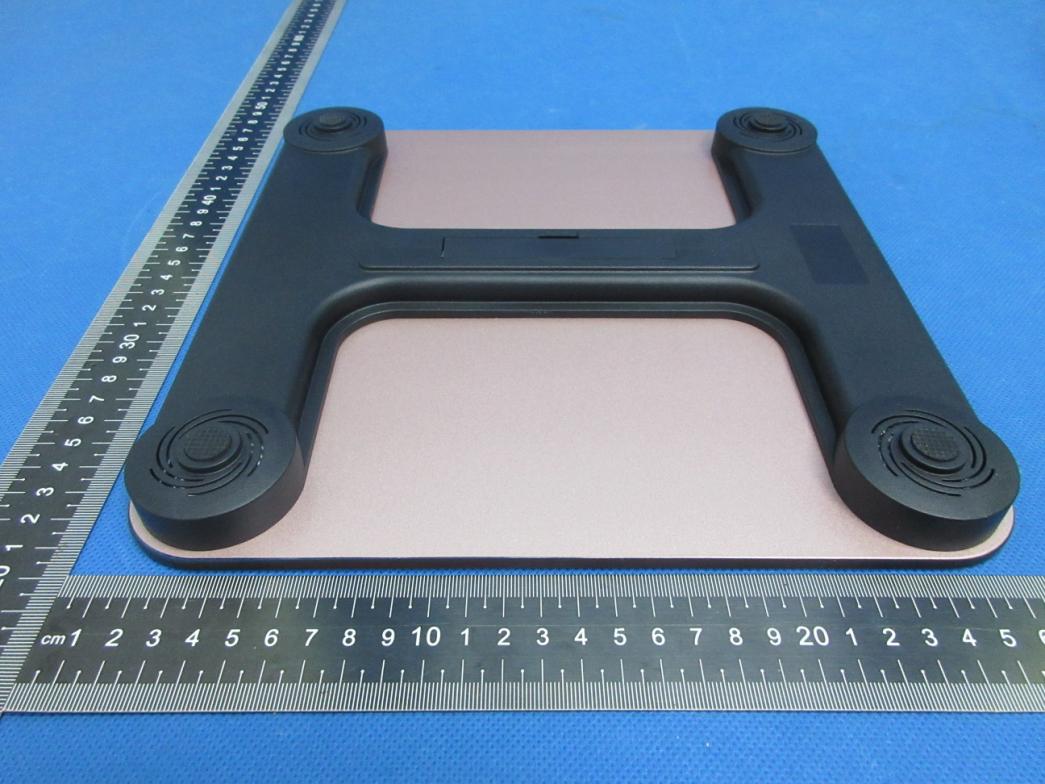

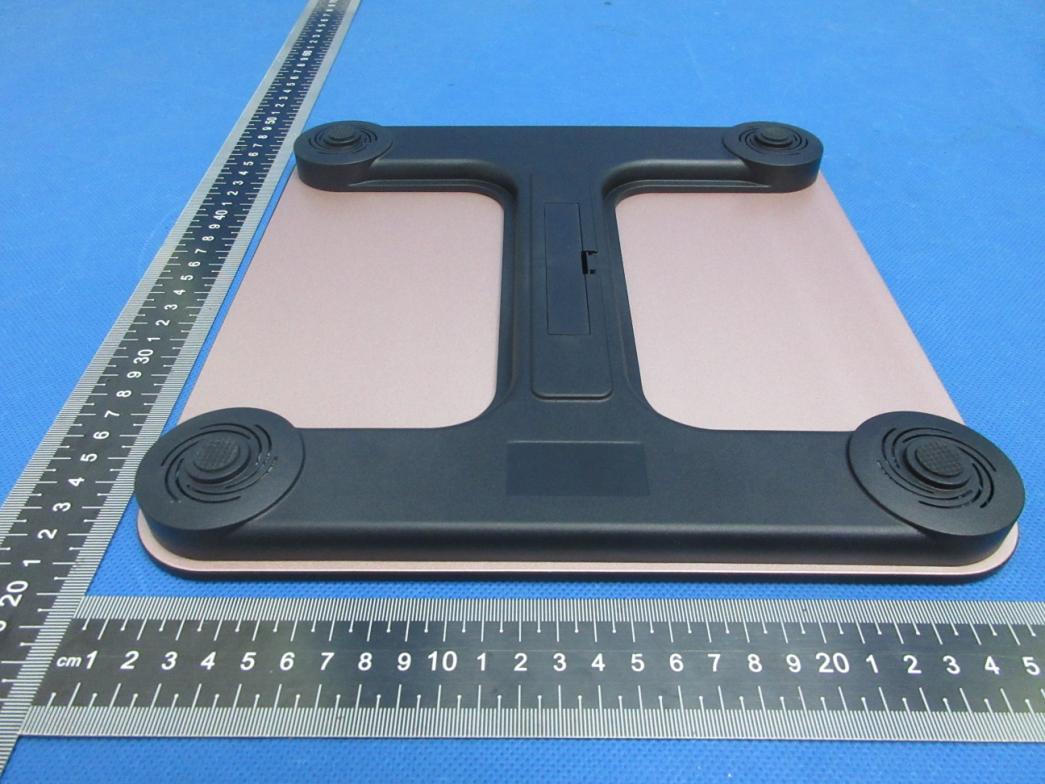

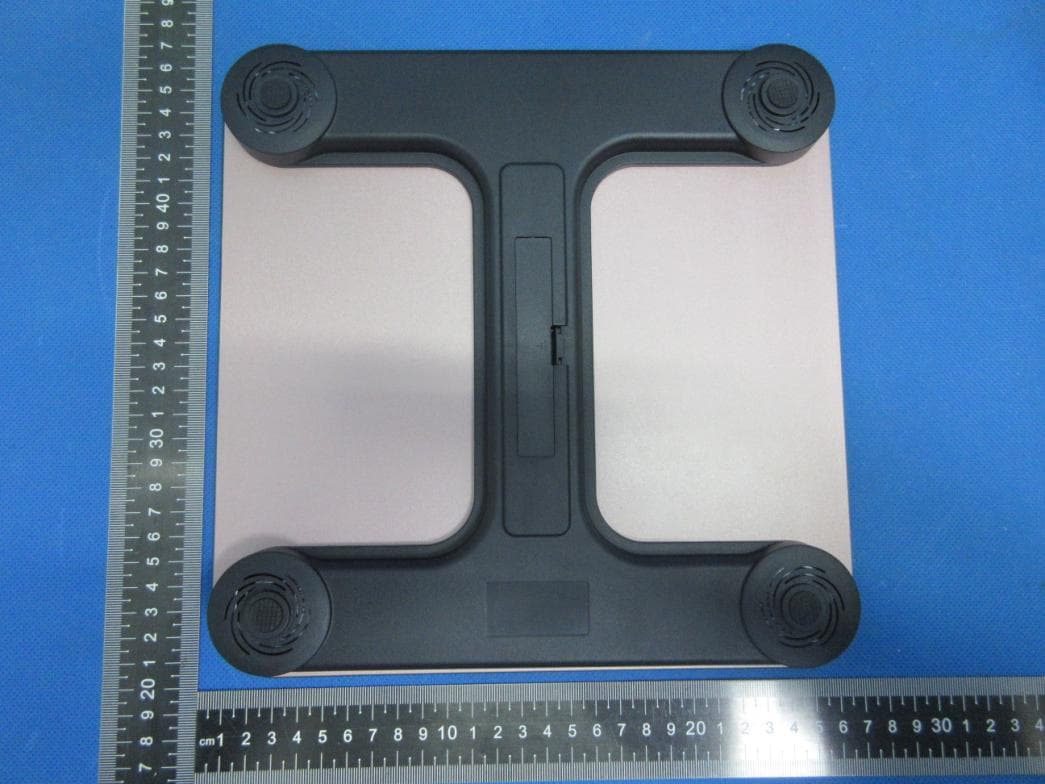

S20041305903 Model: CS20M N20190309V1 Photo 1 Photo 2 S20041305903 Model: CS20M N20190309V1 Photo 3 Photo 4 S20041305903 Model: CS20M N20190309V1 Photo 5 Photo 6

NC2 Product : Body Composition Scale Model : CS20M Max : 180kg/396lbs d=0.05kg/0.2lb Power : 3*AAA batteries E-mail : [email protected] (US) [email protected] (EU) FCC ID : 2ANDX-CS20M SHENZEN YOLANDA TECHNOLOGY CO,.LTD Adress: 2F Jinfulai Building No.49-1,Dabao Road, BaoAn 28 District,Shenzhen,China Website: www.yolanda.hk Service Line: 400-998-2913 Serial NO.:A0012022891 Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includinginterference that may cause undesired operation

S20041305903 Model: CS20M N20190309V1 Photo 1 Photo 2 S20041305903 Model: CS20M N20190309V1 Photo 3 Photo 4 S20041305903 Model: CS20M N20190309V1 Photo 5 Photo 6 ANT

version01 Shenzhen Yolanda Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: CS20M,BHEZM, ES-CS20M-W1, ES-CS20M-W, MAES-28P1, MAES- 28P1-JP, ES-26BB-B, ES-CS20M, ES-24M-B, ES-26M-W, ES-26M-B, ES-26P3, FT- 24D-B, FT-24D-W, CS10, CS10C, CS20A, CS20B, CS20C, CS20C1, CS20D, CS20E, CS20F, CS20G, CS20H, CS20I, CS20J, CS20K, CS20X1, CS20X2, CS20X3, CS20L, CS20N, CS20M, CS20M1, CS20M2, CS20M3, CS20M4, CS20M5, CS20M6, CS20M7, CS20P, CS30A, CS30B, CS30C, CS30D, CS20Q, CS20Q1, SENSIT Mini , ABYON20N, UNOTEC XCALE II, IK-PCA001, Fitfy Lite (FF30G), 31400, 31401, 31402, 31403, 31406, AS-01A, NX4501, GB10W, iwellness, ZK-320J, US20E, FF20G, BH20E, BH20B, BH20HI, MF-BS02, ES-CS20C FCC ID: 2ANDX-CS20M fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna (1/4 wave antenna) built into the housing) Bluetooth+LE: Gain of the antenna: 0.5 dBi Frequency range: 2402 to 2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Yolanda Technology Co.,Ltd. Address: Room201-202,NO.49-1,28Area,DabaoRoad,Xinan Street,Baoan,Shenzhen City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 06/06/2020 Name: Huang wenhai Signature: 压

FCC ID: 2ANDX-CS20M Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. GFSK: Transmit power Frequency (MHz) Max Output power (dBuV/m) Max Output power (dBm) Max Output power (mW) 2402 75.84 -19.42 0.011429 2440 74.85 -20.41 0.009099 2480 76.62 -18.64 0.013677 Antenna Type :PCB Antenna Antenna Gain: 0.5dBi Conclusion: For the max result : 0.00397≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2020-06-17 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S20041305904001 ` Version.1.2 Page 1 of 40 RADIO TEST REPORT FCC ID: 2ANDX-CS20M Product： Body Composition Scale Trade Mark： N/A Model Name： CS20M Family Model： Refer to Page 3 Report No.： S20041305904001 Prepared for Shenzhen Yolanda Technology Co., Ltd. Room 201-202, No.49-1, 28 Area, Dabao Road, Xinan Street, Baoan, Shenzhen, P.R.China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http//www.ntek.org.cn Report No.: S20041305904001 ` Version.1.2 Page 2 of 40 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Yolanda Technology Co., Ltd. Address ................................. : Room 201-202, No.49-1, 28 Area, Dabao Road, Xinan Street, Baoan, Shenzhen, P.R.China Manufacturer's Name........... : Shenzhen Yolanda Technology Co., Ltd. Address ................................. : Room 201-202, No.49-1, 28 Area, Dabao Road, Xinan Street, Baoan, Shenzhen, P.R.China Product description Product name ............................ : Body Composition Scale Model and/or type reference .............................. : CS20M Family Model ............................. : Refer to Page 3 Rating(s) ................................ : DC 4.5V powered by Battery Standards ............................. : FCC Part15.249 Test procedure ............................... : ANSI C63.10-2013 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 13 Apr. 2020 ~ 25 May. 2020 Date of Issue .......................................... : 25 May. 2020 Test Result .............................................. : Pass Testing Engineer : (Mary Hu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S20041305904001 ` Version.1.2 Page 3 of 40 Family Model： BHEZM, ES-CS20M-W1, ES-CS20M-W, MAES-28P1, MAES-28P1-JP, ES-26BB-B, ES-CS20M, ES-24M-B, ES-26M-W, ES-26M-B, ES-26P3, FT-24D-B, FT-24D-W, CS10, CS10C, CS20A, CS20B, CS20C, CS20C1, CS20D, CS20E, CS20F, CS20G, CS20H, CS20I, CS20J, CS20K, CS20X1, CS20X2, CS20X3, CS20L, CS20N, CS20M, CS20M1, CS20M2, CS20M3, CS20M4, CS20M5, CS20M6, CS20M7, CS20P, CS30A, CS30B, CS30C, CS30D, CS20Q, CS20Q1, SENSIT Mini , ABYON20N, UNOTEC XCALE II, IK-PCA001, Fitfy Lite (FF30G), 31400, 31401, 31402, 31403, 31406, AS-01A, NX4501, GB10W, iwellness, ZK-320J, US20E, FF20G, BH20E, BH20B, BH20HI, MF-BS02, ES-CS20C Report No.: S20041305904001 ` Version.1.2 Page 4 of 40 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . ANTENNA REQUIREMENT 14 3.1 STANDARD REQUIREMENT 14 3.2 EUT ANTENNA 14 3.3 CONDUCTED EMISSION MEASUREMENT 15 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 15 3.3.2 TEST PROCEDURE 15 3.3.3 DEVIATION FROM TEST STANDARD 15 3.3.4 TEST SETUP 16 3.2.5 TEST RESULT 17 3.4 RADIATED EMISSION MEASUREMENT 18 3.4.1 RADIATED EMISSION LIMITS 18 3.4.2 TEST PROCEDURE 19 3.4.3 DEVIATION FROM TEST STANDARD 19 3.4.4 TEST RESULTS (BELOW 30MHZ) 21 3.4.5 TEST RESULTS (BELOW 1000 MHZ) 22 3.4.6 TEST RESULTS (ABOVE 1000 MHZ) 24 3.4.7 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 30 4 . FREQUENCY TOLERANCE 36 4.1 FREQUENCY TOLERANCE LIMITS 36 4.2TEST PROCEDURE 36 4.3 TEST SETUP 36 4.4 TEST RESULTS 36 5. BANDWIDTH TEST 38 5.1 TEST PROCEDURE 38 5.1 DEVIATION FROM STANDARD 38 5.1 TEST SETUP 38 6. TEST RESULTS 39 Report No.: S20041305904001 ` Version.1.2 Page 5 of 40 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.249 15.209 Radiated Spurious Emission Pass 15.249(2) Frequency Tolerance Pass 15.249(a) Fundamental Measurement Pass 15.205 Band Edge Emission Pass 15.249 Occupied Bandwidth Pass Report No.: S20041305904001 ` Version.1.2 Page 6 of 40 1.1 TEST FACILITY All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. Site Description CNAS-Lab. : The Laboratory has been assessed and proved to be in compliance with CNAS-CL01:2006 (identical to ISO/IEC 17025:2005) The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China 1.2 MEASUREMENT UNCERTAINTY The reported uncertaint…

Text truncated - open the document above for the full version.

Radiated Measurement Photos
