2ANDX-CSX00Professional Body Composition Analyzer

Professional Body Composition Analyzer User's Manual A/0 / 说明书 物料编号 品 名 规格描述 版 本 批准 审核 设计 图 号 深 圳 市 伊 欧 乐 科 技 有 限 公 司 过程 人员 日期 630*102mm 风琴六折漆页 128g铜版纸 4C / 技术要求 规 格 材 质 印 刷 表面处理 630*102mm 风琴六折七页 128g铜版纸 4C印刷 A/0 102.0 630.0 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction The device has been evaluated portable device RF exposure requirements. The device is kept at least 5 mm away from the user's body. L'appareil a été évalué selon les exigences d'exposition RF des appareils portables. L'appareil est maintenu à au moins 5 mm du corps de l'utilisateur.

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

镭雕图纸 / A/0 底壳镭雕，以K3图纸为准 A/0 44.0 105.0 109.9109.990.2 镭雕图纸 / A/0 底壳镭雕，以K3图纸为准 A/0 44.0 105.0 109.9109.990.2

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID: 2ANDX-CSX00 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Antenna Type: PCB Antenna Antenna Gain: 1.41 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402 -0.3 0.9330±11.01.259<50.390233.00YES 2.440 -0.36 0.9200±11.01.259<50.393303.00YES 2.480 -0.15 0.9660±11.01.259<50.396513.00YES 2.402 -0.18 0.9590±11.01.259<50.390233.00YES 2.440 -0.18 0.9590±11.01.259<50.393303.00YES 2.480 -0.1 0.9770±11.01.259<50.396513.00YES BLE(1M) BLE(2M) Conclusion: For the max result : 0.39651≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2022-12-21 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

ShenzhenYolandaTechnologyCo.,Ltd. . SPECIFICATIONSFORAPPROVAL CustomerName:伊欧乐 ProductName:BT天线 ProductModel:C22001F10 PartNumber: WriteBy:李志鹏 IssuedDate:2022-12-19 CUSTOMER ENGINEERR&DDEPTBUSSINESSDEPTAPPROVEDBY SOUTHSTAR R&DDEPTENGINEERR&DDEPTAPPROVAL ShenzhenYolandaTechnologyCo.,Ltd. Thebasicparameters： A.ElectricalCharacteristics Frequency2400MHz~2500MHz VSWR<2 Efficiency>40% Impedance50Ohm PolarizationLinear Gain>0.5dbi B.Material&MechanicalCharacteristics MaterialofRadiator CableType ConnectorType Dimension PCB black C.Environmental OperationTemperature-10 ̊C~+50 ̊C StorageTemperature-30 ̊C~+85 ̊C ShenzhenYolandaTechnologyCo.,Ltd. TestEquipment&Conditions 1 ．NetworkAnalyzers : Agilent8753D5071B 2 ． 3DChamberTestSystem ShenzhenYolandaTechnologyCo.,Ltd. 3.AntennaImpedance:S11（parameter） ShenzhenYolandaTechnologyCo.,Ltd. 4.TotalEfficiency-2.4G: 5.GAIN-2.4G: 6.01directionaldiagram（xyplane，Z＝0） ShenzhenYolandaTechnologyCo.,Ltd. 6.02directionaldiagram （ xyplane ， Y=0 ） 6.03directionaldiagram(YZplane,X=0) 6.03AppleChart ShenzhenYolandaTechnologyCo.,Ltd. 7.Installationmethod ShenzhenYolandaTechnologyCo.,Ltd.

Report No.: S22102701101001 Version.1.3 Page 1 of 58 RADIO TEST REPORT FCC ID: 2ANDX-CSX00 Product: Professional Body Composition Analyzer Trade Mark: N/A Model No.: CS10E Family Model: CS10A, CS10B, CS10C, CS10D, CS10F, CS10G, CS10H, CS10I, CS10J, CS10K, CS10L, CS10M, CS10N, CS10O, CS10P, CS10Q, CS10R, CS10S, CS10T, CS10U, CS10V, CS10W, CS10X, CS10Y, CS10Z, CS10E1, CS10E2, CS10E3, CS10E4, CS10E5, CS10E6, CS10E7, CS10E8, CS10E9 Report No.: S22102701101001 Issue Date: Dec 05. 2022 Prepared for Shenzhen Yolanda Technology Co., Ltd. Room 201,Jinfulai Building, No.49-1, DabaoRoad,DalangArea,XinanStreet,Baoan, Shenzhen,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22102701101001 Version.1.3 Page 2 of 58 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 6DB BANDWIDTH ....................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................... 25 7.5 PEAK OUTPUT POWER .............................................................................................................................. 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 28 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 31 7.9 ANTENNA APPLICATION .......................................................................................................................... 32 8 TEST RESULTS ................................................................................................................................................... 33 1M: ............................................................................................................................................................................. 33 2M: ............................................................................................................................................................................. 46 Report No.: S22102701101001 Version.1.3 Page 3 of 58 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Yolanda Technology Co., Ltd. Address ....................................... : Room 201,Jinfulai Building, No.49-1, DabaoRoad,DalangArea,XinanStreet,Baoan, Shenzhen,China Manufacturer's Name .................. : Shenzhen Yolanda Technology Co., Ltd. Address ....................................... : Room 201,Jinfulai Building, No.49-1, DabaoRoad,DalangArea,XinanStreet,Baoan, Shenzhen,China Product description Product name .............................. : Professional Body Composition Analyzer Model and/or type reference ...... : CS10E Family Model ............................... : CS10A, CS10B, CS10C, CS10D, CS10F, CS10G, CS10H, CS10I, CS10J, CS10K, CS10L, CS10M, CS10N, CS10O, CS10P, CS10Q, CS10R, CS10S, CS10T, CS10U, CS10V, CS10W, CS10X, CS10Y, CS10Z, CS10E1, CS10E2, CS10E3, CS10E4, CS10E5, CS10E6, CS10E7, CS10E8, CS10E9 Test Sample Number ................... : S221027011001 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Techno…

Text truncated - open the document above for the full version.

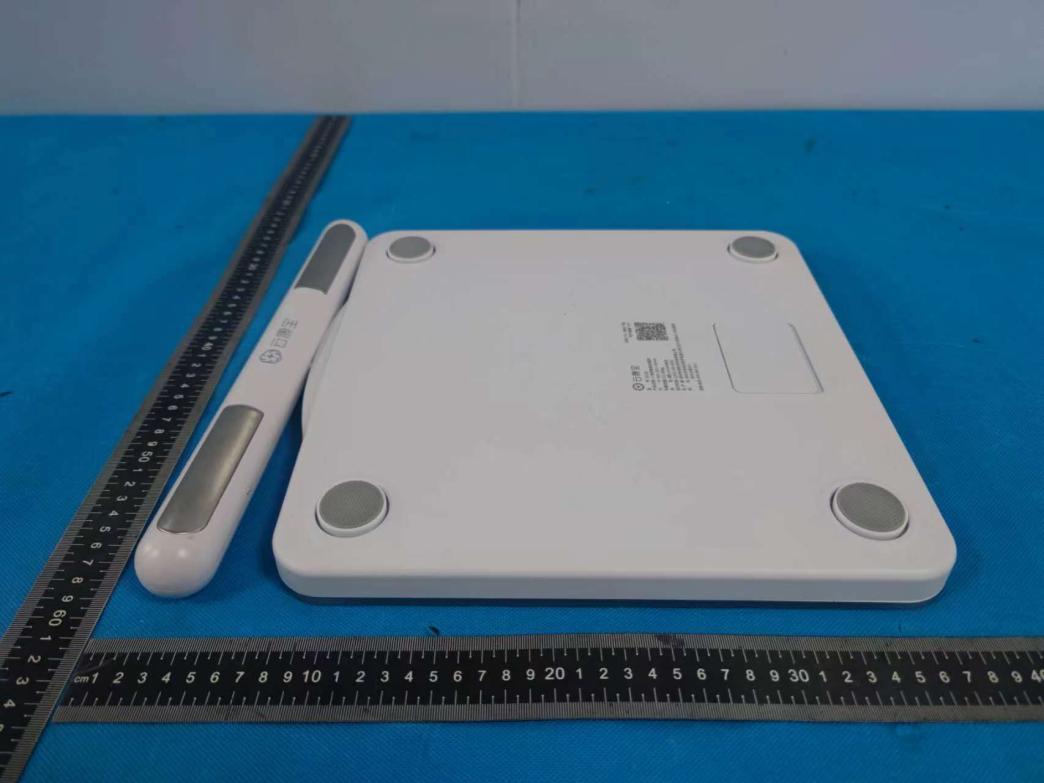

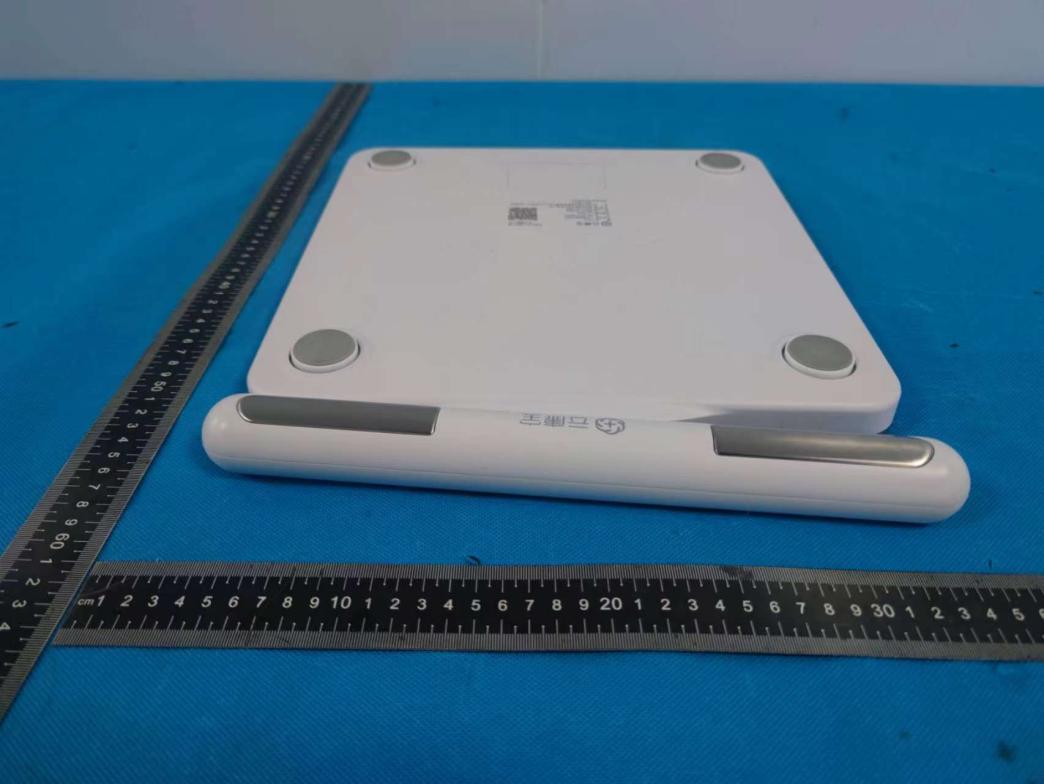

Radiated Measurement Photos
