4112-HVRMobile Digital Video Recorder Overview 4112-HVR is developed from the brand new platform N9M, which is an advanced and function-extensive Mobile Video Recorder specially designed for network high definition, analog audio & video input and excellent extension. It uses high-speed processor and embedded operating system, patented file system 5.0 to ensure the safety and integration of important data, combining with H. 265 video compression / decompression technology, network technology and GPS locating technology. It can realize AHD 1080P and 720P high definition, IP 1080P and 720P high definition, WD1, WHD1, WCIF, D1, HD1, CIF video recording and vehicle driving information recording, as well as wireless data upload. With center software it also achieves alarm linkage central monitoring, remote management and playback analysis. It is powerful with modular design, flexible installation, easy maintenance and high reliability. Specification Function OverviewPreview, Recording, Playback, Network, Locating System OSLinux Control ModeCP4, Easy Check, Network (WIFI), Mouse Video Input8 channels AHD (1080P)+4 channel IPC (1080P) Output2 channels Total Resource PAL: 8*1080P@12fps(AHD)+4*1080P@30fps(IPC) or8*720P@25fps(AHD)+4*1080P@30fps(IPC) NTSC: 8*1080P@12fps(AHD)+4*1080P@30fps(IPC) 8*720P@30fps(AHD)+4*1080P@30fps(IPC) Video Signal Standard Electrical level: 1Vpp Impedance: 75 Ω NTSC/PAL Optional Audio Input12 channels Output2 channels Audio Signal Standard Electrical level: 2Vpp Input impedance: 4.7k Ω Display Display Split1/4/9 Image display OSD GPS information, alarm, temperature, acceleration, voltage, device information, software version, MCU version, network status Operation InterfaceSemi-transparent GUI Recording Video/Audio Compression Video: H.265 Audio: ADPCM, G.711A, G.711U Image Resolution PAL: 1080P, 720P, WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288); NTSC: 1080P, 720P, WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240), CIF(352x240); Digital: 720P(1280X720) Image Quality8 Levels adjustable Recording ModeSchedule/Alarm(sensor trigger, speed, acceleration, video loss, temperature) Pre-recording0-60minutes Main Features Supports 8 channels AHD (1080P)+4 channel IPC (1080P) Modular design for easy maintenance Supports 2.5” 2TB hard disk storage and SD card for mirror recording With VGA port Internal GPS for location tracking Post-recording0-30 minutes Mirror RecordingYes Playback Playback Channel4 channels by local playback Search ModeDate/time, channel, event Network WIFI802.11b/g/n EthernetRJ45 x 1 (10/100 M/1000M) IPC Ethernet6-pin M12 (4x10/100M, PON power supply) LocatingGPSLocation tracking, speed detection and time sync StorageHard diskSupports 2.5" hard disk up to2TB Interface USBUSB2.0 x 2 SDSD slot x 1 SIMSIM slot x 2 RS232RS232 X 2 RS485RS485 X 2 Sensor8 inputs, 2 outputs SerialG-sensor (Internal) Speed1 channel pulse speed detection InterfaceTouch panel CP4 Optional IntercommunicationI MIC interface VGAVGA x 1 Power InputDC8-36V, ACC Output5V@500mA, 12V@500mA Max Power Consumption122W Standby Power Consumption ≈0W Product Connection View Physical Characteristic Dimension (L × W × H)302.7 x229 x 108.3 mm Environment Operating Temperature -40°C-+70°C(With heater) or -10°C-+70°C Operating Relative Humidity8%~90% FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Safety Vision, LLC Company Address : Room 1001, Block A, Chuangye Building, No.21 Huoju Road, High-tech Park,Dalian,China Date : 2021-1-29 DTS-UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : 2ANKU-4112-HVR (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5180-5240 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5210-5210 Yes , No Yes , No Yes , No Yes , No 5290-5290 Yes , No Yes , No Yes , No Yes , No 5775-5775 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Signature : Client’s name / title ： Aaron E. Alvarado/Sr. Technical Product manager Contact information / address: Safety Vision, LLC / 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113, America

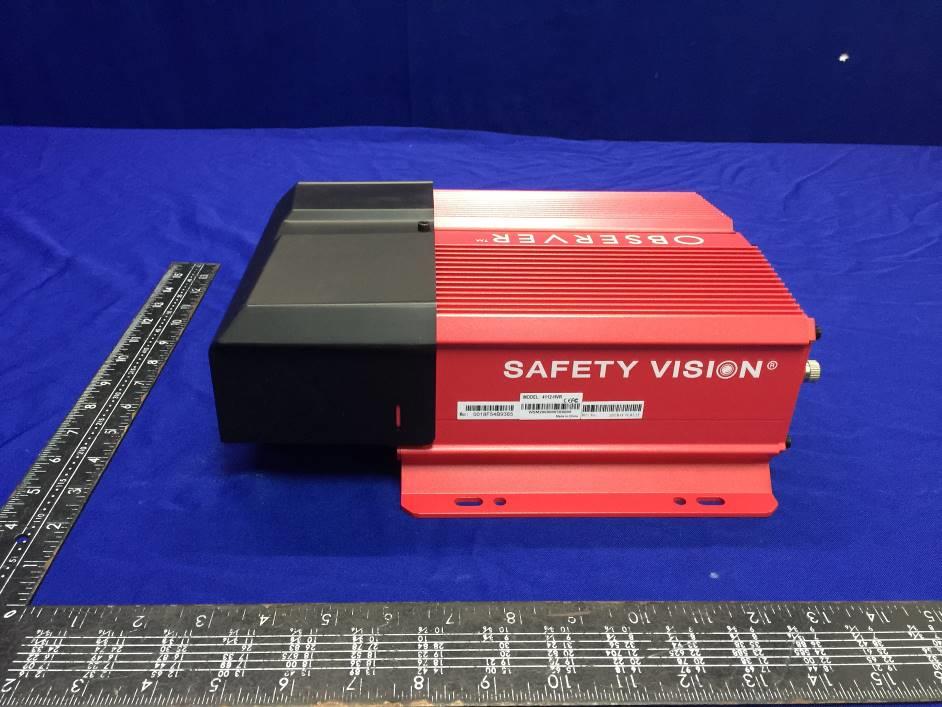

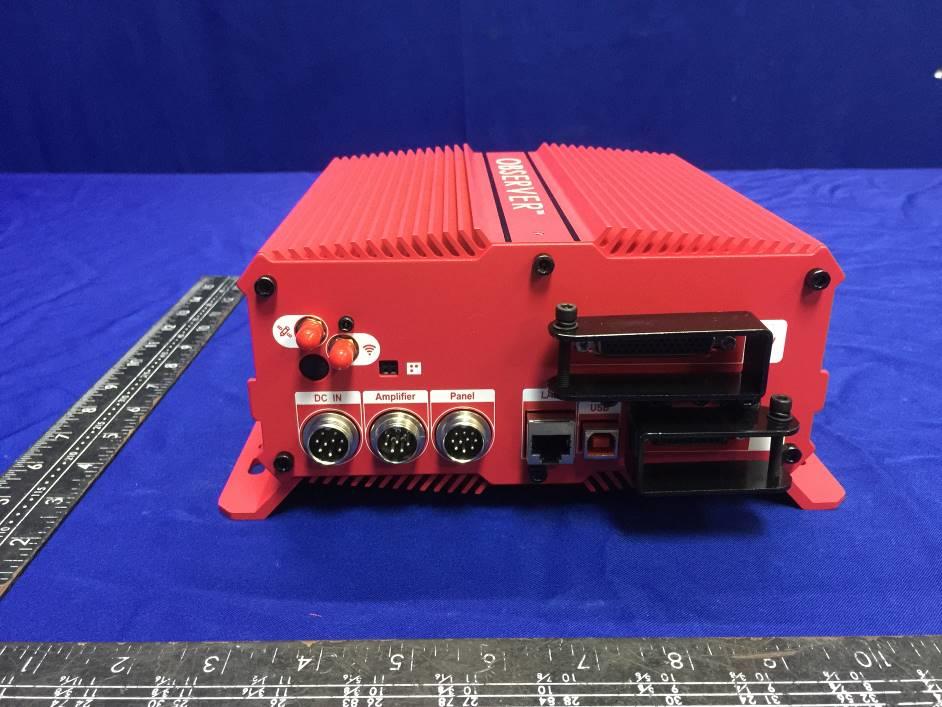

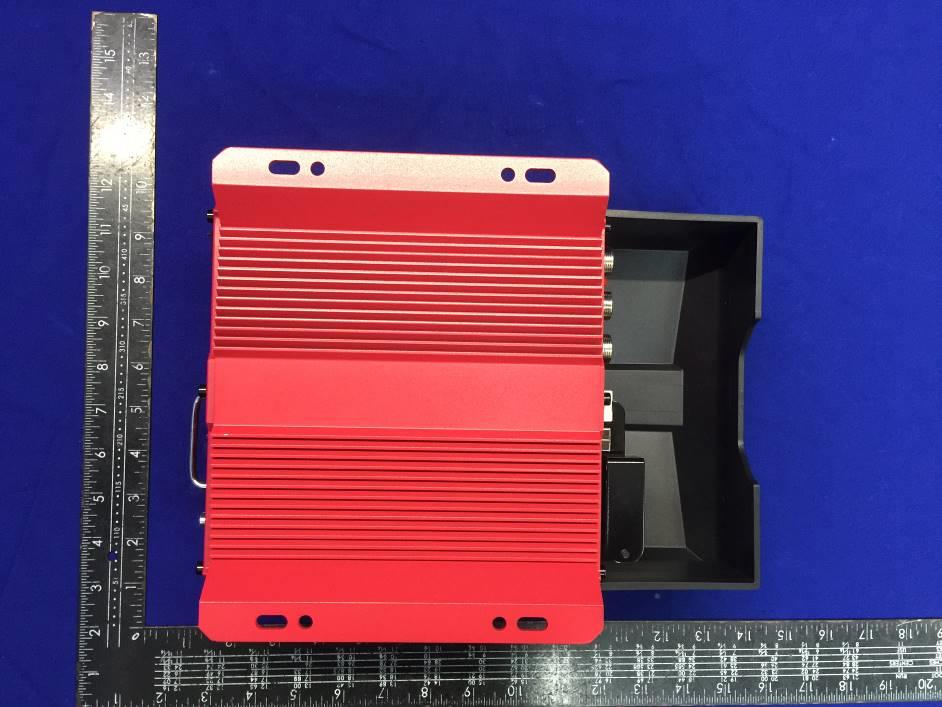

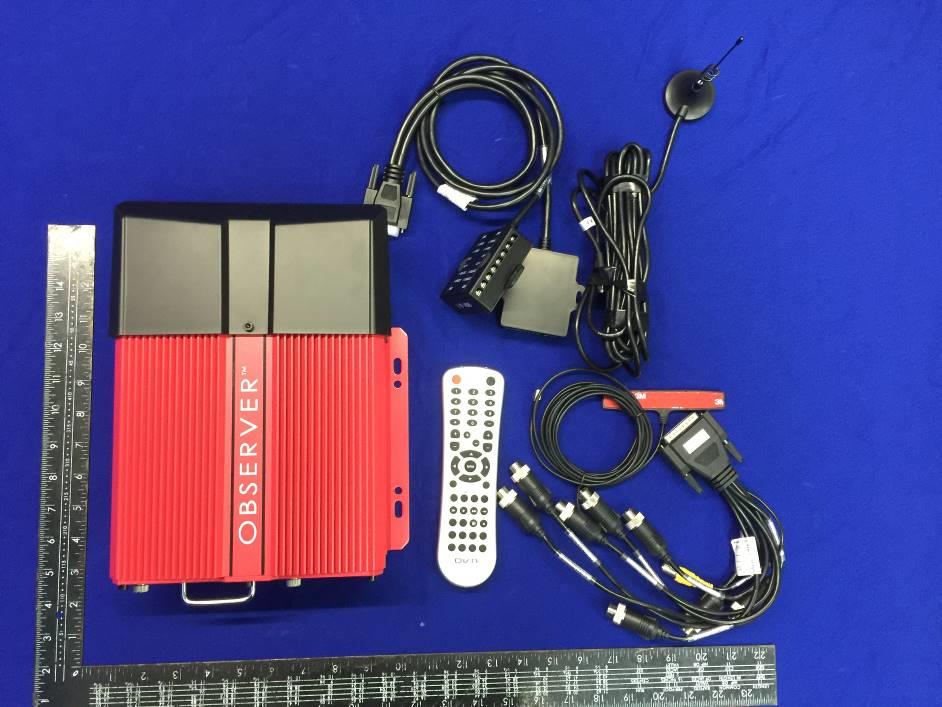

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Wifi ant EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 ----------------The end----------------

Label and label location

EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Solder Board-Component View 3 Solder Board-Component View 4 Solder Board-Component View 5 Solder Board-Component View 6 Solder Board-Component View 7 Solder Board-Component View 8 IC Chip View Solder Board-Component View 9 Solder Board-Component View 10 Solder Board-Component View 11 Solder Board-Component View 12 Solder Board-Component View 13 Solder Board-Component View 14 Solder Board-Component View 15 Solder Board-Component View 16 Solder Board-Component View 17 Solder Board-Component View 18 Solder Board-Component View 19 Antenna port ----------------The end----------------

FCC ID : 2ANKU-4112-HVR RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 1.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in 20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 1.2 Measurement Result Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.4G WIFI 20.14 21 2 1.58 0.04 1 5G WIFI 12.42 14 2 1.58 0.008 1 ----------------THE END OF REPORT---------------

Report No.ES201014022W02 Page 1 of 95 Ver.1.0 $印章$ TEST REPORT Product Name ： Mobile Digital Video Recorder Model Number ： 4112-HVR FCC ID ： 2ANKU-4112-HVR Prepared for : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES201014022W02 Date(s) of Tests : Oct. 20, 2020 to Nov. 23, 2020 Date of issue : Nov. 25, 2020 $二维码$ Report No.ES201014022W02 Page 2 of 95 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA Manufacturer : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA EUT : Mobile Digital Video Recorder Model Name : 4112-HVR Trademark : SAFETY VISION Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15, Subpart E PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Part 15.407 The test results of this report relate only to the tested sample identified in this report. Date of Test : Oct. 20, 2020 to Nov. 23, 2020 Prepared by: Sewen Guo /Editor Reviewer: Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES201014022W02 Page 3 of 95 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ....................................................................................................... 2 2 EUT TECHNICAL DESCRIPTION ..................................................................................................... 4 3 SUMMARY OF TEST RESULT .......................................................................................................... 5 4 TEST METHODOLOGY ..................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 6 4.3 DESCRIPTION OF TEST MODES .............................................................................................. 7 5 FACILITIES AND ACCREDITATIONS ............................................................................................... 9 5.1 FACILITIES ................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 9 6 TEST SYSTEM UNCERTAINTY ...................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP ......................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP ......................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................. 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ...................................................... 14 7.5 SUPPORT EQUIPMENT ........................................................................................................... 14 8 TEST REQUIREMENTS................................................................................................................... 15 8.1 BANDWIDTH MEASUREMENT ............................................................................................... 15 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................... 47 8.3 MAXIMUM PEAK POWER DENSITY ....................................................................................... 51 8.4 FREQUENCY STABILITY ......................................................................................................... 69 8.5 UNDESIRABLE RADIATED SPURIOUS EMISSION ................................................................ 74 8.6 POWER LINE CONDUCTED EMISSIONS ............................................................................... 93 8.7 ANTENNA APPLICATION ......................................................................................................... 94 Report No.ES201014022W02 Page 4 of 95 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product Mobile Digital Video Recorder Model Number 4112-HVR Sample number 1# Wifi Type UNII-1: 5150MHz-5250MHz Band UNII-3 with 5725MHz-5850MHz Band WLAN Supported 802.11a 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) 802.11ac(20MHz channel bandwidth) 802.11ac(40MHz channel bandwidth) 802.11ac(80MHz channel bandwidth) Data Rate 802.11a:54/48/36/24/18/12/9/6Mbps 802.11n:up to 300 Mbps 802.11ac:up to 867Mbps Modulation OFDM with BPSK/QPSK/16QAM/64QAM for 802.11a/n; OFDM with BPSK/QPSK/16QAM/64QAM/256QAM for 802.11ac; Frequency Range UNII-1: 5150MHz-5250MHz Band 5180-5240MHz for 802.11a; 5180-5240MHz for 802.11n(HT20); 5180-5240MHz for 802.11ac(HT20); 5190-5230MHz for 802.11n(HT40); 5190-5230MHz for 802.11ac(HT40); 5210MHz for 802.11ac(HT80); UNII-3 with 5725MHz-5850MHz Band 5745-5825MHz for 802.11a; 5745-5825MHz for 802.11n(HT20); 5745-5825MHz for 802.11ac(HT20); 5755-5795MHz for 802.11n(HT40); 5755-5795MHz for 802.11ac(HT40); 5775MHz for 802.11ac(HT80); TPC Function Applicable No…

Text truncated - open the document above for the full version.

Report No.ES201014022W02 Page 36 of 95 Ver.1.0 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5745 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5785 Report No.ES201014022W02 Page 37 of 95 Ver.1.0 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5825 99% Occupied Bandwidth U-NII - 3 Test Model 802.11n-HT40 Frequency(MHz) 5755 Report No.ES201014022W02 Page 38 of 95 Ver.1.0 99% Occupied Bandwidth U-NII - 3 Test Model 802.11n-HT40 Frequency(MHz) 5795 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac(HT40) Frequency(MHz) 5755 Report No.ES201014022W02 Page 39 of 95 Ver.1.0 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac(HT40) Frequency(MHz) 5795 99% Occupied Bandwidth U-NII - 3 Test Model 802.11ac 80 Frequency(MHz) 5775 Report No.ES201014022W02 Page 40 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11a Frequency(MHz) 5745 6db Emission Bandwidth U-NII - 3 Test Model 802.11a Frequency(MHz) 5785 Report No.ES201014022W02 Page 41 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11a Frequency(MHz) 5825 6db Emission Bandwidth U-NII - 3 Test Model 802.11n-HT20 Frequency(MHz) 5745 Report No.ES201014022W02 Page 42 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11n-HT20 Frequency(MHz) 5785 6db Emission Bandwidth U-NII - 3 Test Model 802.11n-HT20 Frequency(MHz) 5825 Report No.ES201014022W02 Page 43 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5745 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5785 Report No.ES201014022W02 Page 44 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac(HT20) Frequency(MHz) 5825 6db Emission Bandwidth U-NII - 3 Test Model 802.11n-HT40 Frequency(MHz) 5755 Report No.ES201014022W02 Page 45 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11n-HT40 Frequency(MHz) 5795 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac(HT40) Frequency(MHz) 5755 Report No.ES201014022W02 Page 46 of 95 Ver.1.0 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac(HT40) Frequency(MHz) 5795 6db Emission Bandwidth U-NII - 3 Test Model 802.11ac 80 Frequency(MHz) 5775 Report No.ES201014022W02 Page 47 of 95 Ver.1.0 8.2 MAXIMUM CONDUCTED OUTPUT POWER 8.2.1 Applicable Standard According to FCC Part 15.407(a)(1) for UNII Band I According to FCC Part 15.407(a)(2) for UNII Band II-A and UNII Band II-C According to FCC Part 15.407(a)(3) for UNII Band III According to 789033 D02 Section II(E) 8.2.2 Conformance Limit  For the band 5.15-5.25 GHz, (a) (1) (i) For an outdoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. The maximum e.i.r.p. at any elevation angle above 30 degrees as measured from the horizon must not exceed 125 mW (21 dBm). (a) (1) (ii) For an indoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (a) (1) (iii) For fixed point-to-point access points operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. Fixed point-to-point U-NII devices may employ antennas with directional gain up to 23 dBi without any corresponding reduction in the maximum conducted output power or maximum power spectral density. For fixed point-to-point transmitters that employ a directional antenna gain greater than 23 dBi, a 1 dB reduction in maximum conducted output power and maximum power spectral density is required for each 1 dB of antenna gain in excess of 23 dBi. Fixed, point-to-point operations exclude the use of point-to-multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to-point operations. (a) (1) (iv) For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi.  For the 5.25-5.35 GHz and 5.47-5.725 GHz bands (a) (2) The maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted …

Text truncated - open the document above for the full version.

Report No.ES201014022W02 Page 71 of 95 Ver.1.0 5190 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5190.0048 4.8 Pass -10 5190.0048 4.8 Pass 0 5190.0011 1.1 Pass 10 5190.0012 1.2 Pass 20 5190.0029 2.9 Pass 30 5190.0015 1.5 Pass 40 5190.0003 0.3 Pass 55 5190.0047 4.7 Pass 85% Vnom 25 5190.0013 1.3 Pass 115% Vnom 25 5190.0015 1.5 Pass 5230 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5230.0039 3.9 Pass -10 5230.0031 3.1 Pass 0 5230.0001 0.1 Pass 10 5230.0026 2.6 Pass 20 5230.0006 0.6 Pass 30 5230.0049 4.9 Pass 40 5230.0032 3.2 Pass 55 5230.0022 2.2 Pass 85% Vnom 25 5230.0017 1.7 Pass 115% Vnom 25 5230.0007 0.7 Pass 5210 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5210.0042 4.2 Pass -10 5210.0045 4.5 Pass 0 5210.0043 4.3 Pass 10 5210.0023 2.3 Pass 20 5210.0048 4.8 Pass 30 5210.0008 0.8 Pass 40 5210.0046 4.6 Pass 55 5210.0006 0.6 Pass 85% Vnom 25 5210.0035 3.5 Pass 115% Vnom 25 5210.0045 4.5 Pass Report No.ES201014022W02 Page 72 of 95 Ver.1.0 5745 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5745.0011 1.1 Pass -10 5745.0021 2.1 Pass 0 5745.0033 3.3 Pass 10 5745.0009 0.9 Pass 20 5745.0045 4.5 Pass 30 5745.0019 1.9 Pass 40 5745.0038 3.8 Pass 55 5745.0013 1.3 Pass 85% Vnom 25 5745.0021 2.1 Pass 115% Vnom 25 5745.0047 4.7 Pass 5785 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5785.0001 0.1 Pass -10 5785.0026 2.6 Pass 0 5785.0041 4.1 Pass 10 5785.0001 0.1 Pass 20 5785.0028 2.8 Pass 30 5785.0034 3.4 Pass 40 5785.0029 2.9 Pass 55 5785.0041 4.1 Pass 85% Vnom 25 5785.0028 2.8 Pass 115% Vnom 25 5785.0015 1.5 Pass 5825 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5825.0035 3.5 Pass -10 5825.0046 4.6 Pass 0 5825.0021 2.1 Pass 10 5825.0005 0.5 Pass 20 5825.0012 1.2 Pass 30 5825.0042 4.2 Pass 40 5825.0025 2.5 Pass 55 5825.0034 3.4 Pass 85% Vnom 25 5825.0019 1.9 Pass 115% Vnom 25 5825.0025 2.5 Pass Report No.ES201014022W02 Page 73 of 95 Ver.1.0 5755 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5755.0002 0.2 Pass -10 5755.0018 1.8 Pass 0 5755.0023 2.3 Pass 10 5755.0009 0.9 Pass 20 5755.0025 2.5 Pass 30 5755.0012 1.2 Pass 40 5755.0017 1.7 Pass 55 5755.0012 1.2 Pass 85% Vnom 25 5755.0018 1.8 Pass 115% Vnom 25 5755.0024 2.4 Pass 5795 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5795.0018 1.8 Pass -10 5795.0049 4.9 Pass 0 5795.0047 4.7 Pass 10 5795.0012 1.2 Pass 20 5795.0023 2.3 Pass 30 5795.0049 4.9 Pass 40 5795.0037 3.7 Pass 55 5795.0049 4.9 Pass 85% Vnom 25 5795.0011 1.1 Pass 115% Vnom 25 5795.0039 3.9 Pass 5775 Voltage(V) Temp(°C) Test Frequency (MHz) Max. Deviation (KHz) Verdict Vnom -20 5775.0008 0.8 Pass -10 5775.0027 2.7 Pass 0 5775.0018 1.8 Pass 10 5775.0004 0.4 Pass 20 5775.0002 0.2 Pass 30 5775.0032 3.2 Pass 40 5775.0036 3.6 Pass 55 5775.0006 0.6 Pass 85% Vnom 25 5775.0041 4.1 Pass 115% Vnom 25 5775.0003 0.3 Pass Report No.ES201014022W02 Page 74 of 95 Ver.1.0 8.5 UNDESIRABLE RADIATED SPURIOUS EMISSION 8.5.1 Applicable Standard According to FCC Part 15.407 (b) According to 789033 D02 Section II(G) 8.5.2 Conformance Limit For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.25-5.35 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.47-5.725 GHz band: All emissions outside of the 5.47-5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.725-5.85 GHz band: All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. The emission measurements shall be performed using a minimum resolution bandwidth of 1 MHz. A lower resolution bandwidth may be employed near the band edge, when necessary, provided the measured energy is integrated to show the total power over 1 MHz. Unwanted emissions below 1 GHz must comply with the general field strength limits set forth in §15.209 The emissions from an intentional radiator shall not exceed the field strength levels specified in the following table 15.209(a): Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 The provisions of §15.205 apply to intentional radiators operating under this section,15.205 Restricted bands of operation MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 Remark: 1. Emission level in dBuV/m=20 log (uV/m) Report No.ES201014022W02 Page 75 of 95 Ver.1.0 2. Measurement was performed at an antenna to the closed point of EUT distance of meters. 3. Only spurious frequency is permitted to locate within th…

Text truncated - open the document above for the full version.

Setup photos Radiated Spurious Emissions(30MHz-1GHz) Radiated Spurious Emissions(above 1GHz)
