  1. Home/
  2. Safety Vision, LLC/
  3. 2ANKU-4816-NVR

2ANKU-4816-NVRMobile Digital Video Recorde

Safety Vision, LLC
Mobile Digital Video Recorde - FCC ID 2ANKU-4816-NVR - Safety Vision, LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 18, 2021
Application Purpose
Original Equipment
Date of Application
May 18, 2021
Equipment Note
Mobile Digital Video Recorde
Frequency Range
2412.00000000 - 2462.00000000
Company
Safety Vision, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

4816-NVRMobile Digital Video Recorder Overview 4816-NVR is developed from the brand new platform N9M, which is an advanced and function-extensive Mobile Video Recorder specially designed for high definition IP camera input and excellent extension. It uses high-speed processor and embedded operating system, patented file system 5.0 to ensure the safety and integration of important data, combining with H. 264, H. 265 video compression / decompression technology, network technology and GPS locating technology. It can support 1080P,720P high definition and WD1, WHD1, WCIF, D1, HD1, CIF video recording and vehicle driving information recording, as well as wireless data upload. With the center software it also achieves alarm linkage central monitoring, remote management and playback analysis. It is powerful with modular design, flexible installation, easy maintenance and high reliability. Specification Function OverviewLive view, Recording, Playback, Network, Locating System OSLinux Control ModeCP4, Easy Check, Network (WIFI), Mouse Video Input16 channel IPC (4K max.) Output2 channels Total Resource16 x 1080P@30fps Audio Input16 channels Output2 channels (VGA, CP4) Display Display Split1/4/9 Image display OSDGPS, alarm, acceleration, license plate number, speed, time, etc. Operation InterfaceFirmware GUI, Web UI Recording Video/Audio Compression Video: H.264, H.265 Audio: ADPCM, G.711A, G.711U Image Resolution 4K(Max.),1080P, 720P, WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240), CIF(352x240) Image Quality8 Levels adjustable Recording ModeSchedule/alarm (sensor, speed, acceleration trigger etc.) Pre-recording0-60minutes Post-recording0-30 minutes Mirror RecordingSupport Playback Playback Channel4 channels by local playback Search ModeDate/time, channel, event Network WIFI802.11 a/b/g/n/ac EthernetRJ45 x 1 (10M/100M/1000M) IPC EthernetRJ45(16x10M/100M, POE power supply) LocatingGPSLocation tracking, speed detection and time sync. Main Features Supports 16 channel IPC (1080P) Modular design for easy maintenance Supports 2.5” or 3.5” hard disk storage and SD card for video recording With VGA port Internal GPS for location tracking Built-in WIFI for live view and video download, playback etc. StorageHarddiskSupports3.5’’10TB(Max.),2x2.5’’harddiskorSSDupto4TB Interface USBUSB2.0x2 SDSDslotx1 SIMSIMslotx1(Optional) Sensor8inputs,2outputs SerialportRS232X2,RS485X2 Speed1channelpulsespeeddetection InterfaceTouchpanelCP4(Optional) IntercommunicationIMICinterface VGAVGAx1 Power InputDC8-36V Output5V@500mA,12V@500mA MaxPowerConsumption136W StandbyPowerConsumption ≈0W ProductConnectionView Physical Characteristic Dimension(L×W×H) 362.4x254x127mm(Withtherearcover) Environment OperatingTemperature -40°C-+50°C(Withheater)or-5°C-+50°C(Withoutheater) OperatingRelativeHumidity8%~90% FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Attestation Statements

SAFETY VISION, LLC Date: 2021-03-24 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2ANKU-4816-NVR To Whom It May Concern: This letter is to ascertain that SAFETY VISION, LLC EUT:Mobile Digital Video Recorder MODEL No.: 4816-NVR Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Aaron E. Alvarado Contact information / address: SAFETY VISION, LLC /6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113, America

External Photos

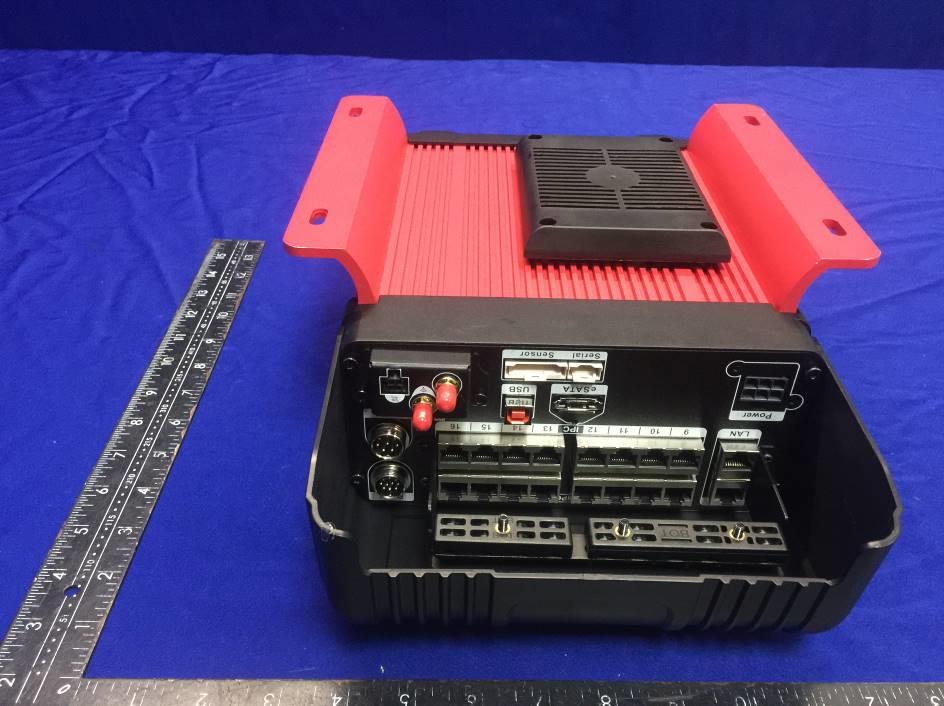

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Wifi ant EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 EUT View 8 ----------------The end----------------

ID Label/Location Info

Label and label location

Internal Photos

EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Solder Board-Component View 3 Solder Board-Component View 4 Solder Board-Component View 5 Solder Board-Component View 6 Solder Board-Component View 7 Solder Board-Component View 8 Solder Board-Component View 9 Solder Board-Component View 10 Solder Board-Component View 11 Solder Board-Component View 12 Solder Board-Component View 13 Solder Board-Component View 14 Solder Board-Component View 15 Solder Board-Component View 16 Solder Board-Component View 17 Solder Board-Component View 18 Solder Board-Component View 19 Solder Board-Component View 20 Solder Board-Component View 21 Solder Board-Component View 22 Solder Board-Component View 23 Solder Board-Component View 24 Solder Board-Component View 25 Solder Board-Component View 26 Solder Board-Component View 27 Solder Board-Component View 28 ----------------The end----------------

RF Exposure Info

FCC ID : 2ANKU-4816-NVR RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 1.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in 20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 1.2 Measurement Result Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.4G WIFI 18.06 19 2 1.58 0.025 1 5G WIFI 13.91 14 2 1.58 0.008 1 ----------------THE END OF REPORT---------------

Test Report

Report No. ES210118030W01 Page 1 of 48 Ver.1.0 $印章$ TEST REPORT Product Name : Mobile Digital Video Recorder Model Number : 4816-NVR FCC ID : 2ANKU-4816-NVR Prepared for : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210118030W01 Date(s) of Tests : Jan. 25, 2021 to Feb. 27, 2021 Date of issue : Mar. 3, 2021 $二维码$ Report No. ES210118030W01 Page 2 of 48 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................ 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ...................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ....................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 11 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS......................................................................................................................... 13 8.1 DTS (6DB) BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ..................................................................... 20 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................... 22 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................... 29 8.5 RADIATED SPURIOUS EMISSION ............................................................................................... 34 8.6 CONDUCTED EMISSIONS TEST ................................................................................................. 46 8.7 ANTENNA APPLICATION .............................................................................................................. 47 Report No. ES210118030W01 Page 3 of 48 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA Manufacturer : SAFETY VISION, LLC Address : 6100 W SAM HOUSTON PKWY N HOUSTON, TX 77041-5113, UNITED STATES OF AMERICA EUT : Mobile Digital Video Recorder Model Name : 4816-NVR Trademark : SAFETY VISION Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15 , Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : Jan. 25, 2021 to Feb. 27, 2021 Prepared by : Tracy Hu /Editor Reviewer : Sewen Guo /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ES210118030W01 Page 4 of 48 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: for more details, please refer to the User’s manual of the EUT. Characteristics Description Product Mobile Digital Video Recorder Model Number 4816-NVR Test sample 1# IEEE 802.11 WLAN Mode Supported 802.11b 802.11g 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) Data Rate 802.11 b:1,2,5.5,11Mbps; 802.11 g:6,9,12,18,24,36,48,54Mbps; 802.11n(HT20): up to 72.2Mbps; 802.11n(HT40): up to 150Mbps; Modulation DSSS with DBPSK/DQPSK/CCK for 802.11b; OFDM with BPSK/QPSK/16QAM/64QAM for 802.11g/n; Operating Frequency Range 2412-2462MHz for 802.11b/g/n(HT20); 2422-2452MHz for 802.11n(HT40); Number of Channels 11 channels for 802.11b/g n(HT20); 7 Channels for 802.11n(HT40); Transmit Power Max 18.06 dBm Antenna Type External Antenna Antenna Gain 2 dBi Power Supply DC8-36V Test Voltage DC 24V Temperature Range -10°C ~ +70°C Report No. ES210118030W01 Page 5…

Text truncated - open the document above for the full version.

Test Setup Photos

Setup photos Radiated Spurious Emissions(30MHz-1GHz) Radiated Spurious Emissions(above 1GHz)

Contact Information

Applicant

Michael Ondruch(Chief Financial Officer)
[email protected]713.929.1169Fax: 713.896.6640

Test Firm

EMTEK (Shenzhen) Co., Ltd.Lisa Wang
[email protected]86 755 26954280

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz64.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum conducted output power. Device must be operated to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth mode.
