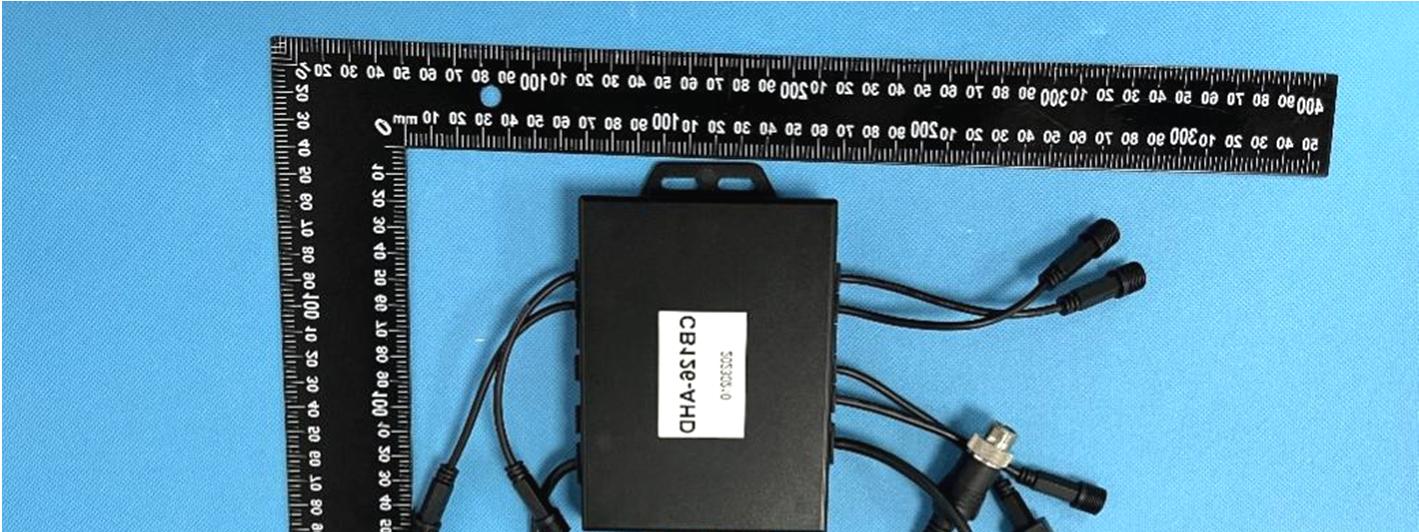

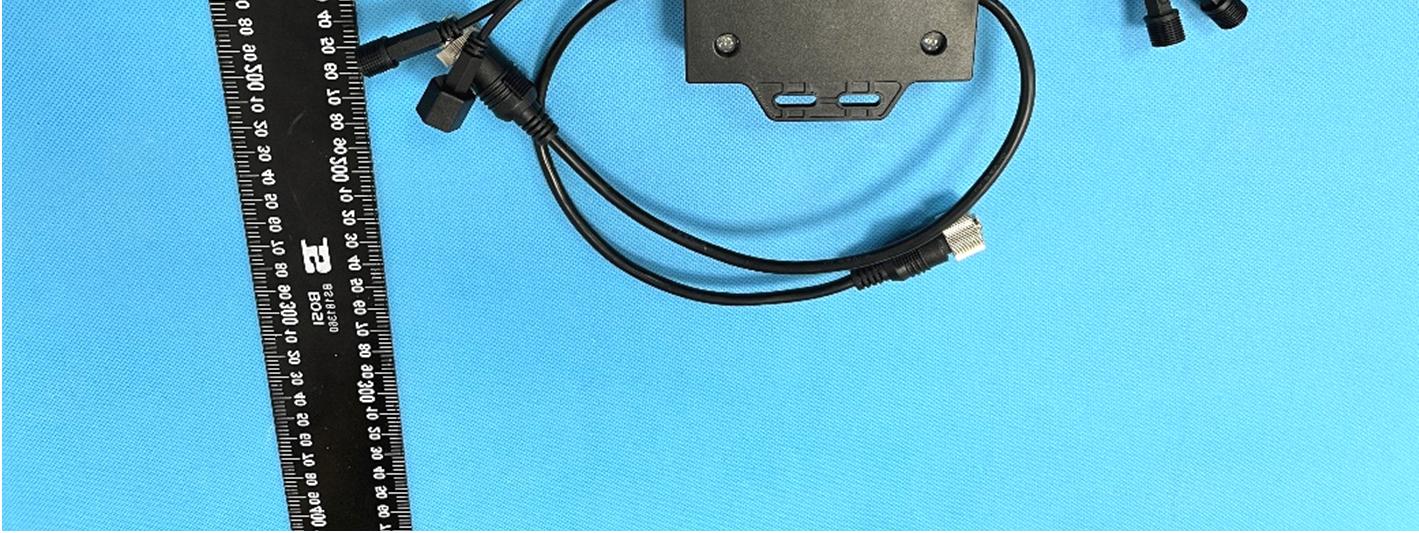

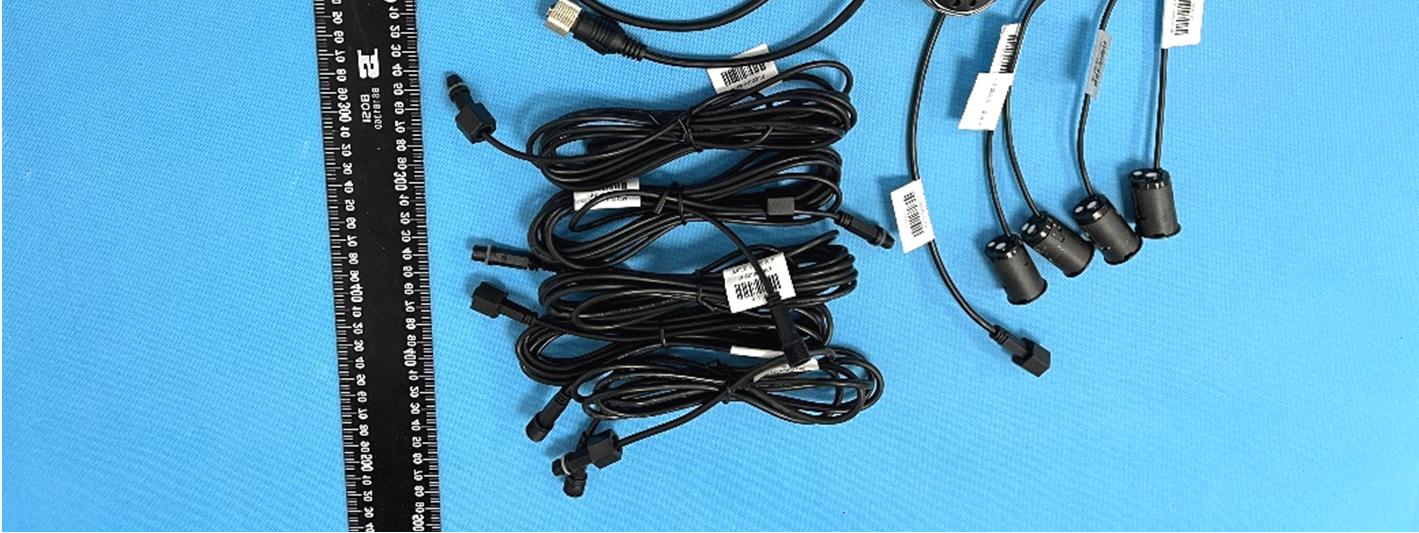

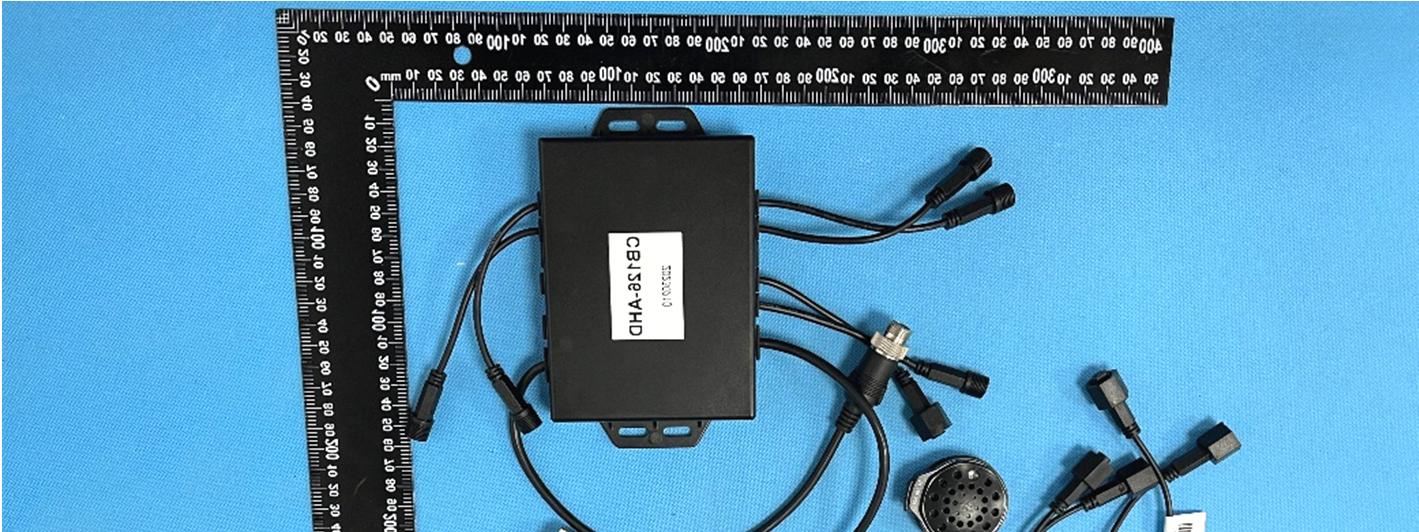

2ANKU-SV-CB126-AHDUltrasonic Sensor System

V1.5 叶秀清 2023.02.27 CB126-A 英文说明书（中性） V1.5MM 注： 1、折后尺寸:105X148MM(展开尺寸:210X148mm) 2、印刷颜色:依照内文为准,需文字清晰 3、标准材质:80g书写纸,双面印刷. 4、标准页码:说明书共10页,成册,双面印刷,统一左侧打钉,封底留白! 640-126000-001 汪祥辉 2023.02.27 更改连接图及规格参数 惠州宇弘科技有限公司 TABLE OF CONTENTS 02 02 03 04-06 06-09 09 10 FEATURE SYSTEM COMPONENTS ....................................................... CONNECTION OF THE WHOLE SYSTEM ............................. FUNCTIONS .................................................................... INSTALLATION .............................................................. DISCLAIMER ........................................................................ SPECIFICATIONS ................................................................. ................................................................................ 1 This device complies with part 18 of the FCC Rules. This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates , uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception , which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna . Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help.” NOTE : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product. CAUTION : The intelligent ultrasonic sensor is designed for commercial vehicle such as vans, motorhomes and heavy goods vehicle. The system provides active warning with visual and audible beeping alerts, alert you of detecting object as far as 2.4M. There are 4° / 8° / 12° sleeves can be chosen, allow lower mounting while still providing a high quality performance. FEATURE SYSTEM COMPONENTS Remark: After checking that you have received all the above items, connect the system with peripheral equipment following the instruction below! SUSPENDED SENSOR X4 *Suspended version only *Suspended version only RUBBER PAD X4 OPTION TWO SCREW&WATERPROOF TAPE SENSOR CABLE X4 DRILL-HOLE SENSOR X4 *Drill-hole version only (including sleeves) OPTION ONE CONTROL BOX X1 A E A E Optional Components: ALARM*1 BUZZER*1 BUZZER EXTENSION CABLE*1 SLEEVE ( 4° / 8° / 12°, 4 EACH ) OR SUSPENDED BRACKET (INCLUDING RUBBER PAD)*4 Confirm the version of sensor which you need,drill-hole or suspended version. There are two different sensor components as above. Environment Learning Mode box box Note: A. Please dont activate learning mode while vehicle is moving! B. If object's distance / location to vehicle has changed, memorizing process needs to be carried out again to avoid undesired warning sound. ' Distance Indicator Number Of Arrow"" STOP Drill-hole-type sensor Measure the angle of installation location.Check below table and use sensor sleeves in installation kit to adjust the sensor to optimized angle. 30cm 40cm 50cm 60cm 9 ~14 6 ~11 1 ~6 -4 ~1 Optimized Sensor Angle Switch Function before Suspended sensor Installation And Locations There are three kinds of (4°/8°/12°) sleeves to choose from. For example, for a location with a 50cm mounting height and -8°angle against vertical section (as shoeed in below picture). Then the computing method is: switch1: UP---L/CL/CR/R sensor detect range 2.4M. switch1: DOWN---L/R sensor detect range 0.9M. CL/CR sensor detect range 2.4M. switch2: UP --- normal OSD display. switch2: DOWN --- flipped OSD display (camera image is not affected) U P U P low limit angle (1°) ≤sensor sleeve angle+mounting position angle (-8°)≤high limit angle(6°) So it is cleat that 12°sensor sleeve is needed to adjust sensor to the optimized angle. Control Box Installation Drill 24mm hole, push sensor sleeve into the drill hole. There’s a marking on sensor bracket, please make sure this marking faces upward. Then insert sensor into the sleeve. 89 When buzzer is connected to system,it will indicate obstacle distance as below: 0-60cm:constant sound, LED light colour is red 60-150cm:fast beeping, LED light colour is yellow 150-240cm:slow beeping, LED light colour is green Buzzer volume can be adjusted between Hi, Low and Off, by using the switch on buzzer. Buzzer (optional) In below case, a object might not be detected. (1) A small object, which is under your bumper or too close to the vehicle,may not be detected. (2) When reversing down a steep slope or driveway,gravel and/ or the road surface may cause momentary detection signal. (3) Reversing on loose gravel,rough surface,and pot holes may produce intermittent detection. (4) Reversing at an angle towards a partial wall or other large flat surface may refract ultrasonic signals. (5) If reversing towards a 90° angle such as a corner of a wall or a pillar. (6) Due to natural projection angle of the sensors, a nature”no coverage” area is common with the system at the outer corners of the vehicle,this may occur at about 0-10 "from the bumper's outer corners. DISCLAIMER 10 SPECIFICATIONS <300mA -20°C ----+70°C -40°C ----+85°C 58KHz±2KHz 2300±200Hz 0-240CM AHD NTSC/PAL 1080P Operation Voltage Current Consumption Operation Temperature Storage Temperature Ultrasonic Frequency Tone Frequency Detection Range OSD TV System Video Resolution 10V-32V DC CAUTION: This system only being use…
