2ANMU-24138B

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD

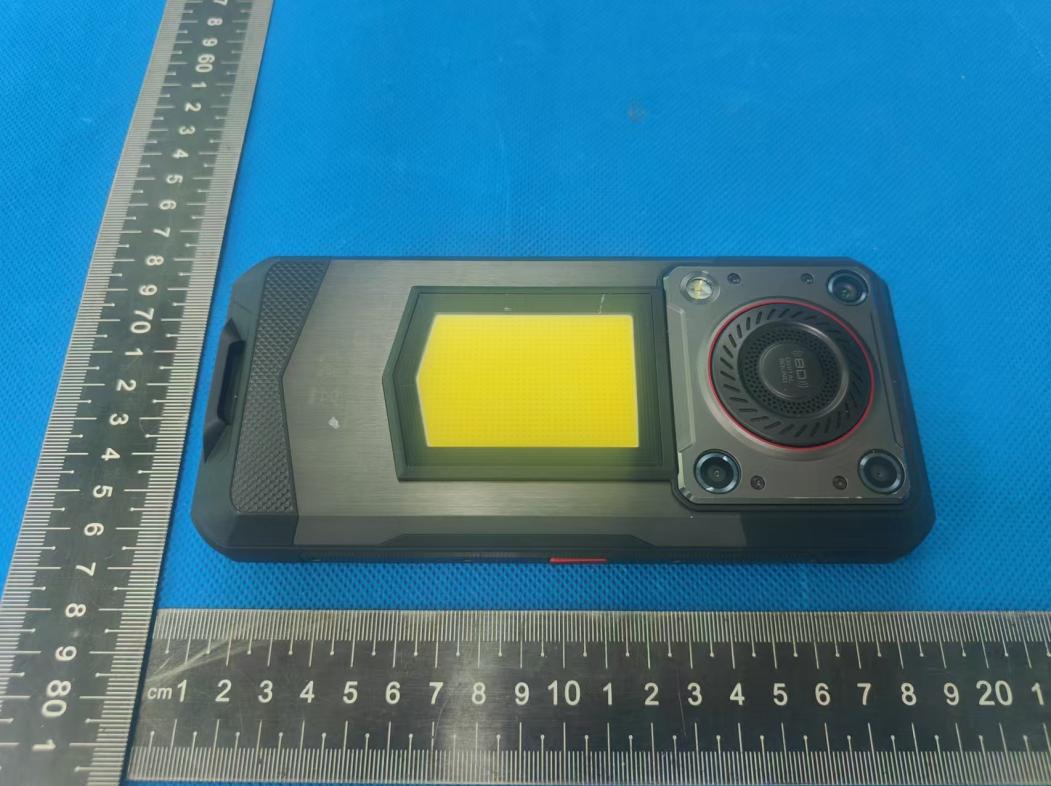

Smart Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: May 20, 2025
Application Purpose: Original Equipment
Equipment Note: Smart Phone
Frequency Range: 704.00000000 - 711.00000000
Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.2 MHz - 848.8 MHz	2.113489 W	249KGXW	0.015973ppm
2	22H	824.2 MHz - 848.8 MHz	843.33 mW	254KG7W	0.012076ppm
3	24E	1.85 GHz - 1.91 GHz	1.34586 W	250KGXW	0.012191ppm
4	24E	1.85 GHz - 1.91 GHz	521.19 mW	253KG7W	0.011027ppm
5	24E	1.85 GHz - 1.91 GHz	338.06 mW	4M15F9W	0.012824ppm
6	27	1.71 GHz - 1.75 GHz	243.22 mW	4M17F9W	0.01162ppm
7	22H	826.4 MHz - 846.6 MHz	306.90 mW	4M16F9W	0.028288ppm
8	24E	1.86 GHz - 1.90 GHz	126.78 mW	17M9G7D	0.007745ppm
9	24E	1.86 GHz - 1.90 GHz	99.52 mW	18M0W7D	0.00528ppm
1	27	1.72 GHz - 1.75 GHz	94.20 mW	17M9G7D	0.00541ppm
11	27	1.72 GHz - 1.75 GHz	100.69 mW	17M9W7D	0.005867ppm
12	22H	829 MHz - 844 MHz	135.77 mW	8M98G7D	0.008183ppm
13	22H	829 MHz - 844 MHz	127.35 mW	8M99W7D	0.007664ppm
14	27	2.51 GHz - 2.56 GHz	98.17 mW	17M9G7D	0.004118ppm
15	27	2.51 GHz - 2.56 GHz	96.60 mW	17M9W7D	0.002658ppm
16	27	704 MHz - 711 MHz	147.96 mW	8M97G7D	0.014691ppm
17	27	704 MHz - 711 MHz	139.64 mW	8M99W7D	0.01222ppm
18	27	709 MHz - 711 MHz	96.32 mW	8M97G7D	0.013918ppm
19	27	709 MHz - 711 MHz	91.68 mW	8M97W7D	0.014145ppm
2	24E	1.86 GHz - 1.91 GHz	86.90 mW	17M9G7D	0.006906ppm
21	24E	1.86 GHz - 1.91 GHz	86.52 mW	17M9W7D	0.004899ppm
22	9	819 MHz - 819 MHz	112.98 mW	8M97G7D	0.010738ppm
23	9	819 MHz - 819 MHz	113.76 mW	8M97W7D	0.010962ppm
24	22H	831.5 MHz - 841.5 MHz	154.11 mW	13M5G7D	0.012673ppm
25	22H	831.5 MHz - 841.5 MHz	142.48 mW	13M5W7D	0.014051ppm
26	27	2.51 GHz - 2.68 GHz	96.61 mW	17M9G7D	0.00429ppm
27	27	2.51 GHz - 2.68 GHz	95.72 mW	17M9W7D	0.004248ppm
28	27	1.72 GHz - 1.77 GHz	95.28 mW	17M9G7D	0.00817ppm
29	27	1.72 GHz - 1.77 GHz	80.19 mW	17M9W7D	0.008039ppm
3	27	3.50 GHz - 3.50 GHz	141.25 mW	96M2G7D	0.00096ppm
31	27	3.50 GHz - 3.50 GHz	105.93 mW	96M5W7D	0.0032ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for frequencies below 1GHz and EIRP for frequencies above 1GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn, hotspot and simultaneous SAR accessory is 0.20 W/kg, 0.72 W/kg, 0.77 W/kg and 1.13 W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
