2ANMU-P2Smart phone

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product Name: Smart phone FCC ID: 2ANMU-P2 Model(s): P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G 2.911(d)(5)(i) EquipmentType We, [SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Gaolei Yan Date: 8/13/2026 Title and Company name: Manager / SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product Name: Smart phone FCC ID: 2ANMU-P2 Model(s): P2 Plus 5G, P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G 2.911(d)(5)(ii) Applicant filing We, [SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Gaolei Yan Date: 8/13/2026 Title and Company name: Manager / SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

(SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD) U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC C ertification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of t he Applicant noted below. U.S. Agent Signature: Date: April 22, 2024 Signed by (Printed Name/Title): Kenneth Young/ Manager The Applicant acknowledges th at th ey must maintain an agent for no less than on e year aft er terminating all marketing and importation OR th e conclusion of any Commission-r elated proceeding involving the equipment. The appli ca nt fu rth er acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Grantee Code: 2ANMU FCC ID：2ANMU-P2 Contact Name: Gaolei Yan StreetAddress:A2 2F BUILDINGENET NEW INDUSTRIALPARK, DAFUINDUSTRIAL ZONE, GUANLAN, LONGHUA City/Province/Zip: SHENZHEN,China Telephone No: 0755-61156588 Email: [email protected] Applicant Signature: Date:2026.8.11 Signed by (Printed Name/Title) : Gaolei Yan/ Manager

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Family models difference declaration Smart phone Model: P2 Plus 5G , P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G FCC ID: 2ANMU-P2 Difference declaration: All models have the same circuit and RF module, except for model names. Signature Gaolei Yan / Manager Date/City: 2026-08-13 / HK Phone: 0755-61156588 Fax: 0755-61156588 E-mail: [email protected]

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026/08/11 Subject; Request for Confidentiality FCC ID: 2ANMU-P2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Gaolei Yan Title: Manager Email: [email protected]

Letter of Authorization Company name: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product Name: Smart phone FCC ID: 2ANMU-P2 Model(s): P2 Plus 5G ,P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Gaolei Yan Date: 2026-08-13 Title: Manager Signature of applicant:

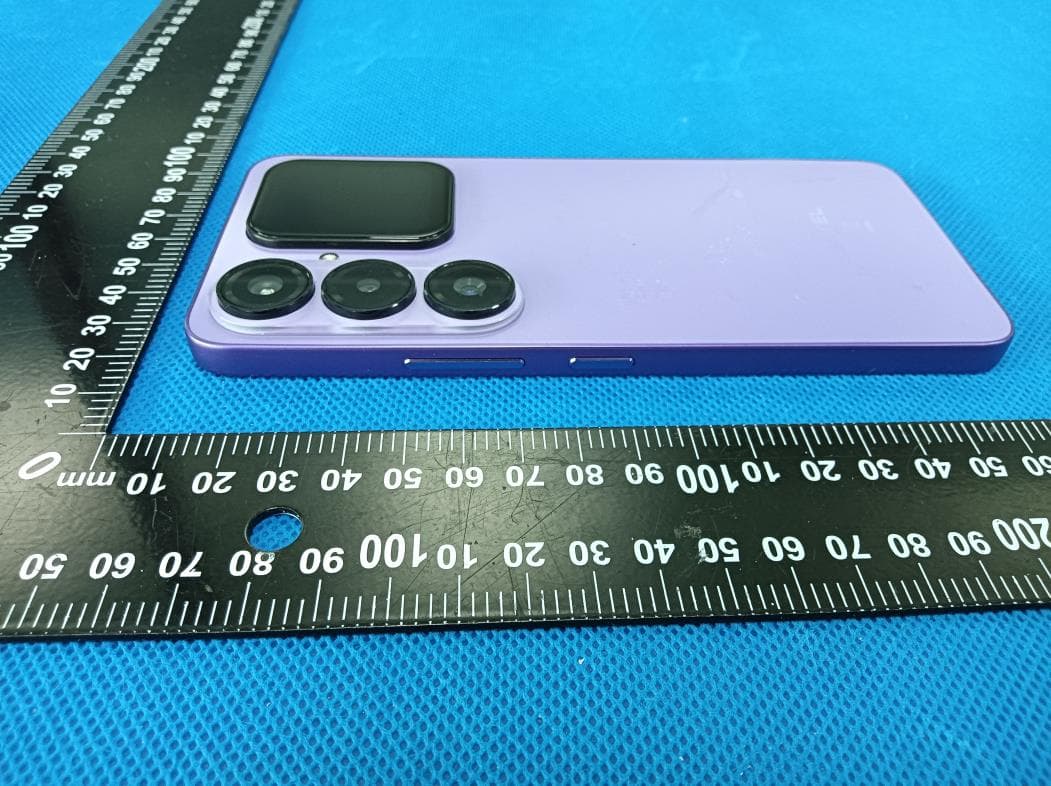

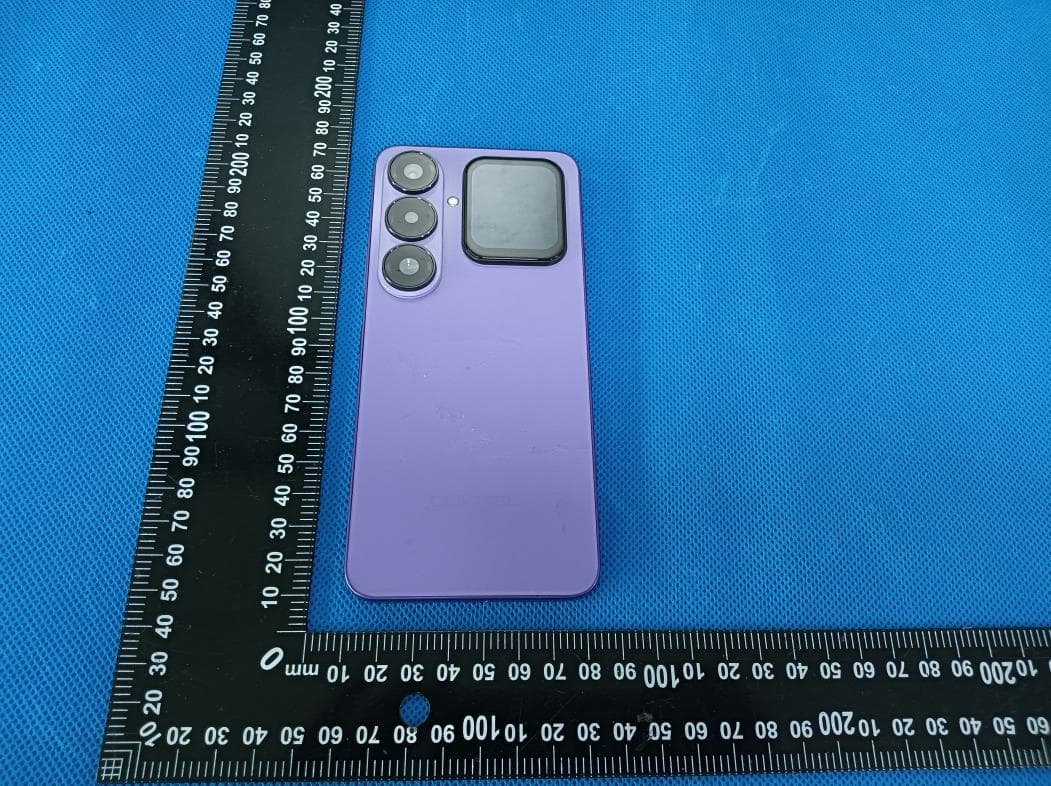

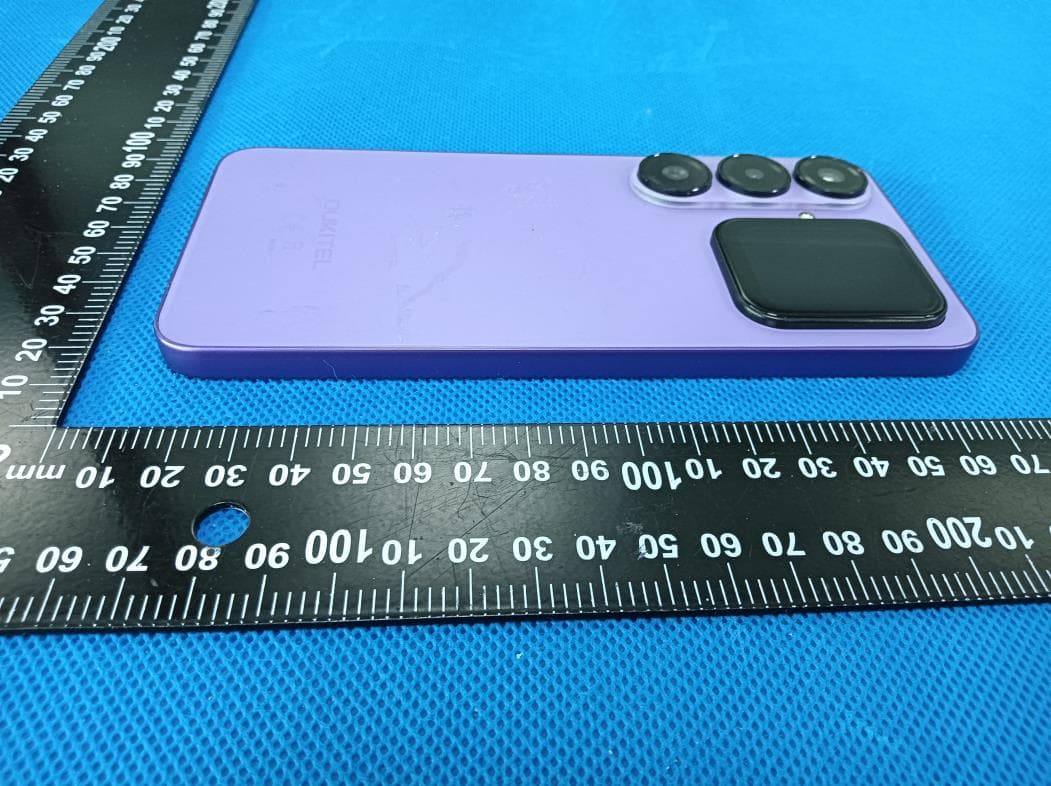

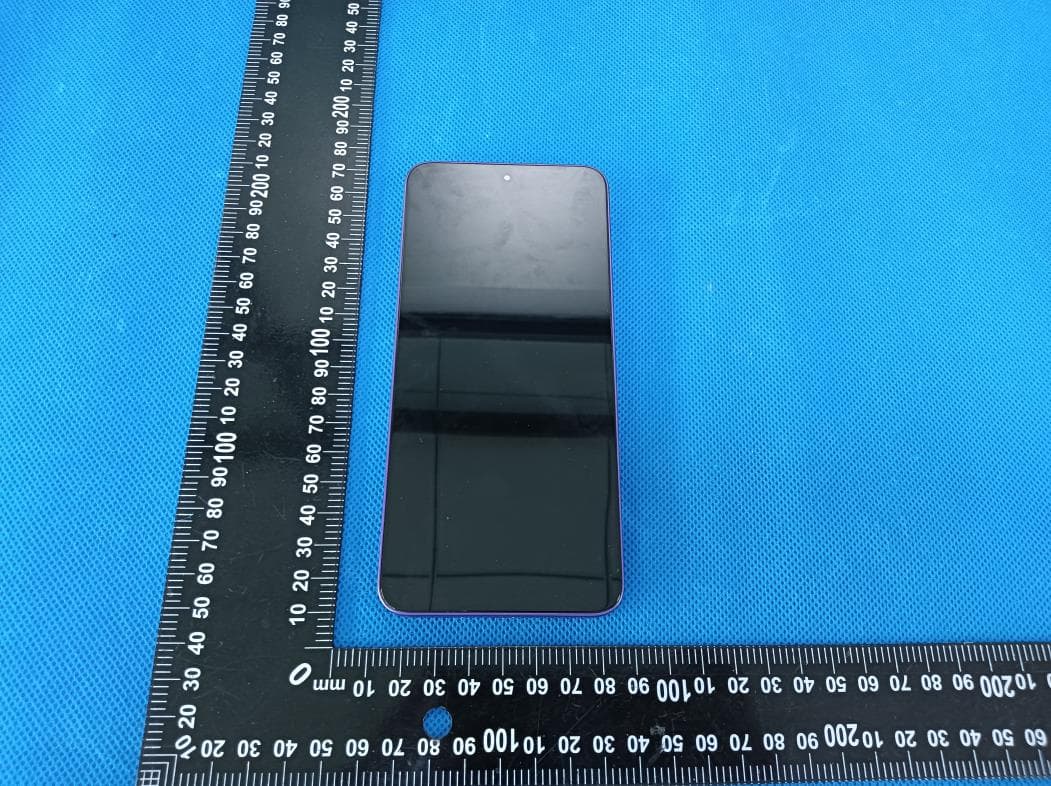

ATTACHMENT PHOTOGRAPHS OF EXT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

Page 1 of 244 Report No.: N26042810209E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name： Smart phone Brand Name： OUKITEL Model Name： P2 Plus 5G Family Model： P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G Report No.： N26042810209E FCC ID： 2ANMU-P2 Prepared for SHENZHENYUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Page 2 of 244 Report No.: N26042810209E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHENYUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Manufacturer's Name .......... : SHENZHENYUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name ........................ : Smart phone Brand Name ......................... : OUKITEL Model and/or type reference .............................. : P2 Plus 5G Family Model ......................... : P2, P2 GT, P2 S, P2 Pro, P2 Plus, P2 Ultra, P2 MAX, P2 4G, P2 5G Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ S2605280108-1# Date of Test Date (s) of performance of tests ............. : Jun. 19, 2026~Aug. 24, 2026 Date of Issue .......................................... : Aug. 26, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Owen Xiao (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 244 Report No.: N26042810209E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug. 26, 2026 Owen Xiao Page 4 of 244 Report No.: N26042810209E TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) ................................................................................ 9 1.5. Ambient Condition ................................................................................. 9 1.6. Facilities And Accreditations .................................................................. 9 1.6.1. Facilities ........................................................................................... 9 1.6.2. Laboratory Accreditations And Listings ............................................ 9 2. SAR Measurement System ............................................................................... 10 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 10 2.2. Robot ................................................................................................... 11 2.3. E-Field Probe ........................................................................................ 12 2.3.1. E-Field Probe Calibration ................................................................ 12 2.4. SAM phantoms .................................................................................... 13 2.4.1. Technical Data ................................................................................ 14 2.5. Device Holder ...................................................................................... 15 2.6. Test Equipment List .............................................................................. 16 3. SAR Measurement Procedures ........................................................................ 19 3.1. Power Reference.................................................................................. 19 3.2. Area scan & Zoom scan ........................................................................ 19 3.3. Description of interpolation/extrapolation scheme ............................. 21 3.4. Volumetric Scan ................................................................................... 21 3.5. Power Drift .......................................................................................... 21 4. System Verification Procedure ......................................................................... 22 4.1. Tissue Verification ................................................................................ 22 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 23 4.2. System Verification Procedure ..............................................…

Text truncated - open the document above for the full version.

Page 73 of 244 Report No.: N26042810209E 10.2. Simultaneous Transmission Analysis Per KDB 447498 D01, simultaneous transmission SAR is compliant if, 1) Scalar SAR summation < 1.6W/kg. 2) SPLSR = (SAR 1 + SAR 2 ) 1.5 / (min. separation distance, mm), and the peak separation distance is determined from the square root of [(x 1 -x 2 ) 2 + (y 1 -y 2 ) 2 + (z 1 -z 2 ) 2 ], where (x 1 , y 1 , z 1 ) and (x 2 , y 2 , z 2 ) are the coordinates of the extrapolated peak SAR locations in the zoom scan. If SPLSR ≤ 0.04, simultaneously transmission SAR measurement is not necessary. Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark WWAN DTS Head Left Cheek 0.745 0.140 0.885 N/A N/A Left Tilt 15 Degree 0.43 0.077 0.507 N/A N/A Right Cheek 0.831 0.122 0.953 N/A N/A Right Tilt 15 Degree 0.428 0.060 0.488 N/A N/A Body-Worn Front Side 0.493 0.012 0.505 N/A N/A Back Side 0.78 0.087 0.867 N/A N/A Hotspot Front Side 0.493 0.012 0.505 N/A N/A Back Side 0.78 0.087 0.867 N/A N/A Left Side 0.509 N/A 0.509 N/A N/A Right Side 0.087 0.013 0.100 N/A N/A Top Side 0.501 0.089 0.590 N/A N/A Bottom Side 0.104 N/A 0.104 N/A N/A Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark WWAN NII Head Left Cheek 0.745 0.43 1.175 N/A N/A Left Tilt 15 Degree 0.43 0.238 0.668 N/A N/A Right Cheek 0.831 0.379 1.21 N/A N/A Right Tilt 15 Degree 0.428 0.179 0.607 N/A N/A Page 74 of 244 Report No.: N26042810209E Body-Worn Front Side 0.493 0.031 0.524 N/A N/A Back Side 0.78 0.223 1.003 N/A N/A Hotspot Front Side 0.493 0.031 0.524 N/A N/A Back Side 0.78 0.223 1.003 N/A N/A Left Side 0.509 N/A 0.509 N/A N/A Right Side 0.087 0.031 0.118 N/A N/A Top Side 0.501 0.264 0.765 N/A N/A Bottom Side 0.104 N/A N/A N/A N/A Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark WWAN DSS Head Left Cheek 0.745 0.133 0.878 N/A N/A Left Tilt 15 Degree 0.43 0.133 0.563 N/A N/A Right Cheek 0.831 0.133 0.964 N/A N/A Right Tilt 15 Degree 0.428 0.133 0.561 N/A N/A Body-Worn Front Side 0.493 0.066 0.559 N/A N/A Back Side 0.78 0.066 0.846 N/A N/A Hotspot Front Side 0.493 0.066 0.559 N/A N/A Back Side 0.78 0.066 0.846 N/A N/A Left Side 0.509 N/A 0.509 N/A N/A Right Side 0.087 0.066 0.153 N/A N/A Top Side 0.501 0.066 0.567 N/A N/A Bottom Side 0.104 N/A 0.104 N/A N/A Page 75 of 244 Report No.: N26042810209E Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark NSA N78+B5 DTS Head Left Cheek 0.516 0.140 0.656 N/A N/A Left Tilt 15 Degree 0.280 0.077 0.357 N/A N/A Right Cheek 0.469 0.122 0.591 N/A N/A Right Tilt 15 Degree 0.237 0.060 0.297 N/A N/A Body-Worn Front Side 0.371 0.012 0.383 N/A N/A Back Side 0.731 0.087 0.818 N/A N/A Hotspot Front Side 0.371 0.012 0.383 N/A N/A Back Side 0.731 0.087 0.818 N/A N/A Left Side 0.488 N/A 0.484 N/A N/A Right Side 0.044 0.013 0.057 N/A N/A Top Side 0.341 0.089 0.430 N/A N/A Bottom Side 0.050 N/A 0.050 N/A N/A Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark NSA N78+B5 NII Head Left Cheek 0.516 0.43 0.946 N/A N/A Left Tilt 15 Degree 0.28 0.238 0.518 N/A N/A Right Cheek 0.469 0.379 0.848 N/A N/A Right Tilt 15 Degree 0.237 0.179 0.416 N/A N/A Body-Worn Front Side 0.371 0.031 0.402 N/A N/A Back Side 0.731 0.223 0.954 N/A N/A Hotspot Front Side 0.371 0.031 0.402 N/A N/A Back Side 0.731 0.223 0.954 N/A N/A Left Side 0.488 N/A 0.484 N/A N/A Right Side 0.044 0.031 0.075 N/A N/A Page 76 of 244 Report No.: N26042810209E Top Side 0.341 0.264 0.605 N/A N/A Bottom Side 0.05 N/A 0.05 N/A N/A Test Position Scaled SAR MAX ∑1-g SAR (W/Kg) SPLSR Remark NSA N78+B5 DSS Head Left Cheek 0.516 0.133 0.649 N/A N/A Left Tilt 15 Degree 0.28 0.133 0.413 N/A N/A Right Cheek 0.469 0.133 0.602 N/A N/A Right Tilt 15 Degree 0.237 0.133 0.37 N/A N/A Body-Worn Front Side 0.371 0.066 0.437 N/A N/A Back Side 0.731 0.066 0.797 N/A N/A Hotspot Front Side 0.371 0.066 0.437 N/A N/A Back Side 0.731 0.066 0.797 N/A N/A Left Side 0.488 N/A 0.484 N/A N/A Right Side 0.044 0.066 0.11 N/A N/A Top Side 0.341 0.066 0.407 N/A N/A Bottom Side 0.05 N/A 0.05 N/A N/A Page 77 of 244 Report No.: N26042810209E 11. Appendix A. Photo documentation Refer to appendix Test Setup photo---SAR Page 78 of 244 Report No.: N26042810209E 12. Appendix B. System Check Plots Table of contents MEASUREMENT 1 System Performance Check - 750MHz MEASUREMENT 2 System Performance Check - 835MHz MEASUREMENT 3 System Performance Check - 1800MHz MEASUREMENT 4 System Performance Check - 1900MHz MEASUREMENT 5 System Performance Check - 2450MHz MEASUREMENT 6 System Performance Check - 2600MHz MEASUREMENT 7 System Performance Check - 3500MHz MEASUREMENT 8 System Performance Check - 5200MHz MEASUREMENT 9 System Performance Check - 5800MHz Page 79 of 244 Report No.: N26042810209E 1# System check at 750 MHz Date of measurement: 19/6/2026 A. Experimental conditions. Probe 3423-EPGO-426 ConvF 2.37 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Validation plane Device Position Dipole Band CW750 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 750.00 Relative permitivity (real part) 40.79 Relative permitivity (imaginary part) 21.26 Conductivity (S/m) 0.89 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=3.00, Y=3.00 ; SAR Peak: 1.22 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.556 SAR 1g (W/Kg) 0.856 Variation (%) 2.11 Horizontal validation criteria: minimum distance (mm) 17.89 Vertical validation criteria: SAR ratio M2/M1 (%) 69.55 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.272 0.878 0.568 0.422 0.292 0.232 0.164 Page 80 of 244 Report No.: N26042810209E F. 3D Image 3D screen shot Hot spot position Page 81 of 244 Report No.: N26042810209E 2# System check at 835 MHz Date of measurement: 20/6/2026 A. Experimental conditions. Probe 3423-EPGO-426 ConvF 2.32 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Validation plane Device Position Dipole Band CW835 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 835.00 Relati…

Text truncated - open the document above for the full version.

Page 160 of 244 Report No.: N26042810209E Page 161 of 244 Report No.: N26042810209E Page 162 of 244 Report No.: N26042810209E Page 163 of 244 Report No.: N26042810209E Page 164 of 244 Report No.: N26042810209E Page 165 of 244 Report No.: N26042810209E Page 166 of 244 Report No.: N26042810209E Page 167 of 244 Report No.: N26042810209E Page 168 of 244 Report No.: N26042810209E Page 169 of 244 Report No.: N26042810209E Page 170 of 244 Report No.: N26042810209E Page 171 of 244 Report No.: N26042810209E Page 172 of 244 Report No.: N26042810209E Page 173 of 244 Report No.: N26042810209E Page 174 of 244 Report No.: N26042810209E Page 175 of 244 Report No.: N26042810209E Page 176 of 244 Report No.: N26042810209E Page 177 of 244 Report No.: N26042810209E Page 178 of 244 Report No.: N26042810209E Page 179 of 244 Report No.: N26042810209E Page 180 of 244 Report No.: N26042810209E Page 181 of 244 Report No.: N26042810209E Page 182 of 244 Report No.: N26042810209E Page 183 of 244 Report No.: N26042810209E Page 184 of 244 Report No.: N26042810209E Page 185 of 244 Report No.: N26042810209E Page 186 of 244 Report No.: N26042810209E Page 187 of 244 Report No.: N26042810209E Page 188 of 244 Report No.: N26042810209E Page 189 of 244 Report No.: N26042810209E

Page 190 of 244 Report No.: N26042810209E Page 191 of 244 Report No.: N26042810209E Page 192 of 244 Report No.: N26042810209E Page 193 of 244 Report No.: N26042810209E Page 194 of 244 Report No.: N26042810209E Page 195 of 244 Report No.: N26042810209E Page 196 of 244 Report No.: N26042810209E Page 197 of 244 Report No.: N26042810209E Page 198 of 244 Report No.: N26042810209E Page 199 of 244 Report No.: N26042810209E Page 200 of 244 Report No.: N26042810209E Page 201 of 244 Report No.: N26042810209E Page 202 of 244 Report No.: N26042810209E Page 203 of 244 Report No.: N26042810209E Page 204 of 244 Report No.: N26042810209E Page 205 of 244 Report No.: N26042810209E Page 206 of 244 Report No.: N26042810209E Page 207 of 244 Report No.: N26042810209E Page 208 of 244 Report No.: N26042810209E Page 209 of 244 Report No.: N26042810209E Page 210 of 244 Report No.: N26042810209E Page 211 of 244 Report No.: N26042810209E Page 212 of 244 Report No.: N26042810209E

Page 213 of 244 Report No.: N26042810209E Page 214 of 244 Report No.: N26042810209E Page 215 of 244 Report No.: N26042810209E Page 216 of 244 Report No.: N26042810209E Page 217 of 244 Report No.: N26042810209E Page 218 of 244 Report No.: N26042810209E Page 219 of 244 Report No.: N26042810209E Page 220 of 244 Report No.: N26042810209E Page 221 of 244 Report No.: N26042810209E Page 222 of 244 Report No.: N26042810209E Page 223 of 244 Report No.: N26042810209E Page 224 of 244 Report No.: N26042810209E Page 225 of 244 Report No.: N26042810209E Page 226 of 244 Report No.: N26042810209E Page 227 of 244 Report No.: N26042810209E Page 228 of 244 Report No.: N26042810209E Page 229 of 244 Report No.: N26042810209E Page 230 of 244 Report No.: N26042810209E Page 231 of 244 Report No.: N26042810209E Page 232 of 244 Report No.: N26042810209E Page 233 of 244 Report No.: N26042810209E Page 234 of 244 Report No.: N26042810209E Page 235 of 244 Report No.: N26042810209E Page 236 of 244 Report No.: N26042810209E Page 237 of 244 Report No.: N26042810209E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -29.875 - 52.798 - Feb. 13, 2025 -27.437 8.16 49.256 3.542 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 238 of 244 Report No.: N26042810209E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -46.216 - 51.571 - Feb. 13, 2025 -46.314 0.212 48.792 2.779 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 239 of 244 Report No.: N26042810209E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.579 - 44.876 - Feb. 13, 2025 -25.140 1.716 48.510 3.634 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data

Page 240 of 244 Report No.: N26042810209E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -27.206 - 46.948 - Feb. 13, 2025 -28.057 3.128 45.249 1.699 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 241 of 244 Report No.: N26042810209E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.738 - 55.969 - Feb. 13, 2025 -26.659 3.578 54.323 1.646 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 242 of 244 Report No.: N26042810209E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.352 - 55.439 - Feb. 13, 2025 -23.058 1.259 57.024 1.585 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 243 of 244 Report No.: N26042810209E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.494 - 26.574 - Feb. 13, 2025 -10.328 8.784 25.063 1.511 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 244 of 244 Report No.: N26042810209E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -15.039 - 40.791 - Feb. 13, 2025 -16.048 6.709 41.217 0.426 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

ShenZhen QiXinTongDa Technology Co.,Ltd. Antenna Test Report Project Name：S203 FrequencyBand: GSM--2/3/5/8 WCDMA--1/2/4/5/8 LTE--1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/38/39/40/41/66 NR--1/2/3/5/7/8/12/20/25/28/38/39/40/41/48/66/71/77/78 DATE：2026-6-5 1.Test Project Test Project Equipment 1. S Parameter 1. Return Loss(RL) 2. VSWR Network Analyzer： Agilent 5071B 2. RF Test （2G+3G+4G） 1. power 2. level 3.TRP/TIS Comprehensive Test： CMW500/8960 Test Environment： Anechoic Chamber 2.Test Equipment Agilent 5071B （S Parameter（RL/VSWR）Test Equipment） ） Agilent 8960 （2G/3G Test Equipment） CMW 500 （2G/3G/4GTest Equipment） 3.TestEnvironment Microwave Anechoic Chamber 4.Test Steps Passive VSWR/RL Test Steps: Gain/Efficiency Test Steps: Active TRP/TIS Test Steps： 50Ω Coaxial Cable 90mm Length Copper Pipe 5071B Network Analyzer Test Fixture Open Computer OTA Test Software Open Turntable Switch And Reset To zero Open 8960/CMW500 Test Equipment Test mobile phone insert test SIM card and Put into the microwave darkroom to connect OTA Software automatic testing Open Computer Gain/Efficiency Test Software Open Turntable Switch And Reset To zero Open 5071B Test Equipment Put the Tested object into the microwave darkroom to connect OTA Software automatic testing Output Data 5.Antenna Gain Band Max Gain Band Max Gain GSM850(824-894MHz) -1.85 LTE-B26(814-894MHz) -1.85 GSM900(880-960MHz) -1.64 LTE-B28(706-803MHz) -2.89 DCS1800(1710-1880MHz) -0.86 LTE-B66(1710-2200MHz) -0.86 PCS1900(1850-1990MHz) -0.73 LTE-B38(2570-2620MHz) 0.49 WCDMA1(1922-2168MHz) -0.78 LTE-B39(1880-1920MHz) -0.73 WCDMA2(826-892MHz) -0.73 LTE-B40(2300-2400MHz) 0.33 WCDMA4(882-958MHz) -0.86 LTE-B41(2496-2690MHz) 0.49 WCDMA5(826-892MHz) -1.85 NR1(1920-2170MHz) -0.78 WCDMA8(882-958MHz) -1.64 NR2(1850-1990MHz) -0.73 BC0(815-894MHz) -1.85 NR3(1710-1880MHz) -0.86 BC1(1850-1990MHz) -0.73 NR5(824-894MHz) -1.85 BC10(806-940MHz) -1.85 NR7(2500-2690MHz) 0.49 LTE-B1(1920-2170MHz) -0.78 NR8(880-960MHz) -1.64 LTE-B2(1850-1990MHz) -0.73 NR12(699-746MHz) -2.89 LTE-B3(1710-1880MHz) -0.86 NR20(791-862MHz) -1.85 LTE-B4(1710-2155MHz) -0.86 NR25(1850-1995MHz) -0.73 LTE-B5(824-894MHz) -1.85 NR28(703-803MHz) -2.89 LTE-B7(2500-2690MHz) 0.49 NR66(1710-2200MHz) -0.86 LTE-B8(880-960MHz) -1.64 NR71(617-698MHz) -3.67 LTE-B12(699-746MHz) -2.89 NR38(2570-2620MHz) 0.49 LTE-B13(746-787MHz) -2.42 NR39(1880-1920MHz) -0.73 LTE-B17(704-746MHz) -2.89 NR40(2300-2400MHz) 0.33 LTE-B18(815-875MHz) -1.85 NR41(2496-2690MHz) 0.49 LTE-B19(830-890MHz) -1.85 NR48(3550-3700MHz) 1.23 LTE-B20(791-862MHz) -1.85 NR77(3300-4200MHz) 1.12 LTE-B25(1850-1995MHz) -0.73 NR78(3300-3800MHz) 1.18 L1/BT/WIFI2.4G/WIFI5.2-5.8G Band Max Gain Bluetooth(2402-2480) 0.20 WIFI-2.4G(2412-2484) 0.20 WIFI-5.1(5150-5350) 1.11 WIFI-5.8(5725-5850) 0.55 GPS-L1(1575.42) -0.28 6.3D Lobe Diagram 2.4GWIFI 5.1GWIFI 5.8GWIFI BT 7.Antenna frequency band distribution 8. Antenna distribution diagram 9.Antenna drawing 10.Introduction to Antenna Information S203 Antenna type and frequency band ANT0 --PIFA ANT1 --PIFA ANT2 --PIFA ANT3 --PIFA ANT4 --PIFA ANT5 --PIFA ANT6 --PIFA Antenna materia LDS

Page 1 of 27 Report No…
