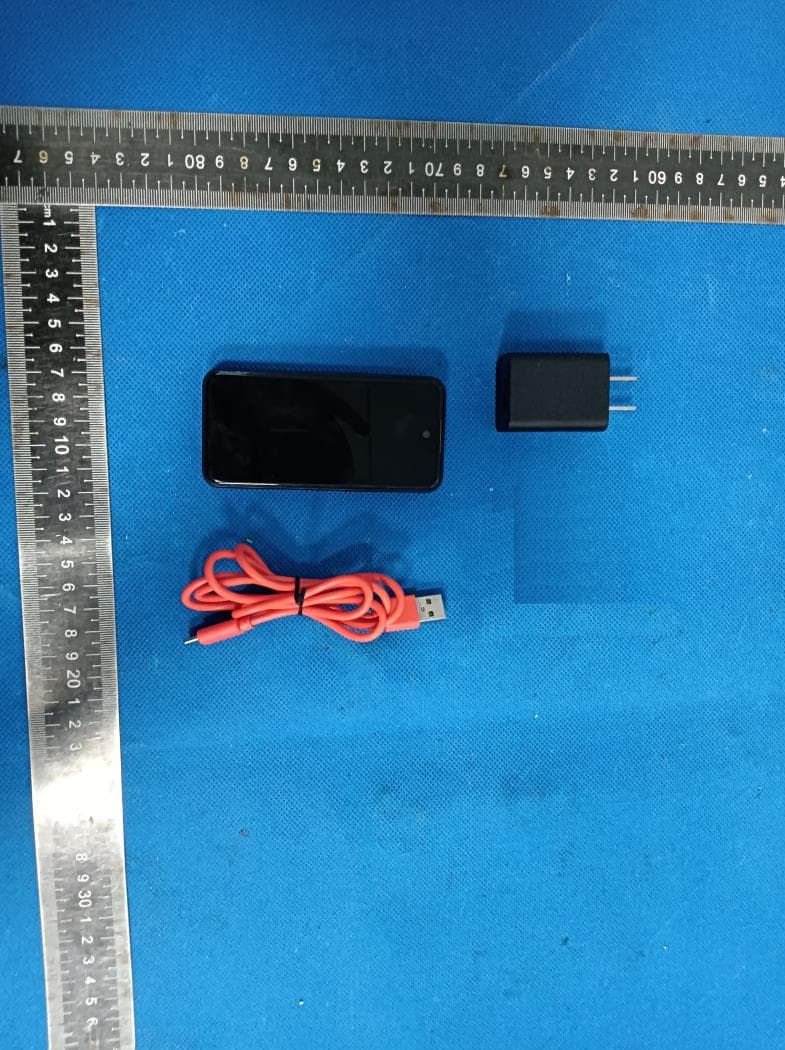

2ANMU-C17MINISmart phone

Page 75 of 265 Report No.: N26052808805E Right Side 23790/710 10M QPSK(25,0) 0.059 0.042 -0.10 22.02 23.00 0.074 2026/7/01 Bottom Side 23790/710 10M QPSK(25,0) 0.054 0.036 3.80 22.02 23.00 0.068 2026/7/01 NOTE:1. Hotspot SAR test results of LTE Band 17 2. Tested by : Jack Peng 10.1.12. SAR measurement Result of LTE Band 25 Test Position of Head Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1-g 10-g 1RB Left Cheek 26365/1882.5 20M QPSK(1,49) 0.224 0.126 1.21 23.31 24.00 0.263 2026/6/28 29# Left Tilt 15 Degree 26365/1882.5 20M QPSK(1,49) 0.132 0.073 3.76 23.31 24.00 0.155 2026/6/28 Right Cheek 26365/1882.5 20M QPSK(1,49) 0.194 0.109 -3.34 23.31 24.00 0.227 2026/6/28 Right Tilt 15 Degree 26365/1882.5 20M QPSK(1,49) 0.105 0.057 0.46 23.31 24.00 0.123 2026/6/28 50%RB Left Cheek 26365/1882.5 20M QPSK(25,0) 0.116 0.069 -3.14 22.15 23.00 0.141 2026/6/28 Left Tilt 15 Degree 26365/1882.5 20M QPSK(25,0) 0.067 0.043 -3.30 22.15 23.00 0.081 2026/6/28 Right Cheek 26365/1882.5 20M QPSK(25,0) 0.099 0.059 -1.00 22.15 23.00 0.120 2026/6/28 Right Tilt 15 Degree 26365/1882.5 20M QPSK(25,0) 0.057 0.034 2.31 22.15 23.00 0.069 2026/6/28 NOTE: Head SAR test results of LTE Band 25 Test Position of Body-W orn Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1g 10g Page 76 of 265 Report No.: N26052808805E with 10mm 1RB Front Side 26365/1882.5 20M QPSK(1,49) 0.235 0.132 -1.07 23.31 24.00 0.275 2026/6/28 30# Back Side 26365/1882.5 20M QPSK(1,49) 0.168 0.094 -0.44 23.31 24.00 0.197 2026/6/28 50%RB Front Side 26365/1882.5 20M QPSK(25,0) 0.139 0.066 -0.43 22.15 23.00 0.169 2026/6/28 Back Side 26365/1882.5 20M QPSK(25,0) 0.088 0.050 1.22 22.15 23.00 0.107 2026/6/28 NOTE: Body-Worn SAR test results of LTE Band 25 Test Position of Hotspot with 10mm Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1-g 10-g 1RB Front Side 26365/1882.5 20M QPSK(1,49) 0.235 0.132 -1.07 23.31 24.00 0.275 2026/6/28 30# Back Side 26365/1882.5 20M QPSK(1,49) 0.168 0.094 -0.44 23.31 24.00 0.197 2026/6/28 Left Side 26365/1882.5 20M QPSK(1,49) 0.125 0.070 -3.98 23.31 24.00 0.147 2026/6/28 Right Side 26365/1882.5 20M QPSK(1,49) 0.072 0.038 -3.09 23.31 24.00 0.084 2026/6/28 Bottom Side 26365/1882.5 20M QPSK(1,49) 0.196 0.108 0.94 23.31 24.00 0.230 2026/6/28 50%RB Front Side 26365/1882.5 20M QPSK(25,0) 0.139 0.066 -0.43 22.15 23.00 0.169 2026/6/28 Back Side 26365/1882.5 20M QPSK(25,0) 0.088 0.050 1.22 22.15 23.00 0.107 2026/6/28 Left Side 26365/1882.5 20M QPSK(25,0) 0.065 0.037 -3.38 22.15 23.00 0.079 2026/6/28 Right Side 26365/1882.5 20M QPSK(25,0) 0.041 0.021 -4.30 22.15 23.00 0.050 2026/6/28 Page 77 of 265 Report No.: N26052808805E Bottom Side 26365/1882.5 20M QPSK(25,0) 0.106 0.063 -3.50 22.15 23.00 0.129 2026/6/28 NOTE: 1.Hotspot SAR test results of LTE Band 25 2.Tested by : Max Zhou 10.1.13. SAR measurement Result of LTE Band 26a Test Position of Head Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1-g 10-g 1RB Left Cheek 26740/819 15M QPSK(1,0) 0.286 0.212 -2.41 23.26 23.50 0.302 2026/7/02 33# Left Tilt 15 Degree 26740/819 15M QPSK(1,0) 0.159 0.112 3.17 23.26 23.50 0.168 2026/7/02 Right Cheek 26740/819 15M QPSK(1,0) 0.263 0.187 -0.99 23.26 23.50 0.278 2026/7/02 Right Tilt 15 Degree 26740/819 15M QPSK(1,0) 0.132 0.094 3.61 23.26 23.50 0.139 2026/7/02 50%RB Left Cheek 26740/819 15M QPSK(36,37) 0.258 0.190 4.06 22.71 23.00 0.276 2026/7/02 Left Tilt 15 Degree 26740/819 15M QPSK(36,37) 0.150 0.096 2.28 22.71 23.00 0.160 2026/7/02 Right Cheek 26740/819 15M QPSK(36,37) 0.241 0.172 -3.59 22.71 23.00 0.258 2026/7/02 Right Tilt 15 Degree 26740/819 15M QPSK(36,37) 0.113 0.081 4.82 22.71 23.00 0.121 2026/7/02 NOTE: Head SAR test results of LTE Band 26a Test Position of Body-W orn with Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1g 10g Page 78 of 265 Report No.: N26052808805E 10mm 1RB Front Side 26740/819 15M QPSK(1,0) 0.215 0.127 -2.20 23.26 23.50 0.227 2026/7/02 Back Side 26740/819 15M QPSK(1,0) 0.287 0.176 1.11 23.26 23.50 0.303 2026/7/02 34# 50%RB Front Side 26740/819 15M QPSK(36,37) 0.124 0.071 -1.77 22.71 23.00 0.133 2026/7/02 Back Side 26740/819 15M QPSK(36,37) 0.170 0.102 -2.67 22.71 23.00 0.182 2026/7/02 NOTE: Body-Worn SAR test results of LTE Band 26a Test Position of Hotspot with 10mm Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1-g 10-g 1RB Front Side 26740/819 15M QPSK(1,0) 0.215 0.127 -2.20 23.26 23.50 0.227 2026/7/02 Back Side 26740/819 15M QPSK(1,0) 0.287 0.176 1.11 23.26 23.50 0.303 2026/7/02 34# Left Side 26740/819 15M QPSK(1,0) 0.155 0.094 -3.09 23.26 23.50 0.164 2026/7/02 Right Side 26740/819 15M QPSK(1,0) 0.160 0.093 0.43 23.26 23.50 0.169 2026/7/02 Bottom Side 26740/819 15M QPSK(1,0) 0.155 0.094 -0.27 23.26 23.50 0.164 2026/7/02 50%RB Front Side 26740/819 15M QPSK(36,37) 0.124 0.071 -1.77 22.71 23.00 0.133 2026/7/02 Back Side 26740/819 15M QPSK(36,37) 0.170 0.102 -2.67 22.71 23.00 0.182 2026/7/02 Left Side 26740/819 15M QPSK(36,37) 0.091 0.049 0.59 22.71 23.00 0.097 2026/7/02 Right Side 26740/819 15M QPSK(36,37) 0.080 0.054 -1.32 22.71 23.00 0.086 2026/7/02 Bottom 26740/819 15M 0.082 0.051 -3.83 22.71 23.00 0.088 2026/7/02 Page 79 of 265 Report No.: N26052808805E Side QPSK(36,37) NOTE: 1.Hotspot SAR test results of LTE Band 26a 2.Tested by : Max Zhou 10.1.14. SAR measurement Result of LTE Band 26b Test Position of Head Test channel /Freq. Test Mode SAR Value (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date Plot 1-g 10-g 1RB Left Cheek 26915/836.5 15M QPSK(1…

Text truncated - open the document above for the full version.

Report No.: N26052808818E Version.1.2 Page 1 of 110 FCC RADIO TEST REPORT FCC ID: 2ANMU-C17MINI Product： Smart phone Trade Mark： OUKITEL Model Name： C17 Mini Family Model： C17, C17 GT, C17 S, C17 Pro, C17 Plus, C17 Ultra, C17 MAX, C17 4G, C17 5G Report No.： N26052808818E Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: N26052808818E Version.1.2 Page 2 of 110 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Manufacturer's Name ........... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name ............................ : Smart phone Model and/or type reference : C17 Mini Family Model ............................. : C17, C17 GT, C17 S, C17 Pro, C17 Plus, C17 Ultra, C17 MAX, C17 4G, C17 5G Sample number S2607160351-1# Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2020+Cor 1-2023 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Jul. 21, 2026 ~ Aug. 27, 2026 Date of Issue .......................................... : Aug. 27, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Donjon Huang (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Report No.: N26052808818E Version.1.2 Page 3 of 110 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 FACILITIES AND ACCREDITATIONS 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . TEST REQUIREMENTS 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 17 3.3 POWER SPECTRAL DENSITY TEST 93 3.4 26DB & 99% EMISSION BANDWIDTH 96 3.5 MINIMUM 6 DB BANDWIDTH 98 3.6 MAXIMUM CONDUCTED OUTPUT POWER 100 3.7 OUT OF BAND EMISSIONS 104 3.8 SPURIOUS RF CONDUCTED EMISSIONS 106 3.9 FREQUENCY STABILITY MEASUREMENT 107 4. ANTENNA REQUIREMENT 110 4.1 STANDARD REQUIREMENT 110 4.2 EUT ANTENNA 110 Report No.: N26052808818E Version.1.2 Page 4 of 110 Revision History Report No. Version Description Issued Date N26052808818E Rev.01 Initial issue of report Aug. 28, 2026 Report No.: N26052808818E Version.1.2 Page 5 of 110 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(4) Spurious Radiated Emissions PASS 15.407 (a)(1) 15.407 (a)(3) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.203 Antenna Requirement PASS 15.407(c) Automatically discontinue transmission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: N26052808818E Version.1.2 Page 6 of 110 1.1 FACILITIES AND ACCREDITATIONS FACILITIES All measurement facilities used to collect the measurement data are located at No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2017 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.80dB 2 RF power, conducted ±0.16dB 3 …

Text truncated - open the document above for the full version.

Report No.: N26052808818E Page 48 of 60 Test Graphs PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Report No.: N26052808818E Page 49 of 60 PSD NVNT a 5825MHz Ant1 PSD NVNT n20 5745MHz Ant1 Report No.: N26052808818E Page 50 of 60 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Report No.: N26052808818E Page 51 of 60 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Report No.: N26052808818E Page 52 of 60 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -34.18 -27 Pass NVNT a 5825 Ant1 -33.4 -27 Pass NVNT n20 5745 Ant1 -34.71 -27 Pass NVNT n20 5825 Ant1 -32.96 -27 Pass NVNT n40 5755 Ant1 -34.25 -27 Pass NVNT n40 5795 Ant1 -32.84 -27 Pass Report No.: N26052808818E Page 53 of 60 Test Graphs Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 Report No.: N26052808818E Page 54 of 60 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 Report No.: N26052808818E Page 55 of 60 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Report No.: N26052808818E Page 56 of 60 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -34.8 -27 Pass NVNT a 5785 Ant1 -34.52 -27 Pass NVNT a 5825 Ant1 -34.64 -27 Pass NVNT n20 5745 Ant1 -34.41 -27 Pass NVNT n20 5785 Ant1 -35.09 -27 Pass NVNT n20 5825 Ant1 -34.77 -27 Pass NVNT n40 5755 Ant1 -35.1 -27 Pass NVNT n40 5795 Ant1 -34.48 -27 Pass Report No.: N26052808818E Page 57 of 60 Test Graphs Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report No.: N26052808818E Page 58 of 60 Tx. Spurious NVNT a 5825MHz Ant1 Emission Tx. Spurious NVNT n20 5745MHz Ant1 Emission Report No.: N26052808818E Page 59 of 60 Tx. Spurious NVNT n20 5785MHz Ant1 Emission Tx. Spurious NVNT n20 5825MHz Ant1 Emission Report No.: N26052808818E Page 60 of 60 Tx. Spurious NVNT n40 5755MHz Ant1 Emission Tx. Spurious NVNT n40 5795MHz Ant1 Emission

Report No.: N26052808818E Page 1 of 60 WIFI 5.2G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 96.93 0.14 0.74 NVNT a 5200 Ant1 96.95 0.13 0.73 NVNT a 5240 Ant1 96.17 0.17 0.74 NVNT n20 5180 Ant1 96.35 0.16 0.86 NVNT n20 5200 Ant1 96.1 0.17 0.87 NVNT n20 5240 Ant1 96.34 0.16 0.87 NVNT n40 5190 Ant1 93.64 0.29 1.72 NVNT n40 5230 Ant1 91.68 0.38 1.75 Report No.: N26052808818E Page 2 of 60 Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.: N26052808818E Page 3 of 60 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.: N26052808818E Page 4 of 60 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No.: N26052808818E Page 5 of 60 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.: N26052808818E Page 6 of 60 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 10.04 0.14 10.18 24 Pass NVNT a 5200 Ant1 9.32 0.13 9.45 24 Pass NVNT a 5240 Ant1 9.18 0.17 9.35 24 Pass NVNT n20 5180 Ant1 10.24 0.16 10.4 24 Pass NVNT n20 5200 Ant1 9.55 0.17 9.72 24 Pass NVNT n20 5240 Ant1 8.6 0.16 8.76 24 Pass NVNT n40 5190 Ant1 9.65 0.29 9.94 24 Pass NVNT n40 5230 Ant1 8.75 0.38 9.13 24 Pass Report No.: N26052808818E Page 7 of 60 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 19.734 0.5 Pass NVNT a 5200 Ant1 24.387 0.5 Pass NVNT a 5240 Ant1 19.371 0.5 Pass NVNT n20 5180 Ant1 20.133 0.5 Pass NVNT n20 5200 Ant1 21.996 0.5 Pass NVNT n20 5240 Ant1 20.049 0.5 Pass NVNT n40 5190 Ant1 52.674 0.5 Pass NVNT n40 5230 Ant1 47.604 0.5 Pass Report No.: N26052808818E Page 8 of 60 Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: N26052808818E Page 9 of 60 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.: N26052808818E Page 10 of 60 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: N26052808818E Page 11 of 60 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.: N26052808818E Page 12 of 60 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.744 NVNT a 5200 Ant1 16.654 NVNT a 5240 Ant1 16.675 NVNT n20 5180 Ant1 17.644 NVNT n20 5200 Ant1 17.65 NVNT n20 5240 Ant1 17.572 NVNT n40 5190 Ant1 36.404 NVNT n40 5230 Ant1 36.374 Report No.: N26052808818E Page 13 of 60 Test Graphs OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No.: N26052808818E Page 14 of 60 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Report No.: N26052808818E Page 15 of 60 OBW NVNT n20 5200MHz Ant1 OBW NVNT n20 5240MHz Ant1 Report No.: N26052808818E Page 16 of 60 OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report No.: N26052808818E Page 17 of 60 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -0.76 0.14 -0.62 11 Pass NVNT a 5200 Ant1 -2.83 0.13 -2.7 11 Pass NVNT a 5240 Ant1 -2.34 0.17 -2.17 11 Pass NVNT n20 5180 Ant1 -0.49 0.16 -0.33 11 Pass NVNT n20 5200 Ant1 -2.28 0.17 -2.11 11 Pass NVNT n20 5240 Ant1 -2.64 0.16 -2.48 11 Pass NVNT n40 5190 Ant1 -4.39 0.29 -4.1 11 Pass NVNT n40 5230 Ant1 -5.53 0.38 -5.15 11 Pass Report No.: N26052808818E Page 18 of 60 Test Graphs PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No.: N26052808818E Page 19 of 60 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Report No.: N26052808818E Page 20 of 60 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Report No.: N26052808818E Page 21 of 60 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report No.: N26052808818E Page 22 of 60 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -32.86 -27 Pass NVNT a 5240 Ant1 -40.8 -27 Pass NVNT n20 5180 Ant1 -33.04 -27 Pass NVNT n20 5240 Ant1 -39.8 -27 Pass NVNT n40 5190 Ant1 -29.86 -27 Pass NVNT n40 5230 Ant1 -40.94 -27 Pass Report No.: N26052808818E Page 23 of 60 Test Graphs Band Edge NVNT a 5180MHz Low Ant1 Band Edge NVNT a 5240MHz High Ant1 Report No.: N26052808818E Page 24 of 60 Band Edge NVNT n20 5180MHz Low Ant1 Band Edge NVNT n20 5240MHz High Ant1 Report No.: N26052808818E Page 25 of 60 Band Edge NVNT n40 5190MHz Low Ant1 Band Edge NVNT n40 5230MHz High Ant1 Report No.: N26052808818E Page 26 of 60 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -34.48 -27 Pass NVNT a 5200 Ant1 -34.47 -27 Pass NVNT a 5240 Ant1 -34.52 -27 Pass NVNT n20 5180 Ant1 -34.99 -27 Pass NVNT n20 5200 Ant1 -33.88 -27 Pass NVNT n20 5240 Ant1 -35.05 -27 Pass NVNT n40 5190 Ant1 -33.68 -27 Pass NVNT n40 5230 Ant1 -34.5 -27 Pass Report No.: N26052808818E Page 27 of 60 Test Graphs Tx. Spurious NVNT a 5180MHz Ant1 Emission Tx. Spurious NVNT a 5200MHz Ant1 Emission Report No.: N26052808818E Page 28 of 60 Tx. Spurious NVNT a 5240MHz Ant1 Emission Tx. Spurious NVNT n20 5180MHz Ant1 Emission Report No.: N26052808818E Page 29 of 60 Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant1 Emission Report No.: N26052808818E Page 30 of 60 Tx. Spurious NVNT n40 5190MHz Ant1 Emission Tx. Spurious NVNT n40 5230MHz Ant1 Emission Report No.: N26052808818E Page 31 of 60 WIFI 5.8G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 97.24 0.12 0.71 NVNT a 5785 Ant1 97.24 0.12 0.71 NVNT a 5825 Ant1 96.55 0.15 0.72 NVNT n20 5745 Ant1 96.35 0.16 0.85 NVNT n20 5785 Ant1 96.35 0.16 0.85 NVNT n20 5825 Ant1 96.76 0.14 0.85 NVNT n40 5755 Ant1 93.68 0.28 1.72 NVNT n40 5795 Ant1 93.76 0.28 1.69 Report No.: N26052808818E Page 32 of 60 Test Graphs Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 57…

Text truncated - open the document above for the full version.

ANWEIcommnuicationEquipmentCo.,Ltd APPROVALSHEET Customer Yunji Specs S215(S213) PartNumberFrequencyBand GSM：B2/3/5/8 WCDMA：B1/2/4/5/8 TDD：38/39/40/41 FDD:B1/2/3/4/5/7/8/12/17/18/19/20/ 25/26/28/66 Color Black Edition REV:A0 Salesperson Mr.Xie Design WUXI Structure QinYunLin Confirm Date 2026.6.8 SigningDate Address:2nd Floor, East Building 5, Yifenghua Industrial Zone, Dalang, Longhua New District, Shenzhen Projectdevelopmentenvironment  天线增益 (Antennagain) Standard Band （ LTE ）Frequency Gain(dbi) TDD_LTETDD_B3825803.48 TDD_LTETDD_B3919001.79 TDD_LTETDD_B4024002 TDD_LTETDD_B4125803.48 FDD_LTEFDD_B121001.42 FDD_LTEFDD_B219001.79 FDD_LTEFDD_B318002.25 FDD_LTEFDD_B418002.25 FDD_LTEFDD_B5800-0.89 FDD_LTEFDD_B725803.48 FDD_LTEFDD_B8920-2.22 FDD_LTEFDD_B12700-6.53 FDD_LTEFDD_B17700-6.53 FDD_LTEFDD_B18800-0.89 FDD_LTEFDD_B19800-0.89 FDD_LTEFDD_B20800-0.89 FDD_LTEFDD_B2519001.79 FDD_LTEFDD_B26800-0.89 FDD_LTEFDD_B28700-6.53 FDD_LTEFDD_B6618002.25 WCDMAWCDMA_B121001.42 WCDMAWCDMA_B219001.79 WCDMAWCDMA_B418002.25 WCDMAWCDMA_B5800-0.89 WCDMAWCDMA_B8920-2.22 GSMGSM850800-0.89 GSMGSM900920-2.22 GSMDCS180018002.25 GSMPCS190019001.79 2.4GWIFI 2460 -0.7 5GWIFI 5300 1.19 GPS L11575 0.74 BT2460-0.7 MIMOantennaapplemap （MIMOantenna）PolarGraphs/EtotalGraphs （GPSantenna）+（2.4G/5GWIFI/BTantenna）apple Map （GPSantenna）+（2.4G/5GWIFI/BTantenna） PolarGraphs/EtotalGraphs TheEnd

Page 252 of 265 Report No.: N26052808805E Page 253 of 265 Report No.: N26052808805E Page 254 of 265 Report No.: N26052808805E Page 255 of 265 Report No.: N26052808805E Page 256 of 265 Report No.: N26052808805E Page 257 of 265 Report No.: N26052808805E Page 258 of 265 Report No.: N26052808805E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -29.875 - 52.798 - Feb. 13, 2025 -27.437 8.16 49.256 3.542 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 259 of 265 Report No.: N26052808805E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -46.216 - 51.571 - Feb. 13, 2025 -46.314 0.212 48.792 2.779 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 260 of 265 Report No.: N26052808805E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.579 - 44.876 - Feb. 13, 2025 -25.140 1.716 48.510 3.634 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 261 of 265 Report No.: N26052808805E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -27.206 - 46.948 - Feb. 13, 2025 -28.057 3.128 45.249 1.699 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 262 of 265 Report No.: N26052808805E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.738 - 55.969 - Feb. 13, 2025 -26.659 3.578 54.323 1.646 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 263 of 265 Report No.: N26052808805E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.352 - 55.439 - Feb. 13, 2025 -23.058 1.259 57.024 1.585 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 264 of 265 Report No.: N26052808805E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.494 - 26.574 - Feb. 13, 2025 -10.328 8.784 25.063 1.511 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 265 of 265 Report No.: N26052808805E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -15.039 - 40.791 - Feb. 13, 2025 -16.048 6.709 41.217 0.426 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

Page 227 of 265 Report No.: N26052808805E Page 228 of 265 Report No.: N26052808805E Page 229 of 265 Report No.: N26052808805E Page 230 of 265 Report No.: N26052808805E Page 231 of 265 Report No.: N26052808805E Page 232 of 265 Report No.: N26052808805E Page 233 of 265 Report No.: N26052808805E Page 234 of 265 Report No.: N26052808805E Page 235 of 265 Report No.: N26052808805E Page 236 of 265 Report No.: N26052808805E Page 237 of 265 Report No.: N26052808805E Page 238 of 265 Report No.: N26052808805E Page 239 of 265 Report No.: N26052808805E Page 240 of 265 Report No.: N26052808805E Page 241 of 265 Report No.: N26052808805E Page 242 of 265 Report No.: N26052808805E Page 243 of 265 Report No.: N26052808805E Page 244 of 265 Report No.: N26052808805E Page 245 of 265 Report No.: N26052808805E Page 246 of 265 Report No.: N26052808805E Page 247 of 265 Report No.: N26052808805E Page 248 of 265 Report No.: N26052808805E Page 249 of 265 Report No.: N26052808805E Page 250 of 265 Report No.: N26052808805E Page 251 of 265 Report No.: N26052808805E

Page 204 of 265 Report No.: N26052808805E Page 205 of 265 Report No.: N26052808805E Page 206 of 265 Report No.: N26052808805E Page 207 of 265 Report No.: N26052808805E Page 208 of 265 Report No.: N26052808805E Page 209 of 265 Report No.: N26052808805E Page 210 of 265 Report No.: N26052808805E Page 211 of 265 Report No.: N26052808805E Page 212 of 265 Report No.: N26052808805E Page 213 of 265 Report No.: N26052808805E Page 214 of 265 Report No.: N26052808805E Page 215 of 265 Report No.: N26052808805E Page 216 of 265 Report No.: N26052808805E Page 217 of 265 Report No.: N26052808805E Page 218 of 265 Report No.: N26052808805E Page 219 of 265 Report No.: N26052808805E Page 220 of 265 Report No.: N26052808805E Page 221 of 265 Report No.: N26052808805E Page 222 of 265 Report No.: N26052808805E Page 223 of 265 Report No.: N26052808805E Page 224 of 265 Report No.: N26052808805E Page 225 of 265 Report No.: N26052808805E Page 226 of 265 Report No.: N26052808805E

Page 154 of 265 Report No.: N26052808805E F. 3D Image 3D screen shot Hot spot position Page 155 of 265 Report No.: N26052808805E 25# SAR Measurement at LTE band 12 (Cheek, Left) Date of measurement: 1/7/2026 A. Experimental conditions. Probe 3423-EPGO-426 ConvF 2.37 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Left head Device Position Cheek Band LTE band 12 Signal LTE FDD Channel Center [EARFCN] / Channel Center [MHz] Middle (23095)/ frequency 707.50 Mhz Cell Bandwidth 10 Mhz Modulation SC-OFDM - QPSK Middle TX Frequency (MHz) 707.50 B. Permitivity Middle TX Frequency (MHz) 707.50 Relative permitivity (real part) 41.20 Relative permitivity (imaginary part) 21.60 Conductivity (S/m) 0.85 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-24.00 ; SAR Peak: 0.26 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.143 SAR 1g (W/Kg) 0.197 Variation (%) 2.93 Horizontal validation criteria: minimum distance (mm) 25.30 Vertical validation criteria: SAR ratio M2/M1 (%) 82.75 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.308 0.204 0.133 0.131 0.085 0.083 0.055 Page 156 of 265 Report No.: N26052808805E F. 3D Image 3D screen shot Hot spot position Page 157 of 265 Report No.: N26052808805E 26# SAR Measurement at LTE band 12 (Body, Validation Plane) Date of measurement: 1/7/2026 A. Experimental conditions. Probe 3423-EPGO-426 ConvF 2.37 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Validation plane Device Position Body Band LTE band 12 Signal LTE FDD Channel Center [EARFCN] / Channel Center [MHz] Middle (23095)/ frequency 707.50 Mhz Cell Bandwidth 10 Mhz Modulation SC-OFDM - QPSK Middle TX Frequency (MHz) 707.50 B. Permitivity Middle TX Frequency (MHz) 707.50 Relative permitivity (real part) 41.20 Relative permitivity (imaginary part) 21.60 Conductivity (S/m) 0.85 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-15.00 ; SAR Peak: 0.21 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.107 SAR 1g (W/Kg) 0.155 Variation (%) -0.81 Horizontal validation criteria: minimum distance (mm) 28.84 Vertical validation criteria: SAR ratio M2/M1 (%) 82.31 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.213 0.160 0.120 0.109 0.080 0.067 0.047 Page 158 of 265 Report No.: N26052808805E F. 3D Image 3D screen shot Hot spot position Page 159 of 265 Report No.: N26052808805E 27# SAR Measurement at LTE band 17 (Cheek, Left) Date of measurement: 1/7/2026 A. Experimental conditions. Probe 3423-EPGO-426 ConvF 2.37 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Left head Devi…
