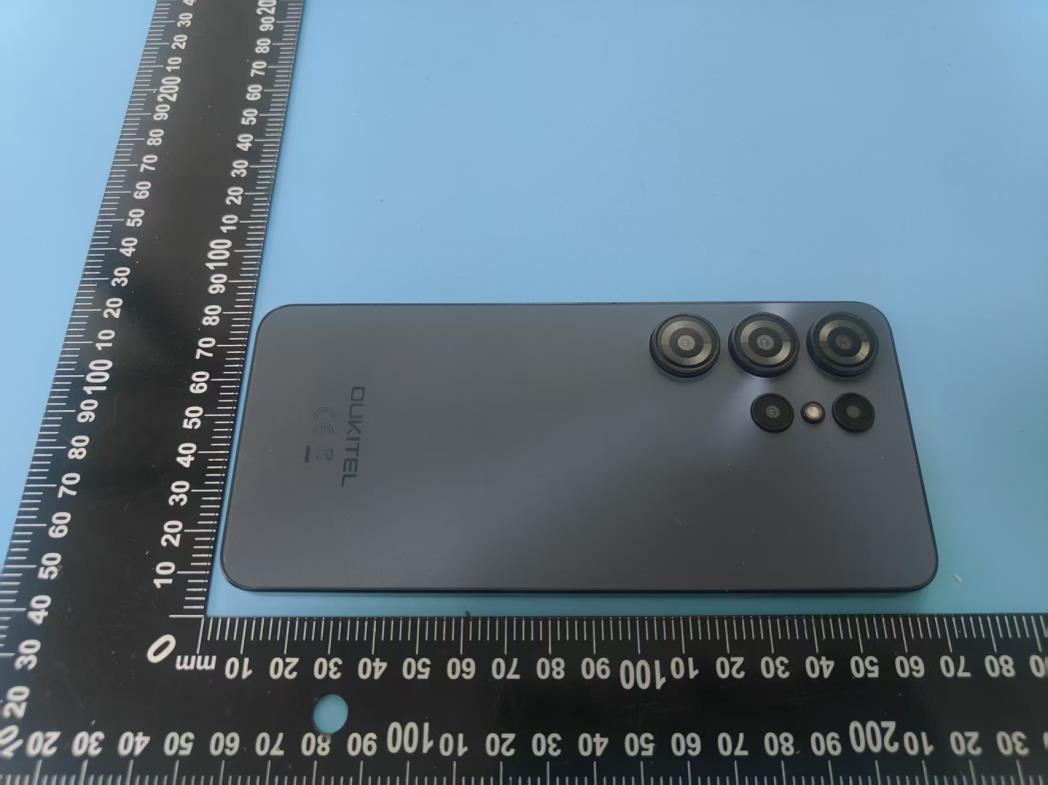

Page 1 of 261 Report No.: N25112704008E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name： Smart Phone Brand Name： OUKITEL Model Name： C26 Family Model： C26 S, C26 E, C26 Pro, C26 Plus, C26 Ultra, C26 MAX, C26 GT, C26 5G Report No.： N25112704008E FCC ID： 2ANMU-C26 Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Page 2 of 261 Report No.: N25112704008E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Manufacturer's Name .......... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name ........................ : Smart Phone Brand Name ......................... : OUKITEL Model and/or type reference .............................. : C26 Family Model ......................... : C26 S, C26 E, C26 Pro, C26 Plus, C26 Ultra, C26 MAX, C26 GT, C26 5G Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ S2512010112-1# Date of Test Date (s) of performance of tests ............. : Dec. 01, 2025~ Dec. 14, 2025 Date of Issue .......................................... : Jan. 12, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Owen Xiao (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 261 Report No.: N25112704008E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 12, 2026 Owen Xiao Page 4 of 261 Report No.: N25112704008E TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) ................................................................................ 9 1.5. Ambient Condition ................................................................................. 9 1.6. Facilities And Accreditations .................................................................. 9 1.6.1. Facilities ........................................................................................... 9 1.6.2. Laboratory Accreditations And Listings ............................................ 9 2. SAR Measurement System ............................................................................... 10 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 10 2.2. Robot ................................................................................................... 11 2.3. E-Field Probe ........................................................................................ 12 2.3.1. E-Field Probe Calibration ................................................................ 12 2.4. SAM phantoms .................................................................................... 13 2.4.1. Technical Data ................................................................................ 14 2.5. Device Holder ...................................................................................... 15 2.6. Test Equipment List .............................................................................. 16 3. SAR Measurement Procedures ........................................................................ 18 3.1. Power Reference.................................................................................. 18 3.2. Area scan & Zoom scan ........................................................................ 18 3.3. Description of interpolation/extrapolation scheme ............................. 20 3.4. Volumetric Scan ................................................................................... 20 3.5. Power Drift .......................................................................................... 20 4. System Verification Procedure ......................................................................... 21 4.1. Tissue Verification ................................................................................ 21 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 22 4.2. System Verification Procedure .................................................…

Text truncated - open the document above for the full version.

Report No.: N25112704032E Version.1.2 Page 1 of 60 FCC RADIO TEST REPORT FCC ID: 2ANMU-C26 Product： Smart Phone Trade Mark： OUKITEL Model Name： C26 Family Model： C26 S, C26 E, C26 Pro, C26 Plus, C26 Ultra, C26 MAX, C26 GT, C26 5G Report No.： N25112704032E Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: N25112704032E Version.1.2 Page 2 of 60 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Manufacturer's Name ........... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name ............................ : Smart Phone Model and/or type reference : C26 Family Model ............................. : C26 S, C26 E, C26 Pro, C26 Plus, C26 Ultra, C26 MAX, C26 GT, C26 5G Sample number S2512010113-1# Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2020 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Nov. 27, 2025 ~ Jan. 09, 2026 Date of Issue .......................................... : Jan. 09, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Allen Liu (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Report No.: N25112704032E Version.1.2 Page 3 of 60 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 FACILITIES AND ACCREDITATIONS 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . TEST REQUIREMENTS 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 20 3.3 POWER SPECTRAL DENSITY TEST 39 3.4 26DB & 99% EMISSION BANDWIDTH 42 3.5 MINIMUM 6 DB BANDWIDTH 44 3.6 MAXIMUM CONDUCTED OUTPUT POWER 46 3.7 OUT OF BAND EMISSIONS 50 3.8 SPURIOUS RF CONDUCTED EMISSIONS 52 3.9 FREQUENCY STABILITY MEASUREMENT 53 4. ANTENNA REQUIREMENT 60 4.1 STANDARD REQUIREMENT 60 4.2 EUT ANTENNA 60 Report No.: N25112704032E Version.1.2 Page 4 of 60 Revision History Report No. Version Description Issued Date N25112704032E Rev.01 Initial issue of report Jan. 09, 2026 Report No.: N25112704032E Version.1.2 Page 5 of 60 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(4) Spurious Radiated Emissions PASS 15.407 (a)(1) 15.407 (a)(3) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.203 Antenna Requirement PASS 15.407(c) Automatically discontinue transmission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: N25112704032E Version.1.2 Page 6 of 60 1.1 FACILITIES AND ACCREDITATIONS FACILITIES All measurement facilities used to collect the measurement data are located at No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.80dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions…

Text truncated - open the document above for the full version.

Report No.: N25112704032E Page 85 of 96 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Report No.: N25112704032E Page 86 of 96 Band Edge NVNT ac20 5745MHz Low Ant1 Band Edge NVNT ac20 5825MHz High Ant1 Report No.: N25112704032E Page 87 of 96 Band Edge NVNT ac40 5755MHz Low Ant1 Band Edge NVNT ac40 5795MHz High Ant1 Report No.: N25112704032E Page 88 of 96 Band Edge NVNT ac80 5755MHz High Ant1 Band Edge NVNT ac80 5755MHz Low Ant1 Report No.: N25112704032E Page 89 of 96 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -32.37 -27 Pass NVNT a 5785 Ant1 -32.61 -27 Pass NVNT a 5825 Ant1 -32.68 -27 Pass NVNT n20 5745 Ant1 -33.02 -27 Pass NVNT n20 5785 Ant1 -32.91 -27 Pass NVNT n20 5825 Ant1 -32.63 -27 Pass NVNT n40 5755 Ant1 -32.45 -27 Pass NVNT n40 5795 Ant1 -31.86 -27 Pass NVNT ac20 5745 Ant1 -32.87 -27 Pass NVNT ac20 5785 Ant1 -33.33 -27 Pass NVNT ac20 5825 Ant1 -33.8 -27 Pass NVNT ac40 5755 Ant1 -32.77 -27 Pass NVNT ac40 5795 Ant1 -33.53 -27 Pass NVNT ac80 5775 Ant1 -32.91 -27 Pass Report No.: N25112704032E Page 90 of 96 Test Graphs Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report No.: N25112704032E Page 91 of 96 Tx. Spurious NVNT a 5825MHz Ant1 Emission Tx. Spurious NVNT n20 5745MHz Ant1 Emission Report No.: N25112704032E Page 92 of 96 Tx. Spurious NVNT n20 5785MHz Ant1 Emission Tx. Spurious NVNT n20 5825MHz Ant1 Emission Report No.: N25112704032E Page 93 of 96 Tx. Spurious NVNT n40 5755MHz Ant1 Emission Tx. Spurious NVNT n40 5795MHz Ant1 Emission Report No.: N25112704032E Page 94 of 96 Tx. Spurious NVNT ac20 5745MHz Ant1 Emission Tx. Spurious NVNT ac20 5785MHz Ant1 Emission Report No.: N25112704032E Page 95 of 96 Tx. Spurious NVNT ac20 5825MHz Ant1 Emission Tx. Spurious NVNT ac40 5755MHz Ant1 Emission Report No.: N25112704032E Page 96 of 96 Tx. Spurious NVNT ac40 5795MHz Ant1 Emission Tx. Spurious NVNT ac80 5775MHz Ant1 Emission

Report No.: N25112704032E Page 44 of 96 Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant1 Emission Report No.: N25112704032E Page 45 of 96 Tx. Spurious NVNT n40 5190MHz Ant1 Emission Tx. Spurious NVNT n40 5230MHz Ant1 Emission Report No.: N25112704032E Page 46 of 96 Tx. Spurious NVNT ac20 5180MHz Ant1 Emission Tx. Spurious NVNT ac20 5200MHz Ant1 Emission Report No.: N25112704032E Page 47 of 96 Tx. Spurious NVNT ac20 5240MHz Ant1 Emission Tx. Spurious NVNT ac40 5190MHz Ant1 Emission Report No.: N25112704032E Page 48 of 96 Tx. Spurious NVNT ac40 5230MHz Ant1 Emission Tx. Spurious NVNT ac80 5210MHz Ant1 Emission Report No.: N25112704032E Page 49 of 96 WIFI 5.8G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 88.3 0.54 0.74 NVNT a 5785 Ant1 88.52 0.53 0.74 NVNT a 5825 Ant1 96.04 0.18 ∞ NVNT n20 5745 Ant1 86.98 0.61 0.88 NVNT n20 5785 Ant1 87.03 0.6 0.87 NVNT n20 5825 Ant1 97.32 0.12 0.87 NVNT n40 5755 Ant1 77.03 1.13 1.75 NVNT n40 5795 Ant1 91.63 0.38 1.72 NVNT ac20 5745 Ant1 87.09 0.6 0.86 NVNT ac20 5785 Ant1 86.89 0.61 0.87 NVNT ac20 5825 Ant1 87.29 0.59 0.86 NVNT ac40 5755 Ant1 76.78 1.15 1.72 NVNT ac40 5795 Ant1 94.96 0.22 1.72 NVNT ac80 5775 Ant1 63.18 1.99 3.57 Report No.: N25112704032E Page 50 of 96 Test Graphs Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report No.: N25112704032E Page 51 of 96 Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report No.: N25112704032E Page 52 of 96 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Report No.: N25112704032E Page 53 of 96 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report No.: N25112704032E Page 54 of 96 Duty Cycle NVNT ac20 5745MHz Ant1 Duty Cycle NVNT ac20 5785MHz Ant1 Report No.: N25112704032E Page 55 of 96 Duty Cycle NVNT ac20 5825MHz Ant1 Duty Cycle NVNT ac40 5755MHz Ant1 Report No.: N25112704032E Page 56 of 96 Duty Cycle NVNT ac40 5795MHz Ant1 Duty Cycle NVNT ac80 5775MHz Ant1 Report No.: N25112704032E Page 57 of 96 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 10.41 30 Pass NVNT a 5785 Ant1 10.86 30 Pass NVNT a 5825 Ant1 11.19 30 Pass NVNT n20 5745 Ant1 10.43 30 Pass NVNT n20 5785 Ant1 10.94 30 Pass NVNT n20 5825 Ant1 11.15 30 Pass NVNT n40 5755 Ant1 11.29 30 Pass NVNT n40 5795 Ant1 11.48 30 Pass NVNT ac20 5745 Ant1 10.5 30 Pass NVNT ac20 5785 Ant1 11.15 30 Pass NVNT ac20 5825 Ant1 11.54 30 Pass NVNT ac40 5755 Ant1 10.8 30 Pass NVNT ac40 5795 Ant1 11.3 30 Pass NVNT ac80 5775 Ant1 10.76 30 Pass Note: The average power value already includes the duty cycle factor Report No.: N25112704032E Page 58 of 96 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.419 0.5 Pass NVNT a 5785 Ant1 16.509 0.5 Pass NVNT a 5825 Ant1 16.551 0.5 Pass NVNT n20 5745 Ant1 17.391 0.5 Pass NVNT n20 5785 Ant1 17.274 0.5 Pass NVNT n20 5825 Ant1 17.403 0.5 Pass NVNT n40 5755 Ant1 35.778 0.5 Pass NVNT n40 5795 Ant1 36.162 0.5 Pass NVNT ac20 5745 Ant1 17.655 0.5 Pass NVNT ac20 5785 Ant1 17.337 0.5 Pass NVNT ac20 5825 Ant1 17.58 0.5 Pass NVNT ac40 5755 Ant1 35.754 0.5 Pass NVNT ac40 5795 Ant1 35.892 0.5 Pass NVNT ac80 5775 Ant1 75.204 0.5 Pass Report No.: N25112704032E Page 59 of 96 Test Graphs -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report No.: N25112704032E Page 60 of 96 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report No.: N25112704032E Page 61 of 96 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report No.: N25112704032E Page 62 of 96 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No.: N25112704032E Page 63 of 96 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report No.: N25112704032E Page 64 of 96 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Report No.: N25112704032E Page 65 of 96 -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Report No.: N25112704032E Page 66 of 96 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.636 NVNT a 5785 Ant1 16.678 NVNT a 5825 Ant1 16.711 NVNT n20 5745 Ant1 17.662 NVNT n20 5785 Ant1 17.65 NVNT n20 5825 Ant1 17.614 NVNT n40 5755 Ant1 36.404 NVNT n40 5795 Ant1 36.44 NVNT ac20 5745 Ant1 17.62 NVNT ac20 5785 Ant1 17.659 NVNT ac20 5825 Ant1 17.626 NVNT ac40 5755 Ant1 36.386 NVNT ac40 5795 Ant1 36.44 NVNT ac80 5775 Ant1 75.292 Report No.: N25112704032E Page 67 of 96 Test Graphs OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Report No.: N25112704032E Page 68 of 96 OBW NVNT a 5825MHz Ant1 OBW NVNT n20 5745MHz Ant1 Report No.: N25112704032E Page 69 of 96 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Report No.: N25112704032E Page 70 of 96 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report No.: N25112704032E Page 71 of 96 OBW NVNT ac20 5745MHz Ant1 OBW NVNT ac20 5785MHz Ant1 Report No.: N25112704032E Page 72 of 96 OBW NVNT ac20 5825MHz Ant1 OBW NVNT ac40 5755MHz Ant1 Report No.: N25112704032E Page 73 of 96 OBW NVNT ac40 5795MHz Ant1 OBW NVNT ac80 5775MHz Ant1 Report No.: N25112704032E Page 74 of 96 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -9.76 0.54 -9.22 30 Pass NVNT a 5785 Ant1 -8.07 0.53 -7.54 30 Pass NVNT a 5825 Ant1 -8.62 0.18 -8.44 30 Pass NVNT n20 5745 Ant1 -11.29 0.61 -10.68 30 Pass NVNT n20 5785 Ant1 -8.57 0.6 -7.97 30 Pass NVNT n20 5825 Ant1 -5.43 0.12 -5.31 30 Pass NVNT n40 5755 Ant1 -15.4 1.13 -14.27 30 Pass NVNT n40 5795 Ant1 -15.05 0.38 -14.67 30 Pass NVNT ac20 5745 Ant1 -9.01 0.6 -8.41 30 Pass NVNT ac20 5785 Ant1 -9.57 0.61 -8.96 30 Pass NVNT ac20 5825 Ant1 -9.38 0.59 -8.79 30 Pass NVNT ac40 5755 Ant1 -15.98 1…

Text truncated - open the document above for the full version.

Report No.: N25112704032E Page 1 of 96 WIFI 5.2G: Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 87.63 0.57 0.74 NVNT a 5200 Ant1 88.16 0.55 0.74 NVNT a 5240 Ant1 87.94 0.56 0.74 NVNT n20 5180 Ant1 85.85 0.66 0.87 NVNT n20 5200 Ant1 86.95 0.61 0.87 NVNT n20 5240 Ant1 86.9 0.61 0.87 NVNT n40 5190 Ant1 76.08 1.19 1.72 NVNT n40 5230 Ant1 77 1.13 1.72 NVNT ac20 5180 Ant1 86.17 0.65 0.87 NVNT ac20 5200 Ant1 86.38 0.64 0.86 NVNT ac20 5240 Ant1 86.98 0.61 0.86 NVNT ac40 5190 Ant1 74.25 1.29 1.72 NVNT ac40 5230 Ant1 77.56 1.1 1.72 NVNT ac80 5210 Ant1 62.66 2.03 3.45 Report No.: N25112704032E Page 2 of 96 Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.: N25112704032E Page 3 of 96 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.: N25112704032E Page 4 of 96 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No.: N25112704032E Page 5 of 96 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.: N25112704032E Page 6 of 96 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Report No.: N25112704032E Page 7 of 96 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac40 5190MHz Ant1 Report No.: N25112704032E Page 8 of 96 Duty Cycle NVNT ac40 5230MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant1 Report No.: N25112704032E Page 9 of 96 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 10.84 24 Pass NVNT a 5200 Ant1 10.62 24 Pass NVNT a 5240 Ant1 11.02 24 Pass NVNT n20 5180 Ant1 10.77 24 Pass NVNT n20 5200 Ant1 10.64 24 Pass NVNT n20 5240 Ant1 10.77 24 Pass NVNT n40 5190 Ant1 11.16 24 Pass NVNT n40 5230 Ant1 11.27 24 Pass NVNT ac20 5180 Ant1 10.85 24 Pass NVNT ac20 5200 Ant1 10.93 24 Pass NVNT ac20 5240 Ant1 10.93 24 Pass NVNT ac40 5190 Ant1 11.17 24 Pass NVNT ac40 5230 Ant1 11.2 24 Pass NVNT ac80 5210 Ant1 11.42 24 Pass Note: The average power value already includes the duty cycle factor Report No.: N25112704032E Page 10 of 96 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 30 Pass NVNT a 5200 Ant1 24.831 Pass NVNT a 5240 Ant1 25.515 Pass NVNT n20 5180 Ant1 30 Pass NVNT n20 5200 Ant1 25.419 Pass NVNT n20 5240 Ant1 24.732 Pass NVNT n40 5190 Ant1 58.056 Pass NVNT n40 5230 Ant1 56.874 Pass NVNT ac20 5180 Ant1 29.349 Pass NVNT ac20 5200 Ant1 24.876 Pass NVNT ac20 5240 Ant1 28.992 Pass NVNT ac40 5190 Ant1 58.272 Pass NVNT ac40 5230 Ant1 58.578 Pass NVNT ac80 5210 Ant1 118.272 Pass Report No.: N25112704032E Page 11 of 96 Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: N25112704032E Page 12 of 96 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.: N25112704032E Page 13 of 96 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: N25112704032E Page 14 of 96 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.: N25112704032E Page 15 of 96 -26dB Bandwidth NVNT ac20 5180MHz Ant1 -26dB Bandwidth NVNT ac20 5200MHz Ant1 Report No.: N25112704032E Page 16 of 96 -26dB Bandwidth NVNT ac20 5240MHz Ant1 -26dB Bandwidth NVNT ac40 5190MHz Ant1 Report No.: N25112704032E Page 17 of 96 -26dB Bandwidth NVNT ac40 5230MHz Ant1 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Report No.: N25112704032E Page 18 of 96 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.84 NVNT a 5200 Ant1 16.882 NVNT a 5240 Ant1 16.759 NVNT n20 5180 Ant1 17.725 NVNT n20 5200 Ant1 17.608 NVNT n20 5240 Ant1 17.647 NVNT n40 5190 Ant1 36.44 NVNT n40 5230 Ant1 36.344 NVNT ac20 5180 Ant1 17.845 NVNT ac20 5200 Ant1 17.704 NVNT ac20 5240 Ant1 17.899 NVNT ac40 5190 Ant1 36.386 NVNT ac40 5230 Ant1 36.308 NVNT ac80 5210 Ant1 75.772 Report No.: N25112704032E Page 19 of 96 Test Graphs OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No.: N25112704032E Page 20 of 96 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Report No.: N25112704032E Page 21 of 96 OBW NVNT n20 5200MHz Ant1 OBW NVNT n20 5240MHz Ant1 Report No.: N25112704032E Page 22 of 96 OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report No.: N25112704032E Page 23 of 96 OBW NVNT ac20 5180MHz Ant1 OBW NVNT ac20 5200MHz Ant1 Report No.: N25112704032E Page 24 of 96 OBW NVNT ac20 5240MHz Ant1 OBW NVNT ac40 5190MHz Ant1 Report No.: N25112704032E Page 25 of 96 OBW NVNT ac40 5230MHz Ant1 OBW NVNT ac80 5210MHz Ant1 Report No.: N25112704032E Page 26 of 96 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -7.46 0.57 -6.89 11 Pass NVNT a 5200 Ant1 -5.96 0.55 -5.41 11 Pass NVNT a 5240 Ant1 -6.45 0.56 -5.89 11 Pass NVNT n20 5180 Ant1 -8.12 0.66 -7.46 11 Pass NVNT n20 5200 Ant1 -7.16 0.61 -6.55 11 Pass NVNT n20 5240 Ant1 -6.99 0.61 -6.38 11 Pass NVNT n40 5190 Ant1 -13.57 1.19 -12.38 11 Pass NVNT n40 5230 Ant1 -13.89 1.13 -12.76 11 Pass NVNT ac20 5180 Ant1 -7.53 0.65 -6.88 11 Pass NVNT ac20 5200 Ant1 -6.51 0.64 -5.87 11 Pass NVNT ac20 5240 Ant1 -7.24 0.61 -6.63 11 Pass NVNT ac40 5190 Ant1 -14.14 1.29 -12.85 11 Pass NVNT ac40 5230 Ant1 -13.95 1.1 -12.85 11 Pass NVNT ac80 5210 Ant1 -21.95 2.03 -19.92 11 Pass Report No.: N25112704032E Page 27 of 96 Test Graphs PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No.: N25112704032E Page 28 of 96 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Report No.: N25112704032E Page 29 of 96 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Report No.: N25112704032E Page 30 of 96 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report No.: N25112704032E Page 31 of 96 PSD NVNT ac20 5180MHz Ant1 PSD NVNT ac20 5200MHz Ant1 Report No.: N25112704032E Page 32 of 96 PSD NVNT ac20 5240MHz Ant1 PSD NVNT ac40 5190MHz Ant1 Report No.: N25112704032E Page 33 of 96 PSD NVNT…

Text truncated - open the document above for the full version.

All of Implementation antenna Main antenna (Antenna Label:A): LTE:B5/8/18/19/20/26/28/RX&TX/B1/2/3/4/7/34/38/39/40/41/66/RX WCDMA B5/8/RX&TX B1/2/4/RX GSM B5/8 /RX&TX/B2/3/RX DIV antenna(Antenna Label:B): LTE B1/ 2/3/4/7/34/38/39/40/41/66/RX&TX WCDMA B1/2/4/RX&TX WiFi/BT 2.4G 2412MHz~2472MHz 5G 5.1MHz~5.82MHz& main antenna VSWR： RL： SMITH： main antenna gain： GSM 850 average: -1.97dBi; EGSM 900 average:-2.14Bi; WCDMA B5 average: -1.97dBi; WCDMA B8 average: -2.14dBi; LTE FDD B5 average: -1.97dBi; LTE FDD B8 average: -2.14dBi; LTE FDD B18 average: -1.94dBi; LTE FDD B19 average: -1.96dBi; LTE FDD B20 average:-1.78dBi; LTE FDD B26 average: -1.99dBi LTE FDD B28 average: -1.65dBi; diversity antenna： VSWR： RL： SMITH： diversity antenna gain： DCS1800 average: -1.16dBi; PCS1900 average: -0.50dBi; WCDMA B1 average: -1.18dBi; WCDMA B2 average: -0.68dBi; WCDMA B4 average: -1.16dBi; LTE FDD B1 average: -1.18dBi; LTE FDD B2 average: -0.68dBi; LTE FDD B3average: -1.16dBi; LTE FDD B4 average: -1.16dBi; LTE FDD B7 average:-2.41dBi; LTE FDD B34 average:-1.20dBi; LTE FDD B38 average:-2.40dBi; LTE FDD B39 average:-0.74dBi; LTE TDD B40 average: -2.21dBi; LTE TDD B41 average: -2.44dBi; BT/2.4GWIFI/5GWIFI antenna： VSWR： RL： SMITH： MAX gain about BT/2.4GWIFI/5GWIFI antenna： GPS（1.57542Ghz）gain: -0.46dBi; BT/2.4GWIFI: -1.95dBi; 5G WIFI:-0.07dBi; 制造商名称： 河源市迅维通讯技术有限公司 （Heyuan Xunwei Communication Technology Co., Ltd.） 地址:深圳市南山区高新北六道兰光科技园A座3楼A316室 （Address: Room A316, 3rd Floor, Building A, Languang Technology Park, Gaoxin North Sixth Road, Nanshan District, Shenzhen）

Page 221 of 261 Report No.: N25112704008E Page 222 of 261 Report No.: N25112704008E Page 223 of 261 Report No.: N25112704008E Page 224 of 261 Report No.: N25112704008E Page 225 of 261 Report No.: N25112704008E Page 226 of 261 Report No.: N25112704008E Page 227 of 261 Report No.: N25112704008E Page 228 of 261 Report No.: N25112704008E Page 229 of 261 Report No.: N25112704008E Page 230 of 261 Report No.: N25112704008E Page 231 of 261 Report No.: N25112704008E Page 232 of 261 Report No.: N25112704008E Page 233 of 261 Report No.: N25112704008E Page 234 of 261 Report No.: N25112704008E Page 235 of 261 Report No.: N25112704008E Page 236 of 261 Report No.: N25112704008E Page 237 of 261 Report No.: N25112704008E Page 238 of 261 Report No.: N25112704008E Page 239 of 261 Report No.: N25112704008E Page 240 of 261 Report No.: N25112704008E Page 241 of 261 Report No.: N25112704008E Page 242 of 261 Report No.: N25112704008E Page 243 of 261 Report No.: N25112704008E

Page 198 of 261 Report No.: N25112704008E Page 199 of 261 Report No.: N25112704008E Page 200 of 261 Report No.: N25112704008E Page 201 of 261 Report No.: N25112704008E Page 202 of 261 Report No.: N25112704008E Page 203 of 261 Report No.: N25112704008E Page 204 of 261 Report No.: N25112704008E Page 205 of 261 Report No.: N25112704008E Page 206 of 261 Report No.: N25112704008E Page 207 of 261 Report No.: N25112704008E Page 208 of 261 Report No.: N25112704008E Page 209 of 261 Report No.: N25112704008E Page 210 of 261 Report No.: N25112704008E Page 211 of 261 Report No.: N25112704008E Page 212 of 261 Report No.: N25112704008E Page 213 of 261 Report No.: N25112704008E Page 214 of 261 Report No.: N25112704008E Page 215 of 261 Report No.: N25112704008E Page 216 of 261 Report No.: N25112704008E Page 217 of 261 Report No.: N25112704008E Page 218 of 261 Report No.: N25112704008E Page 219 of 261 Report No.: N25112704008E Page 220 of 261 Report No.: N25112704008E

Page 145 of 261 Report No.: N25112704008E F. 3D Image 3D screen shot Hot spot position Page 146 of 261 Report No.: N25112704008E 19# SAR Measurement at LTE band 4 (Cheek, Right) Date of measurement: 1/12/2025 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.50 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Right head Device Position Cheek Band LTE band 4 Signal LTE FDD Channel Center [EARFCN] / Channel Center [MHz] Middle (20175)/ frequency 1732.50 M…
