2ANMU-WP12Smart phone

2 74mm 81mm 14.3mm 74mm 81mm 14.3mm 74mm 81mm 14.3mm 2 " HD+ IPS Touchscreen 2 ” TMM Note:Based On Local Frequency BandNota: basato sulla banda di frequenza localeHinweis: Basierend auf dem lokalen Frequenzband Receiver Built-in Battery Rear main camera Rear camera Rear main camera Micro 5pin charging port Micro 5pin charging cable TMM GSM:900/1800 WCDMA:1/8 FDD:1/3/7/8/20 GSM:900/1800 WCDMA:1/8 FDD:1/3/7/8/20 RF Specification: Function Operation Frequency Max RF output power: Limit BLE 2402MHz–2480MHz -1.68 dBm20 dBm. BT(BR+EDR) 2402MHz–2480MHz 6.04 dBm 20 dBm. WIFI 802.11b/g/ n(HT20,HT40) 802.11b/g/n(20MHz): 2412~2472MHz; 802.11n(40MHz):2422~2462MHz 14.86 dBm 20 dBm. Wi-Fi 5.2G(802.11a/n20/n40/ac2 0/ac40/ac80) 802.11a/ n20/ac20:5180MHz~5240MHz 802.11 n40/ac40:5190MHz~5230MHz 802.11ac80:5210MHz 10 dBm 23 dBm. Wi-Fi 5.3G(802.11a/n20/n40/ac2 0/ac40/ac80) 802.11a/ n20/ac20: 5260MHz~5320MHz 802.11 n40/ac40: 5270MHz~5310MHz 802.11ac80: 5290MHz 9.79 dBm 23 dBm. Wi-Fi 5.6G(802.11a/n20/n40/ac2 0/ac40/ac80) 802.11a/ n20/ac20: 5500MHz~5700MHz 802.11 n40/ac40: 5510MHz~5670MHz 802.11ac80: 5775MHz 10.11 dBm 23 dBm. GSM/GPRS/EGPRS 900 TX(Uplink):880M‐915MHZ; RX(Downlink):925M‐960MHZ 33.08dBm class 4 (33±3dBm) GSM/GPRS/EGPRS 1800 TX(Uplink):1710M‐1785MHZ; RX(Downlink):1805M‐1880MHZ 30.53dBm class 1 (30±3dBm) WCDMA B1 TX(Uplink):1920-1980MHz; RX(Downlink):2110-2170MHz 22.35 dBm 24 (dBm) +1,7/-3,7 (dB) WCDMA B8 TX(Uplink): 880-915MHz; RX(Downlink):925-960MHz 22.54 dBm 24 (dBm) +1,7/-3,7 (dB) LTE FDD B1 TX(Uplink):1920-1980MHz; RX(Downlink):2110-2170MHz 24.29 dBm 23(dBm) ±2,7(dB) LTE FDD B3 TX(Uplink) :1710-1785MHz; RX(Downlink):1805-1880MHz 23.9 dBm 23(dBm) ±2,7(dB) LTE FDD B7 TX(Uplink) :2500-2570MHz; RX(Downlink):2620-2690MHz 24.99 dBm 23(dBm) ±2,7(dB) LTE FDD B8 TX(Uplink): 880MHz to 915 MHz RX(Downlink): 925 MHz to 960 MHz 23.81 dBm 23(dBm) ±2,7(dB) LTE FDD B20 TX(Uplink) 832MHz~862MHz; RX(Downlink)791MHz~821MHz 23.34 dBm 23(dBm) ±2,7(dB) FM Rx(Downlink): 87.5MHz~108MHz -- -- GPS Rx(Downlink): 1.57542GHz -- -- NFC 13.56MHz 14.47dBuA/m@10m 60dBuA/m@10m Warning: 1. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDINGTO THE INSTRUCTIONS. 2. Use careful with the earphone maybe possible excessive sound pressurefrom earphones and headphones can cause hearing loss. 3. The product shall only be connected to a USB interface of version USB2.0. 4. Adapter shall be installed near the equipment and shall be easily accessible. 5. Operation temperature:-10~40ºC. 6. The plug considered as disconnect device of adapter. 7. The device complies with RF specifications when the device used at 5mm form your body(SAR limit 2.0 W/Kg for 10-g) and at 0mm form your Member(DAS limit 4.0 W/Kg for 10-g). head SAR Value: 0.621W/Kg for 10-g; Body SAR Value: 1.549W/Kg for 10-g; Member DAS Value: 3.726W/Kg for 10-g; 8. Accessories information: Battery: DC 3.85V, 4000mAh, 15.4Wh Adapter Model:HJ-0501000B3-EU Input: 100-240V~50/60Hz 0.15A Output: 5.0V1.0A 5.0W SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD hereby declares that this Smart Phone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This information has to be presented in such a way that the user can readily understand it. Typically, this will necessitate translation into every local language (required by national consumer laws) of the markets where the equipment is intended to be sold. Illustrations, pictograms and using international abbreviations for country names may help reduce the need for translation. EU Declaration of Conformity We, SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD (A-SIDE A2 BUILDING 2/F ENET NEW INDUSTRIAL PARK,NO.20 DAFU INDUSTRIAL ZONE, AOBEI COMMUNITY, GUANLAN, LONGHUA NEW DISTRICT,SHENZHEN CHINA) hereby declares that this 4G Smart Phone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. According to Article 10(2) of Directive 2014/53/EU, the Aqua lnfinity can be used in Europe without restriction. The full text of the EU declaration DOC is available Restrictions in the 5 GHz band: According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE), Bulgaria (BG), the Czech Republic (CZ),Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain(ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania(LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria(AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK),Finland (FI), Sweden (SE), Turkey (TR), Norway(NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI). The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. ES LU RO CZ FR HU SI DK HR BE BG DE EE IE EL IT Cy LV LT SK MT NL AT PL PT FI SE TR NO CH IS LI DECLARATION OF CONFORMITY I hereby declare that the product Product Name: Smart Phone Brand Name: OUKITEL Model: WP12 (Name of product, type or model, batch or serial number) System components: Battery: Rechargeable Li-ion Battery; Model: S86; Specification: DC 3.85V, 4000mAh, 15.4Wh; Adapter: Model:HJ-0501000B3-EU Input: 100-240V~50/60Hz 0.15A Output: 5.0V1.0A 5.0W USB Cable: Length: 80cm; Earphone: Length: 120cm; Hardware Version: TE656_MAIN_PCB_V1.1 Software Version: OUKITEL_WP12_EEA_V01 Satisfies all the technical regulations applicable to the product within the scope of Council Directives 2014/53/EU, 2014/35/EU and 2014/30/EU:and declare that the same application has not been lodged with any other notified body. EN 62368-1:2014+A11:2017 EN 50360:2017 EN 50566:2017 EN 62209-1:2016 EN 62209-2:2010 EN 62479:2010 ETSI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-3 V2.1.1 (2019-03) ETSI EN 301 489-17 V3.2.4 (2020-09) ETSI EN 301 489-19 V2.1.1 (2019-04) (Draft) ETSI EN 301 489-52 …

Text truncated - open the document above for the full version.

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Date: May 10, 2020 FCC ID: 2ANMU-WP12 Model Number: WP12 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD, declare that this EUT (FCC ID: 2ANMU-WP12) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Junfei zhao / Manager Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Phone: +86-755-83834509 Fax: +86-755-83838762 Email: [email protected]

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Agent Authorization Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address: A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product Name: Smart Phone Model Number(s): WP12 Product Description: Smart Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/05/10 Name: Junfei zhao Title: manager Company: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD

SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/05/10 Subject; Request for Confidentiality FCC ID: 2ANMU-WP12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC_Software_Security_Requirements_for_UNII_devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Junfei zhao Title: Manager Email: [email protected]

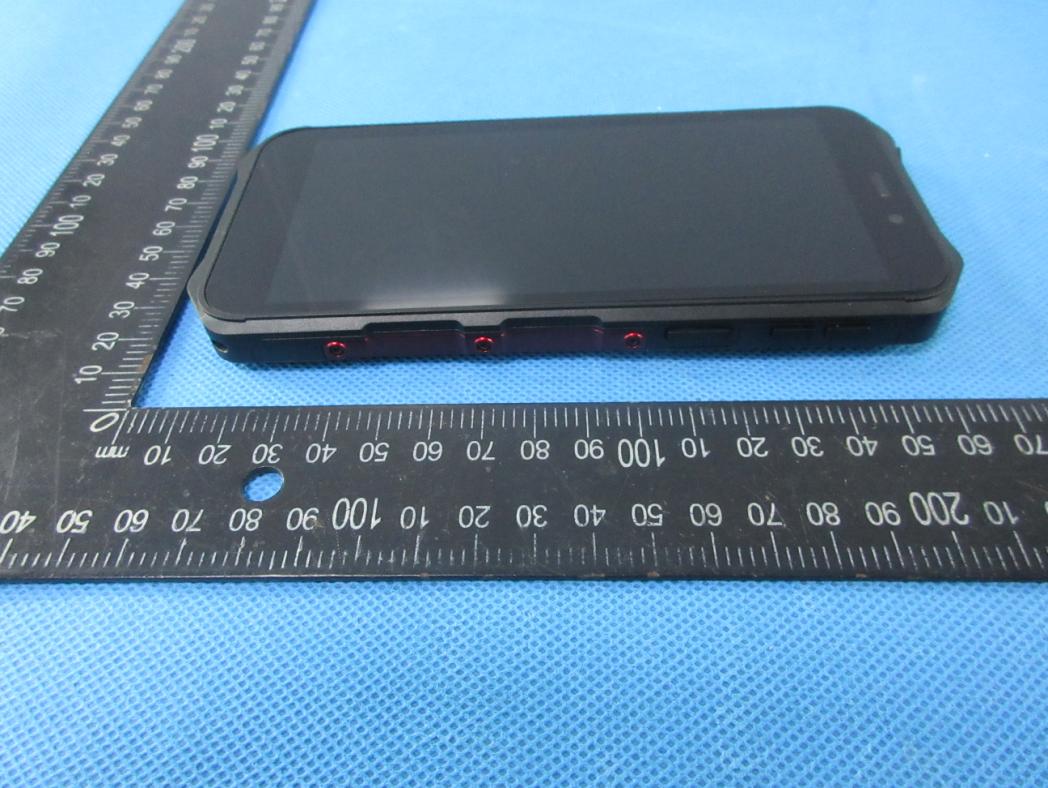

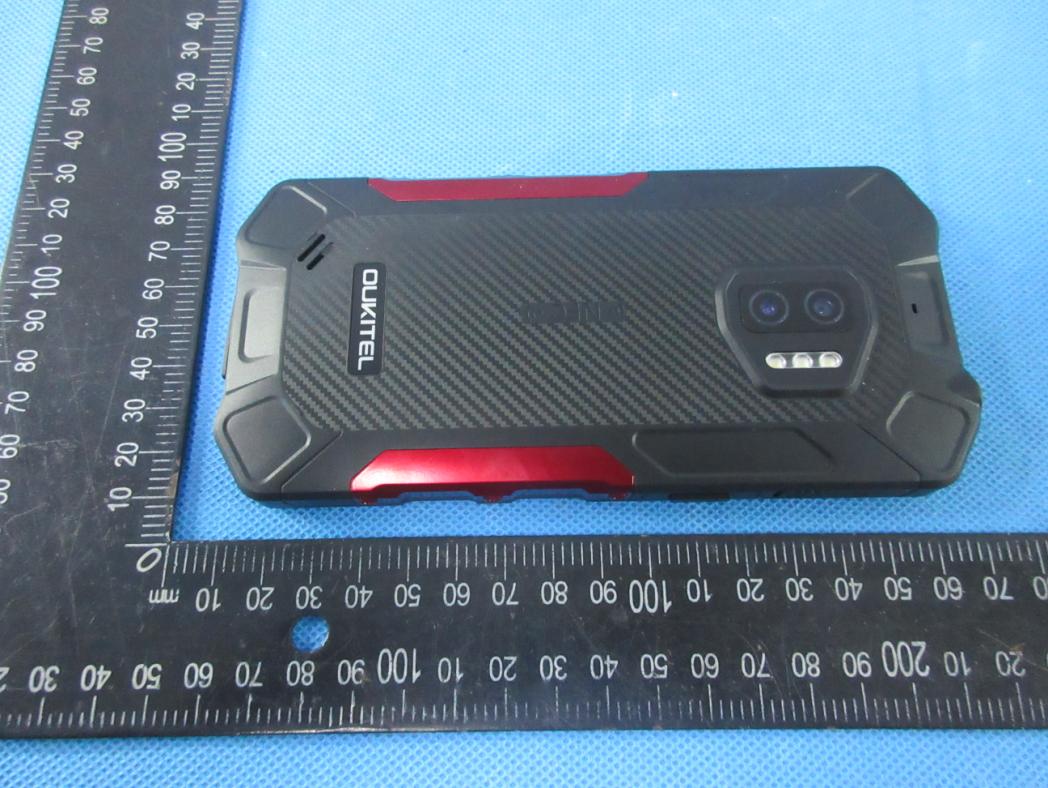

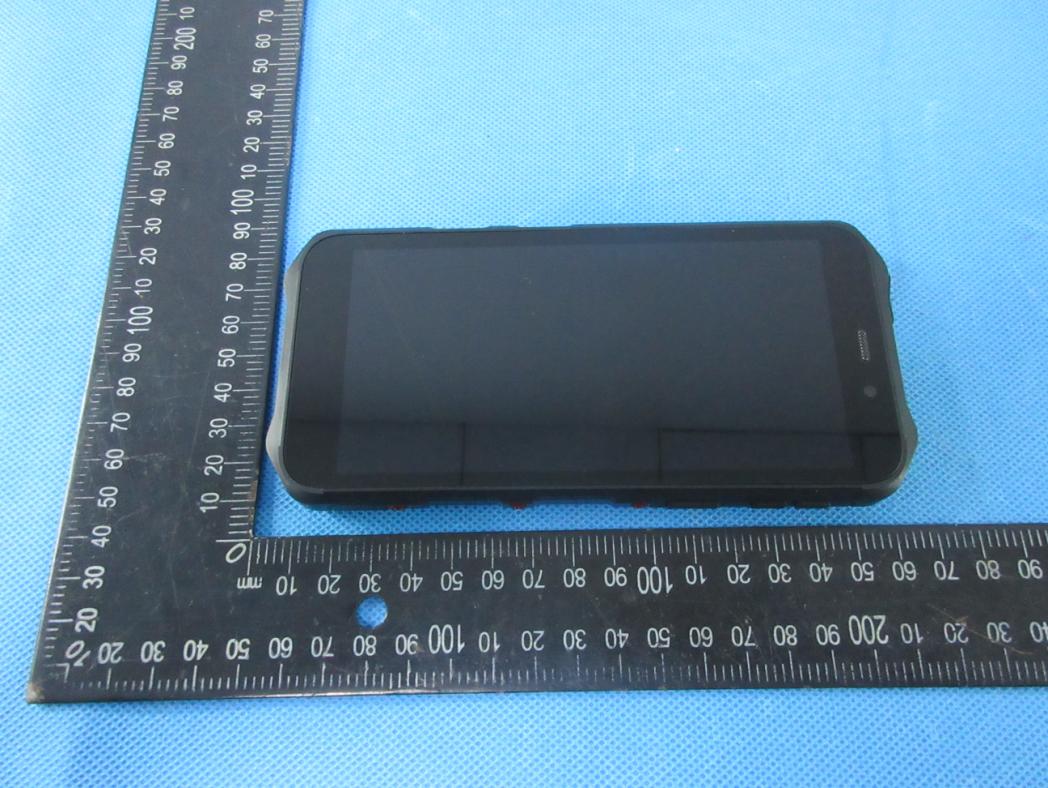

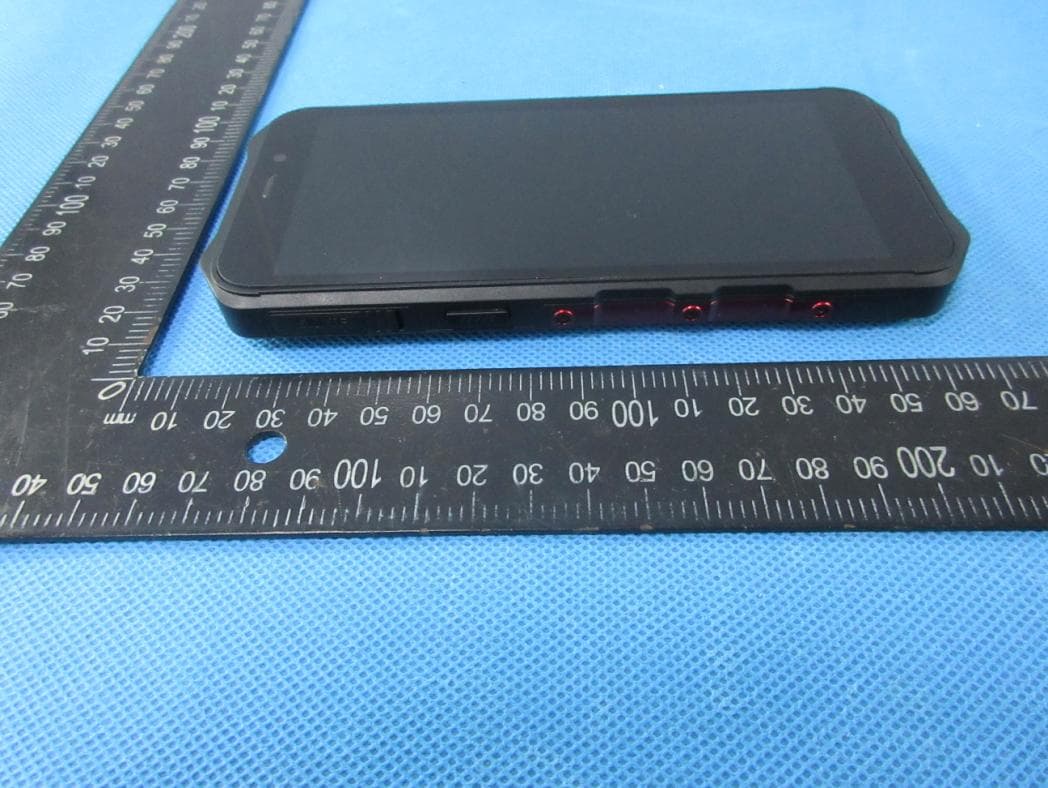

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Label location

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 WIFI/BT ANT LTE AUX ANT Photo 17 Photo 18 GSM/WCDMA/LTE Main ANT NFC ANT

Page 1 of 231 Report No.: S21040701602001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Smart Phone Brand Name： OUKITEL Model Name： WP12 Family Model： N/A Report No.： S21040701602001 FCC ID： 2ANMU-WP12 Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 231 Report No.: S21040701602001 TEST RESULT CERTIFICATION Applicant’s name .................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Manufacturer's Name ........... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address .................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product description Product name ......................... : Smart Phone Brand Name ......................... : OUKITEL Model and/or type reference : WP12 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Apr. 08, 2021 ~ Apr. 19, 2021 Date of Issue .......................................... : May 08, 2021 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Alex Li) Page 3 of 231 Report No.: S21040701602001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release May 08, 2021 Cheng Jiawen Page 4 of 231 Report No.: S21040701602001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .....................................................…

Text truncated - open the document above for the full version.

Page 101 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.1443 0.6697 0.3308 0.2238 0.1289 0.0804 0.0581 3D screen shot Hot spot position Page 102 of 231 Report No.: S21040701602001 MEASUREMENT 7 Date of measurement: 9/4/2021 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band4_WCDMA1700 Channels Middle Signal WCDMA (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1732.600000 Relative permittivity (real part) 40.169395 Relative permittivity (imaginary part) 13.496682 Conductivity (S/m) 1.298681 Variation (%) 0.200000 SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-47.00 SAR Peak: 0.70 W/kg SAR 10g (W/Kg) 0.331600 SAR 1g (W/Kg) 0.505243 Page 103 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.6783 0.5287 0.3847 0.2746 0.2026 0.1397 0.1049 3D screen shot Hot spot position Page 104 of 231 Report No.: S21040701602001 MEASUREMENT 8 Date of measurement: 9/4/2021 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band4_WCDMA1700 Channels High Signal WCDMA (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1752.600000 Relative permittivity (real part) 40.039097 Relative permittivity (imaginary part) 13.507382 Conductivity (S/m) 1.314719 Variation (%) -0.410000 SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=3.00 SAR Peak: 1.37 W/kg SAR 10g (W/Kg) 0.481233 SAR 1g (W/Kg) 0.858778 Page 105 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.3182 0.8974 0.5440 0.3272 0.2053 0.1179 0.0839 3D screen shot Hot spot position Page 106 of 231 Report No.: S21040701602001 MEASUREMENT 9 Date of measurement: 8/4/2021 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.845196 Relative permittivity (imaginary part) 19.080215 Conductivity (S/m) 0.886594 Variation (%) 0.520000 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-53.00 SAR Peak: 0.37 W/kg SAR 10g (W/Kg) 0.165647 SAR 1g (W/Kg) 0.260117 Page 107 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3532 0.2716 0.1967 0.1444 0.1069 0.0780 0.0599 3D screen shot Hot spot position Page 108 of 231 Report No.: S21040701602001 MEASUREMENT 10 Date of measurement: 8/4/2021 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.845196 Relative permittivity (imaginary part) 19.080215 Conductivity (S/m) 0.886594 Variation (%) 1.640000 SURFACE SAR VOLUME SAR Maximum location: X=-12.00, Y=-11.00 SAR Peak: 0.43 W/kg SAR 10g (W/Kg) 0.203060 SAR 1g (W/Kg) 0.303980 Page 109 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.4269 0.3211 0.2354 0.1780 0.1423 0.1150 0.0915 3D screen shot Hot spot position Page 110 of 231 Report No.: S21040701602001 MEASUREMENT 11 Date of measurement: 11/4/2021 A. Experimental conditions. Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Left head Device Position Cheek Band IEEE 802.11b ISM Channels Middle Signal IEEE802.11b (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 2437.000000 Relative permittivity (real part) 39.561298 Relative permittivity (imaginary part) 12.956961 Conductivity (S/m) 1.754229 Variation (%) -4.110000 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=-13.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.052317 SAR 1g (W/Kg) 0.087473 Page 111 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.1663 0.0936 0.0484 0.0376 0.0282 0.0266 0.0211 3D screen shot Hot spot position Page 112 of 231 Report No.: S21040701602001 MEASUREMENT 12 Date of measurement: 11/4/2021 A. Experimental conditions. Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band IEEE 802.11b ISM Channels Middle Signal IEEE802.11b (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 2437.000000 Relative permittivity (real part) 39.561298 Relative permittivity (imaginary part) 12.956961 Conductivity (S/m) 1.754229 Variation (%) 0.580000 SURFACE SAR VOLUME SAR Maximum location: X=10.00, Y=2.00 SAR Peak: 0.34 W/kg SAR 10g (W/Kg) 0.097734 SAR 1g (W/Kg) 0.193726 Page 113 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3264 0.2099 0.1145 0.0644 0.0381 0.0295 0.0270 3D screen shot Hot spot position Page 114 of 231 Report No.: S21040701602001 MEASUREMENT 13 Date of measurement: 10/4/2021 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 2 Channels Middle Signal LTE (Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative permittivity (real part) 39.264702 Relative permittivity (imaginary part) 13.771500 Conductivity (S/m) 1.438357 Variation (%) -2.450000 SURFACE SAR VOLUME SAR Maximum location: X=-66.00, Y=-6.00 SAR Peak: 0.43 W/kg SAR 10g (W/Kg) 0.128022 SAR 1g (W/Kg) 0.228239 Page 115 of 231 Report No.: S21040701602001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.6194 0.2539 0.0716 0.0799 0.0627 0.0581 0.0210 3D screen shot Hot spot position Page 116 of 231 Report No.: S21040701602001 MEASUREMENT 14 Date of measurement: 10/4/2021 A. Experimental conditions. Area Scan dx=15…

Text truncated - open the document above for the full version.

Page 171 of 231 Report No.: S21040701602001 Page 172 of 231 Report No.: S21040701602001 Page 173 of 231 Report No.: S21040701602001 Page 174 of 231 Report No.: S21040701602001 Page 175 of 231 Report No.: S21040701602001 Page 176 of 231 Report No.: S21040701602001 Page 177 of 231 Report No.: S21040701602001 Page 178 of 231 Report No.: S21040701602001 Page 179 of 231 Report No.: S21040701602001 Page 180 of 231 Report No.: S21040701602001 Page 181 of 231 Report No.: S21040701602001 Page 182 of 231 Report No.: S21040701602001 Page 183 of 231 Report No.: S21040701602001 Page 184 of 231 Report No.: S21040701602001 Page 185 of 231 Report No.: S21040701602001 Page 186 of 231 Report No.: S21040701602001 Page 187 of 231 Report No.: S21040701602001 Page 188 of 231 Report No.: S21040701602001 Page 189 of 231 Report No.: S21040701602001 Page 190 of 231 Report No.: S21040701602001 Page 191 of 231 Report No.: S21040701602001 Page 192 of 231 Report No.: S21040701602001 Page 193 of 231 Report No.: S21040701602001 Page 194 of 231 Report No.: S21040701602001 Page 195 of 231 Report No.: S21040701602001 Page 196 of 231 Report No.: S21040701602001 Page 197 of 231 Report No.: S21040701602001 Page 198 of 231 Report No.: S21040701602001 Page 199 of 231 Report No.: S21040701602001 Page 200 of 231 Report No.: S21040701602001 Page 201 of 231 Report No.: S21040701602001 Page 202 of 231 Report No.: S21040701602001 Page 203 of 231 Report No.: S21040701602001 Page 204 of 231 Report No.: S21040701602001 Page 205 of 231 Report No.: S21040701602001 Page 206 of 231 Report No.: S21040701602001 Page 207 of 231 Report No.: S21040701602001 Page 208 of 231 Report No.: S21040701602001 Page 209 of 231 Report No.: S21040701602001 Page 210 of 231 Report No.: S21040701602001 Page 211 of 231 Report No.: S21040701602001 Page 212 of 231 Report No.: S21040701602001 Page 213 of 231 Report No.: S21040701602001 Page 214 of 231 Report No.: S21040701602001 Page 215 of 231 Report No.: S21040701602001 Page 216 of 231 Report No.: S21040701602001 Page 217 of 231 Report No.: S21040701602001 Page 218 of 231 Report No.: S21040701602001 Page 219 of 231 Report No.: S21040701602001 Page 220 of 231 Report No.: S21040701602001

Report No.: S21040701603002 Version.1.3 Page 1 of 63 RADIO TEST REPORT FCC ID: 2ANMU-WP12 Product: Smart Phone Trade Mark: OUKITEL Model No.: WP12 Family Model: N/A Report No.: S21040701603002 Issue Date: 29 Apr, 2021 Prepared for SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.: S21040701603002 Version.1.3 Page 2 of 63 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 1M: ............................................................................................................................................................................. 34 2M: ............................................................................................................................................................................. 49 Report No.: S21040701603002 Version.1.3 Page 3 of 63 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ....................................... : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Manufacturer's Name .................. : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ....................................... : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN, LONGHUA SHENZHEN, 518XXX China Product description Product name .............................. : Smart Phone Model and/or type reference ...... : WP12 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced e…

Text truncated - open the document above for the full version.
