2ANPT-PT4252Microtope LED Strip

Microtope LED Strip- English Tropical LED Light Tropical High output LED Light 33W call-out1: Wifi-controlled call-out2: My Exo Terra APP call-out3: With UVA emitting LED’s call-out4: Programmable 24-hour Light Cycle with Sunrise and Sunset call-out5: Monitor and control your lights from anywhere in the World! call-out6: IP54 rated waterproof housing Ideal light source for bio-active planted terrariums HTE LEDs for extreme high light output and enhanced penetration Stimulates live plant and moss growth Improves the animal’s perception of its environment Programmable 24-hour Light Cycle with Sunrise and Sunset Seven LED color types, including UVA and 12000K bright white LED’s Fully customisable light spectrum through individually adjustable LEDs Can be operated manually or Wifi-controlled via the easy-to-use My Exo Terra App Monitor and control your lights from anywhere in the World Touch switch with dimming function Waterproof housing rated IP54 for use in humid environments The Wifi-controlled Exo Terra Tropical LED Light is an ideal light source for bio-active planted terrariums. The Tropical LED Light consists of 7 different band wave High Thermal Efficiency LEDs, including UVA and 12000K bright white LEDs, for extreme high light output and enhanced penetration. Its high visible light levels, in the correct spectrum, contribute to the physiological wellbeing of your reptiles, amphibians and invertebrates and lets them experience and perceive the colors in their environment more naturally. The UVA LEDs also contribute to the animal’s overall wellbeing and stimulate appetite, activity and reproductive behavior. The high light intensity and enhanced penetration ensures that the light reaches all layers of vegetation, even the bottom layer, resulting in sustained lush plant growth. Orchids, Bromeliads, Tillandsias (air plants), carnivorous plants, mosses and lichen all thrive under the Exo Terra Tropical LED Light’s strong Photosynthetic Active Radiation. The Wifi-controlled Tropical LED Light can be operated both manually or via the My Exo Terra app on your mobile device. The easy-to-use My Exo Terra App allows you to fully customise the light spectrum, sunrise & sunset and monitor and adjust these, according to the needs of the animals and plants housed in your terrarium, from anywhere in the world via your smartphone. Replicate light spectrums of specific seasons and unique climates to stimulate appetite and breeding behavior of your animals, enhance bud development and flowering in your plants, etc... . User Manual The Exo TerraTropicalLED Lightconnectsto your2.4g wirelessnetworkwithoutthe need for an additionalhub. The My Exo TerraApp lets you monitor,controland programyourExo Terrasmartterrarium devicesvia yourAndroidor iOS device.It allowsyou to adjustyourlights,temperatures, humidifiers,water-levels,camera’s (andmore... ) for multipleterrariumsor habitats,creating naturalenvironmentsand set the rightconditionswitha tap on yoursmartphone.You can evenuse it to monitor& controlyourhabitatsremotelyfromanywherein the worldas long as the deviceis connectedto a 2.4g wirelessnetwork.Downloadthe FREEMy Exo TerraApp on yourmobiledeviceand connectyourExo Terrasmartdevicesto programand controlthe environmentin yourterrariums. For instance;at dawnyou can set the My Exo TerraApp to simulatesunrise,turn on yourUV lightsat a certaintimeand higheryourtemperatureoverthe courseof the day. At dusk,you can reversethe conditionsby reducingthe temperature,turn off the UV lightsand simulate sunset.If you havea wifi controlledMonsoonPRO hookedup, you can set a sprayprogram at varioustimeswith variousdurations.You can evenimplementa seasonalMonsoon settingthat will replicatethe variousrainyseasonsduringthe year.By usingthe wifi controlledHumidifier(PRO?)you can regulatea dailyhumidityfluctuationas well as a seasonalfluctuation,similarto the humidityyouranimalsand plantsexperiencein their environment. The TropicalLED Lightfeatures7 uniquebandwavesfor optimalspectrumresults: 390nm 400nm 460nm 630nm 730nm 4000K 12000K The TropicalLED Light24Wgenerates1480lmwitha max of 29730Lux and a PAR of 530! The TropicalLED Light33Wgenerates2150lmwitha max of 31700Lux and a PAR of 585! The TropicalLED Light49Wgenerates2960lmwitha max of 32100Lux and a PAR of 625! A specificallyengineeredaluminumshelloffersincreasedheattransferresultingin a longer LED lifetimeof 50.000hours The TropicalLED Light24W(PT4251)convenientlyfits on all NaturalTerrariumSmall versions. The TropicalLED Light33W(PT4252)convenientlyfits on all NaturalTerrariumMedium versions.By usingthe (included)spacers,the TropicalLED Light32W(PT4252)also fits on 2 adjacentNaturalTerrariumMiniversions. The TropicalLED Light49W(PT4253)convenientlyfits on all NaturalTerrariumLarge versions.By usingthe (included)spacers,the TropicalLED Light48Walso fits on 2 adjacent NaturalTerrariumSmallversions,1 TerrariumMediumand 1 adjacentNaturalTerrarium Smallor 3 adjacentNaturalTerrariumMiniversions. QR-code:TropicalLED Light QR-codeMy Exo TerraApp Pet care fixturefor use withReptiles,Amphibiansand Invertebratesonly! PT4251– TropicalHighoutputLED Light24W/ 45cm– 18" / 126 LEDs PT4252– TropicalHighoutputLED Light33W/ 60cm– 24" / 159 LEDs PT4253– TropicalHighoutputLED Light49W/ 90cm– 36" / 222 LEDs Touchswitchoperation:ON/DIM(touch-and-hold)/BLUE/OFF IMPORTANTSAFETYINSTRUCTIONS WARNING:To guardagainstinjury,basicprecautionsshouldbe observed,includingthe following: READANDFOLLOWALL SAFETYINSTRUCTIONSand all the importantnoticeson the productbeforeusing.Failureto do so may resultin personalinjuryor damageto the product. DANGER– To avoidpossibleelectricalshock,specialcare shouldbe takensincewateris/may be employedin the use of this product.For eachof the followingsituations,do not attempt repairsyourself,returnthe productto an authorizedservicefacilityfor serviceif it is still underwarrantyor discardthe product: 1. Carefullyexaminethe applianceafterinstallation. 2. The app…

Text truncated - open the document above for the full version.

RolfC.HagenInc AgentAuthorization Company:RolfC.HagenInc Address:20500TransCanadaHwyBaie-d'Urfe,Quebec,H9X0A2,Canada ProductName:MicrotopeLEDStrip TradeMark:ExoTerra ModelNumber(s):2ANPT-PT4252 FCCID:2ANPT-PT4252 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-03-10 Name:RobertReid Title:AquaticBrandsManager Company:RolfC.HagenInc

RolfC.HagenInc OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-03-10 Subject;RequestforConfidentiality FCCID:2ANPT-PT4252 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:RobertReid Title:AquaticBrandsManager

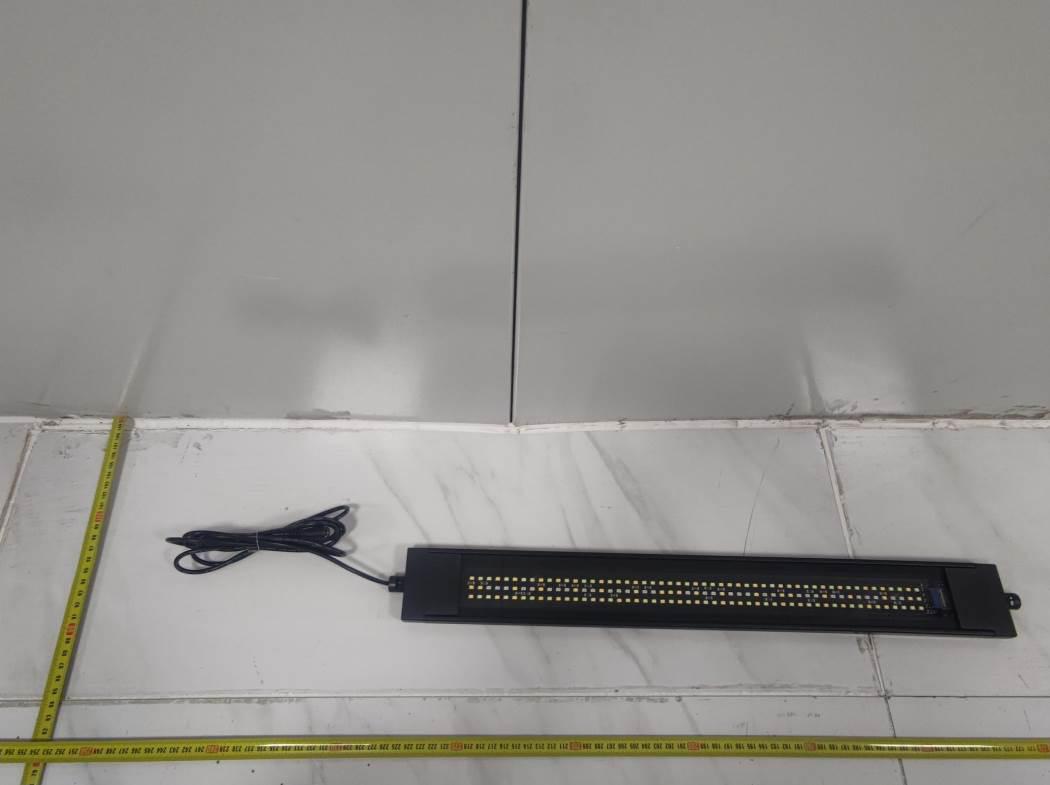

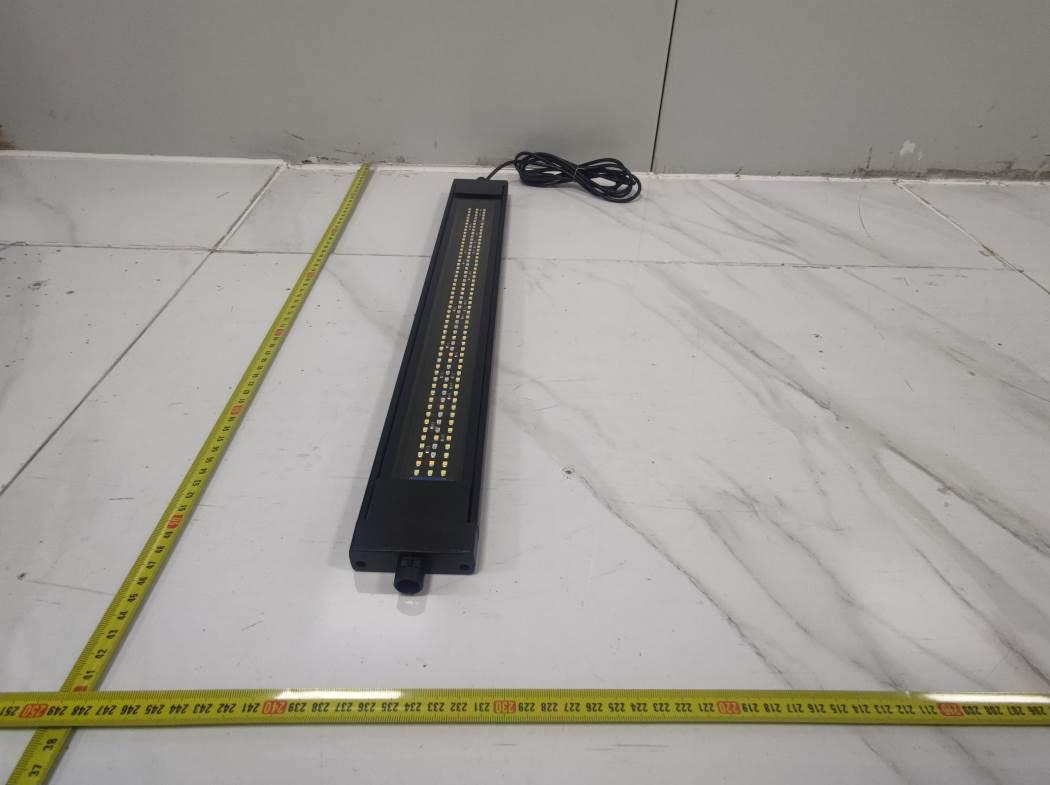

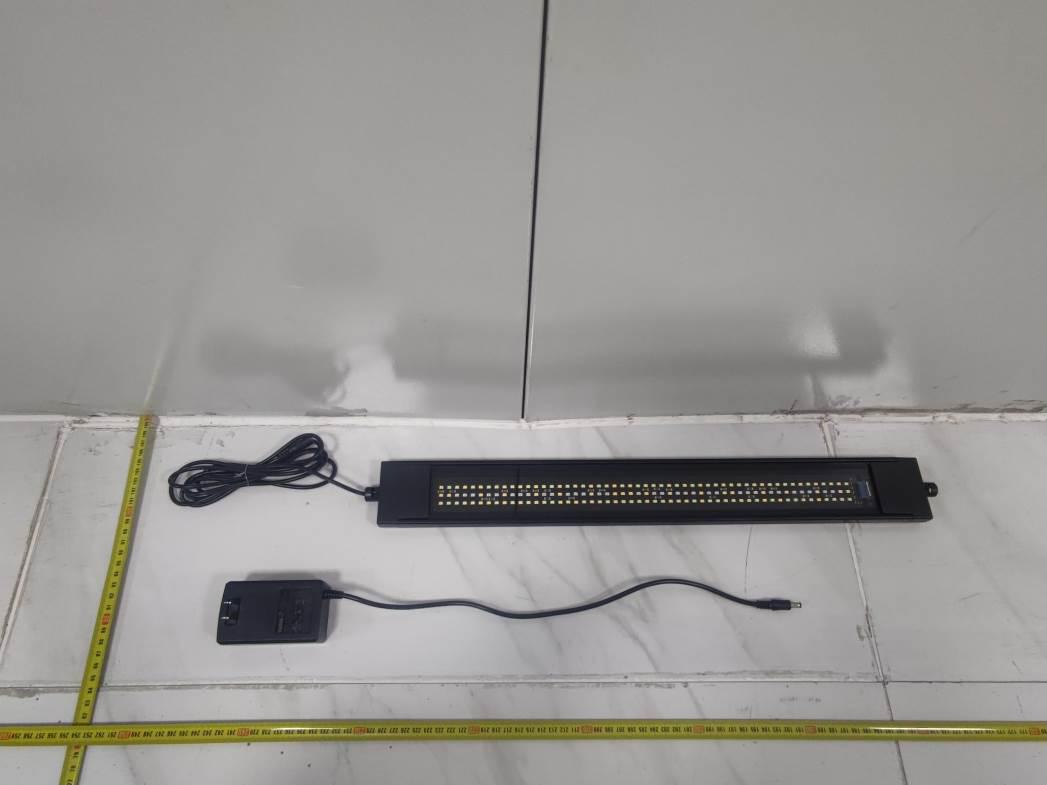

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Fig.7

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L:1.4.0cm*W:2.5cm LabelLocation

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 INTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Fig.3 Fig.4 WIFIAntenna

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 4 FCCRFExposureEvaluation 1.ProductInformation FCCID 2ANPT-PT4252 Productname MicrotopeLEDStrip Modelnumber PT4252 Powersupply ForACAdapterModel:S040QU2400150 Input:100-240V~,50/60Hz,1.0AMax Output:DC24V,1.5A ModulationType IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaType PCBAntenna AntennaGain 1.0dBi(Max.) Hardwareversion 1.0 Softwareversion 1.0 FCCOperationfrequency 2412–2462MHz Exposurecategory Generalpopulation/uncontrolledenvironment EUTType ProductionUnit DeviceType FixedDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumoftheMPE ratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditions ofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Either themaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedto determinetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedon far-fieldplane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevice mustmeettheminimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneous transmissionoperations,tosatisfycompliance. SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 4 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic,and ElectromagneticFields,0Hzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation ArtemisAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequencyband Maximum antennagain Note AntennaPCBAntenna2412MHz-2462MHz1.0dBi2.4GWIFIAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 4 6.ConductedPower ModeChannelFrequency(MHz) PeakConducted OutputPower(dBm) 11B 1241218.45 6243716.14 11246217.96 11G 1241222.73 6243720.52 11246222.14 11N20SISO 1241222.49 6243720.54 11246222.21 7.ManufacturingTolerance 11B(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 18.016.017.0 Tolerance±(dB) 1.01.01.0 11G(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 22.020.022.0 Tolerance±(dB)1.01.01.0 11N20SISO(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 22.020.022.0 Tolerance±(dB)1.01.01.0 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 4 8.MeasurementResults 8.1StandaloneMPE AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromanybodypartof theuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparationdistance,r=20cm,as wellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensitycanbeobtained. [ Antenna] Band/Mode RFoutputpower AntennaGain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW IEEE802.11b19.0 79.4328 1 0.0199 1.0000 IEEE802.11g23.0 199.5262 1 0.0500 1.0000 IEEE802.11nHT2023.0 199.5262 1 0.0500 1.0000 Remark: 1.Outputpowerincludingtune-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer; 8.2SimultaneousTransmissionMPE 9.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRFExposureofmobile device. .......................THEENDOFREPORT.........................

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252 Report No.: LCS210111040AEA Page 1 of 35 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Microtope LED Strip Trade Mark: Exo Terra Test Model: PT4252 Environmental Conditions Temperature: 24.6  C Relative Humidity:54.1% ATM Pressure:100.0 kPa Test Engineer:Carl Fu Supervised by:Li Huan A.1 Duty Cycle Test ModeTest ChannelAntDuty Cycle[%]Verdict 11B2437Ant188.87PASS 11G2437Ant186.31PASS 11N20SISO2437Ant185.62PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 2 of 35 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 3 of 35 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 4 of 35 A.2 Maximum Conducted Output Power ModeChannelMeas.Level [dBm]Limit [dBm]Verdict 11B LCH18.4530PASS MCH16.1430PASS HCH17.9630PASS 11G LCH22.7330PASS MCH20.5230PASS HCH22.1430PASS 11N20SISO LCH22.4930PASS MCH20.5430PASS HCH22.2130PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 5 of 35 A.3 Maximum Power Spectral Density ModeChannelMeas.Level [dBm/3KHz]Limit [dBm/3KHz]Verdict 11B LCH-8.10308PASS MCH-10.1248PASS HCH-7.9008PASS 11G LCH-10.8988PASS MCH-11.9668PASS HCH-11.6798PASS 11N20SISO LCH-12.2468PASS MCH-14.0578PASS HCH-10.1898PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 6 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 7 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 8 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 9 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 10 of 35 A.4 6dB Bandwidth ModeChannel6dB Bandwidth [MHz]Limit [MHz]Verdict 11B LCH8.587 ≥0.5 PASS MCH8.595 ≥0.5 PASS HCH8.575 ≥0.5 PASS 11G LCH16.35 ≥0.5 PASS MCH16.36 ≥0.5 PASS HCH16.32 ≥0.5 PASS 11N20SISO LCH17.31 ≥0.5 PASS MCH17.56 ≥0.5 PASS HCH17.32 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 11 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 12 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 13 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 14 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 15 of 35 A.5 RF Conducted Spurious Emissions ModeChannelPref [dBm]Max. Level [dBm]Limit [dBm] Verdic t 11B LCH7.112-38.508-12.888PASS MCH4.692-38.734-15.308PASS HCH7.058-37.526-12.942PASS 11G LCH3.965-38.501-16.035PASS MCH1.6-37.974-18.400PASS HCH3.477-38.377-16.523PASS 11N20 SISO LCH3.825-38.393-16.175PASS MCH1.663-37.782-18.337PASS HCH3.728-38.340-16.272PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 16 of 35 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 17 of 35 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 18 of 35 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 19 of 35 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 20 of 35 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 21 of 35 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 22 of 35 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 23 of 35 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 24 of 35 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 25 of 35 A.6 Band-edge for RF Conducted Emissions ModeChannelCarrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm]Verdict 11B LCH7.117-49.169-12.88PASS HCH6.581-48.754-13.42PASS 11G LCH4.097-42.919-15.9PASS HCH3.681-40.994-16.32PASS 11N20SISO LCH3.844-42.211-16.16PASS HCH3.593-38.751-16.41PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 26 of 35 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 27 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 28 of 35 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2ANPT-PT4252Report No.: LCS210111040AEA Page 29 of 35 A.7 Restrict-band band-edge measurements Test Mode Test Channel AntFreq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBu V/m] Verdict 11B 2412Ant12310.0-43.602.0053.63PEAK74PASS 2412Ant12310.0-53.502.0043.73AV54PASS 2412Ant12390.0-41.752.0055.48PEAK74PASS 2412Ant12390…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252ReportNo.:LCS210111040AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 37 FCCTESTREPORT For RolfC.HagenInc MicrotopeLEDStrip TestModel:PT4252 Preparedfor:RolfC.HagenInc Address:20500TransCanadaHwyBaie-d'Urfe,Quebec,H9X0A2,Canada Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January13,2021 Numberoftestedsamples:2 Samplenumber:210111040A-1,210111040A-2 Serialnumber:Prototype DateofTest:January13,2021~January19,2021 DateofReport:January22,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252ReportNo.:LCS210111040AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 37 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS210111040AEA DateofIssue.......................................:January22,2021 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:RolfC.HagenInc Address................................................:20500TransCanadaHwyBaie-d'Urfe,Quebec,H9X0A2,Canada TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:MicrotopeLEDStrip TradeMark..........................................:ExoTerra TestModel...........................................:PT4252 Ratings.................................................: ForACAdapterModel:S040QU2400150 Input:100-240V~,50/60Hz,1.0AMax Output:DC24V,1.5A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu/FileadministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252ReportNo.:LCS210111040AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of37 FCC--TESTREPORT EUT.........................................:MicrotopeLEDStrip TestModel...............................:PT4252 Applicant...............................:RolfC.HagenInc Address..................................:20500TransCanadaHwyBaie-d'Urfe,Quebec,H9X0A2,Canada Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ZhengzhouLeDinProLightingCo.,Ltd. Address...................................:No.27,FengLinRoad,HighTechnologyDevelopmentZone, Zhengzhou,Henan,China. Telephone...............................:/ Fax..........................................:/ Factory...................................:/ Address...................................:/ Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210111040AEA January22,2021 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252ReportNo.:LCS210111040AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of37 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000 January22,2021 InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252ReportNo.:LCS210111040AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of37 TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT).........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................7 1.3.EXTERNALI/OCABLE..........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY.........................................................................................................................7 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY..........................................................................................7 1.6.MEASUREMENTUNCERTAINTY............................................................................................................................8 1.7.DESCRIPTIONOFTESTMODES...........................................................................................................................8 2.TESTMETHODOLOGY..............................…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 _______________________________________________________________________________________________ 7.TESTSETUPPHOTOGRAPHS PhotoofRadiatedEmissionsMeasurement Below1GHz Above1GHz SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ANPT-PT4252 _______________________________________________________________________________________________ PowerLineConductedEmission
