2ANY6-TE580PDSmart Phone

FCC Statement 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to user. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. This device was tested for typical body-worn operations with 10mm and 25mm from front of face. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm for body must be maintained between the user’s body, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. Dedicated network part This radio is designed for and classified as “Occupational/Controlled Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards; NOT intended for use in an General population/ uncontrolled environment. ̢DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. ̢DO NOT transmit for more than 50% of total radio use time, more than 50% of the time can cause RF exposure compliance requirements to be exceeded. ̢This transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 25 mm.

2020-07-28 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Telo Systems Ltd./ 6/F, No. 42 Liuxian 1st Road, Bao'an District, Shenzhen, China Agency agreement expiration date: Jul. 27, 2021 By: Telo Systems Signature Printed Title: Project Director On behalf of : Telo Systems Ltd. Telephone: +86-075586950766

2020-07-28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANY6-TE580PD Product Name: Smart Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up  SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Telo Systems Signature Printed Title: Project Director On behalf of : Telo Systems Ltd. Telephone: +86-075586950766

Telo Systems Ltd. 6/F, No. 42 Liuxian 1st Road, Bao'an District, Shenzhen, China Tel.: +86-075586950766 Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Telo Systems Ltd. hereby declare that our product: Smart Phone, FCC ID: 2ANY6 -TE580PD is capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. DMR interphone’s bandwidth is 12.5 kHz, and it has a double time slot, one is the speech time slot, one is the data time slot, just language sequence is satisfied with 4800 bps/6.25 kHz BW. For Part 90 frequency user, the radio is disabled 25kHz channel bandwidth mode by radio firmware at factory in order to comply with FCC mandate for part 90 frequencies. Sincerely, Telo Systems Signature: 2020-08-04

Telo Systems Ltd. Add: 6/F, No. 42 Liuxian 1st Road, Bao'an District, Shenzhen, China Tel: 86-755-86950766 Fax: 86-755-86950708 Date: 2020-08-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Dear Sir/Madam, The Radio with FCC ID: 2ANY6-TE580PD This transmitter was designed to operate in following frequency ranges: 400-470MHz To operate in the USA in the frequency range 400MHz-406MHz, 406.1MHz-470MHz. the frequency ranges 406MHz-406.1MHz are disabled. Third party is not able to programming the transmit and receive channels. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Telo Systems Ltd. is requesting that the FCC lists the frequencies 400~406MHz , 406.1~470MHz under FCC Rule Part 22,74 and 90 on the FCC Grant. Telo Systems Ltd. attests that the Smart Phone will not be marketed to USA users with the frequency band which is not allowed by the rule part 22,74 and 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) FCC Rule Part 400-406 For Federal 406.1-450 90 450-454 74 454-455 22 455-456 74 456-460 22/90 460-462.5375 90 462.7375-467.5375 90 467.7375-470 90 Sincerely Yours, Signature: Telo Systems

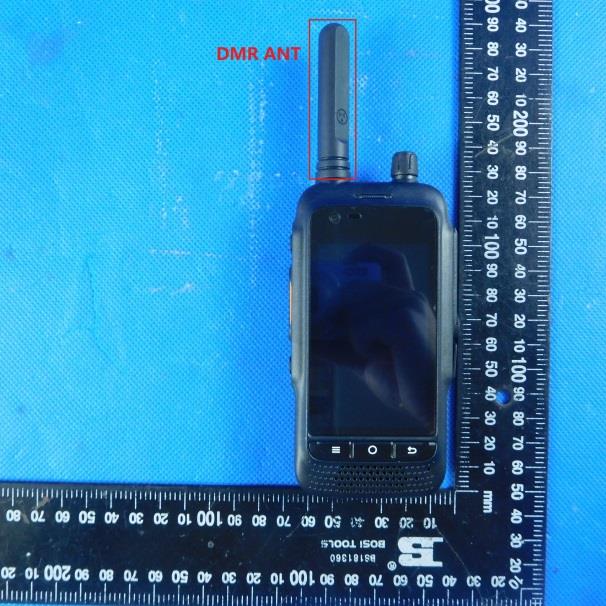

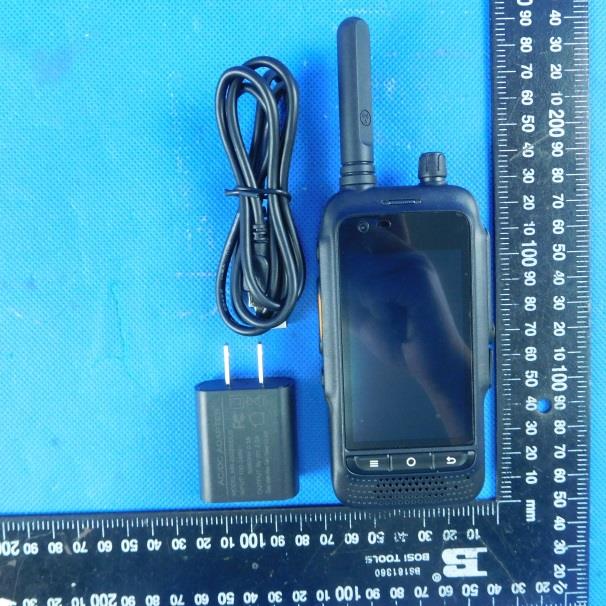

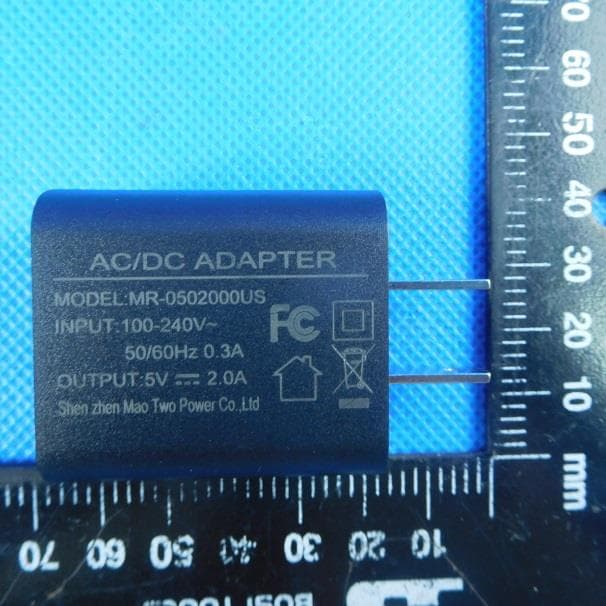

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT M odel:TE580PD

Label & Location

Internal photos of the EUT M odel:TE580PD

Page: 1 of 132 TEST REPORT Report No. ...................................... : CHTEW20070214 Report verificaiton: Project No. ...................................... : SHT2005099306EW FCC ID ............................................. : 2ANY6-TE580PD Applicant’s name ........................... : Telo Systems Ltd. Address ............................................. : 6/F, No. 42 Liuxian 1st Road, Bao'an District, Shenzhen, China Test item description .................... : Smart Phone Trade Mark ....................................... : Telo Systems Model/Type reference ....................... : TE580PD Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Jun.29, 2020 Date of testing..............................: Jun.30, 2020- Jul.21, 2020 Date of issue...............................: Jul.23, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Xiaodong Zhao Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20070214 Page: 2 of 132 Issued: 2020-07-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) Contents 1. Statement of Compliance 4 2. Test Standards and Report version 5 2.1. Test Standards 5 2.2. Report version 5 3. Summary 6 3.1. Client Information 6 3.2. Product Description 6 3.3. RF Specification Description 6 3.4. Test frequency list 9 3.5. Testing Laboratory Information 10 3.6. Environmental conditions 10 4. Equipments Used during the Test 11 5. Measurement Uncertainty 12 6. SAR Measurements System Configuration 13 6.1. SAR Measurement Set-up 13 6.2. DASY5 E-field Probe System 14 6.3. Phantoms 15 6.4. Device Holder 15 7. SAR Test Procedure 16 7.1. Scanning Procedure 16 7.2. Data Storage and Evaluation 18 8. Position of the wireless device in relation to the phantom 20 8.1. Head Position 20 8.2. Body Position 21 8.3. Hotspot Mode Exposure conditions 21 9. Dielectric Property Measurements & System Check 22 9.1. Tissue Dielectric Parameters 22 9.2. System Check 24 10. SAR Exposure Limits 35 11. Conducted Power Measurement Results 36 11.1. DMR 36 11.2. GSM 37 11.3. WCDMA 38 11.4. LTE 41 11.5. Wi-Fi 58 11.6. Bluetooth 59 12. Maximum Tune-up Limit 60 13. Antenna Location 70 14. Measured and Reported SAR Results 71 14.1. DMR 73 14.2. Head SAR 74 14.3. Body SAR 86 14.4. Hotspot SAR 94 15. SAR Measurement Variability 103 Report No.: CHTEW20070214 Page: 3 of 132 Issued: 2020-07-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 16. Simultaneous Transmission analysis 104 16.1. Head 106 16.2. Body-worn 115 16.3. Hotspot 121 17. TestSetup Photos 129 18. External and Internal Photos of the EUT 132 Report No.: CHTEW20070214 Page: 4 of 132 Issued: 2020-07-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCE DTS NII TNF Simultaneous TX Head(Ear) 1.110 0.156 0.317 N/A 1.282 Head(Front-of-face) N/A N/A N/A 0.695 N/A Body-worn(Dist.= 10mm) 1.173 0.051 0.153 1.034 1.326 Hotspot(Dist.= 10mm) 1.173 0.067 0.179 N/A 1.326 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW20070214 Page: 5 of 132 Issued: 2020-07-23 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE Device…

Text truncated - open the document above for the full version.

Date: 7/7/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Digital 12.5kHz Front-of-face Communication System: UID 0, Digital (0); Frequency: 452.5 MHz;Duty Cycle: 1:2.1341 Medium parameters used (interpolated): f = 452.5 MHz; σ = 0.906 S/m; ε r = 45.277; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN3842; ConvF(9.96, 9.96, 9.96) @ 452.5 MHz; Calibrated: 1/30/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 4/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.82 W/kg Front/CH 4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 42.90 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.37 W/kg; SAR(10 g) = 0.990 W/kg Maximum value of SAR (measured) = 1.83 W/kg 0 dB = 1.83 W/kg = 2.62 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Date: 7/7/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Digital 12.5kHz Body-worn Communication System: UID 0, Digital (0); Frequency: 452.5 MHz;Duty Cycle: 1:2.1341 Medium parameters used (interpolated): f = 452.5 MHz; σ = 0.906 S/m; ε r = 45.277; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN3842; ConvF(9.96, 9.96, 9.96) @ 452.5 MHz; Calibrated: 1/30/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 4/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.96 W/kg Front/CH 4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.20 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.04 W/kg; SAR(10 g) = 1.43 W/kg Maximum value of SAR (measured) = 2.73 W/kg 0 dB = 2.73 W/kg = 4.36 dBW/kg Appendix A: SAR Test Data Plots Plot No.2 Date: 7/1/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM850 Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 825 MHz; σ = 0.942 S/m; ε r = 42.724; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.8°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 824.2 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek Touch/CH 128/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.28 W/kg Left Cheek Touch/CH 128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.10 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.798 W/kg Maximum value of SAR (measured) = 1.25 W/kg 0 dB = 1.25 W/kg = 0.97 dBW/kg Appendix A: SAR Test Data Plots Plot No.3 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM00 Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 810/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.648 W/kg Right Cheek Touch/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.351 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.459 W/kg; SAR(10 g) = 0.285 W/kg Maximum value of SAR (measured) = 0.600 W/kg 0 dB = 0.600 W/kg = -2.22 dBW/kg Appendix A: SAR Test Data Plots Plot No.4 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Head Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.8°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 9538/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.417 W/kg Right Cheek Touch/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.946 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.480 W/kg SAR(1 g) = 0.311 W/kg; SAR(10 g) = 0.192 W/kg Maximum value of SAR (measured) = 0.420 W/kg 0 dB = 0.420 W/kg = -3.77 dBW/kg Appendix A: SAR Test Data Plots Plot No.5 Date: 7/3/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band IV Head Communication System: UID 0, Generic UMTS (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters use…

Text truncated - open the document above for the full version.

Date: 7/6/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-1 Head Communication System: UID 0, Generic WIFI (0); Frequency: 5180 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5180 MHz; σ = 4.47 S/m; ε r = 34.873; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(5.58, 5.58, 5.58) @ 5180 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Tilt 15/CH 36/Area Scan (81x131x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0357 W/kg Right Tilt 15/CH 36/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.920 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.0390 W/kg SAR(1 g) = 0.014 W/kg; SAR(10 g) = 0.011 W/kg Maximum value of SAR (measured) = 0.0239 W/kg 0 dB = 0.0239 W/kg = -16.22 dBW/kg Appendix A: SAR Test Data Plots Plot No.17 Date: 7/6/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-3 Head Communication System: UID 0, Generic WIFI (0); Frequency: 5755 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5755 MHz; σ = 5.093 S/m; ε r = 33.851; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.1°C;Liquid Temperature:21.9°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(4.76, 4.76, 4.76) @ 5755 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Tilt 15/CH 151/Area Scan (81x131x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.757 W/kg Right Tilt 15/CH 151/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 6.660 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.292 W/kg; SAR(10 g) = 0.098 W/kg Maximum value of SAR (measured) = 0.726 W/kg 0 dB = 0.726 W/kg = -1.39 dBW/kg Appendix A: SAR Test Data Plots Plot No.18 Date: 7/1/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM850 Body&Hotspot Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 825 MHz; σ = 0.942 S/m; ε r = 42.724; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 824.2 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 128/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.34 W/kg Rear/CH 128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 38.01 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.744 W/kg Maximum value of SAR (measured) = 1.33 W/kg 0 dB = 1.33 W/kg = 1.24 dBW/kg Appendix A: SAR Test Data Plots Plot No.19 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM1900 Body Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 810/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.701 W/kg Rear/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.54 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.856 W/kg SAR(1 g) = 0.510 W/kg; SAR(10 g) = 0.306 W/kg Maximum value of SAR (measured) = 0.730 W/kg 0 dB = 0.730 W/kg = -1.37 dBW/kg Appendix A: SAR Test Data Plots Plot No.20 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Body Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 9538/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.553 W/kg Rear/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.56 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.682 W/kg SAR(1 g) = 0.408 W/kg; SAR(10 g) = 0.246 W/kg Maximum value of SAR (measured) = 0.581 W/kg 0 dB = 0.581 W/kg = -2.36 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Date: 7/3/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band IV Body Communication System: UID 0, Generic UMTS (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1732.6…

Text truncated - open the document above for the full version.

Date: 7/6/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-1 Body Communication System: UID 0, Generic WIFI (0); Frequency: 5180 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5180 MHz; σ = 4.47 S/m; ε r = 34.873; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(5.58, 5.58, 5.58) @ 5180 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 36/Area Scan (81x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.138 W/kg Rear/CH 36/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.804 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.065 W/kg; SAR(10 g) = 0.032 W/kg Maximum value of SAR (measured) = 0.125 W/kg 0 dB = 0.125 W/kg = -9.03 dBW/kg Appendix A: SAR Test Data Plots Plot No.33 Date: 7/6/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-3 Body Communication System: UID 0, Generic WIFI (0); Frequency: 5755 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5755 MHz; σ = 5.093 S/m; ε r = 33.851; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.1°C;Liquid Temperature:21.9°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(4.76, 4.76, 4.76) @ 5755 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 151/Area Scan (81x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.318 W/kg Rear/CH 151/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 2.152 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.488 W/kg SAR(1 g) = 0.141 W/kg; SAR(10 g) = 0.066 W/kg Maximum value of SAR (measured) = 0.297 W/kg 0 dB = 0.297 W/kg = -5.27 dBW/kg Appendix A: SAR Test Data Plots Plot No.34 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM1900 Hotsopt Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Bottom/CH 810/Area Scan (31x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.892 W/kg Bottom/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.78 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.615 W/kg; SAR(10 g) = 0.348 W/kg Maximum value of SAR (measured) = 0.908 W/kg 0 dB = 0.908 W/kg = -0.42 dBW/kg Appendix A: SAR Test Data Plots Plot No.35 Date: 7/4/2020Test Laboratory: Huatongwei International Inspection Co…
