2ANY6-TE590PSmart Phone

TE590P Quick Start Guide Power Button/Channel Switch Emergency Button GPS Antenna Led Indicator Receiver Programmable Button PTT Button Touch Screen Volume Button Back Home Menu Speaker Sling Hole Rear Camera Flash Accessory Connector USB-C/Charger Camera Button Charger Docking Port Battery L ock Before Use Charging Cautions Although your device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting or bending, or sitting on it. Telo Systems Tel: +86-755-86950766 E-mail: [email protected] Add:6/F, No.42 Liuxian 1st Road, Bao'an District, Shenzhen, China www.telosystems.com 4. Pull the“ ” if there Battery L ock be a need to uninstall the battery. 1. Remove the SIM cover . Then insert the SIM/TF card into its slot. Attach the SIM cover and tighten the set screw. 2. Put back and push to lock the battery. 3.Pr ess and hold the power button until the screen lights up to turn on the device. Press the power button to put the device screen to sleep, press again to wake it up. Operating State Indication StandbyGreen (Blinking) Searching NetworkGreen (Fast Blinking) Low BatteryRed(Blinking) Charging Red(Steady) PTT Transmitting Red(Steady) PTT Receiving Green(Steady) Battery Tips Battery charging indicator Led IndicatorBattery Status Red(Steady)Recharging Green(Steady)Charged full Note Check List TE590P×1 Battery×1 Belt Clip×1 Travel Charger×1 USB-C Cable×1 Desktop Charger×1 Quick Start Guide×1 Thanks for choosing our product! This Quick Start Guide Only applicable to: TE590P. Before using the product, please read the Quick Start Guide to fully benefit from it. Notice: Please check the following accessories before you discard the packing material. Please contact your local dealer immediately if there is any missing or damage parts. Warranty period is 1 year from date of purchase. This product involves constant upgrading and/or improvement, our company reserves the right to change the specifications of software and/or hardware mentioned in this operating guide without any prior notice. The product specifications and information mentioned in the operating guide are for reference only. Using USB-C C able Using Desktop Charger Make sure the charger/USB port, microSD card/SIM card lot covers are properly seated, with no foreign objects obstructing the seals. Do not use the charger/USB port for charging, data transmission, etc. until the phone is completely dry. Do not store the device under any circumstance containing electronic erosive material. Avoid to pull the device up by holding the antenna or accessories. Please power off and unload the battery before cleaning the device. Using dry and clean lint-free cloth or hairbrush to keep the device and charger docking port clean. Avoid to use any chemical agent including detergent, alcohol, aerosol spay or oil preparations as cleaning solution. Dry your device completely after cleaning and before using it again. Always use Telo Original batteries and chargers. The warranty does not cover damage caused by non-Telo batteries and/or chargers. Avoid using the device while charging it. Do not use the above two charging methods simultaneously. FCC Statement 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipmen WiFi 5G does not support hotspot.t. 15.105 Information to user. This equipment has been tes ted and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference t o radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- R eorient or relocate the receiving antenna. -- I ncrease the separation between the equipment and receiver. -- C onnect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- C onsult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This product meets the government's requi rements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for typ- ical body-worn operations when the device used at 25mm from front face and 10mm from the product, 0mm from th e belt, for maintain compliance with FCC RF exposure requirements. The use of belt clips, holsters and si- milar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not com- ply with FCC RF exposure requirements, and should be avoided. RED Statement 1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 2. The product shall only be connected to a USB interface of versio…

Text truncated - open the document above for the full version.

DifferencesDeclaration Towhomconcern, WecompanyTeloSystemsLtd.Herebydeclares: Theproductmodel(s)TE590PLUSisthesamePCBlayout, electronicschematicandAntennawithTE590P,whichtestedin ShenzhenHuatongweiInternationalInspectionCo.,Ltd.,theonly differencesbetweenthemaremodelnamesand,othersare same. Sincerelyyours, Name(inprint): FrankShao Companyname: TeloSystemsLtd. Companyaddress:6/F,No.42Liuxian1stRoad,Bao'anDistrict,Shenzhen,China Tel:86-755-86950766 E-Mail:[email protected]

2020-08-21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANY6-TE590P Product Name: Smart Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up  SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Telo Systems Signature Printed Title: Project Director On behalf of : Telo Systems Ltd. Telephone: +86-075586950766

2020-08-21 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Telo Systems Ltd./ 6/F, No. 42 Liuxian 1st Road, Bao'an District, Shenzhen, China Agency agreement expiration date: Aug. 20, 2021 By: Telo Systems Signature Printed Title: Project Director On behalf of : Telo Systems Ltd. Telephone: +86-075586950766

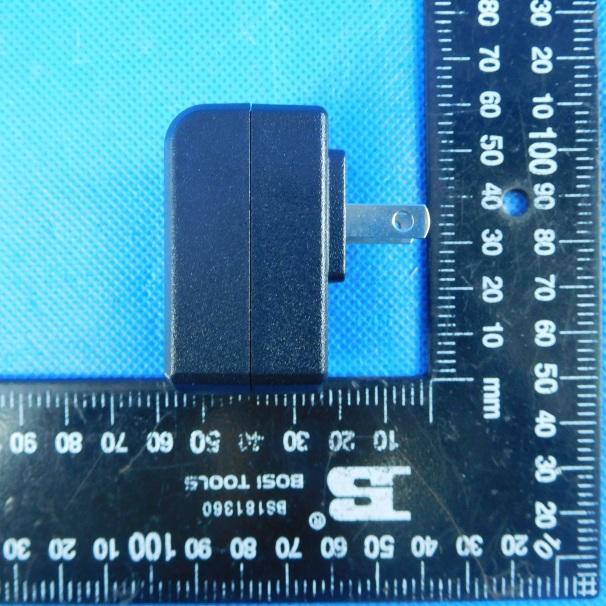

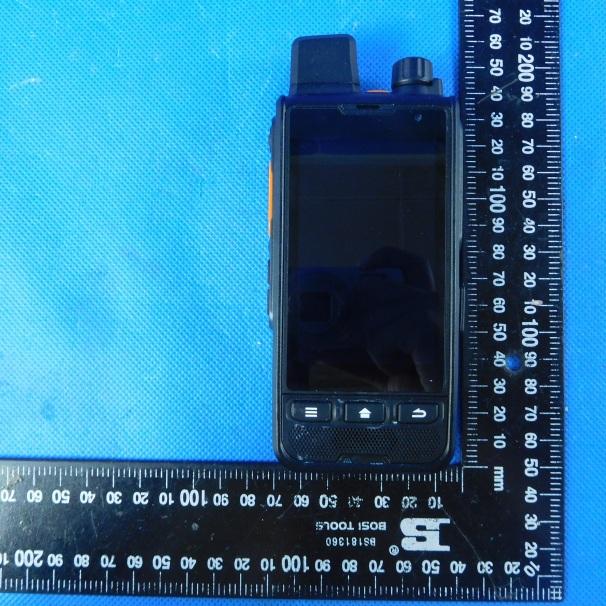

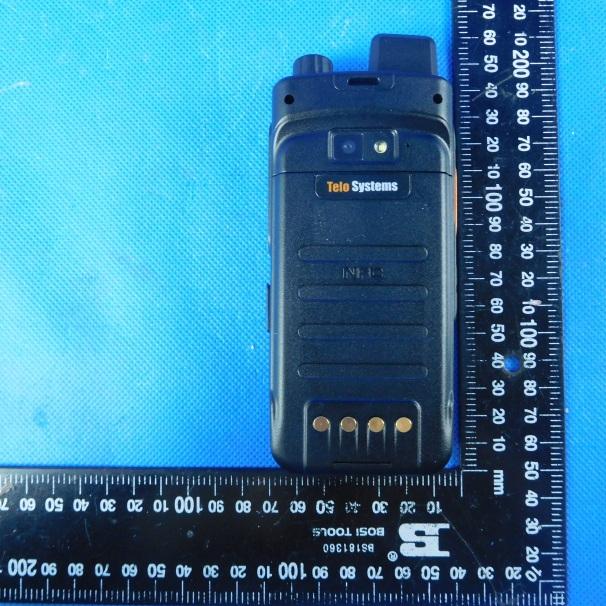

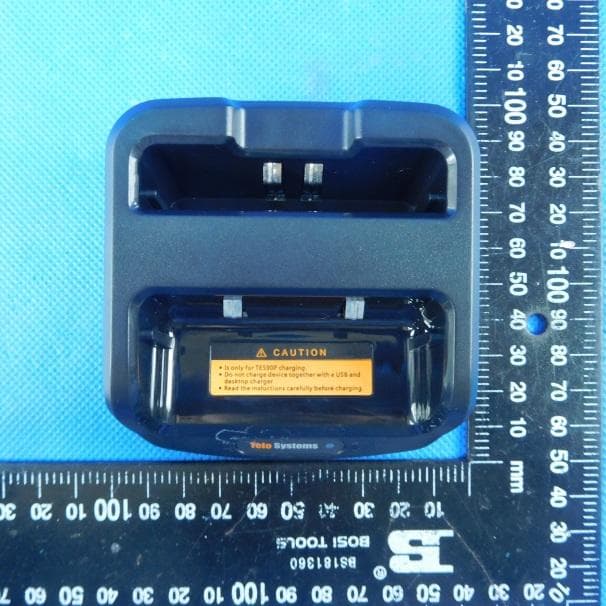

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT M odel:TE590P

Label & Location

Internal photos of the EUT M odel:TE590P

Page: 1 of 153 TEST REPORT Report No. ...................................... : CHTEW20080140 Report verificaiton: Project No. ...................................... : SHT2005099311EW FCC ID ............................................. : 2ANY6-TE590P Applicant’s name ........................... : Telo Systems Ltd. Address ............................................. : 6/F, No.42 Liuxian 1st Road, Bao'an District, Shenzhen, China Test item description .................... : Smart Phone Trade Mark ....................................... : Telo Systems Model/Type reference ....................... : TE590P Listed Model(s) ................................. : TE590PLUS Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Jun.30, 2020 Date of testing..............................: Jun.30, 2020- Aug.10, 2020 Date of issue...............................: Aug.13, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Xiaodong Zhao Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20080140 Page: 2 of 153 Issued: 2020-08-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) Contents 1. Statement of Compliance 4 2. Test Standards and Report version 5 2.1. Test Standards 5 2.2. Report version 5 3. Summary 6 3.1. Client Information 6 3.2. Product Description 6 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 8 3.5. Environmental conditions 9 4. Equipments Used during the Test 10 5. Measurement Uncertainty 11 6. SAR Measurements System Configuration 15 6.1. SAR Measurement Set-up 15 6.2. DASY5 E-field Probe System 16 6.3. Phantoms 17 6.4. Device Holder 17 7. SAR Test Procedure 18 7.1. Scanning Procedure 18 7.2. Data Storage and Evaluation 20 8. Position of the wireless device in relation to the phantom 22 8.1. Head Position 22 8.2. Body Position 23 8.3. Front-of-face 23 8.4. Hotspot Mode Exposure conditions 24 9. Dielectric Property Measurements & System Check 25 9.1. Tissue Dielectric Parameters 25 9.2. System Check 27 10. SAR Exposure Limits 38 11. Conducted Power Measurement Results 39 11.1. GSM 39 11.2. WCDMA 40 11.3. LTE 42 11.4. Wi-Fi 65 11.5. Bluetooth 67 12. Maximum Tune-up Limit 68 13. Antenna Location 81 14. Measured and Reported SAR Results 82 14.1. Front-of-face SAR 84 14.2. Head SAR 89 14.3. Body SAR 103 14.4. Hotspot SAR 113 15. SAR Measurement Variability 124 Report No.: CHTEW20080140 Page: 3 of 153 Issued: 2020-08-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 16. Simultaneous Transmission analysis 125 16.1. Front-of-face 126 16.2. Head 129 16.3. Body-worn 138 16.4. Hotspot 147 17. TestSetup Photos 151 18. External and Internal Photos of the EUT 153 Report No.: CHTEW20080140 Page: 4 of 153 Issued: 2020-08-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCE DTS NII Simultaneous TX Front-of-face(Dist.= 25mm) 0.570 0.012 0.057 0.627 Head 1.289 0.109 0.449 1.545 Body-worn(Dist.= 10mm) 1.052 0.030 0.123 1.164 Hotspot(Dist.= 10mm) 1.052 0.030 - 1.078 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW20080140 Page: 5 of 153 Issued: 2020-08-13 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE…

Text truncated - open the document above for the full version.

Date: 7/9/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM850 Front-of-face Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.952 S/m; ε r = 42.669; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.1°C;Liquid Temperature:21.9°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 848.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 251/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.671 W/kg Front/CH 251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.07 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.769 W/kg SAR(1 g) = 0.539 W/kg; SAR(10 g) = 0.397 W/kg Maximum value of SAR (measured) = 0.685 W/kg 0 dB = 0.685 W/kg = -1.64 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Date: 7/13 /2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM1900 Front-of-face Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2-3) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.00447 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 810/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.142 W/kg Front/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.825 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.162 W/kg SAR(1 g) = 0.100 W/kg; SAR(10 g) = 0.065 W/kg Maximum value of SAR (measured) = 0.139 W/kg 0 dB = 0.139 W/kg = -8.57 dBW/kg Appendix A: SAR Test Data Plots Plot No.2 Date: 7/13 /2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Front-of-face Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.8°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 9538/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0678 W/kg Front/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.608 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.0770 W/kg SAR(1 g) = 0.048 W/kg; SAR(10 g) = 0.031 W/kg Maximum value of SAR (measured) = 0.0661 W/kg 0 dB = 0.0661 W/kg = -11.80 dBW/kg Appendix A: SAR Test Data Plots Plot No.3 Date: 7/9/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V Front-of-face Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.951 S/m; ε r = 42.673; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 846.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 4233/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.463 W/kg Front/CH 4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.55 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.522 W/kg SAR(1 g) = 0.370 W/kg; SAR(10 g) = 0.274 W/kg Maximum value of SAR (measured) = 0.464 W/kg 0 dB = 0.464 W/kg = -3.33 dBW/kg Appendix A: SAR Test Data Plots Plot No.4 Date: 7/1 /2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 2 Front-of-face Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.458 S/m; ε r = 40.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1900 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 19100/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0770 W/kg Front/CH 19100/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.839 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.0870 W/kg SAR(1 g) = 0.054 W/kg; SAR(10 g) = 0.035 W/kg Maximum value of SAR (measured) = 0.0745 W/kg 0 dB = 0.0745 W/kg = -11.28 dBW/kg Appendix A: SAR Test Data Plots Plot No.5 Date: 7/1 /2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 4 Front-of-face Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1720 MHz;Duty Cycle…

Text truncated - open the document above for the full version.

Date: 7/17/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-2A Front-of-face Communication System: UID 0, Generic WIFI (0); Frequency: 5320 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5320 MHz; σ = 4.622 S/m; ε r = 34.598; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(5.58, 5.58, 5.58) @ 5320 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 64/Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0810 W/kg Front/CH 64/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 2.257 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.144 W/kg SAR(1 g) = 0.036 W/kg; SAR(10 g) = 0.019 W/kg Maximum value of SAR (measured) = 0.0748 W/kg 0 dB = 0.0748 W/kg = -11.26 dBW/kg Appendix A: SAR Test Data Plots Plot No.17 Date: 7/16/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-3 Front-of-face Communication System: UID 0, Generic WIFI (0); Frequency: 5745 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5745 MHz; σ = 5.079 S/m; ε r = 33.886; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(4.76, 4.76, 4.76) @ 5745 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 149/Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0585 W/kg Front/CH 149/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 3.208 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.133 W/kg SAR(1 g) = 0.025 W/kg; SAR(10 g) = 0.015 W/kg Maximum value of SAR (measured) = 0.0477 W/kg 0 dB = 0.0477 W/kg = -13.21 dBW/kg Appendix A: SAR Test Data Plots Plot No.18 Date: 7/9/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM850 Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.952 S/m; ε r = 42.669; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 848.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 251/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.55 W/kg Right Cheek Touch/CH 251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.79 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.70 W/kg SAR(1 g) = 1.22 W/kg; SAR(10 g) = 0.881 W/kg Maximum value of SAR (measured) = 1.52 W/kg 0 dB = 1.52 W/kg = 1.82 dBW/kg Appendix A: SAR Test Data Plots Plot No.19 Date: 7/13/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM00 Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2-3) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.00447 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Tilt 15/CH 810/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.76 W/kg Right Tilt 15/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.15 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 2.27 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.634 W/kg Maximum value of SAR (measured) = 1.83 W/kg 0 dB = 1.83 W/kg = 2.62 dBW/kg Appendix A: SAR Test Data Plots Plot No.20 Date: 7/13 /2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Head Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Tilt 15/CH 9538/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.825 W/kg Right Tilt 15/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.26 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.517 W/kg; SAR(10 g) = 0.285 W/kg Maximum value of SAR (measured) = 0.801 W/kg 0 dB = 0.801 W/kg = -0.96 dBW/kg Appendix A: SAR Test Data Plots Plot No.21 Date: 7/9/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V Head Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Du…

Text truncated - open the document above for the full version.

Date: 7/17/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-1 Head Communication System: UID 0, Generic WIFI (0); Frequency: 5220 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5220 MHz; σ = 4.518 S/m; ε r = 34.8; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.1°C;Liquid Temperature:21.9°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(5.58, 5.58, 5.58) @ 5220 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek Touch/CH 44/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.06 W/kg Left Cheek Touch/CH 44/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 3.314 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.422 W/kg; SAR(10 g) = 0.149 W/kg Maximum value of SAR (measured) = 0.964 W/kg 0 dB = 0.964 W/kg = -0.16 dBW/kg Appendix A: SAR Test Data Plots Plot No.34 Date: 7/17/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-2A Head Communication System: UID 0, Generic WIFI (0); Frequency: 5320 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5320 MHz; σ = 4.622 S/m; ε r = 34.598; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(5.58, 5.58, 5.58) @ 5320 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek Touch/CH 64/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.711 W/kg Left Cheek Touch/CH 64/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 2.231 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.297 W/kg; SAR(10 g) = 0.106 W/kg Maximum value of SAR (measured) = 0.680 W/kg 0 dB = 0.680 W/kg = -1.67 dBW/kg Appendix A: SAR Test Data Plots Plot No.35 Date: 7/16/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WIFI 5G U-NII-3 Head Communication System: UID 0, Generic WIFI (0); Frequency: 5745 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5745 MHz; σ = 5.079 S/m; ε r = 33.886; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(4.76, 4.76, 4.76) @ 5745 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek Touch/CH 149/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.561 W/kg Left Cheek Touch/CH 149/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 3.783 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.928 W/kg S…
