Miura Systems MASP01 Android POS terminal PACKAGE CONTENTS •MASP01 Android POS terminal •Rechargeable Lithium-ion polymer battery •1m USB-C to USB-A power cable •58mm*40mm Thermal Paper Roll with core •NOTE: AC Adapter, Physical SIM, SAM, TF are excluded Guide book Key Warning or hazard. Information Instructions HVIN:MASP01-1, HVIN :MASP01-2 SAFETY WARNINGS •Battery Hazards and Warnings •This product contains a rechargeable Lithium-ion polymer battery •Rechargeable Lithium-ion polymer batteries are potentially hazardous and can present a serious FIRE HAZARD, SERIOUS INJURY and/or PROPERTY DAMAGE if damaged, defective or improperly used •Do not disassemble or modify the battery in any way •The battery can become defective if the battery and/or terminal is exposed to: high temperatures/naked flames or liquids •Only use certified chargers with an output of 2A 5V •If the battery is damaged in anyway then it should be safely discarded and replaced with an OEM approved battery •In the event of a battery leak and fluid comes into contact with skin or eyes, rinse well with water and immediately seek medical care •Specific Absorption Rate (SAR) •The equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. The end user musfollow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. •This portable device is designed to meet the requirements for expsireto radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported during product certification is < 1.6 W/kg. •Wireless device and pacemakers •Pacemaker manufacturers recommend the following to avoid potential interference with the pacemaker. •You should ALWAYS keep the device more than 15cm (6 inches) from your pacemaker. •You should not carry the device in a breast pocket. •These recommendations are consistent with independent research and recommendations by Wireless Technology Research guidelinesfor people with pacemakers: 1. Contactless/NFC reader: Present contactless card or mobile device here 2. Printer roll cover: Insert paper roll in the paper roll compartment under this cover 3. Indicators: Terminal Status indicators 4. Touch screen 5. Power button: •When device is off: press and hold the button to power on •When device is on: press and hold the button to present the power down/standby menu •When device is on: press the power button briefly to toggle the display on/off. 6. IC/Chip card slot: Insert card chip first, with the chip facing upwards 7. JIS II Magnetic card reader: swipe card with the stripe downward and facing you 8. Function button 9. USB-C charger/data connector 5V 2A max input PRODUCT DETAILS Printer roll cover removal: Two step process 13. Battery compartment: Lift point to remove battery cover to access battery , SIM/SAM /TF 12. Charging contacts: For use with charging base (not provided) 10. Speaker 11. Camera: To read barcodes/QR codes PRODUCT DETAILS 16. Physical SIM insert (not provided) Card inserted as shown below with contacts towards the MASP01 14. PSAM: (not provided) • Purchase Secure Access Module (PSAM) card slot 15. TransFlashinsert (not provided) TF cards up to 64GB supported •TELECOMS/RADIO - This product has been certified to operate using the following bands •LTE Bands: 2,4,5,7,12,13,17,25,26（only for FCC),41,66 •WCDMA: B2, B4,B5 •WLAN: 2.4 GHz, 5GHz •Bluetooth •PSE - <to complete> •Product disposal: This product shall not be treated as household waste. This electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling. By doing this you will help conserve the environment. •PCI PIN •TBC FUNCTIONAL GUIDE •Power On-<to complete> Concept to be agreed. •Self Test-<to complete> Concept to be agreed. •Tamper Event <to complete> Concept to be agreed •Factory Reset <to complete> Concept to be agreed •Charging <to complete> Concept to be agreed REGULATORY INFORMATION FCC Statement Any Changes or modifications not expressly approved by the party responsibl e for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference (2)This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) : This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. …

Text truncated - open the document above for the full version.

Date: 2024-06-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, The chip QCM2290 installed in our product Miura Android Smart POS (model name: MASP01,FCC ID: 2AO4FMASP01), which supports GSM, WCDMA, LTE , Bluetooth, BLE, 2.4G WiFi, 5G WiFi (Band1/Band2/Band3/Band4). But, for the product, it only activates GSM, WCDMA Band2,Band4,Band5,LTE Band 2/4/5/7/12/13/17/25/26/41(2496-2690 MHz)/66, Bluetooth, BLE, 2.4G WiFi(2412-2462 MHz(802.11b/g/n-ht20)2422-2452 MHz(802.11n-ht40)), 5G WiFi (Band1：5150-5250MHz/Band4：5725-5850MHz),the other functions have been shielded though software.end users cannot activate it. Please contact me if there is need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Typed or Printed Name: Mario Cosci Title: Test & Certification Manager Miura Systems Ltd ADD: Unit 3, Cliveden Office Village, Lancaster Road, Cressex Industrial Estate, High Wycombe, United Kingdom TEL: 01494442114 FAX: 01494682840 E-mail: [email protected] Attestation Letter

U.S. AGENT LETTER OF ATTESTATION Date: 2023-11-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AO4FMASP01 Miura Systems Ltd certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. Miura Systems Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road Suite C1 Los Altos, CA 94024 United States FRN: 0033398652 Tel.: (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Miura Systems Ltd Address: Unit 3, Cliveden Office Village, Lancaster Road, Cressex Industrial Estate, High Wycombe, United Kingdom FRN: 0024099434 Tel: 01494442114 Email: Signed by (printed name): Mario Cosci Signature: [email protected]

Software Security Description

Company name：Mi ura Systems Ltd ADD: Unit 3, Cliveden Office Village, Lancaster Road, Cressex Industrial Estate, High Wycombe, United Kingdom TEL: 01494442114 FAX: 01494682840 E-mail: [email protected] Declaraton We, Miura Systems Ltd, hereby declareThe EUT MASP01 (model:MASP01, FCC ID:2AO4FMASP01) contains a variety of configuration, the Hardware Version (abbreviation "HV") was represent configuration information and see below table. Actual HV X2 micro-SIM E-SIM + micro-SIM MASP01-1 × MASP01-2 × 1) Symbol”√” in the table above represents “with the corresponding module” while ”×”“without the corresponding module” for the specific HV. Signature: Typed or Printed Name: Mario Cosci Title: Test & Certification Manager

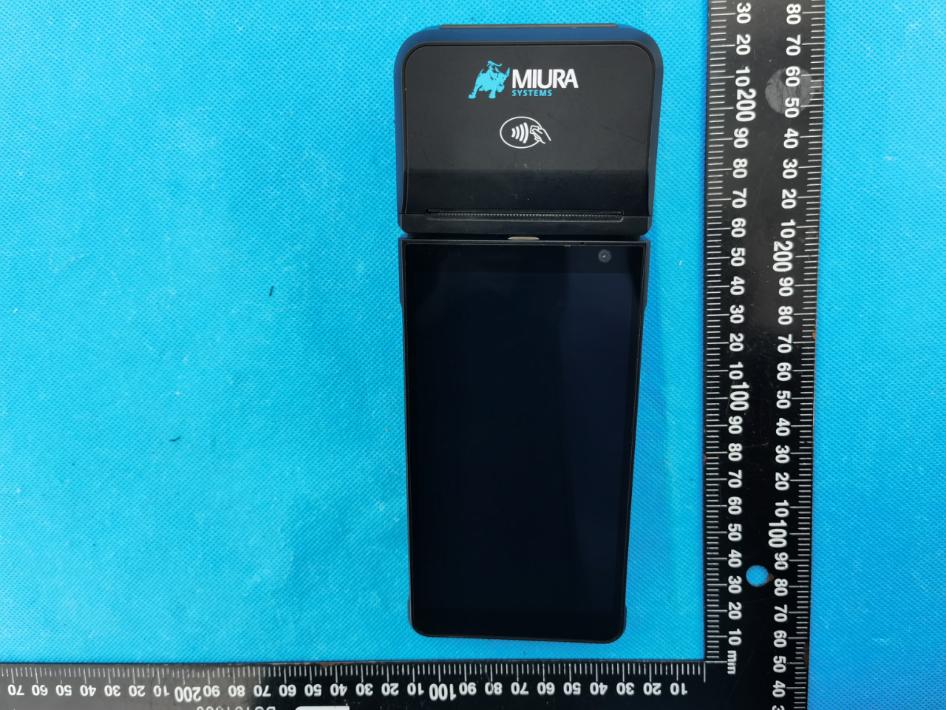

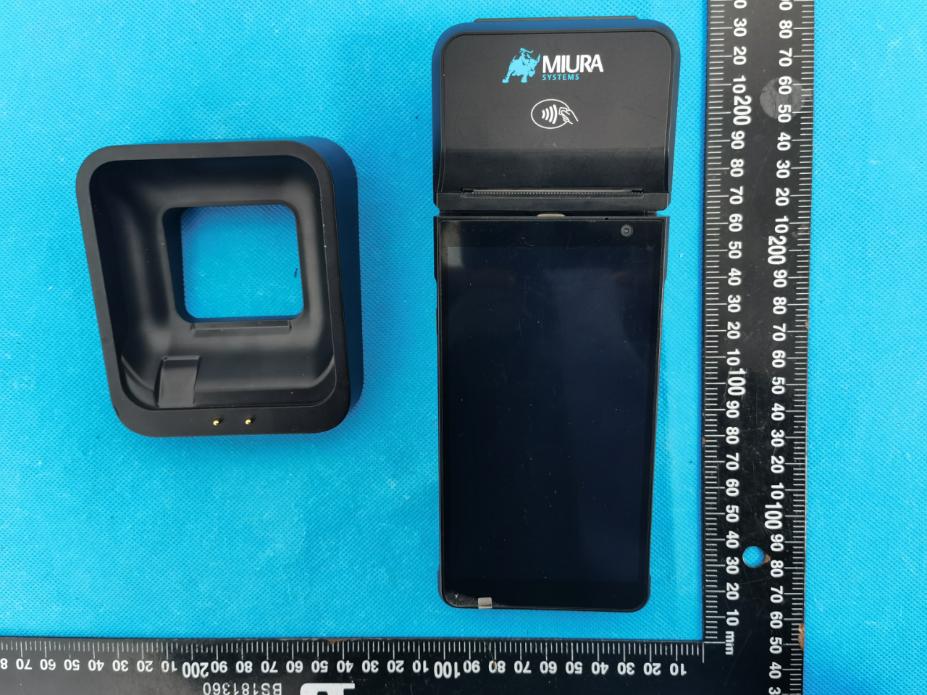

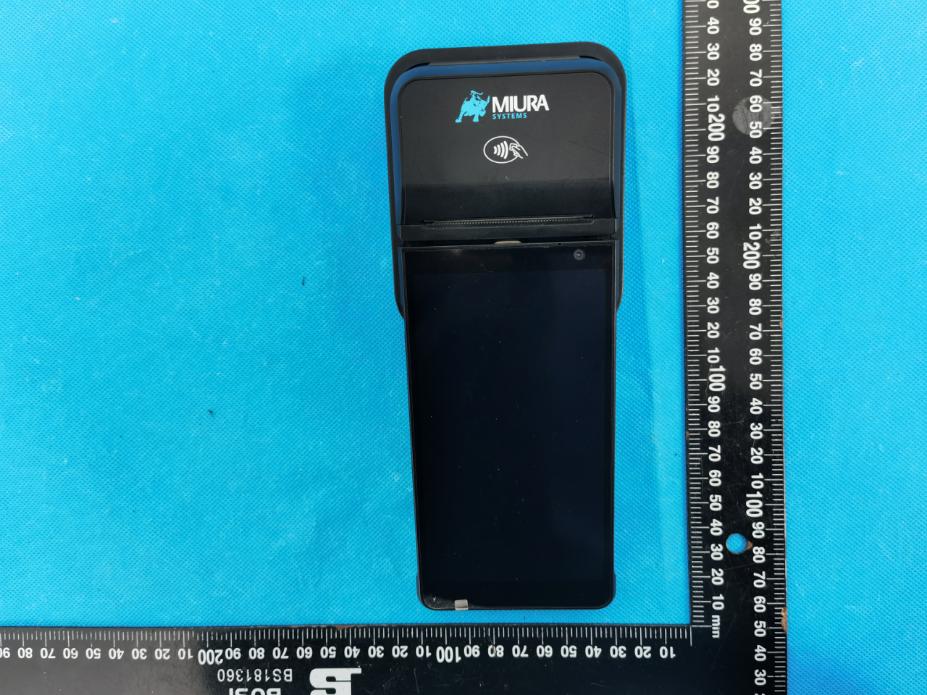

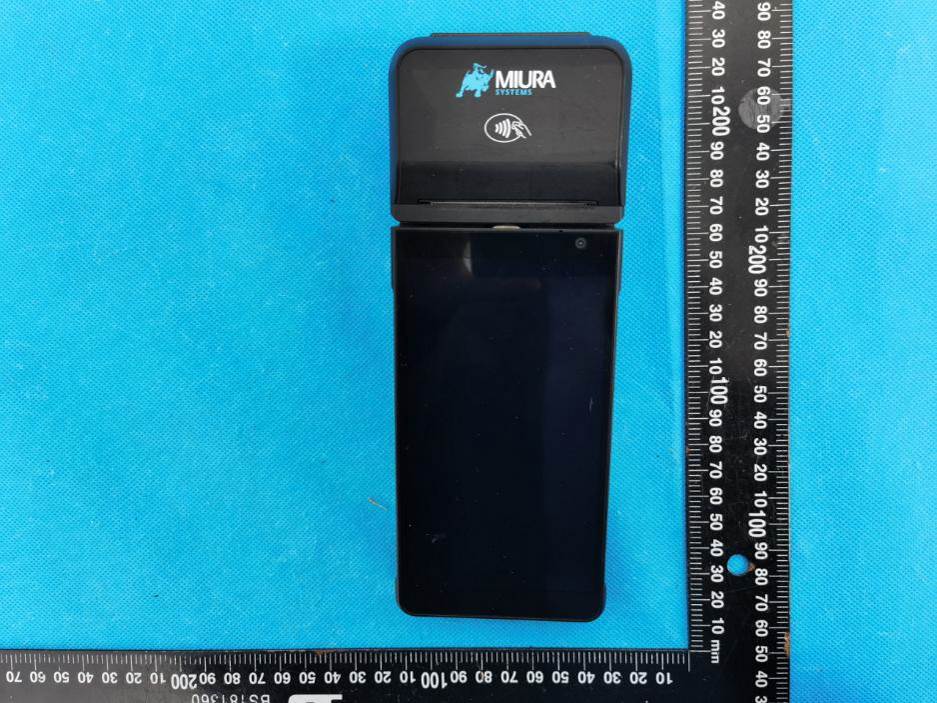

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 1 / 15 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS HVIN:MASP01-1 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 2 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 3 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 4 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 5 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 6 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 7 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 8 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 9 / 15 HVIN:MASP01-2 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 10 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 11 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 12 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 13 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 14 / 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 15 / 15

HVIN:MASP01-1 HVIN:MASP01-2

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 1 / 37 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS HVIN: MASP01-1 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 2 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 3 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 4 / 37 GSM/WCDMA/LTE Main Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 5 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 6 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 7 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 8 / 37 LTE DIV antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 9 / 37 Wi-Fi/BT antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 10 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 11 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 12 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 13 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 14 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 15 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 16 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 17 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 18 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 19 / 37 NFC antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 20 / 37 HVIN: MASP01-2 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 21 / 37

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 22 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 23 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 24 / 37 GSM/WCDMA/LTE Main Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 25 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 26 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 27 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 28 / 37 Wi-Fi/BT antenna LTE DIV antenna Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 29 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 30 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 31 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 32 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 33 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 34 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 35 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 36 / 37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001 37 / 37 NFC antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Govemment. SAR EVALUATION REPORT For Miura Systems Ltd Unit 3, Cliveden Office Village, Lancaster Road, Cressex Industrial Estate, High Wycombe, United Kingdom FCC ID:2AO4FMASP01 Report Type: Original Report Product Type: MASP01 Pro ject Engineer: Bard Liu Report Number: RKSA231206001-20B Report Date: 2024-05-20 Reviewed By: Oscar Ye EMC Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248, Chenghu Road, Development Zone, Yushan, Kunshan, Suzhou, Jiangsu, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcor p.com.cn Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA231206001-20B SAR Evaluation Report 2 of 117 Attestation of Test Results EUT Information EUT Description MASP01 Tested Model MASP01 FCC ID 2AO4FMASP01 Serial Number RKSA231206001-1 Test Date 2024-05-02~ 2024-05-08 MODE Max. SAR Level(s) Reported(W/kg) Limit GSM850 2.005 W/kg 10g Handheld SAR 0.732 W/kg 1g Body SAR 4.0 W/kg(Handheld) 1.6 W/kg(Body) GSM1900 2.002 W/kg 10g Handheld SAR 1.095 W/kg 1g Body SAR WCDMA II 1.549 W/kg 10g Handheld SAR 1.045 W/kg 1g Body SAR WCDMA lV 2.415 W/kg 10g Handheld SAR 1.177 W/kg 1g Body SAR WCDMA V 1.259 W/kg 10g Handheld SAR 0.450 W/kg 1g Body SAR LTE Band 25&LTE Band 2 1.103W/kg 10g Handheld SAR 0.619 W/kg 1g Body SAR LTE Band 66&LTE Band 4 2.233 W/kg 10g Handheld SAR 0.939 W/kg 1g Body SAR LTE Band 7 1.254 W/kg 10g Handheld SAR 1.06 W/kg 1g Body SAR LTE Band 12&LTE Band 17 0.762 W/kg 10g Handheld SAR 0.269 W/kg 1g Body SAR LTE Band 13 1.254 W/kg 10g Handheld SAR 0.299 W/kg 1g Body SAR LTE Band 26&LTE Band 5 1.118 W/kg 10g Handheld SAR 0.395 W/kg 1g Body SAR LTE Band 41 1.774 W/kg 10g Handheld SAR 1.128 W/kg 1g Body SAR 2.4GHz WLAN 0.128 W/kg 10g Handheld SAR 0.018 W/kg 1g Body SAR 5.2GHz WLAN 0.809 W/kg 10g Handheld SAR 0.088 W/kg 1g Body SAR 5.8GHz WLAN 0.489 W/kg 10g Handheld SAR 0.061 W/kg 1g Body SAR Bluetooth 0.179 W/kg 10g Handheld SAR 0.036 W/kg 1g Body SAR BLE 0.044 W/kg 10g Handheld SAR 0.021 W/kg 1g Body SAR Simultaneous 2.502W/kg 10g Handheld SAR 1.265 W/kg 1g Body SAR Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE 1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA231206001-20B SAR Evaluation Report 3 of 117 IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA231206001-20B SAR Evaluation Report 4 of 117 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY…

Text truncated - open the document above for the full version.

1#_GSM850_GPRS 4 Tx slots_Front_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 41.503; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.11 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.93 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 1.01 W/kg; SAR(10 g) = 0.612 W/kg Maximum value of SAR (measured) = 1.54 W/kg 0 dB = 1.54 W/kg = 1.88 dBW/kg 2#_GSM850_GPRS 4 Tx slots_Back_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 41.503; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.86 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.432 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 5.54 W/kg SAR(1 g) = 2.54 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 4.27 W/kg 0 dB = 4.27 W/kg = 6.30 dBW/kg 3#_GSM850_GPRS 4 Tx slots_Back_0mm_Ch128 Communication System: UID 0, GSM850 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium parameters used: f = 824.2 MHz; σ = 0.894 S/m; ε r = 41.665; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.46 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.224 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 6.87 W/kg SAR(1 g) = 3.16 W/kg; SAR(10 g) = 1.88 W/kg Maximum value of SAR (measured) = 5.31 W/kg 0 dB = 5.31 W/kg = 7.25 dBW/kg 4#_GSM850_GPRS 4 Tx slots_Back_0mm_Ch251 Communication System: UID 0, GSM850 (0); Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium parameters used: f = 848.8 MHz; σ = 0.918 S/m; ε r = 41.368; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.18 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.993 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 4.36 W/kg SAR(1 g) = 1.99 W/kg; SAR(10 g) = 1.19 W/kg Maximum value of SAR (measured) = 3.36 W/kg 0 dB = 3.36 W/kg = 5.26 dBW/kg 5#_GSM850_GPRS 4 Tx slots_Back_10mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.906 S/m; ε r = 41.503; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.693 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.256 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.815 W/kg SAR(1 g) = 0.598 W/kg; SAR(10 g) = 0.442 W/kg Maximum value of SAR (measured) = 0.710 W/kg 0 dB = 0.71 W/kg = -1.49 dBW/kg 6#_GSM850_GPRS 4 Tx slots_Back_10mm_Ch128 Communication System: UID 0, GSM850 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium parameters used: f = 824.2 MHz; σ = 0.894 S/m; ε r = 41.665; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.565 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.393 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.824 W/kg SAR(1 g) = 0.525 W/kg; SAR(10 g) = 0.345 W/kg Maximum value of SAR (measured) = 0.615 W/kg 0 dB = 0.615 W/kg = -2.11 dBW/kg 7#_GSM850_GPRS 4 Tx slots_Back_10mm_Ch251 Communication System: UID 0, GSM850 (0); Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium parameters used: f = 848.8 MHz; σ = 0.918 S/m; ε r = 41.368; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(9.88, 9.88, 9.88); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 1963 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (8x9x1)…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 1 of 196 Band 2_1.4 MHz_Low_QPSK_RB6#0 Band 2_1.4 MHz_Low_QPSK_RB1#0 Att 30 dB ** A SGL * 3DB RBW 30 kHz SWT 35 ms * VBW 100 kHz * Ref 30 dBm Offset 14.5 dB LVL Center 1.85 GHzSpan 3 MHz300 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -24.28 dBm 1.849994000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:13:15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 2 of 196 Band 2_1.4 MHz_Low_16QAM_RB6#0 Band 2_1.4 MHz_Low_16QAM_RB1#0 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.85 GHzSpan 3 MHz300 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -26.38 dBm 1.849976000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:13:23 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 3 of 196 Band 2_1.4 MHz_High_QPSK_RB6#0 Band 2_1.4 MHz_High_QPSK_RB1#5 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.91 GHzSpan 3 MHz300 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -27.22 dBm 1.910000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:13:31 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 4 of 196 Band 2_1.4 MHz_High_16QAM_RB6#0 Band 2_1.4 MHz_High_16QAM_RB1#5 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.91 GHzSpan 3 MHz300 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -28.27 dBm 1.910000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:13:39 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 5 of 196 Band 2_3 MHz_Low_QPSK_RB1#0 Band 2_3 MHz_Low_QPSK_RB15#0 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.85 GHzSpan 6 MHz600 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -27.40 dBm 1.850000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:14:30 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 6 of 196 Band 2_3 MHz_Low_16QAM_RB1#0 Band 2_3 MHz_Low_16QAM_RB15#0 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.85 GHzSpan 6 MHz600 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -29.46 dBm 1.850000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:14:37 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 7 of 196 Band 2_3 MHz_High_QPSK_RB1#14 Band 2_3 MHz_High_QPSK_RB15#0 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.91 GHzSpan 6 MHz600 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -29.51 dBm 1.910000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:14:46 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 8 of 196 Band 2_3 MHz_High_16QAM_RB1#14 Band 2_3 MHz_High_16QAM_RB15#0 Att 30 dB ** A SGL * * 3DB RBW 30 kHz VBW 100 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.91 GHzSpan 6 MHz600 kHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -30.50 dBm 1.910000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:14:54 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231206001-00E Page 9 of 196 Band 2_5 MHz_Low_QPSK_RB1#0 Band 2_5 MHz_Low_QPSK_RB25#0 Att 30 dB ** A SGL * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms * Ref 30 dBm Offset 14.5 dB LVL Center 1.85 GHzSpan 10 MHz1 MHz/ *1 RM AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 50 of 50 1 Marker 1 [T1 ] -25.30 dBm 1.850000000 GHz D1 -13 dBm ProjectNo.:RKSA231206001 Tester: Bard Liu Date: 22.FEB.2024 18:15:45 Bay Area Compliance Laboratories Corp.…
