2AO6ZX4104G Smart Phone

Epik One America Corporation

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 27, 2020
Application Purpose: Original Equipment
Date of Application: May 27, 2020
Equipment Note: 4G Smart Phone
Frequency Range: 2412.00000000 - 2472.00000000
Company: Epik One America Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 User's Guide Contents Getting Started ......................................................... 3 Overview .......................................................................... 3 Key Explainrd ................................................................... 3 Starting up........................................................................ 4 Switching Your Phone On/Off .......................................... 5 Getting Around Your Phone ............................................. 6 Phone Calls .............................................................. 7 Calling from the Phone .................................................... 7 Calling from Your Contacts .............................................. 7 Calling from a Text Message ........................................... 8 Receiving Calls ................................................................ 8 Contacts ................................................................... 8 Messaging ................................................................ 9 The Message Box ............................................................ 9 Sending an Message ....................................................... 9 Message Settings .......................................................... 10 Touch Input Settings ...................................................... 10 Getting Connected to the Internet ........................ 10 Adding a New Network Connection ..................... 11 Turning On Wi-Fi............................................................ 11 Connecting to a Wi-Fi Network ...................................... 11 Checking the Wi-Fi Network Status ............................... 11 USB tethering & portable hotspot .................................. 12 Browsing the Internet ............................................ 13 Making the Most of Multimedia............................. 13 2 Camera .......................................................................... 13 FM ................................................................................. 13 Playing Music ................................................................ 13 Gallery ........................................................................... 14 Sund Recorder .............................................................. 14 Sorting out Your Phone Settings .......................... 14 Bluetooth ....................................................................... 14 Setting Date and Time ................................................... 15 Display Settings ............................................................. 15 Sound Settings .............................................................. 15 Language Settings ........................................................ 16 Security Settings ........................................................... 16 Managing Your Device Memory .................................... 16 Reset to Factory Settings .............................................. 17 Google ........................................................................... 17 Clock.............................................................................. 17 Calculator ...................................................................... 17 For Your Safety ...................................................... 18 General Safety .............................................................. 18 Distraction ..................................................................... 19 Product Handling ........................................................... 19 Electrical Safety ............................................................. 22 Interference ................................................................... 23 Explosive Environments ................................................ 24 System update .............................................................. 25 Comm on fault diagnosis ................................................ 25 3 Getting Started Overview Key Explainrd Key Function Power Key • Press to turn on or off • Press to restart your phone • Press to Screenshot • Press to Emergency Home Key • Press to return to the Home Screen from any application or screen. Menu Key Hold to see recently used applications. Back Key Press to go to the previous screen. Volume Keys Press or hold to turn the volume up or down. 4 Starting up Status and Notification lcons Your phone will tell you exactly what’s going on by showing you simple icons. Here’s what they mean USB connected Missed call Airplane mode Signal strength Battery charge New message Meeting mode Wi-Fi network Alarm set Earphone insert Silent mode New Wi-Fi network detected Bluetooth icon USB debugging connected Installing the SIM/SD Switch off your phone before installing or replacing the battery, SIM, or memory card. 1. Remove the back cover 2. Hold the SIM card with the cut corner oriented as shown and slip it into the card holder. 3.Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position. 4.Press the cover gently back into place until you hear a click. 5 Charging the Battery When you first get your new phone you’ll need to charge the battery. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack. Connect the charger to a standard AC wall outlet. Disconnect the charger when the battery is fully charged. Switching Your Phone On/Off Make sure the SIM card is in your device and the battery is charged. 1. Hold Power Key to switch on your phone. 2. To switch it off, hold Power Key to get the phone options. Select Power off, and then tap OK. Setting Up Your Phone for the First Time When you first power on your phone after you purchase it or reset it to factory settings (see chapter Sorting out Your Phone Settings – Privacy: Reset to Factory Settings), you need to do some settings before …

Text truncated - open the document above for the full version.

Cover Letter(s)

EpikOneAmericaCorporation Address:801BrickellAve.#900,Miami,Florida,UnitedStates Tel.:+1-8582489036 E-mail:[email protected] QA-FR-170-B FCCAuthorization Date:2020-05-05 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorization Towhomitmayconcern: We,EpikOneAmericaCorporationherebyauthorizesBayAreaCompliance LaboratoriesCorporationtoactonitsbehalfinallmattersrelatingtoapplicationfor Equipmentauthorization,includingthesigningofalldocumentsrelatingtothesematters. AllactscarriedoutbyBayAreaComplianceLaboratoryCorporationonourbehalfshall havethesameeffectasourownaction. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988, 21U.S.C.862. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, Signature TracyHu Manager

Cover Letter(s)

EpikOneAmericaCorporation Address:801BrickellAve.#900,Miami,Florida,UnitedStates Tel.:+1-8582489036 E-mail:[email protected] FCCConfidentialAuthorization Date:2020-05-05 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2AO6ZX410 InaccordancewithSections0.457and0.459oftheCommission’sRules, EpikOneAmericaCorporationherebyrequestslong-termconfidentialtreatmentof informationaccompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription Partlist/Tuneupprocedure(forlicenseddevices) Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. SincerelyYours, Signature TracyHu Manager

External Photos

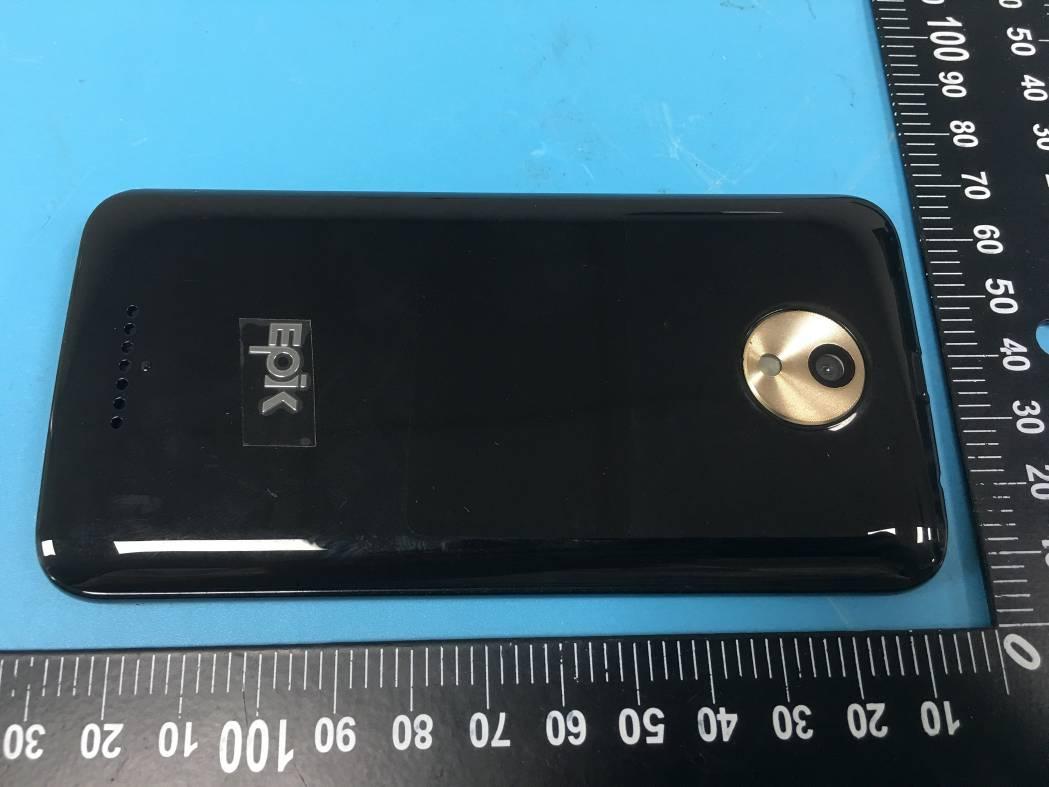

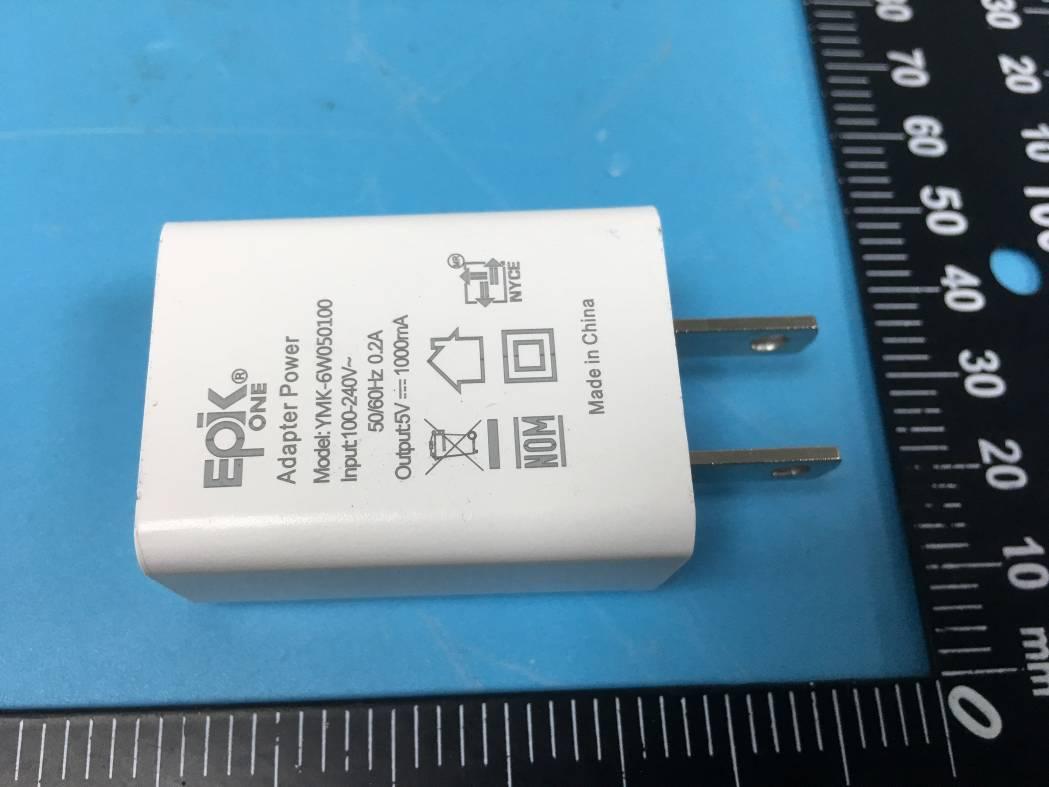

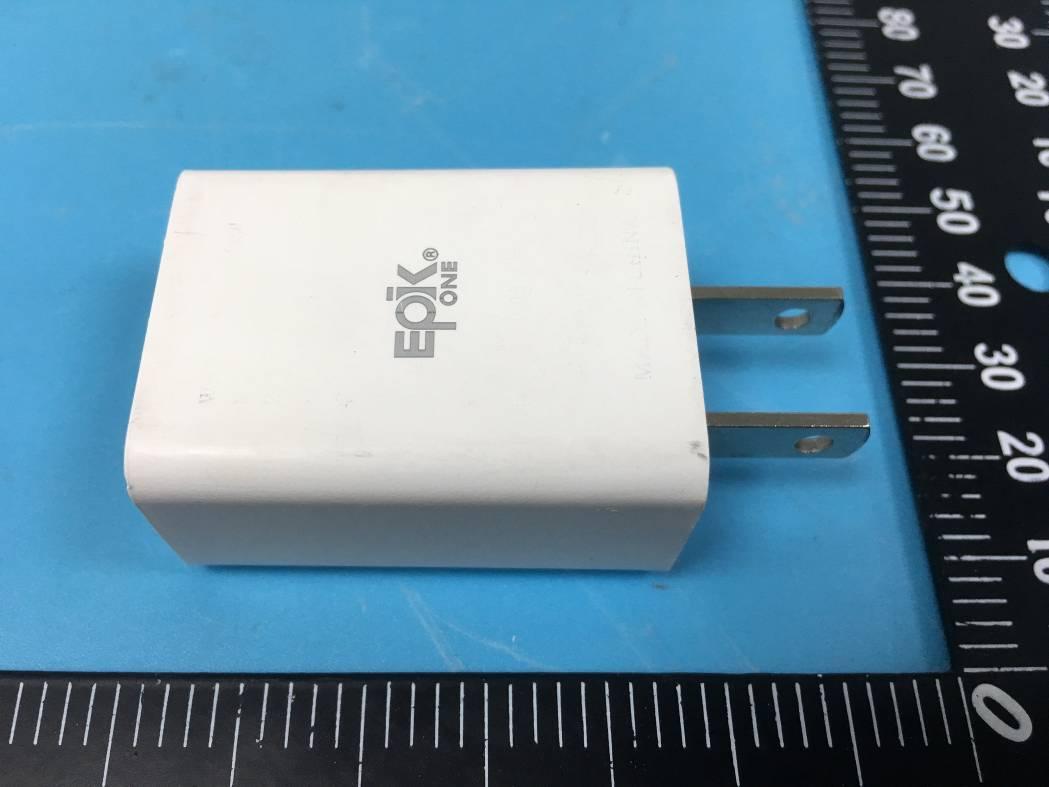

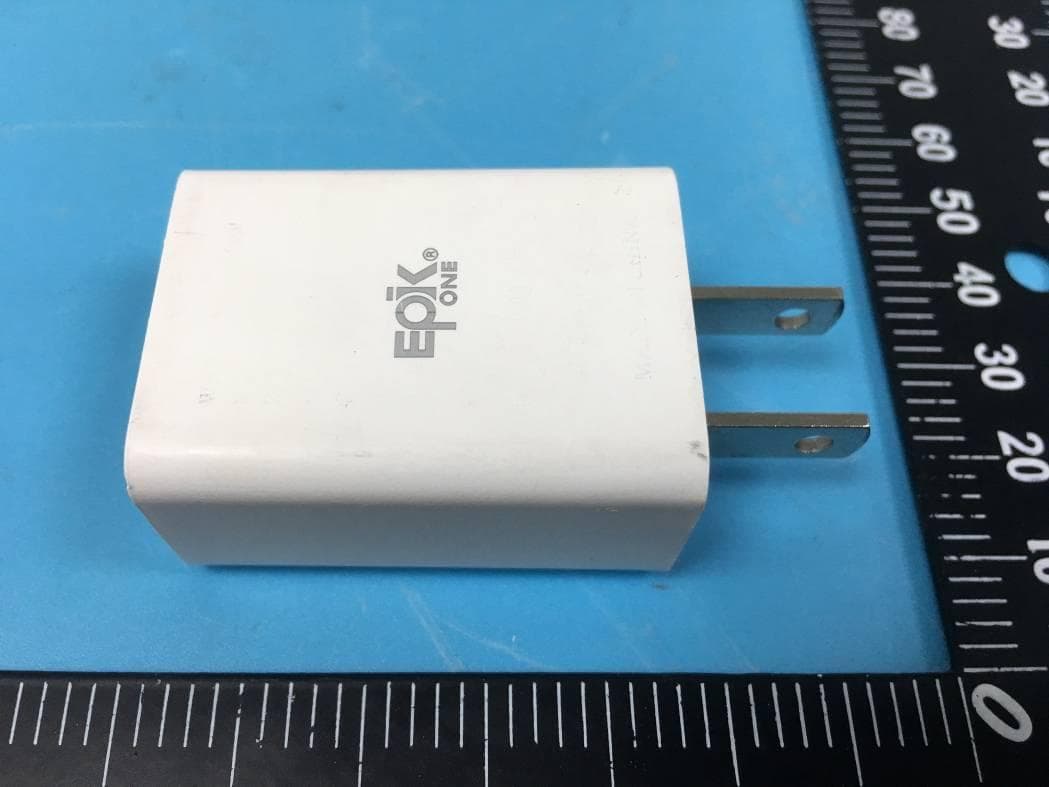

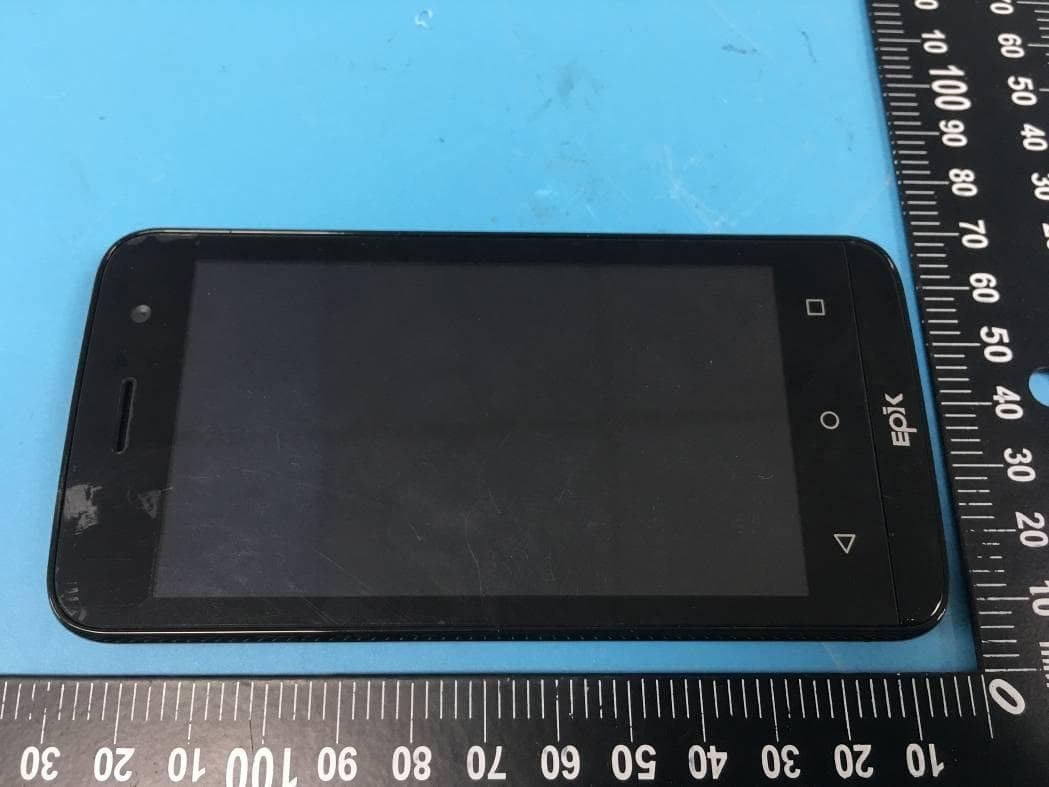

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Only the color is different.

ID Label/Location Info

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS 4G Aux Ant

RF Exposure Info

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR EVALUATION REPORT For Epik One America Corporation 801 Brickell Ave. #900 Miami Florida United States FCC ID: 2AO6ZX410 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : 4 G S m a r t P h o n e Report Number: RSZ200423004-SA Report Date: 2020-05-15 Reviewed By: Alvin Huang Lab Manager Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 2 of 71 Attestation of Test Results EUT Information EUT Description 4G Smart Phone Tested Model X410 FCC ID 2AO6ZX410 Serial Number RSZ200423004-SA-S1 Test Date 2020/04/30 to 2020/05/03 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.30 1. 6 1g Body SAR 0.49 PCS 1900 1g Head SAR 0.17 1g Body SAR 0.18 WCDMA Band 2 1g Head SAR 0.31 1g Body SAR 0.28 WCDMA Band 5 1g Head SAR 0.26 1g Body SAR 0.38 LTE Band 2 1g Head SAR 0.41 1g Body SAR 0.34 LTE Band 4 1g Head SAR 0.59 1g Body SAR 0.68 LTE Band 5 1g Head SAR 0.32 1g Body SAR 0.47 LTE Band 7 1g Head SAR 0.22 1g Body SAR 1.30 WLAN 2.4G 1g Head SAR 0.24 1g Body SAR 0.02 Simultaneous 1g Head SAR 0.83 1g Body SAR 1.36 1g Body SAR 1.36 (Hotspot) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 3 of 71 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 4 of 71 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION ................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 7 SAR LIMITS ................................................................................................................................................................ 8 FACILITIES ................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION ................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ..................................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 1 of 45 APPENDIX C PROBE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 2 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 3 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 4 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 5 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 6 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 7 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 8 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 9 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 10 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 11 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 12 of 45 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 13 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 14 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 15 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 16 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 17 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 18 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 19 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 20 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 21 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 22 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 23 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 24 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 25 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 26 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 27 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 28 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 29 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 30 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 31 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 32 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 33 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 34 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 35 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 36 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 37 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 38 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 39 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 40 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 41 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 42 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 43 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 44 of 45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 45 of 45

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 1 of 108 Test Plot 1#: GSM 850_Head Left Cheek_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2) ; Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.247 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.634 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.291 W/kg SAR(1 g) = 0.219 W/kg; SAR(10 g) = 0.156 W/kg Maximum value of SAR (measured) = 0.231 W/kg 0 dB = 0.231 W/kg = -6.36 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 2 of 108 Test Plot 2#: GSM 850_Head Left Tilt_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2) ; Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.151 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.009 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.185 W/kg SAR(1 g) = 0.145 W/kg; SAR(10 g) = 0.107 W/kg Maximum value of SAR (measured) = 0.152 W/kg 0 dB = 0.152 W/kg = -8.18 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 3 of 108 Test Plot 3#: GSM 850_Head Right Cheek_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2) ; Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.269 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.241 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.323 W/kg SAR(1 g) = 0.261 W/kg; SAR(10 g) = 0.194 W/kg Maximum value of SAR (measured) = 0.273 W/kg 0 dB = 0.273 W/kg = -5.64 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 4 of 108 Test Plot 4#: GSM 850_Head Right Tilt_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2) ; Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.185 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.334 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.223 W/kg SAR(1 g) = 0.175 W/kg; SAR(10 g) = 0.130 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg = -7.38 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 5 of 108 Test Plot 5#: GSM 850_Body Worn Back_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2) ; Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.475 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.24 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.571 W/kg SAR(1 g) = 0.428 W/kg; SAR(10 g) = 0.309 W/kg Maximum value of SAR (measured) = 0.448 W/kg 0 dB = 0.448 W/kg = -3.49 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA Page 6 of 108 Test Plot 6#: GSM 850_Body Back_Middle DUT: 4G Smart Phone; Type: X410; Serial: RSZ200423004-SA-S1; Communication System: Generic GPRS-2 slots; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.895 S/m; ε r = 41.031; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @836.6 MHz;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 SN1562;Calibrated: 2020/03/10  P…

Text truncated - open the document above for the full version.

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 1 of 5 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 Head Left Cheek Setup Photo Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 2 of 5 Head Left Tilt Setup Photo Head Right Cheek Setup Photo Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 3 of 5 Head Right Tilt Setup Photo Body (Worn) Back Setup Photo (10mm) 10 mm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 4 of 5 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10mm 10 mm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200423004-SA SAR Evaluation Report 5 of 5 Body Bottom Setup Photo (10mm) Body Top Setup Photo (10mm) 10mm 10mm

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Tracy Hu

[email protected]+1-8582489036Fax: +1-8582489036

Test Firm

Bay Area Compliance Laboratories Corp. (Shenzhen)Well Wang

[email protected]+86 (0) 755 33320018

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.47 GHz	33.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is peak conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory and simultaneous transmission exposure conditions are 0.24 W/kg, 0.02 W/kg and 1.36 W/kg, respectively.
